USER MANUAL iSENSYS MF543x CANON

Please read "Important Safety Instructions" before operating this product. After you finish reading this guide, store it in a safe place for future reference.

The information in this document is subject to change without notice.

https://oip.manual.canon

Quick Setup

Getting Started

Please read "Important Safety Instructions" before operating this product. P.136

After you finish reading this guide, store it in a safe place for future reference. The information in this document is subject to change without notice.

Mise en route

https://oip.manual.canon to read the User's Guide that describes all functions of this machine.

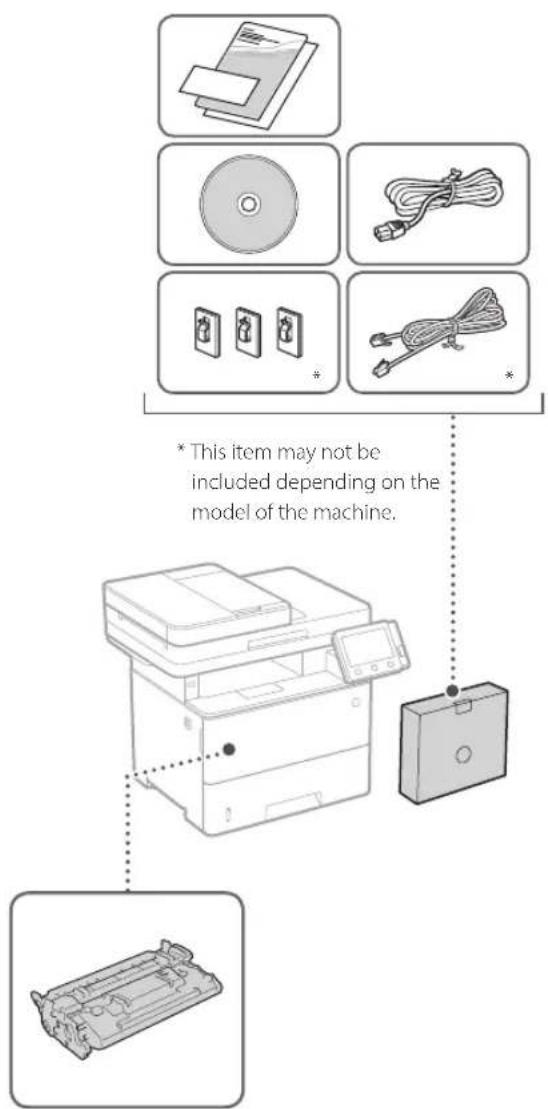

Items Included with the Machine Installing the Machine

* This item may not be included depending on the model of the machine.

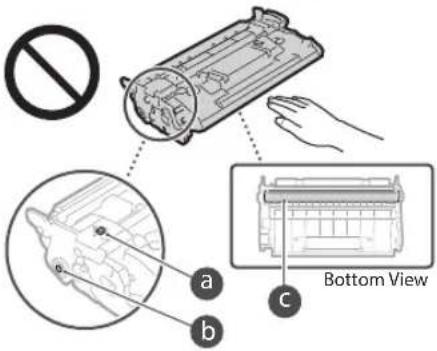

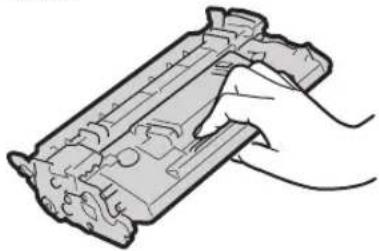

Toner cartridge (included with the machine)

Before starting the installation

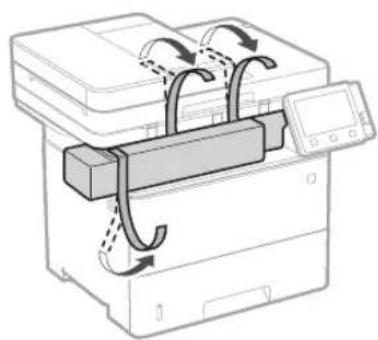

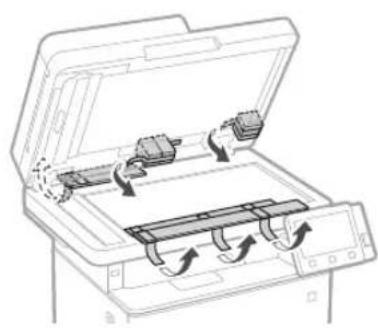

- Remove all of the tape.

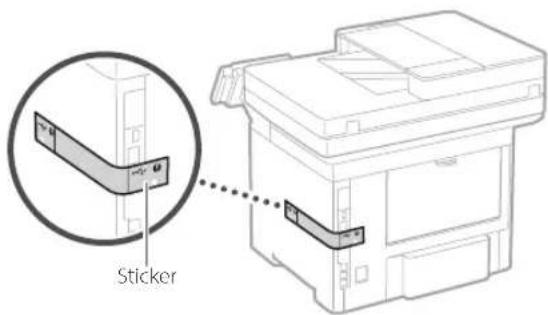

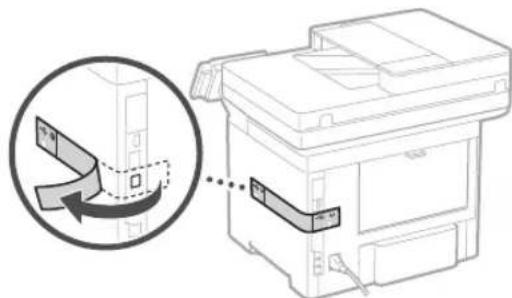

- Do not remove the sticker that covers the USB port.

Sticker

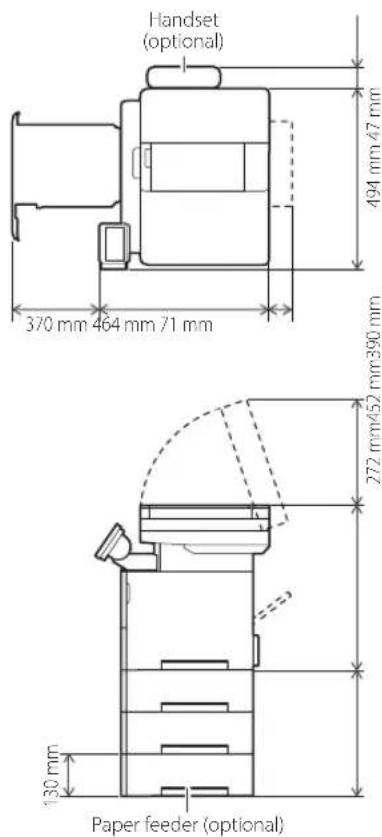

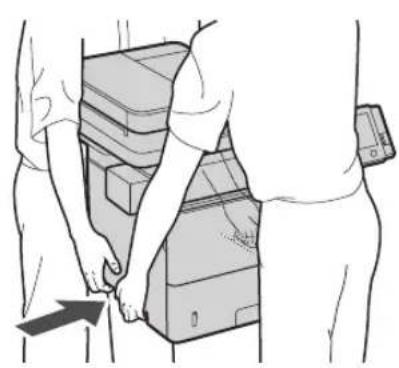

Installation requirements

Provide a space of 100 mm or more around the machine.

Handset (optional) 370 mm 464 mm 71 mm 494 mm 47 mm 272 mm452 mm390 mm 130 mm Paper feeder (optional)

1

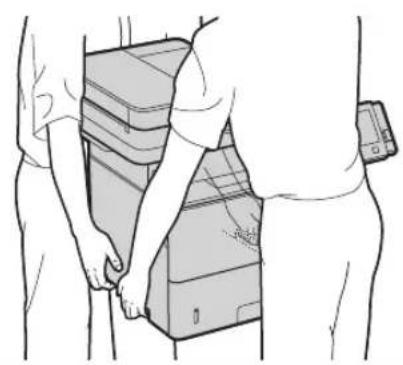

Illustration of two people handling stacked electronic devices, one pointing at a device (no text or symbols visible)

4

Diagram of an open printer with a paper airplane being inserted, showing internal structure and no text or symbols.

2

Diagram of a printer with internal components and directional arrows indicating motion (no text or symbols)

5

Line drawing of an open file organizer with internal components and directional arrows indicating movement (no text or symbols)

Diagram of a printer with a paper feed being inserted, showing internal components and a scroll (no text or symbols)

6

Diagram of a printer with an open lid and a downward arrow indicating compression or disassembly (no text or symbols present)

Illustration of hands installing or removing a device into a file compartment (no text or symbols visible)

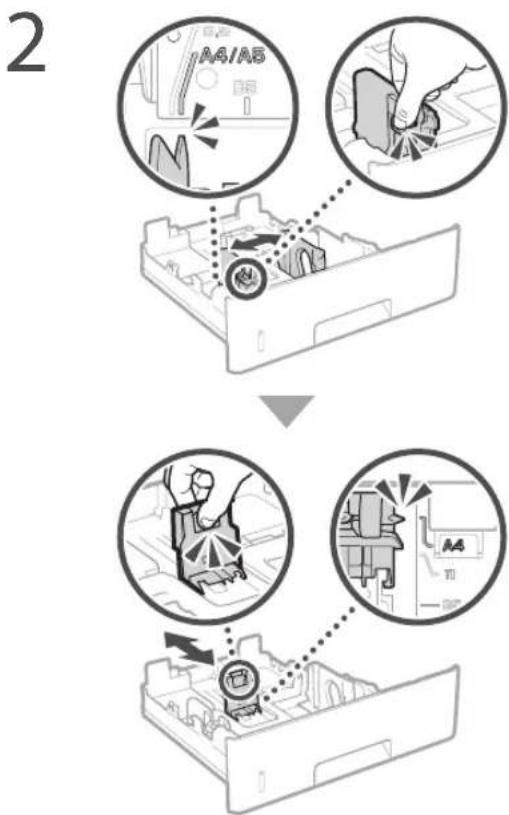

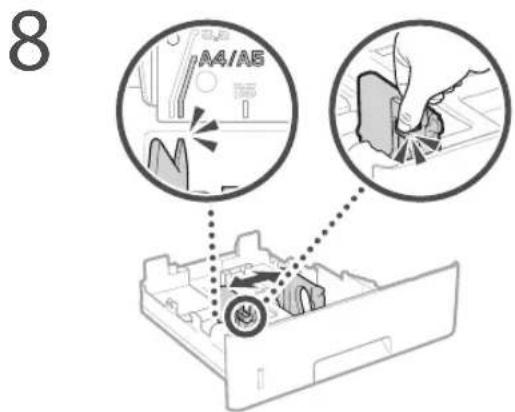

8 A4/A5

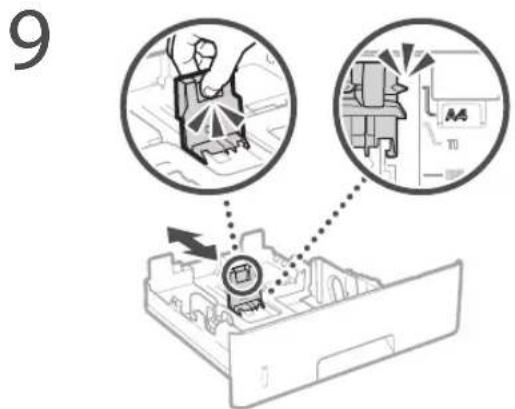

9

Diagram of a file drawer with an arrow indicating a movement or flow, labeled '10' in the top-left corner (no other text or symbols)

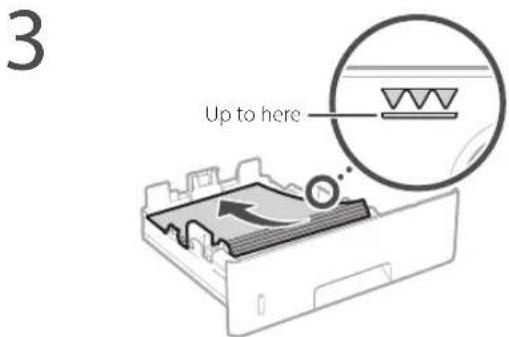

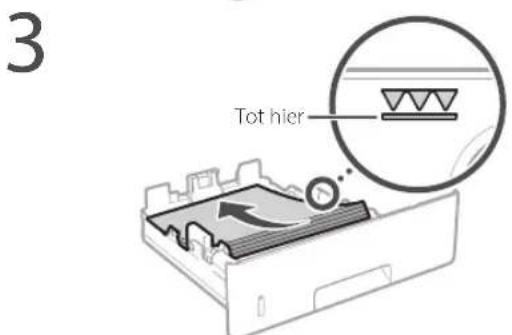

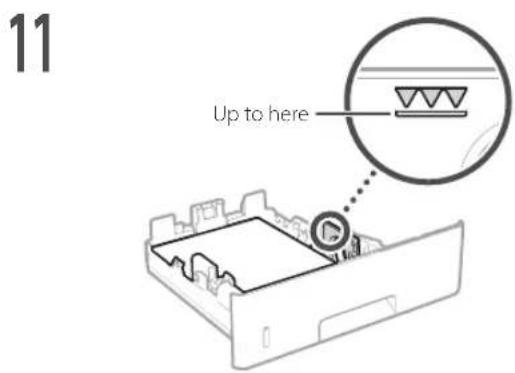

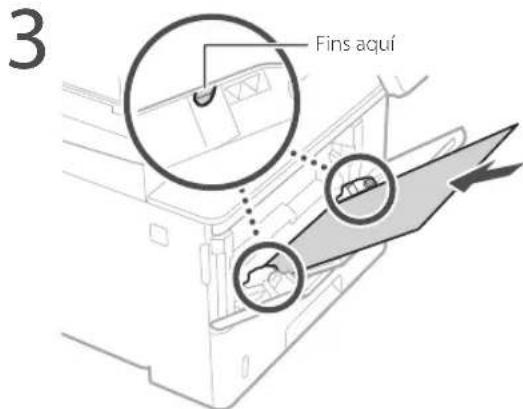

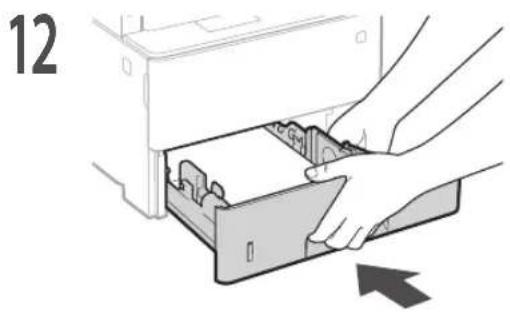

11 Up to here

Illustration of hands inserting a device into a plastic housing (no text or symbols)

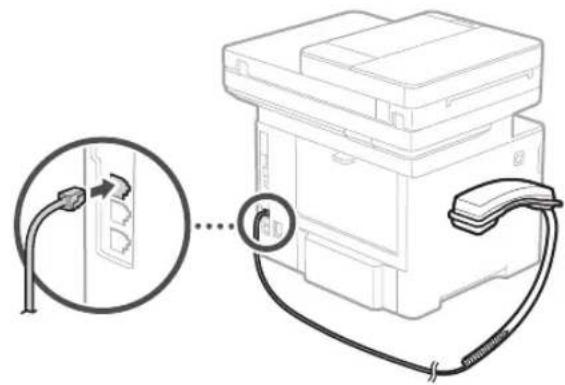

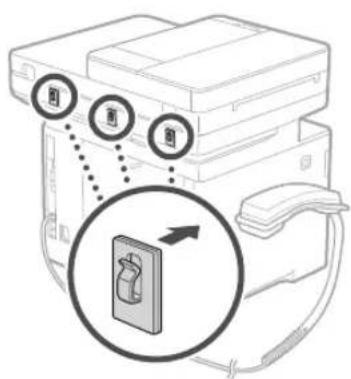

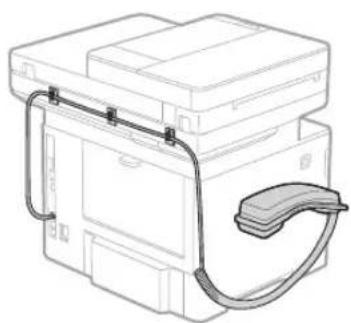

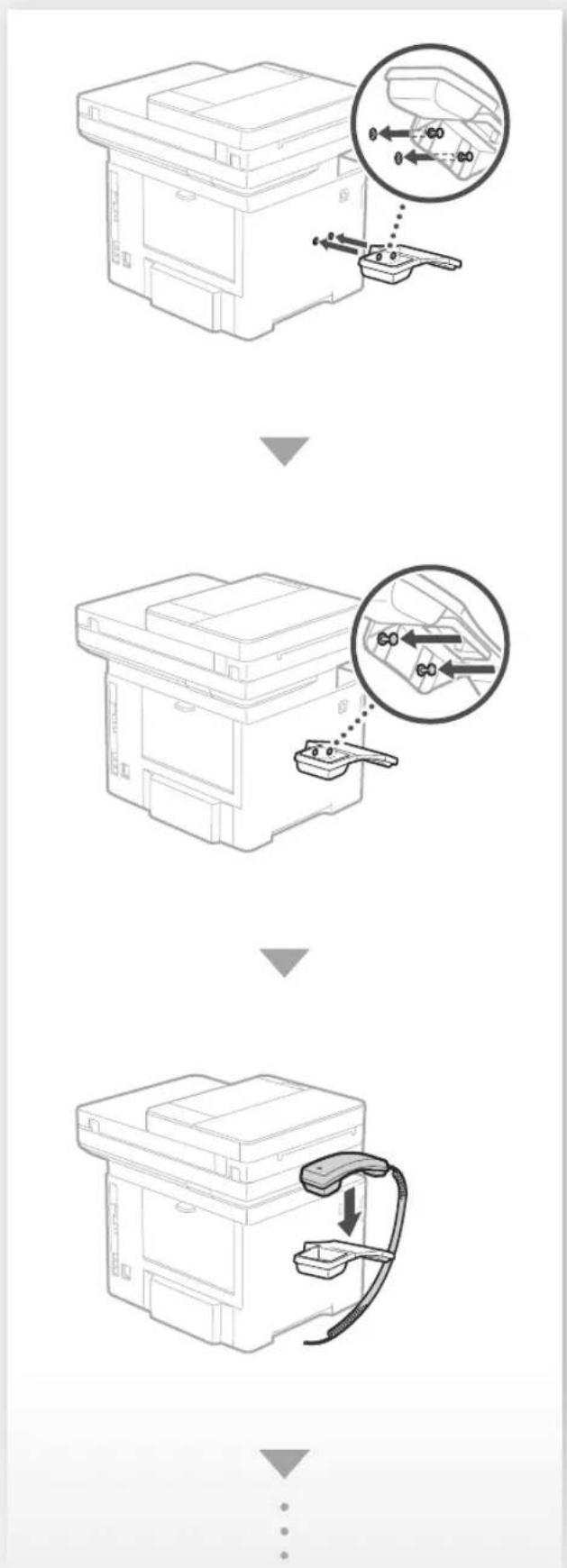

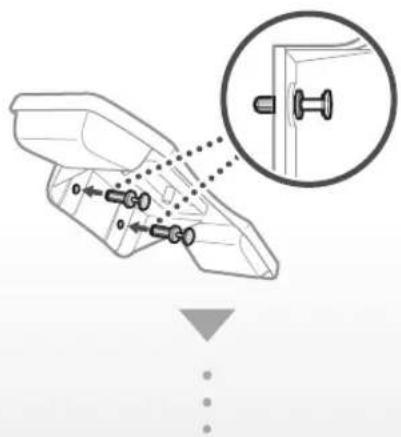

13 Attach the handset (optional).

Line drawing of a printer or printer casing with a circular arrow indicating rotation (no text or symbols present)

Technical line drawing of a mechanical component with a magnified inset showing a detail (no text or symbols)

Diagram showing cable connection to a device with a magnified detail view highlighting a connector or cable.

Diagram showing printer setup with labeled parts and a magnified view of the printer's internal structure.

Line drawing of a mechanical device with a cable and connector (no text or symbols)

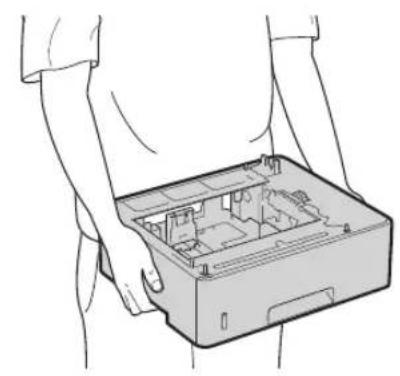

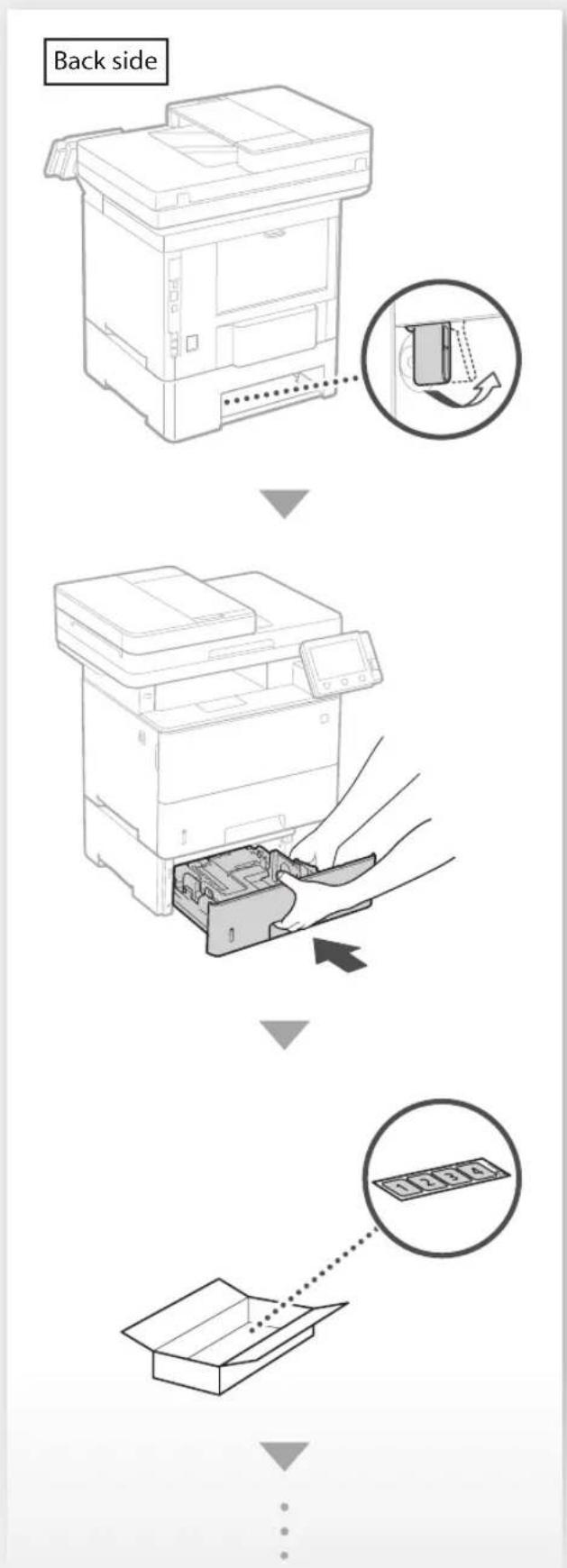

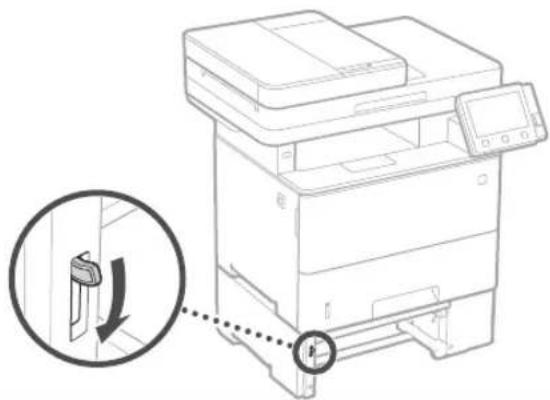

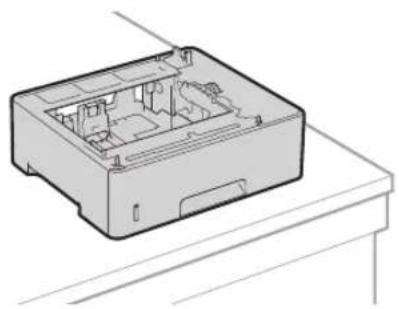

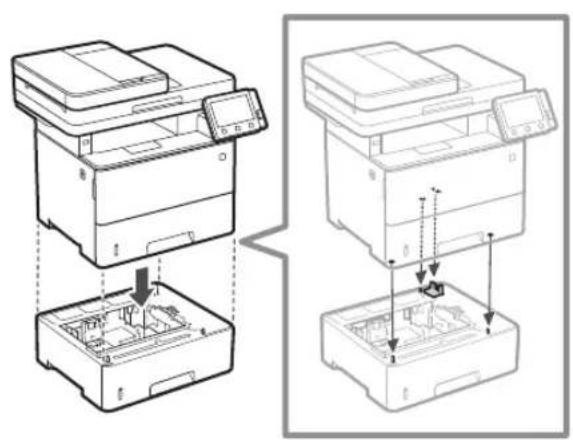

14 Install the paper feeder (optional).

Line drawing of a person holding an open electronic device case (no text or symbols visible)

Technical diagram showing assembly of a printer with internal components and a close-up view of the printer's internal structure.

Technical line drawing of a device casing with internal compartments and mounting base (no text or symbols)

Line drawing of a printer with a hand inserting a card into the cover (no text or symbols)

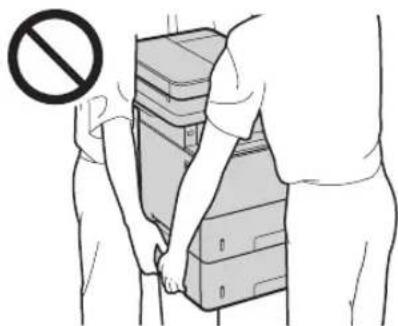

Line drawing of two people handling stacked electronic devices (no text or symbols)

Line drawing of a printer with a magnified inset showing a device attachment (no text or symbols)

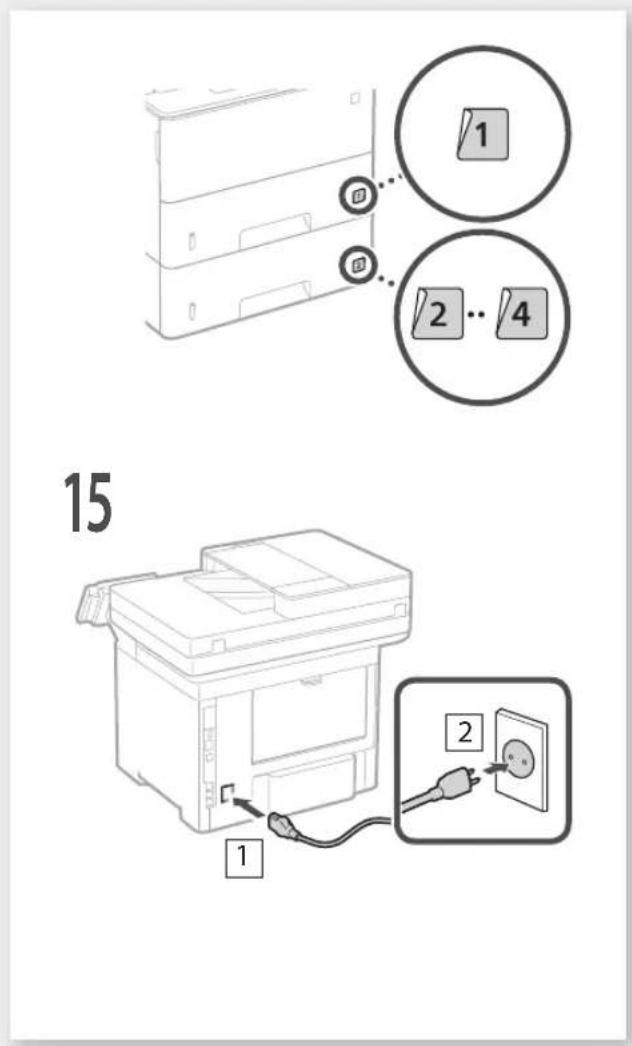

Back side

1 2 ... 4 15 1 2

Next, proceed to configure the machine.

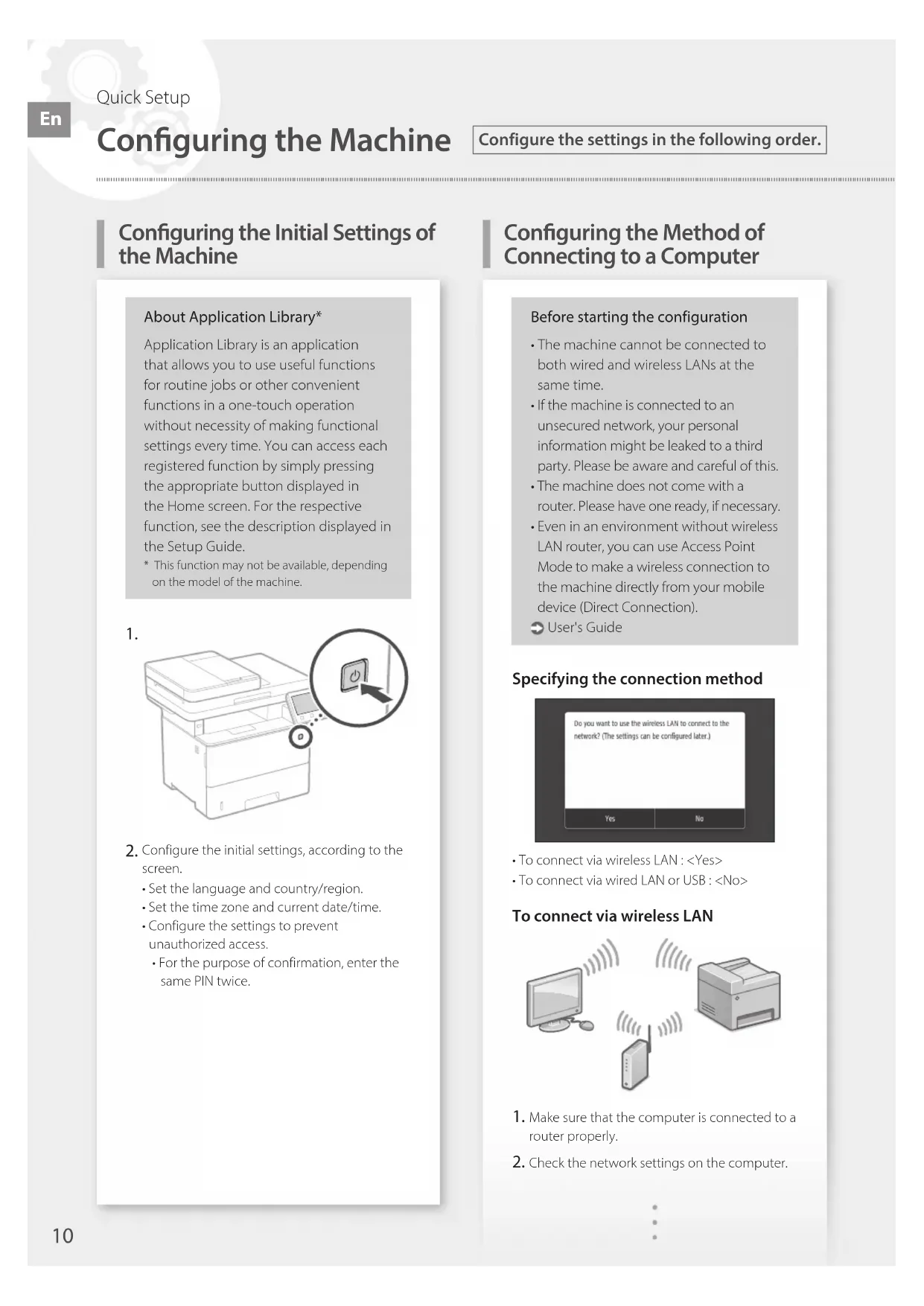

Configuring the Initial Settings of the Machine

About Application Library\*

Application Library is an application that allows you to use useful functions for routine jobs or other convenient functions in a one-touch operation without necessity of making functional settings every time. You can access each registered function by simply pressing the appropriate button displayed in the Home screen. For the respective function, see the description displayed in the Setup Guide.

* This function may not be available, depending on the model of the machine.

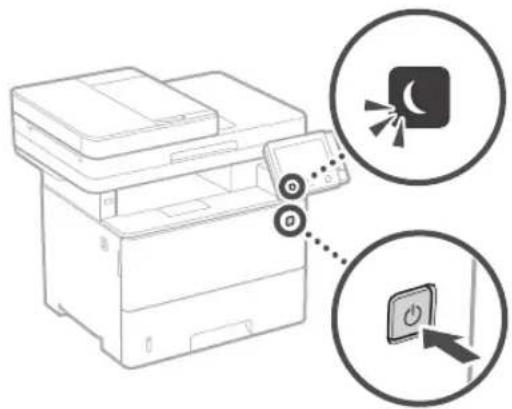

1.

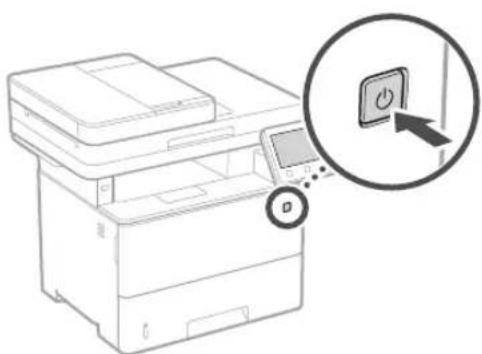

Line drawing of a printer with a power button icon and magnified view of the printer's screen (no text or symbols)

1. Configure the initial settings, according to the screen.

2. Set the language and country/region.

3. Set the time zone and current date/time.
4. Configure the settings to prevent unauthorized access.
5. For the purpose of confirmation, enter the same PIN twice.

Configuring the Method of Connecting to a Computer

Before starting the configuration

• The machine cannot be connected to both wired and wireless LANs at the same time.
• If the machine is connected to an unsecured network, your personal information might be leaked to a third party. Please be aware and careful of this.
• The machine does not come with a router. Please have one ready, if necessary.
• Even in an environment without wireless LAN router, you can use Access Point Mode to make a wireless connection to the machine directly from your mobile device (Direct Connection).

→ User's Guide

Specifying the connection method

Do you want to use the wireless LAN to connect to the network? (The settings can be configured later.) Yes No

• To connect via wireless LAN :
• To connect via wired LAN or USB :

To connect via wireless LAN

Illustration of a printer, network device, and computer monitor with signal waves (no text or symbols)

1. Make sure that the computer is connected to a router properly.
2. Check the network settings on the computer.

1. Take note of the SSID and network key.

2. Check the label on the router. ➞ User's Guide

3. The setting operation is easier if the router is provided with a WPS mark. ➕ User's Guide

4. Set the access point and network key according to the screen below.

For more information, refer to the manual. OK

1. Select .
2. Select .
3. Select .
4. Select the access point (SSID), and select .
5. Select .
6. Enter a network key, and select .
7. Select .

- Wait until message is displayed.

1. Select .
   • The IP address will be automatically configured in a few minutes.

2. Install the driver and software.

P.12 "Installing the software"

Now you are finished with the configuration of the initial settings.

If your machine is provided with the fax function, proceed to configuring the fax settings. P.13

To connect via wired LAN

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

The machine does not come with a LAN cable. Please have one ready, if necessary.

1. Make sure that the computer is connected to a router properly.
2. Check the network settings on the computer.

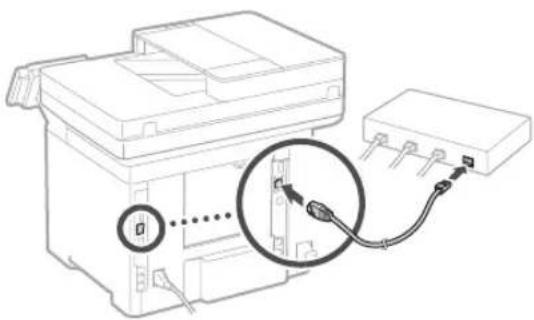

3. Connect the LAN cable.

Line drawing of a printer with a close-up cable and connector, no text or symbols present

• After connecting the cable, wait a few minutes (until the IP address is set automatically).
- If a static IP address has been set on the computer, set the machine's IP address manually.

1. Install the driver and software.

P.12 "Installing the software"

Now you are finished with the configuration of the initial settings.

If your machine is provided with the fax function, proceed to configuring the fax settings. P.13

To connect via USB

Illustration of a desktop computer connected to a printer (no text or symbols present)

- The machine does not come with a USB cable. Please have one ready, if necessary.

• Make sure that the USB cable you use has the following mark.

- Do not connect the USB cable before installing the driver. If you did, disconnect the USB cable from the computer, close the dialog box, and then perform the following procedure from step 1.

1. Install the driver and software.

P.12 "Installing the software"

- When a screen with instructions for connecting the USB cable to the machine is displayed, remove the sticker that covers the USB port.

Technical line drawing of a mechanical assembly with an inset showing a curved component (no text or symbols)

Now you are finished with the configuration of the initial settings.

If your machine is provided with the fax function, proceed to configuring the fax settings. P.13

Installing the software

• The procedure described here is only applicable when your computer runs on the Windows OS. For more details on the software installation procedure, see the driver's manual.
- For the installation when your computer runs on the macOS, see the driver's manual.
- Your machine may not come with the driver for the macOS, depending on the time of purchase. New drivers are uploaded to the Canon website, and you can download and use the latest one.

1.

Illustration of a CD or DVD drive system with an arrow indicating disk transfer (no text or symbols present)

2.

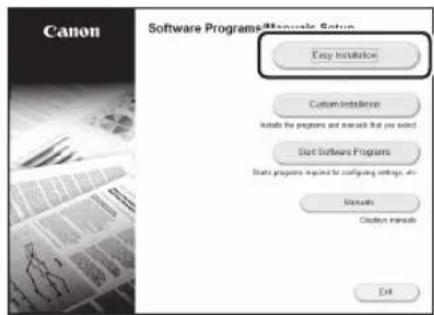

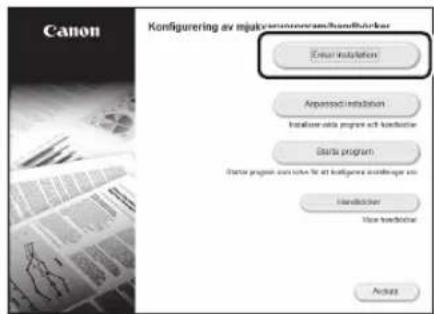

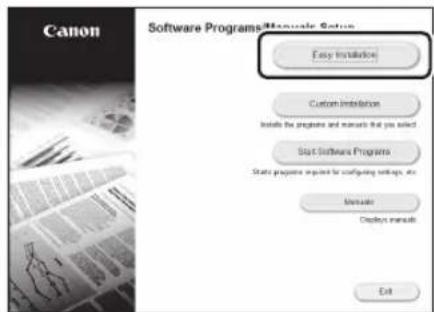

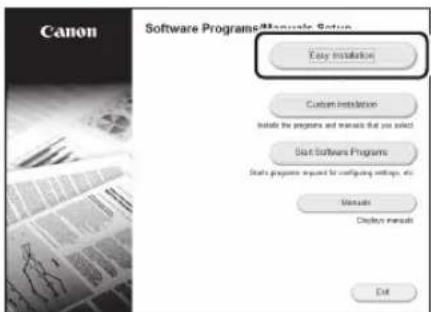

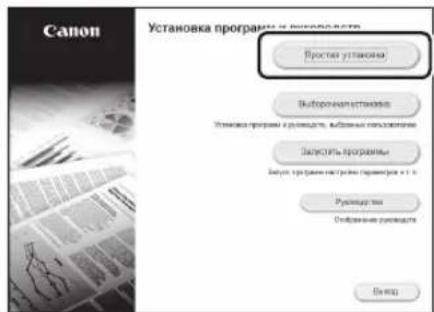

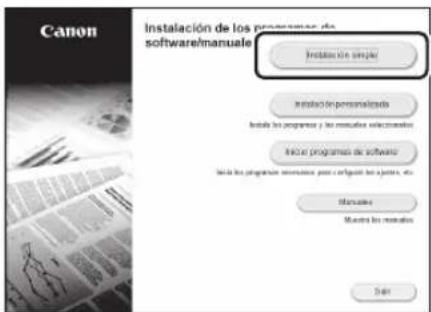

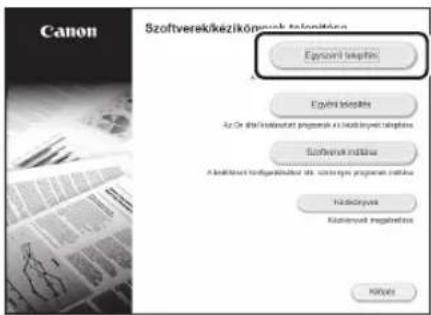

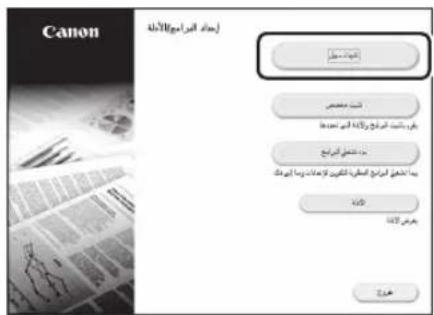

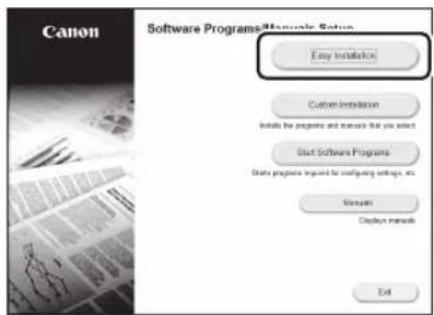

Canon Software Programs/Manual Option Easy Installation Custom Implementation Installs the programs and manuals that you select Start Software Programs Start programs required for configuring settings, etc. Manuals Displays manuals Exit

If the screen is not displayed properly, re-insert the CD-ROM/DVD-ROM or search for "D:\MInst.exe" on the Windows platform (This description assumes that "D:" is the CD-ROM/DVD-ROM drive name).

Using the scanner conveniently

Configuring the network settings with "Send Function Setting Tool" allows you to directly send scanned originals with e-mail or I-Fax or store them in a shared folder or on the FTP server. In the screen displayed in step 2, select [Start Software Programs] ▶ [Send Function Setting Tool] to start the Send Function Setting Tool.

For details

"Configuring Initial Settings for Fax Functions" in the User's Guide

En

Configuring Fax Settings

Before starting the configuration

If your machine does not come with a telephone cable, have one ready, as necessary.

Configure the fax settings, according to the screen below.

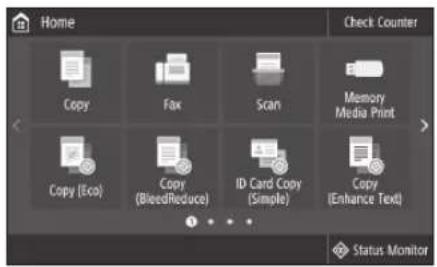

Home Check Counter Copy Fax Scan Memory Media Print Copy (Eco) Copy (BleedReduce) ID Card Copy (Simple) Copy (Enhance Text) Status Monitor

1. Select .
2. Select .
3. Register the machine's telephone number (fax number) and abbreviated user name.

Fax Setup Guide Register the unit telephone number for this device. (Fax number) Next

• The information below will be printed at the top part of the paper output from the destination machine as sender information.

Fax Number Number's Type Sent Time Unit Name Page Number 02/02 2017 10:00AM CANON!235000000PAX 0001

1. Set the reception mode.
2. Make the setting by answering the questions on your purposes of using the fax function.

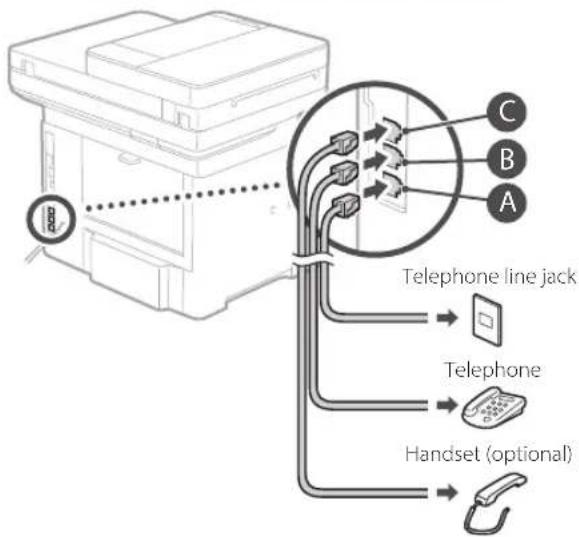

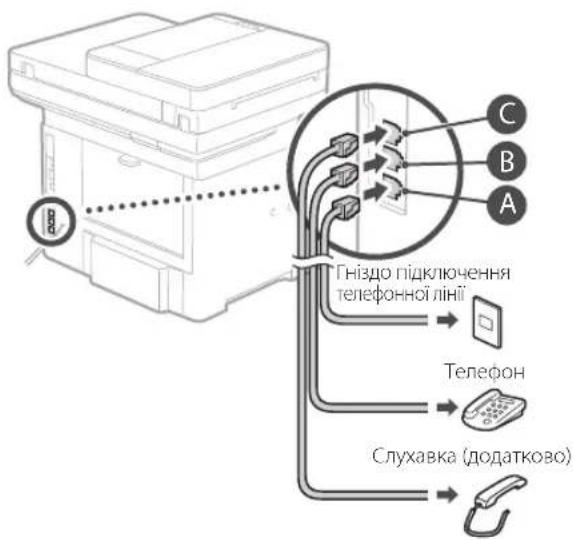

3. Connect to a telephone line.

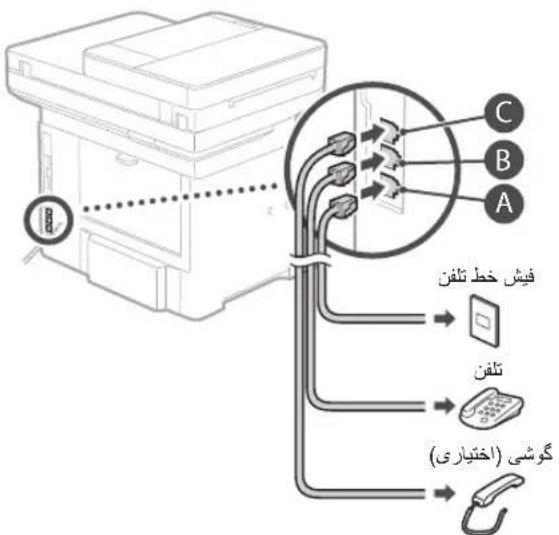

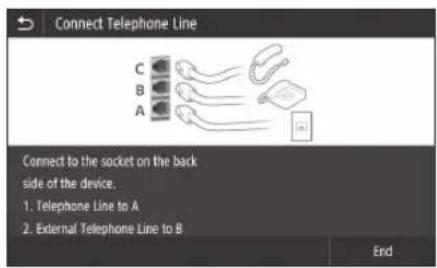

Connect Telephone Line C B A Connect to the socket on the back side of the device. 1. Telephone Line to A 2. External Telephone Line to B End

Telephone line jack Telephone Handset (optional)

1. Select .
2. Select .

Now you are finished with the configuration.

Illustration of a printer with a power button icon and magnified view of the printer's electrical switch (no text or symbols present)

Illustration of a printer, network device, and computer with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial link (no text or symbols)

Line drawing of a printer with cable and connector, showing internal components and connection point (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset showing a component being folded (no text or symbols present)

Diagram showing a computer monitor with a CD inside and an arrow pointing to it, no text or symbols present.

2.

Line drawing of a printer with a power button icon and magnified view of the printer's electrical switch (no text or symbols present)

Illustration of a desktop computer, printer, and wireless router with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Line drawing of a printer with cable and connector, showing no text or symbols

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset showing a curved component (no text or symbols)

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

2.

Line drawing of a printer with a power button icon and magnified view of the next page (no text or symbols)

Illustration of a printer, network device, and computer with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial link (no text or symbols)

Line drawing of a printer with a cable and connector, showing no text or symbols

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a mechanical device with an inset showing a curved component (no text or symbols)

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

2.

Line drawing of a printer with a power button icon and magnified view of the printer's electrical switch (no text or symbols present)

Illustration of a printer, network device, and computer with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial link (no text or symbols)

Diagram of a printer with cable and connector, showing internal components connected to a terminal block (no text or symbols present)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset showing a curved component (no text or symbols)

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

2.

Line drawing of a printer with a power button icon pointing to it (no text or symbols present)

Illustration of a printer, network device, and computer with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Line drawing of a printer with a cable and connector, showing no text or symbols

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset showing a curved component (no text or symbols)

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

2.

Line drawing of a printer with a magnified inset showing a power button (no text or symbols present)

Illustration of a printer, network device, and computer monitor with wireless signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Line drawing of a printer with a close-up cable and connector, no text or symbols present

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset showing a curved component (no text or symbols)

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

2.

Canon Software-programen zijn algifikarans konfigurazioa Instaluilo informak Insiklo za termontekana Zak haskopn dizna programi en digitalinkl indikator ihs Abvanzi software-programak Diasparah en digitalinkl infigurazioa belar deze programi alastokla ihs Gelbiterak Gelbiterak bestade ihs Ran

Pantaila behar bezala erakusten ez bada, instalatu CD-ROM/DVD-ROMa edo bilatu "D:\MInst.exe" Windows sisteman (Deskribapen honek CD-ROM/DVD-ROM unitateren hizkia "D:" dela suposatzen du).

Eskanerraren erabilera

Line drawing of a printer with a power button icon pointing to it (no text or symbols present)

Illustration of three devices: a monitor, a printer with wireless signal lines, and a server with antenna (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Diagram of a printer with cable and connector, showing internal components and connection point (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset showing a curved component (no text or symbols)

Diagram showing a CD or DVD disc being inserted into a server tower (no text or symbols present)

2.

Line drawing of a printer with a power button icon and magnified view of the printer's electrical switch (no text or symbols present)

Illustration of a printer, network device, and computer with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Line drawing of a printer with cable and connector, no text or symbols present

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset showing a curved component (no text or symbols)

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

2.

Canon Software Programs/Automatic Edition Easy Installance Custom Infection Inside the programs and manuals that you select Start Software Programs Start programs required to configuring settings, etc. Manuals Creates manuals Exit

Line drawing of a printer with a power button icon pointing to it (no text or symbols present)

Illustration of a printer, network device, and computer monitor with wireless signal waves (no text or symbols)

S.48 "Installation af softwaren"

Illustration of a desktop computer connected to a printer via serial links (no text or symbols)

Line drawing of a printer with an attached cable and connector, showing no text or symbols

S.48 "Installation af softwaren"

Illustration of a desktop computer connected to a printer (no text or symbols present)

S.48 "Installation af softwaren"

Technical line drawing of a mechanical assembly with an inset showing a component detail (no text or symbols)

Diagram showing a CD or DVD disc being inserted into a server tower (no text or symbols present)

2.

Canon Installation of software\monogram\onla\admbrimmer New installation Engrisdefenet installation Installs to programme of software, now to register Start software programme Home programme: do more it installation of software into Vipidringer New vipidringer Add

Illustration of a printer, tower, and monitor with wireless signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Line drawing of a printer with a cable and connector, showing no text or symbols

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a mechanical device with an inset showing a curved component (no text or symbols)

Illustration of a computer monitor with an open CD and a CD inside, showing a disc (no text or symbols)

2.

1. Selecteer .

2. Selecteer .

Line drawing of a printer with a power button icon and magnified view of the printer's screen (no text or symbols present)

Illustration of a printer, network device, and computer with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial link (no text or symbols)

Line drawing of a printer with a close-up cable and connector, no text or symbols present

• Vent i et par minutter etter at kabelen er koblet til (til IP-adressen er automatisk innstilt).

• Hvis det er angitt en statisk IP-adresse for datamaskinen, må maskinens IP-adresse stilles inn manuelt.

• Installer driver og programvare.

→ side 56 "Installere programvaren"

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a mechanical device with an inset showing a curved component (no text or symbols)

Illustration of a computer monitor with an arrow pointing to a CD or DVD drive (no text or symbols present)

2.

Line drawing of a printer with a power button icon and magnified view of the printer's screen (no text or symbols)

Illustration of a printer, network device, and computer monitor with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Line drawing of a printer with cable and connector, showing internal components and connection point (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a printer or printer with an inset showing a curved arrow indicating rotation (no text or symbols present)

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

2.

Canon Konfigurering av mgkysenomnemam/handhårbar Email installation Anpassycn installation Institute viska program och kordkenter Data program Data program can take for all kordkenter kordkenter via Handelsenter Use handelsenter Actions

Line drawing of a printer with a power button icon and magnified view of the next paper (no text or symbols)

Illustration of a printer, network device, and computer with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Line drawing of a printer with cable and connector, showing internal components and connection point (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset showing a curved component (no text or symbols)

Illustration of a CD or DVD drive system with an open disk and a rectangular base (no text or symbols)

2.

Canon Ohjelmien ja oppalden ognomius Hugyo journal Musiura journal Aandos naličanasu odjelni je opost Karništa ojelni Kaprevitar venačklova evočine naštitlava omlačnja ojelni Opost Nastin opost Lupinto

Line drawing of a printer with a power button icon pointing to it (no text or symbols present)

Illustration of a printer, network device, and computer with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Diagram of a printer with cable and connector, showing internal components and connection point (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical diagram showing a mechanical assembly with an inset close-up of a component (no text or symbols present)

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

2.

Line drawing of a printer with a power button icon and magnified view of the printer's electrical switch (no text or symbols present)

Do you want to use the wireless LAN to connect to the network? (The settings can be configured later.) Yes No

Illustration of a printer, network device, and computer with signal waves (no text or symbols)

For more information, refer to the manual.

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Line drawing of a printer with cable and connector, showing internal components connected to a terminal block (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset showing a curved component (no text or symbols)

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

1.

Canon Software Programs®/Monochrome Option Easy Installation Custom Installation Inside the programs and manuals that you select Start Software Programs Start programs required for configuring settings, etc. Manuals Display manuals Exit

Home Check Counter Copy Fax Scan Memory Media Print Copy (Eco) Copy (BleedReduce) ID Card Copy (Simple) Copy (Enhance Text) Status Monitor

Fax Setup Guide Register the unit telephone number for this device. (Fax number) Next

Connect Telephone Line C B A Connect to the socket on the back side of the device. 1. Telephone Line to A 2. External Telephone Line to B End

Line drawing of a printer with a power button icon and magnified view of the printer's screen (no text or symbols)

Illustration of a printer, network device, and computer with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Diagram of a printer with cable and connector, showing internal components and connection (no text or symbols)

Illustration of a computer connected to a printer (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset showing a curved component (no text or symbols)

Illustration of a CD or DVD drive system with an open disk and a rectangular unit (no text or symbols)

2.

Canon Software Programs/Manual Option Easy Installation Custom Installation Installs the programs and manuals that you select Start Software Programs Start programs required for configuring settings, etc. Manual Displays manuals Exit

Illustration of a printer with a power button icon and control panel, no text or symbols present

Illustration of a printer, network device, and computer with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Line drawing of a printer with a close-up cable and connector, no text or symbols present

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset showing a curved component (no text or symbols)

Illustration of a computer monitor and CD tower with an arrow pointing to a disc (no text or symbols)

2.

Canon Software Programs/Automatic Edition Easy Installation Custom Installation Installs the programs and manuals that you select Start Software Programs Start programs required to configuring updates, etc. Manuals Display manuals Exit

Line drawing of a printer with a power button icon and magnified view of the printer's screen (no text or symbols present)

Illustration of three devices: a computer, a printer with wireless signal, and a server with antenna (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Line drawing of a printer with cable and connector, showing internal components and connection point (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a printer or printer with an inset showing a curved mechanical component (no text or symbols present)

Illustration of a CD or DVD drive system with an open disk and a computer tower (no text or symbols)

2.

Canon Software Programs/Manual Setup Easy Installation Custom Implementation Installs the programs and manuals that you select Start Software Programs Static programs required for configuring settings, etc. Manuals Displays manuals Edit

Line drawing of a printer with a power button icon and magnified view of the button (no text or symbols)

Illustration of a printer, network device, and computer with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Diagram of a printer with cable and connector, showing internal components connected to a terminal block (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset showing a curved component (no text or symbols)

Illustration of a CD or DVD drive system with an open CD and a rectangular unit (no text or symbols)

2.

Line drawing of a printer with a magnified inset showing a power button (no text or symbols present)

Illustration of a printer, network device, and computer with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Line drawing of a printer with a close-up cable and connector, no text or symbols present

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset showing a curved component (no text or symbols)

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

2.

Canon Installace software/sch program/sch installace Installed instance Available instance Available print system program or print/ Spread software/program Spread programming protocol for configuration and print Print/day Admin print/day Paste

Line drawing of a printer with a power button icon pointing to it (no text or symbols present)

Illustration of a printer, network device, and computer with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial link (no text or symbols)

Line drawing of a printer with a close-up cable and connector, no text or symbols present

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset showing a component detail (no text or symbols)

Illustration of a CD or DVD disc being inserted into a computer tower (no text or symbols)

2.

Canon Software Programs/Automatic Custom Easy installation Custom library Inside the programs and manuals that you select Start Software Programs Start programs required for configuring settings, etc. Manuals Display manuals Exit

Line drawing of a printer with a magnified inset showing a power button (no text or symbols present)

Illustration of three devices: a monitor, a printer with wireless signal lines, and a server with antenna (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Naprava ni opremljena s kablom LAN, zato ga po potrebi zagotovite.

Diagram of a printer with cable and connector, showing internal components connected to a terminal block (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

- Naprava ni opremljena s kablom USB, zato ga po potrebi zagotovite.

Technical line drawing of a mechanical assembly with an inset showing a curved component (no text or symbols)

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

2.

Canon Software Programs/Automatic Custom Easy Installance Custom Installation Inside the programs and manuals that you select Start Software Programs Start programs required for coordinating settings, etc. Manuals Creates manuals Exit

Line drawing of a printer with a power button icon and magnified view of the printer's screen (no text or symbols present)

1. Konfigurirajte početne postavke u skladu sa zaslonom.

Illustration of three devices: a computer, a printer with wireless signal, and a router (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Line drawing of a printer with a cable and connector, showing no text or symbols

• Nakon što ste spojili kabel pričekajte par minuta (dok se adresa IP automatski postavi).

• Ako je na računalu postavljena statička IP adresa, ručno postavite IP adresu uređaja.

• Instalirajte upravljački program i softver.

Str.104 „Instaliranje softvera“

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset showing a curved component (no text or symbols)

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

2.

Canon Software Programs/Automatic Options Easy Instances Custom Instances Inside the programs and manuals that you select Start Software Programs Start programs required to configuring settings, etc. Manuals Create manuals Exit

Ako se zaslon ne prikazuje ispravno, ponovno umetnite CD-ROM/DVD-ROMili potražite „D:\MInst.exe“ na sustavu Windows (U ovom se opisu „D:“ odnosi na pogon CD-ROM/DVD-ROM).

Jednostavno korištenje skenera

Konfiguriranje mrežnih postavki pomoću „Send Function Setting Tool“ (Alat za postavljanje funkcija slanja) omogućava vam izravno slanje skeniranih originala putem e-pošte ili I-faksa ili pohranjivanje u dijeljenu mapu na poslužitelju FTP.

Na zaslonu prikazanom u Koraku 2 odaberite [Start Software Programs] (Pokreni softverske programe)

[Send Function Setting Tool] (Alat za postavljanje funkcija slanja) kako biste pokrenuli Send Function Setting Tool (Alat za postavljanje funkcija slanja).

Za detalje

„Konfiguriranje početnih postavki funkcija faksa“ u Korisničkom vodiču

Konfiguriranje postavki faksa

1. Odaberite .
2. Odaberite .

Illustration of a printer with a power button icon and magnified view of the printer's screen (no text or symbols present)

Illustration of a printer, network device, and computer with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Line drawing of a printer with an attached cable and connector, showing no text or symbols

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset showing a curved component (no text or symbols)

Illustration of a CD or DVD drive system with an open disk and a server unit (no text or symbols)

2.

Line drawing of a printer with a power button icon and magnified view of the printer's screen (no text or symbols)

Illustration of a printer, network device, and computer with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Line drawing of a printer with a cable and connector, showing no text or symbols

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset showing a curved component (no text or symbols)

Illustration of a computer monitor and CD tower with an arrow pointing to a disc (no text or symbols)

2.

Canon Software Programs/Maniscal System Easy Installation Custom Installation Insts the programs and manuals that you select. Start Software Programs Start programs required for configuring updates, etc. Manuals Output manuals Exit

Line drawing of a printer with a power button icon and magnified view of the printer's electrical switch (no text or symbols present)

Illustration of a printer, network device, and computer with signal waves (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Line drawing of a printer with cable and connector, showing internal components and connection point (no text or symbols)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a printer or printer with an inset showing a curved mechanical component (no text or symbols present)

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

2.

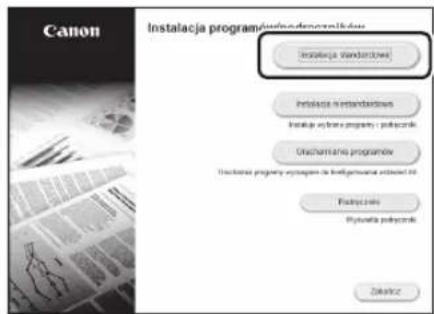

Canon Software Programs/Manual Setup Easy Installation Custom Interface Installs the programs and manuals that you select Start Software Programs Start programs required for configuring settings, etc. Manuals Customs manuals Exit

Line drawing of a printer with a power button icon and control panel, no text or symbols present

Illustration of three devices: a monitor, a printer with wireless signal, and a server with antenna (no text or symbols)

Illustration of a desktop computer connected to a printer via a serial line (no text or symbols)

Line drawing of a printer with a cable and connector, showing no text or symbols

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a mechanical device with an inset showing a curved component (no text or symbols)

Diagram showing a CD or DVD disc being inserted into a computer tower (no text or symbols present)

2.

Illustration of three electronic devices: a monitor, a printer with wireless signal lines, and a server with antenna (no text or symbols)

Line drawing of a printer with a magnified inset showing a button labeled 'O' (no text or symbols on the device itself)

Illustration of a desktop computer connected to a printer via serial communication (no text or symbols)

Line drawing of a printer with an attached cable and connector, showing no text or symbols

Diagram showing a computer monitor with a CD inside and a server tower emitting a circular arrow (no text or symbols)

Canon العربية المراجع(الآلّة) العربية مُسْرَّهُ العربية مُسْرَّهُ العربية مُسْرَّهُ العربية مُسْرَّهُ العربية مُسْرَّهُ العربية مُسْرَّهُ العربية مُسْرَّهُ العربية مُسْرَّهُ العربية مُسْرِّهُ العربية مُسْرِّهُ العربية مُسْرِّهُ العربية مُسْرِّهُ العربية مُسْرِّهُ العربية مُسْرِّهُ العربية مُسْرِّهُ العربية مُسْرِّهُ العربية مِسْرِّهُ العربية مِسْرِّهُ العربية مِسْرِّهُ العربية مِسْرِّهُ العربية مِسْرِّهُ العربية مِسْرِّهُ العربية مِسْرِّهُ العربية مِسْرِّهُ (العربية مِسْرِّهُ) (العربية مِسْرِّهُ) (العربية مِسْرِّهُ) (العربية مِسْرِّهُ) (العربية مِسْرِّهُ) (العربية مِسْرِّهُ) (العربية مِسْرِّهُ) (العربية مِسْرِّهُ) (لَوْمَدَّ) (لَوْمَدَّ) (لَوْمَدَّ) (لَوْمَدَّ) (لَوْمَدَّ) (لَوْمَدَّ) (لَوْمَدَّ) (لَوْمَدَّ) (لَوْمَدَّ) (لَوْمَدَّ) (العربية مِسْرِّهُ) (العربية مِسْرِّهُ) (العربية مِسْرِّهُ) (العربية مِسْرِّهُ) (العربية مِسْرِّهُ) (العربية مِسْرِّهُ) (العربية مِسْرِّهُ) (الغز عَلَىمٍ) (الغز عَلَىمٍ)

Illustration of a desktop computer connected to a printer (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset showing a curved component (no text or symbols)

Do you want to use the wireless LAN to connect to the network? (The settings can be configured later.) Yes No

Illustration of three electronic devices: a monitor, a printer with wireless signal lines, and a server with antenna (no text or symbols)

Illustration of a printer with a power button icon and magnified view of the printer's electrical switch (no text or symbols present)

Illustration of a desktop computer connected to a printer via serial communication (no text or symbols)

Line drawing of a printer with an attached cable and connector, showing no text or symbols

For more information, refer to the manual.

Diagram showing a computer monitor with an open CD or drive and a separate CD tower (no text or symbols present)

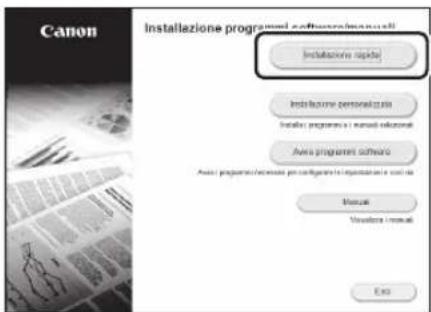

Canon Software Programs/Manual Setup Easy Installation Custom Installation Installs for programs and manuals that you select Start Software Programs Start programs required for configuring settings, etc. Manuals Option manuals Edit

Illustration of a computer monitor connected to a printer via a cable (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a curved component (no text or symbols)

Connect Telephone Line C B A End Connect to the socket on the back side of the device. 1. Telephone Line to A 2. External Telephone Line to B End

Home Check Counter Copy Fax Scan Memory Media Print Copy (Eco) Copy (BleedReduce) ID Card Copy (Simple) Copy (Enhance Text) Status Monitor

Fax Setup Guide Register the unit telephone number for this device. (Fax number) Next

Place the Original Properly

Remember before You Start Operation

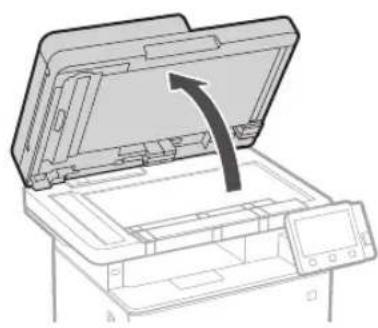

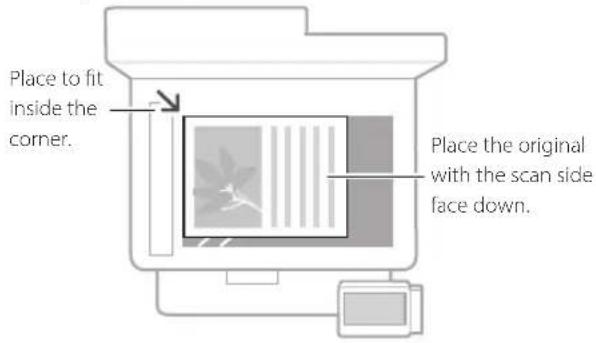

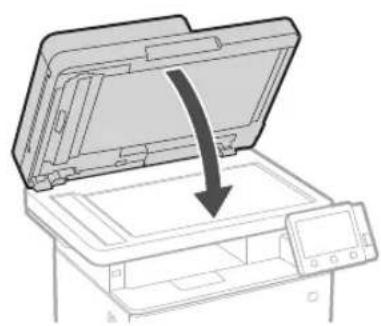

Place your original on the platen glass

Place to fit inside the corner. Place the original with the scan side face down.

Suitable for scanning book pages, magazine pages and newspaper clips.

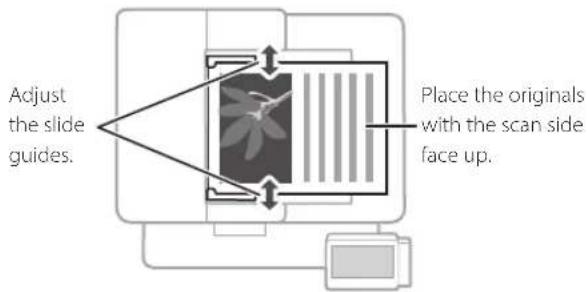

Place your originals into the feeder

Adjust the slide guides. Place the originals with the scan side face up.

Suitable for continuously scanning many pages of literature, quotation, etc.

Start the Operation from the Operation Panel

Machine

Line drawing of a printer with a digital display showing an icon (no text or symbols present)

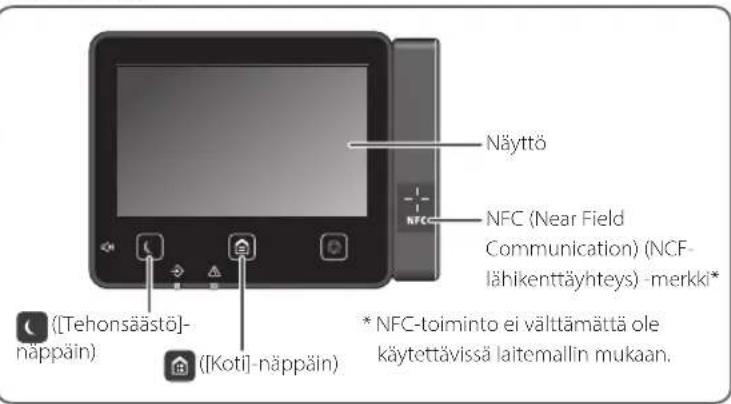

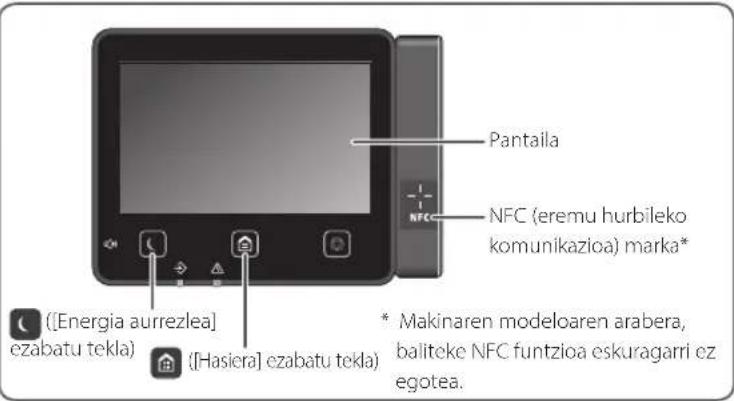

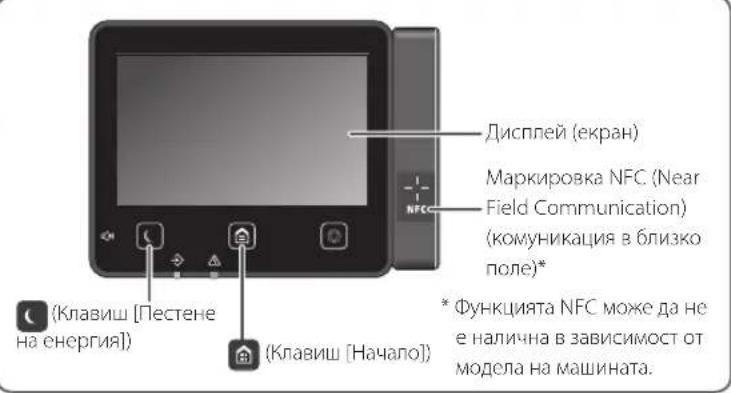

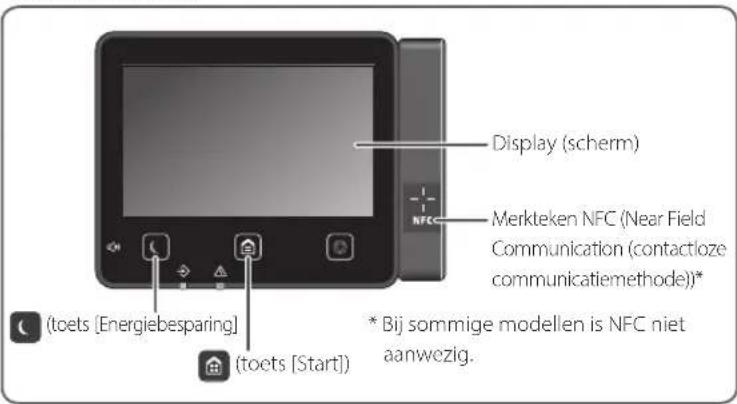

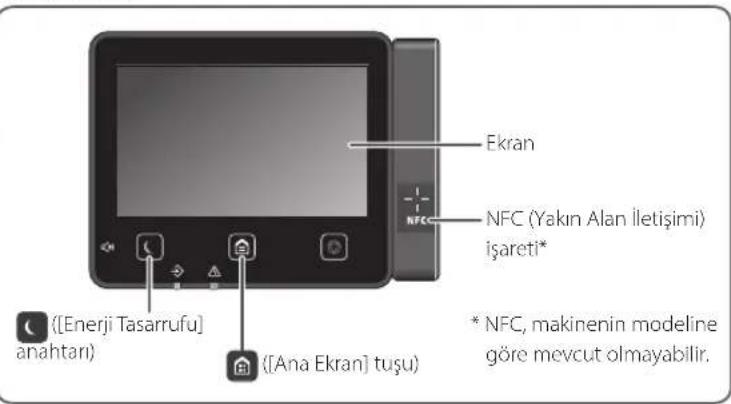

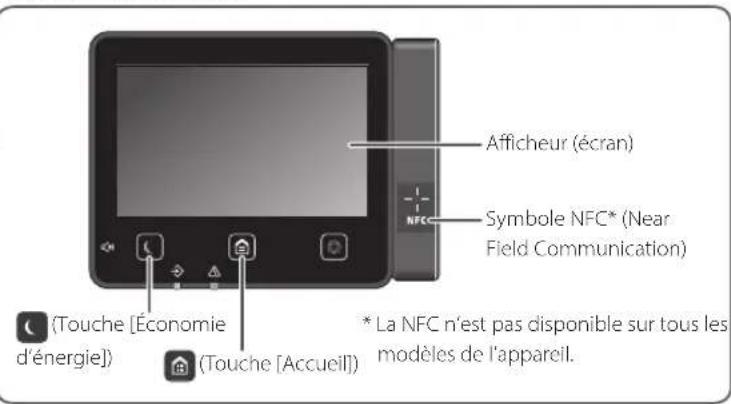

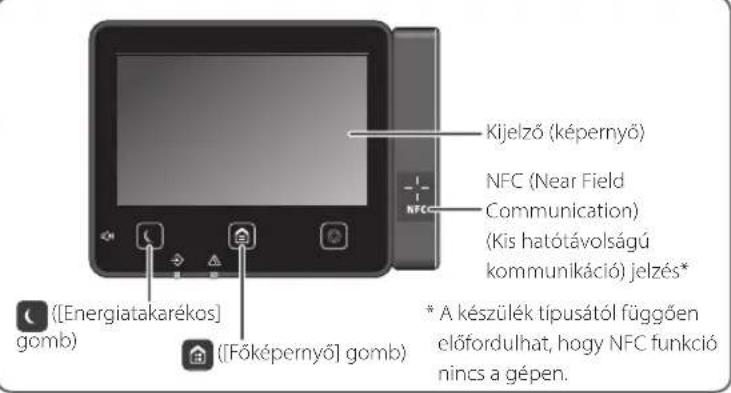

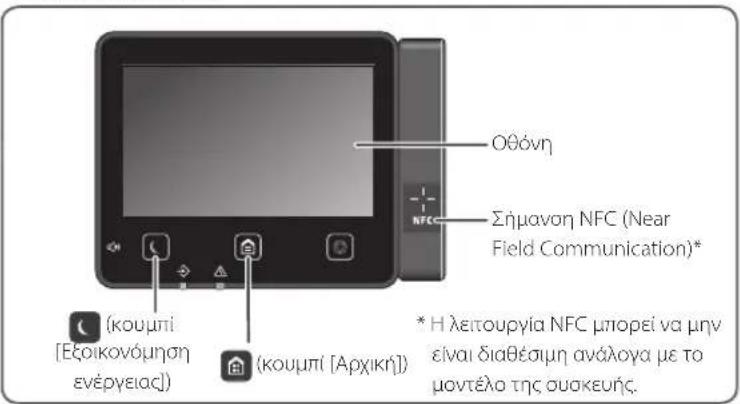

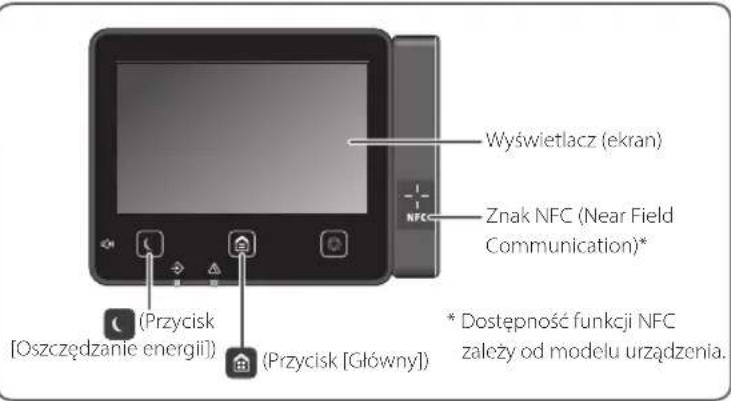

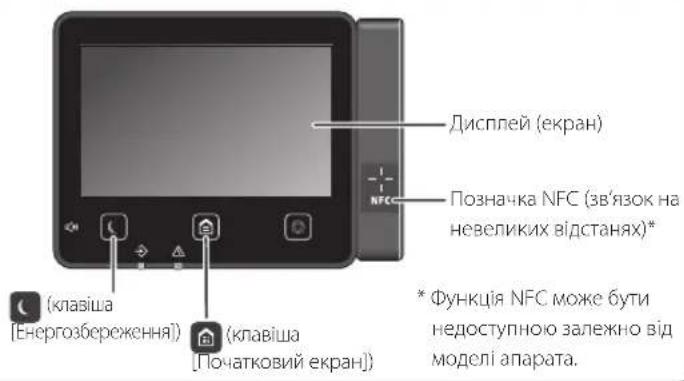

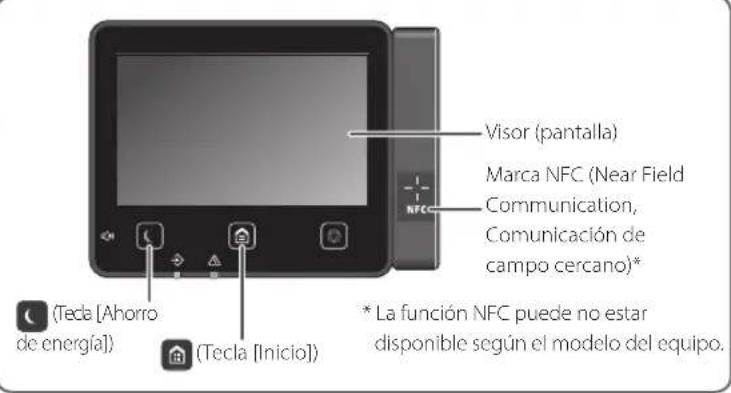

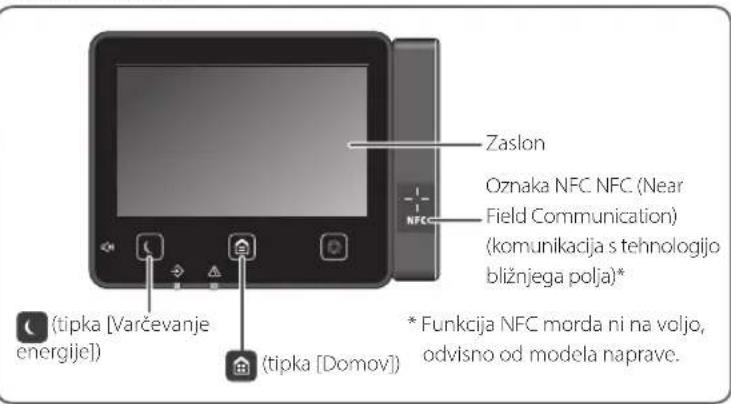

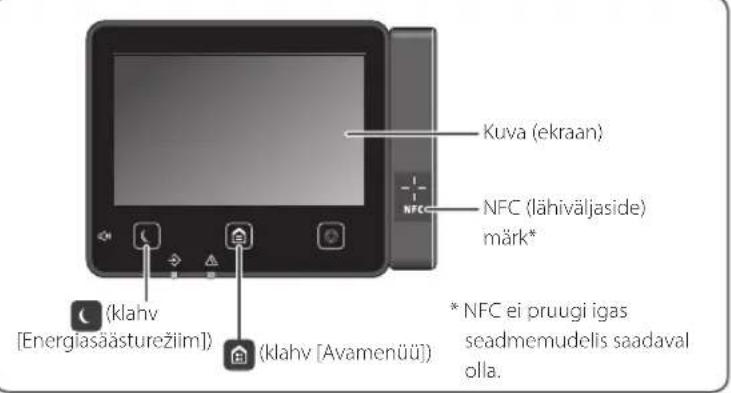

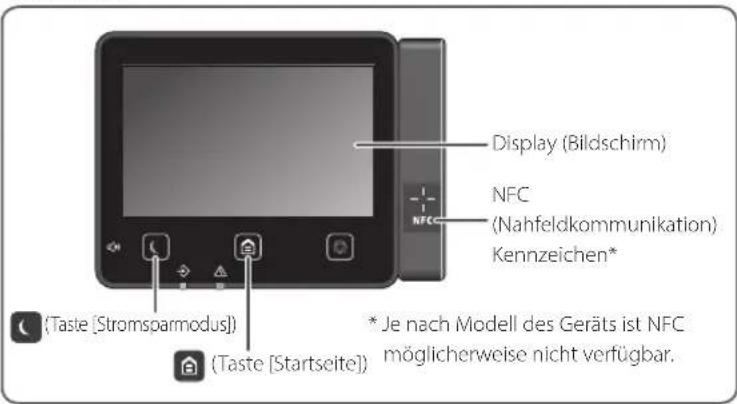

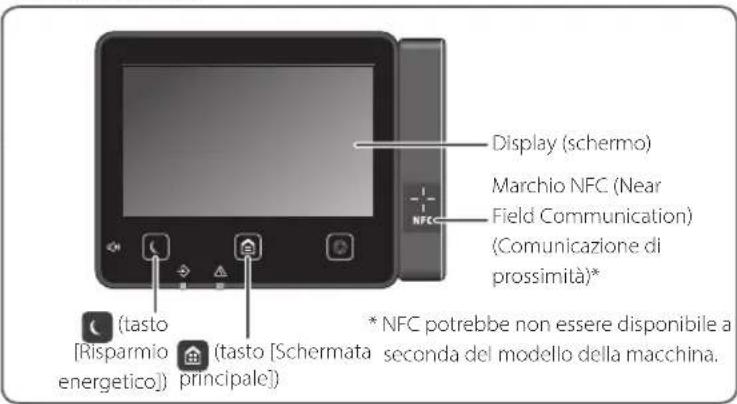

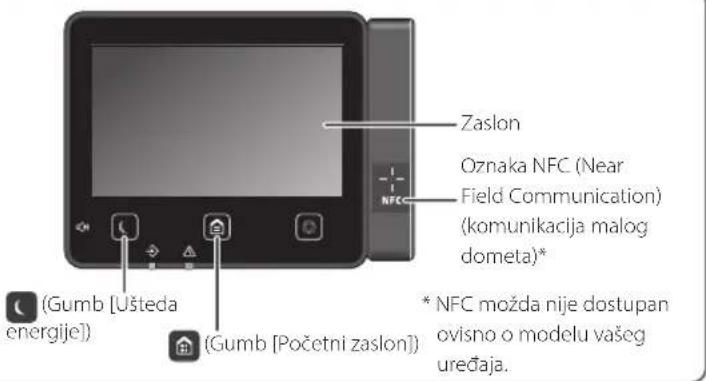

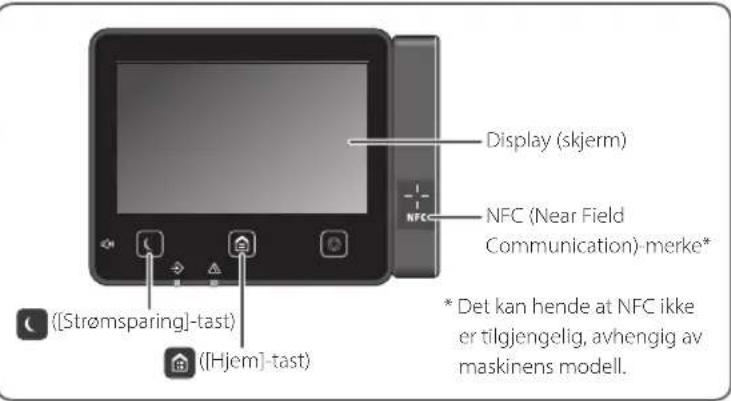

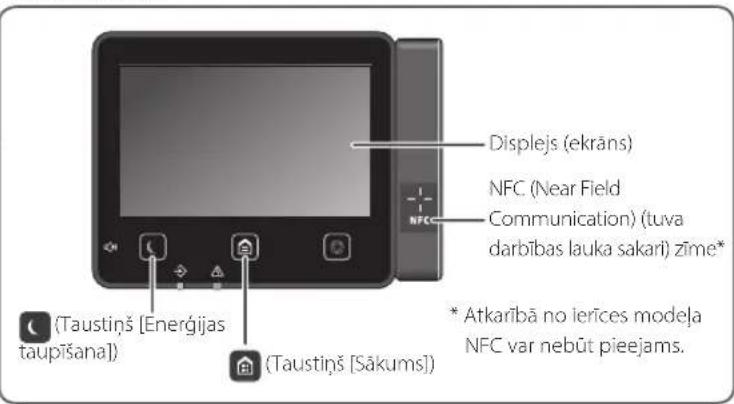

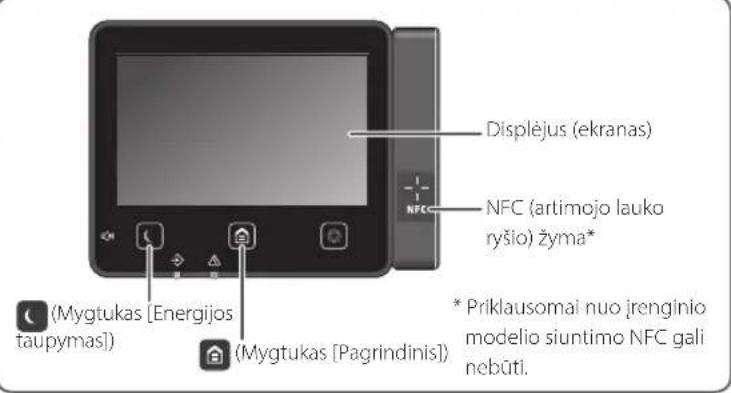

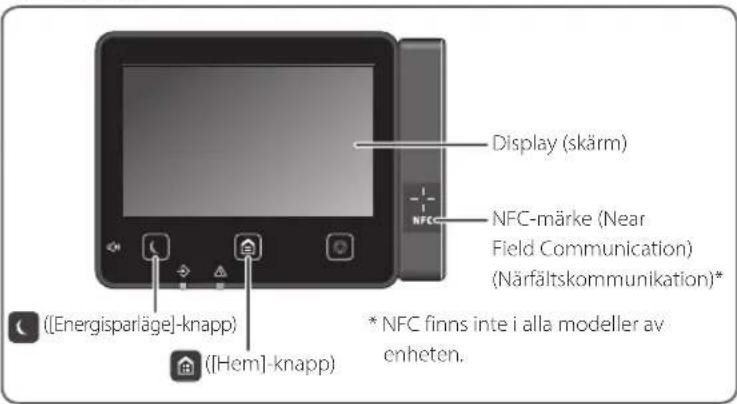

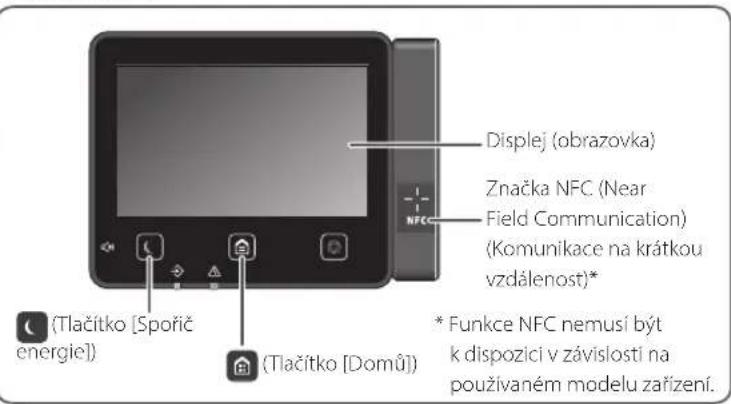

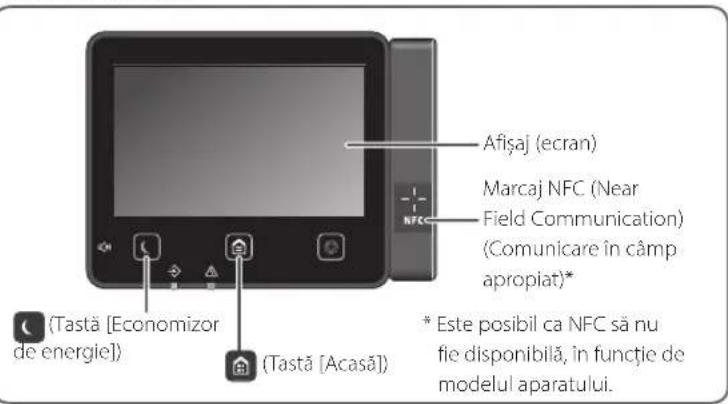

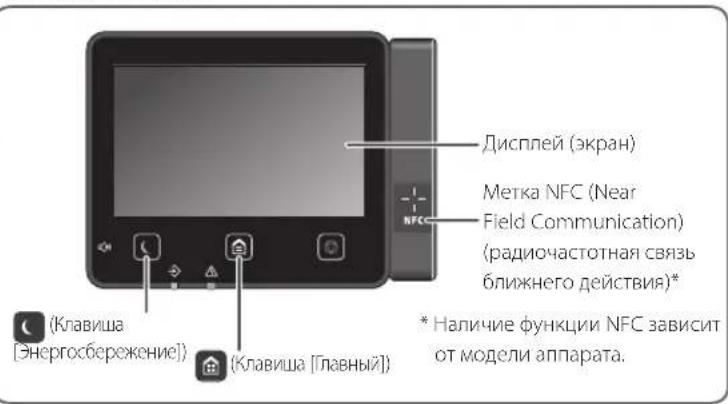

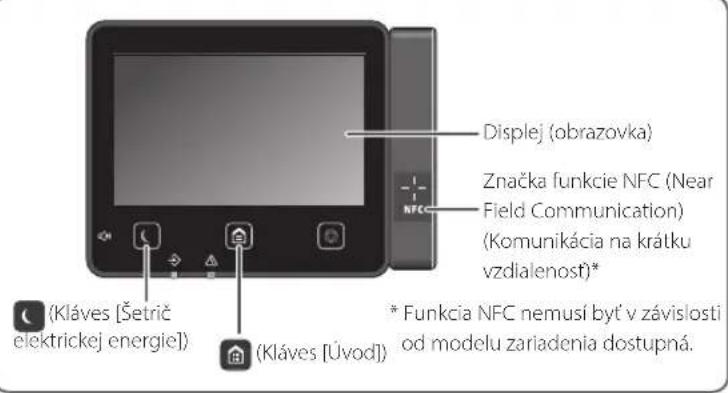

Operation Panel

Display (screen) NFC (Near Field Communication) mark* ([Energy Saver] key) ([Home] key) * NFC may not be available, depending on the model of the machine.

Scanning

1. Place the original.
2. Press 📋, and select .
3. Select the type of scan, and enter the necessary information.
4. Select , or .

Types of scan

■ Store in computer
■ Store in USB memory device
■ Send e-mail/I-Fax
■ Send to file server

To scan from a computer

■ MF Scan Utility

Scan Select a scan type. Computer USB Memory E-Mail F-ax File Status Monitor

For details

"Scanning" in the User's Guide

Copying

1. Place the original.
2. Press 🔒, and then select .
3. Specify the copy settings, as necessary.
4. Enter the desired number of copies.
5. Select .

Useful copy functions

■ Non 1
■ 2-Sided or 1-Sided
■ Enlarging or reducing
■ Copying ID cards
■ Passport Copy

Copy Copy Ratio 100% Form A4 Density ±0 Number of Colors 1 2 Select Off Next 1 Off Reset Start Other Settings Status Monitor

For details

"Copying" in the User's Guide

Faxing\*

1. Place the original.
2. Press 📄, and select .
3. Enter the destination information.
4. Specify the fax settings, as necessary.
5. Select .

Useful fax functions

■ Sequential Broadcast
■ Memory Reception
PC Fax

Fai 02/02 2019 10:00AM Specify a destination. Enter Dest. 1 2 3 TAX/RX Settings Address Book Reset 7 8 9 Next Dest. * 0 # Status Monitor

For details

"Faxing" in the User's Guide

Printing

1. Open the document to print, and select the print function of the application.
2. Select the printer driver for the machine, and select [Preferences] or [Properties].
3. Specify the paper size.
4. Specify the paper source and paper type.
5. Specify the print settings, as necessary.
6. Select [OK].
7. Select [Print] or [OK].

Useful print settings

2-sided
■ Non 1
■ Booklet Printing

File Edit View Insert Tools Help Format Description View Format Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout Layout <|box_start|>100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100%

For details

"Help" on the printer driver

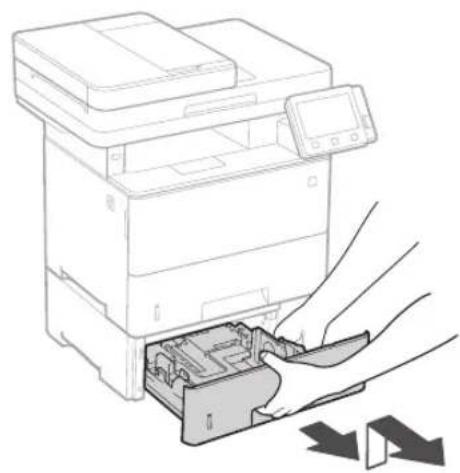

Loading in the Paper Drawer

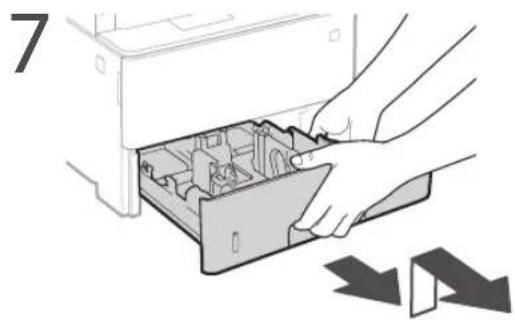

1 Pull out the paper drawer.

2 AA/AS

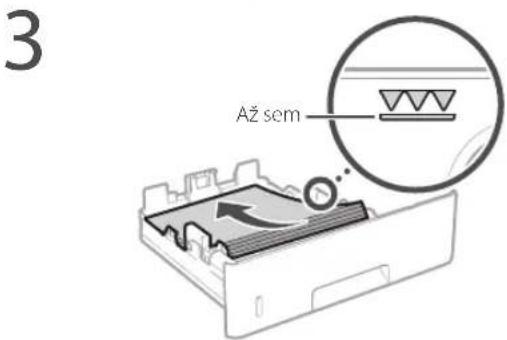

3 Up to here

4 Insert the paper drawer into the machine.

If you load a different size or type of paper from the one before, make sure to change the settings.

5 Press and select .

6 Specify the size and type of paper, according to the screen.

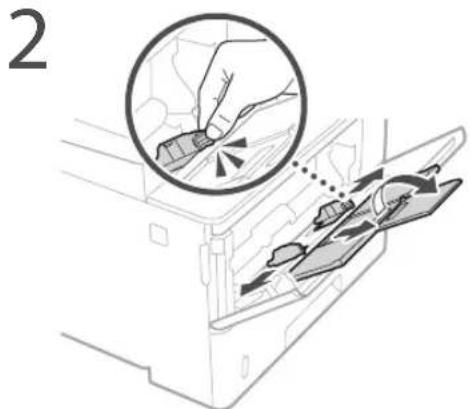

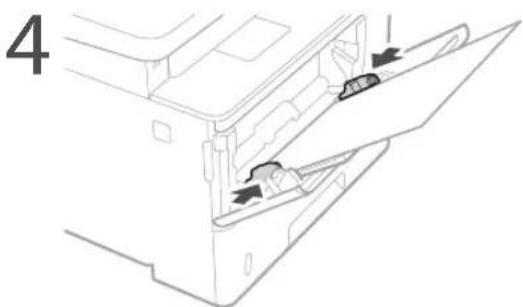

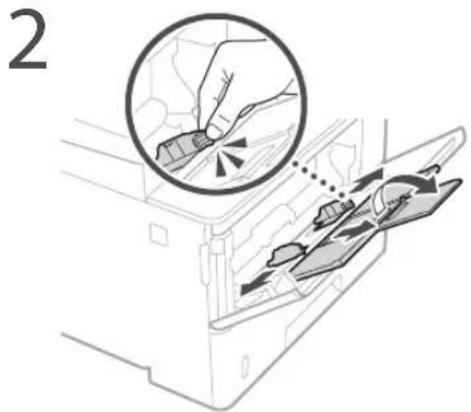

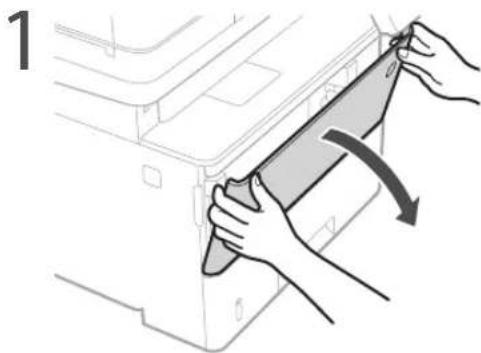

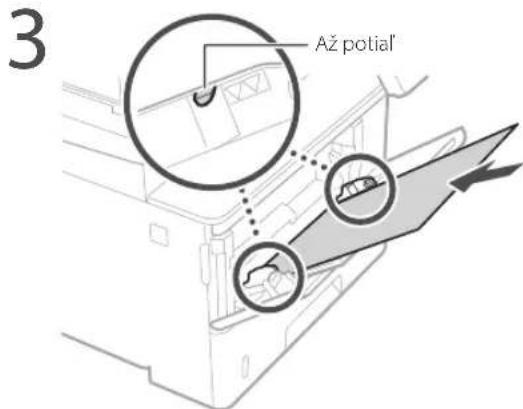

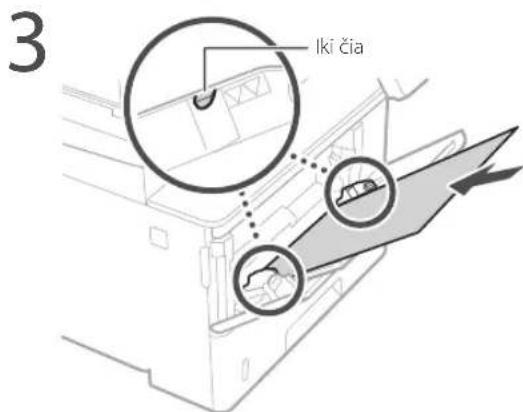

Loading in the Multi-Purpose Tray

Illustration of hands installing or adjusting a component on a machine (no text or symbols visible)

2

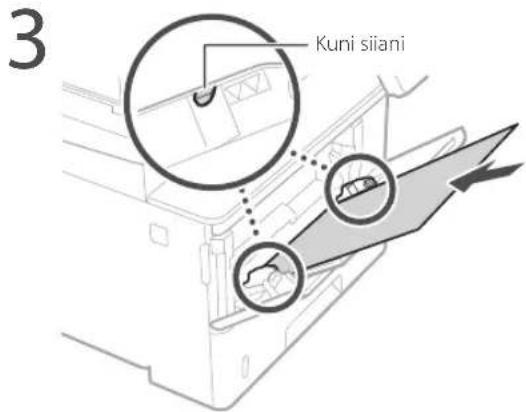

3 Up to here

Technical line drawing of a mechanical assembly with arrows indicating motion or force (no text or symbols)

5 Specify the size and type of paper, according to the screen.

The Machine Does Not Seem to Work

Check the following.

• Is the power turned ON?
• Is the machine out of sleep mode?

If both the display and 📁 are not lit, press the power switch.

Diagram showing printer application process with icons for image and power switch, indicating steps to close the print.

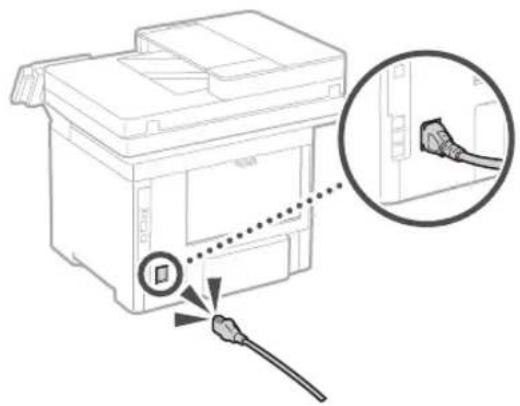

• Is the power cord connected correctly?

Diagram of a printer with a cable inserted, showing a close-up of the cable being inserted (no text or symbols present)

If the problem persists, see the User's Guide.

Paper Jams Have Occurred

Clear the paper jams, according to the on-screen instructions.

Paper jammed Remove the jammed paper. Previous Next

Replacing the Toner Cartridge

Replace the toner cartridge, according to the on-screen instructions.

End of Cartridge Lifetime Press the button and open the front cover. Previous 1/4

Model number of replacement toner cartridge

• Canon Cartridge 056 L
• Canon Cartridge 056
• Canon Cartridge 056 H

Appendix

Important Safety Instructions

This chapter describes important safety instructions for the prevention of injury to users of this machine and others, and damage to property. Read this chapter before using the machine, and follow the instructions to use the machine properly. Do not perform any operations not described in this manual. Canon will not be responsible for any damages resulting from operations not described in this manual, improper use, or repair or changes not performed by Canon or a third party authorized by Canon. Improper operation or use of this machine could result in personal injury and/or damage requiring extensive repair that may not be covered under your Limited Warranty.

WARNING

Indicates a warning concerning operations that may lead to death or injury to persons if not performed correctly. To use the machine safely, always pay attention to these warnings.

CAUTION

Indicates a caution concerning operations that may lead to injury to persons if not performed correctly. To use the machine safely, always pay attention to these cautions.

IMPORTANT

Indicates operational requirements and restrictions. Be sure to read these items carefully to operate the machine correctly and avoid damage to the machine or property.

Installation

To use this machine safely and comfortably, carefully read the following precautions and install the machine in an appropriate location.

WARNING

Do not install in a location that may result in a fire or electrical shock

• A location where the ventilation slots are blocked (too close to walls, beds, sofas, rugs, or similar objects)
  • A damp or dusty location
• A location exposed to direct sunlight or outdoors
  • A location subject to high temperatures
  • A location exposed to open flames
• Near alcohol, paint thinners or other flammable substances

Other warnings

• Do not connect unapproved cables to this machine. Doing so may result in a fire or electrical shock.
• Do not place necklaces and other metal objects or containers filled with liquid on the machine. If foreign substances come in contact with electrical parts inside the machine, it may result in a fire or electrical shock.
• When installing and removing the optional accessories, be sure to turn OFF the power, unplug the power plug, and then disconnect all the interface cables and power cord from the machine. Otherwise, the power cord or interface cables may be damaged, resulting in a fire or electrical shock.
• If any foreign substance falls into this machine, unplug the power plug from the AC power outlet and contact your local authorized Canon dealer.

CAUTION

Do not install in the following locations

The machine may drop or fall, resulting in injury.

• An unstable location
• A location exposed to vibrations

Other cautions

• When carrying this machine, follow the instructions in this manual. If carried improperly, it may fall, resulting in injury
• When installing this machine, be careful not to get your hands caught between the machine and the floor or walls. Doing so may result in injury.

IMPORTANT

Do not install in the following locations

Doing so may result in damage to the machine.

• A location subject to temperature and humidity extremes, whether low or high
• A location subject to dramatic changes in temperature or humidity
• A location near equipment that generates magnetic or electromagnetic waves
• A laboratory or location where chemical reactions occur
• A location exposed to corrosive or toxic gases
- A location that may warp from the weight of the machine or where the machine is liable to sink (a carpet, etc.)

Avoid poorly ventilated locations

This machine generates a slight amount of ozone and other emissions during normal use. These emissions are not harmful to health. However, they may be noticeable during extended use or long production runs in poorly ventilated rooms. To maintain a comfortable working environment, it is recommended that the room where the machine operates be appropriately ventilated. Also avoid locations where people would be exposed to emissions from the machine.

Do not install in a location where

condensation occurs

Water droplets (condensation) may form inside the machine when the room where the machine is installed is heated rapidly, and when the machine is moved from a cool or dry location to a hot or humid location. Using the machine under these conditions may result in paper jams, poor print quality, or damage to the machine. Let the machine adjust to the ambient temperature and humidity for at least 2 hours before use.

In altitudes of above sea level 3,000 m or higher

Machines with a hard disk may not operate properly when used at high altitudes of about 3,000 meters above sea level, or higher.

Connecting the Telephone Line

This machine conforms to a analog telephone line standard. The machine can be connected to the public switched telephone network (PSTN) only. If you connect the machine to a digital telephone line or a dedicated telephone line, it might impede proper operation of the machine and could be the cause of damage. Make sure to confirm a type of telephone line before connecting the machine. Contact your optical fiber line or IP telephone line service providers if you want to connect the machine to those telephone lines.

When using wireless LAN

• Install the machine at a distance of 50 meters or less from the wireless LAN router.
- As far as possible, install in a location where communication is not blocked by intervening objects. The signal may be degraded when passing through walls or floors.
- Keep the machine as far as possible from digital cordless phones, microwave ovens, or other equipment that emits radio waves.
- Do not use near medical equipment. Radio waves emitted from this machine may interfere with medical equipment, which may result in malfunctions and accidents.

If the operating noise concerns you

Depending on the use environment and operating mode, if the operating noise is of concern, it is recommended that the machine be installed in a place other than the office.

Power Supply

WARNING

• Use only a power supply that meets the specified voltage requirements. Failure to do so may result in a fire or electrical shock.
  • The machine must be connected to a socket-outlet with grounding connection by the provided power cord.
• Do not use power cords other than the one provided, as this may result in a fire or electrical shock.
• The provided power cord is intended for use with this machine. Do not connect the power cord to other devices.
• Do not modify, pull, forcibly bend, or perform any other act that may damage the power cord. Do not place heavy objects on the power cord. Damaging the power cord may result in a fire or electrical shock.
• Do not plug in or unplug the power plug with wet hands, as this may result in an electrical shock.
• Do not use extension cords or multi-plug power strips with the machine. Doing so may result in a fire or electrical shock.
• Do not wrap the power cord or tie it in a knot, as this may result in a fire or electrical shock.
• Insert the power plug completely into the AC power outlet. Failure to do so may result in a fire or electrical shock.
• Remove the power plug completely from the AC power outlet during a thunder storm. Failure to do so may result in a fire, electrical shock, or damage to the machine.
  • Make sure that the power supply for the machine is safe, and has a steady voltage.
• Keep the power cord away from a heat source; failure to do this may cause the power cord coating to melt, resulting in a fire or electrical shock.

Avoid the following situations:

If excessive stress is applied to the connection part of the power cord, it may damage the power cord or the wires inside the machine may disconnect. This could result in a fire.

- Connecting and disconnecting the power cord frequently.

-Tripping over the power cord.
- The power cord is bent near the connection part, and continuous stress is being applied to the power outlet or the connection part.
- Applying excessive force on the power plug.

CAUTION

• Install this machine near the power outlet and leave sufficient space around the power plug so that it can be unplugged easily in an emergency.

IMPORTANT

When connecting power

• Do not connect the power cord to an uninterruptible power source. Doing so may result in malfunction of or damage to the machine at power failure.
• If you plug this machine into an AC power outlet with multiple sockets, do not use the remaining sockets to connect other devices.
• Do not connect the power cord to the auxiliary AC power outlet on a computer.

Other precautions

Electrical noise may cause this machine to malfunction or lose data.

Handling

WARNING

• Immediately unplug the power plug from the AC power outlet and contact an authorized Canon dealer if the machine makes an unusual noise, emits an unusual smell, or emits smoke or excessive heat. Continued use may result in a fire or electrical shock.

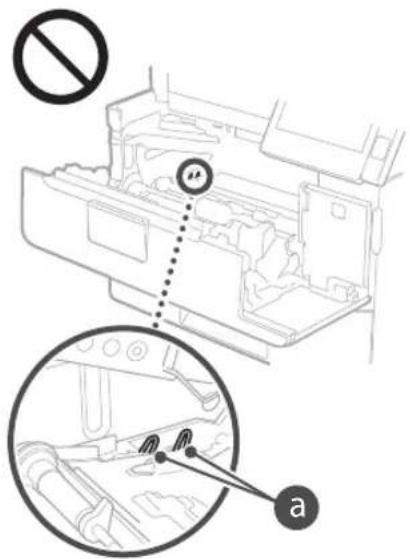

• Do not disassemble or modify this machine. There are high-voltage and high-temperature components inside the machine. Disassembly or modification may result in a fire or electrical shock.
• Place the machine where children will not come in contact with the power cord and other cables or gears and electrical parts inside the machine. Failure to do so may result in unexpected accidents.
• Do not use flammable sprays near this machine. If flammable substances come into contact with electrical parts inside this machine, it may result in a fire or electrical shock.
• When moving this machine, be sure to turn OFF the power of this machine, and then unplug the power plug and interface cables. Failure to do so may damage the power cord or interface cables, resulting in a fire or electrical shock.
• When plugging or unplugging a USB cable when the power plug is plugged into an AC power outlet, do not touch the metal part of the connector, as this may result in an electrical shock.

If you are using a cardiac pacemaker

This machine generates a low level magnetic flux and ultrasonic waves. If you use a cardiac pacemaker and feel abnormalities, please move away from this machine and consult your physician immediately.

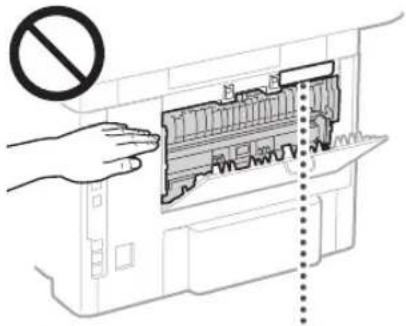

CAUTION

• Do not place heavy objects on this machine as they may fall, resulting in injury.
• For your safety, please unplug the power cord if the machine will not be used for a long period of time.
• Use caution when opening and closing covers to avoid injury to your hands.
• Keep hands and clothing away from the rollers in the output area. If the rollers catch your hands or clothing, this may result in personal injury.

• The inside of the machine and the output slot are very hot during and immediately after use. Avoid contact with these areas to prevent burns. Also, printed paper may be hot immediately after being output, so use caution when handling it. Failure to do so may result in burns.

Diagram of a printer's internal structure with a hand holding the paper, no text or symbols present

• Be careful not to drop a heavy object, such as a dictionary, on the platen glass. Doing so may damage the platen glass and result in injury.
• Do not carry the machine with any of the paper drawer or optional paper feeder installed. Otherwise, they may fall, resulting in injury.

Illustration showing a person holding a stack of books with a 'no' symbol, possibly indicating no restrictions or prohibition.

Feeder

• Do not press down hard on the feeder when using the platen glass to make copies of thick books. Doing so may damage the platen glass and result in personal injury.
• Close the feeder gently to avoid catching your hands, as this may result in personal injury.
• Be careful not to put your hands or fingers into the feeder. Otherwise, you may be injured.

Illustration of a hand placing two cards into a box with a prohibition symbol (no text or labels)

Paper drawer

- Do not insert your hand into the machine while the paper drawer is removed, as this may result in personal injury.

Energy Saver key

- Press (Energy Saver) for safety when the machine will not be used for a long period of time, such as overnight. Also, turn OFF the main power switch, and disconnect the power cord for safety when the machine will not be used for an extended period of time, such as during consecutive holidays.

Laser Safety

This product is confirmed as a Class 1 laser product in IEC60825-1:2014 and EN60825-1:2014.

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

The laser beam can be harmful to human bodies. Since radiation emitted inside the product is completely confined within protective housings and external covers, the laser beam cannot escape from the machine during any phase of user operation. Read the following remarks and instructions for safety.

• Never open covers other than those instructed in the manuals for this machine.
• If the laser beam should escape and enter your eyes, exposure may cause damage to your eyes.
• Use of controls, adjustments, or performance of procedures other than those specified in this manual may result in hazardous radiation exposure.

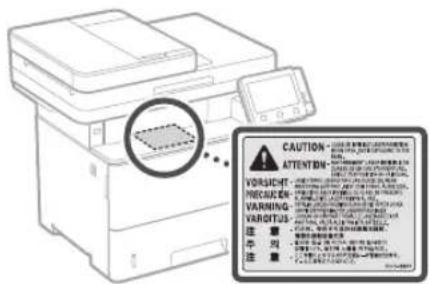

Laser Safety Caution

CAUTION ATTENTION VORSUCHT PRECAUEN VARNING VARIOTUS 注意 李川 注意

IMPORTANT

• Follow the caution instructions on labels and the like found on this machine.
• Do not subject the machine to strong shocks or vibration.
• Do not forcibly open and close doors, covers, and other parts. Doing so may result in damage to the machine.
• Do not turn the main power switch OFF or open the covers while the machine is in operation. This may result in paper jams.
• Use a modular cable that is shorter than 3 meters.
• Use a USB cable that is shorter than 3 meters.

Appendix

- Do not touch the contacts (a) inside the machine. Doing so may result in damage to the machine.

Technical diagram showing a vehicle interior with a no-smoking symbol and a magnified view of the dashboard labeled 'a'

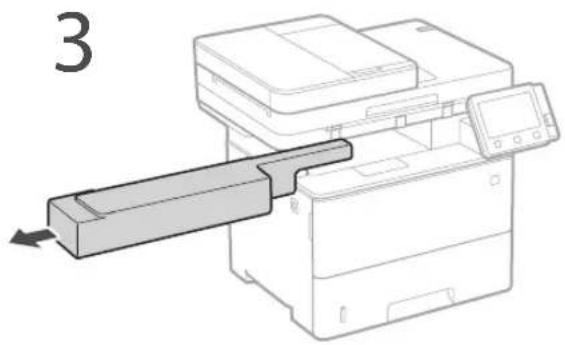

When transporting the machine

To prevent damage to the machine during transport, perform the following.

• Remove the toner cartridge.
• Securely pack the machine in the original box with packing materials.

Safety-Related Symbols

Power switch: "ON" position

Power switch: "OFF" position
Power switch: "STAND-BY" position
① Push-push switch "ON" "OFF"
Protective earthing terminal
Dangerous voltage inside. Do not open covers other than instructed.
CAUTION: Hot surface. Do not touch.
Class II equipment
Moving parts: Keep body parts away from moving parts
CAUTION: An electrical shock may occur. Remove all the power plugs from the power outlet.
There are sharp edges. Keep body parts away from sharp edges.

[NOTE]

Some of symbols shown above may not be affixed depending on the product.

Maintenance and Inspections

Clean this machine periodically. If dust accumulates, the machine may not operate properly. When cleaning, be sure to observe the following. If a problem occurs during operation, see the User's Guide. If the problem cannot be resolved or you feel the machine requires an inspection, see "When a Problem Cannot Be Solved" in the User's Guide.

WARNING

- Before cleaning, turn OFF the power and unplug the power plug from the AC power outlet. Failure to do so may result in a fire or electrical shock.

• Unplug the power plug periodically and clean with a dry cloth to remove dust and grime. Accumulated dust may absorb humidity in the air and may result in a fire if it comes into contact with electricity.
• Use a damp, well wrung-out cloth to clean the machine. Dampen cleaning cloths with water only. Do not use alcohol, benzine, paint thinner, or other flammable substances. Do not use tissue paper or paper towels. If these substances come into contact with electrical parts inside the machine, they may generate static electricity or result in a fire or electrical shock.
• Check the power cord and plug periodically for damage. Check the machine for rust, dents, scratches, cracks, or excessive heat generation. Use of poorly-maintained equipment may result in a fire or electrical shock.

CAUTION

• The inside of the machine has high-temperature and high-voltage components. Touching these components may result in burns. Do not touch any part of the machine that is not indicated in the manual.
- When loading paper or removing jammed paper, be careful not to cut your hands with the edges of the paper.

Consumables

WARNING

• Do not dispose of used toner cartridges or the like in open flames. Also, do not store toner cartridges or paper in a location exposed to open flames. This may cause the toner to ignite, and result in burns or fire.
• If you accidentally spill or scatter toner, carefully gather the toner particles together or wipe them up with a soft, damp cloth in a way that prevents inhalation. Never use a vacuum cleaner that does not have safeguards against dust explosions to clean up spilled toner. Doing so may cause a malfunction in the vacuum cleaner, or result in a dust explosion due to static discharge.

If you are using a cardiac pacemaker

- The toner cartridge generates a low level magnetic flux. If you are using a cardiac pacemaker and feel abnormalities, please move away from the toner cartridge and consult your physician immediately.

CAUTION

• Use caution not to inhale any toner. If you should inhale toner, consult a physician immediately.
• Use caution so that toner does not get into your eyes or mouth. If toner should get into your eyes or mouth, immediately wash with cold water and consult a physician.
• Use caution so that toner does not come into contact with your skin. If it should, wash with soap and cold water. If there is any irritation on your skin, consult a physician immediately.
• Keep the toner cartridges and other consumables out of the reach of small children. If toner is ingested, consult a physician or poison control center immediately.
• Do not disassemble or modify the toner cartridge or the like. Doing so may cause the toner to scatter.
• When removing the sealing tape from the toner cartridge, pull it out completely but without using excessive force. Doing otherwise may cause the toner to scatter.

IMPORTANT

Handling the toner cartridge

- Be sure to hold the toner cartridge using the handle.

Illustration of a hand holding a mechanical component (no text or symbols visible)

- Do not touch the toner cartridge memory (a) or the electrical contacts (b). To avoid scratching the surface of the drum inside the machine or exposing it to light, do not open the drum protective shutter (c).

No smoking a b c Bottom View

• Except when necessary, do not take out the toner cartridge from the packing material or from this machine.
• The toner cartridge is a magnetic product. Do not move it close to products susceptible to magnetism including floppy disks and disk drives. Doing so may result in data corruption.

Storing the toner cartridge

• Store in the following environment to ensure safe and satisfactory use. Storage temperature range: 0 to 35°C Storage humidity range: 35 to 85% RH (relative humidity/no condensation)*
• Store without opening until the toner cartridge is to be used.
• When removing the toner cartridge from this machine for storage, place the removed toner cartridge in the original packing material.
• When storing the toner cartridge, do not store it upright or upside down. The toner will solidify and may not return to its original condition even if it is shaken.
  * Even within the storable humidity range, water droplets (condensation) may develop inside the toner cartridge if there is a difference of temperature inside and outside the toner cartridge. Condensation will adversely affect the print quality of toner cartridges.

Do not store the toner cartridge in the following locations

• Locations exposed to open flames
• Locations exposed to direct sunlight or bright light for five minutes or more
• Locations exposed to excessive salty air
• Locations where there are corrosive gases (i.e. aerosol sprays and ammonia)
• Locations subject to high temperature and high humidity
• Locations subject to dramatic changes in temperature and humidity where condensation may easily occur
  • Locations with a large amount of dust
  • Locations within the reach of children

Be careful of counterfeit toner cartridges

- Please be aware that there are counterfeit Canon toner cartridges in the marketplace. Use of counterfeit toner cartridge may result in poor print quality or machine performance. Canon is not responsible for any malfunction, accident or damage caused by the use of counterfeit toner cartridge. For more information, see global.canon/ctc.

Availability period of repairing parts and toner cartridges and the like

- The repairing parts and toner cartridges and the like for the machine will be available for at least seven (7) years after production of this machine model has been discontinued.

Toner cartridge packing materials

• Save the packing materials for the toner cartridge. They are required when transporting this machine.
• The packing materials may be changed in form or placement, or may be added or removed without notice.
  • After you pull out the sealing tape from the toner cartridge, dispose of it in accordance with the applicable local regulations.

When disposing of a used toner cartridge or the like

- When discarding a toner cartridge or the like, place it in the original packing material to prevent toner from scattering from inside, and dispose of it in accordance with the applicable local regulations.

Notice

Product Name

Safety regulations require the product's name to be registered.

In some regions where this product is sold, the following name(s) in parentheses () may be registered instead.

MF543x (F176402)

MF542x (F176400)

EMC requirements of EC Directive

This equipment conforms with the essential EMC requirements of EC Directive. We declare that this product conforms with the EMC requirements of EC Directive at nominal mains input 230 V, 50 Hz although the rated input of the product is 220 to 240 V, 50/60 Hz. Use of shielded cable is necessary to comply with the technical EMC requirements of EC Directive.

EU WEEE and Battery Directives

You can see the WEEE and Battery Directives information in the latest User's Guide (HTML manual) from the Canon website (https://oip.manual.canon).

Wireless LAN Regulatory Information

Regulatory information for users in Jordan MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE

MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Legal Limitations on the Usage of Your Product and the Use of Images Using your product to scan, print or otherwise reproduce certain documents, and the use of such images as scanned, printed or otherwise reproduced by your product, may be prohibited by law and may result in criminal and/or civil liability. A non-exhaustive list of these documents is set forth below. This list is intended to be a guide only. If you are uncertain about the legality of using your product to scan, print or otherwise reproduce any particular document, and/or of the use of the images scanned, printed or otherwise reproduced, you should consult in advance with your legal advisor for guidance.

• Paper Money
• Travelers Checks
• Money Orders
• Food Stamps
  • Certificates of Deposit
• Passports
• Postage Stamps (canceled or uncanceled)
• Immigration Papers
  • Identifying Badges or Insignias
• Internal Revenue Stamps (canceled or uncanceled)
• Selective Service or Draft Papers
  • Bonds or Other Certificates of Indebtedness
• Checks or Drafts Issued by Governmental Agencies
  • Stock Certificates
  • Motor Vehicle Licenses and Certificates of Title
  • Copyrighted Works/Works of Art without Permission of Copyright Owner

Disclaimers

• The information in this document is subject to change without notice.
• CANON INC. MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL, EITHER EXPRESS OR IMPLIED, EXCEPT AS PROVIDED HEREIN, INCLUDING WITHOUT LIMITATION, THEREOF, WARRANTIES AS TO MARKETABILITY, MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OF USE, OR NON-INFRINGEMENT. CANON INC. SHALL NOT BE LIABLE FOR ANY DIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM THE USE OF THIS MATERIAL.

About This Manual

Keys and Buttons Used in This Manual

The following symbols and key names are a few examples of how keys to be pressed are expressed in this manual.

• Operation panel keys: [Key icon] Example:
- Display:
- Buttons and items on the computer display: [Preferences]

Illustrations and Displays Used in This Manual Illustrations and displays used in this manual are which of MF543x unless specified.

Trademarks

Mac is a trademark of Apple Inc. Microsoft, Windows, Windows Vista, Windows Server, Internet Explorer, Excel, and PowerPoint are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Other product and company names herein may be the trademarks of their respective owners.

Third Party Software

This Canon product (the "PRODUCT") includes third-party software modules. Use and distribution of these software modules, including any updates of such software modules (collectively, the "SOFTWARE") are subject to license conditions (1) through (9) below.

(1) You agree that you will comply with any applicable export control laws, restrictions or regulations of the countries involved in the event that this PRODUCT including the SOFTWARE is shipped, transferred or exported into any country.
(2) Rights holders of the SOFTWARE retain in all respects the title, ownership and intellectual property rights in and to the SOFTWARE. Except as expressly provided herein, no license or right, expressed or implied, is hereby conveyed or granted by rights holders of the SOFTWARE to you for any intellectual property of rights holders of the SOFTWARE.

(3) You may use the SOFTWARE solely for use with the PRODUCT.

(4) You may not assign, sublicense, market, distribute, or transfer the SOFTWARE to any third party without prior written consent of rights holders of the SOFTWARE.

(5) Notwithstanding the foregoing, you may transfer the SOFTWARE only when (a) you assign all of your rights to the PRODUCT and all rights and obligations under the license conditions to transferee and (b) such transferee agrees to be bound by all these conditions.

(6) You may not decompile, reverse engineer, disassemble or otherwise reduce the code of the SOFTWARE to human readable form.

(7) You may not modify, adapt, translate, rent, lease or loan the SOFTWARE or create derivative works based on the SOFTWARE.

(8) You are not entitled to remove or make separate copies of the SOFTWARE from the PRODUCT.

(9) The human-readable portion (the source code) of the SOFTWARE is not licensed to you.

Notwithstanding (1) through (9) above, the PRODUCT includes third-party software modules accompanying the other license conditions, and these software modules are subject to the other license conditions. Please refer to the other license conditions of third-party software modules described in Appendix of Manual for the corresponding the PRODUCT. This Manual is available at https://oip.manual.canon/.

By using the PRODUCT, you shall be deemed to have agreed to all applicable license conditions. If you do not agree to these license conditions, please contact your service representative.

V_181009

Line drawing of a printer with an attached digital display (no text or symbols)

Panneau de commande

View Options Parameters: 100% - Computer Name: Windows Command name: Windows File Edit View Insert Modify Change Browse... Save in Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Save As Web... Save As Web... Save As Web... Save As Web... Save As Web... Save As Web... Save As Web... Save As Web... Save As Web... Save As Web... Save As Web... Save As Web... Save As Web... Save As Web... Save As Web... Save As Web... Save As Web... Save As Web... Save As Web... Save As Web... Save As Web... Save As Web... Save As Web... Save As Web... Save As Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Save as Web... Saveas Save As Web... Save As Web... Save As Web... Save As Web... Save As Web... Save As Web... Save As Web... Save As Web... Save As Web... Save As Web... Save As Web... Save As Web... Save As Web... Save As Web... Save As Web... Save As Web... Save As Web...

Illustration of hands installing or adjusting a component on a machine (no text or symbols visible)

2

Technical line drawing of a mechanical assembly with arrows indicating motion or force (no text or symbols)

Diagram showing printer application process with icons for image and power switch, indicating steps to close the print.

Diagram of a printer with a cable inserted, showing a close-up of the cable being inserted (no text or symbols present)

Illustration showing a person holding a stack of boxes with a 'No' symbol, indicating no restrictions or prohibition.

Chargeur

Illustration of a hand placing two cards into a box with a prohibition symbol (no text or labels)

Cassette à papier

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram showing a mechanical component with a prohibition symbol and an inset close-up of the internal structure, labeled 'a'.

Illustration of a hand holding a mechanical component (no text or symbols visible)

Regulatory information for users in Jordan MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/ SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with an open lid and a dotted line indicating a connection point (no text or symbols present)

Bedienfeld

Document Form1 Form2 Form3 Form4 Form5 Form6 Form7 Form8 Form9 Form10 Form11 Form12 Form13 Form14 Form15 Form16 Form17 Form18 Form19 Form20 Form21 Form22 Form23 Form24 Form25 Form26 Form27 Form28 Form29 Form30 Form31 Form32 Form33 Form34 Form35 Form36 Form37 Form38 Form39 Form40 Form41 Form42 Form43 Form44 Form45 Form46 Form47 Form48 Form49 Form50 Form51 Form52 Form53 Form54 Form55 Form56 Form57 Form58 Form59 Form60 Form61 Form62 Form63 Form64 Form65 Form66 Form67 Form68 Form69 Form70 Form71 Form72 Form73 Form74 Form75 Form76 Form77 Form78 Form79 Form80 Form81 Form82 Form83 Form84 Form85 Form86 Form87 Form88 Form89 Form90 Form91 Form92 Form93 Form94 Form95 Form96 Form97 Form98 Form99 Form100

Illustration of hands installing or adjusting a component on a machine (no text or symbols visible)

2

3 Bis hierhin

Technical line drawing of a mechanical assembly with arrows indicating motion or force (no text or symbols)

Diagram showing printer application process with icons for image and power switch, indicating steps to close the print.

Diagram of a printer with a cable inserted, showing a close-up of the cable being inserted (no text or symbols present)

Illustration showing a person holding a stack of boxes with a 'no' symbol, possibly indicating no restrictions or prohibition.

Zufuhr

Illustration showing a hand pressing a stack of cards into a box with a prohibition symbol nearby

Papierkassette

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LASER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram showing a vehicle interior with a no-smoking symbol and an inset close-up of the component detail labeled 'a'.

Illustration of a hand holding a mechanical component (no text or symbols visible)

Regulatory information for users in Jordan MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/ SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE

MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a digital display showing an icon (no text or symbols present)

Pannello operativo

Name: Material Properties Material Type: Material Name: Material Description: Material Description: Material Description: Material Description: Material Description: Material Description: Material Description: Material Description: Material Description: Material Description: Material Description: Material Description: Material Description: Material Description: Material Description: Material Description: Material Description: Material Description: Material Description: Material Description: Material Description: Material Description: Material Description: Material Description: Material Description: Material Description: Material Description: Material Description: Material Description: Material Description: Material Description: Material Description: Material Description: Material Description:

Illustration of hands installing or adjusting a component on a machine (no text or symbols visible)

2

3 Fino qui

Technical line drawing of a mechanical assembly with arrows indicating motion or force (no text or symbols)

Diagram showing printer scanning process with icons for image and power switch, including magnified views of the printer's screen.

Diagram of a printer with a cable inserted, showing a close-up of the cable being inserted (no text or symbols present)

Illustration showing a person holding a stack of documents with a 'No' symbol above, indicating no restrictions or prohibition.

Alimentatore

Illustration of a hand placing two cards into a box with a prohibition symbol (no text or labels)

Cassetto carta

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram showing a mechanical component with a prohibition symbol and an inset close-up of the internal structure, labeled 'a'.

Illustration of a hand holding a mechanical component (no text or symbols visible)

Regulatory information for users in Jordan MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/ SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE

MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a digital display showing an icon (no text or symbols present)

Panel de control

No. 1 Display Mode: [ ] Name: 100% Color Mode: 100% Size: 5 px Distance: 5 px Use in the format: Use in the format: Use in the format: Use in the format: Use in the format: Use in the format: Use in the format: Use in the format: Use in the format: Use in the format: Use in the format: Use in the format: Use in the format: Use in the format: Use in the format: Use in the format: Use in the format: Use in the format: Use in the format: Use in the format: Use in the format:

Illustration of hands installing or adjusting a component on a machine (no text or symbols visible)

2

Technical line drawing of a mechanical assembly with arrows indicating motion or force (no text or symbols)

Diagram showing printer application process with icons for image and power switch, including a close-up of the printer's screen.

Diagram of a printer with a cable inserted, showing a close-up of the cable being inserted (no text or symbols present)

Illustration showing a person holding a stack of books with a 'no' symbol above, indicating no restrictions or prohibition.

Alimentador

Illustration of a hand placing two cards into a box with a prohibition symbol (no text or labels)

Casete de papel

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram showing a mechanical component with a prohibition symbol and an inset close-up of the internal structure, labeled 'a'.

Illustration of a hand holding a mechanical component (no text or symbols visible)

Regulatory information for users in Jordan MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/ SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE

MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Illustration of hands installing or adjusting a mechanical component with an arrow indicating motion (no text or symbols present)

2

3 Fins aquí

4

Diagram showing printer operation with icons for image and power switch, indicating file transfer or scanning process.

Diagram of a printer with a cable inserted, showing a close-up of the cable being inserted (no text or symbols present)

Illustration showing a person holding a stack of boxes with a 'No' symbol, indicating no restrictions or prohibition.

Alimentador

Diagram showing a hand placing a card into a box with a prohibition symbol nearby

Casset de paper

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram showing a vehicle interior with a no-smoking symbol and a magnified view of the dashboard with labeled parts.

Illustration of a hand holding a mechanical component (no text or symbols visible)

Regulatory information for users in Jordan

MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE

MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a digital display showing an icon (no text or symbols present)

Eragiketa panela

Illustration of hands installing or adjusting a component on a machine (no text or symbols visible)

2

3 Honaino

Diagram of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Diagram showing printer application process with icons for zoom, power switch, and power button

Diagram of a printer with a cable inserted, showing a close-up of the cable being inserted (no text or symbols present)

Diagram of a printer's internal structure with a hand holding the paper, no text or symbols present

Illustration showing a person holding a stack of books with a 'no' symbol above, indicating no restrictions or prohibition.

Elikagailua

Illustration of a hand placing two cards into a box with a prohibition symbol (no text or labels)

Paperaren tiradera

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram showing a mechanical component with a prohibition symbol and an inset close-up of the internal structure, labeled 'a'.

Makina garraiatzean

Illustration of a hand holding a mechanical component (no text or symbols visible)

Regulatory information for users in Jordan MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a digital display showing an icon (no text or symbols present)

Painel de operações

Illustration of hands installing or adjusting a door panel inside a printer (no text or symbols visible)

2

Technical line drawing of a mechanical assembly with arrows indicating motion or force (no text or symbols)

Diagram showing printer application process with icons for image and power switch, indicating steps to close the printer.

Diagram of a printer with a cable inserted, showing a close-up of the cable being inserted (no text or symbols present)

Se o problema persistir, consulte o Manual do utilizador.

Diagram showing a hand inserting a device into a rack with a prohibition symbol above, indicating no restrictions.

Illustration showing a person holding a stack of boxes with a 'No' symbol, indicating no restrictions or prohibition.

Alimentador

Illustration showing a hand pressing a stack of cards into a box with a prohibition symbol nearby

Gaveta de papel

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram showing a mechanical component with a circular symbol and a magnified inset highlighting a specific feature labeled 'a'.

Illustration of a hand holding a mechanical component (no text or symbols visible)

Regulatory information for users in Jordan

MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE

MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a digital display showing an icon (no text or symbols present)

Πίνακας λειτουργίας

Illustration of hands installing or adjusting a mechanical component with an arrow indicating rotation (no text or symbols present)

2

3 Ews edw

Technical line drawing of a mechanical assembly with arrows indicating motion or force (no text or symbols)

Diagram showing printer operation with icons for image and power switch, indicating file transfer or scanning process.

Diagram of a printer with a close-up view showing the cable being inserted into a socket (no text or symbols present)

Diagram showing a person holding a stack of books with a 'no' symbol above, indicating no restrictions or prohibition.

Τροφοδότης

Illustration showing a hand placing two cards into a box with a prohibition symbol nearby

Συρτάρι χαρτιού

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1 APPARECCHIO LASER DI CLASSE 1 PRODUCTO LÁSER DE CLASE 1 APARELHO A LASER DE CLASSE 1 LUOKAN 1 LASER-TUOTE LASERPRODUKT KLASS 1

Technical diagram showing a mechanical component with a circular symbol and a magnified inset highlighting a specific feature labeled 'a'.

Illustration of a hand holding a mechanical component (no text or symbols visible)

Regulatory information for users in Jordan MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in UAE MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a digital display showing an icon (no text or symbols present)

Betjeningspanel

Illustration of hands installing or adjusting a mechanical component with an arrow indicating rotation (no text or symbols present)

2

3 Op hertil

Technical line drawing of a mechanical assembly with arrows indicating motion or force (no text or symbols)

Diagram showing printer application process with icons for image and power switch, indicating steps to close the print.

Diagram of a printer with a cable inserted, showing a close-up of the cable being inserted (no text or symbols present)

Illustration showing a person holding a stack of boxes with a 'No' symbol, indicating no restrictions or prohibition.

Fremfører

Illustration of a hand placing two cards into a box with a prohibition symbol (no text or labels)

Papirbakke

- Sæt ikke din hånd ind i maskinen, mens papirbakken er taget ud, da dette kan medføre personskade.

Energisparer-tast

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram showing a mechanical component with a circular symbol and a magnified inset highlighting a specific feature labeled 'a'.

Illustration of a hand holding a mechanical component (no text or symbols visible)

Regulatory information for users in Jordan

MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE

MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a digital display showing an icon (no text or symbols present)

Bedieningspaneel

Properties Form1 Properties1 Form2 Form3 Form4 Form5 Form6 Form7 Form8 Form9 Form10 Form11 Form12 Form13 Form14 Form15 Form16 Form17 Form18 Form19 Form20 Form21 Form22 Form23 Form24 Form25 Form26 Form27 Form28 Form29 Form30 Form31 Form32 Form33 Form34 Form35 Form36 Form37 Form38 Form39 Form40 Form41 Form42 Form43 Form44 Form45 Form46 Form47 Form48 Form49 Form50 Form51 Form52 Form53 Form54 Form55 Form56 Form57 Form58 Form59 Form60 Form61 Form62 Form63 Form64 Form65 Form66 Form67 Form68 Form69 Form70 Form71 Form72 Form73 Form74 Form75 Form76 Form77 Form78 Form79 Form80 Form81 Form82 Form83 Form84 Form85 Form86 Form87 Form88 Form89 Form90 Form91 Form92 Form93 Form94 Form95 Form96 Form97 Form98 Form99 Form100

2 A4/A5 A4 A4

3 Tot hier

4 Schuif de papierlade in de machine.

Illustration of hands installing or adjusting a component on a machine (no text or symbols visible)

2

3 Tot hier

Technical line drawing of a mechanical assembly with arrows indicating motion or force (no text or symbols)

Diagram showing printer operation with icons for image and power switch, indicating file transfer or scanning process.

Diagram of a printer with a cable inserted, showing a close-up of the cable being inserted (no text or symbols present)

Diagram of a hand inserting a device into a machine with a prohibition symbol (no text or labels)

Illustration showing a person holding a stack of boxes with a 'No' symbol, indicating no restrictions or prohibition.

Invoer

Illustration of a hand placing two cards into a tray with a warning symbol (no text or labels)

Papierlade

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram showing a vehicle interior with a no-smoking symbol and a magnified view of the dashboard with labeled parts 'a'.

Illustration of a hand holding a mechanical component (no text or symbols visible)

Regulatory information for users in Jordan

MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE

MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a digital display showing an icon (no text or symbols present)

Betjeningspanel

Microsoft Windows Form12345 Microsoft Windows (Windows) - [ ]\ Windows Options [ ]\ [ ]\ [ ]\ [ ]\ [ ]\ [ ]\ [ ]\ [ ]\ [ ]\ [ ]\ [ ]\ [ ]\ [ ]\ [ ]\ [ ]\ [ ]\ [ ]\ [ ]\ [ ]\ [ ]\ [ ]\ [ ]\ [ ]\ [ ]\ [ ]\ [ ]\ [ ]\ [ ]\ [ ]\ [ ]\ [ ]\ [ ]\ [ ]\ [ ]\ ( )\ ( )\ ( )\ ( )\ ( )\ ( )\ ( )\ ( )\ ( )\ ( )\ ( )\ ( )\ ( )\ ( )\ ( )\ ( )\ ( )\ ( )\ ( )\ ( )\ ( )\ ( )\ ( )\ ( )\ ( )\ ( )\ ( )\ ( )\ ( )\ ( )\ ( )\ ( )\ ( )\ ( ) \ ) Windows Options Windows Options Windows Options Windows Options Windows Options Windows Options Windows Options Windows Options Windows Options Windows Options Windows Options Windows Options Windows Options Windows Options Windows Options Windows Options Windows Options Windows Options Windows Options Windows Options Windows Options Windows Options Windows Options Windows Options Windows Options Windows Options

3 Opp hit

4 Skyv papirskuffen inn i maskinen.

Illustration of hands installing or adjusting a component on a machine (no text or symbols visible)

2

3 Opp hit

Technical line drawing of a mechanical assembly with arrows indicating motion or force (no text or symbols)

Diagram showing printer scanning process with icons for image and power switch, indicating scanning and power transfer steps.

Diagram of a printer with a cable inserted, showing a close-up of the cable being inserted (no text or symbols present)

Se bruksanvisningen hvis problemet vedvarer.

Diagram showing a hand inserting a device into a rack with a prohibition symbol above, indicating no movement or disassembly.

Illustration showing a person holding a stack of books with a 'no' symbol, possibly indicating no restrictions or prohibition.

Mater

Illustration of a hand placing two cards into a box with a prohibition symbol (no text or labels)

Papirskuff

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram showing a mechanical component with a no-smoking symbol and an inset close-up of the internal structure, labeled 'a'.

Når du transporterer maskinen

Illustration of a hand holding a mechanical component (no text or symbols visible)

Regulatory information for users in Jordan MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE

MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a digital display showing an icon (no text or symbols present)

Kontrollpanel

File Edit Options Export Export Mode Export Date Export Type Export Value Export Date Export Value Export Date Export Value Export Date Export Value Export Date Export Value Export Date Export Value Export Date Export Value Export Date Export Value Export Date Export Value Export Date Export Value Export Date Export Value Export Date Export Value Export Date Export Value Export Date Export Value Export Date Export Value Export Date Export Value Export Date Export Value Export Date Export Value

Illustration of hands installing or adjusting a mechanical component with an arrow indicating motion (no text or symbols present)

2

3 Upp till hit

Line drawing of a mechanical device with arrows indicating motion or force (no text or symbols)

Diagram showing printer application process with icons for scanning and power switch, including a magnified view of the printer's screen.

Diagram of a printer with a cable inserted, showing a close-up of the cable being inserted (no text or symbols present)

Illustration showing a person holding a stack of boxes with a 'No' symbol, indicating no restrictions or prohibition.

Matare

Illustration showing a hand placing two cards into a box with a prohibition symbol nearby

Papperslåda

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram showing a mechanical component with a no-smoking symbol and an inset close-up of the interior view labeled 'a'.

Illustration of a hand holding a mechanical component (no text or symbols visible)

Regulatory information for users in Jordan MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in UAE MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a digital display showing an icon (no text or symbols present)

Käyttöpaneeli

Illustration of hands installing or adjusting a component on a machine (no text or symbols visible)

2

Technical line drawing of a mechanical assembly with arrows indicating motion or force (no text or symbols)

Diagram showing printer scanning process with icons for image and power switch, indicating scanning and power transfer steps.

Diagram of a printer with a cable inserted, showing a close-up of the cable being inserted (no text or symbols present)

Illustration showing a person holding a stack of boxes with a 'No' symbol, indicating no restrictions or prohibition.

Syöttölaite

Illustration of a hand placing two cards into a box with a prohibition symbol (no text or labels)

Paperikasetti

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1 APPARECCHIO LASER DI CLASSE 1 PRODUCTO LÁSER DE CLASE 1 APARELHO A LASER DE CLASSE 1 LUOKAN 1 LASER-TUOTE LASERPRODUKT KLASS 1

Technical diagram showing a mechanical component with a prohibition symbol and an inset close-up of the internal structure, labeled 'a'.

Illustration of a hand holding a mechanical component (no text or symbols visible)

Regulatory information for users in Jordan MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/ SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE

MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a digital display showing an icon (no text or symbols present)

Панель управления

Illustration of hands installing or adjusting a component on a machine (no text or symbols visible)

2

Diagram of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Diagram showing printer scanning process with icons for image and power switch, including a magnified view of the printer's screen.

Diagram of a printer with a cable inserted, showing a close-up of the cable being inserted (no text or symbols present)

Illustration showing a person holding a stack of boxes with a 'no' symbol above, indicating no restrictions or prohibition.

Устройство подачи

Illustration showing a hand pressing a stack of cards with a warning symbol indicating no prohibition.

Кассета для бумаги

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram showing a vehicle interior with a no-smoking symbol and a magnified view of the dashboard with labeled components.

Illustration of a hand holding a mechanical component (no text or symbols visible)

Regulatory information for users in Jordan MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a digital display showing an icon (no text or symbols present)

Панель керування

Copy Copy Ratio 100% Name A4 ±0 Number of Colors 1 2 Select Off N in 1-Off Reset Start Other Settings Status Monitor

Illustration of hands installing or adjusting a door panel inside a machine (no text or symbols visible)

2

Technical line drawing of a mechanical assembly with arrows indicating motion or force (no text or symbols)

Diagram showing printer scanning process with icons for image and power switch, illustrating steps to press or download.

Diagram of a printer with a cable inserted, showing a close-up of the cable being inserted (no text or symbols present)

Paper jammed Remove the jammed paper. Previous Next

End of Cartridge Lifetime Press the button and open the front cover. Previous 1/4

Illustration showing a person holding stacked documents with a 'No' symbol above, indicating no restrictions or prohibition.

Пристрій подавання

Illustration of a hand placing two cards into a box with a prohibition symbol (no text or labels)

Шухляда для паперу

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram showing a vehicle interior with a no-smoking symbol and a magnified view of the engine compartment labeled 'a'.

Illustration of a hand holding a cylindrical mechanical component (no text or symbols visible)

Regulatory information for users in Jordan MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/ SS/2018/181

Regulatory information for users in UAE MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a close-up of its screen (no text or symbols)

Vadības panelis

File Edit View Insert Options Name: Category: Size: 100% Size: 100% Size: 100% Size: 100% Size: 100% Size: 100% Size: 100% Size: 100% Size: 100% Size: 100% Size: 100% Size: 100% Size: 100% Size: 100% Size: 100% Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size: Size:

Sīkāku informāciju

Illustration of hands installing or adjusting a mechanical component with an arrow indicating motion (no text or symbols present)

2

Technical line drawing of a mechanical assembly with arrows indicating motion or force (no text or symbols)

Diagram illustrating printer operation with icons for image and power switch, showing process steps and control buttons.

Diagram of a printer with a cable inserted, showing a close-up of the cable being inserted (no text or symbols present)

Indicates a warning concerning operations that may lead to death or injury to persons if not performed correctly. To use the machine safely, always pay attention to these warnings.

UZMANIBU!

Illustration showing a person holding a stack of books with a 'no' symbol above, indicating no restrictions or prohibition.

Padevējs

Illustration showing a hand holding two cards with a warning symbol indicating no prohibition.

Papīra atvilkte

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram showing a vehicle interior with a no-smoking symbol and a magnified view of the engine compartment, labeled 'a'.

Illustration of a hand holding a mechanical component (no text or symbols visible)

Regulatory information for users in Jordan MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/ SS/2018/181

Regulatory information for users in UAE MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a digital display showing an icon (no text or symbols present)

Valdymo skydelis

File Edit View Insert Options File Edit View Insert Options Export Export Type Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path Export Path

Illustration of hands installing or adjusting a component on a machine (no text or symbols visible)

2

Technical line drawing of a mechanical assembly with arrows indicating motion or force (no text or symbols)

Diagram showing printer operation with icons for print and power switch, highlighting a key point on the right.

• Ar tinkamai prijungtas maitinimo laidas?

Diagram of a printer with a cable inserted into the base, showing a close-up of its cable being inserted (no text or symbols present)

Illustration showing a person holding a stack of boxes with a 'No' symbol, indicating no restrictions or prohibition.

Tiektuvas

Illustration of a hand placing two cards into a box with a prohibition symbol (no text or labels)

Popieriaus stalčius

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1 APPARECCHIO LASER DI CLASSE 1 PRODUCTO LÁSER DE CLASE 1 APARELHO A LASER DE CLASSE 1 LUOKAN 1 LASER-TUOTE LASERPRODUKT KLASS 1

Technical diagram showing a mechanical component with a no-smoking symbol and an inset close-up of the internal structure, labeled 'a'.

Perkeliant aparata

Kad perkeldami aparato nesugadintumete, atlikite toliau nurodylus veiksmus.

Illustration of a hand holding a mechanical component (no text or symbols visible)

Regulatory information for users in Jordan MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/ SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a digital display showing an icon (no text or symbols present)

Juhtpaneel

File Name: (C:\My Documents\My Documents\Lock\) Size Properties Name: Size Format: Standard Background Background Form1 Form2 Form3 Form4 Form5 Form6 Form7 Form8 Form9 Form10 Form11 Form12 Form13 Form14 Form15 Form16 Form17 Form18 Form19 Form20 Form21 Form22 Form23 Form24 Form25 Form26 Form27 Form28 Form29 Form30 Form31 Form32 Form33 Form34 Form35 Form36 Form37 Form38 Form39 Form40 Form41 Form42 Form43 Form44 Form45 Form46 Form47 Form48 Form49 Form50 Form51 Form52 Form53 Form54 Form55 Form56 Form57 Form58 Form59 Form60 Form61 Form62 Form63 Form64 Form65 Form66 Form67 Form68 Form69 Form70 Form71 Form72 Form73 Form74 Form75 Form76 Form77 Form78 Form79 Form80 Form81 Form82 Form83 Form84 Form85 Form86 Form87 Form88 Form89 Form90 Form91 Form92 Form93 Form94 Form95 Form96 Form97 Form98 Form99 Form100

Üksikasjad

„Help“ (Spikker)

printeridraiveri kohta

Paberi asetamine paberisahtlisse

Illustration of hands installing or adjusting a mechanical component with an arrow indicating rotation (no text or symbols present)

2

3 Kuni siiani

Technical line drawing of a mechanical assembly with arrows indicating motion or force (no text or symbols)

Diagram showing printer application process with icons for scanning and power switch, including a magnified view of the printer's screen.

Diagram of a printer with a cable inserted, showing a close-up of the cable being inserted (no text or symbols present)

Illustration showing a person holding a stack of boxes with a 'No' symbol, indicating no restrictions or prohibition.

Söötur

Diagram showing a hand holding two cards with a warning symbol indicating no prohibition.

Paberisahtel

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram showing a mechanical component with a no-smoking symbol and an inset close-up of the internal structure, labeled 'a'.

Seadme transportimine

Illustration of a hand holding a mechanical component (no text or symbols visible)

Regulatory information for users in Jordan MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/ SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a digital display showing an icon (no text or symbols present)

Panel sterujący

Illustration of hands installing or adjusting a component on a machine (no text or symbols visible)

2

Technical line drawing of a mechanical assembly with arrows indicating motion or force (no text or symbols)

Diagram showing printer operation with icons for scanning and power switch, including a magnified view of the printer's screen.

Diagram of a printer with a cable inserted, showing a close-up of the cable being inserted (no text or symbols present)

Diagram showing a person holding a stack of boxes with a 'No' symbol, indicating no restrictions or prohibition.

Podajnik

Illustration of a hand placing two cards into a box with a warning symbol (no text or labels)

Szuflada na papier

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1 APPARECCHIO LASER DI CLASSE 1 PRODUCTO LÁSER DE CLASE 1 APARELHO A LASER DE CLASSE 1 LUOKAN 1 LASER-TUOTE LASERPRODUKT KLASS 1

Technical diagram showing a vehicle interior with a no-smoking symbol and a magnified view of the engine compartment labeled 'a'

Illustration of a hand holding a mechanical component (no text or symbols visible)

Regulatory information for users in Jordan MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in UAE MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a digital display showing an icon (no text or symbols present)

Ovládací panel

File Edit View Format: Normal Format name: Normal Format type: Normal Format size: Normal Format position: Normal Format style: Normal Format color: Normal Format color: Normal Format color: Normal Format color: Normal Format color: Normal Format color: Normal Format color: Normal Format color: Normal Format color: Normal Format color: Normal Format color: Normal Format color: Normal Format color: Normal Format color: Normal Format color: Normal Format color: Normal Format color: Normal Format color: Normal Format color: Normal Format color: Normal Format colors: Format colors: Format colors: Format colors: Format colors: Format colors: Format colors: Format colors: Format colors: Format colors: Format colors: Format colors: Format colors: Format colors: Format colors: Format colors: Format colors: Format colors: Format colors: Format colors: Format colors: Format colors: Format colors: Format colors: Format colors: Format colors: Format colors: Format colors: Format colors: Format colors: Format colors: Format colors: Format colors: Format colors: Patterned as per the image. Patterned as per the image. Patterned as per the image. Patterned as per the image. Patterned as per the image. Patterned as per the image. Patterned as per the image. Patterned as per the image. Patterned as per the image. Patterned as per the image. Patterned as per the image. Patterned as per the image. Patterned as per the image. Patterned as per the image. Patterned as per the image. Patternes: Patternes: Patternes: Patternes: Patternes: Patternes: Patternes: Patternes: Patternes: Patternes: Patternes: Patternes: Patternes: Patternes: Patternes: Patternes: Patternes: Patternes: Patternes: Patternes: Patternes: Patternes: Patternes: Patternes: Patternes: Patternes: Patternes: Patternes: Patternes: Patternes: Patternes: Patternes: Patternes: Patternes: PPT PPT PPT PPT PPT PPT PPT PPT PPT PPT PPT PPT PPT PPT PPT PPT PPT PPT PPT PPT PPT PPT PPT PPT PPT PPT PPT PPT PPT PPT PPT PPT PPT PPT FPT FPT FPT FPT FPT FPT FPT FPT FPT FPT FPT FPT FPT FPT FPT FPT FPT FPT FPT FPT FPT FPT FPT FPT FPT FPT FPT FPT FPT FPT FPT FPT FPT FUT FUT FUT FUT FUT FUT FUT FUT FUT FUT FUT FUT FUT FUT FUT FUT FUT FUT FUT FUT FUT FUT FUT FUT

3 Až sem

Illustration of hands installing or adjusting a component on a machine (no text or symbols visible)

2

3 Až sem

Diagram of a printer's internal structure showing paper feeding into a slot (no text or symbols)

Diagram illustrating printer operation with icons for image and power switch, showing process steps and magnified views.

Diagram of a printer with a cable inserted, showing a close-up of the cable being inserted (no text or symbols present)

Diagram showing a hand inserting a device into a printer with a prohibition symbol above, indicating no usage or absence of the device.

Illustration showing a person holding a stack of boxes with a 'No' symbol, indicating no restrictions or prohibition.

Podavač

Illustration of a hand placing two cards into a box with a prohibition symbol (no text or labels)

Zásuvka na papír

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram showing a vehicle interior with a no-smoking symbol and a magnified view of the dashboard with labeled component 'a'.

Illustration of a hand holding a mechanical component (no text or symbols visible)

Regulatory information for users in Jordan MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/ SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE

MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a digital display showing an icon (no text or symbols present)

Obslužný panel

New Document Name: New Document - Document 2.0 (C:\Program Files\) File Properties Edit Edit Subs Edit View Edit Path Edit View Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit ViewPath Edit ViewPath Edit ViewPath Edit ViewPath Edit ViewPath Edit ViewPath Edit ViewPath Edit ViewPath Edit ViewPath Edit ViewPath Edit ViewPath Edit ViewPath Edit ViewPath Edit ViewPath Edit ViewPath Edit ViewPath Edit ViewPath Edit ViewPath Edit ViewPath Edit ViewPath Edit ViewPath Edit ViewPath Edit ViewPath Edit ViewPath Edit ViewPath Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit View Path Edit View Paths Edit View Paths Edit View Paths Edit View Paths Edit View Paths Edit View Paths Edit View Paths Edit View Paths Edit View Paths Edit View Paths Edit View Paths Edit View Paths Edit View Paths Edit View Paths Edit View Paths Edit View Paths Edit View Paths Edit View Paths Edit View Paths Edit View Paths Edit View Paths Edit View Paths Edit View Paths Edit View Paths Edit View Paths Edit View Path

Illustration of hands installing or adjusting a component on a machine (no text or symbols visible)

2

Technical line drawing of a mechanical assembly with arrows indicating motion or force (no text or symbols)

Diagram showing printer application process with icons for zoom, power, and power button functions

Diagram of a printer with a cable inserted, showing a close-up of the cable being inserted (no text or symbols present)

Illustration showing a person holding a stack of boxes with a 'no' symbol, indicating no restrictions or prohibition.

Podávač

Illustration of a hand placing two cards into a box with a prohibition symbol (no text or labels)

Zásobník na papier

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram showing a mechanical component with a prohibition symbol and an inset close-up of the interior mechanism, labeled 'a'.

Pri preprave zariadenia

Illustration of a hand holding a mechanical component (no text or symbols visible)

Regulatory information for users in Jordan

MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE

MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a digital display showing an icon (no text or symbols present)

Upravljalna plošča

Zaslon Oznaka NFC NFC (Near Field Communication) (komunikacija s tehnologijo bližnjega polja)* *(tipka [Varčevanje energije]) *(tipka [Domov]) * Funkcija NFC morda ni na voljo, odvisno od modela naprave.

Skeniranje

Illustration of hands installing or adjusting a mechanical component with an arrow indicating rotation (no text or symbols present)

2

3 Do tukaj

Technical line drawing of a mechanical assembly with arrows indicating motion or force (no text or symbols)

Diagram showing printer operation with icons for image and power switch, indicating a process step.

Diagram of a printer with a cable inserted, showing a close-up view of the cable being inserted (no text or symbols present)

Illustration showing a person holding a stack of boxes with a 'no' symbol above, indicating no restrictions or prohibition.

Podajalnik

Illustration of a hand holding two cards with a 'no' symbol nearby (no text or labels)

Kaseta za papir

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram showing a mechanical component with a prohibition symbol and an inset close-up of the internal structure, labeled 'a'.

Illustration of a hand holding a mechanical component (no text or symbols visible)

Regulatory information for users in Jordan MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in UAE MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a digital display showing an icon (no text or symbols present)

Upravljačka ploča

Zaslon Oznaka NFC (Near Field Communication) (komunikacija malog dometa)* (Gumb [Ušteda energije]) (Gumb [Početni zaslon]) * NFC možda nije dostupan ovisno o modelu vašeg uređaja.

Skeniranje

1. Postavite izvornik.
2. Pritisnite 🏠 i odaberite .
3. Odaberite vrstu skeniranja i unesite potrebne informacije.
4. Odaberite , ili .

Vrste skeniranja

■ Pohrani na računalu
■ Pohrani na memorijski uređaj USB
■ Pošalji e-poštu/l-Faks
■ Pošalji na datotečni poslužitelj

Za skeniranje s računala

■ MF Scan Utility

Skeniraj Odabemite tip skena. Naturalo F-faks USB memory Distoteka F-polta Nador status

Za detalje

„Skeniranje“ u Korisničkom vodiču

Kopiranje

1. Postavite izvornik.
2. Pritisnite a zatim odaberite .
3. Po potrebi odredite postavke kopiranja.
4. Upišite željeni broj kopija.
5. Odaberite .

Korisne funkcije kopiranja

Illustration of hands installing or adjusting a component on a machine (no text or symbols visible)

2

3 Do avdje

Technical line drawing of a mechanical assembly with arrows indicating motion or force (no text or symbols)

5 Navedite veličinu i vrstu papira sukladno zaslonu.

Ako je došlo do problema

Diagram showing printer operation with icons for image and power switch, indicating file transfer or scanning process.

Diagram of a printer with a cable inserted, showing a close-up of the cable being inserted (no text or symbols present)

Ako problem i dalje postoji, pogledajte Korisnički vodič.

Došlo je do zaglavljivanja papira

Uklonite zaglavljeni papir u skladu s uputama na zaslonu.

Diagram showing a hand opening a printer into a rack with a prohibition symbol above, indicating no readable text or labels.

• Pazite da na kopirno staklo ne ispuštate teške predmete, npr. rječnike. Na taj način možete oštetiti kopirno staklo te se ozlijediti.
• Ne prenosite uređaj s postavljenom bilo kojom ladicom za papir ili dodatnim ulagačem papira. U protivnom uređaj može pasti i uzrokovati nastanak ozljede.

Illustration showing a person holding a stack of boxes with a 'No' symbol, indicating no restrictions or prohibition.

Ulagac

Illustration of a hand placing two cards into a box with a prohibition symbol (no text or labels)

Ladica za papir

- Nemojte stavljati ruke u uređaj kada je ladica za papir uklonjena jer može doći do ozljede.

Gumb Energy Saver (Ušteda energije)

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1 APPARECCHIO LASER DI CLASSE 1 PRODUCTO LÁSER DE CLASE 1 APARELHO A LASER DE CLASSE 1 LUOKAN 1 LASER-TUOTE LASERPRODUKT KLASS 1

Technical diagram showing a vehicle interior with a no-smoking symbol and a magnified view of the dashboard labeled 'a'

Prijenos uređaja

Illustration of a hand holding a mechanical component (no text or symbols visible)

Regulatory information for users in Jordan

MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE

MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a digital display showing an icon (no text or symbols present)

Kezelőpanel

Mopolis Material not using Font Papering Printmaking 100% A4 ±0 1 2.0 (Width: 0) N OF Text: 0 Egreb built. Vorrant Start Allapostigs

Részletekért lásd

File Edit View Insertion Properties: Editable Impedesive Character Options Add: 2.0x100% (Decrease) Save as: Apply Remove Delete Export Export to: Help Help Add As... Remove As... Import As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export As... Export A B C D E F G H I J K L M N O P Q R S T U V W X Y Z A B C D E F G H I J K L M N O P Q R S T U V W X Y Z A B C D E F G H I J K L M N O P Q R S T U V W X V W X Y Z A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

Részletekért lásd

Illustration of hands installing or adjusting a component on a machine (no text or symbols visible)

2

3 Eddig a jelig

Technical line drawing of a mechanical assembly with arrows indicating motion or force (no text or symbols)

Diagram showing printer application process with icons for image and power switch, indicating steps to close the print.

Diagram of a printer with a cable inserted, showing a close-up of the cable being inserted (no text or symbols present)

Illustration showing a person holding a stack of boxes with a 'No' symbol, indicating no restrictions or prohibition.

Adagoló

Illustration of a hand placing a card into a box with a prohibition symbol (no text or labels)

Papírfiók

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1 APPARECCHIO LASER DI CLASSE 1 PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE LASERPRODUKT KLASS 1

Technical diagram showing a mechanical component with a no-smoking symbol and an inset close-up of the internal structure, labeled 'a'.

Illustration of a hand holding a mechanical component (no text or symbols visible)

Regulatory information for users in Jordan MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/ SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a close-up of its screen (no text or symbols)

Panoul de operare

File Selection File Name: File Size: 100 Description: Size Size Type: Size Size Range: Size Size Width: Size Size End: Size End Size End Size End Size End Size End Size End Size End Size End Size End Size End Size End Size End Size End Size End Size End Size End Size End Size End Size End Size End Size End Size End Size End Size End Size End Size End Size End Size End Size End Size End Size End Size End Size End Size End Large Small Large Large Small Large Large Small Large Large Small Large Large Small Large Large Small Large Large Small Large Large Small Large Large Small Large Large Small Large Large Small Large Large Small Large Large Small Large Large Small Large Large Small Large Large Small Large Large Small Large Large Total

Pentru detalii

Illustration of hands installing or adjusting a component on a machine (no text or symbols visible)

2

Technical line drawing of a mechanical assembly with arrows indicating motion or force (no text or symbols)

Diagram showing printer operation with icons for scanning and power switch, indicating file transfer or print settings.

Diagram of a printer with a cable inserted, showing a close-up of the cable being inserted (no text or symbols present)

Illustration showing a person holding a stack of books with a 'no' symbol above, indicating no restrictions or prohibition.

Alimentatorul

Illustration showing a hand placing a card into a box with a prohibition symbol nearby

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram showing a mechanical component with a prohibition symbol and an inset close-up of the interior mechanism, labeled 'a'.

Illustration of a hand holding a mechanical component (no text or symbols visible)

Regulatory information for users in Jordan

MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE

MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a digital display showing an icon (no text or symbols present)

Работен панел

File Edit View Insert Options Name: 2010-07-03 Export: Export Date: 2010-07-03 Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Neutral Export Type: Neutral Export Type: Neutral Export Type: Neutral Export Type: Neutral Export Type: Neutral Export Type: Neutral Export Type: Neutral Export Type: Neutral Export Type: Neutral Export Type: Neutral Export Type: Neutral Export Type: Neutral Export Type: Neutral Export Type: Neutral Export Type: Neutral Export Type: Neutral Export Type: Neutral Export Type: Neutral Export Type: Neutral Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Special Export Type: Special Export Type: Special Export Type: Special Export Type: Special Export Type: Special Export Type: Special Export Type: Special Export Type: Special Export Type: Special Export Type: Special Export Type: Special Export Type: Special Export Type: Special Export Type: Special Export Type: Special Export Type: Special Export Type: Special Export Type: Special Export Type: Special Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Normal Export Type: Total

За подробности

Illustration of hands installing or adjusting a component on a machine (no text or symbols visible)

2

3 До това ниво

Technical line drawing of a mechanical assembly with arrows indicating motion or force (no text or symbols)

Diagram showing printer operation with icons for image and power switch, indicating steps to press or download.

Diagram of a printer with a cable inserted, showing a close-up of the cable being inserted (no text or symbols present)

Illustration showing a person holding a 'no' symbol above stacked boxes, indicating no restrictions or prohibition.

Подаващо устройство

Illustration of a hand placing two cards into a box with a prohibition symbol (no text or labels)

Касета за хартия

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram showing a vehicle interior with a no-smoking symbol and a magnified view of the engine compartment labeled 'a'.

Illustration of a hand holding a mechanical component (no text or symbols visible)

Regulatory information for users in Jordan MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE

MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Line drawing of a printer with a digital display showing an icon (no text or symbols present)

İşletim Paneli

Illustration of hands installing or adjusting a component on a machine (no text or symbols visible)

2

3 Buraya

Technical line drawing of a mechanical assembly with arrows indicating motion or force (no text or symbols)

Diagram showing printer application process with icons for image and power switch, indicating steps to close the print.

Diagram of a printer with a cable inserted, showing a close-up of the cable being inserted (no text or symbols present)

Illustration showing a person holding a stack of boxes with a 'No' symbol, indicating no restrictions or prohibition.

Besleyici

Illustration of a hand placing two cards into a box with a prohibition symbol (no text or labels)

Kağıt çekmecesi

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Technical diagram showing a mechanical component with a prohibition symbol and a magnified inset highlighting a component labeled 'a'.

Makineyi taşırken

Illustration of a hand holding a mechanical component (no text or symbols visible)

Regulatory information for users in Jordan MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333). Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in UAE MF543x / MF542x includes approved Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

RE Directive

(Only for European radio equipment)

RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Image File Edit View Insert Modify Format Help Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Normal Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Lower Outer

Diagram showing printer operation with icons for lighting and power switch, illustrating a process with labeled components.

Diagram of a printer with a cable inserted, showing a close-up view of the cable being inserted (no text or symbols present)

othermalrought. Undeveloped protection of the power of the power of the power of the power of the power of the power of the power of the power of the power of the power of the power of the power of the power of the power of the power of the power of the power of the power of the power of the power of the power of the power of the power of the power of the power of the power of the power of the power of the power of the power of the power of the power of the power of the power

RE Directive (Only for European radio equipment) RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Copy Copy Ratio 100% Page A4 Density ±0 Number of Ciasles 1 2 Select Off R as 1 - Off Reset Start Other Settings Status Monitor

Paper jammed. Remove the jammed paper. Previous Next

تعويض کارetriج تونر

End of Cartridge Lifetime Press the button and open the front cover. Previous 1/4

Diagram showing printer application process with icons for image and power switch, highlighting a zoomed-in view of the printer's screen.

Diagram of a printer with a cable inserted into a slot, showing a close-up view of the cable being inserted (no text or symbols present)

Illustration of a hand holding a mechanical component (no text or symbols visible)

RE Directive (Only for European radio equipment) RE Declaration of Conformity

English (EN) Hereby, Canon Inc. declares that this equipment is in compliance with .Directive 2014/53/EU The full text of the EU declaration of conformity is available at the following :internet address http://www.canon-europe.com/ce-documentation Wireless LAN Specifications Frequency band(s):2412-2472MHz Maximum radio-frequency power: 16.51 dBm

Regulatory information for users in Jordan

MF543x / MF542x includes approved

Wireless LAN Module (Model name: AW-NM333).

Contains Wireless LAN Module approved by TRC/SS/2018/181

Regulatory information for users in Russia

Regulatory information for users in UAE

MF543x / MF542x includes approved

Wireless LAN Module (Model name: AW-NM333).

TRA

REGISTERED No: ER63428/18

DEALER No: DA0060877/11

30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan

One Canon Park, Melville, NY 11747, U.S.A.

CANON EUROPA N.V.

Bovenkerkerweg 59, 1185 XB Amstelveen, The Netherlands

2F Jinbao Building No.89, Jinbao Street,

Dongcheng District, Beijing 100005, PRC

CANON SINGAPORE PTE LTD

1 Fusionopolis Place, #15-10, Galaxis, Singapore 138522

CANON AUSTRALIA PTY LTD

Building A, The Park Estate, 5 Talavera Road, Macquarie Park, NSW 2113, Australia

CANON GLOBAL WORLDWIDE SITES

https://global.canon
