USER MANUAL HOAZ7173WI WFE HOOVER

• WARNING: before initiatingthe automatic cleaning cycle:

• The oven must be switched off before removing the removable parts and, after cleaning, reassemble them accordingthe instructions. - Clean the oven door;

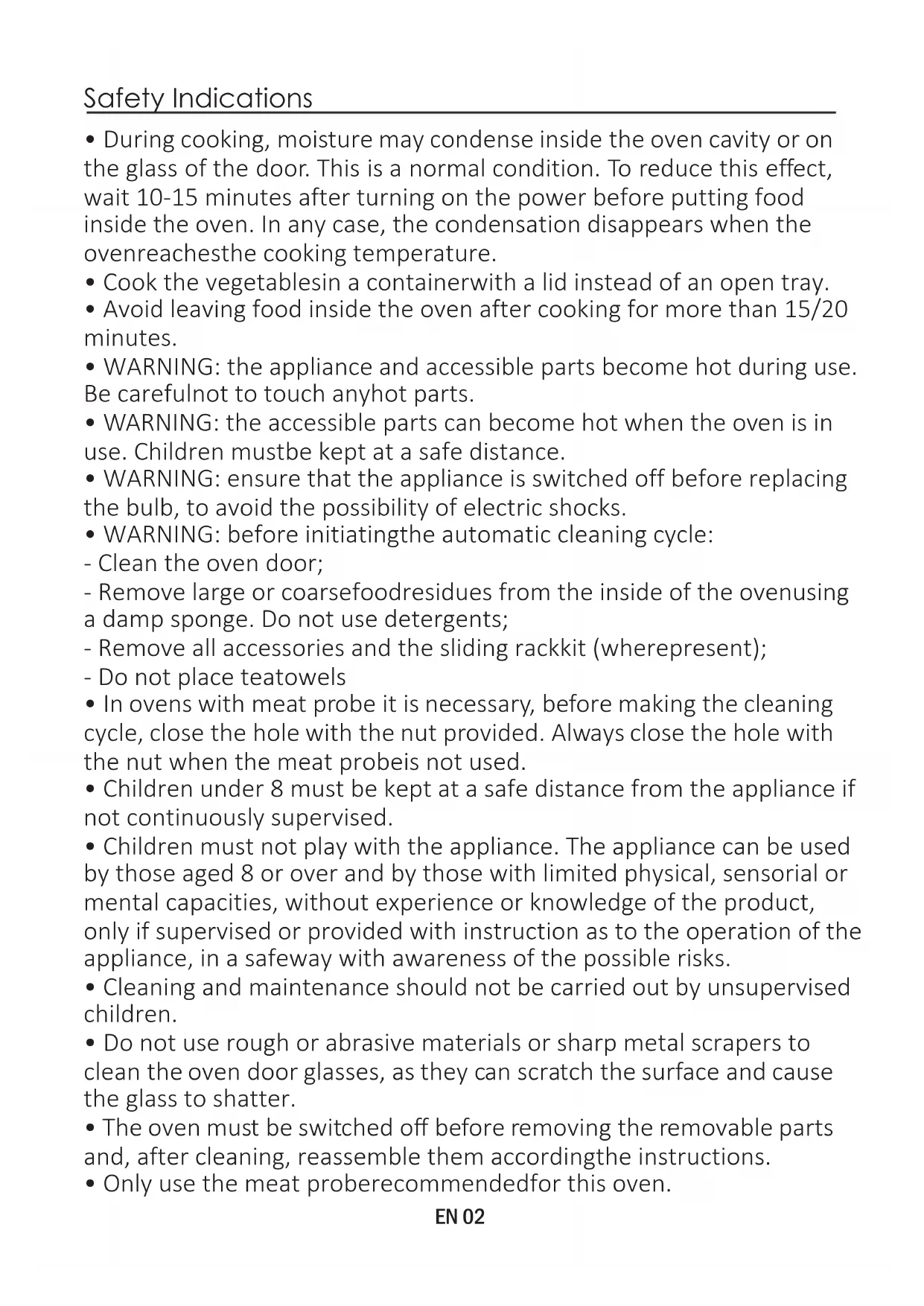

• During cooking, moisture may condense inside the oven cavity or on the glass of the door. This is a normal condition. To reduce this effect, wait 10-15 minutes after turning on the power before putting food inside the oven. In any case, the condensation disappears when the ovenreachesthe cooking temperature. - Remove large or coarsefoodresidues from the inside of the ovenusing a damp sponge. Do not use detergents;

• Children must not play with the appliance. The appliance can be used by those aged 8 or over and by those with limited physical, sensorial or mental capacities, without experience or knowledge of the product, only if supervised or provided with instruction as to the operation of the appliance, in a safeway with awareness of the possible risks.

• Cook the vegetablesin a containerwith a lid instead of an open tray.

• Do not use rough or abrasive materials or sharp metal scrapers to clean the oven door glasses, as they can scratch the surface and cause the glass to shatter.

• Avoid leaving food inside the oven after cooking for more than 15/20 minutes. - Remove all accessories and the sliding rackkit (wherepresent);

• Cleaning and maintenance should not be carried out by unsupervised children.

• Only use the meat proberecommendedfor this oven.

• Children under 8 must be kept at a safe distance from the appliance if not continuously supervised.

• WARNING: the appliance and accessible parts become hot during use. Be carefulnot to touch anyhot parts.

• WARNING: the accessible parts can become hot when the oven is in use. Children mustbe kept at a safe distance.

• In ovens with meat probe it is necessary, before making the cleaning cycle, close the hole with the nut provided. Always close the hole with the nut when the meat probeis not used.

• WARNING: ensure that the appliance is switched off before replacing the bulb, to avoid the possibility of electric shocks. EN 02• The type of powercable mustbeH05V2V2-F.

• The appliance must not be installed behind a decorative door in order toavoidoverheating.

• If the power cable is damaged, it must be substituted with a cable or special bundle available from the manufacturer or by contacting the customer service department.

• Connect a plug to the supply cable that is able to bear the voltage, current and load indicated on the tag and having the earth contact. The socket must be suitable for the load indicated on the tag and must be having the earth contact connected and in operation. The earth conductoris yellow-green in colour. This operation should be carried out by a suitably qualified professional. In case of incompatibility between the socket and the appliance plug, ask a qualified electrician to substitute the socket with another suitable type. The plug and the socket must be conformed to the current norms of the installation country. Connection to the power source can also be made by placing an omnipolar breaker between the appliance and the power source that can bear the maximum connected load and that is in line with current legislation. The yellow-green earth cable should not be interrupted by the breaker. The socket or omnipolar breaker used for the connection should be easily accessible when the appliance is installed.

• Any excess of spilled material should be removed before cleaning.

• During the pyrolytic cleaning process, surfaces can heat up more than usual, childrenmust thereforebekept atasafe distance.

• Do not use a steam cleaner for cleaning operations.

• Failure to comply with the above can compromise the safety of the appliance and invalidate the guarantee.

• The disconnection may be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in accordance with the wiring rules.

• WARNING: Do not line the oven walls with aluminum foil or single-use protection available from stores. Aluminum foil or any other protection, in direct contact with the hot enamel, risk melting and deteriorating the enamel of the insides.

• No additional operation/setting is required in order to operate the appliance attherated frequencies.

• WARNING: Never remove the ovendoorseal.

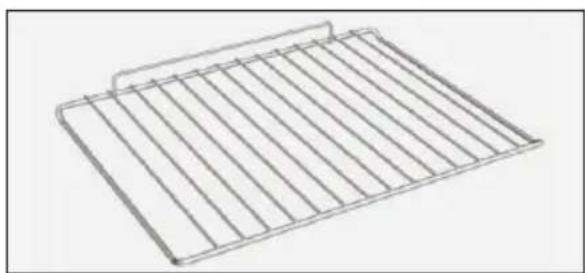

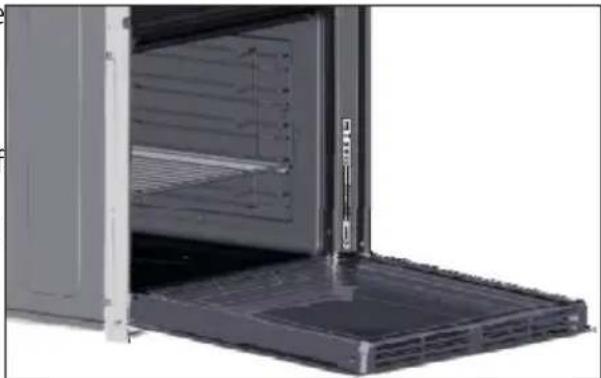

• When you place the shelf inside, make sure that the stop is directed upwards and in the back of the cavity. The shelf must be inserted completelyintothe cavity EN 03Summary EN 04 General Instructions

1.1 Safety indications

1.2 Electrical safety

1.6 Conformity declaration

4.1 General notes on cleaning

• Removal and cleaning of grills

• Removal of the oven window

• Removal and cleaning of the glass door

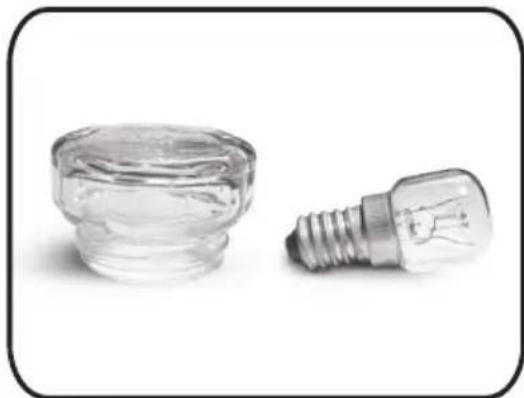

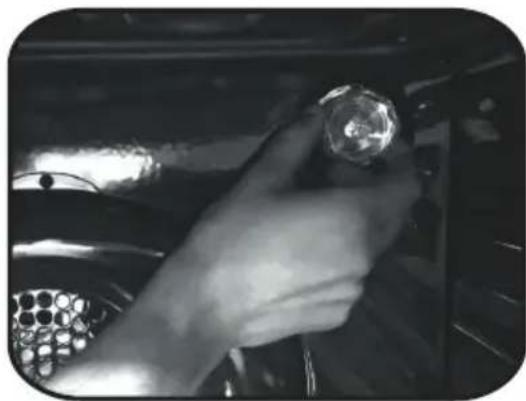

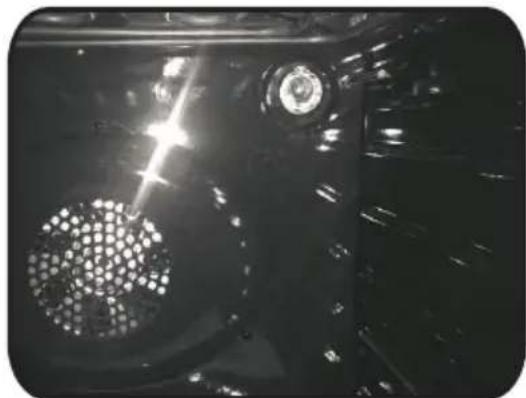

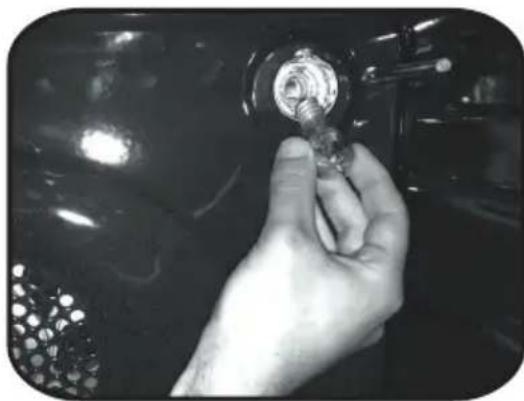

• Changing the bulb Oven Cleaning and Maintenance

We thank you for choosing one of our products. For the best results with your oven, you should read this manual carefully and retain it for future reference. Before installing the oven, take note of the serial number so that you can give it to customer service staff if any repairs are required. Having removed the oven from its packaging, check that it has not been damaged during transportation. If you have doubts, do not use the oven and refer to a qualified technician for advice. Keep all of the packaging material (plastic bags, polystyrene, nails) out of the reach of children. When the oven is switched on for the first time, strong smelling smoke can develop, which is caused by the glue on the insulation panels surrounding the oven heating for the first time. This is absolutely normal and, if it occurs, you should wait for the smoke to dissipate before putting food in the oven. The manufacturer accepts no responsibility in cases where the instructionscontained in this document are not observed. NOTE: the oven functions, properties and accessories cited in this manual will vary, depending on the model you havepurchased.

1.1 Safety Indications

- do not touch the appliance with wet or damp hands or feet; Only use the oven for its intended purpose, that is only for the cooking of foods; any other use, for example as a heat source, is considered improper and therefore dangerous. The manufacturer cannot be held responsible for any damage resulting from improper,incorrector unreasonableusage. The use of anyelectrical appliance implies the observanceof some fundamental rules: - do not pull on the power cable to disconnect the plug from the socket; - in generalthe use of adaptors,multiple sockets and extension cables is not recommended; - in case of malfunction and/or poor operation,switchoff the appliance and do not tamperwith it.

1.2 Electrical Safety

The oven is supplied with a power cable that should only be connected to an electrical supply with 220- 240 Vac 50 Hz power between the phases or between the phase and neutral. Before the oven is connectedto the electrical supply, it is important to check: ENSURE THAT AN ELECTRICIAN OR QUALIFIED TECHNICIAN MAKES THE ELECTRICAL CONNECTIONS. The power supply to which the oven is connected must conform with the laws in force in the country of installation. The manufactureraccepts no responsibility for anydamage caused by the failureto observe these instructions. The oven must be connected to an electrical supply with an earthed wall outlet or a disconnector with multiple poles, depending on the laws in force in the country of installation. The electrical supply should be protected with suitable fuses and the cables used must have a transverse section that can ensure correct supply to the oven. CONNECTION - power voltage indicated on the gauge; - the setting of the disconnector. The grounding wire connected to the oven's earth terminal must be connected to the earth terminal of the power supply. WARNING Before connecting the oven to the powersupply, ask a qualified electrician to check the continuity of the power supply's earth terminal. The manufacturer accepts no responsibility for any accidents or other problems caused by failure to connect the oven to the earth terminal or by an earth connection that has defectivecontinuity. EN 051.3 Recommendations Do not line the oven walls with aluminium foil or single-use protection available from stores. Aluminium foil or any other protection, in direct contact with the hot enamel, risks melting and deteriorating the enamel of the insides. In order to prevent excessive dirtying of your oven and the resulting strong smokey smells, we recommend not using the oven at very high temperature. It is better to extend the cooking time and lower the temperature a little. In addition to the accessories supplied with the oven, we adviseyouonly use dishes and baking moulds resistanttovery high temperatures. Aftereach use of the oven,a minimum of cleaning will help keep the oven perfectlyclean.

The oven can be located high in a column or under a worktop. Before fixing, you must ensure good ventilation in the oven space to allow proper circulation of the fresh air required for cooling and protecting the internalparts. Make the openings specified on lastpage according to the type of fitting. The manufacturershave no obligation to carry this out. If the assistance of the manufacturer is required to rectify faults arising from incorrect installation, this assistance is not covered by the guarantee. The installation instructions for professionally qualified personnel must be followed. Incorrect installation may cause harm or injury to people, animals or belongings. The manufacturer cannot be held responsibleforsuch harm or injury. NOTE: as the oven could require maintenance work, it is advisable to keep another wall socket available so that the oven can be connected to this if it is removed from the space in which it is installed. The power cable must only be substituted by technical service staff or by technicians with equivalent qualifications.

1.5 Waste management and environmental protection

In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance. This appliance is labelled in accordance with European Directive 2012/19/EU regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctlyremoveand dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a fewbasic rules: - the WEEE should be taken to dedicated collection areas managed by the town council or a registered company.

SAVING AND RESPECTING THE ENVIRONMENT

Where possible, avoid pre-heating the oven and always try to fill it. Open the oven door as infrequently as possible, because heat from the cavity disperses every time it is opened. For a significant energy saving, switch off the oven between 5 and 10 minutes before the planned end of the cooking time, and use the residual heat thatthe ovencontinuesto generate. Keep the seals clean and in order,toavoidany heat dispersal outside of the cavity. If you have an electric contract with an hourly tariff, the "delayed cooking" programme makes energy saving more simple, moving the cooking process to start at the reducedtarifftime slot. - the WEEE should not be treated as domesticwaste;

1.6 Declaration of compliance

By placing the mark on this product, we are confirming compliance to all relevantEuropeansafety, health and environmentalrequirementswhich are applicablein legislation forthis product. The parts of this appliance that may come intocontact with foodstuffscomply with the provisionsof EEC Directive89/109. EN 062. Product Description

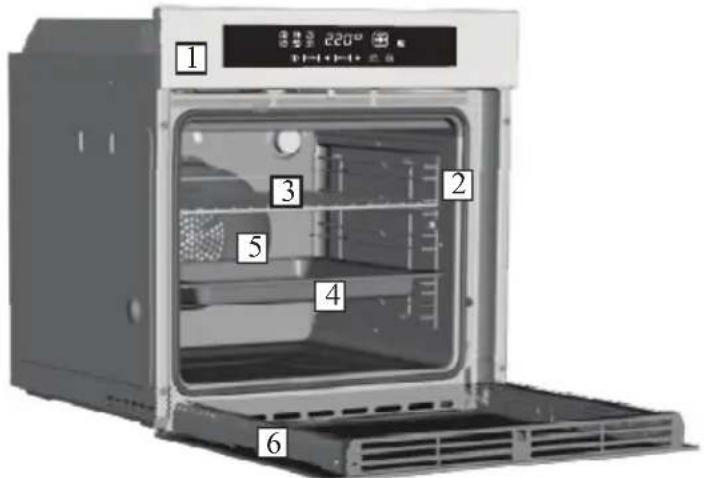

(lateral wire grid if included)

Collects the residuesthatdripduringthecooking of foodson the grills. EN 07

Led vision Advantages:-Optimum view-Very low energy consumption,-95% in comparisonwith the traditional illumination.Is an illumination system which replaces thetraditional « light bulb ». 14 LED (for non-pyroliticversions) or 10 High Power LED (for pyroliticversions) lights are integrated within the door.These produce white high quality illuminationwhich enables to view the inside of the oven withclarity without any shadows on all the shelves.This system, besides providing excellent illumination inside the oven, lasts longer than the traditional light bulb its easier and to maintain and most of all savesenergy.-Long life illumination Metal grill

Holds baking trays and plates. All ovens with this technology boast a function typical of professional models, the fruit of innovative technologies and the vast experience acquired by the Candy Hoover Group in this sector. The Chef Panel is an air conveyor that increases air circulation inside the oven. This allows for an increase in oven cooking performance, more standard cooking of food at all temperatures, shorter cooking times and, lastly, a uniform temperature distribution inside the oven.

Chef Panel2.3 First Use Clean the oven before using for the first time. Wipe over external surfaces with a damp soft cloth. Wash all accessories and wipe inside the oven with a solution of hot water and washing up liquid. Set the empty oven to the maximum temperature and leave on for about 1 hour, this will remove any lingering smells ofnewness. PRELIMINARYCLEANING

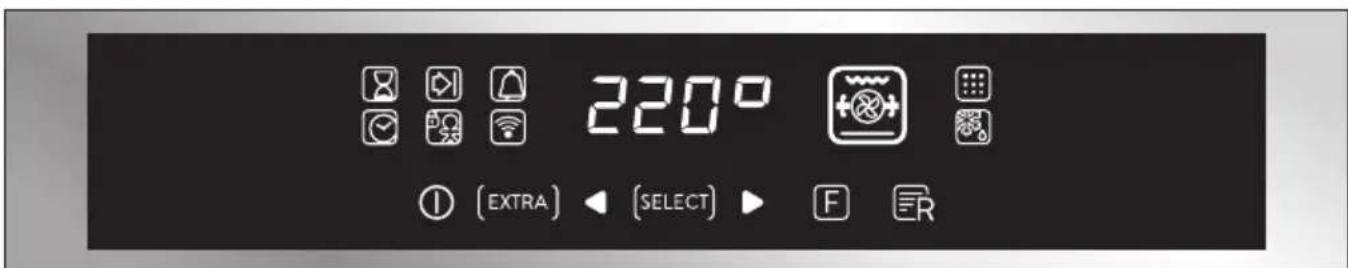

EN 08 CookingdurationCooking end TimerClock set Child lock WiFi ON / OFFEXTRA The oven is switched on and off with this button. If the oven is switched off, the display shows the clock. When the oven is inactive, all the functions are available except the cookingdurationand end of cooking. If the clock is not set, the oven does not work: the display flashes, showing "12:00" and the only functioning key is Extra.Fromthe Extra key, the following functions can beset: Measuresthe internal temperature of foodduring cooking. Insert the meat-probe into the hole on the top ofthe cavity. – Prepare the food and properly insert the meat probe into the food. Do not preheat or start cooking before properly inserting the meatprobe. Probe should be inserted into the food and receptacle while the ovenis stillcool. – Do not insert the meat probe in the frozenfood. – Do not leave the meat probe inside the oven when it's not used: it could damage.

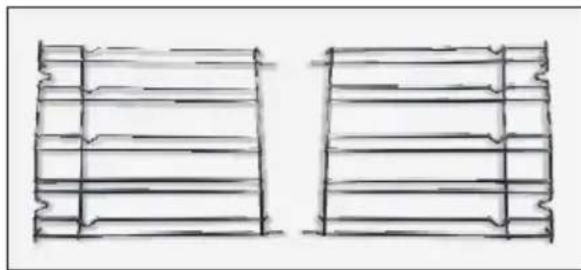

Meat-probe (depends on the oven model) Lateral wiregrid if included.

Lateral wire gridsNB: can only be set with an activecookingprogramme. Press EXTRA twice and set the time using the “+” and “-” keys, confirming by pressing"SELECT". The display shows “00:00” if no cooking duration has been inserted, otherwise the display shows the time remaining. When a cooking programme terminates, the oven switches off while the display shows "END" (the cooking programme icon remains on) until the On/Off button, the only functioning key, is pressed. When a cooking programme terminates, an alarm will sound. When the cooking time has finished, the oven automatically switches off and the alarm sounds for a few seconds. FUNCTION HOW TO DEACTIVATE WHAT IT DOES WHY IT IS NEEDED END OF COOKING COOKING DURATION SETTING THE CLOCK TIMER

Press EXTRA enough times to illuminate the icon, set the end of cooking time using the “<” and “>” keys and confirm by pressing "SELECT". Press EXTRA enough times to illuminate the icon, set the end of cooking time using the “<” and “>” keys and confirm by pressing "SELECT". The cooking duration is automaticallycalculated. NB: can only be set with an activecookingprogramme.

• This function is also used for cooking that can be scheduled in advance.

• If delayed cooking is set, the oven switches off and the display shows the current time while the cooking programme, cooking duration and end of cookingiconsareilluminated.

• If a cooking programme is set, it will be lost if the "F" key is pressed.

• If a cooking programme is set, by pressing the “<” and “>” keys you can see and modify the temperature set: at the first touch, the operating temperature is shown while another touch will allow you to modify said temperature. To modify the end of cooking before the set time, press EXTRA enough times to illuminate the icon, regulate the end of cooking time as required using the “<” and “>” keys and confirm by pressing "SELECT". To cancel the end of cooking time, reset the displayto“00:00”. When a cooking programme terminates, the oven switches off while the display shows "END" (the cooking programme icon remains on) until the On/Off button, the only functioning key,ispressed. When a cooking programme terminates, an alarm will sound.

• This function is useful when there are children in the house.

• Press the EXTRA key enough times to illuminate the icon and then either the“<”or“>”keyto activate this function: the display will show ON; to confirmpressSELECT.

• Press the EXTRA key enough times to illuminate the icon and then either the“<”or“>”keyto deactivate this function: the display will show OFF; toconfirmpressSELECT. only the "Extra" button, to deactivate the function, and "On/Off" button can be used.

• If the function is active

• The alarm functions regardless of whether the ovenis switchedon.

• To modify the time, press EXTRA enough times to illuminate the icon and use the “<” and “>” keys to set the time, confirming it by pressingSELECT.

• Switched on for the first time, the display illuminates and shows "12:00".

• It allows you to set the time that appears on the display.

• The display shows “00:00” if no time has been inserted or the time remaining if this has alreadybeen set. Press EXTRA enough times to illuminate the icon and use the “<” and “>” keys to set the time, confirming by pressingSELECT.

• To modify the timer, press EXTRA enough times to illuminate the icon, regulate the cooking time as required using the “<” and “>” keys and confirm by pressing"SELECT".

• This function activates an alarm that sounds for a few seconds when the set time expires (this function does not switch the oven off). You can select a time between00:00 and 23:59.

• To modify cooking before the set time, press EXTRA twice and regulate the cooking time as required using the “<” and “>” keys, before pressing "SELECT" once more. CHILD SAFETY EN 09- The iconblinks3seconds on and 1 secondoff: the ovenistryingtoconnect toyour Wi-Fi router. - iconnotlit:Wi-Fiisoff. - : Wi-fi is on and the oven is only controllable via the app. It means that it is not possible to select cooking functions, recipes and temperature from the display. Only the Wi-Fi menu is available by pressing "Extra". You can switch the oven off using the On/Off button, but you cannot switch it back on again via the display, it can only be switchedonviatheapp.

If Wi-Fi is not configured it is only possible tochoosebetween offandreset. - : the oven sends its status to the app but it cannot be controlled remotely. The oven must be enrolled beforethisispossible. Read -:Reset This setting should be used to enrol the oven the first time it connects to your Wi-Fi network and to reset the current Wi-Fi connection to allow a new enrolment. Once selected, the appliance gives you 5 minutes to complete the enrolment process. During this process the cooking functions, recipes and temperature setting are not accessible from the display. Only the Wi-Fi menu is available by pressing "Extra". You can switch the oven off using the On/Off button, but you cannot switch it back on again via the display, it can only be switched on via the app. To exit the enrolment/reset procedure via the display, press "Extra" and then use "< >" buttons to select "Off". After five minutes, the appliance will exit the enrolment/reset procedure automatically. Pressing"Extra" onthetimerdisplay allows youtoselecttheWi- Fi menu. In the Wi-Fi menu if youpress the "< >" buttonsyou can select: - : Wi-Fi is off;theoven is not controllable via the app.Off Wi-Fi Enrolment: To enroll the appliance for Wi-Fi, press "Extra" on the display until the Wi-Fi icon lights, then select "Reset" by pressing "< >". The procedure on the app should then be followed. Once selected, the appliance gives you 5 minutestocompletetheenrolmentprocess. When the oven is connected to Wi-Fi, the default cooking time duration is 5 hours, but this can be modified by the user. Wi-Fi icon - Icon ispermanentlylit:theoven is connectedto yourWi-Firouter. - Icon blinks1 secondonan 1 secondoff:theoven is accessible to yourWi-Fi networkandready to be enrolled. If the enrolment has not been successful,theWi-Fiiconwillswitchoffafter5minutes. - The iconblinks1second on and 3 secondsoff: the oven is in readonlymode. WiFi (depends on the oven model) For detailed information on HOW TO CONNECT your OneFi appliance and HOW TO USE IT effectively, go to http://wizardservice.candy-hoover.com/ HOOVER : Grill Oven box Turnspit Circular heating element Bottom heating element Fan Defost Pyro SELECT Any selection must be confirmed. If not confirmed within 15 seconds, the selection is cancelled. By changing menu, anyunconfirmedselectionis lost. “HOT” ICON When a cooking programme finishes or when the oven switches off, if the oven is still hot, the display showsthecurrent time alternating with the message “HOT” at 3" intervals. LANGUAGE SETTING The language can be set when the oven is switched off by pressing the Extra and Select buttonssimultaneously and for 3". The current language is shown on the display and can be changed by pressing the “<” or “>” keys, confirming it by pressing SELECT. Available languages are:Italian,English,French and German. EN 10The available recipesare the following: PRE-SETTED RECIPES When a recipe is selected the display shows “R” followed by the number of the recipeandshows the correspondent way of cooking. MEAT PROBE RECOMMENDED TEMPERATURES Meat Rare Medium rare Medium Well done Salmon Chicken

min 68 RECIPE COOKING METHOD TEMPERATURE COOKING DURATION R1- Lasagne R2- Roast/Oven cooked chicken R3- Crusted bream R4- Baked potatoes R5- Omelette Static + fan Static 150° 180° 10°6 45’ 4’0 25’ Static + fan Static + fan Static + fan 180° 180° 4’0 45’ R6- Apple pie Static + fan 180° 45’ EN 11 NB: It is not possible to change neither the temperature nor the cooking duration. MEAT PROBE (depends on the oven model) If the meat probe is identified, the display shows "PROBE". When a cooking programme is selected, the display shows the default temperature but is neverhigherthan200°C:theselectable temperature is also limited to200°C. When the temperature is confirmed, by pressing "Select", the display shows “ 40°”: it is now possible to select the meat probe target temperature, between 30°C and 90°C at 1°C intervals. When the meat probe temperature is confirmed, press the "Select" key and the display shows “” followed by the actual temperature taken by the meat probe (1 degree intervals). As soon as the meat probe reaches the set temperature, the cooking programme terminates. If a cooking programme is set with the meat probe, by pressing the “-” and “+” keys you can see and modify the temperature of the meat probe: at the firsttouch of one of thetwokeys, the display showsthe meat probe targettemperature, while at the nexttouchyou canchange the selected temperature of the probe. If the user changes the cooking programme, the meat probe temperature setting is reset. Repeat the setting sequence to select a new target temperature. The meat probe cannot be used with pre-set cooking or with the separating plate (if present) inside the oven: in this case the display shows“ NO” and will not execute any command until the meat probe is removed. Defrost, grill, any program with turnspit, pyrolysis and any programmed cooking are not allowed with the meat probe (they are not shown on the menu).T °C default

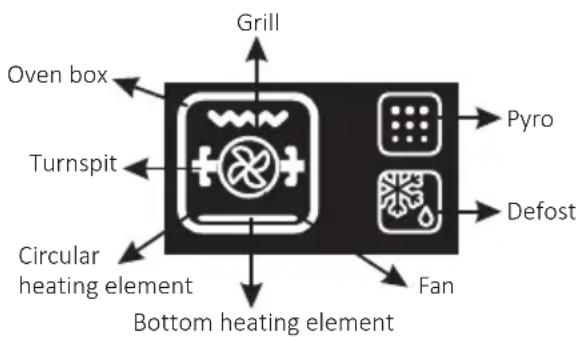

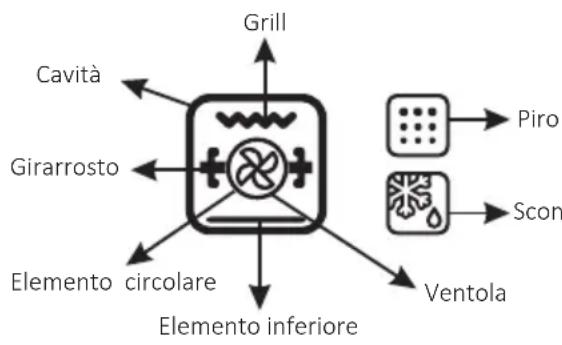

T °C range 40 ÷ 40 50 ÷ 240 50 ÷ 230 150 ÷ 220 50 ÷ 240 L1 ÷ L5 Function Dial Function (Depends on the oven model) LAMP: Turns on the oven light. GRILL: use the grill with the door closed. Grill: 2140 W Barbecue: 3340 W The top heating element is used alone and you can adjust the temperature. Five minutes preheating is required to get the elements red-hot. Success is guaranteed forgrills, kebabs and gratin dishes. White meats should be put at a distancefromthe grill; the cooking time is longer, but the meat will be tastier. You can put red meats and fish fillets on the shelf with the drip tray underneath. The oven has two grill positions: The top heating element is used with the fan circulating the air inside the oven. Preheating is necessary for red meats but not for white meats. Ideal for cooking thick food items, whole pieces such as roast pork, poultry, etc. Place the food to be grilled directly on the shelf centrally, at the middle level. Slide the drip tray under the shelf to collect the juices. Make sure that the food is not too close to the grill. Turn the foodover halfway through cooking. GRILL + FAN: use the turbo-grill with the door closed. MULTI-LEVEL: We recommend you use this method for poultry, pastries, fish and vegetables. Heat penetrates into the food better and both the cooking and preheating times are reduced. You can cook different foods at the same time with or without the same preparation in one or more positions. This cooking method gives even heat distribution and the smells are not mixed. Allow about ten minutes extrawhencookingfoods at the same time. DEFROST: When the dial is set to this position. The fan circulates air at room temperature around the frozen food so that it defrosts in a few minutes without the proteincontent of the foodbeingchangedor altered. *Tested in accordance with the CENELEC EN 60350-1 used for definition of energy class.

It prevents food from drying and encourages rising in cakes, bread dough and other bottom-cooked food. Place the shelf in thebottomposition. BOTTOM HEATING + FAN: The bottom heating element is used with the fan circulatingthe air inside the oven. This method is ideal for juicy fruit flans, tarts, quiches and pâté. EN 12

220 50 ÷ 280 CONVECTION: Both top and bottom heating elements are used. Preheat the oven for about ten minutes. This method is ideal for all traditional roasting and baking. For seizing red meats, roast beef, leg of lamb, game, bread, foil wrapped food (papillotes), flaky pastry. Place the food and its dish on a shelf in mid position. BOTTOM HEATING : Using the lower element. Ideal for cooking all pastry based dishes. Use this for flans, quiches, tarts, pate and any cooking that needs moreheatfrombelow. PIZZA - With this function hot air circulatedin the oven to ensureperfect result fordishessuch as pizzaor cake. It is particularly suitable for cooking meat, roasted vegetables and omelettes. The cycle of pulsed air keeps the humidity inside the oven and the moisture content of the food, preserving the nutritional values and ensuring a rapid uniform cooking process. Try all your recipes and reduce the amount of dressing you usually use and experiencethelightnessofthisnewfunction! The " " function allows you to cook in a healthier way, by reducing the amount of fat or oil required. Thanks to the use of the grill and fan combined with a pulsating cycle of air, it will retain the moisture content of the food, grilling the surface and using a shortercookingtime,withoutcompromising on taste. ECO 210 50 ÷ 230 220 50 ÷ 230 190 50 ÷ 230 *EN 13

4. Oven cleaning and maintenance

4.1 General notes on cleaning

OVENWINDOWSEAL The lifecycleof the appliance can be extended through regular cleaning. Wait for the oven to coolbefore carrying out manual cleaning operations. Never use abrasive detergents, steel wool or sharp objects for cleaning, so as to not irreparably damage the enamelled parts. Use only water, soap or bleach-based detergents (ammonia). ACCESSORIES Clean accessories with a wet, soapy sponge before rinsing and drying them: avoid using abrasive detergents. DRIP PAN If dirty,the seal canbe cleaned witha slightly damp sponge. If greasy residues remain, immerse the pan in water and detergent. Alternatively, you can wash the pan in the dishwasher or use a commercialovendetergent. Never put a dirty pan back into the oven. It is advisable to clean the glass window with absorbent kitchen towel after every use of the oven. To remove more obstinate stains, you can use a detergent-soaked sponge, well wrung out, and then rinse with water. After using the grill, removethe pan from the oven. Pour the hot fat into a container and wash the pan in hot water, usinga sponge andwashing-upliquid. GLASS PARTS

Care must be taken with all hot surfaces as there is a risk of burns. Use distilled or drinkable water.

2. Set the oven function to Static ( )or Bottom heater ( ).

6. When the appliance is cool, clean the inner surfaces of the oven with a cloth.

Warning: Make sure that the appliance is cool before you touch it.

5. After 30 minutes switch off the program and allow the oven to cool down.

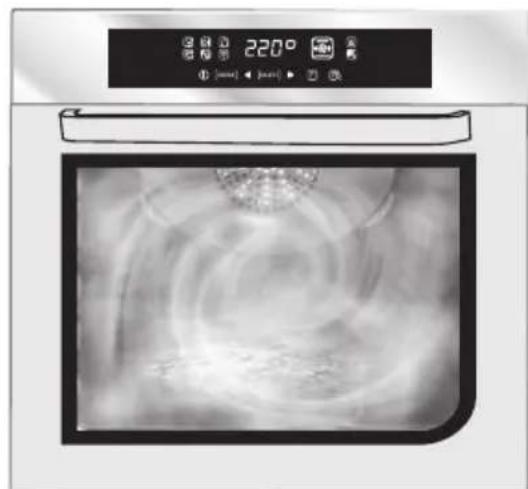

This procedure uses steam to help remove remaining fat and food particles from the oven.

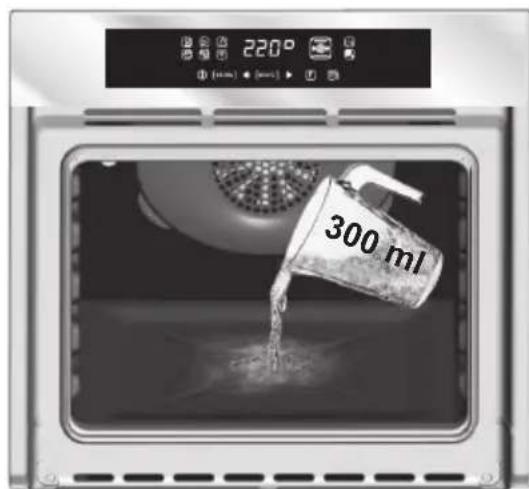

1. Pour 300 ml of water into the bottom of the oven.

3. Set the temperature at 90°C.

4. Allow the program to operate for 30 minutes.

300 ml3. Clean the side racks in a dishwasherorwithawet sponge and thendry them immediately.

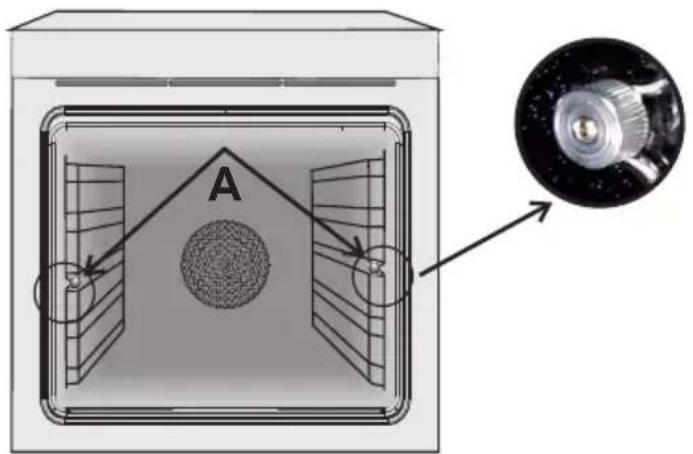

1. Unscrewtheboltinananti-clockwisedirection.

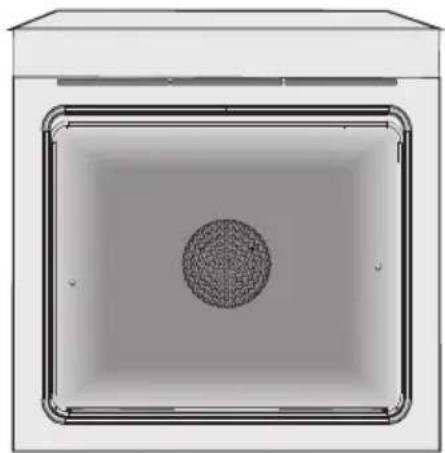

REMOVAL AND CLEANINGOFTHESIDERACKS

2. Remove the side racks by pullingthemtowardsyou.

4. Having cleaned the side racks, put them back in and reinsert the bolts, ensuring that they are fully

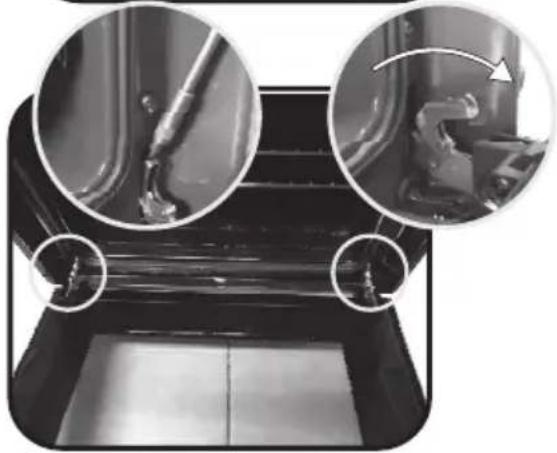

2. Open the clamps of the hinge housing on the right and left side of the front window by pushing them

1. Open the front window.

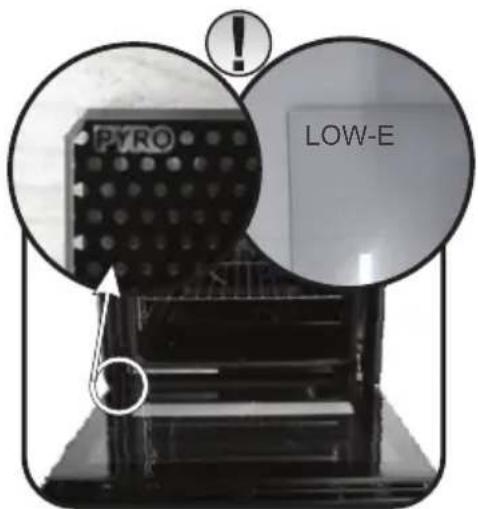

On all glass, the indication "Pyro" must be legible and positioned on the left side of the door, close to the left-handlateralhinge.Inthisway, the printed label of the firstglasswillbeinsidethedoor.

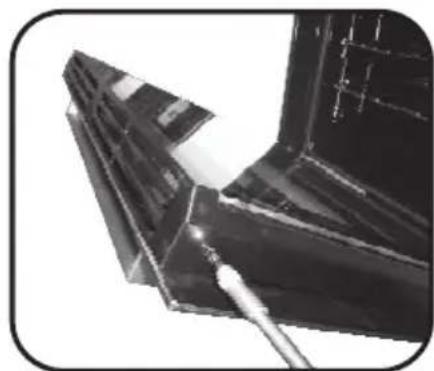

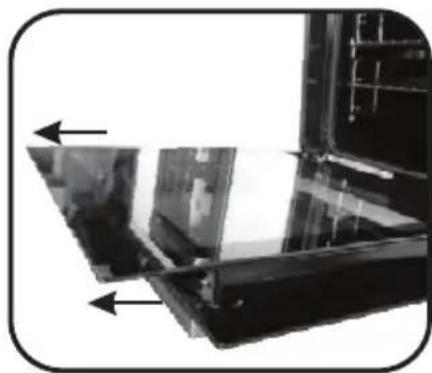

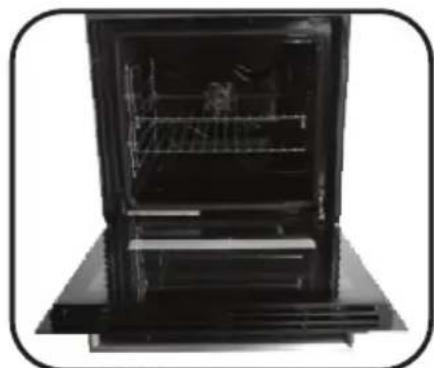

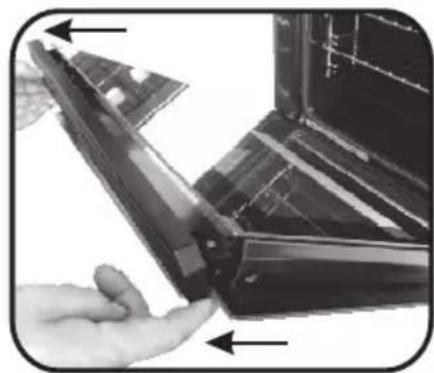

REMOVAL AND CLEANINGOF THE GLASS DOOR

1. Open the ovendoor.

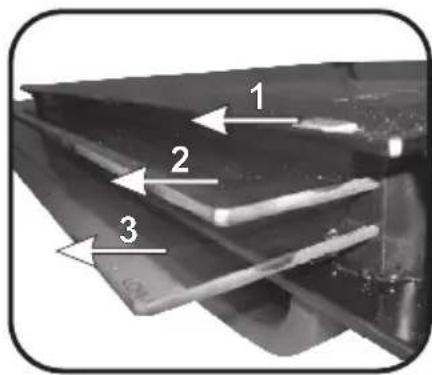

5.6. Remove the glass, carefully extracting it from the oven door (NB: in pyrolytic ovens, also remove the secondandthirdglass(ifpresent)). EN 153. Once the defective bulbisreplaced,replace the glass cover.

1. Disconnecttheovenfrom the mains supply.

PROBLEM POSSIBLE CAUSE SOLUTION

DEMONTÁŽ OKNA TROUBY

560 mm 590 mm If the mounting of the plinth does not allow air circulation, to obtain the maximum performance of the oven it is necessary to create an opening of 500x10mm or the same surfacein5.000mm²
