HOE3184IN WIFI - Oven HOOVER - Free user manual and instructions

Product type	Multifunction built-in oven
Brand	Hoover
Model	HOE3184IN WIFI
Color	Stainless steel (estimated)
Dimensions (W x H x D)	Approximately 595 x 595 x 550 mm (estimated)
Net weight	Approximately 35 kg (estimated)
Supply voltage	230 V ~ 50 Hz
Total power	Approximately 3.3 kW (estimated)
Capacity	Approximately 70 L (estimated)
Number of cooking functions	10+ (forced air, grill, turbo grill, pizza, etc.)
Wi-Fi function	Yes, compatible with OneFi app
Cleaning	Hydro easy clean (steam) and pyrolysis
Safety	Child lock, auto shut-off
Installation type	Built-in
Energy class	A (estimated)
Repairability	Replaceable light bulb and power cord
Included accessories	Metal rack, drip tray

Frequently Asked Questions - HOE3184IN WIFI HOOVER

How to set the clock of the Hoover HOE3184IN WIFI oven?

After installation or power outage, the clock blinks. Use the '+' and '-' buttons to set the time, then press the Menu key or wait 5 seconds to confirm. The oven only works if the clock is set.

What to do if the oven does not heat up?

First check that the clock is set. Also ensure that the function selector and thermostat are correctly positioned. If the problem persists, contact customer service.

How to connect the oven to Wi-Fi?

Set the function selector to 'Wi-Fi reset' for 30 seconds to enable Bluetooth. Open the OneFi app on your device and follow the instructions. Once connected, turn the selector to 'Wi-Fi ON' for remote control.

How to use the Hydro easy clean function?

Pour 300 ml of water into the center of the oven cavity. Select natural convection or bottom heat mode, then set the temperature to 'HYDRO EASY CLEAN'. Let it act for 30 minutes, then turn off and wait for cooling before wiping with a clean cloth.

How to clean the door glass?

Use a soft, damp cloth. For stubborn stains, a sponge soaked in detergent is suitable. Avoid abrasive cleaners and metal scrapers that may scratch the glass.

How to activate or deactivate the child lock?

To activate, with the oven off, press and hold the '+' (Set) button for at least 5 seconds. The screen displays 'STOP' and blinks. To deactivate, repeat the same operation.

What cooking modes are available?

The modes include: forced air, natural convection, grill, turbo grill, pizza, defrost, bottom heat, and ECO function. Each mode has a specific temperature and positioning.

Can I use aluminum foil in the oven?

No, it is forbidden to line the walls or bottom of the oven with aluminum foil or disposable liners. They may melt and damage the enamel.

How to replace the oven bulb?

Unplug the appliance. Remove the glass cover, unscrew the defective bulb and replace it with a bulb of the same model (heat-resistant). Put the cover back in place.

What to do if the touch screen does not respond?

Clean the screen with a microfiber cloth to remove condensation or residues. If the problem persists, check that the clock is set and that the appliance is not in lock mode.

USER MANUAL HOE3184IN WIFI HOOVER

- During cooking, moisture may condense inside the oven cavity or on the glass of the door. This is a normal condition. To reduce this effect, wait 10-15 minutes after turning on the power before putting food inside the oven. In any case, the condensation disappears when the oven reaches the cooking temperature.

- Cook the vegetables in a container with a lid instead of an open tray.

- Avoid leaving food inside the oven after cooking for more than 15/20 minutes.

- WARNING: the appliance and accessible parts become hot during use. Be careful not to touch any hot parts.

- WARNING: the accessible parts can become hot when the ovenisinuse. Children must safe distance.

- WARNING: ensure that the appliance is switched off before replacing the bulb, to avoid the possibility of electric shocks.

- WARNING: before initiating the automatic cleaning cycle:

- Clean the oven door;

- Remove large or coarse food residues from the inside of the oven using a damp sponge. Do not use detergents;

- Remove all accessories and the sliding rack kit (where present);

- Do not place tea towels

- In ovens with meat probe it is necessary, before making the cleaning cycle, close the hole with the nut provided. Always close the hole with the nut when the meat probe is not used.

- Children under 8 must be kept at a safe distance from the appliance if not continuously supervised.

- Children must not play with the appliance. The appliance can be used by those aged 8 or over and by those with limited physical, sensorial or mental capacities, without experience or knowledge of the product, only if supervised or provided with instruction as to the operation of the appliance, in a safe way with awareness of the possible risks.

- Cleaning and maintenance should not be carried out by unsupervised children.

- Do not use rough or abrasive materials or sharp metal scrapers to clean the oven door glasses, as they can scratch the surface and cause the glass to shatter.

- The oven must be switched off before removing the removable parts and, after cleaning, reassemble them according the instructions.

- Only use the meat probe recommended for this oven.

- Do not use a steam cleaner for cleaning operations.

- Connect a plug to the supply cable that is able to bear the voltage, current and load indicated on the tag and having the earth contact. The socket must be suitable for the load indicated on the tag and must be having the earth contact connected and in operation. The earth conductor is yellow-green in colour. This operation should be carried out by a suitably qualified professional. In case of incompatibility between the socket and the appliance plug, ask a qualified electrician to substitute the socket with another suitable type. The plug and the socket must be conformed to the current norms of the installation country. Connection to the power source can also be made by placing an omnipolar breaker between the appliance and the power source that can bear the maximum connected load and that is in line with current legislation. The yellow-green earth cable should not be interrupted by the breaker. The socket or omnipolar breaker used for the connection should be easily accessible when the appliance is installed.

- The disconnection may be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in accordance with the wiring rules.

- If the power cable is damaged, it must be substituted with a cable or special bundle available from the manufacturer or by contacting the customer service department.

•The type of power cable must be H05V2V2-F.

- Failure to comply with the above can compromise the safety of the appliance and invalidate the guarantee.

- Any excess of spilled material should be removed before cleaning.

- During the pyrolytic cleaning process, surfaces can heat up more than usual, children must therefore be kept at a safe distance.

- The appliance must not be installed behind a decorative door in order to avoid overheating.

- When you place the shelf inside, make sure that the stop is directed upwards and in the back of the cavity.

The shelf must be inserted completely into the cavity

- WARNING: Do not line the oven walls with aluminum foil or single-use protection available from stores. Aluminum foil or any other protection, in direct contact with the hot enamel, risk melting and deteriorating the enamel of the insides.

- WARNING: Never remove the oven door seal.

- No additional operation/setting is required in order to operate the appliance at the rated frequencies.

General Instructions

4

1.1 Safety indications
1.2 Electrical safety
1.3 Recommendations
1.4 Installation
1.5 Waste management
1.6 Declaration of compliance

Product Description

5

2.1 Overview
2.2 Accessories
2.3 First use

Use of the Oven

3.1 Display description
3.2 Cooking modes

6

Oven Cleaning and Maintenance

8

4.1 General notes on cleaning
4.2 Hydro Easy Clean Function
4.3 Maintenance

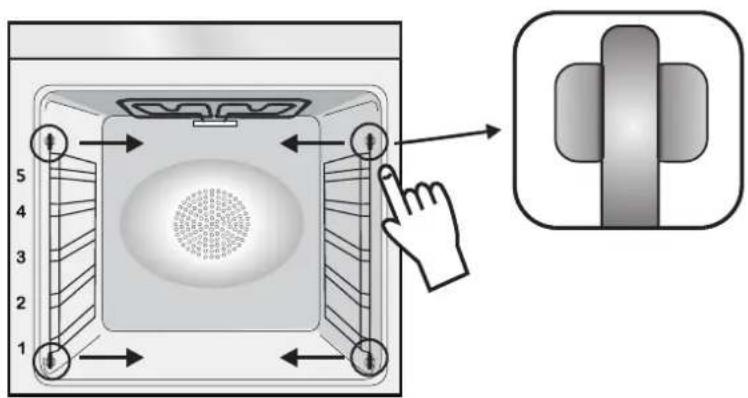

• Removing and cleaning wire racks

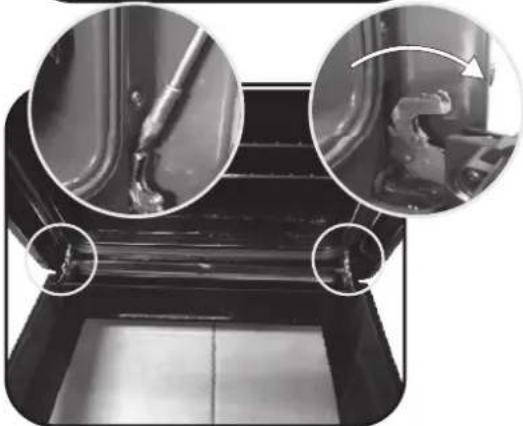

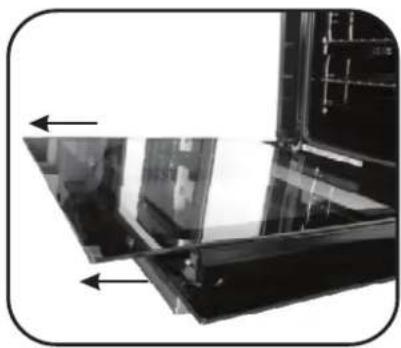

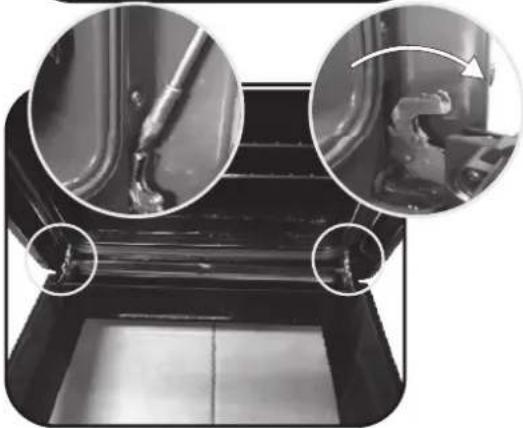

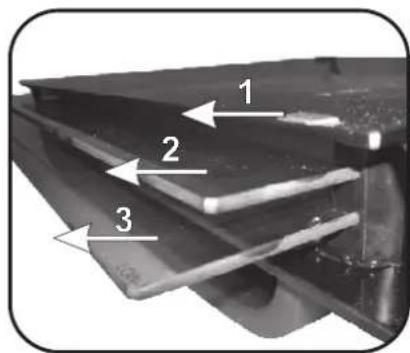

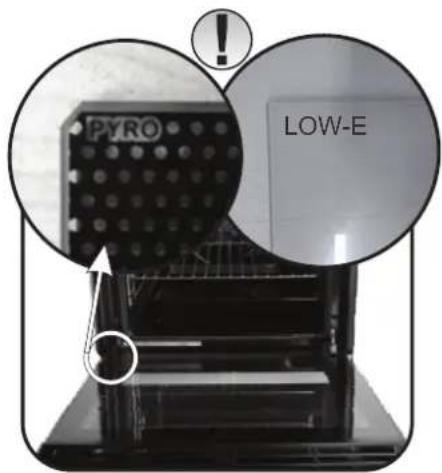

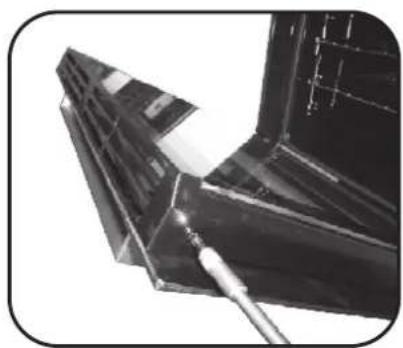

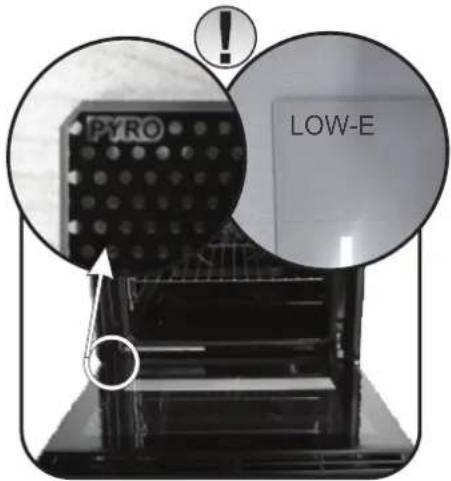

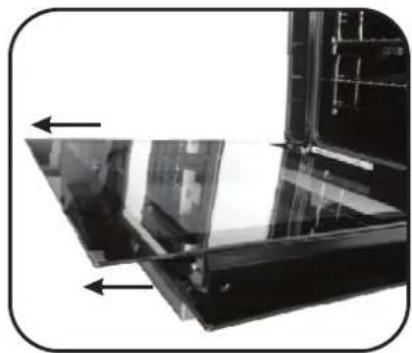

• Removal of the oven window

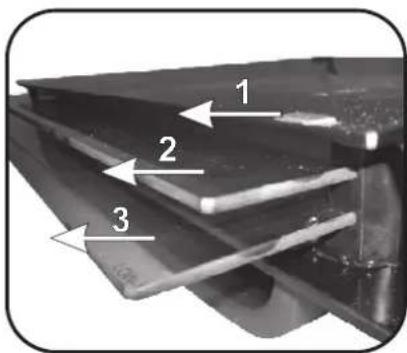

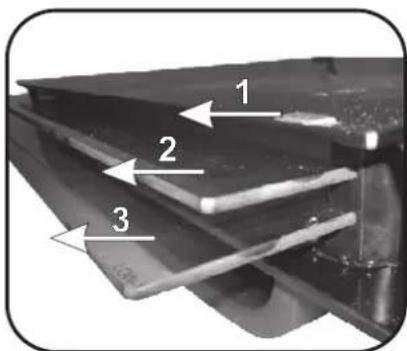

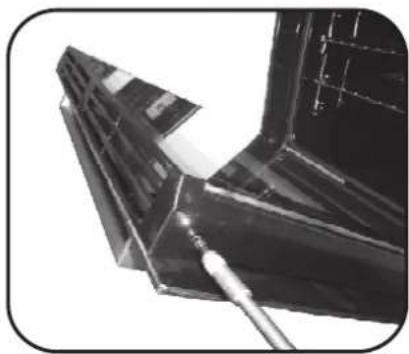

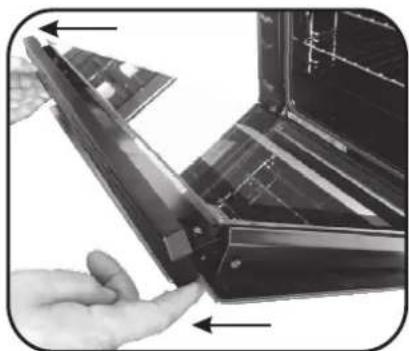

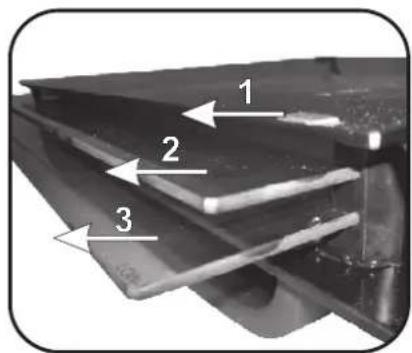

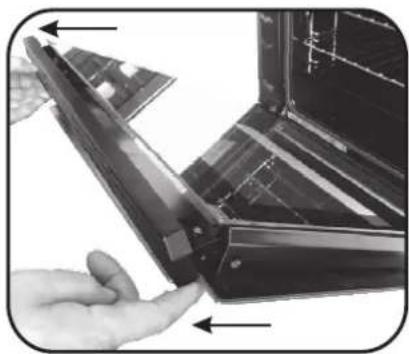

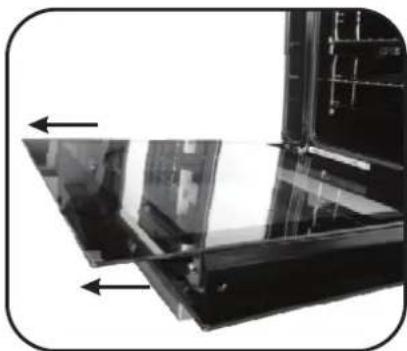

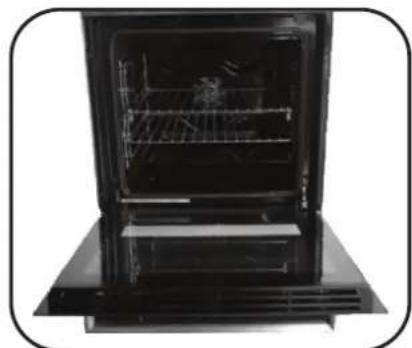

• Removal and cleaning of the glass door

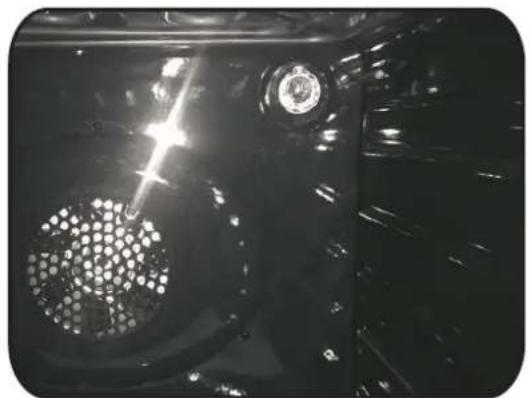

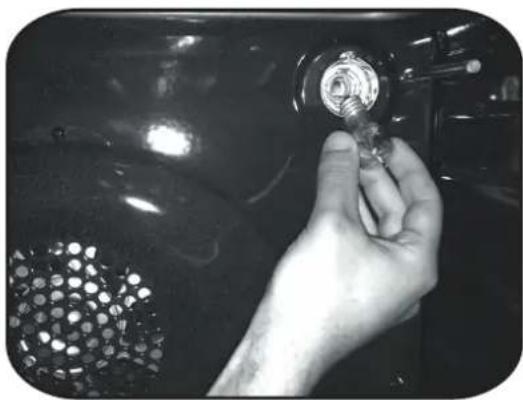

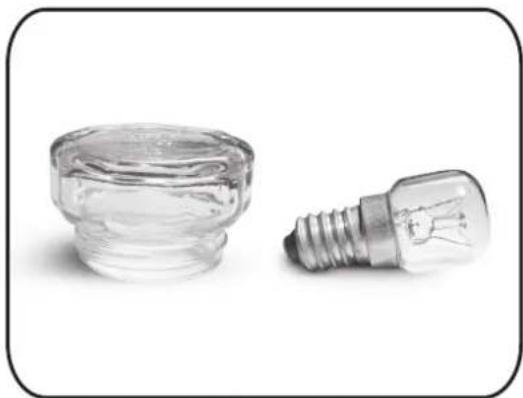

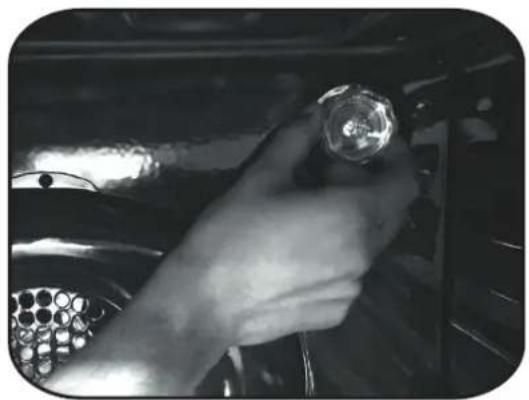

• Changing the bulb

Troubleshooting

5.1 F.A.Q.

10

1. General Instructions

We thank you for choosing one of our products. For the best results with your oven, you should read this manual carefully and retain it for future reference. Before installing the oven, take note of the serial number so that you can giveit to customer service staff if any repairs are required. Having removed the oven from its packaging, check that it has not been damaged during transportation. If you have doubts, do not use the oven and refer to a qualified technician for advice. Keep all of the packaging material (plastic bags, polystyrene, nails) out of the reach of children. When the oven is switched on for the first time, strong smelling smoke can develop, which is caused by the glue on the insulation panels surrounding the oven heating for the first time. This is absolutely normal and, if it occurs, you should wait for the smoke to dissipate before putting food in the oven. The manufacturer accepts no responsibility in cases where the instructions contained in this document are not observed.

NOTE: the oven functions, properties and accessories cited in this manual will vary, depending on the model you have purchased.

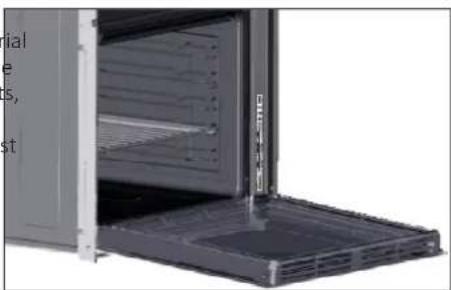

Exterior view of a modern stainless steel oven with open lid (no visible text or symbols)

1.1 Safety Indications

Only use the oven for its intended purpose, that is only for the cooking of foods; any other use, for example as a heat source, is considered improper and therefore dangerous. The manufacturer cannot be held responsible for any damageresulting from improper, incorrector unreasonable usage. The use of any electrical appliance implies the observance of some fundamental rules:

• do not pull on the powercableto disconnect the plug from the socket;
• do not touch the appliance with wetor damp hands or feet;
• in general the use of adaptors, multiple sockets and extension cables is not recommended;
• in case of malfunction and/or poor operation, switchoff the appliance and do not tamper with it.

1.2 Electrical Safety

ENSURE THAT AN ELECTRICIAN OR QUALIFIED TECHNICIAN MAKES THE ELECTRICAL CONNECTIONS. The power supply to which the oven is

connected must conform with the laws in force in the country of installation. The manufacturer accepts no responsibility for any damage caused by the failure to observe these instructions. The oven must be connected to an electrical supply with an earthed wall outlet or a disconnector with multiple poles, depending on the laws in force in the country of installation. The electrical supply should be protected with suitable fuses and the cables used must have a transverse section that can ensure correct supply to the oven.

CONNECTION

The oven is supplied with a power cable that should only be connected to an electrical supply with 220-240 Vac 50 Hz power between the phases or between the phase and neutral. Before the oven is connected to the electrical supply, it is important to check:

- power voltage indicated on the gauge;

- the setting of the disconnector.

The grounding wire connected to the oven's earth terminal must be connected to the earth terminal of the powersupply.

WARNING

Before connecting the oven to the power supply, ask a qualified electrician to check the continuity of the power supply's earth terminal. The manufacturer accepts no responsibility for any accidents or other problems caused by failure to connect the oven to the earth terminal or by an earth connection that has defective continuity.

NOTE: as the oven could require maintenance work, it is advisable to keep another wall socket available so that the oven can be connected to this if it is removed from the space in which it is installed. The power cable must only be substituted by technical service staff or by technicians with equivalent qualifications.

1.3 Recommendations

After each use of the oven, a minimum of cleaning will help keep the oven perfectly clean.

Do not line the oven walls with aluminium foil or single-use protection available from stores. Aluminium foil or any other protection, in direct contact with the hot enamel, risks melting and deteriorating the enamel of the insides.

In order to prevent excessive dirtying of your oven and the resulting strong smokey smells, we recommend not using the oven at very high temperature. It is better to extend the cooking time and lower the temperature a little. In addition to the accessories supplied with the oven, we advise you only use dishes and baking moulds resistant to very high temperatures.

1.4 Installation

The manufacturers have no obligation to carry this out. If the assistance of the manufacturer is required to rectify faults arising from incorrect installation, this assistance is not covered by the guarantee. The installation instructions for professionally qualified personnel must be followed. Incorrect installation may cause harm or injury to people, animals or belongings. The manufacturer cannot be held responsible for such harm or injury.

The oven can be located high in a column or under a worktop. Before fixing, you must ensure good ventilation in the oven space to allow proper circulation of the fresh air required for cooling and protecting the internal parts. Make the openings specified on last page according to the type of fitting.

1.5 Waste management and environmental protection

This appliance is labelled in accordance with European Directive 2012/19/EU regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on

the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules:

- the WEEE should not be treated as domestic waste;

- the WEEE should be taken to dedicated collection areas managed by the towncouncilor a registered company.

In many countries, domestic collections may be available for large WEEEs.

When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalenttype and has the same functions as the purchasedappliance.

SAVING AND RESPECTING THE ENVIRONMENT

Where possible, avoid pre-heating the oven and always try to fill it. Open the oven door as infrequently as possible, because heat from the cavity disperses every time it is opened. For a significant energy saving, switch off the oven between 5 and 10 minutes before the planned end of the cooking time, and use the residual heat that the oven continues to generate. Keep the seals clean and in order, to avoid any heat dispersal outside of the cavity. If you have an electric contract with an hourly tariff, the "delayed cooking" programme makes energy saving more simple, moving the cookingprocesstostartatthe reduced tarifftime slot.

1.6 Declaration of compliance

The parts of this appliance that may come into contact with foodstuffs comply with the provisions of EEC Directive89/109. By placing the mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation forth this product.

With this the Candy Hoover Group, declares that this appliance marked with complexes with the essential requirements of the Directive 2014/53/EU. To receive a copy of the declaration of conformity, please contact the manufacturer at: www.candy-group.com.

2. Product Description

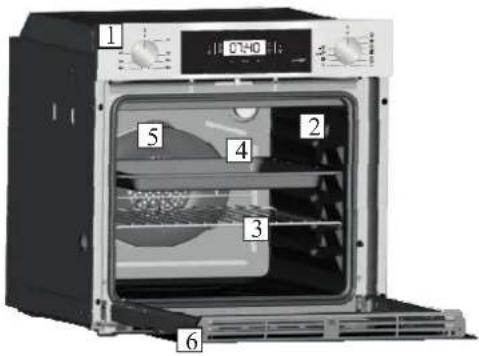

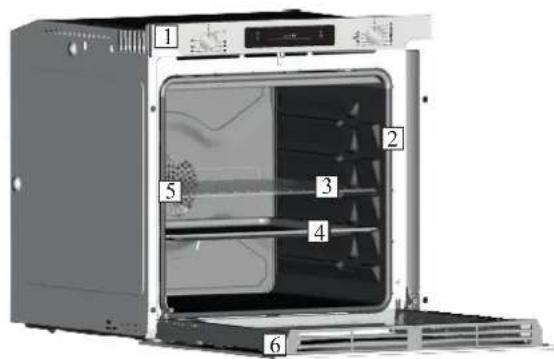

2.1 Overview

1. Control panel
2. Shelf positions
   (lateral wire grid if included)
3. Metal grill
4. Drip pan
5. Fan (behind the steel plate)
6. Oven door

2.2 Accessories (According to model)

1 Drip pan

3D rendering of a gray rectangular tray with cutouts (no text or symbols)

Collects the residues that drip during the cooking of foods on the grills.

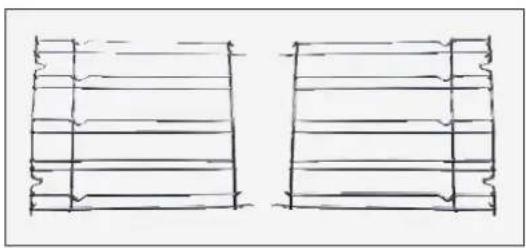

3 Lateral wire grids

Two hand-drawn sketch of vertical rectangular panels with horizontal lines, no text or symbols present

Lateral wire grid if included.

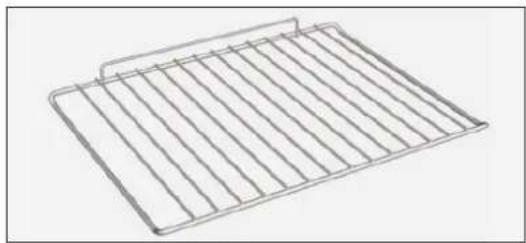

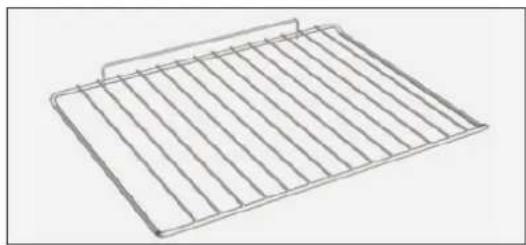

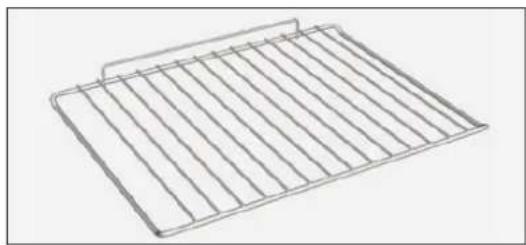

2 Metal grill

Line drawing of a rectangular metal grate with vertical slats (no text or symbols)

Holds baking trays and plates.

2.3 First Use

PRELIMINARYCLEANING

Clean the oven before using for the first time. Wipe over external surfaces with a damp soft cloth. Wash all accessories and wipe inside the oven with a solution of hot water and washing up liquid. Set the empty oven to the maximum temperature and leave on for about 1 hour, this will remove any lingering smells of newness.

3. Use of the Oven (According to model)

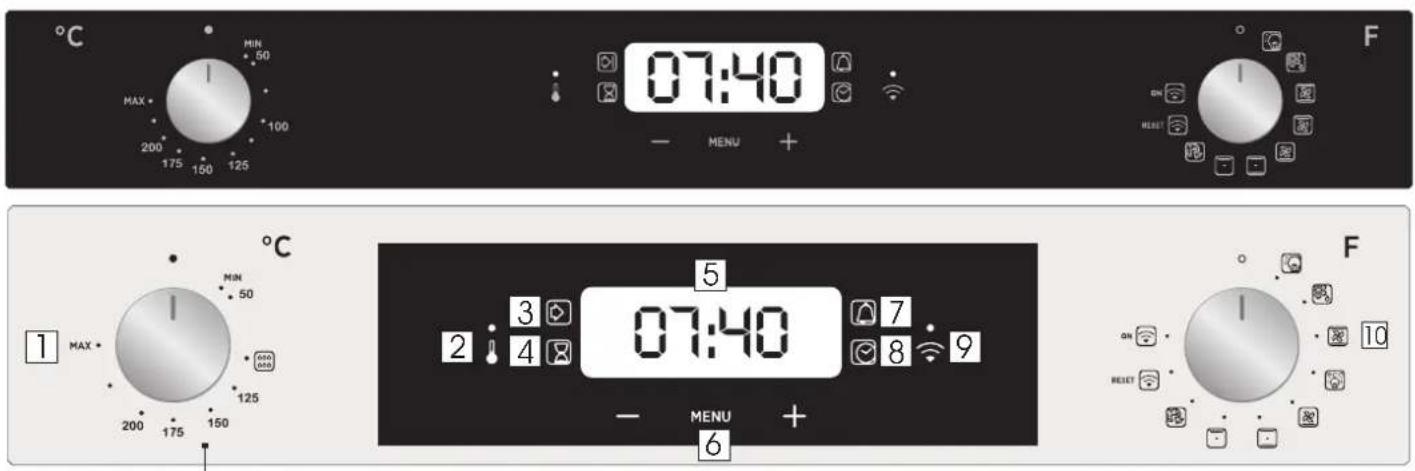

3.1 Display description

1. Thermostat selector knob
2. Thermostat signal lamp
3. End of cooking
4. Cooking time
5. Temperature or clock display
6. LCD display adjustment controls
7. Minute minder
8. Clock setting
9. Wifi signal lamp
10. Function selector knob

WARNING: the first operation to carry out after the oven has been installed or following the interruption of power supply (this is recognizable the display pulsating and showing 2.0 getting the correct time. The bottomright LED flashes at the same time). This is achieved as follows.

• Set time with buttons."-" "+"
• PushtheMenubutton or than the clock is setted.wait5seconds

ATTENTION: The oven will only operate settingtheclock

FUNCTION	HOW TO DEACOWATCEUSEIAT IT DOES			NOTE
KEY LOCK	•Child Lock function is activated by touching Set (+) for a minimum of 5 seconds. From this moment on all other function are locked and the display will flash 3 sec intervals STOP and preset time intermittently.	•Child Lock function is deactivated by touching touchpad Set (+) again for a minimum of 5 seconds. From this moment on all functions are selectable again.
MINUTE MINDER	•Push the central button 3 times•Press the buttons "-" "+" to set the required time•Release all the buttons	•When the set time has elapsed, an audible alarm is full stop after activated this alarm will stop on its own, however it can be stopped immediately by pressing any button.	•Sounds an alarm at the end of the set time.•During the process, the display shows the remaining time.	•Allows to use the oven as alarm clock (could be activated either with operating the oven or with out operating the oven)
COOKING TIME	•Select the cooking function with the oven function knob, the temperature you want to cook with the thermostat knob.•Push the central button 1 times•Press the buttons "-" or "+" to set the lenght of cooking required•Release all buttonsNOTE: If the oven is switched off or the lamp is functioning, the cooking time schedule function will not work.	•Push any button to stop the signal. Push the central button to return to the clock function.	•It allows to preset the cooking time required for the recipe chosen.•To check how long is left to run press the MENU button 1 time.•To alter/change the preset time press MENU and "-" "+" buttons.	•At the end of the program the program gives 3 warning signals and "End" appears on the display.Set the function selector switch to "0" to return to the clock function.
END OF COOKING	•Select the cooking function with the oven function knob, the temperature you want to cook with the thermostat knob.•Push the central button 2 times•Press the buttons "-" "+" to set the time at which you wish the oven to switch off•Release the buttonsNOTE: If the oven is switched off or the lamp is functioning, the cooking time schedule function will not work.	•At the time set, the oven will switch off. To switch off manually, turn the oven function selector to position O.	•Enables you to set the end of cooking time•To check the preset time push the central button 2 times•To modify the preset time press buttons MENU + "-" "+"	•This function is typically used with "cooking time" function.For example if the dish has to be cooked for 45 minutes and needs to be ready by 12:30, simply select the required function, set the cooking time to 45 minutes and the end of cooking time to 12:30.•At the end of the cooking set time, the oven will switch off automatically and an audible alarm will ring.•Cooking will start automatically at 11:45 (12:30 minus 45 mins) and will continue until the pre-set end-of-cooking-time, when the oven will switch itself off automatically.

ELETTRONICA ZERO WIFI FUNCTION

For all the details related to the link between app and product, refer to the Quick Guide.

Wi Fi has two different positions on the cooking selector:

• Wi Fi on: Wi Fi is switched on only if the oven is already enrolled to your device. In this position the oven will be only controlled by remote.
• Wi Fi reset: After leaving the selector on Wi Fi reset for 30", Bluetooth will switch on and you will be able to enroll the oven to your device within 5'.

If the enrollment is successful, the oven will be controlled by remote and the Wi Fi icon will switch on. If the enrollment is unsuccessful, Wi Fi will switch off and the oven will be reset.

To proceed with a new enrollment the cooking program selector has to be turned out from Wi-Fi reset position and moved again on it.

Note: Install the App on your device before starting enrolling

Note: The device where the App is installed must have Bluetooth activated

Note: For both Wi Fi positions, the touch buttons do not work.

Note: It is important to establish a good Wi-Fi signal strength between the home router and the appliance. When the oven is trying to connect to router the icon will blink 3" on and 1" off, when it is already connected the icon will switch on.

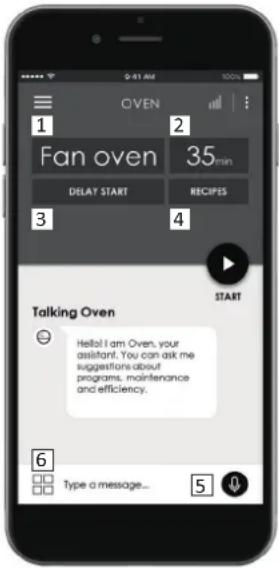

HOOVER ONEFi

For detailed information about HOW TO CONNECT your ONE Fi appliance and HOW TO USE it at its best, go to http://wizardservice.candy-hoover.com/

1. Program selection / 2. Program duration / 3. Cooking start setting / 4- Dedicated recipes selection / 5. Offline and vocal assistant /

2. Tips, suggestions and online user manual

3.2 Cooking Modes

Function Dial	T °CSuggested	Function (Depends on the oven model)
[30KZ]		LAMP: Turns on the oven light.
		DEFROST: When the dial is set to this position. The fan circulates air at room temperature around the frozen food so that it defrosts in a few minutes without the protein content of the food being changed or altered.
	180	FAN COOKING: We recommend you use this method for poultry, pastries, fish and vegetables. Heat penetrates into the food better and both the cooking and preheating times are reduced. You can cook different foods at the same time with or without the same preparation in one or more positions. This cooking method gives even heat distribution and the smells are not mixed.Allow about ten minutes extrawhen cooking foods at the same time.
*	190	The "ECO" function allows you to cook in a healthier way, by reducing the amount of fat or oil required. Thanks to the use of the grill and fan combined with a pulsating cycle of air, it will retain the moisture content of the food, grilling the surface and using a shorter cooking time, without compromising taste.It is particularly suitable for cooking meat, roasted vegetables and omelettes. The cycle of pulsed air keeps the humidity inside the oven and the moisture content of the food, preserving the nutritional values and ensuring a rapid uniform cooking process.Try all your recipes and reduce the amount of dressing you usually use and experience the lightness of this new function!
	210	FAN + LOWER ELEMENT: The bottom heating element is used with the fan circulating the air inside the oven. This method is ideal for juicy fruit flans, tarts, quiches and pâté.It prevents food from drying and encourages rising in cakes, bread dough and other bottom-cooked food.Place the shelf in the bottom position.
[5WGC6]	220	CONVENTIONAL COOKING: Both top and bottom heating elements are used. Preheat the oven for about ten minutes. This method is ideal for all traditional roasting and baking. For seizing red meats, roast beef, leg of lamb, game, bread, foil wrapped food (papillotes), flaky pastry. Place the food and its dish on a shelf in mid position.
	230	GRILL: usethegrill with the door closed.The top heating element is used alone and you can adjust the temperature. Five minutes preheating is required to get the elements red-hot. Success is guaranteed for grills, kebabs and gratin dishes. White meats should be put at a distance from the grill; the cooking time is longer, but the meat will be tastier. You can put red meats and fish fillets on the shelf with the drip tray underneath. The oven has two grill positions: Grill: 2140 W Barbecue: 3340 W
	200	FAN ASSISTEDGRILL: use the turbo-grill with the door closed.The top heating element is used with the fan circulating the air inside the oven. Preheating is necessary for red meats but not for white meats. Ideal for cooking thick food items, whole pieces such as roast pork, poultry, etc. Place the food to be grilled directly on the shelf centrally, at the middle level. Slide the drip tray under the shelf to collect the juices. Make sure that the food is not too close to the grill. Turn the food over halfway through cooking.
	220	PIZZA: With this function hot air circulated in the oven to ensure perfect result for dishes such as pizza or cake.
[7ATOS]		WIFI ON: Oven allowswifi connection.
RE:		WIFI RESET: It allows wifi connection to be restarted.

*Tested in accordance with the CENELEC EN 60350-1 used for definition of energy class.

4. Oven cleaning and maintenance

4.1 General notes on cleaning

The lifecycle of the appliance can be extended through regular cleaning. Wait for the oven to cool before carrying out manual cleaning operations. Never use abrasive detergents, steel wool or sharp objects for cleaning, so as to not irreparably damage the enamelled parts. Use only water, soap or bleach-based detergents (ammonia).

GLASS PARTS

It is advisable to clean the glass window with absorbent kitchen towel after every use of the oven. To remove more obstinate stains, you can use a detergent-soaked sponge, well wrung out, and then rinse with water.

OVENWINDOWSEAL

If dirty, the seal can be cleaned with a slightlydampsponge.

ACCESSORIES

Clean accessories with a wet,soapy sponge before rinsing and drying them: avoidusingabrasive detergents.

DRIP PAN

After using the grill, remove the pan from the oven. Pour the hot fat into a container and wash the pan in hot water, using a sponge and washing-up liquid.

If greasy residues remain, immerse the pan in water and detergent.

Alternatively, you can wash the pan in the dishwasher or use a commercial ovendetergent. Never put a dirty pan back into the oven.

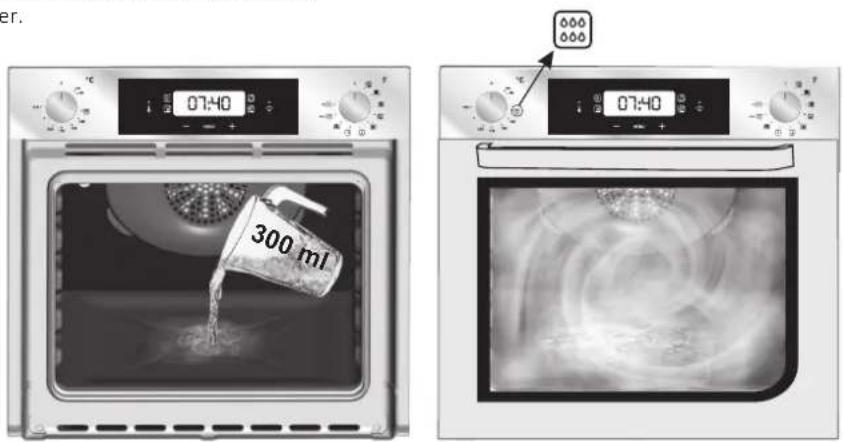

4.2 Hydro Easy Clean Function

The HYDRO EASY CLEAN procedure uses steam to help remove remaining fat and food particles from the oven.

1. Pour 300 ml of water into the container at the bottom of the oven. HYDRO EASY CLEAN

2. Set theovenfunction to Static (or Bottom ( )heater

3. Set the temperature to the icon HYDRO EASY CLEAN

4. Allow the program to operate for 30 minutes.

5. After 30 minutesswitchoffthe program and allowthe oven to cool down.

6. When the appliance is cool, clean the inner surfaces of the oven with a cloth.

Warning: Make sure that the appliance is cool beforeyoutouchit.

Caremustbe takenwithall hot surfaces as there is arisk of burns.

Use distilled or drinkable water.

4.3 Maintenance

REMOVING AND CLEANING WIRE RACKS

1- Removethe wire racks by pulling them in the direction of the arrows (see below)
2- To clean thewireracks either putthem in the dishwasher or use a wet sponge, ensuring that they are dried afterwards.
3- After the cleaning process installthe wire racksin reverseorder.

REMOVAL OF THEOVENWINDOW

1. Open thefront window.
2. Open theclamps of thehingehousing on theright and left sideof the frontwindow by pushing them downwards.
3. Replace the windowbycarrying out the procedure in reverse.

REMOVAL AND CLEANINGOFTHEGLASSDOOR

1. Open the ovendoor.
   2.3.4. Lock the hinges, remove the screwsandremovetheuppermetal coverby pulling it upwards.
   5.6. Remove the glass, carefully extracting it from the oven door (NB: in pyrolytic ovens, also remove the second and third glass (if present)).
2. Attheendofcleaningorsubstitution,reassemblethepartsin reverseorder.

On all glass, the indication "Low-E" must be legible and positioned on the left side of the door, close to the left-hand lateral hinge. In this way, the printed label of the first glass will be inside the door.

1.

Interior view of a black oven with visible grating and ventilation slots (no text or symbols)

1.

Close-up of a metallic mechanical component with two arrows pointing to features (no visible text or symbols)

1.

Close-up of mechanical components with magnified views showing internal structure (no text or symbols visible)

1.

1.

Close-up of a metallic tool interacting with a dark metal panel or bracket (no visible text or symbols)

1.

1.

Close-up of a hand holding a flexible electronic device with a transparent panel, showing internal structure (no text or symbols visible)

CHANGING THE BULB

1. Disconnecttheovenfrom the mains supply.
2. Undo the glass cover, unscrewthebulbandreplace it with a new bulb of the same type.
3. Once the defective bulb is replaced, replace the glass cover.

Close-up of a hand holding a small metallic object, possibly a flashlight or connector, in a dark indoor setting (no visible text or symbols)

Close-up of a hand holding a small metallic component with a grid-patterned surface on the side (no visible text or symbols)

Close-up of a dark industrial or laboratory interior with a circular perforated component and a metallic fixture (no visible text or symbols)

Two small glass incandescent bulbs, one open and one closed, displayed against a plain white background (no text or symbols visible)

5. Troubleshooting

5.1 FAQ

PROBLEM POSSIBLE CAUSE SOLUTION
The oven does not heat up	The clock is not set Set the clock
The oven does not heat up	A cooking function and temperature has not been set	Ensure that the necessary settings are correct
No reaction of the touch user interface	Steam and condensation on the user interface panel	Clean with a microfiber cloth the user interface panel to remove the condensation layer

Exterior view of a modern office building (no signage)

2.2 Aksesuarlar

1 Tepsi

3D rendering of a gray rectangular tray or baking tray with cutouts (no text or symbols)

Two hand-drawn sketch of vertical grid lines, no text or symbols present

Line drawing of a rectangular metal grate with vertical slats (no text or symbols)

FIRIN KAPAĞININ SÖKÜLMESİ

Interior view of a black oven with visible grating and ventilation slots (no text or symbols)

1.

Close-up of a metallic panel or fixture with two arrows pointing to features, no visible text or symbols.

1.

Close-up of mechanical components with magnified views showing internal structure (no text or symbols visible)

1.

1.

Close-up of a metallic tool interacting with a dark metal panel or bracket (no visible text or symbols)

1.

1.

Close-up of a hand holding a flexible electronic device with a transparent panel, showing internal structure (no text or symbols visible)

Close-up of a hand holding a small metallic object in a vehicle engine compartment (no visible text or symbols)

Close-up of a hand holding a small metallic component with a grid-patterned surface on the side (no visible text or symbols)

Close-up of a dark industrial or laboratory interior with a perforated circular component and a metallic fixture (no visible text or symbols)

Two small glass incandescent bulbs, one open and one closed, displayed against a plain white background (no text or symbols visible)

5. Sorun Giderme

5.1 Sorun giderme

Tel: [phone] • Fax: [phone]

www.candy-group.com

GARANTI BELGESI

ANKASTRE FIRIN

Exterior view of a modern stainless steel oven with open lid and ventilation grilles (no visible text or symbols)

3D rendering of a gray rectangular tray or baking tray with dashed edges (no text or symbols)

Two hand-drawn sketch-style grid-like structures with horizontal lines, no text or symbols present

Grille fil latéral si inclus.

2 Grille métalique

Line drawing of a rectangular metal grate with vertical slats (no text or symbols)

RETRAIT DE LA PORTE DU FOUR

Interior view of a black oven with visible grating and ventilation slots (no text or symbols)

1.

Close-up of a metallic panel or fixture with two arrows pointing to features, no visible text or symbols.

1.

Close-up of mechanical components with magnified views showing internal structure (no text or symbols visible)

1.

1.

Close-up of a metallic bracket with a tool inserted, showing no visible text or symbols.

1.

1.

Close-up of a hand inserting a plastic component into a dark plastic panel (no text or symbols visible)

REMPLACEMENTDE L'AMPOULE

Close-up of a hand holding a small metallic object, possibly a flashlight or connector, in a dark indoor setting (no visible text or symbols)

Close-up of a hand holding a small metallic component with a grid-patterned surface on the side (no visible text or symbols)

Close-up of a dark industrial or laboratory interior with a perforated circular component and a central metallic fixture (no visible text or symbols)

Two small glass incandescent bulbs, one open and one closed, displayed against a plain white background (no text or symbols visible)

5. Dépannage

5.1 FAQ

Exterior view of a modern kitchen appliance with open door and side panel (no visible text or symbols)

3D rendering of a gray rectangular tray with side brackets (no text or symbols)

Two hand-drawn sketch-style panels showing horizontal lines within rectangular frames, no text or symbols present.

Line drawing of a rectangular grid structure with vertical bars (no text or symbols)

RIMOZIONEDELLOSPORTELLODEL FORNO

Interior view of a black oven with visible grating and ventilation slots (no text or symbols)

1.

Close-up of a metallic panel or bracket with two arrows pointing to features, no visible text or symbols.

1.

Close-up of mechanical components with magnified views showing internal structure (no text or symbols visible)

1.

1.

Close-up of a metallic mechanical component with a tool inserted, showing no visible text or symbols.

1.

1.

Close-up of a hand inserting a plastic component into a dark panel or housing (no visible text or symbols)

Close-up of a hand holding a small metallic object, possibly a flashlight or connector, in a dark indoor setting (no visible text or symbols)

Close-up of a hand holding a small metallic component with a grid-patterned surface on the side (no visible text or symbols)

Close-up of a dark industrial or laboratory interior with a circular perforated component and a metallic fixture (no visible text or symbols)

Two small glass incandescent bulbs, one open and one closed, displayed against a plain white background (no text or symbols visible)

Exterior view of a modern kitchen oven with open door and side panel (no visible text or symbols)

3D rendering of a gray rectangular tray with cutouts (no text or symbols)

Two hand-drawn sketch-style grid-like structures with horizontal lines, no text or symbols present

Line drawing of a rectangular grid structure with vertical lines (no text or symbols)

Interior view of a black oven with visible grating and ventilation slots (no text or symbols)

1.

Close-up of a metallic mechanical component with two arrows pointing to features (no visible text or symbols)

1.

Close-up of mechanical components with circular insets showing close-ups of pipe fittings and a curved tool (no text or symbols visible)

1.

1.

Close-up of a metallic tool interacting with a dark metal panel or bracket (no visible text or symbols)

1.

1.

Close-up of a hand holding a flexible electronic device with a transparent panel, showing internal structure (no text or symbols visible)

Close-up of a hand holding a small metallic object, possibly a flashlight or connector, in a dark indoor setting (no visible text or symbols)

Close-up of a hand holding a small metallic component with a grid-patterned surface on the side (no visible text or symbols)

Close-up of a dark industrial or laboratory interior with a circular perforated component and a metallic fixture (no visible text or symbols)

Two small glass incandescent bulbs, one open and one closed, displayed against a plain white background (no text or symbols visible)

Exterior view of a modern kitchen oven with open door and side panel (no visible text or symbols)

3D rendering of a gray rectangular baking tray with side brackets (no text or symbols)

Two hand-drawn sketch of rectangular grid structures with no text or symbols

Line drawing of a rectangular metal grate or rack structure (no text or symbols)

*Tested in accordance with the CENELEC EN 60350-1 used for definition of energy class.

WYJMOWANIE DRZWICZEK PIEKARNIKA

Interior view of a black oven with visible grating and ventilation slots (no text or symbols)

1.

Close-up of a metallic mechanical component with two arrows pointing to features (no visible text or symbols)

1.

Close-up of mechanical components with circular insets showing close-ups of pipe fittings and a curved tool (no text or symbols visible)

1.

1.

Close-up of a metallic tool interacting with a dark metal panel or bracket (no visible text or symbols)

1.

1.

Close-up of a hand holding a flexible electronic device with a transparent panel, showing internal structure (no text or symbols visible)

WYMIANA ŻARÓWKI

Close-up of a hand holding a small metallic object, possibly a flashlight or connector, in a dark indoor setting (no visible text or symbols)

Close-up of a hand holding a small metallic component with a grid-patterned surface on the side (no visible text or symbols)

Close-up of a dark industrial or laboratory interior with a circular perforated component and a metallic fixture (no visible text or symbols)

Two small glass incandescent bulbs, one open and one closed, displayed against a plain white background (no text or symbols visible)

Interior view of a stainless steel oven with open door and tray (no visible text or symbols)

1.6 Declaration of compliance

3D rendering of a gray rectangular tray with cutouts (no text or symbols)

Two identical hand-drawn structural diagrams showing vertical and horizontal beams, no text or symbols present.

Rede de arame lateral, se incluida.

Line drawing of a rectangular grid structure with vertical lines, no text or symbols present

REMOÇÃOE LIMPEZA DE ARAME

REMOÇÃODAJANELADO FORNO

Interior view of a black oven with visible grating and ventilation slots (no text or symbols)

1.

Close-up of a glass panel with two arrows pointing to the side (no visible text or symbols)

1.

Close-up of mechanical components with magnified views showing internal structure (no text or symbols visible)

1.

1.

Close-up of a metallic mechanical component with a tool inserted, showing no visible text or symbols.

1.

1.

Close-up of a hand holding a flexible electronic device with arrows indicating component alignment (no text or symbols visible)

MUDANDOO BULBO

Close-up of a hand holding a small metallic object, possibly a flashlight or connector, in a dark indoor setting (no visible text or symbols)

Close-up of a hand holding a small metallic component, possibly a connector or tool, against a dark background with no visible text or symbols.

Close-up of a dark industrial or laboratory interior with a circular perforated component and two metallic fixtures (no visible text or symbols)

Two small glass incandescent bulbs, one open and one closed, displayed against a plain white background (no text or symbols visible)

Interior view of a stainless steel oven with open door and tray (no visible text or symbols)

3D rendering of a gray rectangular baking tray with side brackets (no text or symbols)

Two hand-drawn sketch-style grid-like structures with horizontal lines, no text or symbols present

Line drawing of a rectangular grid structure with vertical lines, no text or symbols present

ENTFERNEN DESBACKOFENFENSTERS

Interior view of a black oven with visible grating and ventilation slots (no text or symbols)

1.

Close-up of a glass panel with two arrows pointing to the side (no visible text or symbols)

1.

Close-up of mechanical components with magnified views showing internal structure (no text or symbols visible)

1.

1.

Close-up of a metallic mechanical component with a tool inserted, showing no visible text or symbols.

1.

1.

Close-up of a hand holding a flexible electronic device with arrows indicating component alignment (no text or symbols visible)

WECHSELNDER GLÜHBIRNE

Close-up of a hand holding a small metallic object, possibly a flashlight or connector, in a dark indoor setting (no visible text or symbols)

Close-up of a hand holding a small metallic component with a grid-patterned surface on the side (no visible text or symbols)

Close-up of a dark industrial or laboratory interior with a circular perforated component and two metallic fixtures (no visible text or symbols)

Two small glass incandescent bulbs, one open and one closed, displayed against a plain white background (no text or symbols visible)

5. Fehlerbehebung

Interior view of a stainless steel oven with open door and side panel (no visible text or symbols)

3D rendering of a gray rectangular tray or baking tray with no text or symbols

Two hand-drawn grid-like structures with horizontal lines and wavy top/bottom edges, no text or symbols present.

Line drawing of a rectangular metal grate with vertical slats (no text or symbols)

VERWIJDERENENREINIGENVAN DE ZIJLINGSE ROOSTERS

Interior view of a black oven with visible grating and ventilation slots (no text or symbols)

1.

Close-up of a glass panel with two arrows pointing to the side (no visible text or symbols)

1.

Close-up of mechanical components with circular insets showing close-ups of parts (no visible text or symbols)

1.

1.

Close-up of a metallic mechanical component with a tool inserted, showing no visible text or symbols.

1.

1.

Close-up of a hand holding a flexible electronic device with arrows indicating component alignment (no text or symbols visible)

HET LAMPJE VERVANGEN

Close-up of a hand holding a small metallic object, possibly a flashlight or connector, in a dark indoor setting (no visible text or symbols)

Close-up of a hand holding a small metallic component with a grid-patterned surface on the side (no visible text or symbols)

Close-up of a dark industrial or laboratory interior with a circular perforated component and a metallic fixture (no visible text or symbols)

Two small glass incandescent bulbs, one open and one closed, displayed against a plain white background (no text or symbols visible)

5. Problemen oplossen

5.1 FAQ

Interior view of a stainless steel oven with open door and metal tray (no visible text or symbols)

2.2 Príslušenství

1 Kovový ro št

Line drawing of a rectangular metal grate or rack structure (no text or symbols)

Two hand-drawn sketch-style grid-like structures with wavy edges, no text or symbols present

3D rendering of a gray rectangular tray with dashed cutouts (no text or symbols)

DEMONTÁŽ OKNA TROUBY

Interior view of a black oven with open door and side panel (no visible text or symbols)

1.

Close-up of mechanical components with circular insets showing close-ups of a tool and a bracket (no visible text or symbols)

1.

Close-up of a metallic mechanical component with a tool inserted, no visible text or symbols

1.

Close-up of a hand holding a dark plastic panel with arrows indicating direction (no text or symbols visible)

1.

Close-up of a refrigerator interior with glass doors and door, showing internal components and directional arrows (no text or symbols)

1.

1.

VÝM ěNA ŽÁROVKY

Close-up of a hand holding a small metallic object, possibly a flashlight or connector, in a dark indoor setting (no visible text or symbols)

Close-up of a hand holding a small metallic component with a grid-patterned surface on the side (no visible text or symbols)

Close-up of a dark industrial or laboratory interior with a circular perforated component and two metallic fixtures (no visible text or symbols)

Two small glass incandescent bulbs, one open and one closed, displayed against a plain white background (no text or symbols visible)

5. Rešení potíží

Interior view of a stainless steel oven with open door and tray (no visible text or symbols)

1.6 Declaration of compliance

2.2 Dodatna oprema (odvisno od modela)

1 Ponev

3D rendering of a gray rectangular tray with side brackets (no text or symbols)

Two hand-drawn sketch-style panels showing horizontal lines within rectangular frames, no text or symbols present.

Line drawing of a rectangular metal grate with vertical slats (no text or symbols)

3.2 Načini pečenja

ODSTRANITEVOKNA PEČICE

Interior view of a black oven with visible grating and ventilation slots (no text or symbols)

1.

Close-up of a metallic mechanical component with two arrows pointing to features (no visible text or symbols)

1.

Close-up of mechanical components with circular insets showing close-ups of pipe fittings and a curved tool (no text or symbols visible)

1.

1.

Close-up of a metallic tool interacting with a dark metal panel or bracket (no visible text or symbols)

1.

1.

Close-up of a hand holding a flexible electronic device with a transparent panel, showing internal structure (no text or symbols visible)

ZAMENJAVA ŽARNICE

Close-up of a hand holding a small metallic object, possibly a flashlight or connector, in a dark indoor setting (no visible text or symbols)

Close-up of a hand holding a small metallic component with a grid-patterned surface on the side (no visible text or symbols)

Close-up of a dark industrial or laboratory interior with a circular perforated component and two metallic fixtures (no visible text or symbols)

Two small glass incandescent bulbs, one open and one closed, displayed against a plain white background (no text or symbols visible)

Interior view of a modern kitchen oven with open door and side panel (no visible text or symbols)

3D rendering of a gray rectangular tray or baking tray with cutouts (no text or symbols)

Line drawing of a rectangular metal grate with vertical slats (no text or symbols)

Two hand-drawn sketch of vertical grid lines, no text or symbols present

Interior view of a black oven with visible grating and ventilation slots (no text or symbols)

1.

Close-up of a metallic panel or fixture with two arrows pointing to features, no visible text or symbols.

1.

Close-up of mechanical components with magnified views showing internal structure (no text or symbols visible)

1.

1.

Close-up of a metallic tool interacting with a dark metal panel or bracket (no visible text or symbols)

1.

1.

Close-up of a hand holding a flexible electronic device with a panel, showing internal structure and mounting points (no text or symbols visible)

Close-up of a hand holding a small metallic object, possibly a flashlight or connector, in a dark indoor setting (no visible text or symbols)

Close-up of a hand holding a small metallic component with a grid-patterned surface on the side (no visible text or symbols)

Close-up of a dark industrial or laboratory interior with a circular perforated component and two metallic fixtures (no visible text or symbols)

Two small glass incandescent bulbs, one open and one closed, displayed against a plain white background (no text or symbols visible)

The manufacturer will not be responsible for any inaccuracy resulting from printing or transcript errors contained in this brochure. We reserve the right to carry out modifications to products as required, including the interests of consumption, without prejudice to the characteristics relating to safety or function.

TR
