USER MANUAL J667 JAGUAR

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of life cycle watch making products must be selectively collected for processing. You may therefore dispose of your quartz watch making products at any of our retail outlets or any other authorized collection point. The selective collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health.

User's manual

Description of the display and control buttons 14

Chronograph: Basic function 15

Chronograph: Accumulated timing. 16

Chronograph: Intermediate or interval timing. 17

Adjusting the chronograph hands to zero position 18

Setting the time 20

Thing the date (quick modc) 21

Setting the date/time 22

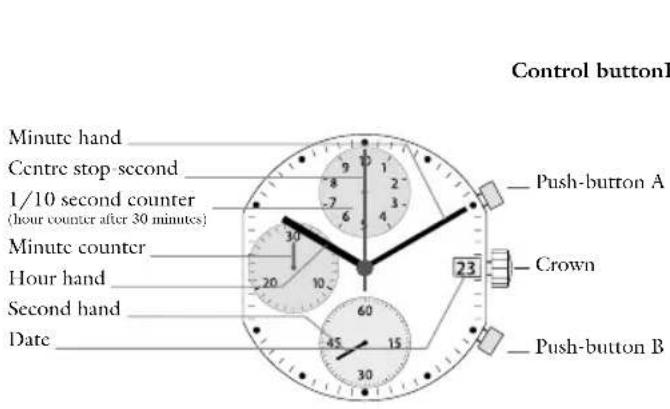

Description of the display and control buttons Chronograph: Basic function

(Start/Stop/Reset)

Example:

Start: Press push-button A.
Stop: To stop the timing, press pushbutton A once more and read the 3 chronograph counters: 4min / 38scc / 7 / 10scc
Zero positioning:

Press push-button B.

(The 3 chronograph hands will be reset to their zero positions).

Chronograph: Accumulated timing

Example:
1 Start: (start timing)
Stop:c.g.15 min 5 sec following
Rcstart: (timing is resumcd)
*Stop:c.g.13 min 5 sec following = 28 min 10 sec (The accumulated measured time is shown)
Reset: The 3 chronograph hands are returned to their zero positions.

Plicase note:

• Following 4, the accumulation of the timing can be continued by prcessing push button A.

(Restart/Stop, Restart/Stop,...)

Chronograph: Intermediate or interval timing

1/10 second counter

Minute counter

Example:
Start: (start timing)
Display interval: e.g. 10 minutes 10 second Making up the measured time: (the 3 chronograph hands are quickly advanced to the ongoing measured time).
Stop: (Final time is displayed)
Reset: The 3 chronograph hands are returned to their zero position.

Push-button B

Please note: Following further intervals or intermediates can be displayed by pressing push-button B (display interval / make up measured time, ...)

adjusting the chronograph ands to zero position

1/10 second counter

Minute counter

Push-button A
Push-button B

Example:

One or several chronograph hands are not in their correct zero positions and have to be adjusted (e.g. following a battery change).

Pull out the crown to position III (all 3 chronograph hands are in their correct or incorrect zero position).
Keep push-buhtons A and B depressed simultaneously for at least 2 seconds (the centre stop-second rotates by 360^ corrective mode is activated).

Adjusting the centre stop second

Single step A1xshort
Continuous A long
Adjusting the next hand B
Adjusting the 1/10 second counter hand
* (position 6h)
Single step A 1 x short
Continuous A long
Adjusting the next hand B
Adjusting the minute counter (position 9h)
Single step A 1 x short

Continuous A long

• Returning the crown to position I Termination of the chronograph hands adjustment (can be carried out at any time).

Setting the time Ting the date

(Quick mode)

Second hand

Pull out the crown to position III (the watch stops).
Turn the crown until you reach the correct time 8:45.
PushthecrownbackintopositionI.

Please note:

* In order to set the time to the exact second must be pulled out when the second hand is in position 60^ (I).

Once the hour and minute hands have been set, must be pushed back into position I at the exact second.

Pull out the crown to position II (the watch continues to run).
Turn the crown backwards until the correct date I appears.
Push the crown back into position I.

Plcasc note:

The date can be changed during the date changing phase between 08:30 PM and 12:00 PM; please note that the date must be set to the date of the following day as in this case the automatic date changing does not occur at midnight.

Setting the date/time

Date

Example:

• Date / time on the watch: (17) / 1:25 AM
  -Prcscnt date/time: (4)/8:30PM

Pull out the crown to position II (the watch continues to run).
Turn the crown until yesterday's date appears (3).

Second hand

*Pull out the crown to position III (the watch stops).
Turn the crown until the correct date
串 **Continue to turn the crown until the correct time 8:30 PM appears.
Push the crown back into position I.

Please note:

• To set your watch to the exact second, please refer to the chapter entitled "setting the time".
  **Please observe the AM/PM clock rhythm
