USER MANUAL Pyrus WiFi TrekStor

You can find detailed information about eBook Reader and its features in the guide saved on your Reader. You can access it in the main menu under "USFR MANUAL".

Digital Ink® Technologie

1) Controls and connectors of the eBook Reader Pyrus WiFi

A) Flip backwards
B) Flip forward
C) Open the main menu/submenu
D) Open the Home screen
E) Navigation button
F) OK button
G) Search/Text entry
H) Back button
I) Headphone connector
J) microSD/microSDHC card slot
K) Micro-USB connector
L) Power button (On/Off)
M) Status LED
N) Reset button (on the back of the device)

2) Switching on the eBook Reader Pyrus WiFi

Press and hold the button for 2 - 3 seconds to switch on the Reader. Then the home screen will appear.

When the Reader is started for the first time, please choose your language, set the date and time and set up the WLAN connection.

3) Connecting the eBook Reader Pyrus WiFi to a computer

Use the included micro-USB cable, to connect your eBook Reader to a USB port on your computer.

The eBook Reader's microSD/microSDHC card reader will be detected as another "REMOVABLE MEDIA" or "DRIVE" and it will indicate if a memory card is inserted.

4) Charging the eBook Reader Pyrus WiFi

Once you connect your eBook Reader to a computer using the included micro-USB cable or plug it into an electrical adapter (e.g. TrekStor USB-Charger e.fx), it will be automatically charged. After about 4 hours the battery will be fully charged and the charging will stop automatically to prevent overcharging.

The maximum battery life is reached after about 10 charging cycles.

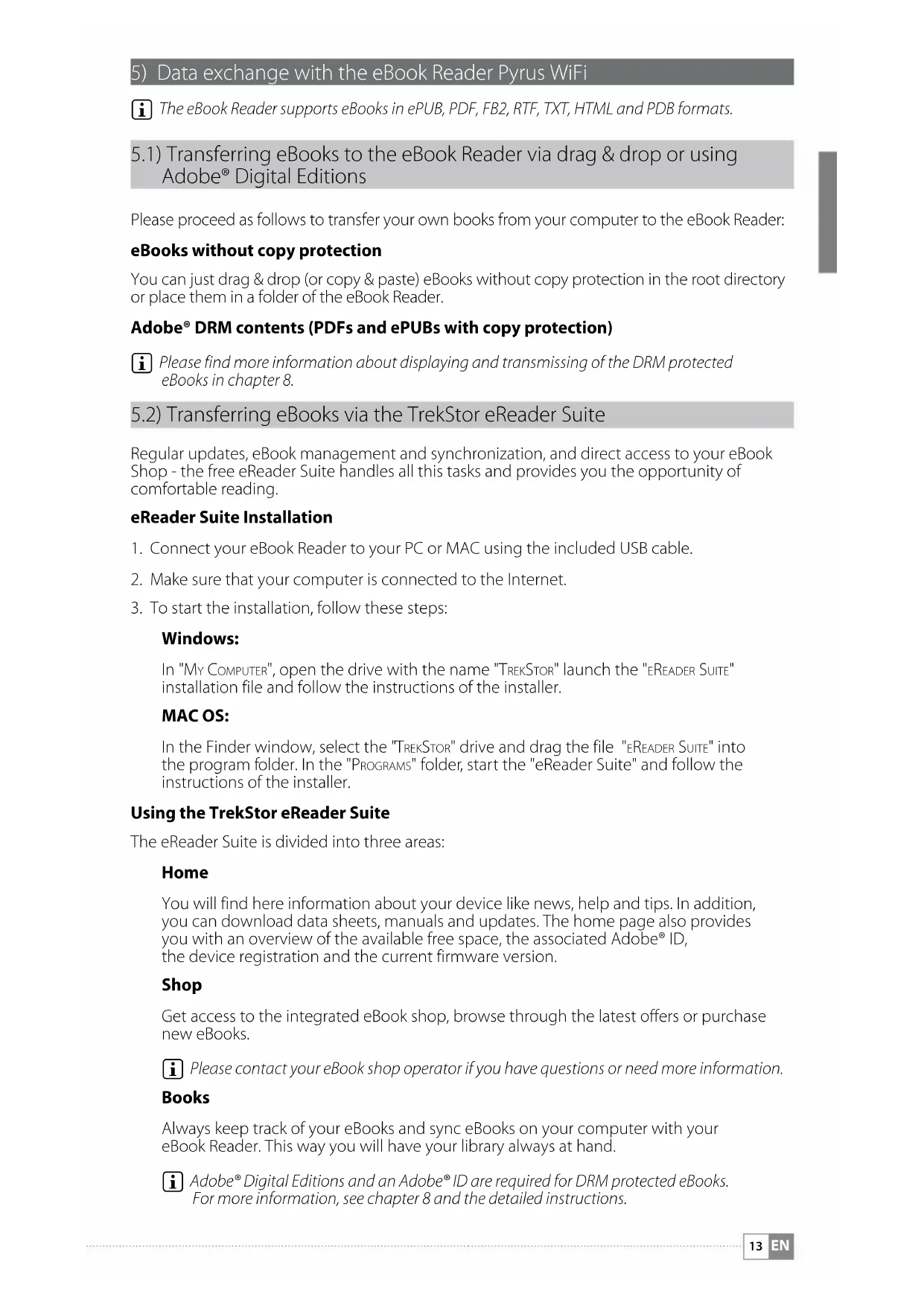

5) Data exchange with the eBook Reader Pyrus WiFi

The eBook Reader supports eBooks in ePUB, PDF, FB2, RTF, TXT, HTML and PDB formats.
5.1) Transferring eBooks to the eBook Reader via drag & drop or using Adobe® Digital Editions

Please proceed as follows to transfer your own books from your computer to the eBook Reader:

eBooks without copy protection

You can just drag & drop (or copy & paste) eBooks without copy protection in the root directory or place them in a folder of the eBook Reader.

Adobe® DRM contents (PDFs and ePUBs with copy protection)

Please find more information about displaying and transmitting of the DRM protected eBooks in chapter 8.
5.2) Transferring eBooks via the TrekStore eReader Suite

Regular updates, eBook management and synchronization, and direct access to your eBook Shop - the free eReader Suite handles all this tasks and provides you the opportunity of comfortable reading.

eReader Suite Installation

1. Connect your eBook Reader to your PC or MAC using the included USB cable.
2. Make sure that your computer is connected to the Internet.
3. To start the installation, follow these steps:

Windows:

In "MYCOMPUTER", open the drive with the name "TRFKSTOR" launch the "FRFADESRUITE" installation file and follow the instructions of the installer.

MAC OS:

In the Finder window, select the "TREKSTOR" drive and drag the file "eReader Suite" into the program folder. In the "PROGRAMS" folder, start the "eReader Suite" and follow the instructions of the installer.

Using the TrekStore eReader Suite

The eReader Suite is divided into three areas:

Home

You will find here information about your device like news, help and tips. In addition, you can download data sheets, manuals and updates. The home page also provides you with an overview of the available free space, the associated Adobe® ID, the device registration and the current firmware version.

Shop

Get access to the integrated eBook shop, browse through the latest offers or purchase new eBooks.

Please contact your eBook shop operator if you have questions or need more information.

Books

Always keep track of your eBooks and sync eBooks on your computer with your eBook Reader. This way you will have your library always at hand.

Adobe® Digital Editions and an Adobe® ID are required for DRM protected eBooks. For more information, see chapter 8 and the detailed instructions.

5.3) Buying eBooks directly via the eBook Reader

The device's integrated eBook shop can be reached from either the Home screen or the main menu. Please note that you can only access the eBook shop if your eBook Reader is connected to the Internet.

Adobe® Digital Editions and an Adobe® ID are required for DRM protected eBooks. For more information, see chapter 8 and the detailed instructions.

Logging off and disconnecting the eBook Reader from the computer

Please follow the recommended logoff procedure to avoid damage to the device or data loss!

Windows® 7/Vista™/XP

At the bottom right of the task bar click with the left mouse button on the symbol "SAFELY REMOVE HARDWARE". In the appearing context menu, click "SAFELY REMOVE USB MASS STORAGE DEVICE" and then disconnect the eBook Reader from the computer.

Mac OS X 10.6 and above

Please remove the drive "TREKSTOR" from the "DESKTOP" by clicking on the drive icon and dragging it to the recycle bin icon. Now you can disconnect the eBook Reader from your computer.

Using the eBook Reader Pyrus WiFi

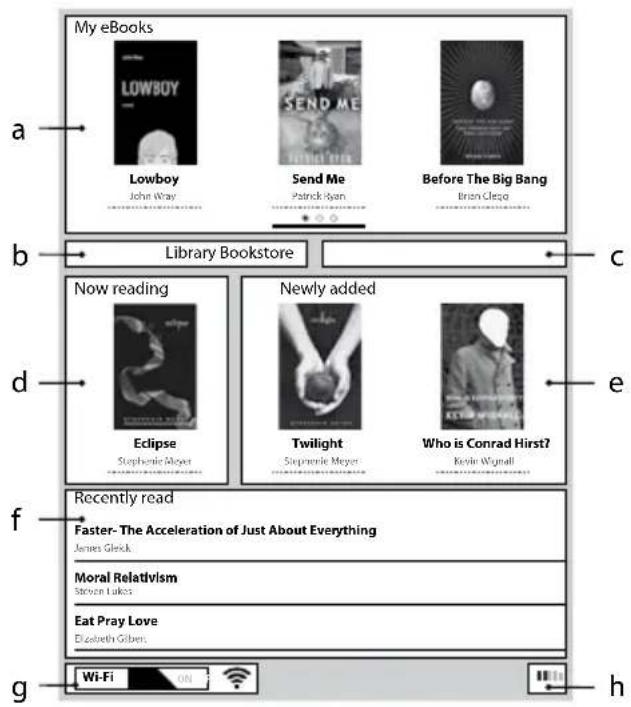

) The home screen

After switching on eBook Reader the home screen is displayed. Here you have direct access to your books and the integrated eBook shop.

Use the navigation button to select one of the displayed book titles or the eBook shop and confirm your selection by pressing the OK button. The current selection is individually marked by a thick line.

a) My eBooks
b) Library
c) Bookstore
d) Now reading
e) Newly added
f) Recently read
g) Wi-Fi OFF/ON
h) Battery indicator

7.2) The main menu

Start the home screen by pressing the button and then press the button to access the main menu. Here you have the opportunity to make other settings and call other functions.

Bookmarks

Library

Bookstore

Search eBooks

Music

Pictures

Explorer

User manual

Settings

• Wireless network
• Browser function
• Page refresh rate
• Power settings
• Time and date
  Languages
• Format device
• Default settings
  Device information
• DRM authorization info

7.3) Reading with the eBook Reader Pyrus WiFi

If you want to read on way immediately, select one of the titles displayed on the home screen using the navigation button or open one of the titles from your library.

To scroll individual pages forwards or backwards, press the button or .

You can adjust the view of the book to your individual requirements by pressing the button

Different font sizes and margins are available for you; you can freely switch between landscape and portrait orientation.

In addition, you can add bookmarks and favorites, and access the table of contents, and set bookmarks.

Word search and the option to view a certain number of pages will help simplify the navigation within the book.

Automatic page scrolling: This handy feature allows you to read hands-free. The reader turns the pages of your book automatically after a time you set.

Music: With this feature you can access music tracks and listen to them in the background through the included headphones while reading

7.4) Connecting eBook Reader to the Internet via WLAN

With eBook Reader, you can easily and conveniently buy eBooks directly in the shop connected via WLAN and download them to your Reader. Please follow the following procedure to connect your Reader to a wireless network.

Searching for available networks and connecting the eBook Reader

Switch on your eBook Reader and activate Wi-Fi by pressing the OK button under "Wi-Fi OFF/ON". on the Home screen. Select menu item SETTINGS+WLANin the main menu (I Now all visible and available Wi-Fi networks in your surrounding are displayed. Select the desired network and then press the OK button. Confirm the "CONNECTION" by pressing the OK button.

Many wireless networks are password protected. If you want to connect to a protected network, please follow the instructions of your eBook Reader and enter the password to the wireless network by using the control pad. You can open the the keyboard by pressing the 0 button. To close the keyboard, press again the 0 button.
Hidden wireless networks can be configured manually under the menu item "Settings" ^+ "Wi-Fi" ^+ "Add Wi-Fi".

Switching Wi-Fi on and off

Once you have connected your Reader to a wireless network, it will be stored. You can establish or terminate the connection quickly and easily at any time via the Home screen. For this, simply select the "Wi-Fi" item and switch WLAN reception on or off by pressing the OK button. For a long battery life, we recommend switching on Wi-Fi reception only when it is required (e.g. when bying books in the eBook shop).

8) Transferring ePub and PDF files with DRM protection to your eBook Reader

Many eBooks in ePUB or im PDF-Format are protected by Adobe® ADEPT DRM against unauthorized duplication. To display these eBooks on your eBook Reader and your computer, you must link these with the software Adobe® Digital Editions (ADE) with your Adobe® ID and your Reader.

1) For this, go to www.adobe.com first and create your own Adobe® ID (if you don't have one yet) by clicking "SIGN IN" at the top right-hand corner of the page and follow the instructions on the page.
2) Now install Adobe® Digital Editions on your computer and sign in with your Adobe® ID. You can find the software free of charge at http://www.adobe.com/products/digital Editions/
3) After you have successfully completed the installation of the software, you can load eBooks protected with Adobe DRM directly to your Reader in the TrekStor eReader Suite, in Adobe Digital Editions or via the online shop integrated in the Reader.

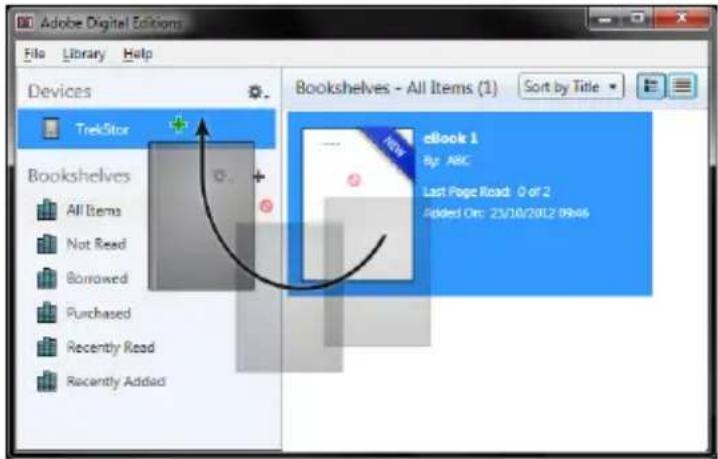

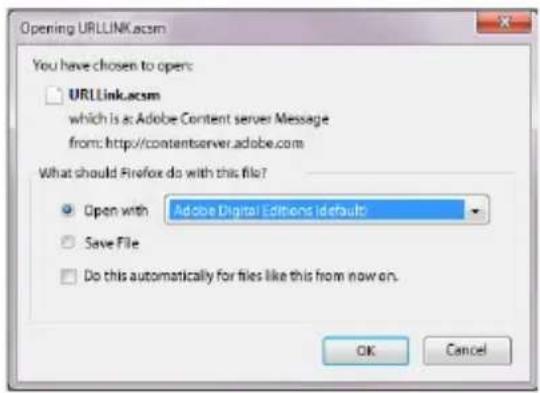

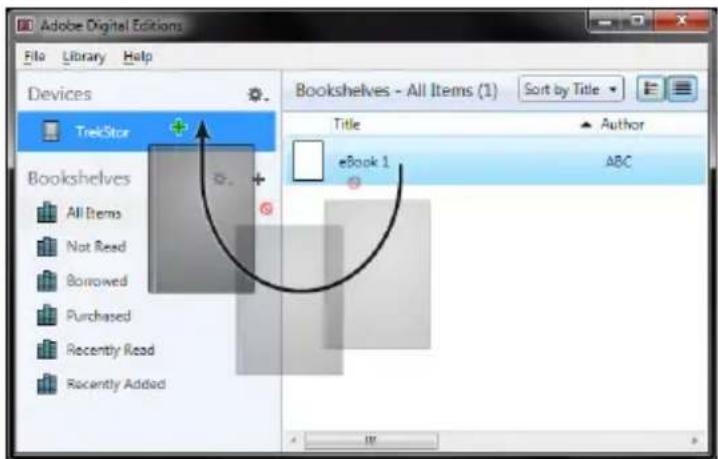

Example 1 - Purchasing books via your computer:

You bought an eBook with DRM protection on the Internet and would like to download it now to your computer. If you start the download the following dialog window will open:

Select the option "OPEN WITH (ADOBE® DIGITAL EDITIONS)" and confirm by pressing "OK". Adobe Digital Editions will launch and your eBook will be downloaded and saved in the folder "My DIGITAL EDITIONS" (Windows 7: LIBRARIES DOCUMENTS / Windows XP: My Documents).

You can copy the eBook to your connected Reader via drag & drop only.

or

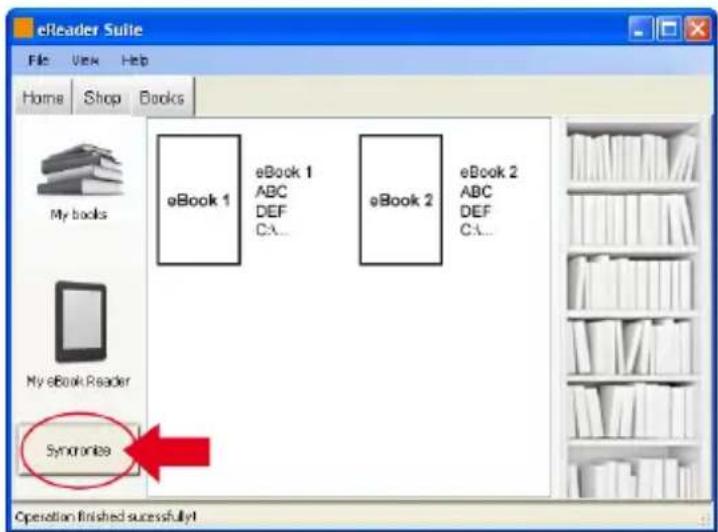

Example 2 - Synchronization via eReader Suite:

Alternatively, you can sync all your books with your connected eBook Reader at once from the ADE folder on your computer. To do this, open the eReader Suite, select Books and click on the "SYNCHRONIZE" button.

Example 3 - Buying books directly with the eBook Reader:

Switch on eBook Reader and connect it to the Internet. Select "SETTINGS" "DRM AUTHORIZATION INFO" in the main menu and link the Reader with your Adobe ID by entering your access data. Confirm your selection by clicking "Activate". Once your eBook Reader was successfully linked to your Adobe ID, you can also buy DRM protected eBooks directly in the integrated eBook shop and download them to your Reader.

9) Switching off the eBook Reader and loading its default settings

9.1) Switching off the eBook Reader

To turn off your eBook Reader, hold the button for about 2 - 3 seconds.

9.2) Resetting/Load default settings

By pressing the Reset button on the back of the device (preferably with an unfolded paper clip) you will perform a reset. Then restart the device. This may be necessary in rare cases if eBook Reader is no longer responding to other button presses.

Instructions for safety and use:

Only qualified persons may perform technical work on the product. The product may not be opened or changed. The components cannot be serviced by the user.

Never expose the device to moisture, condensation and liquids.

Protect the device from extremely high and low temperatures and temperature fluctuations. Use the device within an ambient temperature of 10^ until 40^ .

Never place the device close to a source of heat, and protect it from direct sunlight.

Make sure that the surroundings are as dust-free as possible when you use and store the device.

Never clean the surface of the device with solvents, paint thinners, cleansers or other chemical products. Instead, use a soft, dry cloth or soft brush.

The capacity indicated by your operating system can be different than the actual capacity of your device. Like most manufacturers of computer hardware, TrekStor uses the prefixes for units (e.g. 1 GB = 1.000.000.000 bytes) as prescribed by the International System of Units (SI). Unfortunately, many operating systems do not comply with this norm and display a lower capacity because they base their calculations on the assumption that 1 GB = 2 ^30 bytes = 1.073.741.824 bytes.

n: Please note that this device uses radio technology and may only be used for its intended purpose in all countries of the European Union, Switzerland and Norway.

Notes:

In certain circumstances, exposing the device to an electrostatic discharge may interrupt the data transfer between the device and the computer and impair the functions of the device. If this occurs, the device should be unplugged from the USB port and then plugged in again.

Do not use USB cables longer than 3 meters.

The eBook reader is optimized for the provided earphones (32 Ohm impedance). Using other earphones/ headphones with a lower impedance can damage the eBook reader or earphone/headphone.

This device can produce high sound volumes. In order to avoid hearing loss that can occur immediately, in the future, or gradually, you should not listen at high volumes for extended periods. This applies regardless of whether you listen with speakers, headphones, or earphones. If you notice a ringing noise in your ears, lower the volume immediately or stop using the eBook reader. Please keep in mind that permanent hearing loss can first appear at a later point in time. While you may become accustomed to higher volumes over time so that they may seem normal to you, your sense of hearing may still have been impaired by this. The higher you set the volume, the faster your sense of hearing can be damaged.

Using earphones/headphones while driving a motor vehicle is not recommended and is prohibited in some countries. Always drive carefully and with full concentration. Stop using your eBook reader if you become distracted or interrupted by it when driving a motor vehicle or during other activities that require your full attention.

The manufacturer retains the right to continually improve the product. These changes may be made without being directly described in these operating instructions. For this reason, the information provided in these operating instructions may not reflect the current state of the art.

The manufacturer only guarantees suitability for the product's intended purpose. In addition, the manufacturer is not responsible for damages or loss of data and subsequent consequences.

Copyright © 2012 TrekStor GmbH. All rights reserved. Other cited product or company names may be trademarks or brand names of the respective owner.

A B T O M A T N U H E n e p e r o p t a H N R: L 3 p y u H y h K u i J D O3B O J I E C H T N 6e3 n e p e r o p t a H N R C T O P I H O K p y k A M N. E n e k T p o H H A K H I R A n e p e r o p t a E C T O P I H K N B A W O I K H I R N A B T O M A T N U H O Y epe 3 B c t a H O B l e H N B A M N Y a c.

My3nka: 3a Donomoroio ciiei fhyHKiiBn OTPmyeTe Doctyn Io My3nHnx Tpekib I MoKeTe BiTbOpOBaTu iX, nid Yac YHTaHHy, y fOHOBOmy peKmI uee3 HabyuHNKn, 10 Ndyb y KOMnneKTI.

7.4)Пдклоченя eileKtpoHHOI KHIrdo IntepHeTy uepe3 Wi-Fi

3a donomoro WLAN y npictpo, BN mokeTe Ierko i 3pyuHO kynyBaTu eJekTPOHHI KHNr 3 BMOHTOBAHOro MaarHy i 3aBaHTaKyBaTu ix 3BiDTHy BaUy eJekTPOHHY KHNry.

Ponwyk Ta niknoueHna eekTpoHHoKnHrdo DocTynHO MepeXi

BbIMKHiB CBOIO eNEKtpOHHy KHNry i 3a DOnomorOIO KNOpKn Do6pe aKTINByIITe Wi-Fi y nyHKTi "Wi-Fi BKN/BNKJI" Ha pOboOyOM cyTOni. Y rONOBHOMy MeHO Bn6epiTB (E) NYKT MeHIO "HAJIATyBAHH" + "WLAN". Tenep BiO6paKaIObCBA CI BNIMi I IOCTynHI Wi-Fi MEpexKi NOPuy Bac. Bn6epiTB baxaHy mEpKy, a NOTIM HATNCHTb KNOpKy Do6pe. PITBepdITb "PiIKNIOueHNN" 3a DOnomoroIO KHNKn Do6pe.

i 5aam0 Wi-Fi mepex 3axuueho napoem. Raio bu xoyeme nioknouumucdo 3axuuehoi mepeki,6yb nacka, dompumyimecb icmpykuiu do bawoi eekmponhoi Khuu i 3a donomozoi KOmpolbHOi naheni Bbedim napob bi6e3npoibHOi mepexi. Knabiamypa docmynHa minbku nicra HamuchehnKhonku .Uo6 3akpuu knabiampy, He 3abyme Hamuchymu Ha KNkky
I npuxobahi Wi-Fi mepexi moxHa Hanaumyamu bpyHy y nyHKmi MeHIO "HanaumybaHHa" "WLAN" "odamu WLAN"

BknoueHH Ta BnKIOueHn WLAN

KJIO BNI iNkIIOUaHn CBOIO eNEKTPOHHy KHNy Do 6e3npoBIDHOi MEpeXi, II 6yde 36epexKeHo. Ha pObooyOMy cTOni, WbNikO i IeRKO, MoxHa BKNIOHTn a6o BiKNOHTn 3B'3OK B 6yDb-RAKn Yac. IpocTo Bn6epitb NyHKT "Wi-Fi" i nepemKHITb peciBepa 3a DOnOMOrO KNOpKN BKNIOUeHHA 60 BnKIOUeHHAnD5PE.ДЯ 36IbSeHnY aCv yABTOHOMHOi POBOTn 6bataei, BKNIOuaTe Wi-Fi, KOJI N E Taka Heo6XiHnicTB (HapnPKnaI, npn NOKpui y Mara3HIni eNEKTPOHHOi KHNr).

Reporting requirement according to the Battery Directive (BattV)

Batteries are not part of the domestic waste. The consumer is obliged to return no longer used batteries properly. Please dispose of them by a specialized trade or a battery collection point. Hereby you make an important contribution to environmental protection.

Since 1998 the German Battery Directive compels all citizens to dispose of used batteries exclusively through the trader or specially equipped departments (legal return obligation).

Trade and manufacturers are committed to take back batteries for free and to exploit it properly or to remove it as special waste (legal take-back obligation).

The built-in lithium-polymer battery of this device is marked with the adjoining symbol, consisting of a crossed out bin and the used battery type.

Remove battery

Before you return a disused device for disposal, the battery has to be removed from the device.

TREkSTor

Enjoy now.

EC DECLARATION OF CONFORMITY

As manufacturer and importer respectively:

TrekStor GmbH

Kastanienallee 8-10

D-64653 Lorsch, Germany

herewith declares that the products

Product: eBook Reader Pyrus WiFi

Type: eReader with Radio-LAN

comply with the following directive(s):

• 99/5/EC Radio Equipment and Telecommunications Terminal Equipment

2004/108/EC EMC Directive: Electromagnetic Compatibility

2006/95/EC Low Voltage Directive

The following norms were consulted to assess conformity:

EN300328V1.7.1(2006-10)

Electromagnetic compatibility and Radio spectrum Matters (ERM); Data transmission equipment operating in the 2,4 GHz ISM band and using wide band modulation techniques

EN301489-1V1.8.1(2008-04)

EMC and ERM: EMC standard for radio equipment and services; Part 1: Common technical requirements

EN301489-17V1.3.2(2008-04)

Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment; Part 17: Specific conditions for 2,4 GHz wideband transmission systems.

. EN 60065:2002 + A1:2006 + Corrigendum:2006

Audio, video and similar electronic apparatus - Safety requirements

The CE symbol confirms that this product conforms with the above mentioned norms and regulations.

The manufacturer also declares the conformity of the product according to the following directives:

2001/95/EC General Product Safety

2002/95/EC RoHS: Hazardous substances in electrical and electronic equipment

Lorsch,

24.09.2012

T. Kropsha

Thorsten Koroscha, LPM

Supportinformationen

If you have any questions regarding your TrekStor product, please proceed as follows:

• Check the features as well as the functions of your device (apparent on the packaging), in order to use the correct settings.
  Read the manual carefully.
• Inform yourself on our website www.trekstor.de/en about the up-to-date information concerning your product (e.g. available most recent firmware releases).

Please note, that the TrekStor support is only responsible for technical questions respective for questions concerning the function of the device. For questions concerning the purchase of eBooks via an eBook shop, please contact the operator of the current site.

In the case you have further questions regarding your product, please note the following TrekStor support options:

FAQ The FAQ area of our website offers you a wide range of problem solving hints. Here you can obtain answers to the most frequently asked questions concerning our products.

E-Mail Please fill in the support form on our website or send an E-Mail to [e-mail]. You can find mailing addresses for other countries when you click "SERVICE" at the menu bar on our website.

Phone support Please find the number of the support hotline for your country on our website under "SERVICE" as well.
