Cloud HU35W - Humidifier WILFA - Free user manual and instructions

Product type	Humidifier
Brand	Wilfa
Model	Cloud HU35W
Adjustable mist function	Yes, by rotary knob
Aroma diffusion	Yes, with scented pad
Water tank	Removable, large
Automatic shut-off (low water)	Yes, with red indicator
Automatic shut-off (tank removal)	Yes
Atomizer technology	Scale-resistant glass-ceramic
Noise level	Very quiet (noise-reducing design)
Operating temperature	5°C to 45°C
Maximum relative humidity	80% (above: low vapor)
Demineralization cartridge	Optional
Warranty	5 years
Indicator light	Yes (on/off, low water)

Frequently Asked Questions - Cloud HU35W WILFA

How to use the aroma diffusion function?

Place a few drops of essential oil on the provided scented pad, then put it back in place. The water vapor will diffuse the aroma into the room.

What to do if the humidifier does not produce vapor?

Check that the device is plugged in and the switch is on. Ensure there is enough water in the tank. If the indicator is red, the tank is empty; fill it.

How to clean the water tank?

Empty the tank, use a soft brush or cloth to remove residues. Do not use acidic or bleaching detergents. Rinse with clean water.

What does the red indicator light mean?

The red indicator indicates a low water level. The device shuts off automatically. Fill the tank and turn the device back on.

Why is there a strange smell from the vapor?

This can happen with a new device. Leave the water tank open in a cool, dry place for 12 hours. If the water is dirty, clean the tank and replace the water.

How to descale the atomizer?

Add a mild detergent to the atomizer, fill the basin with water, let it sit for 10-15 minutes, then gently brush. Rinse thoroughly.

The device makes noise, what to do?

Check that the tank is properly positioned and there is enough water. Place the device on a flat, level surface.

What is the warranty of the Wilfa Cloud HU35W humidifier?

Wilfa offers a 5-year warranty from the date of purchase for domestic use. Keep your receipt.

Can I use tap water?

Yes, but if the water is hard, calcium deposits may form. Use an optional demineralization cartridge to reduce limescale.

How to store the device when not in use?

Empty the water from the tank and base, clean it, dry it completely, then store it in a dry place.

USER MANUAL Cloud HU35W WILFA

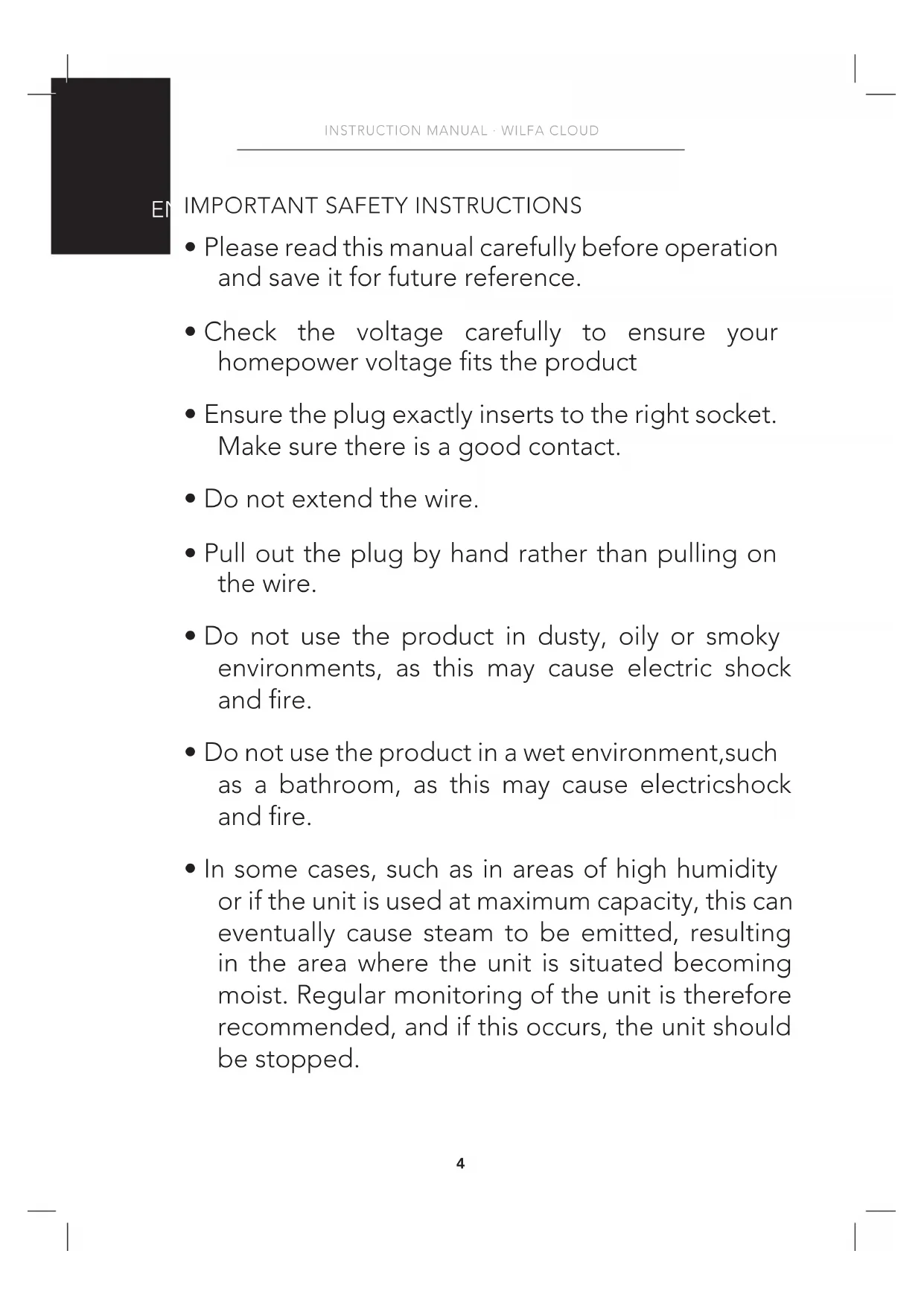

IMPORTANT SAFETY INSTRUCTIONS

• Please read this manual carefully before operation and save it for future reference.
• Check the voltage carefully to ensure your homeowners voltage fits the product
• Ensure the plug exactly inserts to the right socket.
  Make sure there is a good contact.
• Do not extend the wire.
• Pull out the plug by hand rather than pulling on the wire.
• Do not use the product in dusty, oily or smoky environments, as this may cause electric shock and fire.
• Do not use the product in a wet environment, such as a bathroom, as this may cause electricshock and fire.

• In some cases, such as in areas of high humidity or if the unit is used at maximum capacity, this can eventually cause steam to be emitted, resulting in the area where the unit is situated becoming moist. Regular monitoring of the unit is therefore recommended, and if this occurs, the unit should be stopped.

• Do not use the product near a window, to avoid rain or curtains covering the air inlet or mist outlet. This will cause the temperature to rise and may cause fire.

• Do not place your hands or appliances on top of the product as this may damage the device or result in the device not functioning properly.
• Remove the water tank before moving the device.
• Do not touch the plug or wire with wet hands as this may cause electric shock.
• Please place the device on an even surface. If the surface is uneven, this may cause the water to flood out.
• Do not clean your machine while it is operating.
• Do not expose the machine to sunshine or place it to close to a heater.
• Please disconnect the unit from the electrical socket while you fill it with water, clean the unit, or if the unit is left unused for a long time.
• Do not place metal or easily combustible material close to the air intake or mist outlet areas.
• If the unit is damaged or does not work, please take to a certified repair shop or back to the shop

EN

from which you bought the unit. Do not perform disassembly or assembly by yourself.

• Care should be taken when using the appliance due to the emission of hot water vapor.
• If the supply cord is damaged, it must be replaced by the manufacturer, the manufacturer's service agent or similarly qualified persons in order to avoid a hazard.
• This appliance may be used by children aged 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children must not play with the appliance.
  Children must not perform cleaning or user maintenance without supervision.

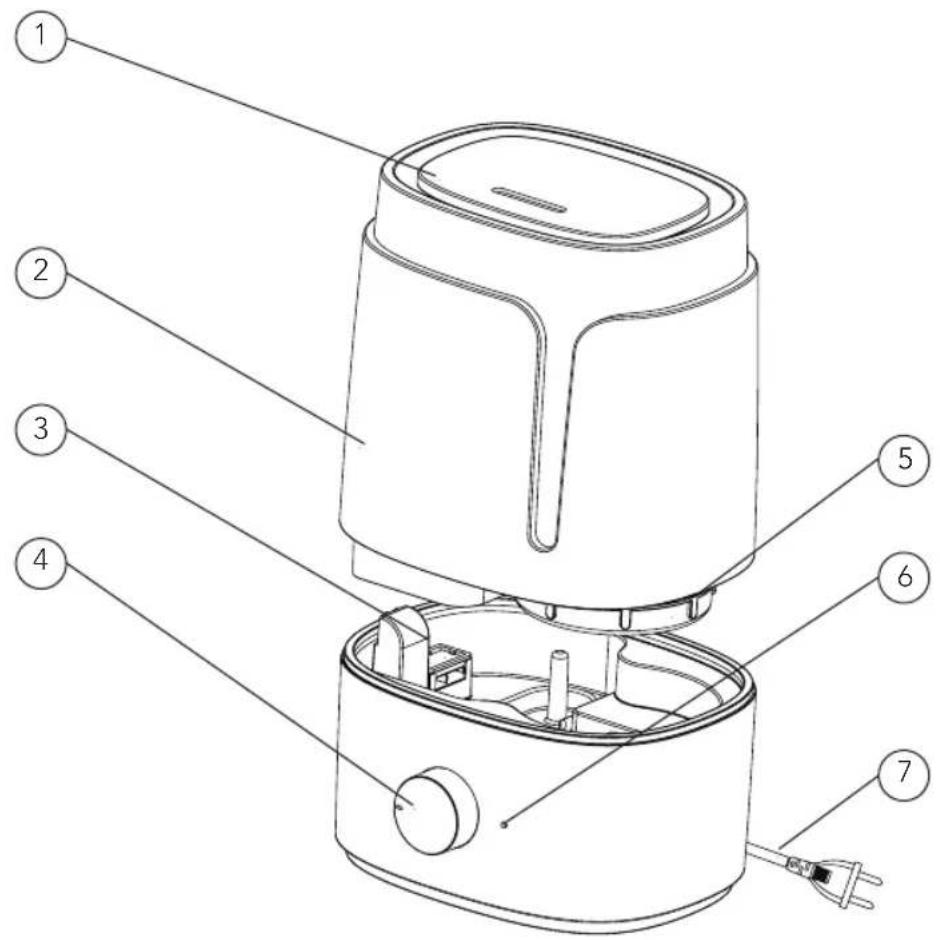

PRODUCT OVERVIEW

EN

1. Nozzle
2. Water tank
3. Aroma pad

4. Knob

5. Water tank cover

6. Indicating light
7. Power cord

EN

PLACEMENT

• Place the product on firm, flat surface. The humidifier should be placed on flat horizontal surface and keep it steady.
• Do not place the product near or close to any heat sources. The humidifier should be far away from any heat sources, such as stoves or fire places. Do not expose the product to direct sunlight.
• Do not place the product near or close to furniture or electric appliances. The mist outlet from the humidifier should not be directed towards furniture and the electronic appliances, to avoid damage. Particles in water, such as calcium, can be part of the vapour and be deposited on objects in the vicinity.
• It is recommended that the unit be placed on a table or other surface at least 70~cm above the floor level, to ensure that the vapour will be optimally distributed throughout the room.
• Air draft and temperature changes can impact the distribution of the vapor. To avoid water damage it's recommended to always check for moist accumulations on the floor or other nearby surfaces

FUNCTION AND FEATURES

• Adjustable mist output by knob, easy operation
• With aroma diffuser function
• Big tank cover design for easy cleaning by hand
  Automatic shut-off protection with warning when waterless
  Automatic shut-off protection when take off the water tank
• Optional demineralization cartridge to prolong useful life.
• Integrated body design for noise suppression, super quiet when operating
• Ceramic glass glaze transducer can resist water scale effectively to prolong useful life.

• The working environment for humidifier is in temperatures between 5^ to 45^ , with a relative humidity level below than 80% RH.
• Set the machine to operate on low mist level when room relative humidity is higher than 70% or in an enclosed room space.
• Use fresh water with a temperature that not exceed 40^ .
• Clean water tank and water flume when taking the product into use after a long time.

OPERATION STEPS

1. Unmount the tank from the base, unscrew the water tank cover and fill the tank with water, screw the water tank cover back, make sure it sits tightly. Replace the water tank on the base.
2. Check that the mist outlet nozzle is correctly mounted on the water tank.
3. Plug in the power; turn the knob clockwise to start the machine. Adjust preferred mist output from minimum to maximum by turning the knob clockwise. To decrease the output or turn off the machine please turn the knob counter clockwise.
4. When the water level is too low the indicating light turns red and the machine will stop work. Refill the tank and turn on the machine to continue operate.
5. The machine will stop work if the water tank is removed during operation.
6. The machine will resume operation when the water tank is replaced correctly.

CLEANING & MAINTENANCE

Before cleaning, turn the functional knob anti clockwise until it points to "OFF" and disconnect the plug from the outlet.

WATER TANK INSIDE

Clean water tank inside and water sink twice per week at least when using the on a daily basis. Water residuals may form along the tank's inside and can be removed with soft dish brush. A soft cloth can also be used to wipe the insides of the water tank. Don't put acid, alkalescence, bleacher detergent into water tank to avoid damage.

WATER SINK INSIDE

The water quality in some regions can be rich of calcium (hard water). This can result in increased calcium deposits inside water tank or transducer. Users in areas with high content a minerals should perform maintenance as often as needed.

• Add cleaning agent on the transducer surface (The amount of detergent is directly dependent on the amount of calcium deposits).
• Fill water into the space that is located under the water tank placement (water sink). Let the machine rest for 10-15 min.
• Then gently brush the transducer area free of calcium deposits. Clean the entire sink area free of detergent and mineral deposits by using a dish brush.
• Rinse with fresh water and repeat at least two times. Don't use acid detergents to wash the water sink inside to avoid damage on the transducer.

BODY AND WATER TANK OUTSIDE

Wipe it gently with a soft cloth mixed with a small amount of detergent.

STORAGE

Drain the water in tank and body, remove any stains or dirt. Make sure that the product has dried completely before it is put into storage. Store the product in a dry environment.

TROUBLESHOOTING

Problem Possible reasons Solutions
No steam Check plug Plug into socket
	Check power switch Turn on power switch
	No water in tank Add water
	Not enough water in the tank	Add water
Peculiar smelling steam	New machine Take off tank cover, place the water tank in cool and dry place for 12 hours
	Too dirty water, or water in tank too long time	Clean water tank, replace with clean water
Noise Tank in incorrect position Put the tank in correct position
	Not enough water in the tank	Add water
	Uneven level for machine Place it on even flat or ground
Steam out from outlet surroundings	Clearance between steam outlet and water tank	Sink the steam outlet cap in water and use it again

If the machine is still not working after checking the possible reasons above, contact the store where the product was purchased from.

GUARANTEE

Wilfa issues a 5 year guarantee on this product from the day of purchase is done. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee.

The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modified or if unauthorized reparation is done. The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

• Not descaled according to instruction manual
  Overloading of product
• Damage on glass
• Parts which are normally worn down

PRODUCT SPECIFICATIONS

100 - 240V~50/60Hz 25W

SUPPORT AND SPARE PARTS

For support please visit us at wilfa.com, and see our customer service/support page. Here you will find frequently asked questions, spare parts, tips and tricks and all our contact information.

RECYCLABILITY

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and on systems or contact the retailer where the product was purchased.

They can take this product for environmentally safe recycling free of charge.

NO

NO

INNHOLD

16 VIKTIGE SIKKERHETSANVISNINGER
19 PRODUKTOVERSIKT
20 PLASSERING
20 FUNKSJONER
20 BRUK
21 RENGJØRING OG VEDLIKEHOLD
23 FEILSØKING
24 GARANTI
25 PRODUKTSPESIFIKASJONER
25 SUPPORT OG RESERVEDELER
25 GJENVINNING

VIKTIGE SIKKERHETSANVISNINGER

RENGJØRING OG VEDLIKEHOLD

För rengjöring má du vri bryteren mot urviseren til den peker på «OFF», og deretter trekke ut stöpselet fra stikkontakten.

INNVENDIG RENGJØRING AV VANNBEHOLDER

TOIMINNOT JA OMINAISUUDET

VESIALTAAN SISAPUOLI

BINNENKANT WATERTANK

HET APPARAAT OPBERGEN

CARACTERISTIQUES DU PRODUIT

100 - 240V~ 50/60Hz 25W
