Wasserwerk 500 - Pump Blumfeldt - Free user manual and instructions

Product type	Solar pump for fountain or small pond
Brand	Blumfeldt
Model	Wasserwerk 500
Power supply	Solar panel (3 W or 5 W) + rechargeable battery 6 V, 4 Ah
Operating voltage	6-9 V DC
Maximum flow rate	250 L/h (model 10029901) or 400-500 L/h (model 10029902)
Maximum delivery head	1.2 m (model 10029901) or 1.4 m (model 10029902)
Water projection height	0.6 m (model 10029901) or 0.8 m (model 10029902)
Cable length	5 m
LED lighting	LED ring, automatic activation in darkness
Operation	Solar mode (direct) and battery mode (accumulation)
Package contents	Solar panel, pump, battery, watering device (nozzles, columns, spray), ground stakes, LED ring
Installation	Submersible pump, solar panel outdoors, initial charging of 8 hours in sunlight
Maintenance	Clean the solar panel with a soft cloth; clean the pump and filter with clear water
Battery replacement	Replaceable battery 6 V, 4 Ah (open the housing)
Safety	Do not use on AC power; do not run dry; max temperature 50 °C
Recycling	Do not dispose of with household waste; deposit at a collection point for electronic devices

Frequently Asked Questions - Wasserwerk 500 Blumfeldt

How to install the Wasserwerk 500 pump?

Secure the plastic bolt under the solar panel, connect the panel to the control box, place the pump fully submerged (use the suction cups to fix it), connect the desired nozzle, and leave the assembly in the sun for at least 8 hours before first use.

Can I use the pump without sunlight?

Yes, the pump runs on battery. The solar panel charges the battery during the day. You can switch to battery mode using the MODE button on the control box.

Why is my pump not working?

Check that the solar panel is receiving enough light, that the box is turned on (ON button), that the pump is fully submerged, and that the filter is not clogged. If the battery is old (12-18 months), it may be depleted and needs replacement.

How to clean the pump?

Disconnect the pump, remove the pump and turbine covers, wash the parts with clear water. Do not use abrasive products. Also clean the solar panel with a soft cloth.

What is the maximum water height?

Depending on the model, the maximum delivery head is 1.2 m or 1.4 m, and the water projection height is 0.6 m or 0.8 m.

Do the LEDs turn on automatically?

Yes, the LEDs turn on automatically in darkness if the battery is sufficiently charged.

Can I use the pump in a saltwater pond?

No, the pump is designed only for fresh water, at temperatures up to 50 °C.

How to replace the battery?

Open the control box (screws), remove the old battery and replace it with an identical 6 V, 4 Ah battery. Close the box.

What to do if the flow rate decreases?

Clean the filter and the pump. If the problem persists, check that the nozzle is not clogged. A decrease in flow rate may also indicate a low battery.

Is the pump suitable for an existing fountain?

Yes, it is ideal for fountains or small ponds. Make sure the pump is fully submerged and the solar panel is placed in a sunny and flat location.

USER MANUAL Wasserwerk 500 Blumfeldt

Abstract green circular logo with three curved segments (no text or symbols)

Abstract green circular logo with two leaf-like shapes (no text or symbols)

Abstract green circular logo with three leaf-like shapes forming a Y-shape (no text or symbols)

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Technical line drawing of a mechanical testing setup with a monitor, device, and sensor components (no text or labels)

BEDIENUNG

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

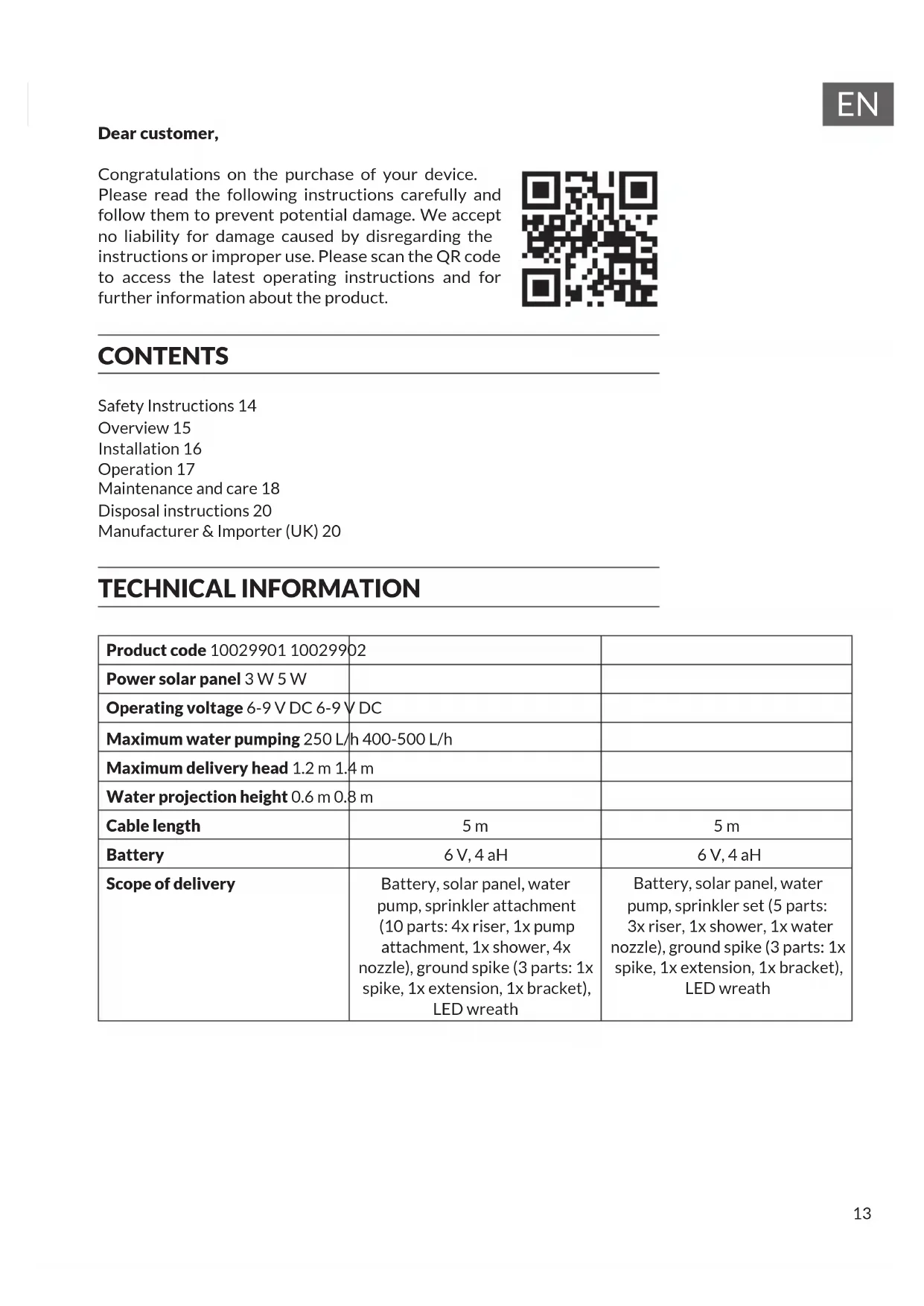

Dear customer,

Congratulations on the purchase of your device. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions or improper use. Please scan the QR code to access the latest operating instructions and for further information about the product.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 14

Overview 15

Installation 16

Operation 17

Maintenance and care 18

Disposal instructions 20

Manufacturer & Importer (UK) 20

TECHNICAL INFORMATION

Product code 10029901 10029902
Power solar panel 3 W 5 W
Operating voltage 6-9 V DC 6-9 V DC
Maximum water pumping 250 L/h 400-500 L/h
Maximum delivery head 1.2 m 1.4 m
Water projection height 0.6 m 0.8 m
Cable length	5 m	5 m
Battery	6 V, 4 aH	6 V, 4 aH
Scope of delivery	Battery, solar panel, water pump, sprinkler attachment (10 parts: 4x riser, 1x pump attachment, 1x shower, 4x nozzle), ground spike (3 parts: 1x spike, 1x extension, 1x bracket), LED wreath	Battery, solar panel, water pump, sprinkler set (5 parts: 3x riser, 1x shower, 1x water nozzle), ground spike (3 parts: 1x spike, 1x extension, 1x bracket), LED wreath

SAFETY INSTRUCTIONS

- To reduce the risk of electric shock, do not remove any of the covers. This device contains parts that are not accessible to the user.

- The appliance identification is provided on the back of the appliance.

- Do not place vessels filled with liquids, such as vases or watering cans, on the appliance.

- Do not drop metal objects on this appliance.

- Do not place any heavy objects on the device.

- Only use accessories and add-on parts that have been approved by the manufacturer.

- Pull the plug out of the socket if there is a thunderstorm, a storm or if you are not going to use the device for a long period of time. This way, you can prevent damage.

- Have repairs carried out by qualified specialists only.

- Repair is required if the appliance has been damaged in any way, i.e. if objects have fallen on it, if it is not working properly or if it has been dropped. Do not attempt to repair the device yourself. Opening the cover exposes you to the risk of electric shock and other personal injury.

- Do not pull, bend or place heavy objects on the cord.

- Do not touch the plug with wet hands.

- Do not place sources of open flames, e.g. burning candles, on the device.

- Never let the pump run empty.

- Never connect the appliance to an AC power source. It is only designed for operation with direct current.

- Only operate the pump in freshwater ponds at temperatures up to a maximum of 50^ C.

- Do not place the solar panel in hollows or holes where water is likely to accumulate. Please ensure that you select a level location with a firm base. The plastic bolt should be inserted into sufficiently solid soil.

- Do not place the device on other devices that may become hot. This heat could damage the device.

- Do not use volatile liquids such as bug sprays. Excessive pressure when wiping the surface can cause damage. Rubber or plastic parts should not be in contact with the appliance for a long period of time.

- Children over 8 years as well as mentally, sensory and physically impaired persons may only use the device if they have been informed in detail about the functions and safety precautions by a supervisor responsible for them beforehand and understand the associated risks.

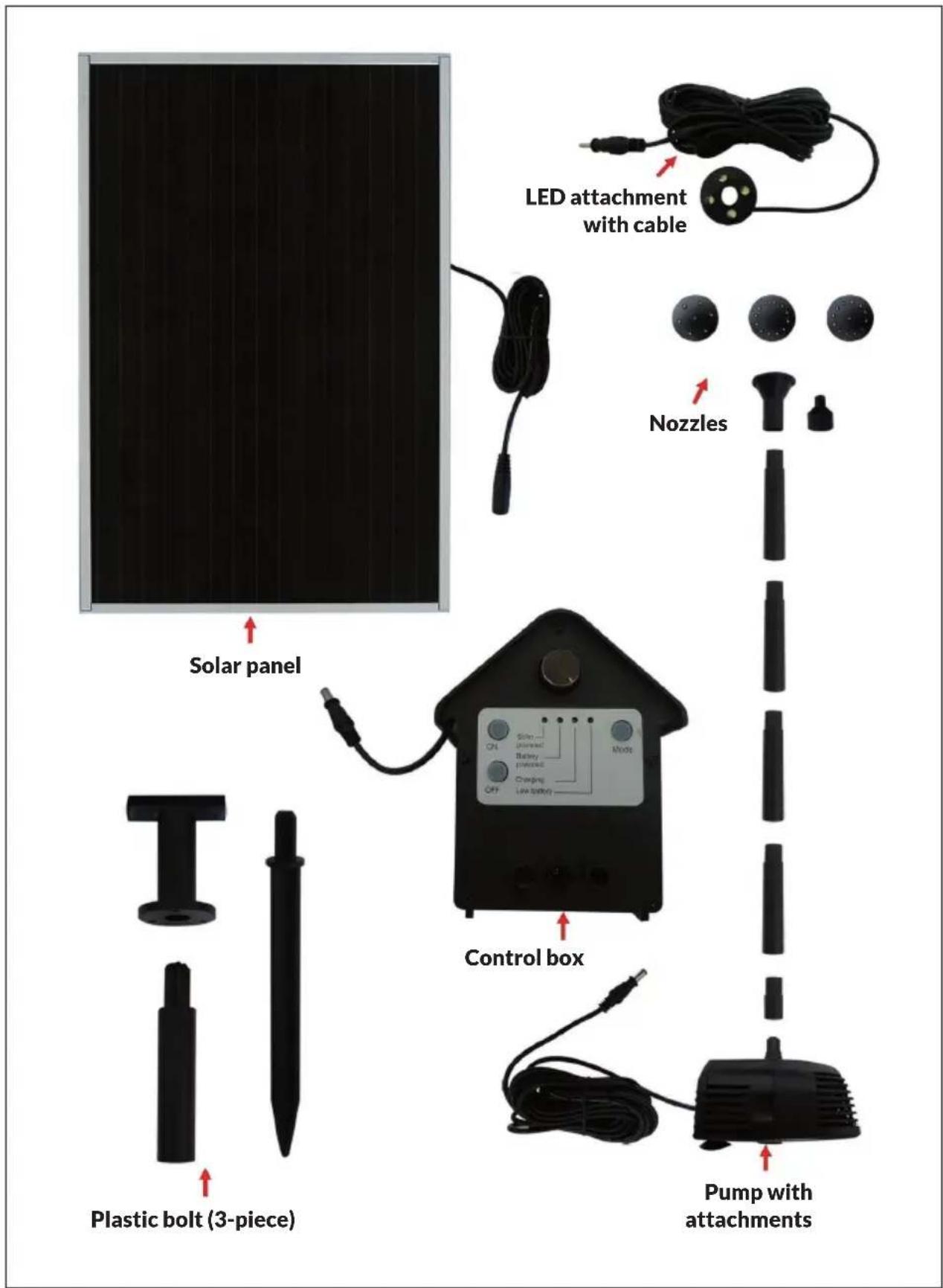

LED attachment with cable Nozzles Solar panel Control box Plastic bolt (3-piece) Pump with attachments

INSTALLATION

General information

• The pump is suitable for fountains or small ponds. The solar panel supplies the pump with the necessary operating voltage and charges the battery.
• Light sunlight and even cloudy skies are sufficient (in daylight) to operate the pump.
  • The LED lights automatically illuminate the fountain in the dark.

Assembly

• Attach the plastic bolt to the underside of the frame of the solar panel.
• Connect the solar panel to the control box.
• Position the pump under water so that it is completely covered. Use the four flexible suction cups to attach the pump to the pond/well bottom. If the water is far too deep for the pump to reach the surface, elevate its standing position by placing stones or similar suitable material under it.
• Select the desired nozzle for the well and plug it onto the well pipe, as well as the well pipe onto the pump.

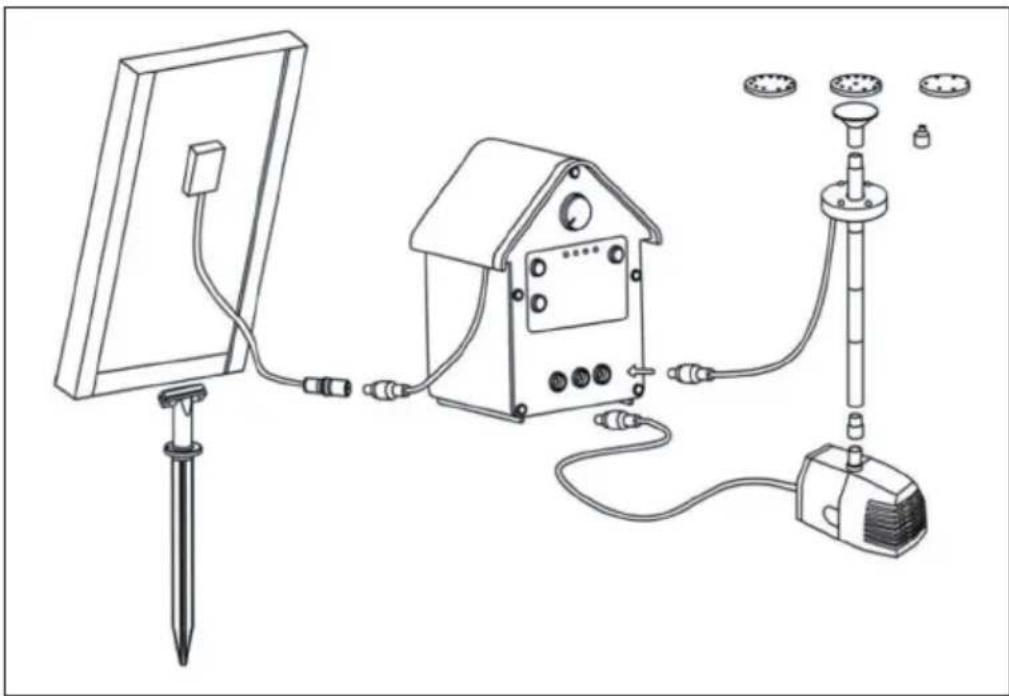

• Connect all parts as shown in the illustration.

Technical line drawing of a mechanical testing setup with a monitor, device, and sensor components (no text or labels)

OPERATION

Once the pump is installed and connected, allow it to spend at least 8 hours in full sunlight before using it.

Testing The Control Box:

• Press ON and make sure that the corresponding LED starts to light up.
• Press MODE several times to cycle through the different operating modes, which are indicated by changing LEDs (solar operation, battery operation).
• As soon as the solar panel is connected to the control box, the charging LED should light up to indicate the charging status.

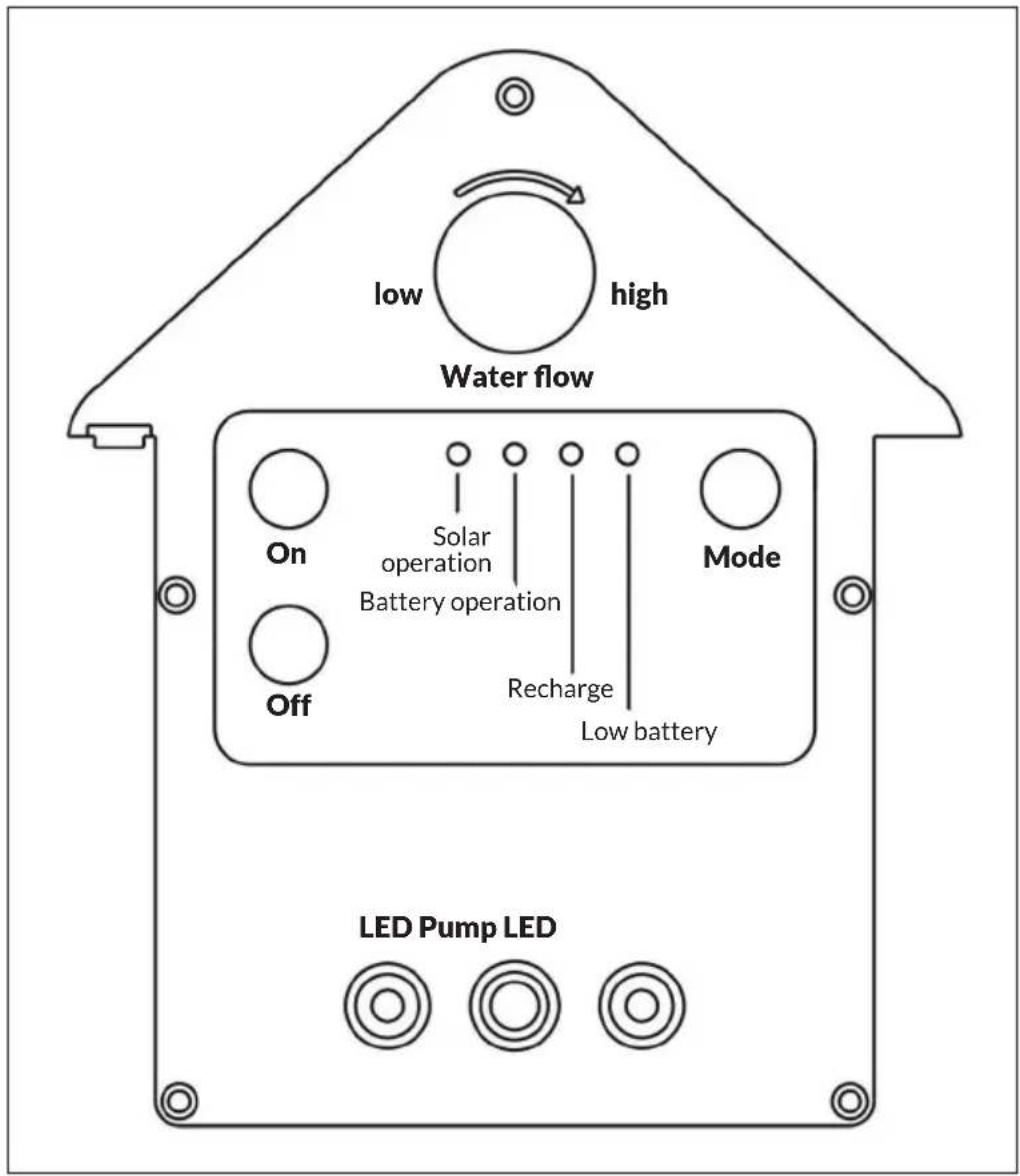

low high Water flow On Off Solar operation Battery operation Recharge Low battery Mode LED Pump LED

MAINTENANCE AND CARE

Solar panel

The solar panel should be wiped regularly with a soft cloth, so that the light transmission remains guaranteed. Do not use abrasive materials or cleaning agents.

Pump

If after a while the pump no longer provides the usual throughput or stops working, check for sediment or dirt clogging the filter or pump. Remove the covers from the pump and impeller (see illustration) and wash both parts with clean water.

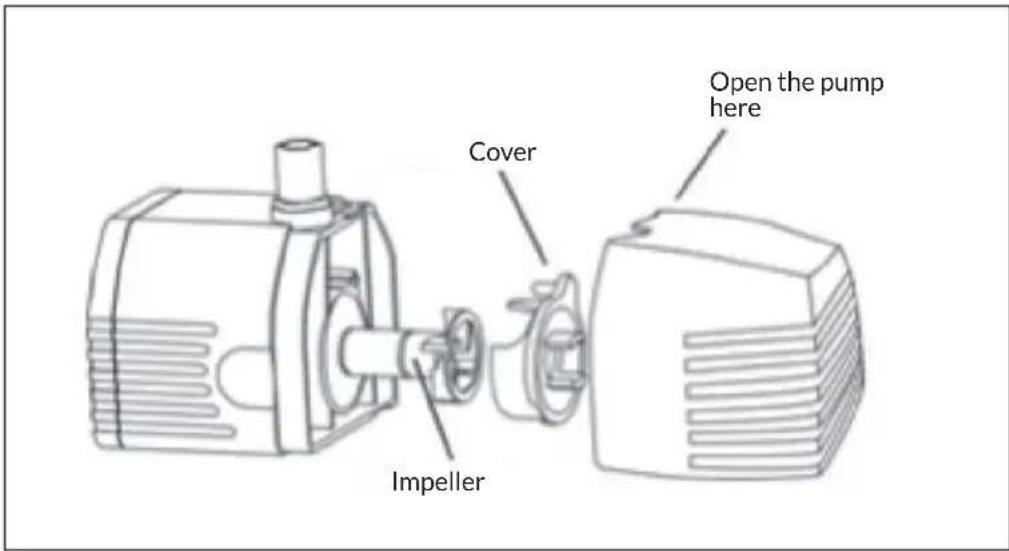

Open the pump here Cover Impeller

Battery

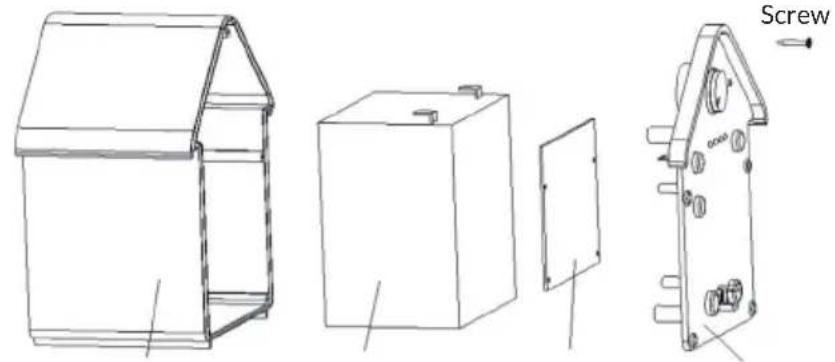

If the pump stops working after about 12 - 18 months in operation, the reason could be that the battery life has been exhausted. Open the housing according to the illustration and replace the battery with a model with the same specifications (6 V, 4 aH):

Technical line drawing of a house panel with exploded and assembled views, showing internal components and a screw (no text or symbols)

Housing Battery Circuit board Front

DISPOSAL INSTRUCTIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation in your country regarding the disposal of electrical and electronic equipment, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of this product in accordance with the regulations, you protect the environment and the health of those around you from negative consequences. For information on recycling and disposal of this product, contact your local government or household waste disposal service.

This product contains batteries. If there is a legal regulation in your country regarding the disposal of batteries, the batteries must not be disposed of in household waste. Consult your local regulations for the disposal of batteries. By disposing of this product in accordance with the regulations, you protect the environment and the health of those around you from negative consequences.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom
