USER MANUAL Greengarden Blumfeldt

Domestic Waterworks for Home and Garden

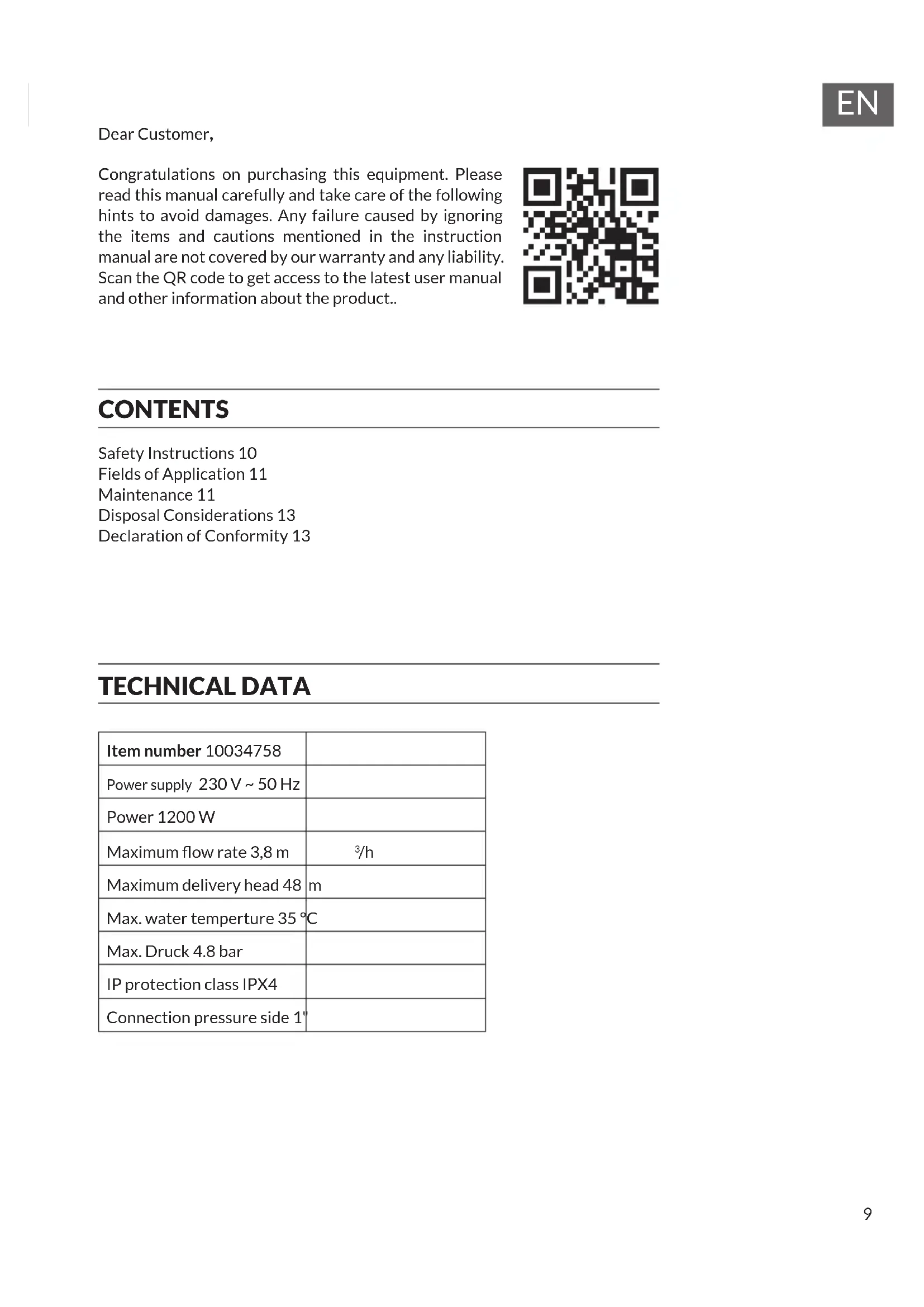

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product..

CONTENTS

Safety Instructions 10

Fields of Application 11

Maintenance 11

Disposal Considerations 13

Declaration of Conformity 13

TECHNICAL DATA

Item number 10034758
Power supply 230 V ~ 50 Hz
Power 1200 W
Maximum flow rate 3,8 m	3/h
Maximum delivery head 48	m
Max. water temperture 35 °C
Max. Druck 4.8 bar
IP protection class IPX4
Connection pressure side 1"

SAFETY INSTRUCTIONS

Intended use

• This pump is recommended for pumping clear water and chemically nonaggressive liquids. It is not suitable for pumping flammable liquids or for operation in places where there is a risk of explosion.
• The pump must not be used in swimming pools.
• Children from the age of 8 years and persons with mental, sensory and physical impairments may only use the device if they have been thoroughly familiarised with the functions and safety precautions by a responsible supervisor and understand the associated risks..

Installation

• The installation must be carried out by a qualified specialist.
• Please check the electrical connections as well as the cable for intactness before each commissioning.
• Before installation, please check that the electrical connection is earthed in accordance with the legal regulations. Make sure that the pump is protected by an appropriate earth-leakage circuit breaker (trigger current 30mA ).
• It is NOT recommended to make cable extensions or other technical modifications yourself. It is not guaranteed that these modifications are technically correct.
• It must be ensured that the pump is sufficiently cooled during longer operation.
• The pumping of flammable and all other aggressive liquids is prohibited.
• Observe water temperature of max. 35^ C
• Never pull the pump by the live cable or pressure line.
• Avoid narrowing of the cross section
• If the pump is not used for a longer period of time, clean the pump, rinse and dry it with clear water and store it at room temperature.
• Test wells for sufficient water flow (danger of dry running).
• The pump is to be protected by an earth-leakage circuit breaker with a trigger current of 30mA .
• The electrical connection must always be carried out by an authorised specialist

FIELDS OF APPLICATION

The pump is intended for the delivery of clear water (free of slanted and). The pump is suitable for the following applications.

• Pumping out and transferring rain tanks, containers, tubs, etc.
• for rainwater utilisation in house and garden
• Circulation of large water accumulations
  Water abstraction from streams and rivers
• Pond drainage
  Other

MAINTENANCE

Under normal operating conditions the pump requires no maintenance.

From an operating time (with clear water) of approx. 2000 hours, the mechanical components such as impellers, volute chambers, seals etc. must be checked for intactness and replaced if necessary.

After 3000 hours of operation, the oil in the chamber should be replaced if necessary (only for oil-immersed motor types!). Please only fill up to 80% and always check the seals for tightness.

With abrasive materials such as sand the maintenance time is reduced.

TROUBLESHOOTING

Problem Possible cause	Solution
Pump running. No water is pumped.	Air in system (cannot escape)	Vent the system.
	Impeller clogged. Clean the impeller.
Pump does not start or switches off.	Motor protection switch has switched off the pump.	Ensure adequate cooling.
	No power.	Check electronic con- nections.
Pump is running. The Delivery rate decreases or breaks down.	Pump is installed too low.	Raise the pump.
	Water pipe system is leaking.	Check pipe system for leaks.
	Impeller is worn out. Replace impeller.
	Filter is dirty. Clean filter.

DISPOSAL CONSIDERATIONS

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

DECLARATION OF CONFORMITY

CE

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin.

This product is conform to the following European Directives:

2011/65/EU (RoHS)

2014/30/EU (EMC)

2014/35/EU (LVD)
