Brand	Koenic
Model	KAF 4110 B
Product type	Hot air fryer
Usage	Domestic
Power supply	220-240 V ~ 50/60 Hz
Rated power	1300 W
Bowl capacity	4 liters
Temperature range	80 °C to 200 °C
Timer	Up to 60 minutes
Display	LED digital
Preset cooking modes	Yes
Individual temperature and time settings	Yes
Automatic shut-off	Yes (timer end)
Cool-touch handle	Yes
Housing material	Heat-resistant plastic
Basket material	Metal with non-stick coating
Dishwasher-safe parts	Basket and bowl
Dimensions (L x W x H)	35 x 30 x 30 cm
Net weight	4.5 kg
Cable length	0.8 m
Warranty	2 years
Repairability index	Not communicated

Frequently Asked Questions - KAF 4110 B Koenic

How to use the Koenic KAF 4110 B fryer for the first time?

Before first use, remove all packaging and accessories. Wash the basket and bowl with soapy water or in the dishwasher. Heat the empty appliance for about 10 minutes at 200°C to eliminate manufacturing residues, ensuring good ventilation.

How much oil should I put in the fryer?

The hot air fryer requires little or no oil. For crispy fries, it is recommended to spray a teaspoon of oil before cooking. Do not exceed the MAX mark in the basket.

How to clean the Koenic KAF 4110 B fryer?

Unplug the appliance and let it cool completely. The basket and bowl are dishwasher safe or can be washed by hand with a soft sponge. Never use solvents or metal objects. Wipe the housing with a damp cloth.

What to do if the appliance does not heat up?

Check that the bowl is properly inserted and that the timer and temperature are set. Make sure the plug is firmly connected. If the problem persists, contact after-sales service.

Are the cooking times indicated in the manual accurate?

The given times are indicative. They vary depending on the size, quantity and nature of the food. It is advisable to check cooking halfway through and adjust if necessary.

Should the fryer be preheated?

The Koenic hot air fryer does not require preheating, but if you do not preheat it, add 2 to 3 minutes to the recommended cooking time.

Can I use the fryer for other foods than fries?

Yes, you can cook many foods: meats, fish, vegetables, pastries, etc. Refer to the time table in the manual for optimal settings.

How to prevent food from burning?

Do not overload the basket (do not exceed the MAX mark) and shake or turn the food halfway through cooking. If the appliance emits smoke, it may be due to residues on the heating elements; clean them after cooling.

What are the essential safety precautions?

Do not touch hot surfaces, use the handle. Do not place the appliance near flammable materials. Unplug after use and never immerse it in water. Supervise the appliance during operation.

The fryer makes noise, is that normal?

Yes, the noise comes from the fan circulating hot air. This is normal. If the noise becomes abnormal (grinding, clicking), stop the appliance and contact after-sales service.

USER MANUAL KAF 4110 B Koenic

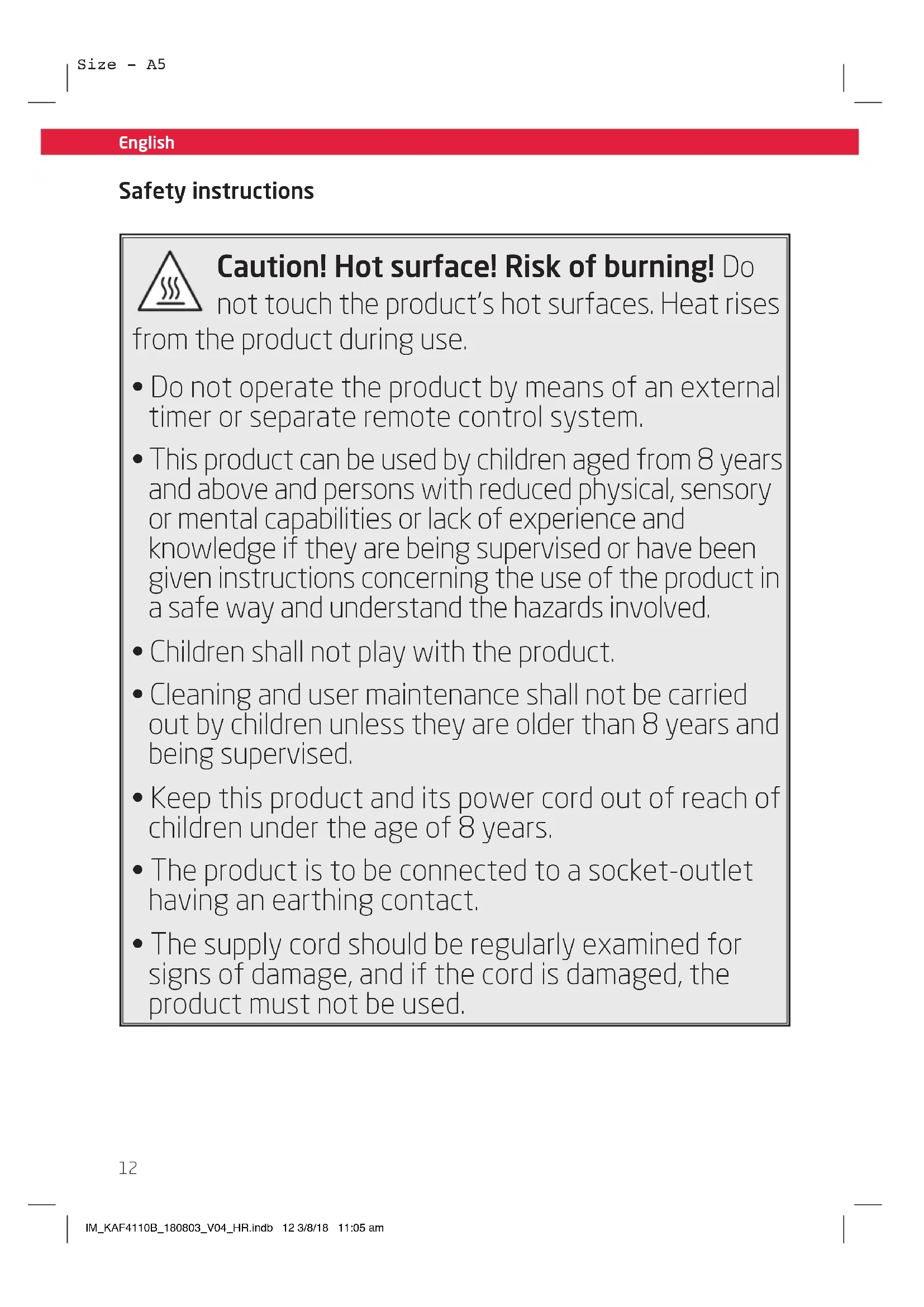

Caution! Hot surface! Risk of burning! Do

not touch the product's hot surfaces. Heat rises from the product during use.

• Do not operate the product by means of an external timer or separate remote control system.
• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are being supervised or have been given instructions concerning the use of the product in a safe way and understand the hazards involved.
• Children shall not play with the product.
• Cleaning and user maintenance shall not be carried out by children unless they are older than 8 years and being supervised.
• Keep this product and its power cord out of reach of children under the age of 8 years.
• The product is to be connected to a socket-outlet having an earthing contact.
• The supply cord should be regularly examined for signs of damage, and if the cord is damaged, the product must not be used.

Safety instructions

• The product is designed for the preparation of normal household quantities in the home, or in household-like, non-commercial environments. Household-like environments include staff kitchens in shops, offices, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.
• A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.
• Clean the product and all other accessories after each use.
• Follow the instructions in the chapter Cleaning and care.

English

Safety instructions

• Read this manual thoroughly before first use. It contains important information for your safety as well as for the use and maintenance of the equipment.
• Keep this manual for future reference and pass it on with the product.
• Pay particular attention to the warnings on the product and in this manual.
• Use the product only for its intended purpose. Improper use may lead to hazards.
• In the event of improper use or wrong operation, we do not accept any liability for resulting damages.
• The use of accessories and components not expressly recommended by the manufacturer may result in injuries or damages and voids the warranty.
• Never leave the product unsupervised while it is switched on.
• Do not place any objects on top of the product.
• Never immerse electrical parts of the product in water or any other fluid during cleaning or operation. Never hold the product under running water.
• Do not under any circumstances attempt to repair the product yourself. For servicing and repairs, please consult an authorised service agent.
• The mains voltage must match the information on the rating label of the product.

• The power plug is used as the disconnect device. Please be sure that the power plug is in operable condition.

• Only unplugging from the power socket can separate the product completely from the mains.

• Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
• Keep this product including its power cord and power plug away from all heat sources such as, ovens, hot plates and other heat-producing devices/ objects.

• Only unplug from the power socket by the plug itself. Do not pull on the cord.
  Unplug the product ...

• when the product is not being used,

• in case of malfunctions,
• before attaching / detaching accessories and
• before cleaning the product.

If the power cord or the casing of the product have been damaged or if the product has been dropped, the product may not be used before it has been examined by an authorised service agent.
- Use this product in dry indoor areas only and never outdoors.
- Protect this product from extreme heat and cold as well as from direct sunlight and dust.
- In order to reduce the risk of fire and electric shock, do not expose the product to fire (fireplace, grill, candles, cigarettes and so on) or water (water drops, water splashes, vases, tubs, and so on).

Safety instructions

• Warning! Do not use this product near water or heavy moisture; e.g. in a damp basement or beside a swimming pool or bathtub.
  Use this product in temperate latitudes only. Avoid tropical and especially humid climatic regions.
• Protect this product from all moisture including spray water and humidity.

• Ensure sufficient air circulation. Therefore do not place any objects onto the appliance and keep clearances to all sides as given below:

• Sides: 10 cm
  -Back:30cm

• Up: 30 cm

• The appliance shall not be build into furniture. The appliance must not be installed directly below a plate, cupboard or cabinet.

• The feet of the appliance shall not be removed.
• Place the appliance on a surface resistant to heat and splashes. Do not place the appliance on hot surfaces (e.g. cooktops) or open flames (e.g. gas stoves).
• The product may not come into contact with or be covered by highly flammable materials, such as curtains, textiles, wall cladding, etc. Please make sure that sufficient safety clearance is kept to flammable materials.

• Do not insert any objects into the product.
  This product is not suitable for commercial use. It is designed for household use only.

• Do not place the product on hotplates (gas, electric, coal stoves, etc.). Keep the product away from all open flames. Operate the product on an even, stable, clean, fireproof and dry surface.

• Fire hazard! Foodstuffs can burn! Do not use with foodstuffs with an excessively high fat or sugar content since this may cause fire. Never leave the product unattended.
• Risk of burning! Do not touch the product's hot surfaces. Touch the product only by its handle or at the display.
• Parts of the product become very hot. Let the product cool down well before cleaning or storing.
• Do not touch the heating element.
• Oil and grease is easily inflammable. Oil and grease must not get in contact with the heating element.

English

Congratulations!

Thank you for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

This product is suitable for preparing foods only. Any other use may result in damage to the product or injuries.

The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of the product, which does not meet the manufacturer's specified purpose.

Before first time use

Carefully take the product and its accessories out of the original packaging. Retain the original packaging in case you would like to store the product away or transport it at a later date. If you choose to dispose of the original packaging, then do so according to the applicable legal regulations.

Check the packaging contents for completeness and damages. Should the contents in the packaging not be complete or damaged, do not use the product. Return it to your retail outlet immediately.

After unpacking, please refer to chapter

Cleaning and care.

To remove production residue, run the product for approx. 10 minutes without foodstuffs. For doing so use the max. temperature. For setting follow chapter Operation. Make sure there is sufficient ventilation as a slight odor and some smoke may occur. This is harmless and will disappear shortly.

Disposal

Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the

recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Content

1×Hotair fryer

1 x Frying pan incl. grate

1 x Instruction manual

Technical Data

Rated voltage : 220 - 240 V~

Rated input power : 1300 W

Rated frequency : 50/60 Hz

Controls and components

A Hot air outlet
B Frying pan
C Handle
Frying basket unlocking button with safety cover
E Frying basket
F Control panel with indicators
Mode display
Time selection buttons +/-
On/off button
J Mode selection button
K Temperature selection buttons +/-
L Temperature and time display
Heating control lamp
N Operation control lamp

English

Installation

Fig. 1 Place the product on an even, solid and heat resistant surface. Consider the distance to the next socket outlet.

Note:

To ensure sufficient air circulation follow minimum clearances as given below:

Sides: 10 cm

Back: 30 cm

Up: 30 cm

Warning

The product must not be placed into furniture. The product must not be placed directly below a plate, cupboard or cabinet.

Note that hot air escapes from the rear hot air outlet. Make sure to keep the minimum clearances and keep heat-sensitive objects away.

Operation

Fig. 2 Pull the frying basket with pan out of the appliance using the handle.

Fig. 3 Fill the food to be fried in the frying basket, but at maximum up to the MAX mark.

Fig. 4 Put the frying basket with the pan back into the appliance. Make sure it is correctly inserted.

Fig.5 Plug the mains plug into a suitable socket.

Fig. 6 Press the on/off button to turn on the device. Set the desired mode with the mode selection button. Please observe the symbols and the following deep frying table. If desired, set the temperature and time individually with the +/- buttons. The temperature and time or the remaining time are displayed alternately in the display. Press the on/off button again briefly to start the process. The operation indicator lamp and the heating control lamp illuminate.

The set temperature is reached after approx. 2 to 3 minutes. When the preset temperature has been reached, the heating control lamp turns off.

Note:

The heating indicator light will turn itself on and off during the frying process. This is a normal occurrence and indicates that the set temperature is being kept.

During subsequent heat-up processes, the heating control lamp switches on again and again. The preset time expires. When the time is up, a beep sounds repeatedly and the unit turns off. To turn off the hot air fryer manually, press the on/off button.

Fig. 7 To remove the food to be fried, pull the frying basket with the pan out of the appliance by the handle. Place the frying pan on a flat and heat-resistant surface.

Fig. 8 Push the safety cover forward, press the frying basket release button and pull out the frying basket.

Fig. 9 Put the fried food in a suitable bowl on a plate. If necessary, use a wooden spatula to empty the frying basket. When all parts have cooled down, clean the device as described under

Cleaning and care

Note:

The fat that leaked from the foods during the frying process will gather below the frying grate. Therefore remove the frying grate from the pan before removing the food, in order to avoid that this fat is poured on top of the foods.

English

Recommended frying times

The data in the following table is supposed to serve as reference. Since foodstuffs differ in terms of origin, consistency, weight and form the actually needed temperature and frying time may vary. Make sure that all prepared foods are well done before serving.

Category	Food Item	Pieces / Weight	Temperature	Time (minutes)	Shake / Stir / Flip	Recommendation
french fries / snacks / pizza	Thin french fries (frozen)	400 - 600g	200°C 20-25 shake	Spray some oil (approx. 1TS) on the fries before starting the frying process Shake well after 1/3 and after 2/3 of the time are over
	Thick french fries (frozen)	400 - 600g	200°C 20-25 shake	Spray some oil (approx. 1TS) on the fries before starting the frying process Shake well after 1/3 and after 2/3 of the time are over
	Home-made thick french fries (fresh)	400 - 600g	185°C 40-45 shake	Spray some oil (approx. 1TS) on the fries before starting the frying process Shake well after 1/3 and after 2/3 of the time are over
	Croquettes (frozen)	400 - 600g	200°C 18-22 shake	Spray some oil (approx. 1TS) on the croquettes before starting the frying process Shake well after 1/3 and after 2/3 of the time are over
	Baked cheese (fresh)	150 - 200g	200°C 20 no -
	Home-made thick sweet potato french fries (fresh)	400 - 600g	185°C 40-45 shake	Spray some oil (approx. 1TS) on the fries before starting the frying process Shake well after 1/3 and after 2/3 of the time are over
	Baking Camembert (fresh)	2 - 3 pcs.	200°C 10-12 flip Flip	after 1/3 and after 2/3 of the time are over
	Pizza Baguette (frozen)	1 - 2 pcs	180°C 10-12 no -
	Piccolini (frozen)	4 - 6 pcs	180°C 10-12 no -
	Mini Spring Rolls (frozen)	400 - 600g	200°C 12-15 shake	Shake well after 1/3 and after 2/3 of the time are over
Cat- egory	Food Item	Pieces / Weight	Tem- pera- ture	Time (min- utes)	Shake / Stir / Flip	Recommendation
meat / fish	Marinated chicken wings / drumsticks (frozen)	400 - 600g	200°C 10-12 shake	Shake well after 1/3 and after 2/3 of the time are over
	Chicken Nuggets (frozen)	400 - 600g	200°C 20-25 shake	Spray some oil (approx. 1TS) on the chicken nuggets before starting the frying process Shake well after 1/3 and after 2/3 of the time are over
	Chicken legs (fresh)	200 - 400g	200 - 400g	200°C flip	Flip after 1/3 and after 2/3 of the time are over
	Chicken breast (frozen)	200 - 400g	200 - 400g	200°C flip	Flip after 1/3 and after 2/3 of the time are over
	Curwyurst sausage (fresh)	2 - 3 pcs.	2 - 3 pcs.	200°C flip	The sausage should be incised a couple of time before frying to prevent bursting
	Cordon Bleu (frozen)	2 pcs 200°C 20-25	flip Flip after 1/3 and	and after 2/3 of the time are over
	Fish sticks (frozen)	10 pcs 180°C 10-15	flip Flip after 1/3 and	and after 2/3 of the time are over
	Breaded fish (frozen)	2 - 3 pcs.	180°C 20	flip Flip after 1/3 and	and after 2/3 of the time are over
breakfast / dessert	Pieces of cake (frozen)	2 - 3 pcs.	170°C 15-18 no -
	Muffins (fresh)	3 - 4 pcs.	160°C 20 no -
	Rolls (fresh)	3 pcs.	180°C 10 flip	Flip after 1/3 and after	2/3 of the time are over
	Croissants (fresh)	2 - 3 pcs.	150°C 3-5 no -

Note:

The above time is only for reference. The cooking time will vary according to the type/fat/weight of the food.

• Mix fresh potatoes with some cooking oil before frying to achieve a crispy effect.
• Shake fried foods, especially French fries, after 1/3 and 2/3 the cooking time. Observe the information in the table above.
• Pull the frying basket with pan out of the appliance by the handle. The device switches off automatically. Place the frying pan on a flat and heat-resistant surface. Push the safety cover forward, press the frying basket release button, pull out the frying basket and shake it slightly. You may also use a wooden spatula for stirring / flipping over.
• Insert the frying basket back into the pan so that the handle engages in the pan and push the frying pan with the basket back into the pan. The device will automatically switch on again and continue to heat up.

English

Tips for better results

Always pay attention to the preparation recommendations on the packaging of the foods. Almost all foods that can be prepared in a regular oven, can also be prepared in an air fryer.
If the air fryer is not pre-heated, add 2-3 min. to the overall frying time.
- For smaller foodstuffs a shorter frying time is usually sufficient. For bigger foodstuffs, a longer frying time is needed.
- Use primarily waxy potatoes for homemade fries. Rinse freshly cut fries with cold water to remove excess starch and dry the fries thoroughly afterwards. Then add oil and spices. The less moisture the fries contain, the crispier they will become. Oil multiplies this effect.
- Stacked / overlapping foods should be stirred / shaken multiple times to enhance an equal frying result. When properly shaken for 2-3 times, the result for e.g. fries or mini spring rolls will be the best. In addition, make sure not to overfill the frying pan.
Make sure to remove the frying pan only for stirring / shaking of the goods and only for the least time necessary, to avoid an unnecessary loss of heat, which would impair the overall result.
- When baking fresh muffins or small cakes, keep in mind that the dough will extend. Always make sure that the dough does not touch the heating element. Risk of fire!

Cleaning and care

Caution

Always unplug the product from the power outlet and let it cool down before cleaning.

Note:

Pull the frying basket out of the pan and wash and rinse off both. For heavy encrustations soak the baked residues with water. Re-assemble all parts in reverse order.
Alternative the frying basket and pan can also be cleaned in the dishwasher.
- When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).

Troubleshooting

If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your manufacturer.

Problem Possible causes Solution
Product does not work	• Interrupted power supply • Frying pan not inserted correctly	• Check the power supply • Make sure that the frying pan is properly inserted
Product does not heat	• Thermostat is not set • Timer is not set • Frying basket not put in correctly	• Adjust the thermostat • Set a time with Timer • Put in the frying basket correctly
Burned smell / smoke	• Fat or food residues are stuck to the heating element	• Always make sure that the heating element is clean and that no fat or foodstuffs get in contact with it
