USER MANUAL Nikkor AFS 2470mm f2.8G ED NIKON

User's Manual (PP. 14-27)

スケーニ 力メラ

A

B

C

E

EC-B EC-E

F

G1 G2 G4

G3

J

K

L

M

P

U

— F6

◎

◎

—

◎-

—

◎

—

—

F5+DP-30

◎

◎

◎

◎

◎

—

◎

◎

—

◎

—

F5+DA-30

◎

◎

◎

◎

◎

—

◎

◎

—

◎

—

F4+DP-20

—

◎

◎

—

◎

◎

F4+DA-20

—

◎

◎

—

◎

◎

■構円の決定やビント合わせの目的には

好適寸

Notes on Safety Operations

CAUTION

En

Do not disassemble

Touching the internal parts of the camera or lens could result in injury. Repairs should be performed only by qualified technicians. Should the camera or lens break open as the result of a fall or other accident, take the product to a Nikon-authorized service representative for inspection after unplugging the product and/or removing the battery.

Turn off immediately in the event of malfunction

Should you notice smoke or an unusual smell coming from the camera or lens, remove the battery immediately, taking care to avoid burns.

Continued operation could result in injury.

After removing or disconnecting the power source, take the product to a Nikon-authorized service representative for inspection.

Do not use the camera or lens in the presence of flammable gas

Operating electronic equipment in the presence of flammable gas could result in an explosion or fire.

Do not look at the sun through the lens or viewfinder

Viewing the sun or other strong light sources through the lens or viewfinder could cause permanent visual impairment.

Keep out of reach of children

Particular care should be taken to prevent infants from putting the batteries or other small parts into their mouths.

Observe the following precautions when handling the camera and lens

• Keep the camera and lens unit dry. Failure to do so could result in fire or electric shock.
• Do not handle or touch the camera or lens unit with wet hands. Failure to do so could result in electric shock.
• When shooting with back-lighting, do not point the lens at the sun or allow sunlight to pass directly down the lens as this may cause the camera to overheat and possibly cause a fire.
• When the lens will not be used for an extended period of time, attach both front and rear lens caps and store the lens away from direct sunlight. Failure to do so could result in a fire, as the lens may focus sunlight onto a flammable object.

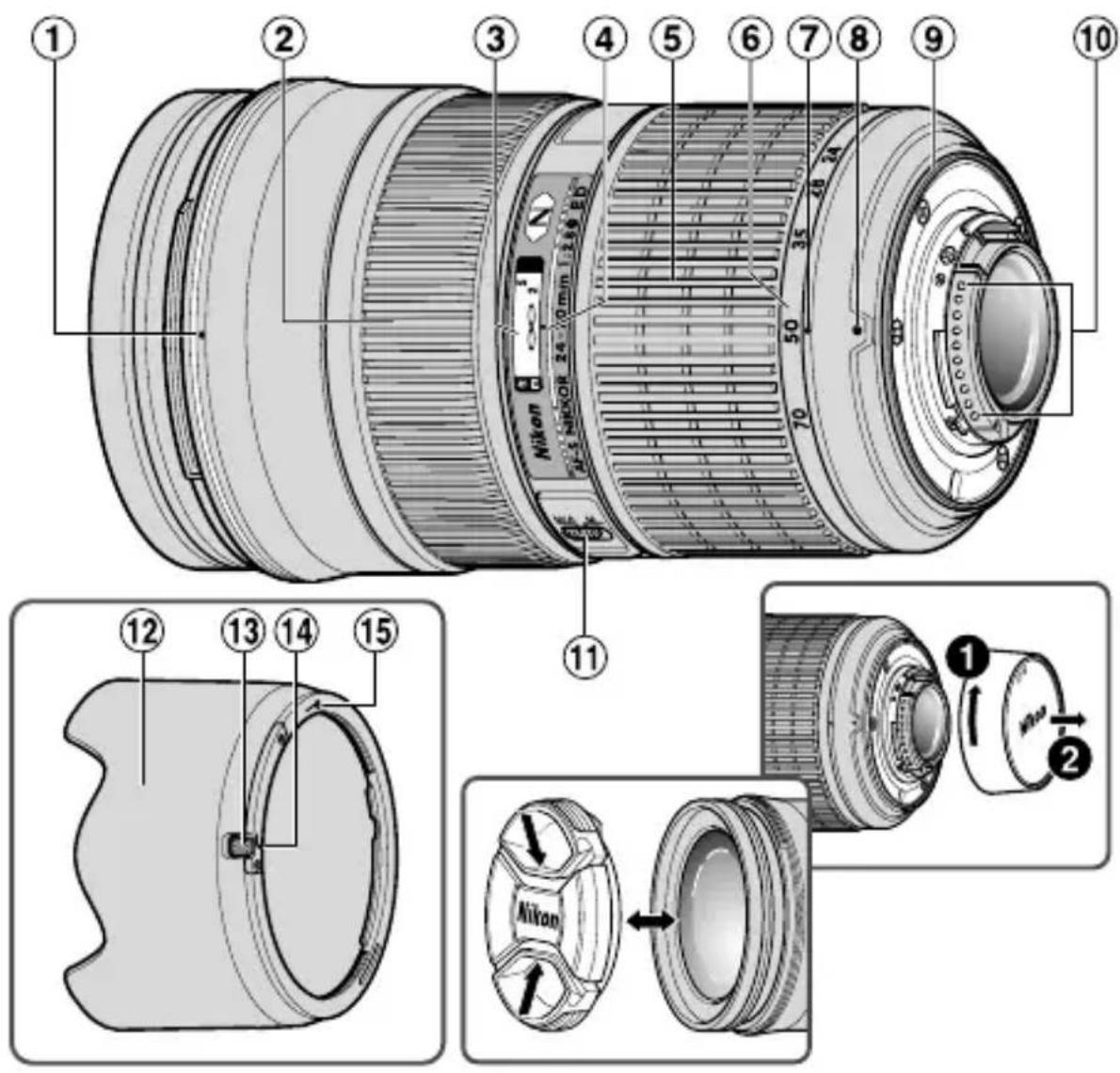

Nomenclature (): Reference page

① Lens hood mounting index (p.20)
(2) Focus ring (p.19)
(3) Distance scale
(4) Distance index line
⑤ Zoom ring (p.20)
(6) Focal length scale
(7) Focal length scale index
(8) Mounting index

Lens mount rubber gasket (p.18)
⑩ CPU contacts (p.18)
(1) Focus mode switch (p.19)
(12) Lens hood (p.20)
Lens hood lock release button (p.20)
Lens hood attachment index (p.20)
Lens hood setting index (p.20)

Usable cameras and available functions

There may be some restrictions or limitation for available functions.

Refer to your camera's user's manual for details.

Cameras	Autofocus	Exposure mode
		P*1	S	A	M
Nikon digital SLR (Nikon FX/DX format) cameras	○	○		○	○
F6, F5, F100, F80-Series/N80-Series*, F75-Series/N75-Series*, F65-Series/N65-Series*	○	○		○	○
Pronea 600i/6i*, Pronea S*2	○	○		○	○
F4-Series, F90X/N90s*, F90-Series/N90*, F70-Series/N70*	○	○		×	×
F60-Series/N60*, F55-Series/N55-Series*, F50-Series/N50*, F-401x/N5005*, F-401s/N4004s*, F-401/N4004*	×	○	○	○	○
F-801s/N8008s*, F-801/N8008*, F-601M/N6000*	×○	○		×	×
F3AF, F-601/N6006*, F-501/N2020**, Nikon MF cameras (except F-601M/N6000*)	×	×		×	×

: Possible × : Impossible
Sold exclusively in the USA. Sold exclusively in the USA and Canada.
1 P includes AUTO (General-Purpose Program) and Vari-Program System.
*2 Manual (M) is not available.

1. Introduction

Thank you for purchasing the AF-S NIKKOR 24-70mm f/2.8G ED lens. This is a high-grade, internal focusing (IF) lens employing a Silent Wave Motor to drive the focusing mechanism, thus the "S" designation. As a result, autofocus is smooth, silent, and almost instantaneous.

Major features

• Autofocus (A) or manual (M) mode can easily be selected with the Focus mode switch.
• Autofocusing with manual override is provided, allowing instant change from autofocusing to manual focusing.
• More accurate exposure control is possible when this is mounted on a Nikon camera having 3D Matrix Metering capability, because subject distance information is transferred from the lens to the camera body.
• The use of three aspherical and three ED (extra-low dispersion) lens elements ensures sharp pictures virtually free of color fringing. Also, by utilizing a 9-blade diaphragm that produces a nearly circular aperture, out-of-focus images in front of or behind the subject are rendered as pleasing blurs.
• The Nano Crystal Coat deposited on some of the lens elements ensures that fine, clear images can be reproduced under various shooting conditions, from the sunny outdoors to spotlighted interior scenes.

Important

• Be careful not to soil or damage the CPU contacts (10).
• When mounted on Nikon DX format digital SLR cameras, such as the D300-Series and D7000, the lens' picture angle becomes 61^ - 22^50' and its 35mm equivalent focal length range is approx. 36mm - 105mm .
• If the lens mount rubber gasket ⑨ is damaged, be sure to visit the nearest Nikon authorized dealer or service center for repair.
• A total of two Wireless Remote Speedlights SB-R200 can be attached to the front of the lens.

2. Focusing

Set your camera's focus mode selector according to this chart.

Cameras	Camera's focus mode	Lens' focus mode
		M/A	M
Nikon digital SLR (Nikon FX/DX format) cameras, F6, F5, F4-Series, F100, F90X/ N90s*, F90-Series/N90*, F80-Series/N80-Series*, F75-Series/ N75-Series*, F70-Series/N70*, F65-Series/N65-Series*, Pronea 600i/6i*, Pronea S	AF	Autofocus with manual priority	Manual focus (Electronic rangefinder can be used.)
	MF	Manual focus (Electronic rangefinder can be used.)
F60-Series/N60*, F55-Series/ N55-Series*, F50-Series/N50*, F-801s/N8008s*, F-801/N8008*, F-601M/N6000*, F-401x/N5005*, F-401s/ N4004s*, F-401/N4004*	AF	Manual focus (Electronic rangefinder can be used, except with the F-601M/N6000*.
	MF

*Sold exclusively in the USA.

■ Autofocus with manual override (M/A mode)

1 Set the Focus mode switch (1) to [M/A].

Note: Be sure to set the switch so that the indicator aligns with [M/A] precisely.

2 Autofocus is provided, but you can manually override the focus by operating the separate Focus ring (2) while lightly depressing the shutter release button or the AF start (AF-ON) button on the camera.
3 To cancel manual override, again lightly depress the shutter release button or the AF start button on the camera. This will return the camera to autofocus mode.

3. Focusing, zooming, and depth of field (p.128)

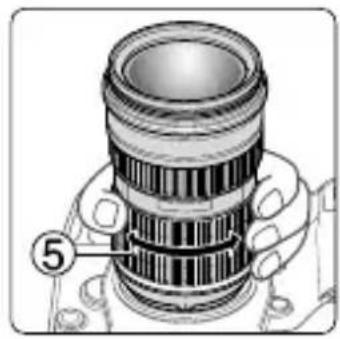

First turn the zoom ring ⑤ until the desired composition is framed in the viewfinder before focusing. If your camera has a depth of field preview (stop-down) button or lever, depth of field can be observed while looking through the camera viewfinder.

4. Setting the aperture

Set the aperture on the camera body.

5. Using bayonet hood HB-40 ⑫

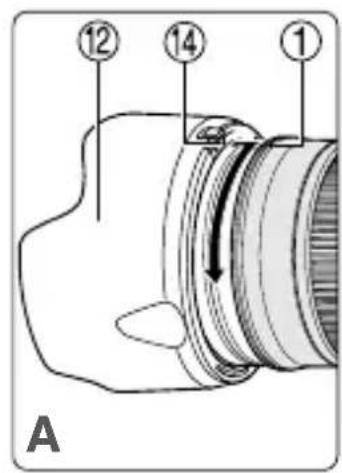

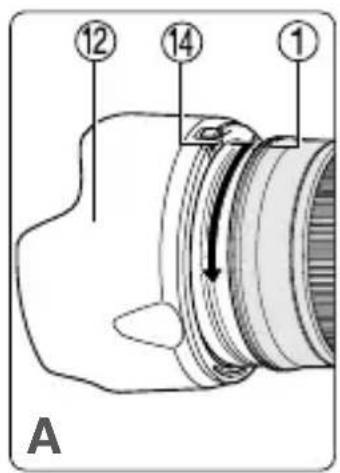

■Attaching the hood (Fig. A)

Align the lens hood attachment index (-) 14 on the hood with the lens hood mounting index 1 on the lens, and turn the hood 12 clockwise until it click stops to secure.

• Make sure that the lens hood mounting index ① aligns with the lens hood setting index (- ) ⑤.
• If the lens hood is not correctly attached, vignetting can occur.
• To facilitate attachment or removal of the hood, hold it by its base (around the lens hood attachment index (14) rather than its outer edge.
• To store the lens hood, attach it in the reverse position.

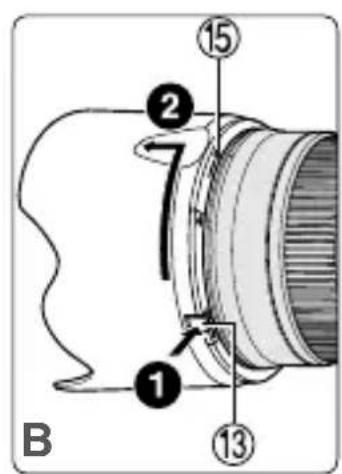

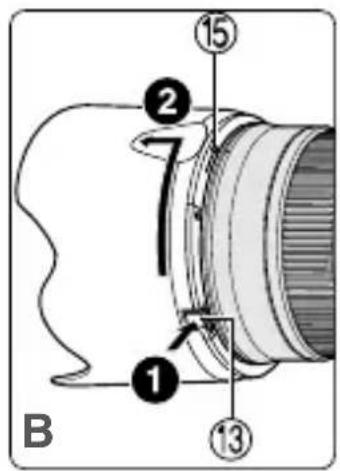

Detaching the hood (Fig. B)

While pressing the lens hood lock release button (13), turn the lens hood (12) counterclockwise to detach.

6. Taking flash pictures using cameras with a built-in flash

Vignetting is the darkening of the corners around the image that occurs when the light emitted from the flash is obstructed by the lens hood, or lens barrel depending on the focal length or shooting distance.

• For the latest information on vignetting with this lens, see the camera manual.

Cameras	Usable focal length / Shooting distance
D7200, D7100, D300S	·28mm / 1.5m (4.9 ft) or greater ·35mm / 1m (3.3 ft) or greater ·50mm or longer / No restriction
D7200, D7100 (1.3x crop of DX)	·24mm / 1.5m (4.9 ft) or greater ·28mm / 1m (3.3 ft) or greater ·35mm or longer / No restriction
D300	·28mm / 3m (9.9 ft) or greater ·35mm / 1m (3.3 ft) or greater ·50mm or longer / No restriction
D200	·28mm / 2m (6.6 ft) or greater ·35mm / 1m (3.3 ft) or greater ·50mm or longer / No restriction
D100	·28mm / 2.5m (8.2 ft) or greater ·35mm / 1m (3.3 ft) or greater ·50mm or longer / No restriction
D810, D800-Series, D700, D80, D70-Series, D50	·35mm / 1m (3.3 ft) or greater ·50mm or longer / No restriction
D5500, D5300, D5200, D5100, D3300, D3200, D750, D610, D600, D90	·35mm / 1.5m (4.9 ft) or greater ·50mm or longer / No restriction
D7000	·28mm / 1.5m (4.9 ft) or greater ·35mm or longer / No restriction

*Sold exclusively in the USA.

Cameras	Usable focal length / Shooting distance
D5000, D3100, D3000, D60, D40-Series	• 35mm / 1.5m (4.9 ft) or greater • 50mm / 1m (3.3 ft) or greater • 70mm / No restriction
F80-Series/N80-Series*	• 50mm / 1m (3.3 ft) or greater • 70mm / No restriction
F75-Series/N75-Series*, F70-Series/N70*, Pronea 600i/6i*	• 50mm / 1.5m (4.9 ft) or greater • 70mm / 1m (3.3 ft) or greater
F60-Series/N60* • 70mm	m / 1m (3.3 ft) or greater
F65-Series/N65-Series*, F55-Series/N55-Series*, F50-Series/N50*	• 70mm / 1.5m (4.9 ft) or greater

*Sold exclusively in the USA.
- Pronea S: Vignetting occurs at any focal length and shooting distance. Using this lens is not recommended.

7. Recommended focusing screens

Various interchangeable focusing screens are available for certain Nikon SLR cameras to suit any picture-taking situation. The ones recommended for use with this lens are:

En

Screen Camera

A

B

C

E

EC-B EC-E

F

G1 G2 G4

G3

J

K

L

M

F6

◎

◎

—

◎

◎

—

◎

—

—

F5+DP-30

◎

◎

◎

◎

◎

—

◎

◎

—

◎

—

F5+DA-30

◎

◎

◎

◎

◎

—

◎

◎

—

◎

—

F4+DP-20

—

◎

◎

—

◎

◎

F4+DA-20

—

◎

◎

—

◎

◎

P U

:Excellent focusing
:Acceptable focusing

Slight vignetting or moiré patterns appear in the viewfinder, but not on the film.

Not available.

Blank box means not applicable. Since type M screen can be used for both macro photography at a magnification ratio of 1:1 or above and for photomicrography, it has different applications than other screens.

Important

• For F6 cameras, when using screens other than type B or E, "Other screen" must be selected in Custom Setting. Refer to camera's user's manual for details.
• For F5 cameras, only EC-B, EC-E, B, E, J, A, L focusing screens are usable in Matrix Metering.
• When using the B and E focusing screens in cameras other than those listed above, refer to the columns for the B and E screens.

En

8. Lens care

• Clean the lens surfaces with a blower brush. To remove dirt and smudges, use a soft, clean cotton cloth or lens tissue moistened with ethanol (alcohol) or lens cleaner. Wipe in a circular motion from center to outer edge, taking care not to leave traces or touch other parts of the lens.
• Never use thinner or benzene to clean the lens as this might damage it, result in a fire, or cause health problems.
• To protect the front lens element, an NC filter is recommended at all times. A lens hood also helps protect the front of the lens.
• When storing the lens in its lens case, attach both front and rear caps.
• When the lens will not be used for a long time, store it in a cool, dry place to prevent mold. Also store the lens away from direct sunlight or chemicals such as camphor or naphthalene.
• Do not get water on the lens or drop it in water as this will cause it to rust and malfunction.
• Reinforced plastic is used for certain parts of the lens. To avoid damage, never leave the lens in an excessively hot place.
• Rapid changes in temperature may cause damaging condensation inside and outside the lens. Before taking the lens from a warm to a cold environment or vice versa, place it in a bag or plastic case to slow the change in temperature.

9. Standard accessories

• 77mm snap-on front lens cap LC-77 - Rear lens cap
• Bayonet hood HB-40 - Semi-soft case CL-M3

10. Optional accessories

• 77mm screw-in filters

11. Incompatible accessories

• Teleconverters (all models) - Auto Ring BR-2A/BR-4 and all models of Auto Extension Ring PK, K Ring, and Bellows focusing attachment Other accessories may not be suitable for use with this lens. For details, carefully read your accessories user's manual.

12. Specifications

Type of lens: G-type AF-S Zoom-Nikkor lens with built-in CPU and Some Nikon bayonet mount

Focal length: 24mm-70mm
Maximum aperture: f/2.8

Lens construction: 15 elements in 11 groups (3 ED, 3 aspherical and some Nano Crystal Coat-deposited lens elements)

Picture angle: 84^ - 34^20' with 35 mm (135) format Nikon film SLR cameras and Nikon FX format digital SLR cameras

61^ - 22^50' with Nikon DX format digital SLR cameras

71^ - 27^40' with IX240 system cameras

Focal length scale: 24, 28, 35, 50, 70mm

Distance information: Output to camera body

Zoom control: Manually via separate zoom ring

Focusing: Nikon Internal Focusing (IF) system (utilizing an internal Silent Wave Motor); manually via separate focus ring

Shooting distance scale: Graduated in meters and feet from 0.38m (1.5 ft) to infinity ()

Closest focus distance: 0.41m (1.3 ft) from focal plane at 24mm 0.39m (1.2 ft) from focal plane at 28mm 0.38m (1.2 ft) from focal plane at 35mm - 50mm

0.40m (1.3 ft) from focal plane at 70mm

No. of diaphragm blades: 9 pcs. (rounded)

Diaphragm: Fully automatic

Aperture range: f/2.8 - 22

Exposure measurement: Via full-aperture method

Attachment size: 77mm (P = 0.75mm)

Dimensions: Approx. 83mm dia. x 133mm (extension from the camera's lens mount flange)

Weight: Approx. 900g (31.7 oz)

Specifications and designs are subject to change without any notice or obligation on the part of the manufacturer.

En

Nomenclature (): Reference page

Verre Appareil

A

B

C

E

EC-B EC-E

F

G1 G2 G4

G3

J

K

L

M

P

U

F6

◎

◎

—

◎◎

—

◎

—

—

F5+DP-30

◎

◎

○

◎

◎

—

○

◎

—

◎

—

F5+DA-30

◎

◎

○

◎

◎

—

◎

◎

—

◎

—

F4+DP-20

—

◎

◎

—

◎

◎

F4+DA-20

—

◎

◎

—

◎

◎

Brannvidsskala: 24, 28, 35, 50, 70 mm

Avstandsinformation: Utdata till kamerahuset

Zoomkontroll: Manuell via en separat zoomring

Fokusering: Nikons system für internfokusering (IF) (med en intern ultraljudsmotor), manuellt via separat fokusring

Fotocamera Autofocus		Modo di esposizione
		P*1	S	A	M
Fotocamera reflex digitali Nikon (formato FX/DX)	○	○		○	○
F6, F5, F100, series F80, series F75, series F65	○	○		○	○
Pronea 600i, Pronea S*2	○	○		○	○
Serie F4, F90X, series F90, series F70	○	○		⊗	×
Serie F60, series F55, series F50, F-401x, F-401s, F-401	×	○	○	○	○
F-801s, F-801, F-601M	×○○			×	×
F3AF, F-601, F-501, Nikon MF fotocamera (tranne F-601M)	×	×		×	×

Schermo Fotocamera

A

B

C

E

EC-B EC-E

F

G1 G2 G4

G3

J

K

L

M

P

U

F6

◎

◎

—

◎◎

—

◎

—

—

F5+DP-30

◎

◎

○

◎

◎

—

○

◎

—

◎

—

F5+DA-30

◎

◎

○

◎

◎

—

◎

◎

—

◎

—

F4+DP-20

—

◎

◎

—

◎

◎

F4+DA-20

—

◎

◎

—

◎

◎

focale: 24, 28, 35, 50, 70mm

对焦屏 照相机

A

BCE

EC-B EC-E

FJ

G1 G4

βU

F6

◎

◎

-

◎

-

-

-

◎

-

◎

-

F5+DP-30

◎

◎

○

◎

◎

-

○

◎

-

◎

-

F5+DA-30

◎

◎

○

◎

◎

-

◎

◎

-

◎

-

F4+DP-20

-

◎

◎

-

◎

◎

-

◎

F4+DA-20

-

◎

◎

-

◎

◎

-

◎

◎: 最佳对焦
○：可能对焦

聚焦屏 相機

A

B

C

E

EC-B EC-E

F

G1 G2 G4

G3

J

K

L

M

P

U

F6

◎

◎

-

◎

-

-

-

◎

-

◎

-

F5+DP-30

◎

◎

○

◎

◎

-

○

◎

-

◎

-

F5+DA-30

◎

◎

○

◎

◎

-

◎

◎

-

◎

-

F4+DP-20

-

◎

◎

-

◎

◎

-

◎

F4+DA-20

-

◎

◎

-

◎

◎

-

◎

◎：最佳聚焦

：可能聚焦

• RENs HND MaOuTing FsiNsi ① and RENs HND sel KI FsiNsi ( ) 45 to nBnDri Nt Mng Tn Oa hni da.
• Rens Hua He Da Ro Zhao He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He He
  ·欽德則當首/諸首者在經文上是之，其言之，亦有二。
• Renss Hua Hei Hei Hei Hei Hei Hei Hei Hei Hei Hei Hei Hei Hei Hei Hei Hei Hei Hei Hei Hei Hei Hei Hei Hei Hei Hei Hei Hei Hei Hei Hei Hei Hei Hei Hei Hei Hei HEI

■후드름본(B)

RenZ Hua Hei 13

·i I RnZ to sUH a H bNTH h n 100000000000000000000000000000000000000000000000000000000000

• Fréro net à S: Many the precept of and the use of the same kind of thing.

7. 规制玩具店

Focused distance		Depth of field Reproduction ratio
f/2.8	f/4	f/5	6	f/8	f/11	f/2	2	f/16
[f = 24mm]
1.5	1 ft 5-6/16 in.	1 ft 5-3/16 in.	1 ft 4-15/16 in.	1 ft 4-7/16 in.	1 ft 3-15/16 in.	1 ft 3-6/16 in.	1 ft 2-10/16 in.	1/12.43
	1 ft 6-12/16 in.	1 ft 6-15/16 in.	1 ft 7-5/16 in.	1 ft 8-1/16 in.	1 ft 9 in.	1 ft 11-1/16 in.	2 ft 2-6/16 in.
2	1 ft 10-11/16 in.	1 ft 10-5/16 in.	1 ft 9-12/16 in.	1 ft 8-14/16 in.	1 ft 7-15/16 in.	1 ft 6-12/16 in.	1 ft 5-8/16 in.	1/18.58
	2 ft 1-9/16 in.	2 ft 2-3/16 in.	2 ft 3-2/16 in.	2 ft 4-15/16 in.	2 ft 7-9/16 in.	3 ft 1-11/16 in.	4 ft 2-12/16 in.
3	2 ft 8-10/16 in.	2 ft 7-9/16 in.	2 ft 6-4/16 in.	2 ft 4-5/16 in.	2 ft 2-6/16 in.	1 ft 11-14/16 in.	1 ft 9-10/16 in.	1/30.88
	3 ft 4-5/16 in.	3 ft 6-4/16 in.	3 ft 9-10/16 in.	4 ft 3-15/16 in.	5 ft 3-10/16 in.	8 ft 10-1/16 in.	81 ft 9-15/16 in.
5	4 ft 2-3/16 in.	3 ft 11-6/16 in.	3 ft 7-15/16 in.	3 ft 3-12/16 in.	2 ft 11-8/16 in.	2 ft 6-10/16 in.	2 ft 2-8/16 in.	1/55.48
	6 ft 3-8/16 in.	6 ft 11-12/16 in.	8 ft 4-9/16 in.	12 ft 1-13/16 in.	29 ft 10-3/16 in.	∞	∞
∞	21 ft 3-4/16 in.	15 ft 8-3/16 in.	11 ft 4-5/16 in.	8 ft 1-7/16 in.	6 ft 12/16 in.	4 ft 4-1/16 in.	3 ft 3-12/16 in.	1/∞
	∞	∞	∞	∞	∞	∞	∞
[f = 28mm]
1.5	1 ft 5-8/16 in.	1 ft 5-4/16 in.	1 ft 5-1/16 in.	1 ft 4-13/16 in.	1 ft 4-5/16 in.	1 ft 3-12/16 in.	1 ft 3-2/16 in.	1/11.12
	1 ft 6-10/16 in.	1 ft 6-12/16 in.	1 ft 7-1/16 in.	1 ft 7-9/16 in.	1 ft 8-6/16 in.	1 ft 9-12/16 in.	1 ft 11-14/16 in.
2	1 ft 10-15/16 in.	1 ft 10-9/16 in.	1 ft 10-1/16 in.	1 ft 9-6/16 in.	1 ft 8-10/16 in.	1 ft 7-7/16 in.	1 ft 6-6/16 in.	1/16.57
	2 ft 1-3/16 in.	2 ft 1-11/16 in.	2 ft 2-6/16 in.	2 ft 3-12/16 in.	2 ft 5-8/16 in.	2 ft 9-6/16 in.	3 ft 4-3/16 in.
3	2 ft 9-4/16 in.	2 ft 8-6/16 in.	2 ft 7-3/16 in.	2 ft 5-10/16 in.	2 ft 3-13/16 in.	2 ft 1-7/16 in.	1 ft 11-4/16 in.	1/27.45
	3 ft 3-6/16 in.	3 ft 4-13/16 in.	3 ft 7-1/16 in.	3 ft 11-6/16 in.	4 ft 6-4/16 in.	6 ft 15/16 in.	10 ft 11-14/16 in.
5	4 ft 3-15/16 in.	4 ft 1-9/16 in.	3 ft 10-7/16 in.	3 ft 6-10/16 in.	3 ft 2-10/16 in.	2 ft 9-12/16 in.	2 ft 5-6/16 in.	1/49.22
	5 ft 11-8/16 in.	6 ft 5-3/16 in.	7 ft 3-8/16 in.	9 ft 2-6/16 in.	13 ft 11-1/16 in.	150 ft 4-15/16 in.	∞
∞	27 ft	19 ft 10-5/16 in	14 ft 4-1/16 in.	10 ft 2-6/16 in.	7 ft 6-13/16 in.	5 ft 4-7/16 in.	4 ft 12/16 in.	1/∞
	∞	∞	∞	∞	∞	∞	∞

f/2.8 f/4 f/5.6 f/8 f/11 f/16 f/22

[f = 35mm]
1.5	1 ft 5-10/16 in.	1 ft 5-8/16 in.	1 ft 5-6/16 in.	1 ft 5-3/16 in.	1 ft 4-13/16 in.	1 ft 4-5/16 in.	1 ft 3-13/16 in.	1/9.04
	1 ft 6-6/16 in.	1 ft 6-8/16 in.	1 ft 6-12/16 in.	1 ft 7-1/16 in.	1 ft 7-7/16 in.	1 ft 8-4/16 in.	1 ft 9-6/16 in.
2.0	1 ft 11-4/16 in.	1 ft 11-1/16 in.	1 ft 10-11/16 in.	1 ft 10-3/16 in.	1 ft 9-10/16 in.	1 ft 8-12/16 in.	1 ft 7-13/16 in.	1/13.40
	2 ft 12/16 in.	2 ft 1-1/16 in.	2 ft 1-9/16 in.	2 ft 2-4/16 in.	2 ft 3-6/16 in.	2 ft 5-4/16 in.	2 ft 8-3/16 in.
3.0	2 ft 10-3/16 in.	2 ft 9-10/16 in.	2 ft 8-10/16 in.	2 ft 7-7/16 in.	2 ft 6-2/16 in.	2 ft 4-1/16 in.	2 ft 2-3/16 in.	1/22.11
	3 ft 2-1/16 in.	3 ft 3 in.	3 ft 4-5/16 in.	3 ft 6-8/16 in.	3 ft 9-13/16 in.	4 ft 4-13/16 in.	5 ft 5-4/16 in.
5	4 ft 6-8/16 in.	4 ft 4-11/16 in.	4 ft 2-6/16 in.	3 ft 11-3/16 in.	3 ft 7-13/16 in.	3 ft 3-6/16 in.	2 ft 11-3/16 in.	1/39.52
	5 ft 6-15/16 in.	5 ft 9-15/16 in.	6 ft 3 in.	7 ft 8/16 in.	8 ft 4-9/16 in.	12 ft 6 in.	32 ft 9-8/16 in.
∞	41 ft 10-7/16 in.	30 ft 8-8/16 in.	22 ft 1-1/16 in.	15 ft 7-7/16 in.	11 ft 6-2/16 in.	8 ft 15/16 in.	6 ft 4/16 in.	1/∞
	∞	∞	∞	∞	∞	∞	∞
[f = 50mm]
1.5	1 ft 5-14/16 in.	1 ft 5-12/16 in.	1 ft 5-10/16 in.	1 ft 5-8/16 in.	1 ft 5-6/16 in.	1 ft 5-1/16 in.	1 ft 4-13/16 in.	1/6.36
	1 ft 6-4/16 in.	1 ft 6-4/16 in.	1 ft 6-6/16 in.	1 ft 6-8/16 in.	1 ft 6-12/16 in.	1 ft 7-1/16 in.	1 ft 7-9/16 in.
2	1 ft 11-10/16 in.	1 ft 11-8/16 in.	1 ft 11-4/16 in.	1 ft 11-1/16 in.	1 ft 10-11/16 in.	1 ft 10-3/16 in.	1 ft 9-10/16 in.	1/9.41
	2 ft 6/16 in.	2 ft 8/16 in.	2 ft 12/16 in.	2 ft 1-1/16 in.	2 ft 1-9/16 in.	2 ft 2-4/16 in.	2 ft 3-6/16 in.
3	2 ft 11-1/16 in.	2 ft 10-11/16 in.	2 ft 10-3/16 in.	2 ft 9-10/16 in.	2 ft 8-12/16 in.	2 ft 7-7/16 in.	2 ft 6-2/16 in.	1/15.51
	3 ft 15/16 in.	3 ft 1-7/16 in.	3 ft 2-1/16 in.	3 ft 3 in.	3 ft 4-3/16 in.	3 ft 6-10/16 in.	3 ft 9-13/16 in.
5	4 ft 9-2/16 in.	4 ft 8-3/16 in.	4 ft 6-12/16 in.	4 ft 4-13/16 in.	4 ft 2-8/16 in.	3 ft 11-4/16 in.	3 ft 7-15/16 in.	1/27.70
	5 ft 3-4/16 in.	5 ft 4-9/16 in.	5 ft 6-10/16 in.	5 ft 9-13/16 in.	6 ft 2-10/16 in.	7 ft 4/16 in.	8 ft 4-3/16 in.
∞	84 ft 11-1/16 in.	62 ft 1-11/16 in.	44 ft 6-8/16 in.	31 ft 4-1/16 in.	22 ft 11-6/16 in.	15 ft 11-6/16 in.	11 ft 9 in.	1/∞
	∞	∞	∞	∞	∞	∞	∞

f/2.8 f/4 f/5 6 f/8 f/11 f/16 f/22

[f = 70mm]
1.5	1 ft 5-14/16 in.	1 ft 5-14/16 in.	1 ft 5-12/16 in.	1 ft 5-12/16 in.	1 ft 5-10/16 in.	1 ft 5-8/16 in.	1 ft 5-4/16 in.	1/4.59
	1 ft 6-2/16 in.	1 ft 6-2/16 in.	1 ft 6-4/16 in.	1 ft 6-4/16 in.	1 ft 6-6/16 in.	1 ft 6-10/16 in.	1 ft 6-13/16 in.
2	1 ft 11-12/16 in.	1 ft 11-12/16 in.	1 ft 11-10/16 in.	1 ft 11-6/16 in.	1 ft 11-4/16 in.	1 ft 10-15/16 in.	1 ft 10-9/16 in.	1/6.83
	2 ft 4/16 in.	2 ft 4/16 in.	2 ft 6/16 in.	2 ft 10/16 in.	2 ft 13/16 in.	2 ft 1-3/16 in.	2 ft 1-11/16 in.
3	2 ft 11-8/16 in.	2 ft 11-4/16 in.	2 ft 11-1/16 in.	2 ft 10-9/16 in.	2 ft 10-1/16 in.	2 ft 9-6/16 in.	2 ft 8-8/16 in.	1/11.32
	3 ft 10/16 in.	3 ft 12/16 in.	3 ft 1-1/16 in.	3 ft 1-9/16 in.	3 ft 2-3/16 in.	3 ft 3-4/16 in.	3 ft 4-11/16 in.
5	4 ft 10-7/16 in.	4 ft 9-13/16 in.	4 ft 9 in.	4 ft 7-13/16 in.	4 ft 6-8/16 in.	4 ft 4-3/16 in.	4 ft 1-15/16 in.	1/20.31
	5 ft 1-11/16 in.	5 ft 2-6/16 in.	5 ft 3-6/16 in.	5 ft 4-15/16 in.	5 ft 7-1/16 in.	5 ft 10-15/16 in.	6 ft 4-5/16 in.
∞	155 ft 10-15/16 in.	113 ft 11-12/16 in.	81 ft 7-1/16 in.	57 ft 3-10/16 in.	41 ft 10-1/16 in.	28 ft 11-8/16 in.	21 ft 2-12/16 in.	1/∞
	∞	∞	∞	∞	∞	∞	∞

• Due to the optical characteristics of this lens, as the lens is focused closer, the focal length slightly decreases.

En Notice for Customers in Europe

This symbol indicates that electrical and electronic equipment is to be collected separately.

The following apply only to users in European countries: This product is designated for separate collection at a point. Do not dispose of as household waste.

• Separate collection and recycling helps conserve natural resources and prevent negative consequences for human health and the environment that might result from incorrect disposal.

• For more information, contact the retailer or the local authorities in charge of waste management.

m = 311 ;

De

No reproduction in any form of this manual, in whole or in part (except for brief quotation in critical articles or reviews), may be made without written authorization from NIKON CORPORATION.
