Technical Features	BLACK & DECKER UCM7 coffee machine, 1.25 L capacity, 1000 W power, pressure brewing system.
Usage	Easy to use with an intuitive control panel, compatible with ground coffee and pods.
Maintenance and Repair	Easy cleaning thanks to removable parts, washable permanent filter, descaling indicator.
Safety	Automatic shut-off system, overheating protection, non-slip base.
General Information	Compact design, available in several colors, 2-year warranty.

Frequently Asked Questions - UCM7 BLACK & DECKER

How do I descale my BLACK & DECKER UCM7 coffee machine?

To descale your machine, mix a solution of 1 part white vinegar and 2 parts water. Fill the reservoir with this mixture and run a brewing cycle without coffee. Then rinse several times with clear water.

Why won\u0027t my coffee machine turn on?

Check that the machine is properly plugged in and that the outlet is working. Also make sure the water reservoir is in place and filled.

How do I clean the filter of my coffee machine?

Remove the filter and rinse it under hot water. If necessary, use a little mild soap. Make sure it is completely dry before putting it back in place.

My coffee machine is leaking, what should I do?

Check if the water reservoir is properly installed and not damaged. Also ensure the filter holder is correctly in place. If the problem persists, contact customer service.

What type of coffee can be used with the BLACK & DECKER UCM7?

You can use standard ground coffee for filters or compatible pods. Avoid using coffee that is too fine as it may clog the filter.

How do I adjust the coffee strength?

To adjust the strength, change the amount of ground coffee you use relative to the amount of water. The more coffee you add, the stronger the taste.

The machine makes noise, is this normal?

A slight noise during coffee preparation is normal. If the noise is excessive or accompanied by vibrations, check that the machine is on a flat and stable surface.

How do I store my coffee machine when not in use?

Unplug the machine and empty the water reservoir. Store the machine in a dry, cool place, away from dust.

What if the coffee is too cold?

Check that the machine is fully heated before starting the brewing. If the coffee is still cold, it may be necessary to check the heating element.

What is the maximum capacity of the water reservoir?

The water reservoir of the BLACK & DECKER UCM7 has a maximum capacity of 1.25 liters.

USER MANUAL UCM7 BLACK & DECKER

PLEASE READ AND SAVE THIS USE AND CARE BOOK.

Accessories/Parts (USA/Canada)

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

Read all instructions.
Do not touch hot surfaces. Use handle or knobs.
To protect against electric shock, do not place cord, plug or appliance in water or other liquids.
- Close supervision is necessary when any appliance is used by or near children.
Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning the appliance.
- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair, or adjustment. Or, call the appropriate toll-free number on the cover of this manual.
The use of an accessory not evaluated for use with this appliance may cause injury.
Do not use outdoors.
- Do not let cord hang over the edge of table or counter, or touch hot surfaces.
Do not place on or near a hot gas or electric burner or in a heated oven.
- Keep the lid on the carafe when in use.
The carafe is designed for use with the appliance. It must never be used on a range top.
Do not clean the carafe with abrasive cleansers, steel wool, or other abrasives material.
Do not set a hot carafe down on a wet or cold surface.
Do not use the carafe if the glass is cracked or has a loose or weakened handle
Do not use this appliance for other than intended use.
To disconnect, turn any control to off, then remove plug from wall outlet.
Scalding may occur if the lid is removed during the brewing cycles.

POLARIZED PLUG (120V Models Only)

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

ELECTRICAL CORD

a) A short power-supply cord (or detachable power-supply cord) is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
b) Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.
c) If a long detachable power-supply cord or extension cord is used,
1) The marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance,
2) If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord, and
3) The longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over.

Note: If the power supply cord is damaged, it should be replaced by qualified personnel or in Latin America by an authorized service center.

SAVE THESE INSTRUCTIONS.

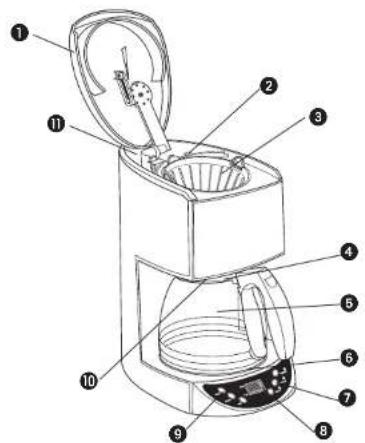

Product may vary slightly from what is illustrated.

1. Water reservoir lid
2. Interior water marker
   † 3. Removable brew basket (inside)
   (Part# UCM7-03)
   † 4. Carafe lid (Part# UCM7-02)
   †5. 10-Cup/30 oz. (t440 ml) carafe (Part+ UCM7-01)
3. Nonstick "Keep Hot" plate

7.1-4 cup brew option
8. LED display
9. Programmable clock timer with auto off
10. Sneak-A-Cup interrupt feature
11. Interior water marker
+Consumer replaceable/removable parts

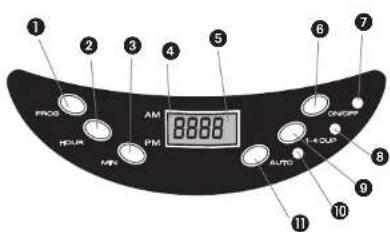

CONTROL PANEL

1.PROG button
2.HOUR button
3. MIN button
4.AM/PM indicator lights
5. Digital clock/timer display
6. ON/OFF button
7. On/Off indicator light
8.1-4 cup brew indicator light
9. 1-4 cup brew button
10.AUTOindicatorlight
11. AUTO button

How to Use

This product is for household use only.

GETTING STARTED

1. Remove all stickers, packing material, and literature.
2. Wash the carafe, carafe lid and brew basket in warm sudsy water—rinse

thoroughly. These parts are also top rack, dishwasher safe.

CLEANING BEFORE FIRST USE

Cycle the unit once with water to help remove any sediment.

1. Open water reservoir lid and pour cold water into water reservoir. Do not overfill (A).
2. Close the reservoir lid.
3. Follow steps (6-8) in "Brewing Coffee" (Do not use ground coffee or a paper filter).
4. When cycle is finished discard water from the carafe.

SETTING THE CLOCK

To set the current time of day:

1. Plug in the coffeemaker. The display indicates 12:00 a.m. until the time is set.
   a. Press the HOUR button until you see the correct time. The left corner of the display indicates A.M./P.M.

b. Press the MIN button to select the correct minutes. The clock is set and will continue to keep correct time.

Note: Unplugging the unit will reset the clock to 12:00.

BREWING COFFEE

You do not have to set the clock or program the coffeemaker to brew coffee.
1. Open water reservoir lid.
2. Use the carafe to fill the water reservoir with cold water to the desired level.
3. Place filter inside paper filter basket and add coffee to be brewed (usually one heaping tablespoon per every cup. Adjust to taste). Replace filter basket. Make sure brew basket is locked in place.
4. Replace empty carafe and be sure it is "seated" in unit.
5. Plug in the coffeemaker.
6. Press ON/OFF button. "On" appears at upper right. (To set timer for AUTO ON, see Setting the Clock/Timer.)
7. If you are brewing less than 4 cups, fill the water tank to the 4-cup level and press the ON/OFF button to begin brewing then press the 1-4 cup brew strength button. A steady light illuminates. The light remains on until the brewing process is completed and the coffeemaker is manually turned off or until it shuts off after 2 hours.
8. If you want a stronger brew for more than 4 cups, prepare filter and water level for desired quantity and press the 1-4 cup brew strength button. Otherwise, if you are brewing more than 4 cups, press the ON/OFF button to begin brewing. The steady ON light illuminates.

Note: The coffeemaker shuts off automatically after 2 hours, or you may press the "ON/OFF" button to instantly turn off the coffeemaker. At any time prior to auto shutoff, pressing the button will reset the auto-off mode to 2 hours.

1. Replace the carafe on the "Keep Hot" plate when not serving to keep coffee hot.

SNEAK-A-CUP 們 INTERRUPT FEATURE

You can pour a cup of coffee while coffee is brewing without leaking from the brew basket.

After pouring coffee, replace the carafe beneath the brew basket to resume the brewing process.

Important: To avoid possible overflow after removing the carafe, be sure to replace the carafe under the brew basket immediately.

Programming the Coffeemaker for Auto Brew

Be sure clock is set for the current time of day. See "SETTING THE CLOCK."

1. To present the coffeemaker to begin brewing, first follow steps (1-5) in "BREWING COFFEE."
2. Press the PROG button then press the HOUR, then MIN buttons until desired brew time is reached. Be sure to watch for the P.M. indicator in the digital display. Press the PROG button, the clock displays the current time of day.
3. Press the AUTO button. The auto light illuminates, indicating the timer is activated.
4. To check your presct auto brewing time, press PROG and view display.
5. To automatically repeat brewing at the same preset auto-on time, prepare your coffeemaker for brewing again and press the AUTO button. The AUTO light illuminates. Press Auto button again, the light will turn off to reset.

Note: The auto-brew function can be cancelled at any time by pressing the ON/OFF button. The AUTO light goes out.

Care and Cleaning

CLEANING YOUR COFFEEMAKER

This product contains no user serviceable parts. Refer service to qualified service personnel.

Caution: The control panel is not waterproof. Do not overexpose the control panel to water. Water may cause permanent damage and make the coffeemaker inoperable.

1. Be sure the unit is unplugged and cooled.
2. Open water reservoir lid.
3. Remove the brew basket by lifting the basket straight up.
4. Discard the paper filter with the grounds.

5. Clean parts as follows:

6. Brew basket, carafe and lid are all top rack dishwasher safe; or they may be hand washed in warm, sudsy water.

7. Wipe the exterior and the "Keep Hot" plate with a soft damp cloth. Do not use abrasive cleansers or scouring pads. Never immerse the coffeemaker in water.

TREAT CARAFE WITH CARE

A damaged carafe may result in possible burns from a hot liquid. To avoid breaking:

• Do not allow all liquid to evaporate from the carafe while on the "Keep Hot" plate or heat the carafe when empty.
  Discard the carafe if damaged in any manner. A chip or crack could result in breakage.
• Never use abrasive scouring pads or cleansers, they will scratch and weaken the glass.
• Do not place the carafe on or near a hot gas or electric burner, in a heated oven, or in a microwave oven.
• Avoid rough handling and sharp blows.

MINERAL DEPOSITS AND CLOGGING

Mineral deposits left by hard water can clog your cofoemaker. Excessive steaming or a prolonged brewing cycle are signs that a cleaning is needed. Cleaning is recommended every 3 months.

1. Open water reservoir lid.
2. Pour white vinegar into the water reservoir up to the 4-cup level on the water window. Add fresh water up to the 6-cup line, and close the reservoir lid.
3. Press brew basket release button to expose brew basket.
4. Put a new paper filter in the brew basket. Set the empty carafe on the "Keep Hot" plate.
5. Turn the coffeemaker on and let half the cleaning solution brew into the carafe.
   Turn the coffeemaker off and let it soak for at least 15 minutes to soften the deposits.
6. Turn the caffeemaker on and brew the remaining cleaning solution into the carafe.
7. When the cleaning solution has finished brewing, discard the paper filter, empty the carafe and rinse with clean water.
8. Refill the reservoir with cold water to the 10-cup line, replace the empty carafe, put a paper filler in the brew basket, then turn on the coffeemaker and run another brew cycle to flush out the remaining cleaning solution.
9. Wash the brew basket and carafe and carafe lid as instructed in "Care and Cleaning."

IMPORTANT MISES EN GARDE

For service, repair or any questions regarding your appliance, call the appropriate "800" number on the cover of this book. Do not return the product to the place of purchase.

Do not mail the product back to the manufacturer nor bring it to a service center. You may also want to consult the website listed on the cover of this manual.

One-Year Limited Warranty

(Appplies only in the United States and Canada)

What does it cover?

• Any defect in material or workmanship; provided; however, Applica's liability will not exceed the purchase price of the product.

For how long?

One year after the date of original purchase.

What will we do to help you?

• Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

• Save your receipt as proof of the date of sale.
• Check our on-line service site at www.prodprotect.com/applica, or call our toll-free number, 1-800-231-9786, for general warranty service.
  If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use
• Damage from misuse, abuse or neglect
• Products that have been modified in any way
• Products used or serviced outside the country of purchase
  Glass parts and other accessory items that are packed with the unit
• Shipping and handling costs associated with the replacement of the unit
• Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

• This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or province to province.

;NECESITA AYUDA?

UCM7Pub1000002294R1 2/27/06 11:01 AM Page 22

Póliza de Garantía

San Jose, Costa Rica

Tel.: [phone]

223-0136

Ecuador

Castelcorp

Km 2-1/2 Avenida Juan T.

Guatemala City, Guatemala

331-5020
461079

360-0521

Honduras

Lady Lee

Centro Comercial Mega Plaza, Mexico

Carretera a la Lima San Pedro, Fuyla, Uruguay

San Pedro Sifa, Ponzolinas Tel: [phone]

Mexico

Authorized Service Center

Electrodomesticos, S.A.

33 Independence Square,

Port of Spain

Trinidad, W.J.

Tel.: [phone]

Venezuela

TecnServicio TS2002

Av. Casanova

R.F.C.AME-001026-PE3.

Col. Centro, Mexico D.F., CP 06050

The lightning symbol refers to "dangerous voltage"; the exclamation symbol refers to maintenance instructions. See below.

WARNING: To reduce the risk of fire or electric shock, do not remove the cover of the coffeemaker. There are no user-serviceable parts inside. Repair should be done by authorized service personnel only.
