Product Type	Two-Cup Coffee Maker
Brand	Black & Decker
Model	DDCM200
Power	120 V, 60 Hz, 750 W
Capacity	2 cups of 473 ml each (max 946 ml)
Included Cups	2 stainless steel thermal cups with lids
Filter	Permanent reusable filter (part DDCM200-02)
Main Functions	Brew one or two cups, cup selector, auto shut-off
Auto Shut-Off	Yes (when cycle is complete)
Indicator Light	Red power indicator light
Removable Parts	Brew baskets, permanent filters, thermal cups, lids, coffee scoop
Cleaning	Cups, lids, filters and baskets in dishwasher (top rack) or by hand
Descaling	With white vinegar (1 part vinegar + 1 part water)
Maintenance	Wipe exterior with damp cloth; do not immerse
Safety	Polarized plug, hot surfaces, do not open during brew cycle
Warranty	1 year limited (USA and Canada)
Service Numbers	1-800-738-0245 (parts), 1-800-231-9786 (warranty)
Country of Origin	People's Republic of China

Frequently Asked Questions - DDCM200 BLACK & DECKER

How to brew a single cup of coffee?

Fill the water reservoir to the 1 MUG level, place the cup on the left side of the appliance, set the selector to 1 MUG, and turn on the appliance.

How to brew two cups of coffee?

Fill the reservoir to the 2 MUGS (MAX) level, place both thermal cups with their lids, set the selector to 2 MUGS, and turn on the appliance.

How much coffee should I use?

We recommend 4 heaping tablespoons of ground coffee per 473 ml cup, but adjust to taste.

How to clean the coffee maker?

Wash cups, lids, permanent filters and brew baskets in the dishwasher (top rack) or in warm soapy water. Wipe exterior with a damp cloth. Never immerse the appliance.

How to descale the coffee maker?

Mix one part white vinegar and one part cold water to the 2 MUGS level. Run a cycle without coffee. Let cool, repeat with the solution, then rinse with clean water.

What to do if water overflows?

Check that you have placed the cup on the correct side and set the selector to the correct number of cups. If you fill to the 2 MUGS level, place one cup on each side and select 2 MUGS.

Why does my coffee maker turn off by itself?

The coffee maker has an auto shut-off that activates at the end of the brew cycle. You can also turn it off manually with the switch.

Can I use cups other than the ones provided?

No, use only the thermal cups provided, as they are designed to fit the base grooves and ensure proper brewing without overflow.

How to replace the permanent filter?

The permanent filter is reusable and cleans itself. If damaged, order part DDCM200-02 from parts service at 1-800-738-0245.

What to do if the appliance does not heat?

Check that the appliance is plugged in and the switch is in the On position. If the problem persists, contact customer service at 1-800-231-9786 (USA/Canada).

USER MANUAL DDCM200 BLACK & DECKER

Please Read and Save this Use and Care Book

Black and silver portable water heater with control panel and buttons (no visible text or symbols)

USA/Canada 1-800-231-9786

Mexico 01-800-714-2503

www.blackanddecker.com

Accessories/Parts (USA/Canada)

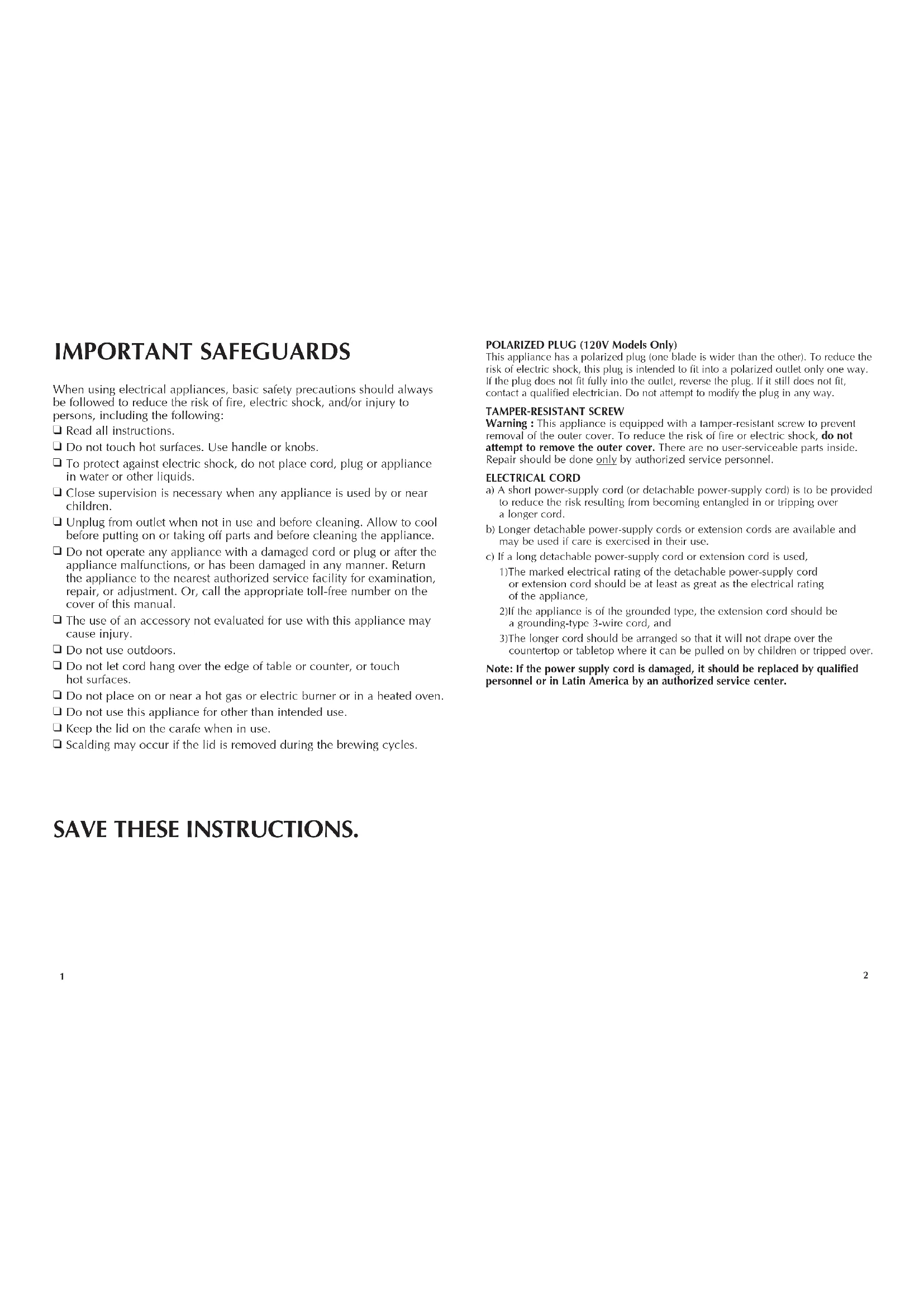

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

Read all instructions.
☐ Do not touch hot surfaces. Use handle or knobs.
☐ To protect against electric shock, do not place cord, plug or appliance in water or other liquids.
☐ Close supervision is necessary when any appliance is used by or near children.
☐ Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning the appliance.
☐ Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair, or adjustment. Or, call the appropriate toll-free number on the cover of this manual.
☐ The use of an accessory not evaluated for use with this appliance may cause injury.
☐ Do not use outdoors.
☐ Do not let cord hang over the edge of table or counter, or touch hot surfaces.
☐ Do not place on or near a hot gas or electric burner or in a heated oven.
☐ Do not use this appliance for other than intended use.
☐ Keep the lid on the carafe when in use.
☐ Scalding may occur if the lid is removed during the brewing cycles.

POLARIZED PLUG (120V Models Only)

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

ELECTRICAL CORD

a) A short power-supply cord (or detachable power-supply cord) is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
b) Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.
c) If a long detachable power-supply cord or extension cord is used,
1) The marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance,
2) If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord, and
3) The longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over.

Note: If the power supply cord is damaged, it should be replaced by qualified personnel or in Latin America by an authorized service center.

SAVE THESE INSTRUCTIONS.

Thank you for purchasing our new Dual Coffeemaker, the simple and easy way to enjoy your favorite cup of coffee on the go. Its innovative design will let you easily make your choice of coffee or personalize your cup of coffee and brew it directly into one or two 16-ounce thermal stainless steel mugs that fit most car cup holders.

Product may vary slightly from what is illustrated.

Technical diagram of a portable air conditioner with numbered parts labeled for identification.

† 1 . Brew basket (Part# DDCM200-01)
† 2 . P ermanent filter (Part# DDCM200-02)
3. MUG selector
4. Water reservoir
5. Water reservoir cover
6. Water window with mug level markings
† 7 . T hermal mug (Part#DDCM200-03)
8. One-mug only position (left side of unit)
+ 9 . Thermal mug lid (Part#DDCM200-04)
10. On/Off (1/0) switch
†11. Coffee measure (Part#DDCM200-05)
† Consumer replaceable/removables parts

How to Use

This product is for household use only.

GETTING STARTED

1. Remove all packing materials and literature.
2. Wash thermal mugs, mug lids, permanent filters and brew baskets in the dishwasher (top rack) or by hand with warm soapy water. Rinse and dry all parts.
3. Place unit on a flat surface.

BEFORE BREWING COFFEE

Cycle the unit once with water only to help remove any sediment.

1. Open water reservoir cover (A).

1. Fill water reservoir up to the 2 MUGS (MAX) level (32 ounces) (B). DO NOT FILL PAST THE 2 MUGS (MAX) LEVEL.

IMPORTANT:

a. If brewing one mug only:

- Make sure to fill with water up to the 1 MUG level ONLY.

• Place mug on the left side.
• Set MUG selector to 1 MUG.

b. If you fill up to the 2 MUGS (MAX) level with mug on the wrong side and mug selector on the wrong setting, it will cause water to over flow.

1. Close water reservoir cover.

1. To open brew basket, grasp small handle and swing open (C).

1. Insert permanent filter into brew basket (D).

1. Close brew basket by pushing toward the unit until it clicks into place (E).

1. Place both thermal mugs in position with lids tightly closed. The ridges on the base indicate exactly where to position the mugs (F).

Important: To ensure that water brews right into the mug, make sure you place the mug inside the ridges.

1. Select the 2 MUGS setting (G).

1. Plug unit into electric wall outlet and press On/Off switch to On position (H). Indicator light illuminates red.

2. When brewing cycle is finished, press On/Off switch to Off position. If not, unit will shut off automatically.

3. Discard water from mugs.

BREWING COFFEE

1. Turn unit Off.

2. Wait for unit to cool.

3. To open brew basket, grasp small handle and swing open (refer to fig. C).

4. Insert permanent filter into brew basket (refer to fig. D).

1. Add desired amount of coffee depending on whether you are making one or two mugs of coffee. We recommend 4 tablespoons for every 16-oz. mug (J), but you can use more or less coffee to suit your taste.

2. Close brew basket by pushing inward until it clicks in place (refer to fig. E).

3. Open water reservoir cover and fill with water up to the appropriate marking depending on amount of coffee you are making.

Tip: Use less water for brewing if you will be adding milk or cream.

CAUTION:

a. If brewing one mug only:

• Make sure to fill with water up to the 1 MUG level ONLY.
• Place mug on the left side.
• Set MUG selector to 1 MUG.

b. If you fill up to the 2 MUGS (MAX) level with mug on the wrong side and mug selector on the wrong setting, it will cause water to over flow.

1. Close the water reservoir cover.
2. Place mug with lid tightly closed inside the base ridges (refer to fig. F). The ridges on the base indicate exactly where to position the mugs.

Important: You must position the mug inside the ridges to ensure coffee brews right into the mug and avoid an overflow.

1. If you want to brew only one mug, you must place mug on left side of unit. THIS SIDE IS FOR JUST ONE MUG SERVING. If you place the mug on the wrong side, it will cause an overflow.

1. Select number of mugs to brew by moving the selector to 2 MUGS or 1 MUG setting (K).
2. Make sure unit is plugged into electrical outlet.
3. Press On/Off switch to On position. Indicator light illuminates red.
4. Once brewing cycle is finished, press On/Off switch

to Off. If not, unit will shut off automatically.

Coffee is Ready to Go!

CAUTION: To remove thermal mug, always grasp it by the anti-slip rubber grip.

Care and Cleaning

This appliance contains no user-serviceable parts. Refer service to qualified service personnel.

CLEANING

1. Be sure the unit is turned off, unplugged and is cool.
2. Grasp small handle on brew basket and swing open.
3. To remove brew basket, pull out pivoting hinge from brew basket holder (L).

1. To replace, insert pivoting hinge into brew basket holder (M).
2. Remove permanent filter and discard coffee grounds.

3. Wash thermal mugs, mug lids, permanent filters and brew baskets in the dishwasher (top rack) or by hand with warm soapy water. Rinse and dry all parts.

4. Wipe the exterior of the unit with a soft damp cloth. Do not use abrasive cleaners or scouring pads.

5. Do not clean the water reservoir with a cloth as it can leave lint residue inside the reservoir.
6. Never immerse the unit in water.

Mineral deposits left by hard water can clog your coffeemaker. For best results, clean your unit frequently.

1. Open the water reservoir cover and pour one part white vinegar to one part cold into the water reservoir up to the 1 MUG level on the water window. Add cold water up to the 2 MUGS (MAX) level.

IMPORTANT: DO NOT FILL PAST THE 2 MUGS (MAX) LEVEL. THIS WILL CAUSE AN OVERFLOW.

1. Using the small handle on the brew basket, swing open.
2. Insert permanent filters into brew baskets. Push brew baskets inward to close.
3. Place the covered empty thermal mugs in position on the base.
4. Select the 2 MUGS setting.
5. Plug unit into an electrical outlet.
6. Press the ON/OFF (1/0) switch to On position. Indicator light illuminates red.
7. Let the vinegar solution brew until the thermal mugs are half full.

8. Turn off the unit and let it cool for about 30 minutes.

9. Now pour water and vinegar solution from the mugs into the water reservoir.

10. Place empty, covered thermal mugs on the base.

11. Turn unit on again and let the water and vinegar solution brew back into thermal mugs.

12. Discard solution in the thermal mugs.

13. Allow unit to cool for about 15 minutes and refill water reservoir with cold water up to the 2 MUGS mark.

14. Place the empty, covered thermal mugs on the base, turn on the unit and run another brew cycle to rinse out any remaining vinegar solution.

15. Once brew cycle is finished, turn off the unit and let it cool.

16. Wash brew baskets and permanent filters as instructed in "Cleaning."

Technical diagram of a coffee maker with numbered parts and labeled components

For service, repair or any questions regarding your appliance, call the appropriate "800" number on the cover of this book. Do not return the product to the place of purchase.

Do not mail the product back to the manufacturer nor bring it to a service center. You may also want to consult the website listed on the cover of this manual.

One-Year Limited Warranty

(Applies only in the United States and Canada)

What does it cover?

- Any defect in material or workmanship; provided; however, Applica's liability will not exceed the purchase price of the product.

For how long?

• One year after the date of original purchase.

What will we do to help you?

- Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

• Save your receipt as proof of the date of sale.
• Check our on-line service site at www.prodprotect.com/applica, or call our toll-free number, 1-800-231-9786, for general warranty service.
• If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use
• Damage from misuse, abuse or neglect
- Products that have been modified in any way
- Products used or serviced outside the country of purchase
- Glass parts and other accessory items that are packed with the unit
- Shipping and handling costs associated with the replacement of the unit
- Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

- This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or province to province.
