USER MANUAL LVI 980 AUS ROSIERES

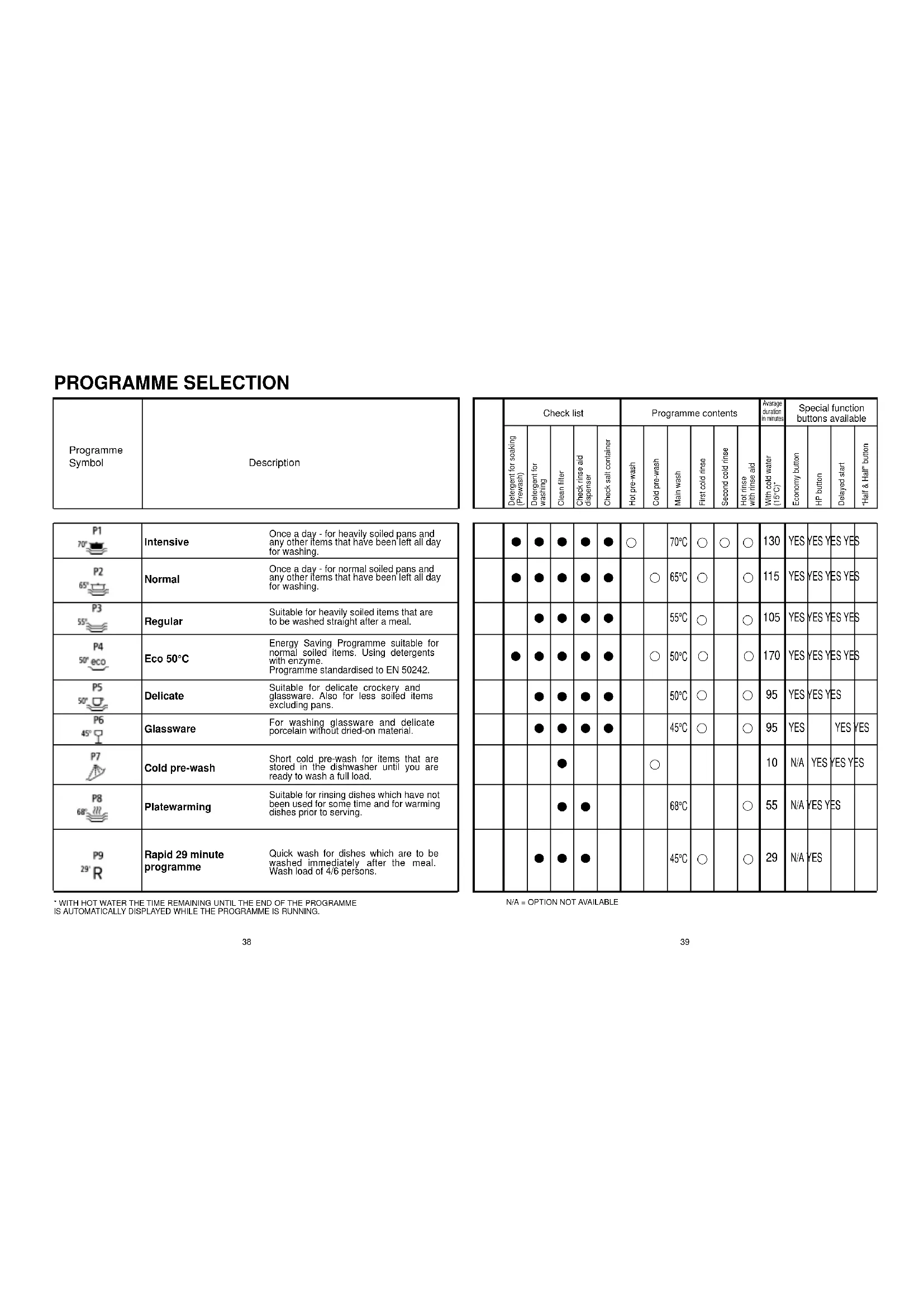

Once a day - for heavily soiled pans and any other items that have been left all day for washing. Once a day - for normal soiled pans and any other items that have been left all day for washing. Suitable for heavily soiled items that are to be washed straight after a meal. Energy Saving Programme suitable for normal soiled items. Using detergents with enzyme. Programme standardised to EN 50242. Suitable for delicate crockery and glassware. Also for less soiled items excluding pans. For washing glassware and delicate porcelain without dried-on material. Short cold pre-wash for items that are stored in the dishwasher until you are ready to wash a full load. Suitable for rinsing dishes which have not been used for some time and for warming dishes prior to serving. Quick wash for dishes which are to be washed immediately after the meal. Wash load of 4/6 persons. 70°C

N/A = OPTION NOT AVAILABLE

• •4140 Operating the programmes and special functions Use in conjunction with programme guide Setting a programme Open the door press the button; the last programme selected will appear on the display. To set a new programme, press the Programme Selection Button "P". When the required programme is shown in the display, press the button. The time of the selected programme (in hours and minutes) will start to flash in the display. Close the door and after an audible signal has sounded (if it has not been deactivated) the programme will start automatically. HALF & HALF Button To ensure that your dishwasher meets all your requirements, the “HALF & HALF” option button allows you to select: Half Load Top Basket By selecting this option Dishes are washed in the top basket and cutlery in lower basket Half Load Lower Basket By selecting this option Dishes are washed in the lower basket only. Simultaneous Washing By Selecting this option Dishes are washed in the top and lower basket. This option reduces washing times in relation to full programme. (Please note that selecting the (c) option no other option button can be selected, except for ,P and buttons. HP button Your dishwasher is fitted with a two speed motor. By pressing the Button, the motor operates at a higher speed which will result in higher water pressure, to attack the dirt. The option is particularly suitable for washing pans, pots and heavily soiled crockery. Please Note: This option must be selected before pressing the button. Economy button The "E" button reduces the temperature of the water during the last rinse, provides an energy saving of more than 20% and shortens the cycle. Recommended for evening washes when the dishes are not required perfectly dry, straight away. Interrupting a programme It is not recommended that the door be opened while a programme is running, and especially not during the main wash phase and final drying. However, the appliance will stop automatically when the door is opened. At this point the various wash options can be programmed or cancelled. The current program- me can also be cancelled. If, the door is opened during a programme, the symbol for that programme will flash in the display and the machine stops. Please Note: If you open the door during the drying cycle an audible audio signal advises you that the drying cycle has not yet completed. To restart the machine, press the button and the time remaining for the programme will flash. Now close the door. If you wish to cancel or change a programme that is running, carry out the following: open the door keep the button pressed in until the number of the programme stops flashing. A new programme can now be set. NB: If, on pressing the button the symbol "00" starts to flash on the display, it means that there is water in the machine. Close the door to allow the water to be discharged and wait for the audible signal, after which the new programme can be set. Before starting a new programme, you should check that there is still detergent in the dispenser. If necessary, top up the dispenser. End of programme The end of the programme is indicated by an audible signal (if it has not been deactivated). When the door is opened the number of the programme that has just finished will appear on the display. Important: If the programme shown in the display starts to flash and the machine will not let any more programmes be selected, press the button and keep this button pressed until the display stops flashing. Delay Start programme button To set the delay start programme press the button. On the first press the current setting appears on the display. Each time the button is pressed the delayed time in one hour increments increases, up to a maximum of 19 hours. Once set, wait until the selected time is confirmed when it appears in the display. Press the button to start the countdown. If the countdown has not already been activated, the delay start can be cancelled by pressing the button until the selected programme appears on the display. The delay start can be cancelled at any time simply by keeping the button pressed in until the required wash cycle appears on the display. If you wish to see which programme has been selected, press the "Programme Selection" button (P). NB: If the door is opened during the countdown, for example to select one of the options (or to add more dishes), the button should be pressed before closing the door again, in order to restart the countdown. Activating and deactivating the audible signal The audible signal function can be deactivated in the following way: keep the Programme Selection Button (P) pressed in for a few seconds and at the same time press the stop/start button ; if the symbol "b1" appears on the display the audible signal is activated. Press the programme selection button (P) again and the symbol "b0" will appear which means that the audible signal has been deactivated. An audible signal sounds to indicate that the setting has been stored in memory. Attention This dishwasher is equipped with an anti-overflow safety device which works even when power is off, and if the water level is too high, the supply will automatically be closed off. Important To ensure the correct operation of the anti-overflow safety device, it is recommended not to move or to tilt the dishwasher during operation. If it is necessary to move or to tilt the dishwasher, first make sure the washing cycle is finished and that no water is left in the tank. Display shows E1. Display shows E2. Display shows E3. Display shows E4. Display shows E5.

PROBLEM CAUSE REMEDY

The Dishwasher is able to self-assess a number of problems. The problem will be illustrated in the display window and by an audible signal. Water supply switched off. Problem with electronic temperature control. The Water Heater Element does not work properly or the filter mesh is blocked. The appliance does not discharge water. Problem with electronic load device. Switch off appliance. Turn on water supply. Reset the cycle. Call Service for assistance. Clean the Filter Mesh and if the problem continues please contact Service. Check :

• That the discharge hose is not bent

• Syphon is not blocked

• Filters are not blocked Call Service for assistance.

c)43 INSTALLATION (Technical notes) Important: when the appliance location is on carpet floors, attention must be paid so as to ensure that there is no obstruction to the bottom vents. Make sure that the plug on the appliance remains accessible after installation. This appliance complies with Directives 89/336/EEC, 73/23/EEC and following changes. Electrical connection This appliance complies with all the international safety standards and is fitted with a 3 pin plug with earth connection to ensure complete earthing of the product. In the absence of adequate earthing you will notice that when touching the metal parts of your appliance an electrical dispersion can be felt due to the presence of a radio interference suppressor. Before connecting the appliance to the mains supply it is important to ensure: – That the supply socket is properly earthed. – That your electricity supply is capable of meeting the consumption requirements listed on the rating plate of your appliance. Important: manufacturer declines all responsibility for any damages due to nonearthing of the machine. For U.K. only Plug your dishwasher into the power socket. If the plug we supply does not fit

• CUT IT OFF AND DESTROY IT! You can't use it on other appliances, and the exposed wires could be dangerous if anyone plugged it in.

• Fit a suitable plug, as follows: Connect to the terminal in the pluggreen and yellow wire marked with the letter E,OR marked with the Earth symbol,OR coloured green,OR coloured green and yellow.blue wire marked NOR coloured black.brown wire marked LOR coloured red. “WARNING”

THIS APPLIANCE MUST BE EARTHED

Fuses and plugs This appliance should be used only on a socket with a minimum rating of 13 Amp. Our ready-fitted plug is already equipped with a 13 amp fuse which is BS 1362 ASTA approved. Any replacement should be exactly the same. If the fuse cover is lost, do not use the plug until it is replaced. A correct replacement fuse cover (obtainable from your dealer or Electricity Board) must be the same colour as shown or named on the insert on the base of the plug.

Safety Instructions Please read the instructions in this booklet carefully because they contain important information on how to install, use and maintain your dishwasher safely as well as containing useful tips on how to make the most of it. Keep this booklet carefully for future reference. There are certain basic safety rules which are valid for any domestic appliance. They are the following: - never touch the appliance when your hands or feet are wet or damp - do not use it when your feet are bare - do not remove the plug from the mains supply socket by pulling the mains cable or the machine itself - do not leave the appliance exposed to the elements (rain, sun etc) - do not let children (or others incapable of operating it) use the machine without supervision - make sure that the plug fitted to the machine is compatible with the power supply socket. If it is not, get a suitably qualified person to fit the correct type, and to make sure that the cables to the mains socket are able to cope with the power rating of the appliance - ensure that the dishwasher does not crush power cables - if there is a water softening device installed in the home there is no need to add salt to the water softener fitted in the dishwasher - the dishwasher is designed for normal kitchen utensils. Objects that have been contamined by petrol, paint, traces of steel or iron, corrosive chemicals, acids or alkalis must not be washed in the dishwasher - if you wish to dispose of an old dishwasher be careful to remove the door to eliminate the risk of children becoming trapped inside it - the dishwasher has been made from materials which can be recycled so that it can be disposed of in an environmentally friendly way - in general it is not advisable to use adaptors, multiple plugs and/or extension cables - Water left in the machine or on the dishes at the end of the wash programme should not be drunk. - Leaning or sitting on the open door of the dishwasher could cause it to tip over. - Cutlery is washed best if it is placed in the basket with the handles downwards; however, to avoid any injury from blades or sharp points, it can be placed with the handles upwards. - Should it be necessary the replacement of the supply cord, call the Service Department. - This appliance should only designed for domestic use. If the appliance breaks down or stops working properly, switch it off, turn off the water supply and do not tamper with it. Repair work should only be carried out by an approved service agent and only genuine spare parts should be fitted. Any failure to follow the above advice may have serious consequences for the safety of the appliance. The waterblock system has been designed to improve the safety of your appliance, particularly when the machine is left unattended. The waterblock system actually prevents flooding which might be caused by a machine malfunction or as a result of a fracture on the pipes. How does waterblock work The sump located in the base of the appliance collects any possible water leakage and operates a sensor which subsequently activates a valve placed under the water tap and stops any water from the supply even with the tap fully opened. If the box containing the electrical parts is damaged, remove the plug from the socket immediately. The waterblock system

Fig. 1 To ensure perfect operation of the safety system, box “A” with the hose, should be connected to the tap as shown in Figure “1”. The inlet hose should not be cut, as it contains parts under load. If the hose is not long enough for correct connection, it must be replaced with a longer one. The hose can be obtained from your Service Agent.45 Water softener unit According to the source of the supply, water contains varying amounts of limestone and minerals which are deposited on the dishes leaving whitish stains and marks. The higher the level of these minerals present in the water, the harder the water is. The dishwasher is fitted with a water softener unit which, through the use of special regenerating salt, supplies softened water for washing the dishes. The degree of hardness of your water can be obtained from your water supply company. Regulating the water softener with electronic programmer The water softener can treat water with a hardness level of up to 90°fH (French grading) or 50°dH (German grading) through 8 settings. The settings are listed in the table below: The softener unit is set in the factory at level 4 (D4) as this satisfies the requirements of the majority of users. Regulate the setting of your water softener unit according to the degree of hardness of your water as follows: open the door, keep the delay start button pressed in and at the same time press the stop/start button . The factory setting "D4" will appear on the display. To change the setting, press the delay start button . Each time you press that button the setting will increase by one level. When you have reached "D7", the display will go back to "D1". When the required setting appears on the display, wait for an audible signal to confirm that the new setting has been stored in memory. Loading the salt The dishwasher is fitted with a softener which clears the water of lime which could cause scale and damage the dishwasher. On the bottom of the machine there is a container for the salt for regenerating the softener (fig. A1). The filter medium of the softening plant must be reactivated with dishwasher water softener regenerating salt. Other types of salt contain small quantities of insoluble particles which over a long period of time may affect and deteriorate the softener performance. To add salt, unscrew the cap of the container on the bottom and then refill the container (fig. 8). During this operation a little water will overflow; but keep adding salt until the container is full. When the container is full, clean the thread of salt residue and retighten the tap. If the dishwasher is not required straightaway, set the Prewash programme so that the salt solution which has overflowed is discharged from the washing tank. The salt dispenser has a capacity of between

1.5 and 1.8 kg and, for efficient use of the

appliance, it should be refilled from time to time according to the regulation of the water softener unit. Salt loading indicator This model is provided with an electric light on the control panel which lights up when it is necessary to reload the salt container. Important: the appearance of white stains on dishes is generally an important sign that the salt container needs filling.

Water connection The inlet and drain hoses can be directed to left or right. The dishwasher can be connected to either cold or hot water, as long as it is no hotter than 60 °C. Water pressure must be between 0,08 MPa and 0,8 MPa. If the pressure is below the minimum consult our service department for advice. The inlet hose must be connected to a tap so that the water supply can be cut off when the machine is not in use (fig.1 B). The dishwasher is fitted with 3/4" threaded connector (fig. 2). Connect inlet hose A to water tap B with a 3/4" attachment making sure that it has been properly tightened. If it is necessary to lengthen the inlet pipe, an extension pipe can be fitted. If limescale deposits or sand are present in the water, it is advisable to obtain the appropriate filter, art. 9226085, from the Service Centre (fig. 3). The filter D must be inserted between the tap B and the inlet hose A, remembering to fit the washer C. If the dishwasher is connected to new pipes or to pipes which have not been in use for a long time run water through for a few minutes before connecting the inlet hose. In this way no deposits of sand or rust will clog up the water inflow filter. Connecting the outlet hose The outlet hose should disharge into a standpipe, making sure that there are no kinks (fig. 4). The standpipe must be at least 40 cm above floor level and it must have an internal diameter of at least 4 cm. It is advisable to fit an anti-odour air trap (fig. 4 x). If necessary the outlet hose can be extended up to 2,6 m, provided that it is kept at a maximum height of 85 cm above floor level. The hose can be hooked over the side of the sink (it must not be immersed in water, in order to prevent water from being syphoned back to the machine when this is in operation) (fig. 4 y). When installing the appliance under a worktop the hose pipe clamp must be attached to the wall in the highest possible position under the worktop (fig. 4 z). Check that there are no kinks in the inlet and outlet hoses. Installation in fitted kitchens Please refer to the technical notes for fitted kitchen Opening the door If the machine comes open while it is working, an electrical safety device automatically switches everything off. For the machine to work properly, the door should not be opened while it is in opera- tion. Closing the door Place the baskets in the machine. Make sure that both the spray arms are free to rotate and are not obstructed by cutlery, crockery or pans. Close the door, pressing on it to make sure it is firmly shut. Level

YES YES YES YES YES YES YES Water softener setting

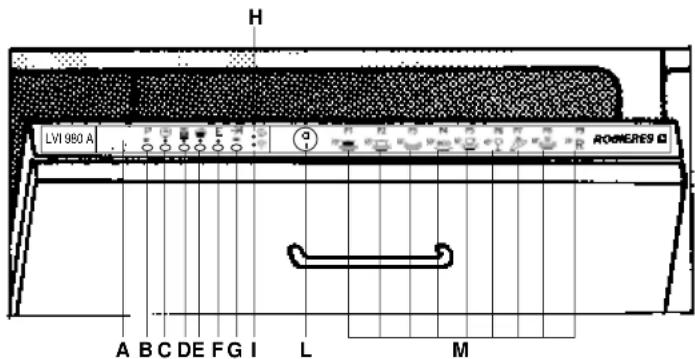

DISPLAY START DELAY BUTTON STOP/START BUTTON47 Upper basket (Fig. 14) A = soup plates B = dinner plates C = dessert plates D = saucers E = cups F = glasses with stems G = glasses H = single section cutlery basket Lower basket (Fig. 15) A = medium-sized saucepan B = large saucepan C = frying pan D = lids E = tureens, serving dishes F = cutlery G = oven dishes Please load the dishwasher sensibly to ensure the best wash results. 12 international place load (Ref. EN 50242). Correct loading for the upper basket is indicated in Fig. 16 and for the lower basket in Fig. 17. Fig. 22 cutlery basket . Upper basket (Fig. 16) A = 5 + 5 + 2 glasses B = 12 saucers C = 4 + 4 + 4 cups D = small bowl E = medium bowl F = large bowl G = 1 + 1 forks H = 1 + 1 serving spoons I = 3 + 3 + 3 + 3 dessert spoons L = 3 + 3 + 3 + 3 teaspoons Lower basket (Fig. 17) M = 8 + 4 soup plates N = 11 + 1 dinner plates O = 12 dessert plates P = serving dish Q = cutlery Cutlery basket (fig. 22) Place the side racks in the lower position and fill with 6 + 6 knives(R); in the spaces left insert cutlery with the handles down. Take care not to load more than two different types of cutlery in the same compartment. Cutlery basket (fig. 23) The cutlery basket is made with two detachable parts which will enable various loading options. The two parts can be detached by sliding the left section away from the right section. Removable section (fig. 24) The lower basket has two rows of racks at the front that can be lowered in a very simple and rapid way to allow easier loading of salad bowls, saucepans and lids. TO LOWER THE RACKS :

1) Lift the racks slightly upward and let them

drop to the correct position;

2) Lifting again is enough them to bring them

to a vertical position. Half load wash upper basket 1/2 mixed load (fig. 18) A = glasses B = cups C = soup plates D = dinner plates E = dessert plates F = saucers G = saucepan H = lid I = Irying pan L = medium bowl M = small bowl Place the cutlery in the plastic cutlery holder on the lower basket. Half load wash lower basket Lower basket (Fig. 15) A = medium-sized saucepan B = large saucepan C = frying pan D = lids E = tureens, serving dishes F = cutlery G = oven dishes Please load the dishwasher sensibly to ensure the best wash results. Information for the test laboratories. General programme comparison (see programmes selection) Ref. EN 50242 Standards:

4) Amount of detergent:

– 3 gr for pre-wash – 27 gr for wash. Adjustment of the upper basket If 27 cm to 31 cm plates are normally used, load them onto the lower basket after the upper basket has been placed in its upper position and proceed as follows:

1) Pull out the upper basket;

2) Then grasp the basket from both sides and

lift it upwards (fig. 20). Dishes that are bigger than 20 cm in diameter can no longer be loaded onto the upper basket and the mobile supports cannot be used when the basket is in the upper position.

1) Grasp the basket from both sides and lift

slightly upwards (fig. 21a);

2) Then slowly release into the correct position

(fig. 21b) . N. B. : NEVER LIFT OR LOWER THE BASKET BY ONE SIDE ONLY (fig.21/1). Attention : It is advisable to adjust the basket before loading the dishes. Loading dishes To load dishes For good wash performance remove any debris from the dishes (bones, tooth picks, the remains of meat and vegetables) to avoid blocking the filters, water outlet and washing arm nozzles and, as a result, reducing washing efficiency. Try not to rinse the dishes before loading them into the dishwasher. If saucepans and oven dishes are encrusted with the remains of burnt or roast food, it is advisable to leave them to soak before washing. Using the upper basket The upper basket is provided with mobile racks hooked to the sides of the basket which can be regulated in two positions: upright and lowered. In the lowered position the racks may be used for tea and coffee cups, kitchen knives and ladles. Glasses with stems may be safely hung on the ends of the racks. Glasses, cups, saucers and dessert plates may be loaded under the racks. Soup plates and ordinary plates may be loaded with the rack in the upright position. Plates should be loaded vertically with the bottom of the plate towards the back of the dishwasher with a space between each plate to allow water to pass freely. It is advisable to load plates of the same size together in order to utilize maximum basket capacity. Plates may be loaded in a single row (Fig. 13) or on both rows (Fig. 14). It is advisable to load large plates (approx. 270 mm) slightly tilted towards the rear to facilitate introduction of the basket into the machine. Salad bowls and plastic bowls may also be loaded on the upper basket. It is advisable to block these in place so that the jets of water do not make them overturn. The upper basket has been designed to offer maximum flexibility in use and can be loaded with up to 24 plates on two rows, up to 30 glasses on five rows or a mixed load. Using the lower basket Saucepans, oven dishes, tureens, salad bowls, lids, serving dishes, dinner plates, soup plates and ladles can be loaded on the lower basket. Place the cutlery in the plastic cutlery holder with the handles pointing upwards. Place the cutlery holder on the lower basket (fig. 15), making sure that the cutlery does not get in the way of the rotating arms. A standard daily load is represented in Figs. 13, 14 and 15. Upper basket (Fig. 13) A = soup plates B = dinner plates C = dessert plates D = saucers E = cups F = glasses

1/2 load standard (fig. 19) A = 6 glasses B = 5 + 1 cups C = serving dish D = 6 soup plates E = 6 dinner plates F = 6 dessert plates G = 6 saucers H = medium bowl I = small bowl Lower basket (Fig. 17) M = 8 + 4 soup plates N = 11 + 1 dinner plates O = 12 dessert plates P = serving dish Q = cutlery49 To achieve excellent results every time, the filters should be checked and cleaned after each wash. To remove the filter unit, simply turn the handle anticlockwise (fig. 5). For ease of cleaning, the central container is removable (fig. 6). Remove the gauze filter (fig. 7) and wash the whole unit under a jet of water. If necessary a small brush can be used. With the Self-cleaning Micro filter, maintenance is reduced and the filter unit need only be checked every two weeks. Nevertheless, after each wash it is advisable to check that the central container and the gauze filter are not clogged. NB: after cleaning the filters, make sure that they are correctly reassembled and that the gauze filter is properly positioned at the bottom of the dishwasher. Make sure that the filter is screwed back, clockwise, into the gauze, as poor seating of the filter unit could have an adverse effect on the efficiency of the appliance.

Warning: never use the dishwasher without

the filters. Practical hints Selecting the programme This dishwasher offers you a wide range of wash programmes so that you can choose the most suitable according to the type of dishes and how dirty they are. Refer to the PROGRAMME LIST to choose the most suitable programme. Useful hints In order to avoid any dripping from the top rack, remove the lower rack first. If the dishes are to be left in the machine for some time, leave the door ajar, to let some air circulate and to improve the drying performance. How to make SAVINGS

1) If you want the dishwasher to give a

complete wash, place the dishes in the dishwasher at the end of each meal and if necessary turn on the COLD PRE-WASH cycle to soften the food remains and remove bigger particles of food from the new load of dishes. When the dishwasher is full start the complete wash cycle programme.

2) If the dishes are not very dirty or if the

baskets are not very full select an ECONOMY programme, following the instructions in the program list. How to get really good wash RESULTS

1) Place the dishes face downwards.

2) Try to place the dishes in such a way that

they are not touching one another. If they are loaded properly you will get better results.

3) Before placing the dishes in the dishwasher

remove any remaining food (bones, shells, pieces of meat or vegetables, coffee grounds, skin of fruit, cigarette ash etc. that could clog up the outflow and the washing arm jets.

4) After loading the dishes check that the

washing arms can rotate freely.

5) Pans and other dishes that have particularly

stubborn food particles or remnants of burnt food should be left to soak in water with dishwasher detergent.

6) To wash silver properly:

a) rinse the silver immediately after use, especially if it has been used for mayonnaise, eggs, fish etc. b) do not sprinkle detergent onto it c) keep it separate from other metals What to DO if

1) You want to stop the dishwasher to put in

more dishes whilst it is in the middle of a wash. Open the door only after pressing the O/I button so that the dishwasher is in OFF. After closing the door, wait 3 minutes before starting up the machine again. What not to wash It should also be remembered that not all dishes are suitable for washing in a dishwasher. We advise against using the dishwasher to wash items in thermoplastic, cutlery with wooden or plastic handles, saucepans with wooden handles, items in aluminium, crystal, leaded glass unless otherwise stated. Certain decorations may fade. It is therefore a good idea before loading the whole batch to wash just one of the items first so as to be sure that others like it will not fade. It is also a good idea not to put silver cutlery with non-stainless steel handles into the dishwasher as there could be a chemical reaction between them. IMPORTANT When buying new crockery or cutlery always make sure that they are suitable for washing in a dishwasher.

Loading the detergent and the rinse aid. Filling the detergent container It is essential to use a detergent that is specifically designed for dishwashers either in powder, liquid or tablet form. Unsuitable detergents (like those for washing up by hand) do not contain the proper ingredients for use in a dishwasher and stop the dishwasher from working correctly. Normal wash The detergent container is inside the door (fig. A “2”). If the lid of the container is closed it is sufficient to press the button to open. At the end of every wash cycle the lid is always open and ready for the next time the dishwasher is used. The amount of detergent to be used varies according to how dirty the dishes to be washed are and on the type of dishes to be washed.We advise using 20-30 gr of detergent in the wash section of detergent compartment 1 (Fig.9). After pouring the detergent into the con- tainer close the lid. Since not all detergents are the same the instructions on the boxes of detergent can vary. We should just like to remind users that too little detergent does not clean the dishes properly whilst too much detergent not only does not produce better results but is also a waste. Do not use an excessive amount of detergent help limit damage to the environment at the same time. Wash with soaking cycle (prewash) If setting the intensive wash programme, a second dose of about 20 gr of detergent (1 table-spoon) must be added to the machine in the prewash section of detergent compartment 2 (Fig.10). For normal programme add 5 gr. This dose should be placed directly in the prewash section of detergent compartment 2. Filling the rinse aid container The rinse aid container can be found to the right of the detergent container: it has a capacity of about 130 ml (Fig A "3"). Turn the cap (B) anticlockwise and pour enough liquid will last several washes, up to the maximum level shown (Fig.11). Replace the cap. The rinse aid, which is automatically released during the last rinsing cycle, helps the dishes to dry quickly and prevents spots and stains forming. It is always advisable to use rinse aid. Check the rinse aid level through the indicator eye which is situated in the centre of the dispenser (A). FULL EMPTY dark light Regulating the rinse aid from 1 to 6 The regulator is placed under the cap (B) and can be turned using a coin. The recommended position is 3 (Fig.12). The limestone content of the water considerably affects the formation of scale and the drying performance. It is therefore important to regulate the quantity of rinse aid to achieve good washing results. If, after the wash, streaks occur on the dishes, decrease the amount by one position. If whitish spots occur, increase the amount by one position. Cleaning the filters The filter system (fig.A “4”) consists of: a central container that traps the larger particles. a flat gauze that continuously filters the wash water a micro filter, located beneath the gauze, that traps the tiniest particles ensuring a perfect rinse.51

Identifying minor faults Warning! Before removing any panel: 1. Turn the knob to STOP.

2. Pull the electric plug out.

Should the dishwasher fail to operate, before contacting the Service Centre, make the following checks:

1 - Machine completely dead

2 - Machine does not

3 - Machine does not

5 - Spray arms are not heard

6 - On electronic appliances

without a display: “eco”indi- cator light and indicator light “No.1” with audible signal are heard.

On electronic appliances with a display: “E1” appears on the display with audible signal. Plug is not connected to wall socket O/I button has not been pressed Door is open No electricity See causes for no. 1 Water tap is turned off Programme selector is not at correct position The inlet hose is bent The inlet hose filter is not correctly connected Filter is dirty Outlet hose is kinked The outlet hose extension is not correctly connected The outlet connection on the wall is pointing downwards not upwards Position of outlet hose is too low Excessive amount of detergent Item prevents arms from rotating Plate and cup filter very dirty Water inlet tap turned off Water inlet tap turned off Connect electric plug Press button Close door Check the fuse in the plug and the electricity supply Check Turn water tap on Turn programme selector to correct position Eliminate the bends in the hose Clean the filter at the end of the hose Clean filter Straighten outlet hose Follow the instructions for connecting the outlet hose carefully Call a qualified technician Lift outlet hose to at least 40 cm above floor level Reduce amount of detergent Use suitable detergent Check Clean plate and cup filter Switch off the appliance. Turn on the tap. Re-set the cycle. Switch off the appliance. Turn on the tap. Re-set the cycle.

Cleaning and maintenance The outside of the cabinet can be cleaned with a non-abrasive cleaning agent suitable for a gloss finish. The dishwasher does not require special maintenance, because the tank is selfcleaning. Regularly wipe the door gasket with a damp cloth to remove any food remains or rinse aid. It is advisable to remove limestone deposits or dirt periodically, by doing an empty wash; pour a glass of vinegar on the bottom of the tank and select the light wash. If, in spite of the routine cleaning of the filters, you notice that the dishes or pans are not properly washed or rinsed, check that all the spray heads on the rotor arms (fig. A “5”) are clear. If they are blocked, clean them in the following way: To remove the upper rotor arm, turn it until it lines up with the stop marked by the arrow (fig.1b). Push it upwards and, keeping it pushed in, unscrew it in a clockwise direction. To reassemble it repeat the same opera- tion, but turn it anticlockwise. The lower rotor arm can be removed simply by pulling it upwards (fig. 2).

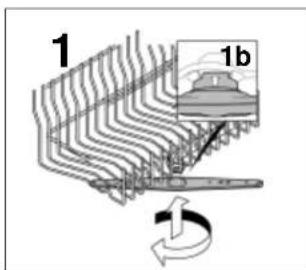

• wash the rotor arms under a jet of water to clear any blockage in the spray heads.

• When you have finished, refit the rotor arms in the same position, remembering to re-align the arrow and screw into position. Both the door lining and the tank lining are in stainless steel; however, should spots caused by oxidation occur, this is probably due to a high level of iron salts presents in the water. The spots can be removed with a mild abrasive agent; never use chlorine based materials, steel wool, etc.

WHEN CYCLE IS FINISHED

After every wash it is essential to turn off water supply and to switch off the machine by pressing the On/Off button to the off position. If the machine is not going to be used for some time, it is advisable to follow these rules:

1. do an empty wash with detergent in order to

clean the machine of any deposits.

2. pull out the electric plug.

3. turn off the water tap.

6. Keep the inside of the machine clean.

7. If the machine is left in places where the

temperature is below 0°C any water left inside the pipes may freeze. Wait until the temperature rises above zero and then wait for about 24 hours before starting up the dishwasher.

N.B.: Should any of the situations occur and should the machine give a bad wash performance, it is necessary to remove the deposits from the dishes by hand since the final drying cycle hardens the deposits which a second wash in the machine would not be able to remove. If the malfunction continues contact a Service Centre quoting the serial number of the dishwasher. This is found on the plaque on the inside of the dishwasher door at the top or on the guarantee. This information will make it possible to take more effective action more quickly. The manufacturers decline any responsability for any printing mistakes in this instruction booklet. They also reserve the right to modify their own appliances as necessary without altering the essential characteristics.

8 - Load of dishes is only

9 - Presence of white spots

on dishes 10 -Noise during wash

11 - The dishes are not

completely dry See causes for no. 5 Bottom of saucepans have not been washed well Edge of saucepans have not been washed well Spray arms are partially blocked The dishes have not been properly loaded The end of the outlet hose is in the water The incorrect amount of detergent has been measured out; the detergent is old and hard The wash programme is not thorough enough The lower basket dishes have not been washed Water is too hard The dishes knock against one another The revolving arms knock against the dishes Inadequate air flow Check Burnt on food remains must be soaked before putting pans in dishwasher Reposition saucepans Remove spray arms by unscrewing ring nuts clockwise and wash under running water Do not place the dishes too closely together The end of the outlet hose must not come into contact with the outflow water Increase the measure according to how dirty the dishes are and change detergent Choose a more vigorous programme Depress half load button Check salt and rinse aid level and regulate amount. Should the fault persist, Contact Service Centre Load dishes better onto the basket Load dishes better Leave the dishwasher door ajar at the end of the wash program to allow the dishes to dry naturally Descripcion de los mandos
