USER MANUAL DBRI 581001 IN PT BAUKNECHT

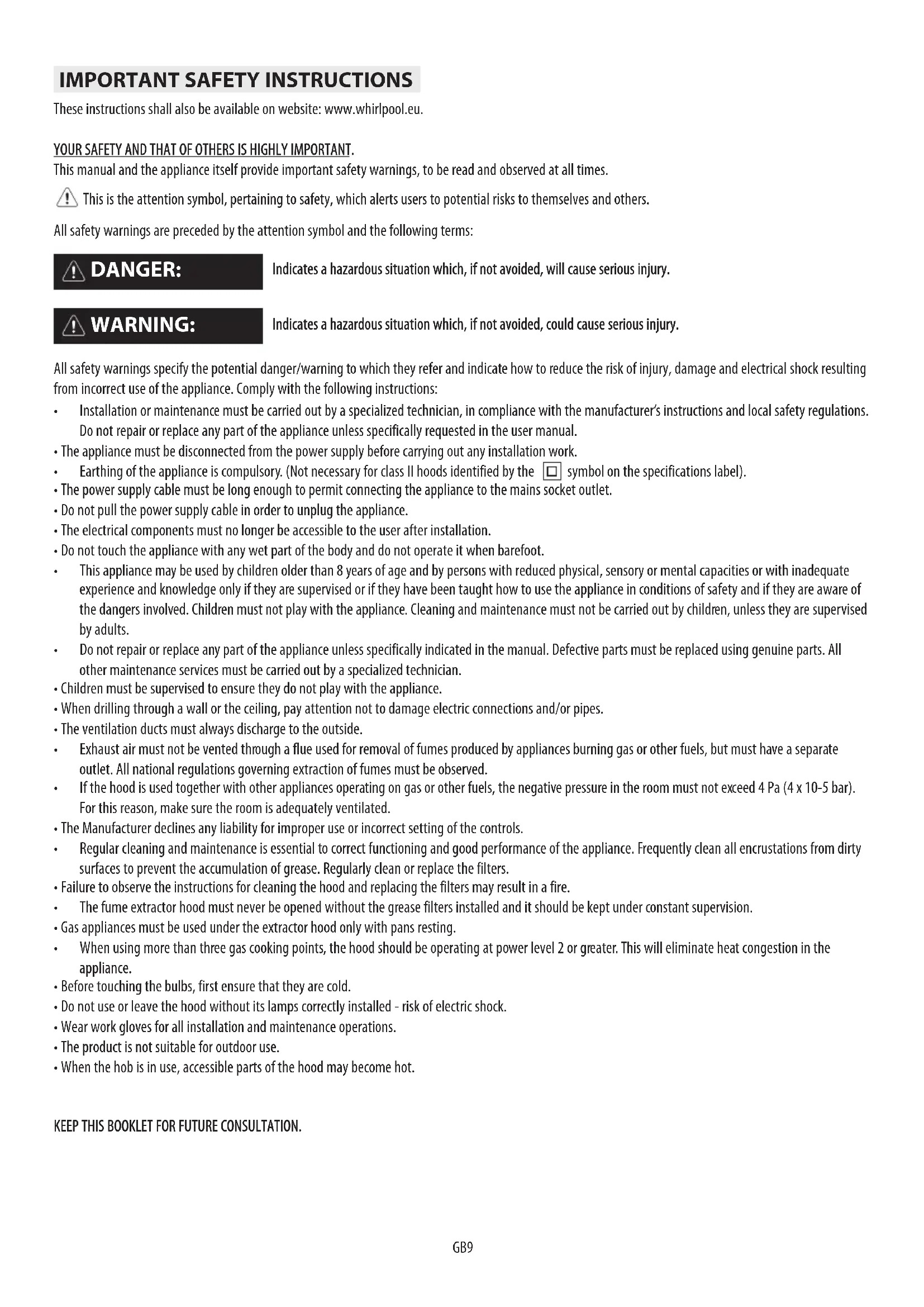

These instructions shall also be available on website: www.whirlpool.eu. YOUR SAFETY AND THAT OF OTHERS IS HIGHLY IMPORTANT. This manual and the appliance itself provide important safety warnings, to be read and observed at all times. This is the attention symbol, pertaining to safety, which alerts users to potential risks to themselves and others. All safety warnings are preceded by the attention symbol and the following terms: Indicates a hazardous situation which, if not avoided, will cause serious injury. Indicates a hazardous situation which, if not avoided, could cause serious injury. All safety warnings specify the potential danger/warning to which they refer and indicate how to reduce the risk of injury, damage and electrical shock resulting from incorrect use of the appliance. Comply with the following instructions:

• Installation or maintenance must be carried out by a specialized technician, in compliance with the manufacturer’s instructions and local safety regulations. Do not repair or replace any part of the appliance unless specifically requested in the user manual.

• The appliance must be disconnected from the power supply before carrying out any installation work.

• Earthing of the appliance is compulsory. (Not necessary for class II hoods identified by the symbol on the specifications label).

• The power supply cable must be long enough to permit connecting the appliance to the mains socket outlet.

• Do not pull the power supply cable in order to unplug the appliance.

• The electrical components must no longer be accessible to the user after installation.

• Do not touch the appliance with any wet part of the body and do not operate it when barefoot.

• This appliance may be used by children older than 8 years of age and by persons with reduced physical, sensory or mental capacities or with inadequate experience and knowledge only if they are supervised or if they have been taught how to use the appliance in conditions of safety and if they are aware of the dangers involved. Children must not play with the appliance. Cleaning and maintenance must not be carried out by children, unless they are supervised by adults.

• Do not repair or replace any part of the appliance unless specifically indicated in the manual. Defective parts must be replaced using genuine parts. All other maintenance services must be carried out by a specialized technician.

• Children must be supervised to ensure they do not play with the appliance.

• When drilling through a wall or the ceiling, pay attention not to damage electric connections and/or pipes.

• The ventilation ducts must always discharge to the outside.

• Exhaust air must not be vented through a flue used for removal of fumes produced by appliances burning gas or other fuels, but must have a separate outlet. All national regulations governing extraction of fumes must be observed.

• If the hood is used together with other appliances operating on gas or other fuels, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar). For this reason, make sure the room is adequately ventilated.

• The Manufacturer declines any liability for improper use or incorrect setting of the controls.

• Regular cleaning and maintenance is essential to correct functioning and good performance of the appliance. Frequently clean all encrustations from dirty surfaces to prevent the accumulation of grease. Regularly clean or replace the filters.

• Failure to observe the instructions for cleaning the hood and replacing the filters may result in a fire.

• The fume extractor hood must never be opened without the grease filters installed and it should be kept under constant supervision.

• Gas appliances must be used under the extractor hood only with pans resting.

• When using more than three gas cooking points, the hood should be operating at power level 2 or greater. This will eliminate heat congestion in the appliance.

• Before touching the bulbs, first ensure that they are cold.

• Do not use or leave the hood without its lamps correctly installed - risk of electric shock.

• Wear work gloves for all installation and maintenance operations.

• The product is not suitable for outdoor use.

• When the hob is in use, accessible parts of the hood may become hot. KEEP THIS BOOKLET FOR FUTURE CONSULTATION.

GB9After unpacking the appliance, check for any transport damage. In the event of problems, contact the dealer or your nearest After-sales Service. To prevent any damage, only remove the appliance from its polystyrene foam packaging at the time of installation.

PREPARING FOR INSTALLATION

This is a heavy product; the hood should only be lifted and installed by two or more people. The minimum distance between the support of the cooking pans on top of the cooker and the bottom of the hood must not be less than 50 cm for electric cookers and 65 cm for gas or mixed cookers. Before installation also check the minimum distances stated in the manual of the cooker. If the installation instructions for the cooker specify a greater distance between cooker and hood, this distance must be observed. ELECTRICAL CONNECTION Make sure the power voltage specified on the appliance rating plate is the same as the mains voltage. This information may be found on the inside of the hood, under the grease filter. Power cable replacement (type H05 VV-F 3 x 0,75 mm) must be carried out by a qualified electrician. Contact an authorized service centre. If the hood is fitted with an electric plug, connect the plug to a socket complying with current regulations, located in an accessible place after installation. If no plug is fitted (direct wiring to the mains), or if the socket is not located in an accessible place, install a standardised double pole power switch that will enable complete isolation from the mains in case of category III overvoltage conditions, in accordance with installation rules. GENERAL RECOMMENDATIONS Before use Remove cardboard protection pieces, protective film and adhesive labels from accessories. Check the appliance for any transport damage. During use To avoid any damage do not place any weights on the appliance. Do not expose the appliance to atmospheric agents.

Disposal of packing The packing material is 100% recyclable and is marked with the recycle symbol . The various parts of the packing must therefore be disposed of responsibly and in full compliance with local authority regulations governing waste disposal. Scrapping the product - This appliance is marked in compliance with European Directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE). - By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. - The symbol on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection centre for the recycling of electrical and electronic equipment. Scrapping of household appliances

• This appliance is manufactured with recyclable or reusable materials. Dispose of it in accordance with local waste disposal regulations. Before scrapping, cut off the power supply cable.

• For further information on the treatment, recovery and recycling of household electrical appliances, contact your competent local authority, the collection service for household waste or the store where you purchased the appliance. INSTALLATION

SAFEGUARDING THE ENVIRONMENT

Declaration of conformity

• This appliance has been designed, manufactured and marketed in compliance with: - safety objectives of the “Low Voltage” Directive 2006/95/EC (which replaces 73/23/EEC and subsequent amendments); - the ecodesign requirements of european regulations n. 65/2014, and n. 66/2014 in conformity to the european standard EN 61591; - the protection requirements of Directive “EMC” 2004/108/EC. Electrical safety of the appliance can only be guaranteed if it is correctly connected to an approved earthing system. Energy saving tips

• Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished.

• Increase the speed only in case of large amount of smoke and vapour and use boost speed(s) only in extreme situations.

• Replace the charcoal filter(s) when necessary to maintain a good odour reduction efficiency.

• Clean the grease filter(s) when necessary to maintain a good grease filter efficiency.

• Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise. GB10The appliance does not work:

• Check for the presence of mains electrical power and if the appliance is connected to the electrical supply;

• Turn off the appliance and restart it to see if the fault persists. The hood's suction level is not sufficient:

• Check the suction speed and adjust as necessary;

• Check that the filters are clean;

• Check the air vents for any obstructions. The light does not work;

• Check the light bulb and replace if necessary;

• Check that the light bulb has been correctly fitted. Before calling the After-Sales Service:

1. See if you can solve the problem yourself with the help of the suggestions given in the "Troubleshooting guide".

2. Switch the appliance off and back on again it to see if the fault persists.

If after the above checks the fault still occurs, get in touch with the nearest After-Sales Service. Always specify:

• A brief description of the fault;

• The exact type and model of the appliance;

• The service number (number after the word "Service" on the rating plate), located on the inside of the appliance. The service number is also indicated on the guarantee booklet;

• Your telephone number. If any repairs are required, please contact an authorised After-sales Service (to guarantee that original spare parts will be used and repairs carried out correctly). - Never use steam cleaning equipment. - Disconnect the appliance from the power supply. IMPORTANT: do not use corrosive or abrasive detergents. If any of these products accidentally comes into contact with the appliance, clean immediately with a damp cloth.

• Clean the surfaces with a damp cloth. If it is very dirty, add a few drops of washing up detergent to the water. Finish off with a dry cloth. IMPORTANT: do not use abrasive sponges or metallic scrapers or scourers. Over time, these can ruin the enamel surface.

• Use detergents specifically designed for cleaning the appliance and follow the manufacturer instructions. IMPORTANT: clean the filters at least monthly to remove any oil or grease residuals. WARNING TROUBLESHOOTING GUIDE AFTER-SALES SERVICE CLEANING GB11GB12 - Use protective gloves. - disconnect the appliance from the power supply. GREASE FILTERS The metal grease filter has an unlimited life and should be cleaned once a month by hand or in a dishwasher at low temperature and with a short cycle. Cleaning in a dishwasher may cause discolouring of the grease filter, but its filtering efficiency is unaffected. Pull out the handle to remove the filter. Wash the filter and leave it to dry, proceeding in reverse order to refit it. REPLACING LAMPS The hood lighting system is based on LED technology. The LEDs provide optimal illumination, with a lifetime up to ten times longer than traditional lamps but with 90% less energy consumption. Contact the technical support service for replacements.

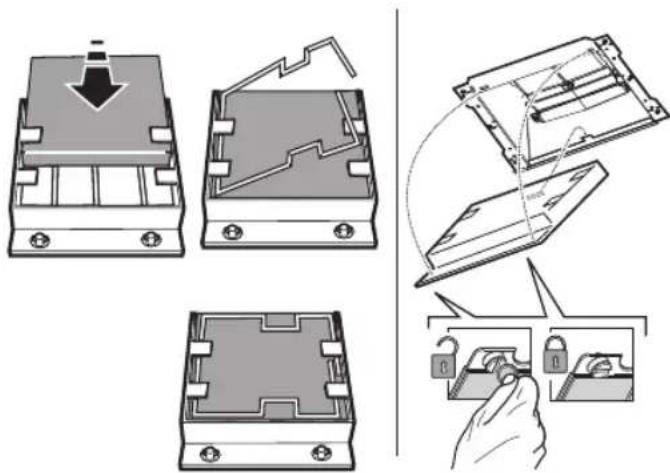

ACTIVATED CARBON FILTER

(filter hoods only): The carbon filter must be cleaned once a month in a dishwasher at the highest temperature, using a normal dishwasher detergent. It is advisable to clean the filter separately. After cleaning, reactivate the carbon filter by drying it in the oven at 100°C for 10 minutes. Change the carbon filter every 3 years. Fitting the carbon filter:

1. Remove the grease filter.

2. Hook the carbon filter firstly to the metal tab at the back on the hood and

then fix it at the front with the two knobs.

3. Refit the grease filter

IMPORTANT: MAINTENANCEGB13 Remove all the components from the packets. Check that all the components are included.

• Hood assembled with motor, lamps and grease filters installed.

• 1 Pre-assembled truss

• 1 Filter connector with extensions

• Instructions for assembly and use

• 4 screws 3x9 Flange fixing accessories (in case of low ceilings)

• 4 panhead screws 6 x 70 mm The hood has been designed to be installed and used either as a "Suction Model", or as a "Filter Model". Suction model Cooking steam is sucked and channelled outside the house through a discharge duct (not supplied), fitted to the hood steam outlet. Ensure that they type of fitting between the hood steam outlet and the discharge duct fits correctly to both. IMPORTANT: If already installed, remove the carbon filter/s. Filtering model The air is filtered through one of the carbon filters and then resent to the room. IMPORTANT: Ensure appropriate air circulation around the hood. Before using the hood ensure that the carbon filter/s has/have been installed. The hood should be installed away from particularly dirty areas, windows, doors and heat sources. The hood is sold with all necessary components for installation on most types of walls or ceilings. However, ask a qualified technician to check that the items supplied are suitable for the type of wall/ceiling. MATERIAL SUPPLIED

INSTALLATION - PRELIMINARY ASSEMBLY INSTRUCTIONSGB14

Note: The hood comes with a fixing bracket to be used in place of the truss if the hood has to be installed on a false ceiling. The assembly instructions are enclosed with the bracket, therefore ignore the installation instructions given on this page. Make sure the false ceiling is strong enough according to the current regulations and that it is accessible to enable correct fitting of the fixing bracket. In any case it is advisable to have an authorised specialised technician check the suitability of the false ceiling for installation. The instructions below, to be carried out in the order in which they are numbered, refer to the drawings (giving the same numbering) on the last pages of this manual.

1. IMPORTANT: Establish where the hood is to be installed:

R1 = Centre of installation point and possible hole for exhaust pipe. FRONT = Side corresponding to the front part of the hood. SX: left side of the hood. RX: right side of the hood. Note: The same wording is given on several drawings for easier reading of the installation instructions. 2. Place the template on the ceiling, taking into account the above-mentioned reference points and making sure the arrows stamped on the template correspond with the front part of the hood (FRONT). Drill the number of holes of diameter as indicated. Insert the wall plugs provided.

3. Partially tighten the screws (at the corners) to be used for hooking the hood truss, as indicated.

For Extractor Version only: Make a hole in the ceiling for the exhaust pipe.

4. Remove and set aside the screws securing the top bracket and the truss sections.

5. IMPORTANT: Adjust the extension of the truss, bearing in mind the following mathematical formula:

H(cm)= ( X-Y-M)+10.5 H= Extension of truss to be calculated X= Distance from ceiling to hob. Y= Minimum distance of hood from hob burners ( 65cm gas hobs, 50cm electric hobs). M= Height of hood motor unit.

6. Fix the two sections of the truss together with the screws as indicated.

For Extractor Version only: Connect a pipe to the extraction system for exhausting the fumes to the outside. The pipe must exit through the ceiling at a height as indicated in the drawing Note: H= Calculated truss extension (see installation sequence 5) Note: The exhaust pipe is not included in the pack.

8. Remove the tape fixing the control electronics box to the motor body.

Note: The drawing is only a guide, and the box may be temporarily fixed to other sides of the motor body.

9. Lift the box as indicated.

10. Tighten down the already partially tightened screws fixing the box to the motor body.

11. Insert the electrical cable in the special seat (11)

12. Secure the electrical cable with the cable clamp.

IMPORTANT: This operation is compulsory. It will prevent accidental disconnection of the power cable.

13. Fix the truss to the hood using the screws as indicated.

14. IMPORTANT: Hook the hood to the ceiling and tighten down the screws.

15. IMPORTANT: Insert and tighten 2 screws (1 on each side) as COMPULSORY safety anchors.

16. Fix the exhaust pipe to the collar.

Note: The fixing clamp is not included in the pack. Carry out the connection to the household electrical system.

Filter Version only: Fix the deflector. Note: The deflector comes in 3 pieces and must be assembled to size.

INSTALLATION - ASSEMBLY INSTRUCTIONSGB15

18. Depending on the stability of the truss, decide whether the previously removed upper support bracket should be fitted (with the screws as indicated). Note: If the minimum extension was used, the bracket must not be fitted. Note: It is advisable to place the bracket equidistant from the ceiling and the lower bracket already welded to the truss.

19. Fit the cage nuts (supplied) inside the upper flues.

20. Assemble the sections of the lower flue, covering the truss.

21. Fix the two parts with the screws as indicated.

22. Fix the upper flue to the truss, against the ceiling.

23. Fit the cage nuts (supplied) inside the lower section of the flue with the square slots.

Note: This section should preferably be installed on the back

24. Assemble the sections of the lower flue, covering the truss.

25. Fix the two parts with the screws as indicated.

26. Insert the flues in the special seat over the hood, completely covering it.

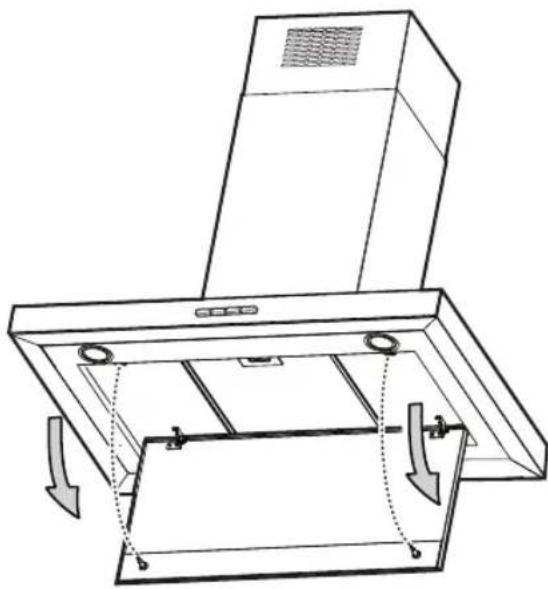

27. Open the perimeter extraction panel - Pull the panel (FRONT PART) firmly downwards, guiding it with hands.

28. Remove the grease filter/s.

29. Fix the lower flues, from inside the hood, with the screws as indicated.

Filter Version only: Fit the carbon filter Note: Some models may already have a carbon filter (already fitted or supplied); otherwise, it must be ordered.

Note: The upper trims must be cut to size.

33. Fit the grease filter/s.

34. Close the perimeter extraction panel - Turn the panel, covering the extraction area, hooking it to the hood by pressing hard. IMPORTANT: Always make sure the panel is firmly fixed in place. Check hood operation, referring to the section giving a description of the hood and its use.GB16

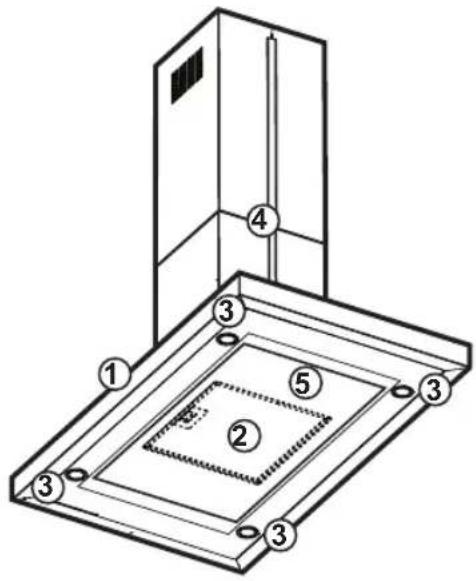

2. Grease filter (above the perimeter suction filter).

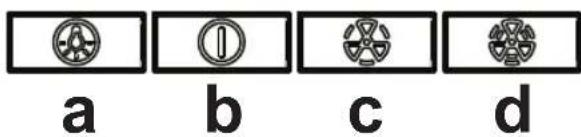

Control panel a. ON/OFF light key b. Motor ON/OFF key and minimum speed selection (suction power). c. Medium speed selection key (power and suction). d. Maximum speed selection key (power and suction).

- Disconnect the appliance from the power supply. Cleaning the perimeter suction panel Dismantling: Pull the panel (FRONT SIDE) downwards. Cleaning: The suction panel must be cleaned with the same frequency as the grease filter. Use a damp cloth and a soft liquid detergent. Do not use products containing abrasives. DO NOT USE ALCOHOL! Assembly: The panel must be fixed from the front, hinged to the appropriate pins on the surface of the hood.

WARNING: Always check that the panel is fitted properly.

Registered trademark/TM Trademark of Whirlpool group of companies. - © Copyright Whirlpool Europe s.r.l. 2014. All rights reserved - http://www.bauknecht.eu

Printed in Italy 09/2014
