Technical Features	Cordless electric lawn mower, 36V motor, 46 cm cutting width
Grass Collection Box Capacity	60 liters
Adjustable Cutting Height	5 positions from 25 to 75 mm
Runtime	Up to 40 minutes with a 5Ah battery
Weight	Approximately 20 kg
Usage	Ideal for gardens up to 600 m²
Maintenance	Clean the cutting deck after each use, blade sharpening recommended
Safety	Safety system with safety switch, overload protection
General Information	Compatible with other tools in the RYOBI 36V range

Frequently Asked Questions - RLM36X46L5H RYOBI

How do I start the RYOBI RLM36X46L5H lawn mower?

Make sure the battery is charged and properly inserted. Press the start button and pull the safety lever at the same time.

What should I do if the lawn mower does not start?

Check that the battery is fully charged and properly connected. Also ensure the safety lever is in the correct position.

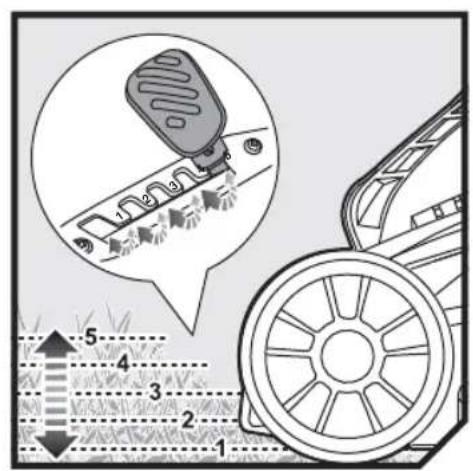

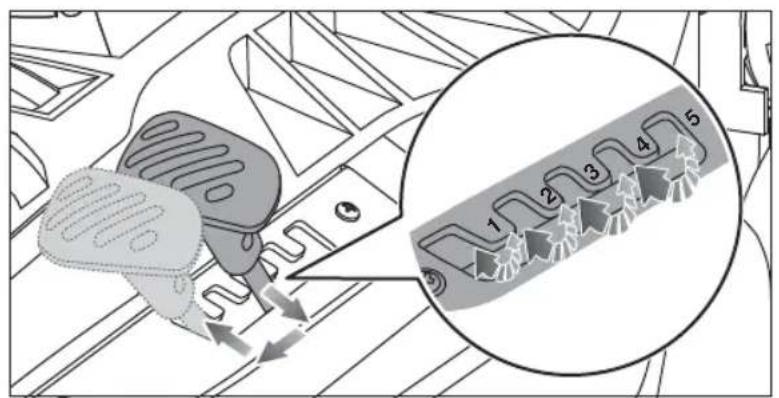

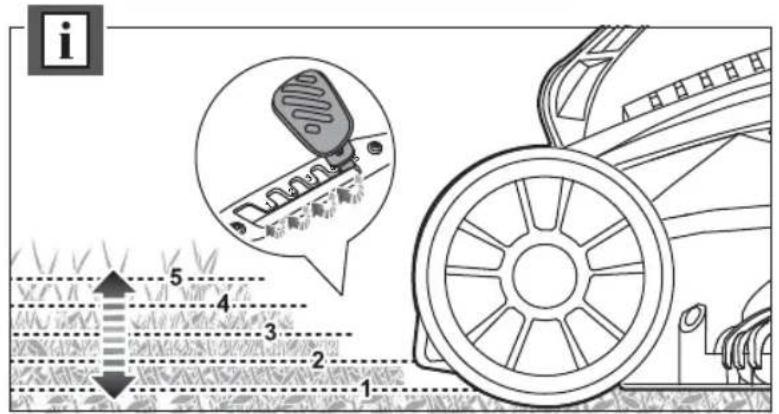

How do I adjust the cutting height?

Use the height adjustment lever located on the wheels to set the cutting height to your preference.

What is the battery runtime?

Runtime depends on cutting conditions, but generally it can last up to 40 minutes on a single charge.

How do I maintain my RYOBI RLM36X46L5H lawn mower?

Clean the blade after each use, regularly check the battery condition, and store the mower in a dry place.

Can I use the lawn mower in wet weather?

It is recommended to avoid using the mower in wet weather to ensure safety and prevent damage to the device.

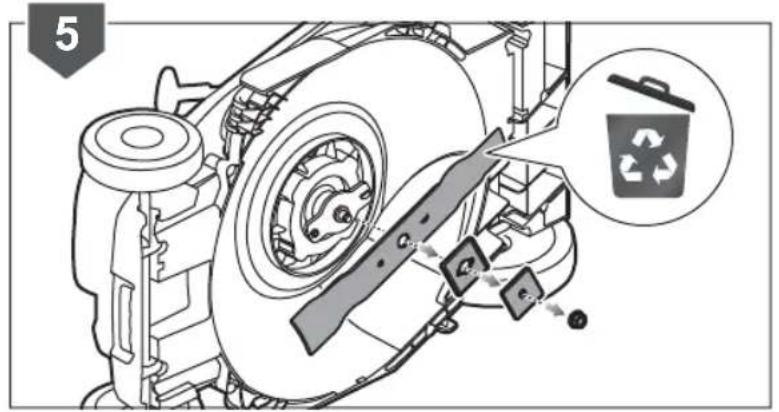

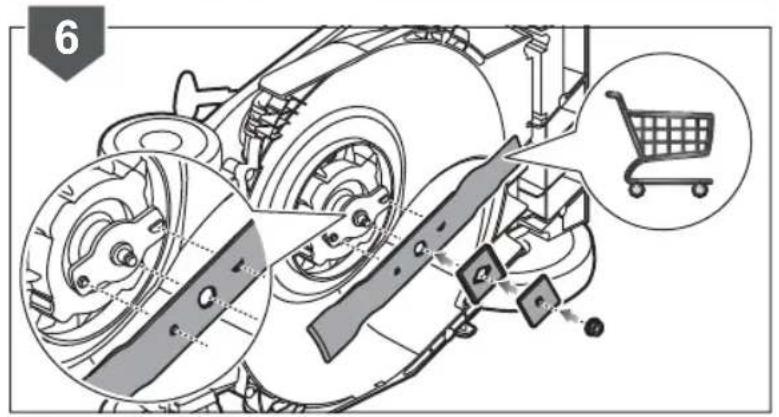

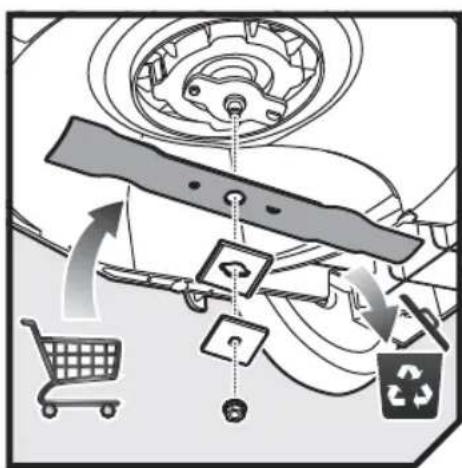

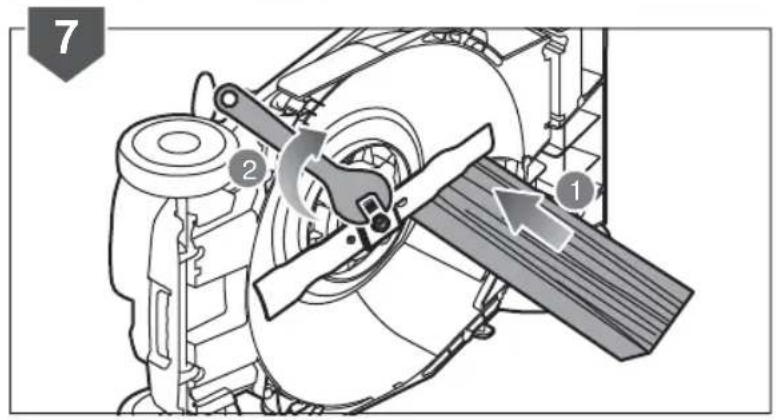

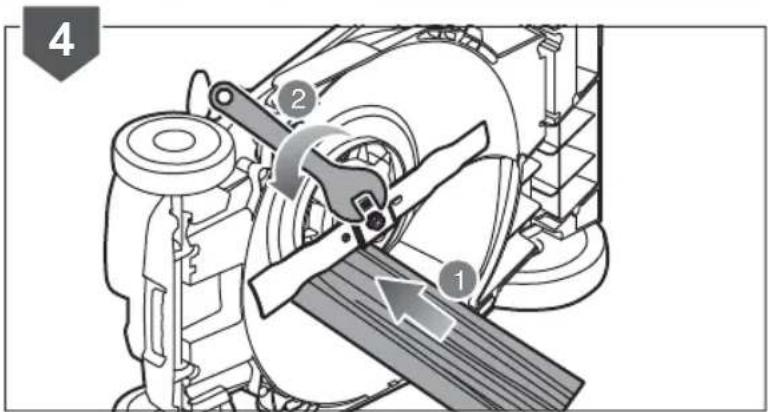

How do I change the lawn mower blade?

Disconnect the mower, then remove the screws holding the blade in place. Install the new blade following the indicated rotation direction.

Where can I find spare parts for my RYOBI lawn mower?

Spare parts can be purchased from authorized RYOBI dealers or on the official RYOBI website.

What should I do if the lawn mower leaves uncut strips?

Check that the cutting height is even and the blades are sharp. Also ensure the mower is wide enough to cover the entire area to be mowed.

Is the RYOBI RLM36X46L5H lawn mower equipped with an eco mode?

Yes, the mower has an eco mode that optimizes battery usage while maintaining adequate cutting performance.

USER MANUAL RLM36X46L5H RYOBI

RLM36X46L5H RLM36X46L5F RLM36B46L

ORIGINAL INSTRUCTIONS TRADUCTION DES INSTRUCTIONS ORIGINALES ÜBERSETZUNG DER ORIGINALANLEITUNG TRADUCCIÓN DE LAS INSTRUCCIONES ORIGINALES TRADUZIONE DELLE ISTRUZIONI ORIGINALI VERTALING VAN DE ORIGINELE INSTRUCTIES TRADUÇÃO DAS INSTRUÇÕES ORIGINAIS OVERSÄTTELSE AF DE ORIGINALE INSTRUKTIONER ÖVERSÄTTNING AV DE URSPRUNGLIGA INSTRUKTIONERNA ALKUPERÄISTEN OHJEIDEN SUOMENNOS OVERSETTELSE AV DE ORIGINALE INSTRUKSJONENE ПЕРЕВОД ОРИГИНАЛЬНЫХ ИНСТРУКЦИЙ TŁUMACZENIE INSTRUKCJI ORYGINALNEJ PŘEKLAD ORIGINÁLNÍCH POKYNŮ AZ EREDETI ÚTMUTATÓ FORDÍTÁSA TRADUCEREA INSTRUCTIUNILOR ORIGINALE TULKOTS NO ORIGINÁLÃS INSTRUKCIJAS ORIGINALIŲ INSTRUKCIJŲ VERTIMAS ORIGINAALJUHENDI TÓLGE PRIJEVOD ORIGINALNIH UPUTA PREVOD ORIGINALNIH NAVODIL PREKLAD ORIGINÁLNYCH POKYNOV ПРЕВОД ОТ ОРИГИНАЛНИТЕ ИНСТРУКЦИИ ПЕРЕКЛАД ОРИГИНАЛЬНИХ ИНСТРУКЦИЙ

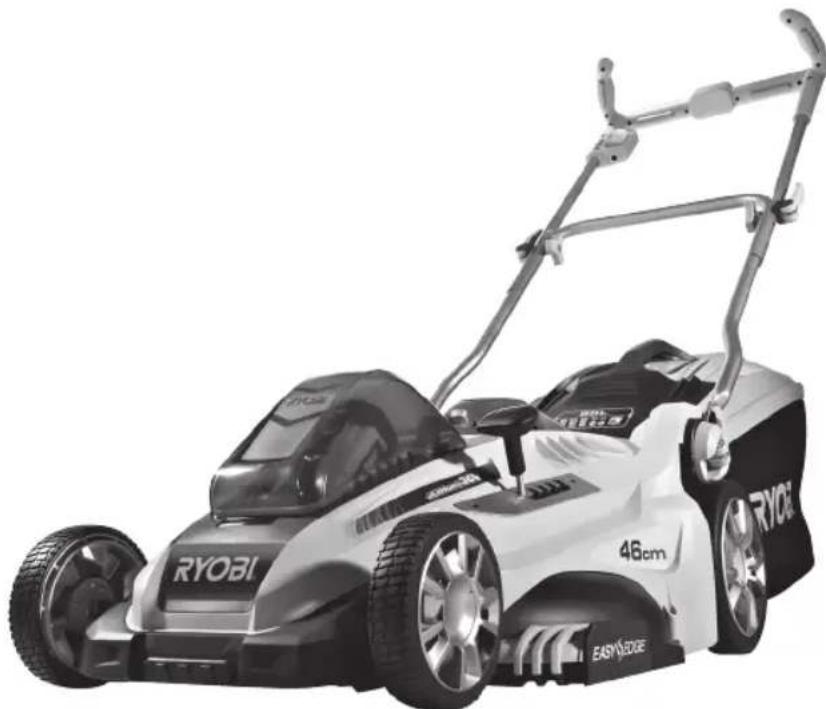

Black and white photo of a Ryobi lawn mower with visible branding and 46cm height (no text or symbols on the car body)

Important!	It is essential that you read the instructions in this manual before assembling, maintaining and operating the product.
Attention!	Il est essentiel que vous lisiez les instructions contenues dans ce manuel avant d'assembler, d'entretenir et d'utiliser le produit.
Achtung!	Es ist wichtig, dass Sie vor Zusammenbau, Wartung und Benutzung des Produktes die Anweisungen in dieser Anleitung lesen.
¡Atención!	Resulta fundamental que lea este manual de instrucciones antes de realizar el montaje, el mantenimiento y de utilizar este producto
Attenzione!	E' importante leggere le istruzioni contenute nel presente manuale prima di montare il prodotto, svolgere le operazioni di manutenzione sullo stesso e metterlo in funzione.
Let op!	Het is van essentieel belang dat u de instructies in deze gebruiksaanwijzing leest voor u het product monteert, onderhoudt en gebruikt.
Atenção!	É fundamental que leia as instruções deste manual antes da montagem, manutenção e operação do aparelho.
OBS!	Det er vigtigt, at man læser instrukserne i denne brugsanvisning, inden man samler, vedligeholder og betjener produktet.
Observera!	Det är viktigt att du läser instruktionerna i manualen före montering, användning och underhåll av produkten.
Huomio!	On tärkeää, että luet tämän käsikirjan ohjeet ennen tuotteen kokoamista, huoltoa ja käyttöä.
Advarsel!	Det er viktig at du leser instruksjonene i denne manualen før sammensetning, vedlikehold og bruk av produktet
Внимание!	Необходимо прочитать инструкции в данном руководстве перед сборкой, обслуживанием и эксплуатацией этого изделия.
Uwaga!	Koniecznie należy przeczytać instrukcje zawarte w tym podręczniku przed montażem, obsługą oraz konserwacją produktu.
Dûležité upozornění!	Neinstalujte, neprovádějte údržbu ani nepoužívejte tento výrobek dříve, než si přečtete pokyny uvedené v tomto návodu.
Figyelem!	Fontos, hogy a termék összeszerelése, karbantartása és használata előtt elolvassa a kézikönyvben található utasításokat.
Atenție!	Este esențial să citiți instrucțiunile din acest manual înainte de asamblare, efectuarea întreținerii și opera area produsului.
Uzmanību!	Ir svarīgi izlasīt šīs rokasgrāmatas instrukcijas pirms uzstādīšanas, apkopes un preces darbināšanas.
Dèmesio!	Prieš surenkant, prižiūrint ir naudojant gaminį, būtina perskaityti šiame vadove pateiktus nurodymus.
Tähtis!	Enne masina kokkupanekut, hooldamist ja kasutama hakkamist tuleb käesolevas juhendis esitatud juhised kindlasti läbi lugeda.
Upozorenje!	Vrlo je važno da ste prije sklapanja, održavanja i rada s ovim proizvodom pročitali upute u ovom priručniku.
Pomembno!	Pomembno je da pred montažo vzdrževanjem in uporabo tega izdelka preberete navodila v tem priročniku.
Upzornenie!	Je dôležité, aby ste si pred montážou, údržbou a obsluhou produktu prečítali pokyny v tomto návode.
Важно!	Изключително важно е да прочетете инструкциите в настоящото ръководство, преди да преминете към сглобяване, поддръжка или работа с продукта.
Важливо!	Дуже важливо, щоб ви прочитали інструкції в цьому керівництві перед складанням, обслуговуванням та експлуатацією цієї машини.

Subject to technical modification | Sous réserve de modifications techniques | Technische Änderungen vorbehalten | Bajo reserva de modificaciones técnicas | Con riserva di eventuali modifiche tecniche | Technische wijzigingen voorbehouden | Com reserva de modificações técnicas | Med forbehold for tekniske ændringer | Med förbehåll för tekniska ändringar | Tekniset muutokset varataan | Med forbehold om tekniske endringer | могут быть внесены технические изменения | Z zastrzeżeniem modyfikacji technicznych | Změny technických údajů vyhrazeny | A můszaki módosítás jogát fenntartjuk | Sub rezerva modificațiilor tehnice | Paturam tiesības mainīt tehniskos raksturlielumus | Pasiliekant teisę daryti techninius pakeitimus | Tehnilised muudatused võimalikud | Podloæno tehniëkim promjenama | Tehnične spremembe dopuščene | Prävo na technické zmeny je vyhradené | Подлежи на технически модификации | Є об'єктом для технічних змін

Safety, performance, and dependability have been given top priority in the design of your cordless lawn mower.

INTENDED USE

The product is only intended for use outdoors.

The product is designed for domestic lawn mowing. The cutting blade should rotate approximately parallel to the ground over which it is being wheeled. All four wheels should touch the ground while mowing. It is a pedestrian-controlled walk-behind mower designed to be pushed by hand.

The mower should never be operated with the wheels off the ground; it should not be pulled or ridden on. It should not be used to cut anything other than domestic grass lawns.

GENERAL SAFETY WARNINGS

WARNING

When using the product, the safety rules must be followed. For your own safety and that of bystanders, please read these instructions before operating the product. Please keep the instructions safe for later use.

WARNING

The product should only be operated with the battery pack. When using battery operated product, basic safety precautions should always be followed to reduce the risk of fire, leaking batteries and personal injury.

PERSONAL SAFETY

■ This product is capable of amputating hands and feet, and throwing objects. Failure to observe all safety instructions could result in serious injury or death.
- Read and understand the instructions and safety warnings. Be familiar with the controls and the correct use of the product.
■ Never allow children or people with reduced physical, sensory or mental capabilities, or people unfamiliar with these instructions, to operate, clean or maintain the product. Local regulations may restrict the age of the operator. Children should be adequately supervised to ensure they do not play with the appliance.

■ Stay alert, watch what you are doing and use common sense when operating the product. Do not operate the product while tired or under the influence of drugs, alcohol, or medication. A lapse in concentration while operating the product may result in serious personal injury.

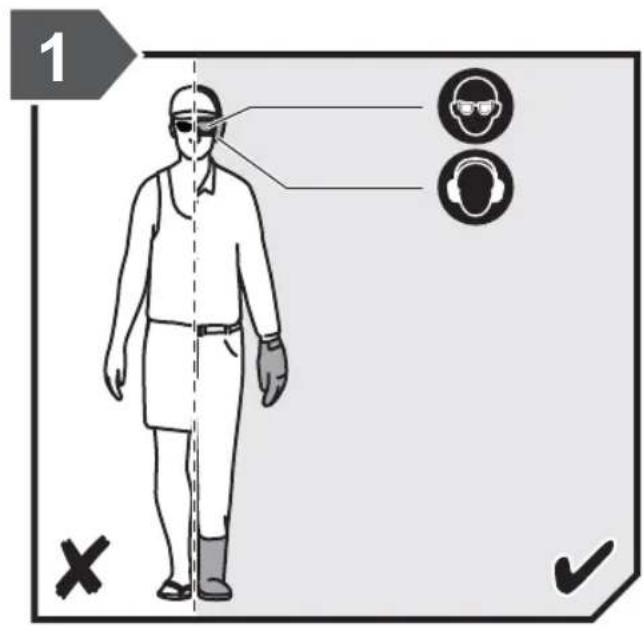

■ Wear heavy, long trousers, long sleeve sturdy anti-slip footwear. Do not wear short trousers, sandals, or go barefoot. Avoid wearing clothing that is loose fitting or that has hanging cords or ties.
■ Always wear safety glasses with six shields.
■ Always be sure of your footing. Keep fire footing and balance. Walk, never run.
■ Always be sure of your footing on slopes

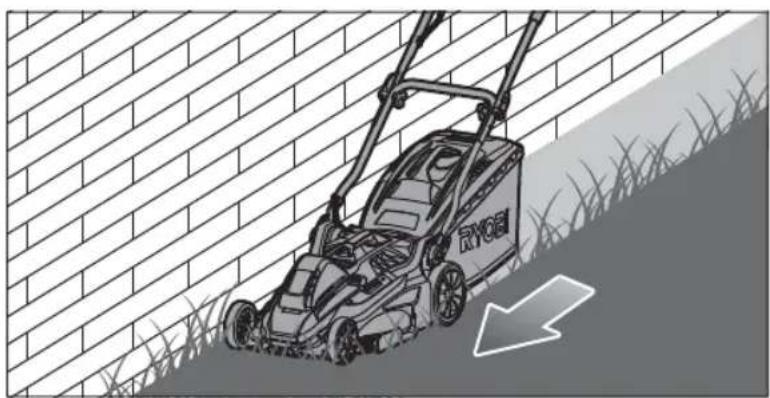

■ Use the product across the face of slope never up and down. Exercise extreme caution when changing direction on slopes.
- Do not use the product near drop-of ditches, excessively steep slopes, or embankments. Poor footing could cause a slip and fall accident.

WORK AREA SAFETY

■ Never use product while people, especially children, or pets are within 15m because of the danger of objects being thrown by contact with the blade.
- Objects struck by the lawn mower blade can cause severe injuries to persons. Thoroughly inspect the area where the product is to be used and remove all rocks, sticks, metal, wire, bones, toys, or other foreign objects. Remember, string or wire may entangle with the cutting means.
■ Always use the product in the daylight or in good artificial light.
- Do not operate the product in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. The product creates sparks which may ignite the dust or fumes.
■ Do not operate the product in wet grass or in the rain.
- Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.
■ Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the product

and the mowing activity. Never assume that children will remain where you last saw them.

- Keep children out of the mowing area and under the watchful care of a responsible adult other than the operator, be alert and turn the product off if a child enters the area.

■ Use extra care when approaching blind corners, shrubs, trees, or other objects including overhanging shrubs, etc. which may block your view.

BATTERY TOOLS USE AND CARE

- Read, understand and always follow the safety instructions which came with your battery and charger. Failure to do so may result in electric shock, fire or other hazardous situations. Keep all the instructions together in a safe place for future reference.

■ Battery operated product do not have to be plugged into an electrical outlet; therefore, they are always in operating condition. Remove the isolator key whenever you are not operating the product.

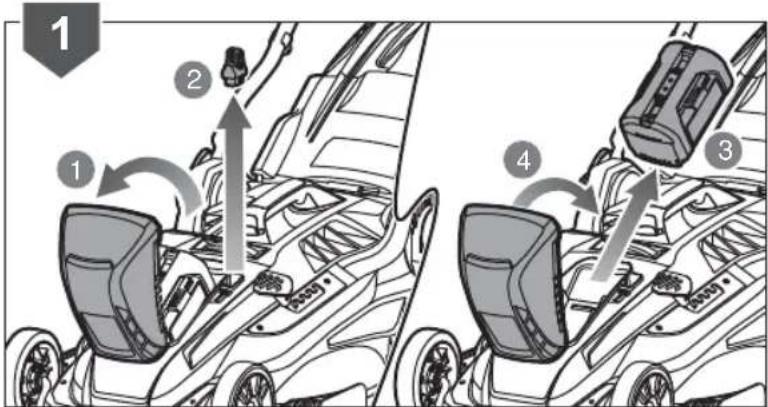

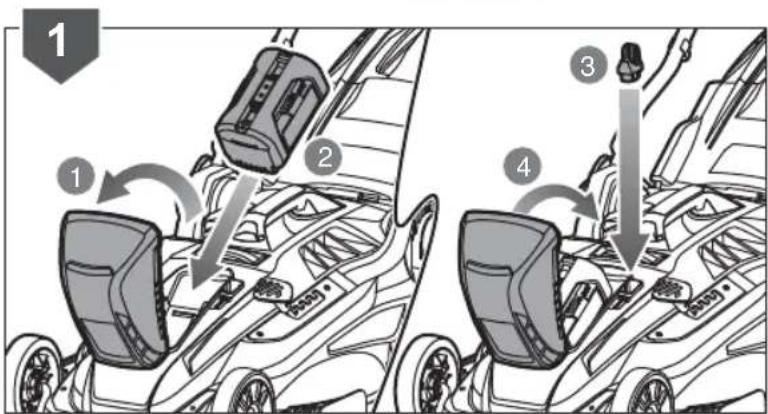

■ Remove the battery pack before making any adjustments, cleaning, or removing material from the product.

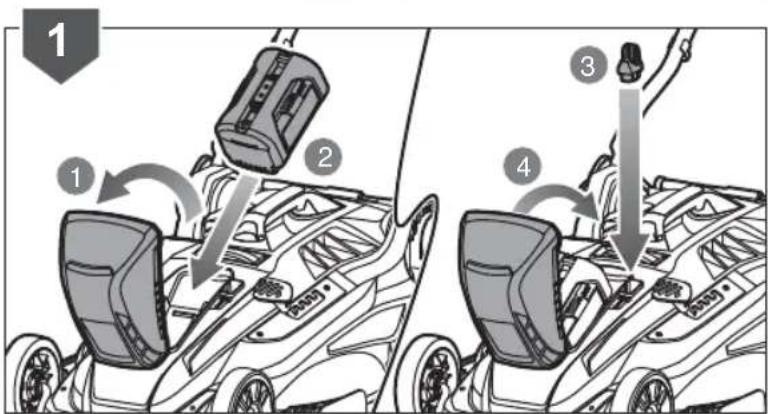

■ Ensure the isolator key is removed before inserting battery pack.

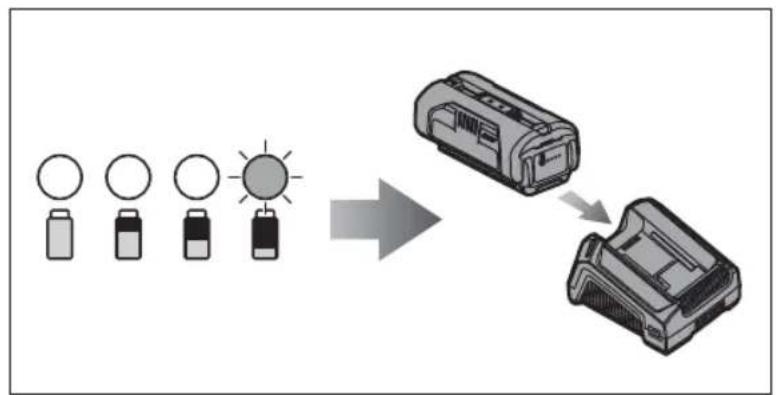

A battery pack must be recharged only with the charger specified by the manufacturer. Using a charger with an incompatible battery pack may create a risk of fire. Use battery pack only with charger listed.

■ Use only battery pack intended specifically for the product. Use of any other battery packs may result in a risk of fire, electric shock, or injury to persons.

■ When battery pack is not in use, keep it away from other metal objects like, paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another. Shorting the battery pack terminals together may cause sparks, burns, fire or explosion.

■ Do not place battery products or their batteries near fire or heat. This increases the risk of explosion and possibly injury.

- Do not open or mutilate the battery pack. Released electrolyte is corrosive and may cause damage to the eyes or skin. It may

be toxic if swallowed.

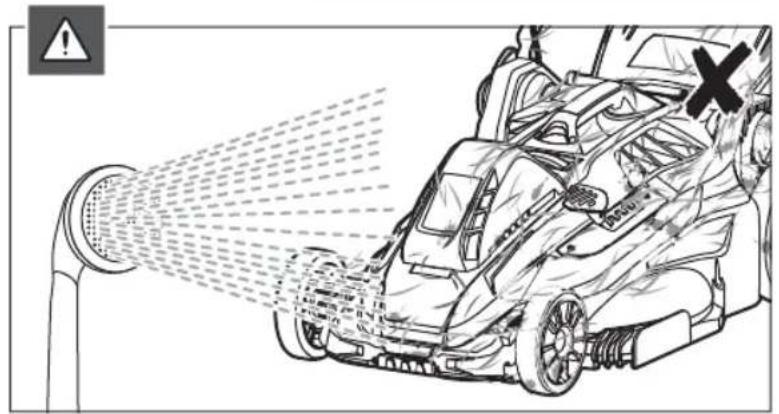

■ Protect the battery pack against moisture and water. Do not charge the product in a damp or wet location. Following this rule will reduce the risk of electric shock.

In case of damage and improper use of the battery, vapour may be emitted. Provide for fresh air and seek medical help in case of complaints. The vapour can irritate the respiratory system.

- Do not leave the battery pack in the car a vehicle in the summer hot or cold conditions.

■ Do not incinerate the battery.

■ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

LAWN MOWER SAFETY WARNINGS

Before using, always visually inspect to ensure blades, blade bolts, and cutter assembly are not worn or damaged.

■ Replace worn or damaged blades and bolts in sets to preserve balance.

■ The blade on this mower is sharp, use extreme caution and wear heavy duty gloves when fitting, replacing, cleaning or checking bolt security.

■ Return to an authorised service centre to replace damaged or unreadable labels.

- Check all nuts, bolts, and screws at frequent intervals for proper tightness to be sure the equipment is in safe working condition.

- Check the grass box frequently for wear, holes or deterioration.

■ Replace worn or damaged parts before operating the product.

■ Never operate the machine if the on/off switch on the handlebar does not properly start and stop the mower.

■ Never attempt to lock the on/off switches in the ON position, this is extremely dangerous.

- Do not force the machine. It will do the job better and safer at the speed for which it was designed.

■ Stop the blade when crossing gravel

surfaces.

• Do not pull the product backward unless absolutely necessary. If you must back the product away from a wall or obstruction, first look down and behind to avoid tripping or pulling the product over your feet.
• Stop the motor and allow the blade to stop if the mower has to be tilted for transportation when crossing surfaces other than grass, and when transporting the product to and from the area to be mowed.
  ■ Never use the product with defective guards or shields, or without safety devices, for example, deflectors and/ or grass boxes, in place.
• Do not tilt the lawn mower when switching on the motor or while the motor is running. This exposes the blade and increases the probability of objects being thrown.
  ■ Switch on the motor carefully according to instructions and keep hands and feet away from cutting area. Keep clear of the discharge opening at all times. Do not start the machine when standing in front of the discharge opening.

• Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all time.
  ■ Never pick up or carry the product while it is running.
  ■ Stop the mower motor and remove isolator key, make sure that all moving parts have come to a complete stop for the below cases:

• whenever you leave the product unattended (including disposal of grass clippings).

• before cleaning a blockage or unclogging discharge chute
• before checking, cleaning or working on the product
• after striking a foreign object; inspect the product for damage and make repairs as necessary before restarting and operating the machine.

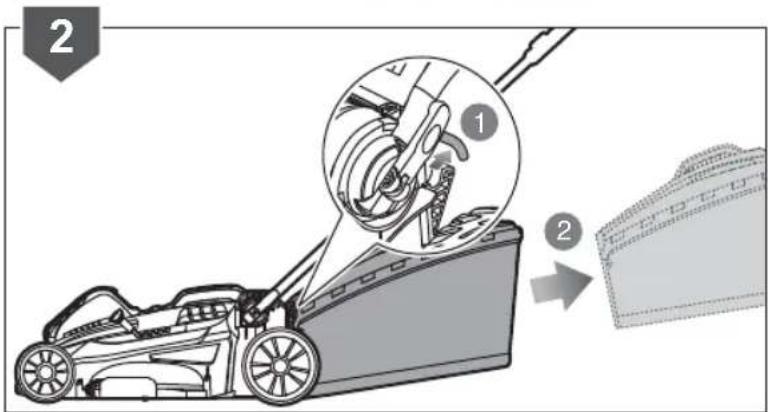

• before removing the grass box or opening the grass discharge chute cover.
• If the machine starts to vibrate abnormally (check immediately)

– inspect for damage, particularly the blades

– replace or repair any damaged parts
– check for and tighten any loose parts

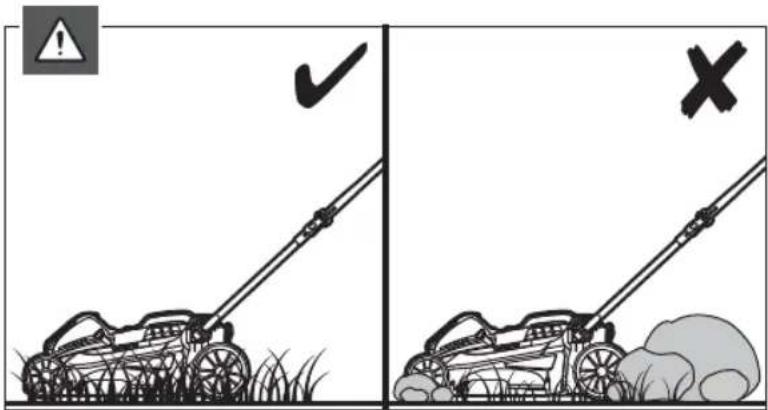

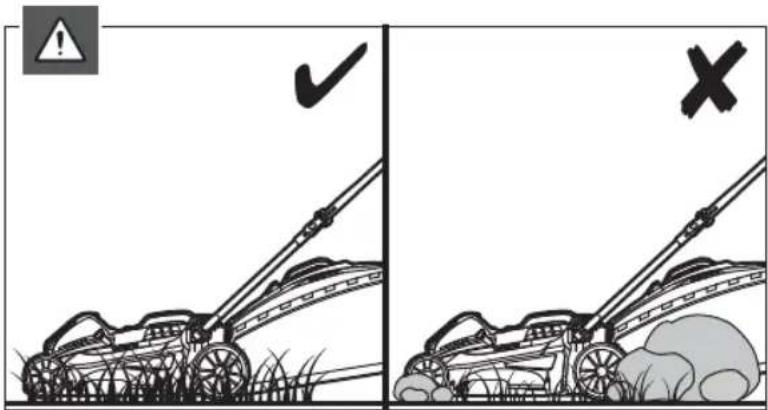

- Avoid holes, ruts, bumps, rocks, prope stakes, or other hidden objects. Uneven terrain could cause a slip and fall accident.

RESIDUAL RISK

Even when the product is used as prescribed, it is still impossible to completely eliminate certain residual risk factors. The following hazards may arise in use and the operator should pay special attention to avoid the following:

■ Injury caused by vibration. Always use the right tool for the job, use designated handles and restrict working time and exposure.
■ Exposure to noise can cause hearing injury. Wear ear protection and limit exposure.
■ Contact with blades
■ Injury from thrown objects

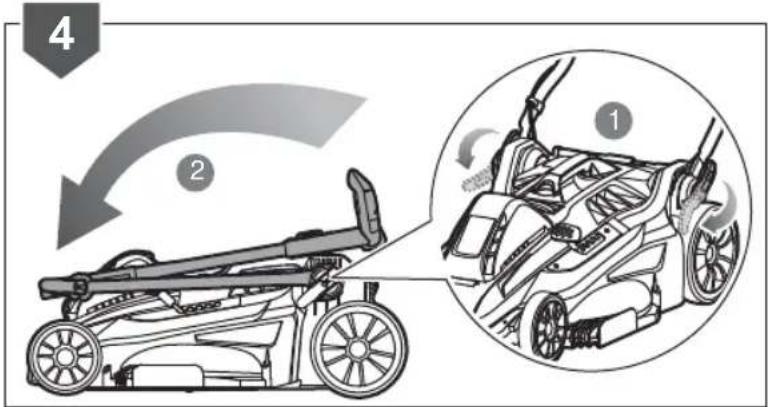

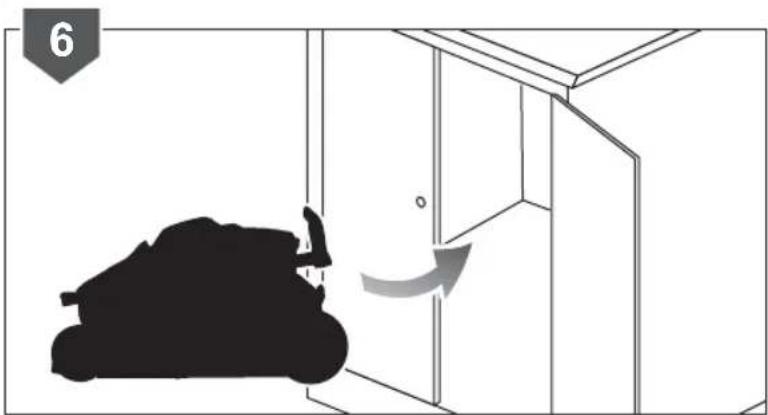

TRANSPORTATION AND STORAGE

• Stop the machine, remove the isolator key and the battery, make sure that all moving parts have come to a complete stop, and allow it to cool before storing or transporting.

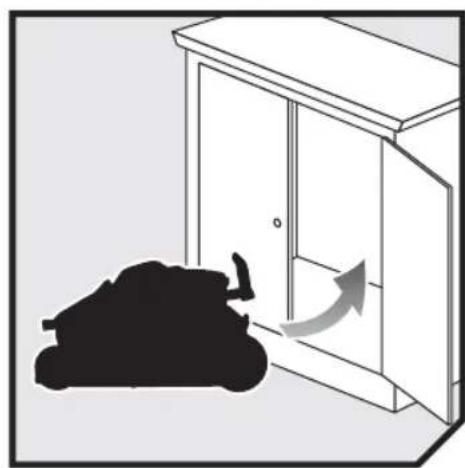

  ■ Clean all foreign material from the machine. Store it in a cool dry and well-ventilated place that is inaccessible to children. Keep away from corrosive agents such as garden chemicals and de-icing salts. Do not store outdoors.
  ■ For transportation, remove isolator key, secure the machine against movement or falling to prevent injury to persons or damage to the machine.

WARNING

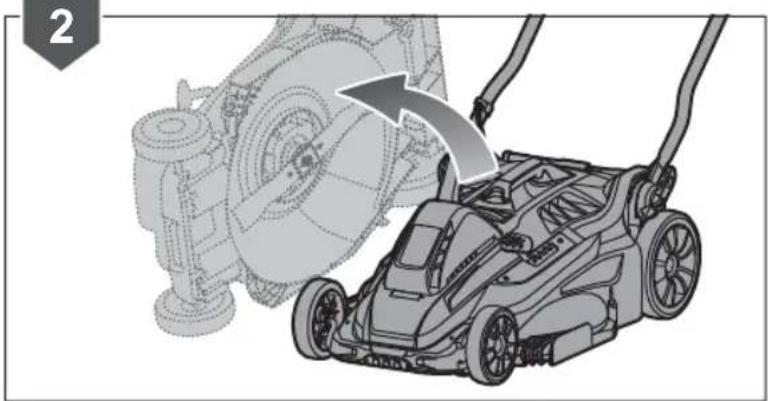

Use extreme caution when lifting or tilting the machine for maintenance, cleaning, storage or transportation, the blade is sharp, keep all body parts away from the blade while it is exposed.

MAINTENANCE

WARNING

Use only original manufacturer's replacement parts, accessories and attachments. Failure to do so can cause injury, poor performance and may void your warranty.

WARNING

Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. For service we suggest you return the product to your nearest authorized service center for repair. When servicing, use only identical replacement parts.

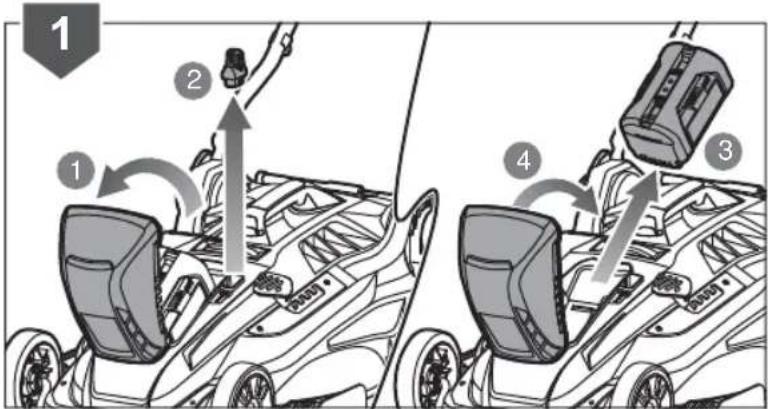

■ Remove the isolator key and if possible the battery, before any cleaning or maintenance task.
■ You may make adjustments and repairs described here. For other repairs, contact the authorized service agent.
- Check the grass box frequently for wear or deterioration.

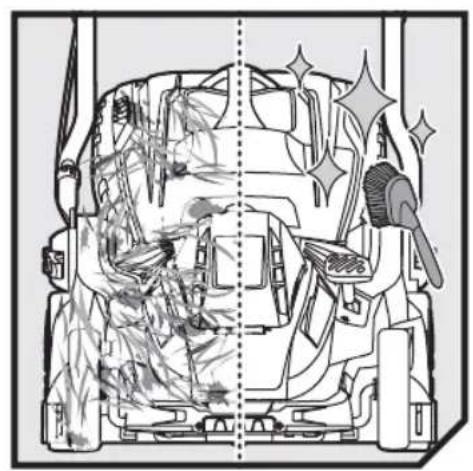

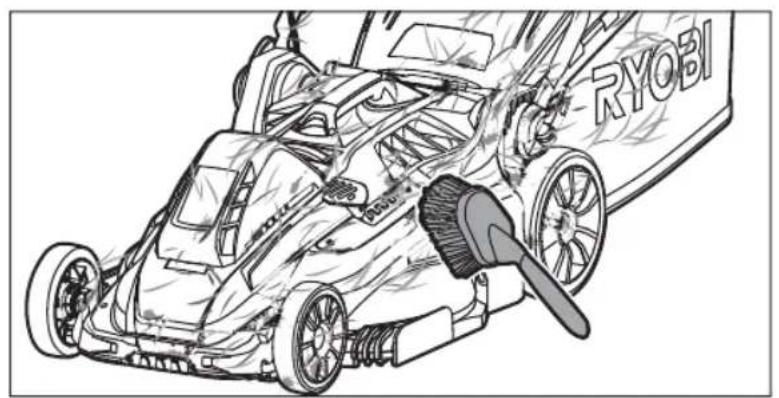

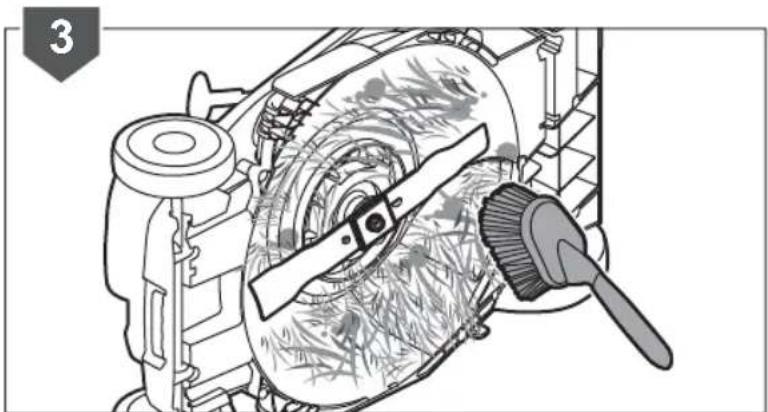

■ After each use, clean the product with a soft dry cloth. Any part that is damaged should be properly repaired or replaced by an authorised service centre.
- Check all nuts, bolts and screws at frequent intervals for proper tightness to ensure the product is in safe working condition.
■ Be careful during adjustment of the machine to prevent entrapment of the fingers between moving blades and fixed parts of the machine.
- When servicing the blades be aware that, even though the power source is switched off, the blades can still be moved.

RISK REDUCTION

It has been reported that vibrations from handheld tools may contribute to a condition called Raynaud's Syndrome in certain individuals. Symptoms may include tingling, numbness and blanching of the fingers, usually apparent upon exposure to cold. Hereditary factors, exposure to cold and dampness, diet, smoking and work practices are all thought to contribute to the development of the these

symptoms. There are measures that can be taken by the operator to possibly reduce the effects of vibration:

• Keep your body warm in cold weather. When operating the unit wear gloves to keep the hands and wrists warm. It is reported that cold weather is a major factor contributing to Raynaud's Syndrome.
  ■ After each period of operation, exercise to increase blood circulation.
  ■ Take frequent work breaks. Limit the amount of exposure per day.

If you experience any of the symptoms of this condition, immediately discontinue use and see your doctor about these symptoms.

WARNING

Injuries may be caused, or aggravated, by prolonged use of a tool. When using any tool for prolonged periods, ensure you take regular breaks.

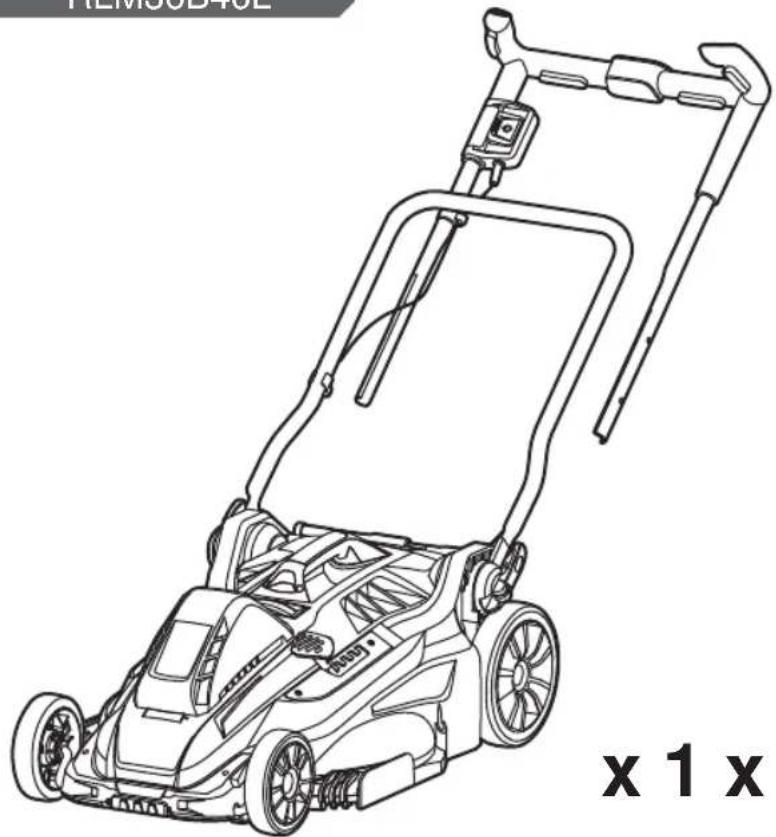

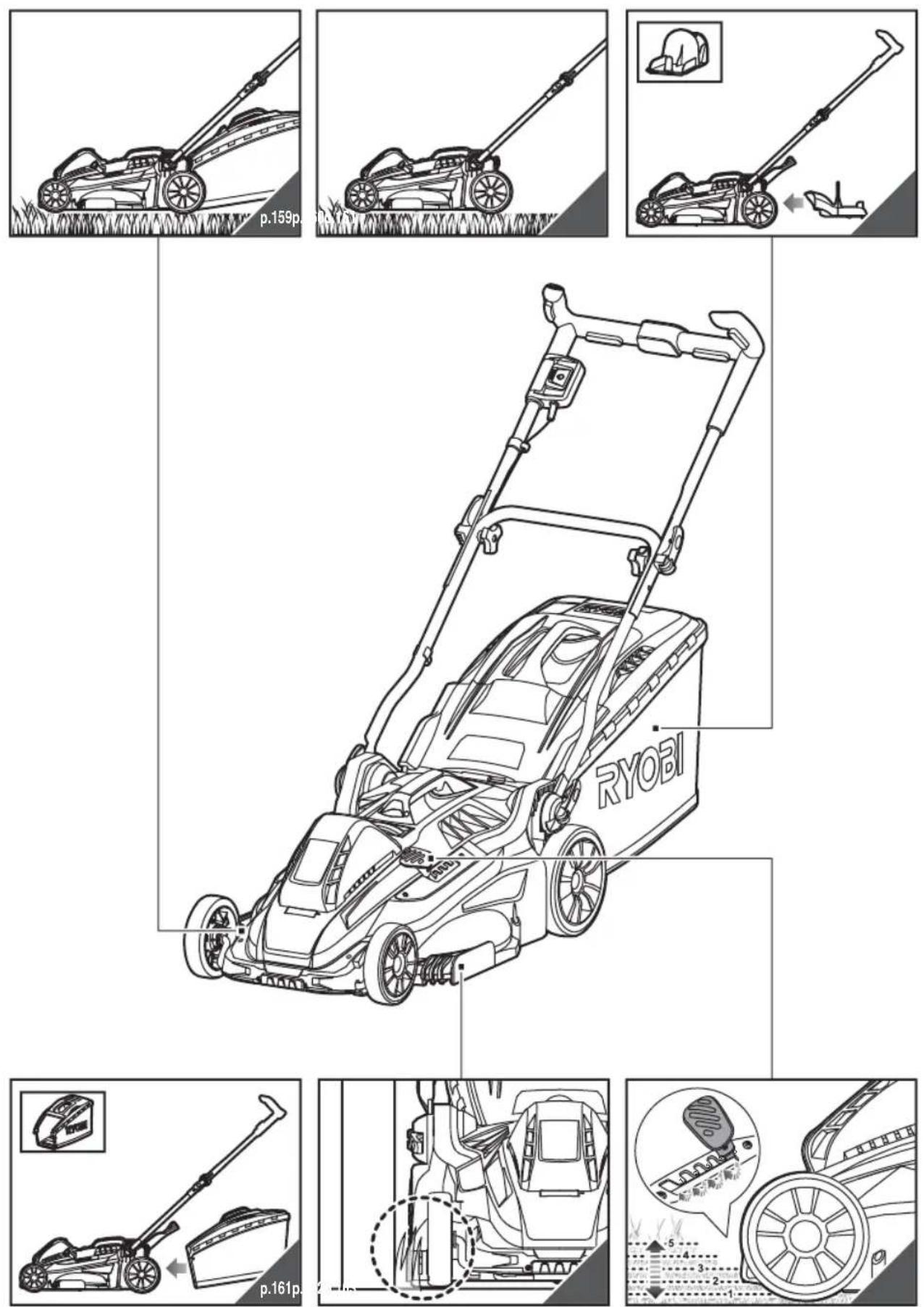

KNOW YOUR PRODUCT

See page 153.

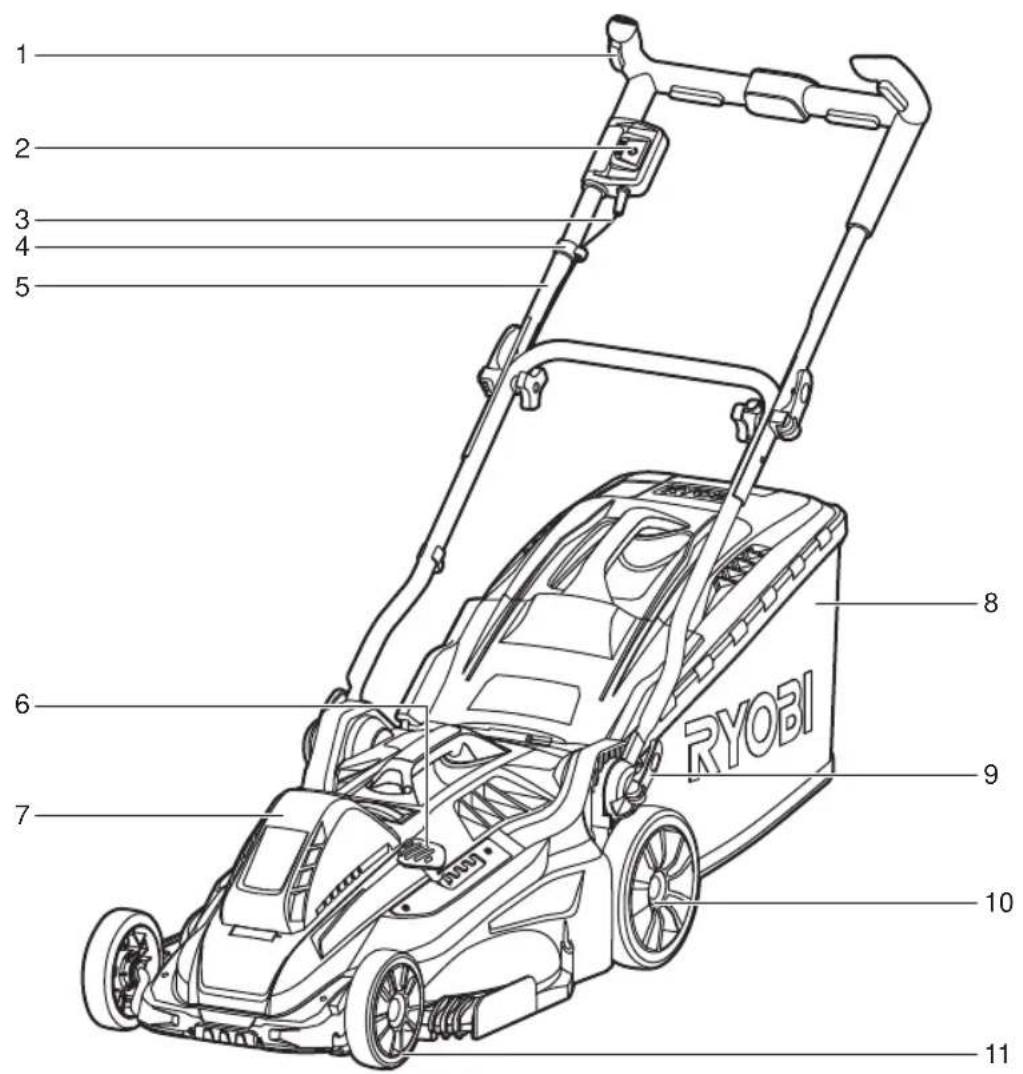

Parts

1. On-off button
2. Start button

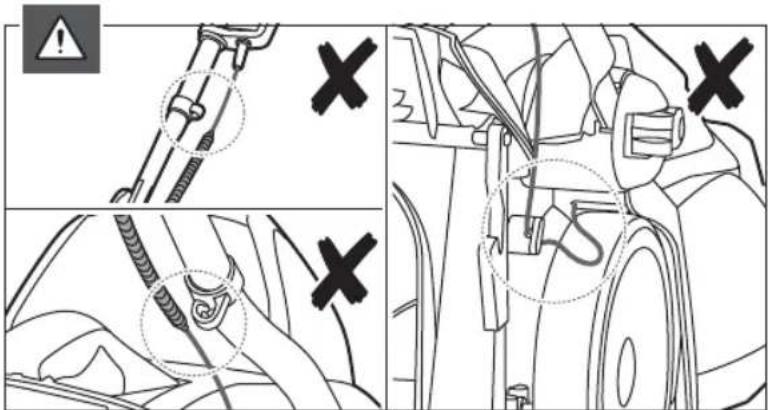

3. Motor control cable
4. Cord retainer

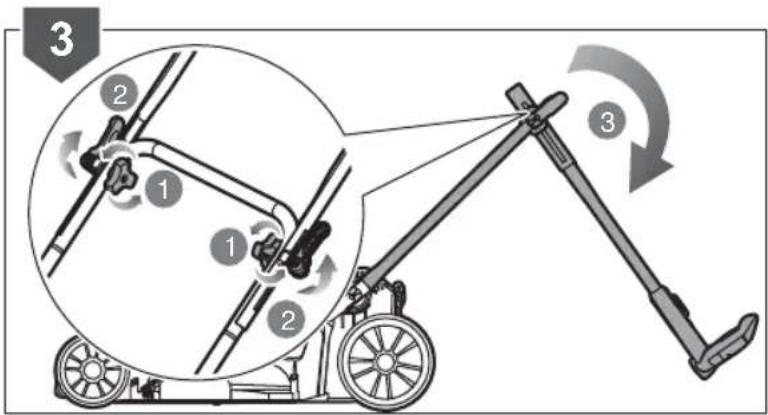

5. Handle

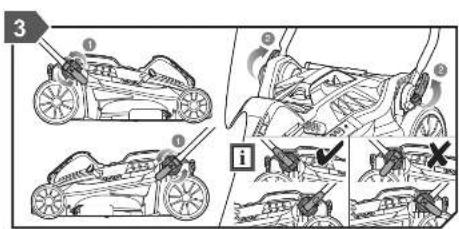

6. Height adjustment lever
7. Battery door

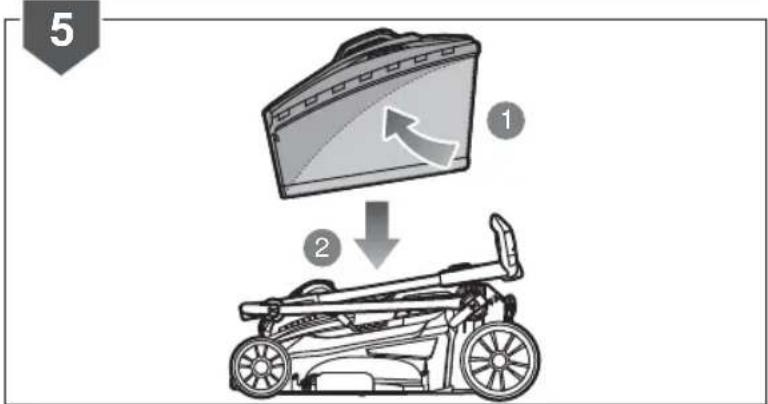

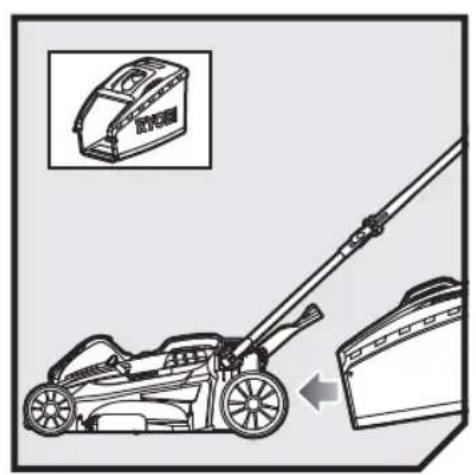

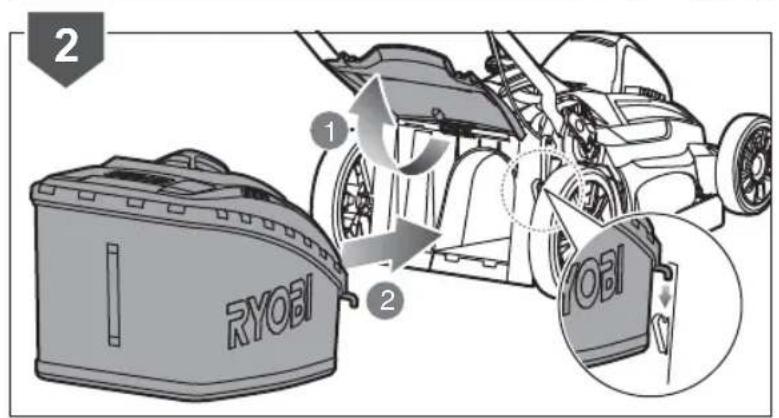

8. Grassbox
9. Quick release fastener
10. Rear wheel
11. Front wheel
12. Isolator key

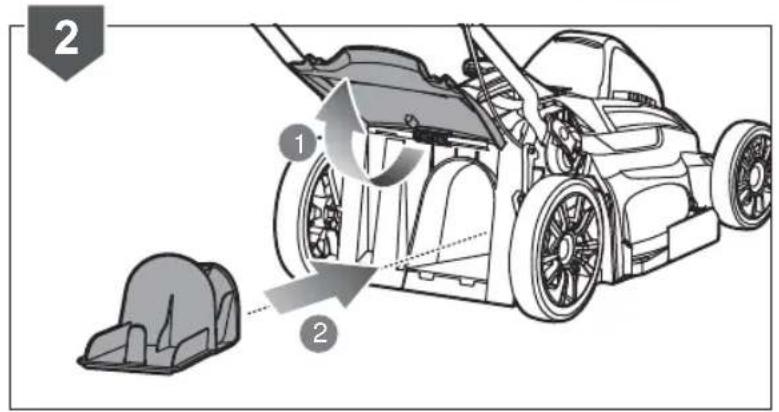

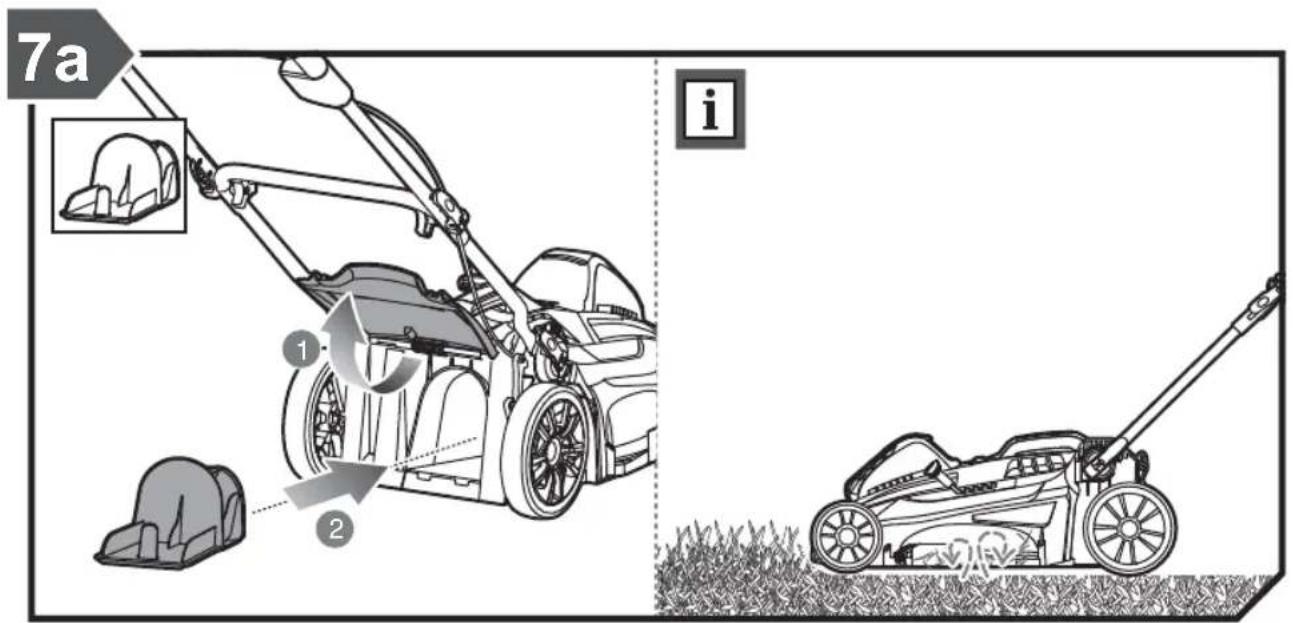

13. Mulching plug
14. Battery
15. Charger

SYMBOLS ON THE PRODUCT

Read and understand all instructions before operating the product, follow all warnings and safety instructions.

Wear ear protection.

Wear eye protection.

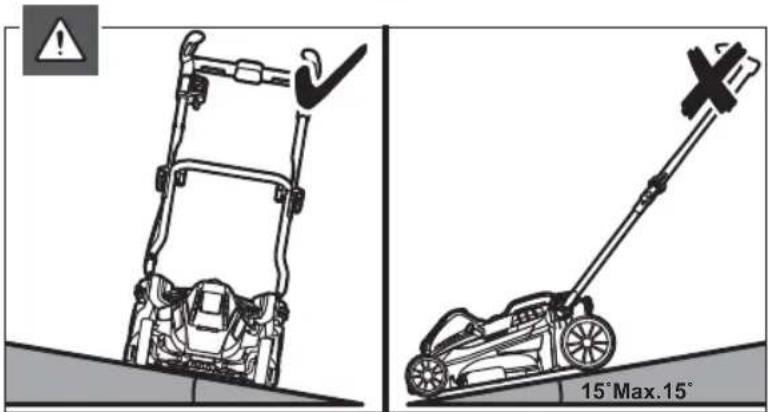

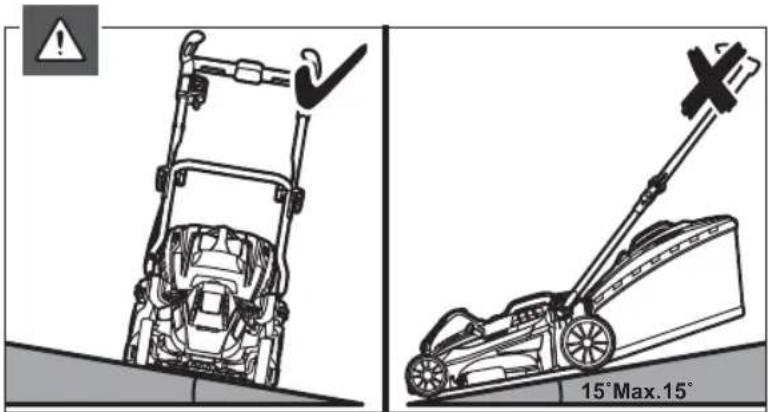

Do not operate on inclines greater than 15^ . Mow across the face of slopes, never up and down.

Do not expose to rain or damp condition.

Beware of sharp blades. Blades continue to rotate after the motor is switched off – Remove isolator key before maintenance

Beware of thrown or flying objects. Keep all bystanders, especially children and pets, at least 15 m away from the operating area.

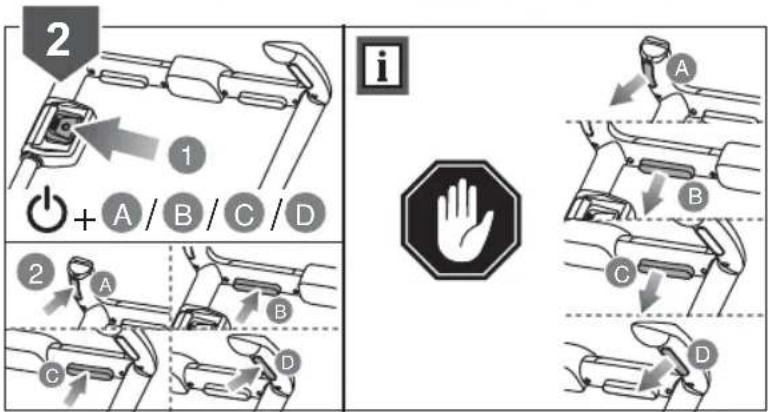

Press the Start button and then the On-off button (A, B, C or D) to start the product. Release the Start button and keep pressing the On-off button to run the product. Release the On-off button to stop the product.

Please read the instructions carefully before using the product.

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

Conforms to all regulatory standards in the country in the EU where the product is purchased.

EurAsian Conformity Mark

Ukrainian mark of conformity

The guaranteed sound power level is shown on this label by 92 dB.

The following signal words and meanings are intended to explain the levels of risk associated with this product:

DANGER

Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.

WARNING

Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.

CAUTION

Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.

CAUTION

(Without Safety Alert Symbol) Indicates a situation that may result in property damage.

SYMBOLS IN THIS MANUAL

Parts or accessories sold separately

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.

Note

Warning

MOWING TIPS

The run time of the battery depends on the condition, length, and density of the grass.

Adjust the cutting height of the lawn mower to suit the current condition of the lawn to be mowed.

Grass conditions	Suggested height adjustment		Coverage (maximum)
	First pass	Succeeding passes
Very thin / Dry 3	2 800 m		^2 *
Thin / Dry 4 3 —	2 575 m		^2 *
Medium / Dense	5	4	^2 * → 3 400 m

* battery: BPL3650D

■ For best performance, always cut off one-third or less of the total height of the grass.
■ When cutting long grass, reduce walking speed to allow for more effective cutting and a proper discharge of the clippings.
- Do not cut wet grass; it will stick to the underside of the deck and prevent proper collection or discharge of grass clippings.
■ New or thick grass may require a higher cutting height.
■ A higher cutting height will extend the run time of the battery.

SYMBOLES APPLIQUÉS SUR LE PRODUIT

SYMBOLE AUF DEM PRODUKT

ALGEMENE VEILIGHEIDSWAARSCHUWINGEN

WAARSCHUWING

VEILIGHEIDSWAARSCHUWINGEN GRASMAAIMACHINE

SYMBOLER PÅ PRODUKTET

TRANSPORT OCH FÖRVARING

SYMBOLER PÅ PRODUKTEN

SYMBOLER PÅ PRODUKTET

IKON I DENNE MANUALLEN

No TC RU C-DE.AE11.B.04144

* Acumulator: BPL3650D

* Akumulators: BPL3650D

* Akumulator: BPL3650D

Line drawing of a lawn mower with attached lever and wheels (no text or symbols)

x 1

Line drawing of a portable electronic device with ventilation slots and buttons (no text or symbols)

x 1

x 1

© x2x2

x 2

Line drawing of a YOBI branded electronic device (no text or symbols on the device itself)

x 1x 1x

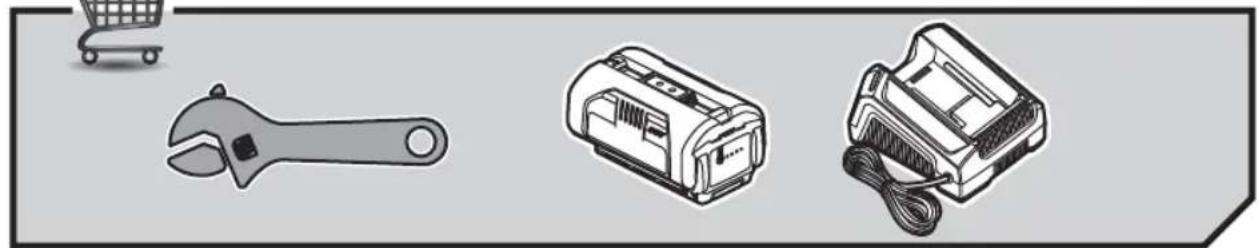

Illustration of an adjustable wrench next to a shopping cart (no text or symbols)

RLM36B46L

Line drawing of a lawn mower with attached lever and wheels (no text or symbols)

x 1 x 1

© x 2 x 2

x 2

x 1x 1

Line drawing of a YOBI branded container with no visible text or symbols on the body

x 1

Line drawing of a portable electronic device with a cord (no text or symbols)

Illustration of three different household appliances: a wrench, a printer, and a printer with cable (no text or symbols present)

1 2 3 4 5 6 7 8 9 10 11 RYOBI

12131415

Simple line drawing of a mechanical component or housing (no text or symbols)

Line drawing of a cylindrical electronic device with a vertical line indicating a pin or connector (no text or symbols present)

Line drawing of a mechanical device with a coiled cable (no text or symbols)

1 X ✓

2 i

7a 1 2 i

Diagram illustrating vehicle engine components with numbered parts and directional arrows, likely for assembly or maintenance instructions.

4 ① ② ③ ④ i ✓ ×

5

6

Technical diagram showing mechanical assembly with labeled components and cross marks indicating inspection or failure points

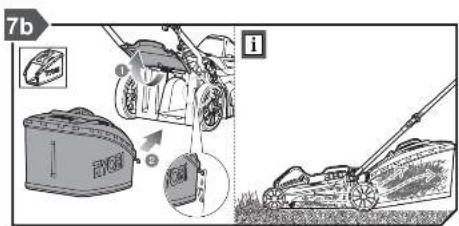

7b i

8

9

10 ① ② ③ ④ A/P/D/D

Diagram illustrating hand protection symbols and mechanical actions with numbered instructions

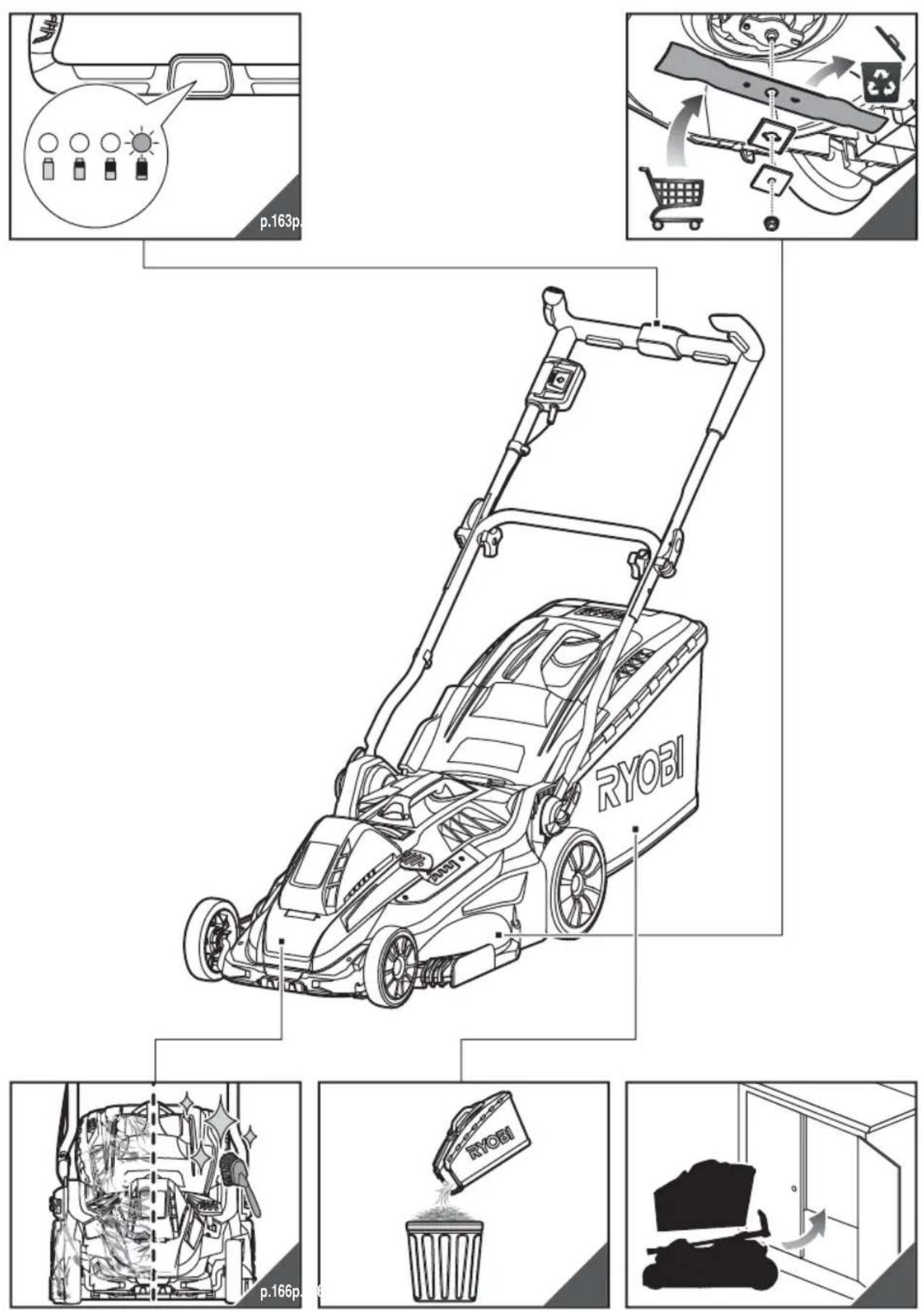

p.163p RYOBI p.166p RYOBI

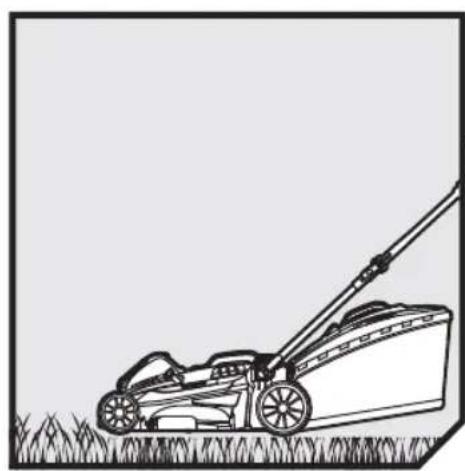

Line drawing of a lawn mower on grass, no text or symbols present

Illustration comparing two lawn lawners, one with checkmark and the other without cross, showing different actions.

15° Max. 15°

Diagram illustrating vehicle door panel assembly steps with numbered instructions for lifting and adjusting parts.

2 1 + A / B / C / D i 2 A B C D

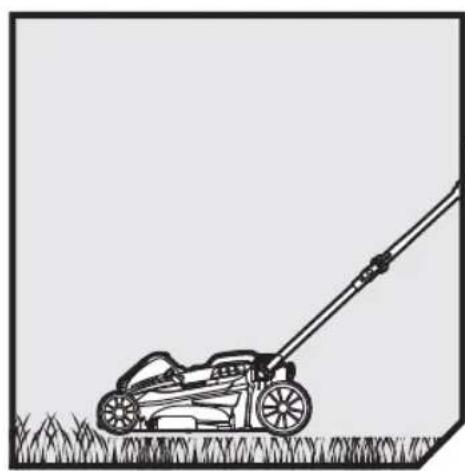

Line drawing of a lawn mower on grass, no text or symbols present

Safety warning illustration showing a lawn mower on a pole with checkmark and cross symbols indicating incorrect and correct actions.

15° Max.15°

Diagram illustrating vehicle gear assembly steps with numbered instructions for lifting and mounting components

2 1 + A / B / C / D i 2 A B C D

Diagram of a lawn mower with a close-up inset showing the blade and base (no text or symbols)

1 RYOBI 2 3 2 1 1 1 1

2 1 2

Diagram of a lawn mower with a tool, showing blade and handle (no text or symbols)

Diagram illustrating vehicle wheel assembly and safety instructions, showing components like a seat and wheel rim with warning symbols.

2 RY081 ① ② RY081

Technical line drawing of a vehicle interior showing structural components and a highlighted section (no text or symbols)

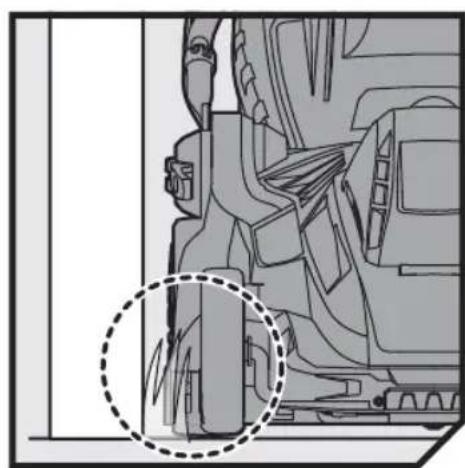

Illustration of a lawn mower on a grassy slope next to a brick wall (no text or symbols)

Technical diagram showing airflow patterns around a vehicle or mechanical component, with no visible text or symbols.

Diagram illustrating a vehicle wheel assembly with numbered parts and a magnified view of the component being inserted into a bracket.

Diagram showing a device with labeled parts and directional arrows, highlighting a numbered sequence from 1 to 5.

Diagram illustrating a car steering wheel with numbered parts and an inset showing the steering wheel's gear mechanism.

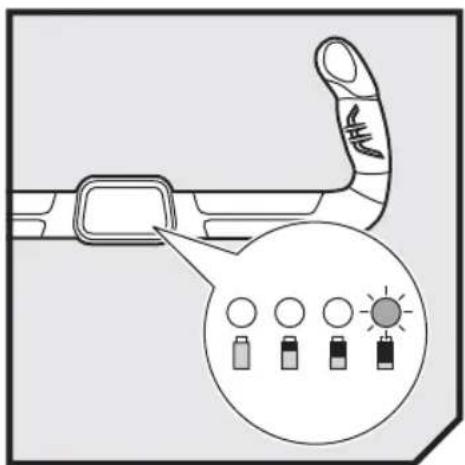

Diagram showing a hand holding a device with a magnified view of battery symbols and a sun icon, likely illustrating a safety or safety concept.

Diagram illustrating car recycling process with labeled components including tire, gear, and recycling symbol

Diagram illustrating vehicle steering and gear movement steps with numbered instructions for each step

Diagram of a lawn mower system with a motor and gear assembly, showing mechanical components (no text or labels)

Technical illustration of a mechanical assembly with a brush and fan blade (no text or symbols)

4 1 2

5

6

7 2 1

Diagram of a car interior showing exhaust plumes and a worker holding a tool (no text or labels)

Line drawing of a car with visible engine and battery components, no text or symbols present

Illustration of a lawn mower emitting exhaust from a pump nozzle, with no text or symbols present.

RYOBI

1 RYOBI 2 3 1 2 3 1 2 3

2 RYOBI

Simple line drawing of a house with a door and a bag, showing a curved arrow indicating rotation (no text or symbols)

Diagram illustrating vehicle steering wheel assembly steps with numbered instructions and component placement

Technical diagram showing mechanical assembly with warning symbols and crosshair indicators for inspection or repair instructions.

Diagram showing a lawn mower with labeled parts and a magnified view of the wheel assembly, including steps 1 and 2.

Diagram illustrating a mechanical device with labeled parts and rotational motion arrows, showing assembly steps.

4 ② ①

5 ① ②

Silhouette of a person inside a room with a door, showing a curved arrow indicating motion (no text or symbols)

English Français Deutsch Español Italiano Nederlands
Product specifications	Caractéristiques produit	Produkt-Spezifikationen	Características del producto	Caratteristiche del prodotto	Productgegevens
Rated voltage (DC) Tension	nominale (CC) Nennspannung	(DC) Tensión nominal (CC)	Voltaggio nominale (DC)		Toegekende spanning (Gelijkstroom)
Width of cut Largeur de coupe	Breite des Schnitts Ancho	del corte Ampiezza di taglio	Maaibreedte
Height of cut	Hauteur de coupe	Schnitthöhe	Altura del corte	Altezza del taglio	Hoogte van de snede
No-load speed	Vitesse de rotation	Leerlaufdrehzahl	Velocidad sin carga	Velocità senza carico	Snelheid zonder lading
Weight (without battery pack)	Poids (Sans batterie)	Gewicht (Ohne Akku)	Peso (Sin batería)	Peso (Senza batteria)	Gewicht (Zonder accupak)
Grassbox capacity	Contenance du panier	Grasfangkorbvolumen	Capacidad de la caja de la hierba	Capacità scatola di raccolta erba	Capaciteit grasopvangbak
Vibration level (in accordance with EN 60335-2-77 Annex FF)	Niveau de vibrations (selon l'Annexe FF de EN 60335-2-77)	Vibrationsgrad (entspricht Anhang FF von EN 60335-2-77)	Nivel de vibración (según el Anexo FF de EN 60335-2-77)	Livello di vibrazioni (Secondo quanto indicato dall'Allegato FF di EN 60335-2-77)	Trillingsniveau (in overeenstemming met bijlage FF van EN 60335-2-77)
Right handle	Poignée droite	Rechter griff	Empuñadura derecha	Manico destro	Rechter handgreep
Left handle	Poignée gauche Linker griff		Empuñadura izquierda	Manico sinistro	Linker handgreep
Uncertainty of measurement	Incertitude de la mesure Unsicherheit der Messung		Incertidumbre de medición	Incertezza della misurazione	Onzekerheid bij meting
Declared vibration value	Valeur déclarée des vibrations	Angegebener Vibrationswert	Valor de vibración declarado	Valore dichiarato vibrazioni	Verklaarde trillingswaarde
Noise emission level (in accordance with EN 60335-2-77 Annex GG)	Niveau d'émission sonore (selon l'Annexe GG de EN 60335-2-77)	Geräuschemission (entspricht Anhang GG von EN 60335-2-77)	Nivel de emisión de ruido (según el Anexo GG de EN 60335-2-77)	Livello di emissione rumori (Secondo quanto indicato dall'Allegato GG di EN 60335-2-77)	Niveau geluidsemissie (in overeenstemming met bijlage GG van EN 60335-2-77)
A-weighted sound pressure level at operator's position	Niveau de pression sonore pondéré A au niveau de l'opérateur	A-bewerteter Schalldruckpegel an der Position des Benutzers	Nivel de presión sonora ponderado A en la posición del operario	Livello di pressione sonora ponderata A alla posizione dell'operatore	A-gewogen geluidsdrukniveau bij positie van gebruiker
Uncertainty of measurement	Incertitude de la mesure Unsicherheit der Messung		Incertidumbre de medición	Incertezza della misurazione	Onzekerheid bij meting
A-weighted sound power level	Niveau de puissance sonore pondéré-A	A-bewerteter Schallleistungspegel	Nivel de potencia acústica ponderada en A	Livello di potenza sonora pesato A	A-gewogen geluidsniveau
Uncertainty of measurement	Incertitude de la mesure Unsicherheit der Messung		Incertidumbre de medición	Incertezza della misurazione	Onzekerheid bij meting
Noise emission level (in accordance with ISO 4871)	Niveau d'émission sonore (selon ISO 4871)	Geräuschemission (nach ISO 4871)	Nivel de emisión de ruido (de acuerdo con la norma ISO 4871)	Livello di emissione rumori (secondo quanto indicato dalle norme ISO 4871)	Niveau geluidsemissie (in overeenstemming met ISO 4871)
Declared A-weighted sound pressure level at operator's position	Niveau déclaré de pression sonore pondéré-A au niveau de l'opérateur	Angegebener A-bewerteter Schalldruckpegel an der Position des Anwenders	Nivel declarado de presión acústica ponderado A en la posición del operador	Livello dichiarato di pressione sonora ponderata A alla posizione dell'operatore	Verklaard A-gewogen geluidsdrukniveau bij positie van gebruiker
Declared A-weighted sound power level	Niveau déclaré de puissance sonore pondéré-A	Angegebener A-bewerteter Schallleistungspegel	Nivel declarado de potencia acústica ponderada en A	Livello dichiarato di potenza sonora pesato A	Verklaard A-gewogen geluidsniveau

Português Dansk Svenska Suomi Norsk Русский
Características do aparelho	Produkt specifikationer	Produkt specifikationer	Tuotteen tekniset tiedot	Produkt spesifikasjoner	Характеристики изделия
Tensão nominal (DC) Maerkespænding (DC) Spärning (Likström) Nimellis	Jännite (DC)		Nominell spenning (DC)	Номинальное напряжение (тока)	36 V
Largura do corte	Snitbredde	Skärbredd	Leikkauksen leveys	Bredde på kappet	Ширина разреза	46 cm
Altura de corte	Klippehøjde	Klipphöjd	Leikkuukorkeus	Klippehøyde	Высота стрижки	20-70 mm
Velocidade sem carga	Tomgangshastighed	Hastighet utan belastning	Nopeus ilman kuormaa	Tomgangshastighet	Холостая скорость	3000 ± 10% min^-1
Peso (Sem bateria)	Vægt (Ingen batteri)	Vikt (Utan batteri)	Paino (Ilman akkua)	Vekt (Uten batteri)	вес (Без аккумулятора)	16.7 kg
Capacidade da caixa de relva	Græsbokskapacitet	Kapacitet för gräslåda	Ruoholaatikon tilavuus	Gressbokskapasitet	Вместимость контейнера для травы	55 L
Nivel de vibração (segundo o Anexo FF da norma EN 60335-2-77)	Vibrationsniveau (i henhold til bilag FF til EN 60335-2-77)	Vibrationsnivå (enligt Annex FF i EN 60335-2-77)	Tärinätaso (EN 60335-2-77 -standardin litteen FF mukaan)	Vibrasjonsnivå (i samsvar med Tillegg FF til EN 60335-2-77)	Уровень вибрации (в соответствии с Приложением FF стандарта EN 60335-2-77)
Punho direito	Højre håndtag	Höger handtag	Oikea kahva	Høyre håndtak	Правой ручки	1.0 m/s^2
Punho esquerdo	Venstre håndtag	Vänster handtag	Vasen kahva	Venstre håndtak	Левой ручки	0.8 m/s^2
Incerteza de medições	Målingsusikkerhed	Osäkerhet i mätningar	Mittausten epätarkkuus	Usikkerhet ved måling	Погрешность измерения	1.5 m/s^2
Valor de vibração declarado	Deklareret vibrationsværdi	Deklararat vibrationsvärde	Ilmoitettu tärinäarvo	Erklært vibrasjonsverdi	Заявленное значение вибрации	2.5 m/s^2
Nivel de emissão de ruido (segundo o Anexo GG da norma EN 60335-2-77)	Stojemissionsniveau (i henhold til bilag GG til EN 60335-2-77)	Bullernivå (enligt Annex GG i EN 60335-2-77)	Melutaso (EN 60335-2-77 -standardin litteen GG mukaan)	Støyemisjonsnivå (i samsvar med Tillegg GG til EN 60335-2-77)	Уровень шума (в соответствии с Приложением GG стандарта EN 60335-2-77)
Nivel de pressão sonora ponderada A na posição do operador	A-vægtet lydtryksniveau ved operatørens position	A-viktad ljudtrycksnivå vid operatörsplats	A-painotettu käyttäjään kohdistuva äänenpainetaso	Støynivåvekting ved operatørens posisjon	Амплитудно-взвешенный уровень звукового давления в рабочем месте оператора	76.2 dB(A)
Incerteza de medições	Målingsusikkerhed	Osäkerhet i mätningar	Mittausten epätarkkuus	Usikkerhet ved måling	Погрешность измерения	1.5 dB
Nivel de potência sonora ponderada A	A-vægtet lydeffektniveau	A-vägd ljudeffektsnivå	A-painotettu äänenteho	A-vektet lydeffektnivå	Уровень А-взвешенной звуковой мощности	90.8 dB(A)
Incerteza de medições	Målingsusikkerhed	Osäkerhet i mätningar	Mittausten epätarkkuus	Usikkerhet ved måling	Погрешность измерения	1.5 dB
Nivel de emissão de ruido (de acordo com a norma ISO 4871)	Stojemissionsniveau (i henhold til ISO 4871)	Bullernivå (i enlighet med ISO 4871)	Melutaso (standardin ISO 4871 -standardin mukaan)	Støyemisjonsnivå (i henhold til ISO 4871)	Уровень шума (в соответствии со стандартом ISO 4871)
Nivel declarado de pressão acústica ponderado A na posição do operador	Deklareret A-vægtet lydtryksniveau ved operatørens position	Deklarerad A-viktad ljudtrycksnivå vid operatörens plats	Ilmoitettu A-painotettu käyttäjään kohdistuva äänenpainetaso	Erklært støyivåvekting ved operatørens posisjon	Заявленный амплитудно-взвешенный уровень звукового давления в рабочем месте оператора	78 dB(A)
Nivel declarado de potência sonora ponderada A	Deklareret A-vægtet lydeffektniveau	Deklarerad A-vägd ljudeffektsnivå	Ilmoitettu A-painotettu äänenteho	Erklært A-vektet lydeffektnivå	Заявлено уровень А-взвешенной звуковой мощности	93 dB(A)

Polsk Čeština Magyar Română Latviski Lietuviškai
Parametry techniczne	Technické údaje produktu	Termék műszaki adatai Specificațiile produsului	Produkta specifikácijas	Gaminio techninės savybės
Napięcie znamionowe (DC)	Jmenovité napětí (DC)	Névloges feszültség (Egyenáram)	Tensiunea nominală (DC)	Nominālais spriegums (DC)	Nominali įtampa (Nuolatinė srovė)
Szerokość cięcia	Šiřka řezu	Vágás szélessége	Lățime a tâieri	Griezuma platums	Pjovimo plotis
Wysokość cięcia	Výška sečení	Vágásmagasság	Înăltjimea de tâiere	Griešanas augstums	Pjovimo aukštis
Prędkość obrotowa bez obciążenia	Rychlost naprázdno	Üresjáratí fordulatszám	Viteză fără sarcină	Greitis be apkrovimo	Greitis be apkrovimo
Ciężar (Bez akumulatora)	Hmotnost (Není vložen akumulátor)	Gépsúly (Akkumulátor nélkül)	Greutate (Fără baterie)	Svars (Bez akumulatora)	Svoris (Be akumuliatorinės baterijos)
Pojemność kosza na trawę	Kapacita sběmého vaku	Fūgyūjtő térfogata	Capacitate colector de iarbă	Zăles savăcėja ietilpība	Žolės surinkimo dėžės talpa
Poziom drgań (zgodnie z aneksem FF normy EN 60335-2-77)	Úroveň vibrací (v souladu s přilohou FF normy EN 60335-2-77)	Vibrációszint (az EN 60335-2-77 FF. függeléke szerint)	Nivelul vibrațiilor (în conformitate cu anexa FF din EN 60335-2-77)	Vibrăcijas līmenis (saskaņa ar EN 60335-2-77 pielikumu FF)	Vibracijos lygis (pagal EN 60335-2-77 standarto FF priedą.)
Uchwyt prawy	Pravá rukojeť	Jobb oldali fogantyú	Mâner dreapta	Labais rokturis	Dešinė rankena
Uchwyt lewy	Levá rukojeť	Bal oldali fogantyú	Mâner stânga	Kreisais rokturis	Kairė rankena
Niepewność pomiaru	Nejistota měření	Mérės bizonytalansága	Incertitudine a măsurării.	Mërījuma mainīgums	Matmenų paklaïda
Deklarowana wartość wibracji	Deklarovaná hodnota vibrací	Deklarált vibráció érték	Valoare de vibrație declarată	Noteikta vibrăcijas vērtība	Deklaruota vibracijos vertė
Poziom emisji hałasu (zgodnie z aneksem GG normy EN 60335-2-77)	Hladina emise hluku (v souladu s přilohou GG normy EN 60335-2-77)	Zajkibocsátási szint (az EN 60335-2-77 GG. függeléke szerint)	Nivel emisie zgomot (în conformitate cu anexa GG din EN 60335-2-77)	Trokšna emisijas līmenis (saskaņa ar EN 60335-2-77 pielikumu GG)	Triukšmo emisiju norma (pagal EN 60335-2-77 standarto G priedą.)
Poziom ciśnienia akustycznego w pozycji operatora	Hladina akustického tlaku vážená funkcí A v poloze obsluhy	A-súlyozott hangnyomásszint a kezelő helyén	Un nivel de presiune al sunetului mai tare la poziția operatorului.	Lietotāja pozīcijā ir ar A novērtėts skaņas spiediena līmenis.	A lygio svorinis garso slėgis operatoriaus padėtyje.
Niepewność pomiaru	Nejistota měření	Mérės bizonytalansága	Incertitudine a măsurării.	Mërījuma mainīgums	Matmenų paklaïda
A-ważony poziom natężenia hałasu	Hladina akustického výkonu vážená funkcí A	A-súlyozott hangleljesítményszint	Nivel de putere acustică ponderată A	A-līmeņa skaņas jaudas līmenis	A svertinis garso galios lygis
Niepewność pomiaru	Nejistota měření	Mérės bizonytalansága	Incertitudine a măsurării.	Mërījuma mainīgums	Matmenų paklaïda
Poziom emisji hałasu (zgodnie z normą ISO 4871)	Hladina emise hluku (v souladu s ISO 4871)	Zajkibocsátási szint (a ISO 4871 szerint)	Nivel emisie zgomot (în conformitate cu ISO 4871)	Trokšna emisijas līmenis (saskaņa ar ISO 4871)	Triukšmo emisiju norma (pagal ISO 4871)
Deklarowany poziom ciśnienia akustycznego (A) w miejscu operatora	Deklarovaná hladina akustického tlaku vážená funkcí A v poloze obsluhy	Deklarált A-súlyozott hangnyomásszint a kezelő helyén	Nivel presiune sunet greutate declarată A la poziția operatorului	Lietotāja pozīcijā ir noteikts ar A novērtėts skaņas spiediena līmenis	Deklaruotas A svorinis triukšmo slėgio lygis operatoriaus padėtyje
Deklarovaná deklarowany A-ważony poziom natężenia hałasu	Deklarovaná Hladina akustického výkonu vážená funkcí A	Deklarált A-súlyozott hangteljesítményszint	Declarat nivel de putere acustică ponderată A	Deklarētais A-līmeņa skaņas jaudas līmenis	Deklaruotas A svertinis garso galios lygis

Eesti Hrvatski Slovensko Slovenčina България Українська
Toote tehnilised andmed	Specifikacije proizvoda	Specifikacije izdelka Špecifikácie produktu		Технически характеристики	Технічні характеристики продукту
Nimipinge (DC) Nazivni napon (DC) Nazivna napetost (DC) Menovité napätte (DC)				Номинален волтаж (DC)	Номінальна напруга (DC)	36 V
Lõikelaius	Širina reza	Širina rezanja	Širka rezu	Ширина на рязане	Ширина різу	46 cm
Lõikekõrgus Visina rezanja Višina rezanja Vyška strihania				Височина на подрязване	Висота скошування	20-70 mm
Tühikäigukiirus Brzina bez opterećenja		Hitrost neobremenjenega motorja	Rýchlost' naprázdno	Скорост в ненатоварен режим	Швидкість без навантаження	300 12 10% min ^1
Kaal (Ilma aku pakita)	Težina (Bez baterije)	Teža (Brez baterijskega)	Hmotnost' (Bez batérie)	Тегло (Без батерия)	Вага (Без акумулятором)	16.7 kg
Rohukasti maht	Kapacitet kutije za travu	Kapaciteta posode za travo	Kapacita zberača trávy	Вместимост на кутията за трева	Ємність травозбірника	55 L
Vibratsioonitase (vastavalt standardi EN 60335-2-77 lisale FF)	Razina vibracije (u skladu s Dodatkom FF EN 60335-2-77)	Raven vibracij (v skladu z aneksom FF v EN 60335-2-77)	Úroveň vibrácií (v súlade s Dodatkom FF normy EN 60335-2-77)	Ниво на вибрация (в съответствие с приложение FF на EN 60335-2-77)	Рівень вібрації (відповідно до EN 60335-2-77 додаткок FF)
Parempoolne käepide	Desna ruëica	Desni ročaj	Pravá rukovăt'	Дясната ръкохватка	Права ручка	1.0 m/s ^2
Vasakpoolne käepide	Lijeva ruëica	Levi ročaj	L'avá rukovăt'	Лявата ръкохватка	Ліва ручка	0.8 m/s ^2
Mõõtmismääramatus	Neodređenost mjerenja	Negotovost meritev	Nespoľahlivost' meraní	Несигурност на измерването	Невизначеність вимірювання	1.5 m/s ^2
Deklareeritud vibratsiooni värtus	Deklarirana vrijednost vibracija	Deklarirana vrednost tresljajev	Deklarovaná hodnota vibrácií	Посочена стойност на вибрациите	Заявлене значення вібрації	2.5 m/s ^2
Müraemissiooni tase (vastavalt standardi EN 60335-2-77 lisale GG)	Razina emitirane buke (u skladu s Dodatkom GG EN 60335-2-77)	Raven emisij hrupa (v skladu z aneksom GG v EN 60335-2-77)	Úroveň emisií hluku (v súlade s Dodatkom GG normy EN 60335-2-77)	Ниво на шумова емисия (в съответствие с приложение GG на EN 60335-2-77)	Рівень шуму (відповідно до EN 60335-2-77 Annex GG)
A-kaalutud műraemissiooni rõhu tase operaatori töökohal	A-ponderirana razina zvučnog tlaka u položaju operatera	A-izmerjena raven zvočnega tlaka pri položaju upravljavca	Vážená A hladina akustického tlaku na pozícii obsluhujúcej osoby.	Равнище А на нивото на шумовото налягане на мястото на оператора.	А-зважений рівень звукового тиску на робочому місці оператора	76.2 dB(A)
Mõõtmismääramatus	Neodređenost mjerenja	Negotovost meritev	Nespoľahlivost' meraní	Несигурност на измерването	Невизначеність вимірювання	1.5 dB
A-kaalutud helivõirnsuse tase	Ponderirana razina zvučne snage	A-izmerjena raven zvočne moči	Vážená A hladina akustického výkonu	Ниво на силата на шума с равнище А	А-зважений рівень звукової потужності	90.8 dB(A)
Mõõtmismääramatus	Neodređenost mjerenja	Negotovost meritev	Nespoľahlivost' meraní	Несигурност на измерването	Невизначеність вимірювання	1.5 dB
Müraemissiooni tase (vastavalt standardile ISO 4871)	Razina emitirane buke (u skladu s ISO 4871)	Raven emisij hrupa (skladno z ISO 4871)	Úroveň emisií hluku (podl’a normy ISO 4871)	Ниво на шумова емисия (в съответствие с ISO 4871)	Рівень шуму (відповідно до ISO 4871)
Deklareeritud A-kaalutud helirõhu tase operaatori töökohal	Deklarirana ponderirana razina zvučne snage na položaju operatera.	Deklarirana z A ovrednotena vrednost zvočnega tlaka pri upravljavcu	Deklarovaná vážená A hladina akustického tlaku na pozícii obsluhujúcej osoby	Посочено ниво на шумово налягане с равнище А на мястото на оператора	Заявлене А-зважений рівень звукового тиску на робочому місці оператора	78 dB(A)
Deklareeritud A-kaalutud helivõirnsuse tase	Deklarirana ponderirana razina zvučne snage	Deklarirana A-izmerjena raven zvočne moči	Deklarovaná vážená A hladina akustického výkonu	Обявени ниво на силата на шума с равнище А	Заявлене А-зважений рівень звукової потужності	93 dB(A)

English Français Deutsch		Español Italiano Nederlands Português
Battery and charger	Batterie et chargeur	Akku und Ladegerät	Bateria y cargador	Batteria e caricatore	Accu en oplader	Bateria e carregador
Model Modèle Model	Modelo Modello Model Modelo
Battery Pack Batterie Akku Bateria		Batteria Accu Bateria
Weight	Poids	Gewicht	Peso	Peso	Peso	Gewicht
Charger	Chargeur	Ladegerät	Cargador	Caricatore	Lader	Carregador
Compatible battery packs	Packs Batterie Compatibles	Kompatible Akkus	Paquetes de batería compatibles	Gruppo batterie compatibili	Compatibele accupacks	Baterias Compatíveis
Compatible charger	Chargeur compatible	Kompatibles ladegerät	Cargador compatible	Caricatore compatibile	Kompatibel oplader	Carregador compatível
Replacement part	Pièce de rechange	Ersatzteil	Pieza de repuesto	Ricambio	Vervangonderdeel	Peça de substituição
Blade	Lame	Messer	Hoja	Lama	Zaagblad	Lâmina

Polski	Čeština	Magyar	Română	Latviski	Lietuviškai	Eesti
Akumulator i ładowarka	Nabíječka a baterie	Akkumulátor és töltő	Bateria și încărcătorul	Akumulators un lădëtăjs	Akumuliatorius ir jkroviklis	Aku ja laadija
Model Model Típus	Model Modelis Modelis Mudel
Akumulator	Baterie	Akkumulátor	Acumulator	Akumulators	Baterija	Aku paketiga
Greulate	Waga	Bec	Tömeg	Teža	Težina	Mass
Ładowarka	Nabíječka	Töltő	Încărcător	Lădëtăjs	Jkroviklis	Laadija
Pasujące akumulatory	Kompatibilní akumulátory	Kompatibilis akkumulátorok	Acumulatori compatibil	Savietojami akumulatoru komplekti	Suderinami baterijos paketai	Ühilduvad akupaketid
Odpowiednia ładowarka	Kompatibilní nabíječka	Kompatibilis töltő	Încărcător compatibil	Saderīgs lădëtăjs	Tinkamas jkroviklis	Kasutatav laadija
Części zamienne	Náhradní díl	Cserealkatrész	Piesă de schimb	Rezerves daļa	Atsarginė dalis	Varuosa
Ostrze	Nůž	Kés	Lamā	Asmens	Geležtė	Saeleht

Dansk Švenska Šuomi Norsk Русский
Batteri og oplader	Batteri och batteriladdare	Akku ja laturi Batteri og lader		Аккумуляторная батарея и зарядное устройство
Model Modell Malli Modell Модель					RLM36X46L5H	RLM36X46L5F	RLM36B46L
Batteri Batteri Akku Batteri Аккумулятор					BPL3650D	BPL3650D	-
Vikt Vægt Vekt Paino Hmotnost					1.44 kg	1.44 kg	-
Oplader Batteriladdare Laturi Lader				Зарядное устройство	BCL3620S	BCL3650F	-
Kompatible batterier	Kompatibla batteripaket	Yhteensopivat akut	Kompatible batteripakker	Совместимая аккумуляторная батарея	BPL3615/BPL3626/BPL3640/BPL3640D/BPL3650/BPL3650D
Compatibele oplader	Passande laddare	Yhteensopiva laturi	Kompatibel lader	Совместимое зарядное устройство	BCL3620/ BCL3620S/ BCL3650F
Reservedel Ersättningsdel	Varaosat	Erstatningsdel		Заменяемые детали
Klinge	Blad	Terä	Blad	Пильное полотно	RAC412

Hrvatski	Slovensko	Slovenčina	България	Українська
Baterija i punjač	Baterija in polnilnik	Akumulátor a nabíjačka	Батерия и зарядно устройство	Акумулятор і зарядний пристрій
Model Model Modelis	Модел			Модель	RLM36X46L5H	RLM36X46L5F	RLM36B46L
Baterija	Akumulator	Batéria	Батерия	Контейнер з акумулятором	BPL3650D	BPL3650D	-
Masė	Svars Hmotnosť Terno			Bara	1.44 kg	1.44 kg	-
Punjač	Polnilec	Nabíjačka	Зарядно устройство	Зарядний пристрій	BCL3620S	BCL3650F	-
Kompatibilna pakiranja baterija	Združljive baterije	Kompatibilné jednotky akumulátorov	Съвместими батерии	Сумісні акумуляторні блоки	BPL3615/BPL3626/BPL3640/BPL3640D/ BPL3650/BPL3650D
Kompatibilni punjač	Združljiv polnilec	Kompatibilná nabíjačka	Съвместимо зарядно устройство	Сумісний зарядний пристрій	BCL3620/ BCL3620S/ BCL3650F
Zamjenski dijelovi	Nadomestni deli	Náhradné diely	Резервна част	Змінна частина
Oštrica	Rezilo Ostriе Острие			Лезо	RAC412

EN GUARANTEE

In addition to any statutory rights resulting from the purchase, this product is covered by a guarantee as stated below.

1. The guarantee period is 24 months for consumers and commences on the date when the product was purchased. This date has to be documented by an invoice or other proof of purchase. The product is designed and dedicated to consumer and private use only. So there is no guarantee provided in case of professional or commercial use.

2. There is, in some cases (i.e. promotion, range of tools), a possibility to extend the warranty period over the period described above using the registration on the www.ryobitools.eu website. The eligibility of the tool is clearly displayed in stores and/or on packaging. The end user needs to register his/her newly-acquired tools online within 8 days from the date of purchase. The end user may register for the extended warranty in his country of residence if listed on the online registration form where this option is valid. Furthermore, end users must give their consent to the storage of the data which are required to enter online and they have to accept the terms and conditions. The registration confirmation receipt which is sent out by e-mail, and the original invoice showing the date of purchase will serve as proof of the extended warranty. Your statutory rights remain unaffected.

3. The guarantee covers all defects of the product during the warranty period due to defaults in workmanship or material at the purchase date. The guarantee is limited to repair and/or replacement and does not include any other obligations including but not limited to incidental or consequential damages. The warranty is not valid if the product has been misused, used contrary to the instruction manual, or being incorrectly connected. This guarantee does not apply to

– any damage to the product that is the result of improper maintenance –any product that has been altered or modified

– any product where original identification (trade mark, serial number) markings have been defaced, altered or removed

-any damage caused by non-observance of the instruction manual

-any non CE product

–any product which has been attempted to be repaired by an non-qualified professional or without prior authorization by Techtronic Industries

– any product connected to improper power supply (amps, voltage, frequency)

– any product used with inappropriate fuel mixture (fuel, oil, percentage of oil)

–any damage caused by external influences (chemical, physical, shocks) or foreign substances

—normal wear and tear of spare parts

-inappropriate use, overloading of the tool

-use of non-approved accessories or parts

—carburettor after 6 months, carburettor adjustments after 6 months

- components (parts and accessories) subject to natural wear and tear, including but not limited to bump knobs, drive belts, clutch, blades of hedge trimmers or lawn mowers, harness, cable throttle, carbon brushes, power cord, tines, felt washers, hitch pins, blower fans, blower and vacuum tubes, vacuum bag and straps, guide bars, saw chains, hoses, connector fittings, spray nozzles, wheels, spray wands, inner reels, outer spools, cutting lines, spark plugs, air filters, gas filters, mulching blades, etc.

1. For servicing, the product must be sent or presented to a RYOBI authorized service station listed for each country in the following list of service station addresses. In some countries your local RYOBI dealer undertakes to send the product to the RYOBI service organisation. When sending a product to a RYOBI service station, the product should be safely packed without any dangerous contents such as petrol, marked with sender's address and accompanied by a short description of the fault.

2. A repair/replacement under this guarantee is free of charge. It does not constitute an extension or a new start of the guarantee period. Exchanged parts or tools become our property. In some countries delivery charges or postage will have to be paid by the sender.

3. This guarantee is valid in the European Community, Switzerland, Iceland, Norway, Liechtenstein, Turkey and Russia. Outside these areas, please contact your authorized RYOBI dealer to determine if another warranty applies.

AUTHORISED SERVICE CENTRE

To find an authorised service centre near you, visit http://uk.ryobitools.eu/header/service-and-support/service-agents.

FR GARANTIE

EC DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Herewith we declare that the product

Cordless Lawn Mower

Brand: Ryobi

Model number: RLM36X46L5H/RLM36X46L5F/RLM36B46L

Serial number range:

RLM36X46L5H 44417901000001-44417901999999

RLM36X46L5F 44455801000001 - 44455801999999

RLM36B46L 44429001000001 - 44429001999999

is in conformity with the following European Directives and harmonised standards 2006/42/EC, 2014/30/EU, 2000/14/EC, 2005/88/EC, 2011/65/EU,

EN 60335-1:2012, EN 60335-2-77:2010, EN ISO 3744:2010, EN

55014-1:2006+A1:2009+A2:2011, EN 55014-2:1997+A1:2001+A2:2008, EN

62233:2008

And furthermore, we declare that following other technical standards and ifications have been used

ISO 11094:1991

Measured sound power level: 90.8 dB (A)

Guaranteed sound power level: 92 dB (A)

Conformity assessment method to Annex VI Directive 2000/14/EC amended by 2005/88/EC.

The notified body involved:

Vice President, Regulatory & Safety

Authorised to compile the technical file:

Alexander Krug, Managing Director

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

DÉCLARATION DE CONFORMITÉ EC

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

RLM36X46L5F 44455801000001 - 44455801999999

RLM36B46L 44429001000001 - 44429001999999

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Modellnummer: RLM36X46L5H/RLM36X46L5F/RLM36B46L

RLM36X46L5F 44455801000001 - 44455801999999

RLM36B46L 44429001000001 - 44429001999999

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

RLM36X46L5F 44455801000001 - 44455801999999

RLM36B46L 44429001000001 - 44429001999999

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Numero modello: RLM36X46L5H/RLM36X46L5F/RLM36B46L

RLM36B46L 44429001000001 - 44429001999999

Max-Eyth-Straße 10, 71364 Winnenden, Germany

NL EC CONFORMITEITSVERKLARING

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Modelnummer: RLM36X46L5H/RLM36X46L5F/RLM36B46L

Serienummerbereik:

RLM36X46L5H 44417901000001 - 44417901999999

RLM36X46L5F 44455801000001 - 44455801999999

RLM36B46L 44429001000001 - 44429001999999

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

RLM36X46L5F 44455801000001 - 44455801999999

RLM36B46L 44429001000001 - 44429001999999

Max-Eyth-Straße 10, 71364 Winnenden, Germany

DA EC OVERENSSTEMMELSESERKLÆRING

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Vi erklærer hermed, at produktet

Akku-plæneklipper

Brand: Ryobi

Modelnummer: RLM36X46L5H/RLM36X46L5F/RLM36B46L

Serienummerområde:

RLM36X46L5H 44417901000001 - 44417901999999

RLM36X46L5F 44455801000001 - 44455801999999

RLM36B46L 44429001000001 - 44429001999999

Max-Eyth-Straße 10, 71364 Winnenden, Germany

EC-KONFORMITETSDEKLARATION

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Modellnummer: RLM36X46L5H/RLM36X46L5F/RLM36B46L

Serienummerintervall

RLM36X46L5H 44417901000001 - 44417901999999

RLM36X46L5F 44455801000001 - 44455801999999

RLM36B46L 44429001000001 - 44429001999999

Max-Eyth-Straße 10, 71364 Winnenden, Germany

EC-SAMSVARSERKLÆRING

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Modellnummer: RLM36X46L5H/RLM36X46L5F/RLM36B46L

Serienummerserie:

RLM36X46L5H 44417901000001 - 44417901999999

RLM36X46L5F 44455801000001 - 44455801999999

RLM36B46L 44429001000001 - 44429001999999

Max-Eyth-Straße 10, 71364 Winnenden, Germany

EC-SÄÄNNÖSTEN NOUDATTAMINEN

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Mallinumero: RLM36X46L5H/RLM36X46L5F/RLM36B46L

Sarjanumeroalue:

RLM36X46L5H 44417901000001 - 44417901999999

RLM36X46L5F 44455801000001 - 44455801999999

RLM36B46L 44429001000001 - 44429001999999

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

RLM36B46L 44429001000001 - 44429001999999

Max-Eyth-Straße 10, 71364 Winnenden, Germany

DEKLARACJA ZGODNOŚCI EC

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Numer modelu: RLM36X46L5H/RLM36X46L5F/RLM36B46L

RLM36X46L5F 44455801000001 - 44455801999999

RLM36B46L 44429001000001 - 44429001999999

Max-Eyth-Straße 10, 71364 Winnenden, Germany

PROHLÁŠENÍ O SHODĚ EC

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Číslo modelu: RLM36X46L5H/RLM36X46L5F/RLM36B46L

RLM36X46L5F 44455801000001 - 44455801999999

RLM36B46L 44429001000001 - 44429001999999

Max-Eyth-Straße 10, 71364 Winnenden, Germany

EC MEGFELELŐSÉGI NYILATKOZAT

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

RLM36B46L 44429001000001 - 44429001999999

Max-Eyth-Straße 10, 71364 Winnenden, Germany

DECLARATIE DE CONFORMITATE EC

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Numâr serie: RLM36X46L5H/RLM36X46L5F/RLM36B46L

Gamā numār serie:

RLM36X46L5H 44417901000001 - 44417901999999

RLM36X46L5F 44455801000001-44455801999999

RLM36B46L 44429001000001 - 44429001999999

Alexander Krug, Director General

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

EC ATBILSTĪBAS DEKLARĀCIJA

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Modela numurs: RLM36X46L5H/RLM36X46L5F/RLM36B46L

RLM36B46L 44429001000001 - 44429001999999

Max-Eyth-Straße 10, 71364 Winnenden, Germany

EC VASTAVUSDEKLARATSIOON

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Kinnitame, et see toode

Juhtmeta Muruniiduk

Mark: Ryobi

Mudeli number: RLM36X46L5H/RLM36X46L5F/RLM36B46L

RLM36X46L5F 44455801000001 - 44455801999999

RLM36B46L 44429001000001 - 44429001999999

Max-Eyth-Straße 10, 71364 Winnenden, Germany

EC ATITIKTIES DEKLARACIJA

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Modelio numeris: RLM36X46L5H/RLM36X46L5F/RLM36B46L

Serijinio numero diapazonas:

RLM36X46L5H 44417901000001 - 44417901999999

RLM36X46L5F 44455801000001 - 44455801999999

RLM36B46L 44429001000001 - 44429001999999

Max-Eyth-Straße 10, 71364 Winnenden, Germany

EC IZJAVA O USKLAĐENOSTI

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Broj modela: RLM36X46L5H/RLM36X46L5F/RLM36B46L

RLM36X46L5F 44455801000001 - 44455801999999

RLM36B46L 44429001000001 - 44429001999999

Max-Eyth-Straße 10, 71364 Winnenden, Germany

IZJAVA EC O SKLADNOSTI

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

RLM36B46L 44429001000001 - 44429001999999

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

RLM36X46L5F 44455801000001 - 44455801999999

RLM36B46L 44429001000001 - 44429001999999

Max-Eyth-Straße 10, 71364 Winnenden, Germany

PREHLÁSENIE O ZHODE EC

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Číslo modelu: RLM36X46L5H/RLM36X46L5F/RLM36B46L

RLM36X46L5F 44455801000001 - 44455801999999

RLM36B46L 44429001000001 - 44429001999999

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

RLM36X46L5F 44455801000001 - 44455801999999

RLM36B46L 44429001000001 - 44429001999999

Alexander Krug, Managing Director

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

RYOBI®

Techtronic Industries GmbH

Max-Eyth-Straße 10,

71364 Winnenden, Germany
