TMW Pro Force Feedback (PC) - Simulation Steering Wheel THRUSTMASTER - Free user manual and instructions

Product type	Force feedback simulation steering wheel
Brand	Thrustmaster
Model	TMW Pro Force Feedback (PC)
Compatible platforms	PC
Force feedback technology	Force feedback with belt motor
Rotation angle	900° (270° to 900° adjustable in PC control panel)
Number of buttons	10 action buttons + D-pad + 2 sequential paddles
Pedal set included	Yes, 2-pedal set (accelerator and brake) with adjustable tilt
Connectivity	USB (fixed cable) + external power plug
Power supply	External power adapter (power cable included)
Mounting system	Clamping screw system and mounting system for table or desk
Box contents	Wheel base, steering wheel, pedal set, USB cable, power cable, mounting system, clamping screw, documentation
Warranty	2 years (EU) from delivery, 1 year outside EU if no compliance action
Maintenance and cleaning	Clean with a dry, soft cloth. Do not use chemicals. Avoid dust on ventilation grilles.
Safety	Do not open the device, use only the provided power supply, keep out of reach of children, follow force feedback and pedal set instructions.
Spare parts and repairability	No user-serviceable parts. Contact technical support for any repairs.
General information	Made in China. © 2017 Guillemot Corporation S.A. Thrustmaster is a registered trademark.

Frequently Asked Questions - TMW Pro Force Feedback (PC) THRUSTMASTER

How to calibrate the wheel and pedals?

The wheel auto-calibrates when plugged in. Do not touch the wheel during calibration. The pedals calibrate after a few presses once the game is launched. If calibration fails, turn everything off, reconnect cables, and restart.

How to update the wheel firmware?

Go to http://support.thrustmaster.com, click on Wheels / TMX Force Feedback then Firmware. Follow instructions to download and install the update.

How to reverse accelerator and clutch pedals?

Press the MODE button (8) for 2 seconds. The LED changes from red (normal mode) to green (reversed mode). The reversal is saved in internal memory.

How to install the wheel on PC?

Download drivers from http://support.thrustmaster.com (PC / Wheels / TMX Force Feedback / Drivers). Run the installation and follow instructions to connect the USB cable. Then restart the computer. Use the Thrustmaster control panel to adjust forces and rotation angle.

How to install the wheel on Xbox One?

Connect the pedal set, power cable, and USB cable to the console. Turn on the console, the wheel auto-calibrates. No drivers needed. The list of compatible games is on Thrustmaster's website.

What to do if the wheel does not work properly?

Check that all cables are properly connected (power, USB, pedal set). Restart the console or PC. If the problem persists, update the firmware or contact technical support.

How to adjust pedal tilt?

Pedal tilt is adjustable. Instructions are available on http://support.thrustmaster.com in the Wheels / TMX Force Feedback / User Manual or FAQ section.

How to mount the wheel on a table?

Place the wheel on a flat surface. Insert the clamping screw into the mounting system, then screw the assembly into the large screw under the wheel by turning counterclockwise until stable. Never screw the screw alone without the mounting system.

What is the MODE button and its LED for?

The MODE button (8) reverses the accelerator and clutch pedals. By default, the LED is red (normal). Pressing for 2 seconds turns it green (reversed). Other tips are available on the support site.

Where to find the list of compatible Xbox One games?

The list is available on http://support.thrustmaster.com in the Wheels / TMX Force Feedback section. It is regularly updated.

USER MANUAL TMW Pro Force Feedback (PC) THRUSTMASTER

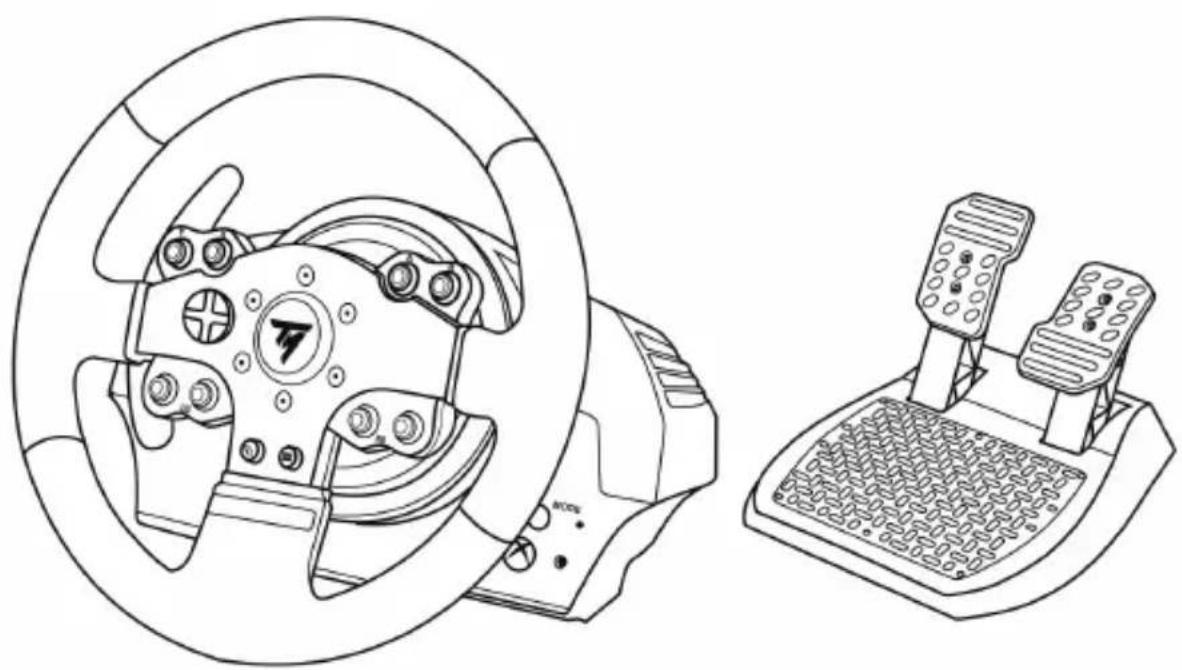

To ensure that your TMX racing wheel functions correctly with Xbox One and PC games, you may be required to install the game's automatic updates (available when your console or PC is connected to the Internet).

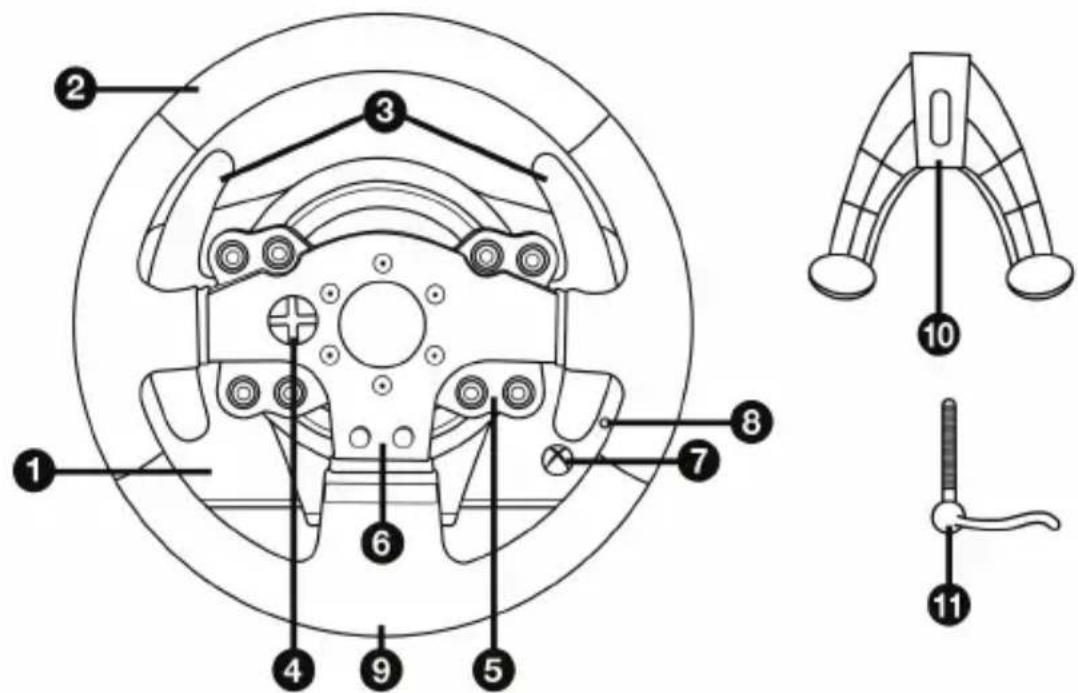

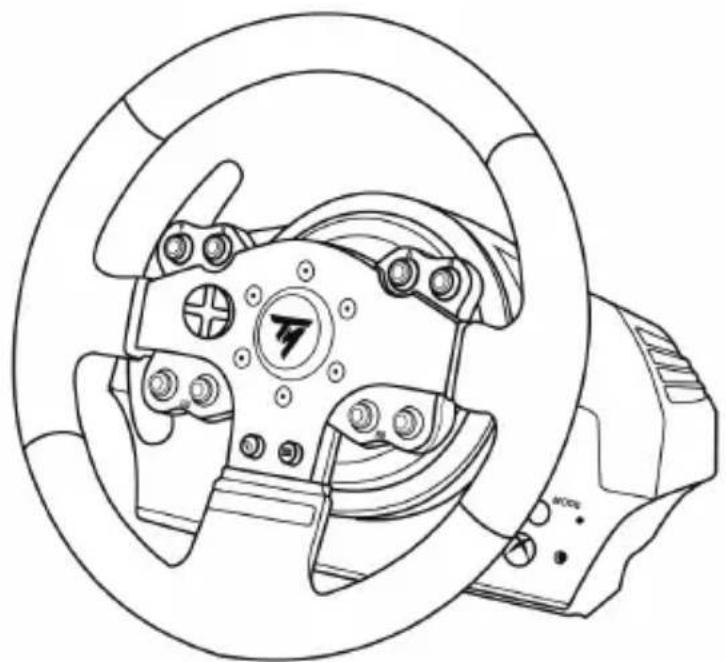

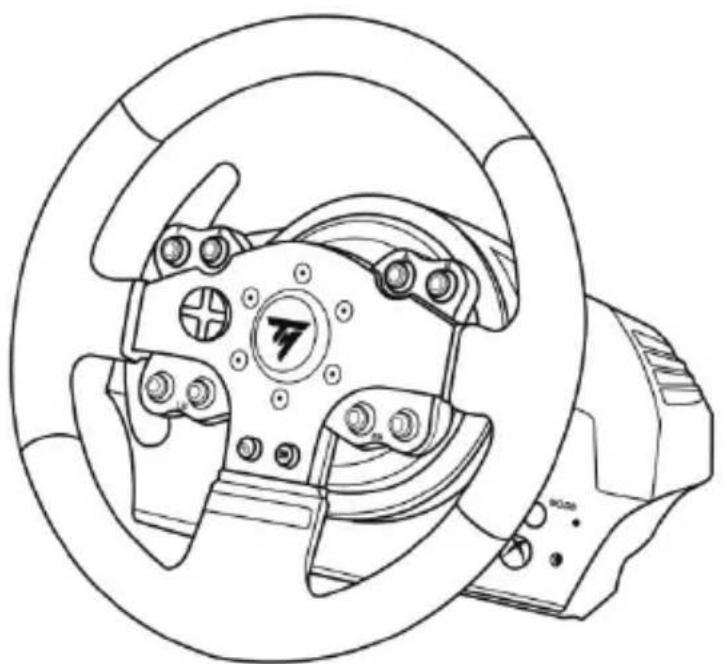

TECHNICAL FEATURES

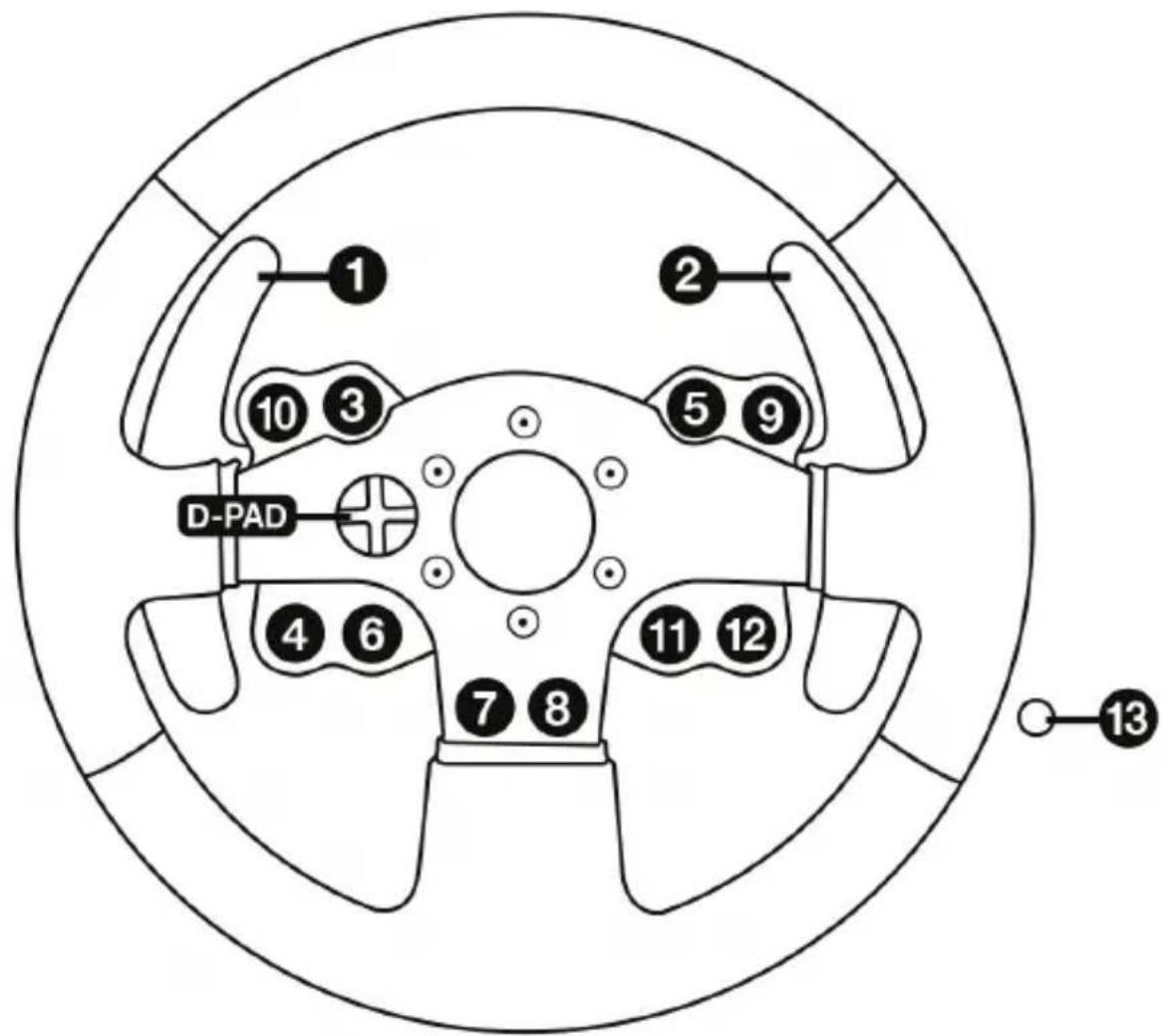

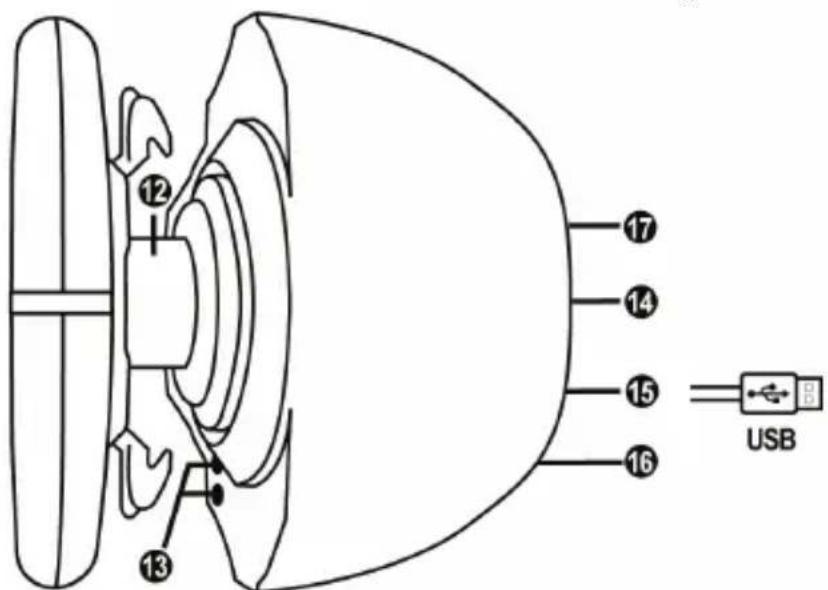

1 TMX base
2 Wheel
3 2 sequential paddle shifters (up & down)
4 Directional buttons
5 Action buttons
6 Action buttons

7 Xbox Guide button + White indicator light
8 MODE button + Red/Green indicator light
9 Large threaded hole (for attachment system and fastening screw)
10 Attachment system
11 Metal fastening screw

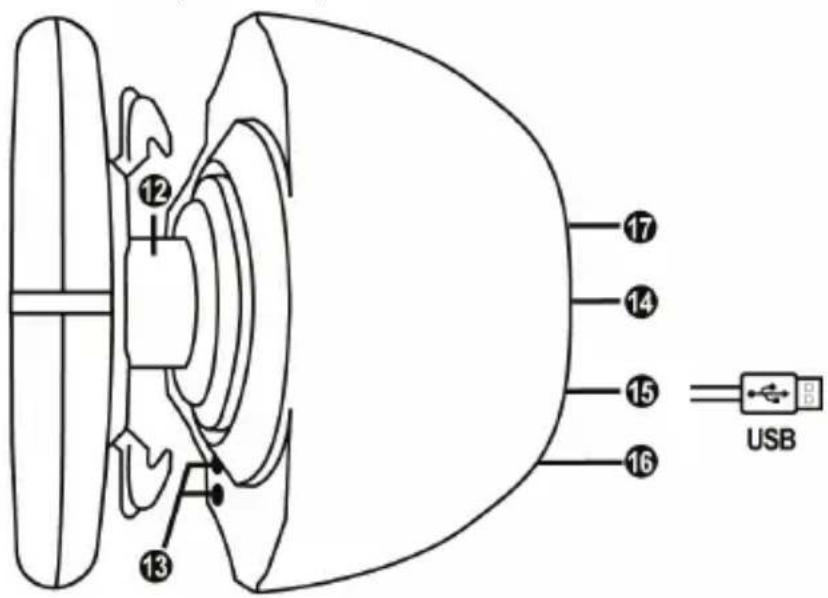

12 Steering axis
13 Xbox Guide button + White indicator light
14 Power cable or Power supply connector (varies from one country to and

15 Racing wheel USB cable and connector
16 Gearbox connector (gearbox sold separately)
17 Pedal set connector

WARNING

Before using this product, please read this manual carefully and save it for later reference.

Warning - Electrical shock

• Keep the product in a dry location and do not expose it to dust or sunlight.
• Do not twist or pull on the connectors and cables.
• Do not spill any liquid on the product or its connectors.
• Do not short-circuit the product.
• Never dismantle the product; do not throw it onto a fire and do not expose it to high temperatures.
• Do not use a power supply cable other than the one provided with your racing wheel.
• Do not use the power supply cable if the cable or its connectors are damaged, split or broken.
• Make sure that the power supply cable is properly plugged into an electrical outlet, and properly connected to the connector at the rear of the racing wheel's base.
• Do not open up the racing wheel: there are no user-serviceable parts inside. Any repairs must be carried out by the manufacturer, its authorized representative or a qualified technician.
• Only use attachment systems/accessories specified by the manufacturer.
• If the racing wheel is operating abnormally (if it is emitting any abnormal sounds, heat or odors), stop using it immediately, unplug the power supply cable from the electrical outlet and disconnect the other cables.
• If you will not be using the racing wheel for an extended period of time, unplug its power supply cable from the electrical outlet.
• Only use the power supply provided with your racing wheel (in the event of an external power supply).
• The power outlet shall be installed near the equipment and shall be easily accessible.

Air vents

Make sure not to block any of the air vents on the racing wheel's base. For optimal ventilation, make sure to do the following:

• Position the wheel's base at least 10cm away from any wall surfaces.
• Do not place the base in any tight spaces.
• Do not cover the base.
• Do not let any dust build up on the air vents.

For safety reasons, never use the pedal set with bare feet

or while wearing only socks on your feet.

THRUSTMASTER® DISCLAIMS ALL RESPONSIBILITY IN THE EVENT OF

INJURY RESULTING FROM USE OF THE PEDAL SET WITHOUT SHOES.

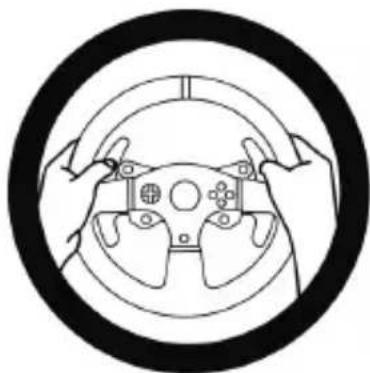

Warning - Injuries due to force feedback and repeated movements

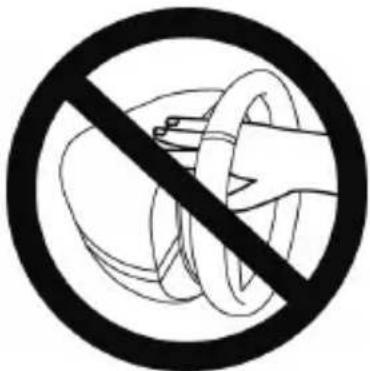

Playing with a force feedback racing wheel may cause muscle or joint pain. To avoid any problems:

• Avoid lengthy gaming periods.
• Take 10 to 15 minute breaks after each hour of play.

• If you feel any fatigue or pain in your hands, wrists, arms, feet or legs, stop playing and rest for a few hours before you start playing again.

• If the symptoms or pain indicated persist when you start playing again, stop playing and consult your doctor.

• Keep out of children's reach.

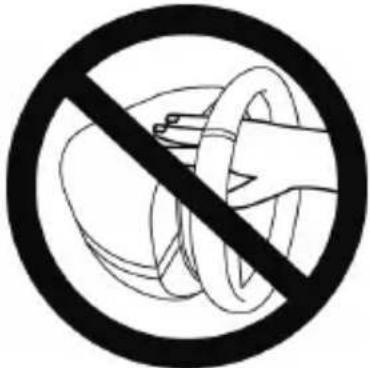

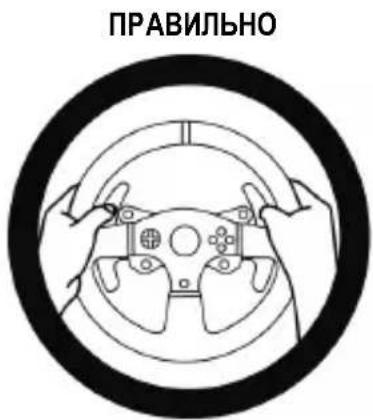

• During gameplay, always leave both hands correctly positioned on the wheel without completely letting go.
• During gameplay, never place your hands or your fingers under the pedals or anywhere near the pedal set.

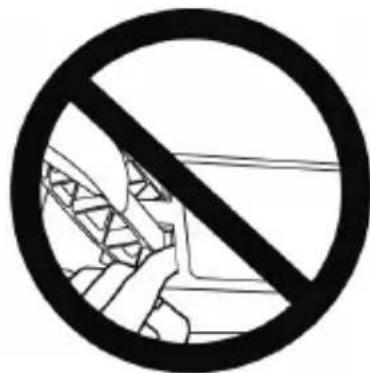

• During calibration and gameplay, never place your hand or your arm through the openings in the racing wheel.
• Make sure that the racing wheel's base is properly secured, as per this manual's instructions.

HEAVY PRODUCT

Product to be handled only by users 14 years of age or older

Be careful not to drop the product on yourself or on anyone else!

ALWAYS

NEVER

NEVER

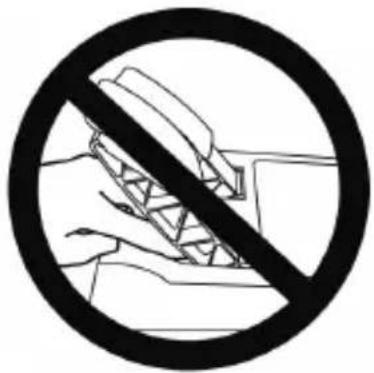

Warning - Pedal set pinch hazard when playing

• Keep the pedal set out of children's reach.

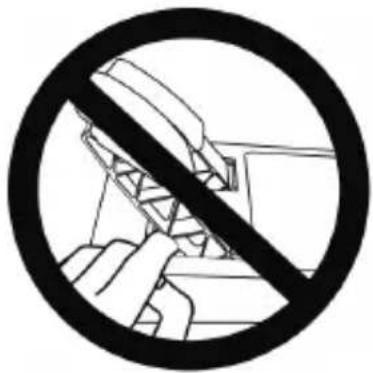

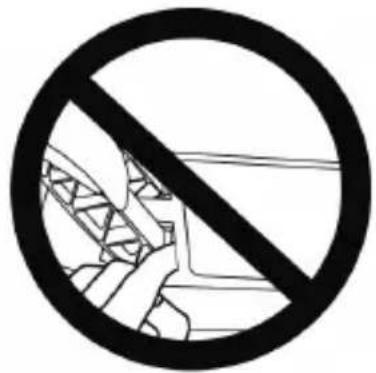

• During gameplay, never place your fingers on or anywhere near the sides of the pedals.

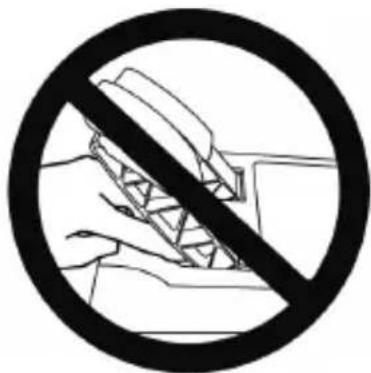

• During gameplay, never place your fingers on or anywhere near the pedal's rear base.
• During gameplay, never place your fingers on or anywhere near the pedal's front base.

NEVER

NEVER

NEVER

Warning - Pedal set pinch hazard when not playing

• Store the pedal set in a safe place, and keep it out of children's reach.

UPDATING YOUR RACING WHEEL'S FIRMWARE

The firmware included in your racing wheel's base can be updated to a more recent version featuring product enhancements.

To display the firmware version that your racing wheel is currently using and update it if required: on PC, visit http://support.thrustmaster.com. Click Racing Wheels / TMX Force Feedback, then select Firmware and follow the instructions describing the download and installation procedure.

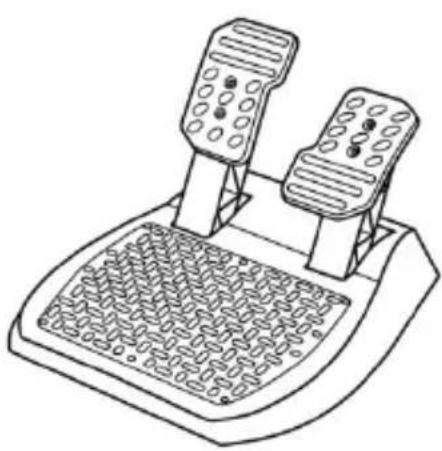

ADJUSTING THE PEDAL INCLINATION

The pedal inclination is adjustable.

The adjustment instructions for each pedal are available at http://support.thrustmaster.com. In the Updates and Downloads section, click Racing Wheels / TMX Force Feedback, then select Manual.

ATTACHING THE RACING WHEEL

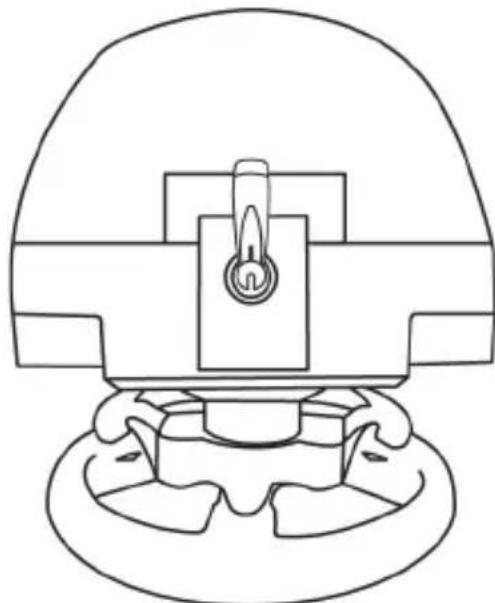

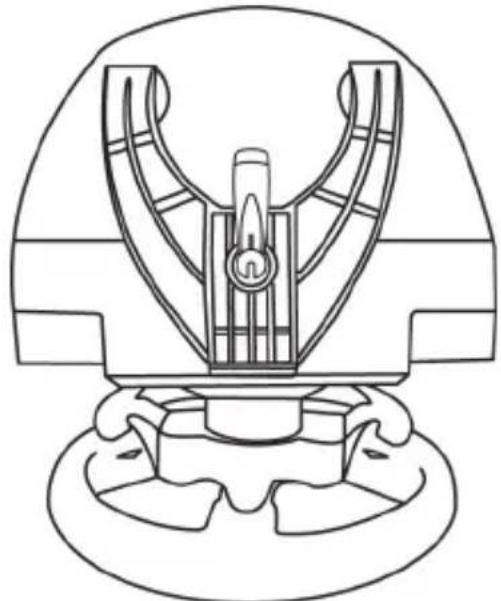

Attaching the racing wheel to a table or a desktop

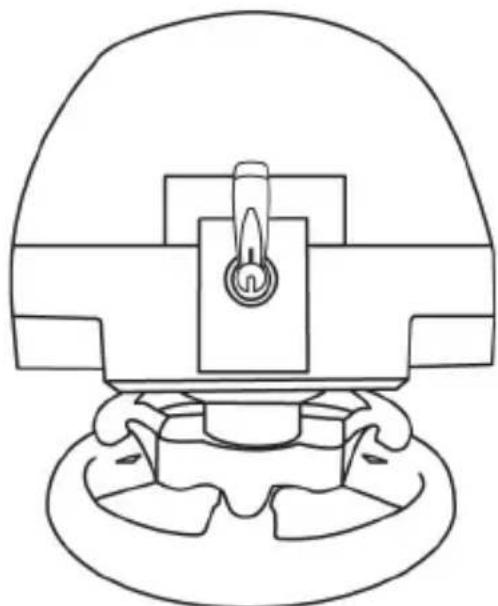

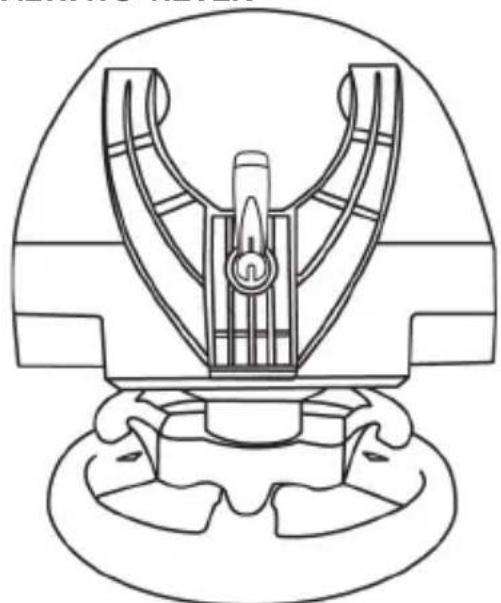

1. Place the racing wheel on a table or any other horizontal, flat and stable surface.
2. Insert the fastening screw (11) in the attachment system (10), then tighten the device by turning the screw counterclockwise, so that it feeds into the large threaded hole (9) located beneath the racing wheel, until the wheel is perfectly stable.

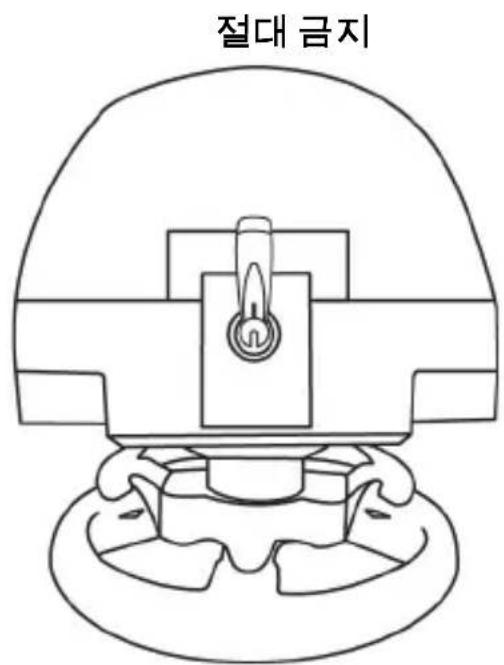

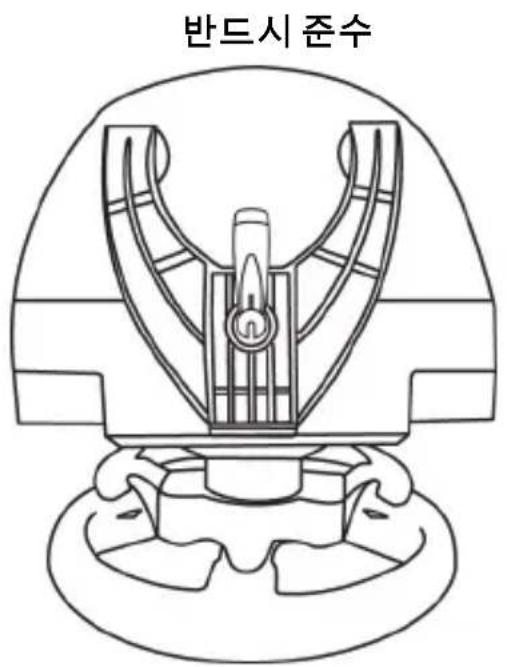

ALWAYS NEVER

WARNING: Never tighten the screw alone, without the attachment system in place! (This could damage the racing wheel.)

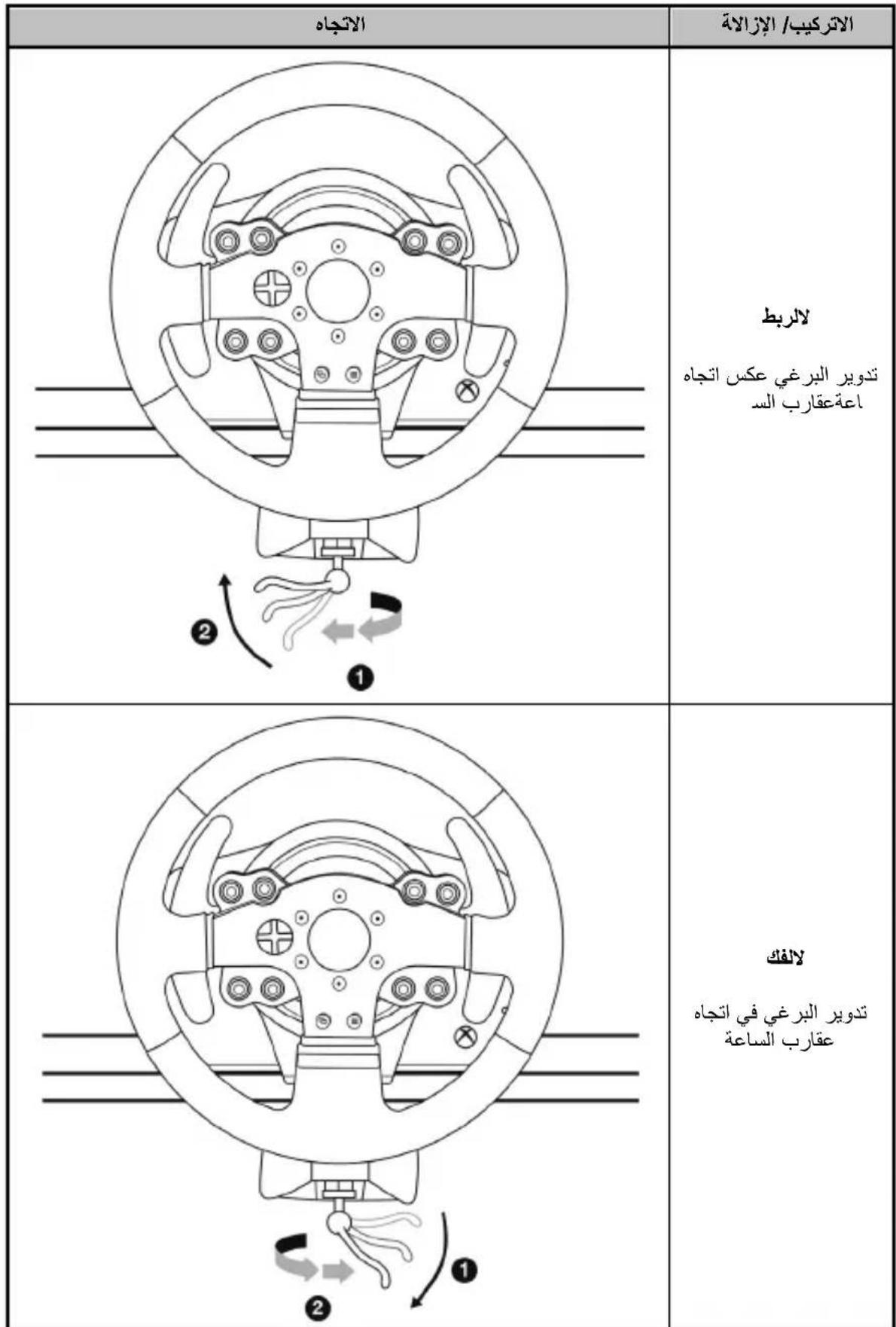

ATTACHMENT / REMOVAL	DIRECTION
To tighten: Turn the screw anticlockwise
To release: Turn the screw clockwise

POLSKI

TÜRKIKE

PÇACKMI

PORTUGUES

ESPÁNOL

ITALIANO

NEDERLANDS

DEUTSCH

FRANÇAIS

Attaching the pedal set to a cockpit

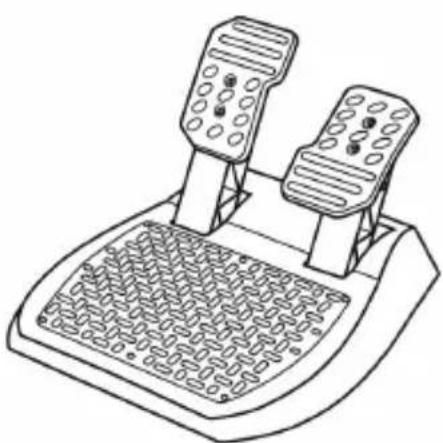

1. Attach the pedal set using the small screw threads located on its underside.
2. Drive two M6 screws (not included) through the cockpit shelf, then feed them into the two small screw threads located on the underside of the pedal set.

Important: The length of the two M6 screws must not exceed the thickness of the shelf + 10 mm; longer screws could cause damage to internal components located in the pedal set.

Layout diagrams for cockpits are available at http://support.thrustmaster.com: click Racing Wheels / TMX Force Feedback, then select Manual or FAQ.

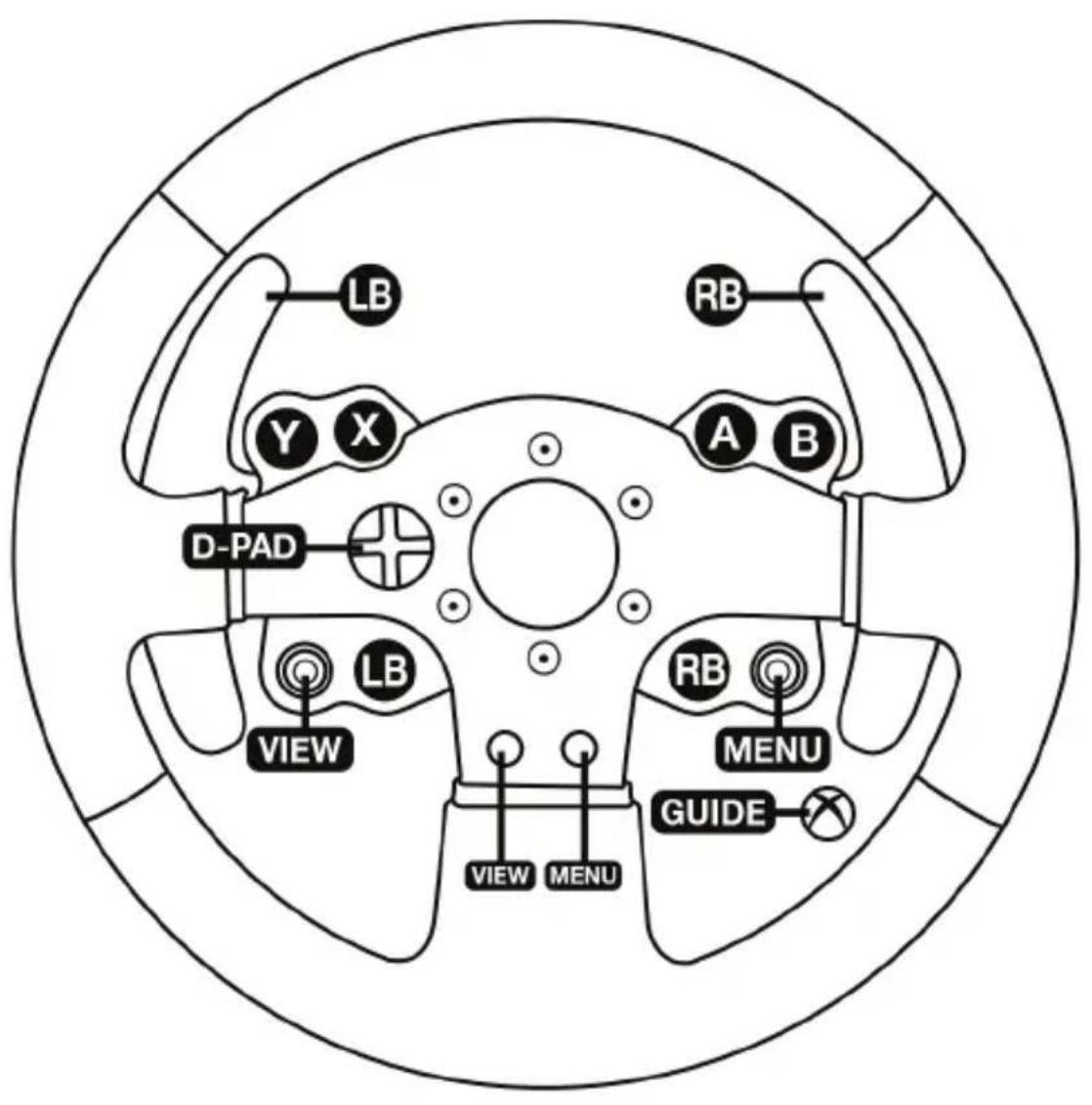

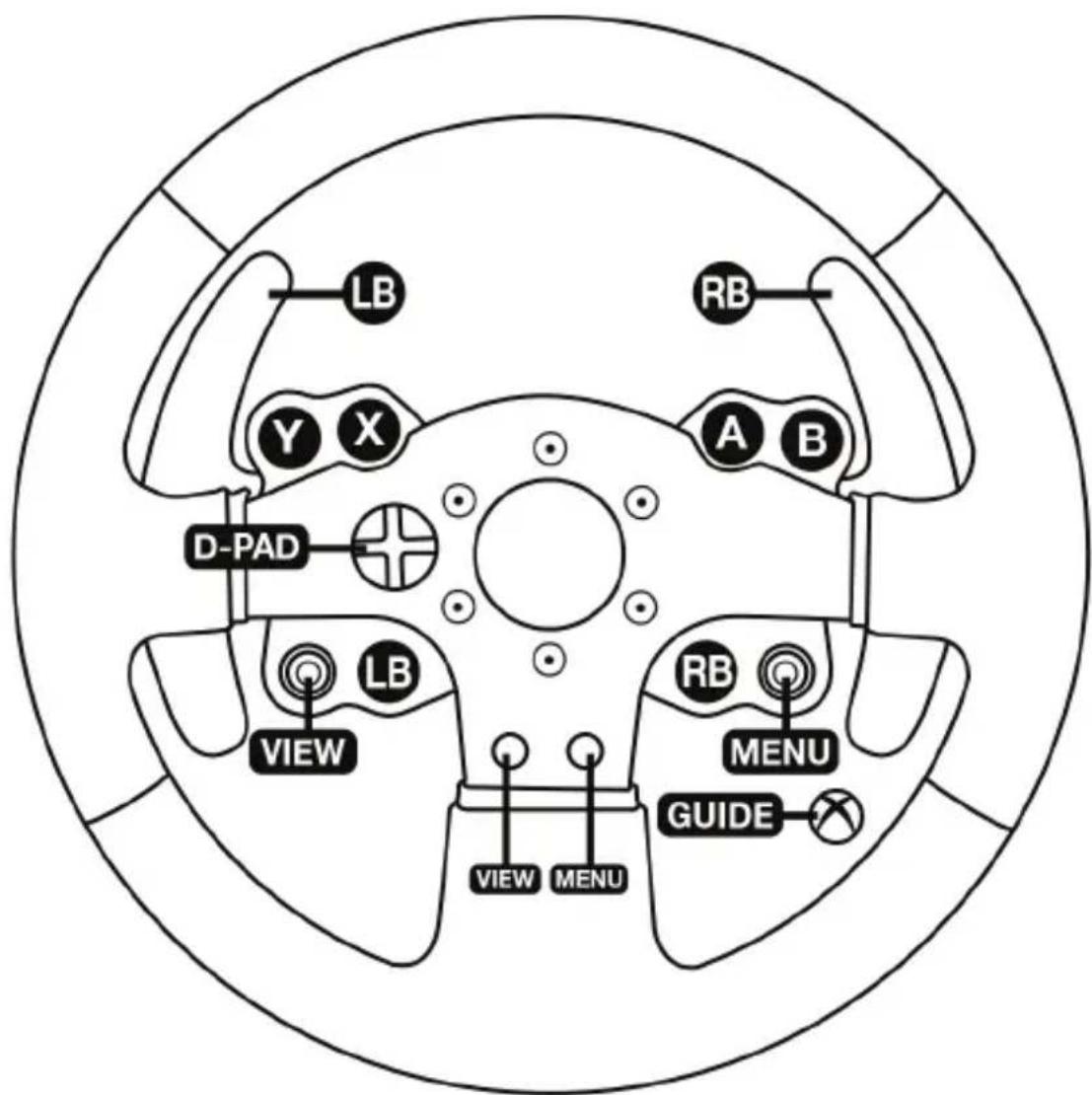

SETTING UP THE RACING WHEEL FOR XBOX ONE

1. Connect the pedal set to the connector (17) located at the back of the racing wheel's base.
2. Connect the power supply cable to the connector (14) located at the back of the racing wheel's base.
3. Plug the power supply cable into an electrical outlet with the same voltage specifications.
4. Connect the racing wheel's USB connector (15) to one of the console's USB ports.
5. Once your console is powered on, your racing wheel will calibrate itself automatically.

You are now ready to play!

• The list of Xbox One games compatible with the TMX Force Feedback is available at: http://support.thrustmaster.com (in the Racing Wheels/TMX section). This list is updated regularly.

SETTING UP THE RACING WHEEL FOR PC

1. Go to http://support.thrustmaster.com to download the drivers and the force feedback software for PC. Click Racing Wheels / TMX Force Feedback, then select Drivers.
2. Once the download is complete, launch the installation, and follow the on-screen instructions to connect the wheel's USB plug to your computer and complete the installation.
3. Once the installation is complete, click Finish and restart your computer.
4. Select Start / All Programs / Thrustmaster / FFB Racing Wheel / Control Panel to open the Game Controllers window.

The Game Controllers window displays the racing wheel's name Thrustmaster TMX Racing Wheel with the status OK.

1. Click Properties to configure your wheel in the TMX control panel:

2. Test Input tab: allows to test and view the action buttons, directional buttons, wheel and pedals axes, and to adjust the wheel's rotation angle in your PC games.

3. Test Forces tab: allows to test 12 force feedback effects.
4. Gain Settings tab: allows to adjust the power of the force feedback effects in your PC games.

You are now ready to play!

General notes:

• On PC, click OK to close the Game Controllers window before launching the game.
• On PC, the adjustments made in the Game Controllers window will only be saved on your computer (hence they will have no effect on Xbox One).
• Your wheel's firmware version is displayed in the upper right-hand corner of the TMX Force Feedback control panel tabs.

AUTOMATIC RACING WHEEL AND PEDAL SET CALIBRATION

The wheel automatically self-calibrates when you plug the racing wheel into an electrical outlet and connect the racing wheel's USB connector to the Xbox One.

During this phase, the racing wheel will rotate quickly towards the left and the right, covering a 900 degree angle, before stopping at the center.

WARNING:

Never touch the racing wheel during the self-calibration phase! (This could result in improper calibration and/or personal injuries.)

AUTOMATIC CALIBRATION OF THE PEDAL SET

Never connect the pedal set to the racing wheel's base (or disconnect it from the base) when it is connected to the console or during gameplay (this could result in improper calibration).

Always connect the pedal set before connecting the racing wheel to the console.

Once the racing wheel's calibration is complete and the game has been started, the pedals are automatically calibrated after a few presses.

WARNING:

Never press the pedals during the racing wheel's self-calibration phase or while a game is loading!

(This could result in improper calibration.)

If your racing wheel and/or pedal set do not function correctly, or if they seem to be improperly calibrated:

Power off your console or PC and completely disconnect the racing wheel. Then reconnect all cables (including the power supply cable and the pedal set), and restart your console or PC and your game.

MODE BUTTON AND INDICATOR LIGHT (8)

MODE button for the pedal set

The pedal set included with the TMX Force Feedback features 2 pedals.

When using this pedal set, make sure that the indicator light remains red, or else the gas pedal will not function properly.

The TMX Force Feedback is also compatible with Thrustmaster pedal sets featuring 3 pedals (sold separately); these allow you to electronically swap the accelerator and clutch pedals.

To do so, simply press the MODE button (8) for 2 seconds.

The racing wheel's internal memory stores whether the pedals have been swapped around or not.

GAS AND CLUTCH PEDALS	Color of the MODE indicator light (8)
NORMAL	RED
SWAPPED AROUND GREEN

Other information regarding the MODE button

To learn more about the MODE button and indicator light, please visit http://support.thrustmaster.com. Click Racing Wheels / TMX Force Feedback, then select Manual or FAQ.

HELP FILES AND FAQs (NOT INCLUDED IN THIS MANUAL)

Please visit http://support.thrustmaster.com, click Racing Wheels / TMX Force Feedback, then select Manual or FAQ.

CONSUMER WARRANTY INFORMATION

Worldwide, Guillemot Corporation S.A., whose registered office is located at Place du Granier, B.P. 97143, 35571 Chantepie, France (hereinafter "Guillemot") warrants to the consumer that this Thrustmaster product shall be free from defects in materials and workmanship, for a warranty period which corresponds to the time limit to bring an action for conformity with respect to this product. In the countries of the European Union, this corresponds to a period of two (2) years from delivery of the Thrustmaster product. In other countries, the warranty period corresponds to the time limit to bring an action for conformity with respect to the Thrustmaster product according to applicable laws of the country in which the consumer was domiciled on the date of purchase of the Thrustmaster product (if no such action exists in the corresponding country, then the warranty period shall be one (1) year from the original date of purchase of the Thrustmaster product).

Notwithstanding the above, rechargeable batteries are covered by a warranty period of six (6) months from the date of original purchase.

Should the product appear to be defective during the warranty period, immediately contact Technical Support, who will indicate the procedure to follow. If the defect is confirmed, the product must be returned to its place of purchase (or any other location indicated by Technical Support).

Within the context of this warranty, the consumer's defective product shall, at Technical Support's option, be either replaced or returned to working order. If, during the warranty period, the Thrustmaster product is subject to such reconditioning, any period of at least seven (7) days during which the product is out of use shall be added to the remaining warranty period (this period runs from the date of the consumer's request for intervention or from the date on which the product in question is made available for reconditioning, if the date on which the product is made available for reconditioning is subsequent to the date of the request for intervention). If permitted under applicable law, the full liability of Guillemot and its subsidiaries (including for consequential damages) is limited to the return to working order or the replacement of the Thrustmaster product. If permitted under applicable law, Guillemot disclaims all warranties of merchantability or fitness for a particular purpose.

This warranty shall not apply: (1) if the product has been modified, opened, altered, or has suffered damage as a result of inappropriate or abusive use, negligence, an accident, normal wear, or any other cause unrelated to a material or manufacturing defect (including, but not limited to, combining the Thrustmaster product with any unsuitable element, including in particular power supplies, rechargeable batteries, chargers, or any other elements not supplied by Guillemot for this product); (2) if the product has been used for any use other than home use, including for professional or commercial purposes (game rooms, training, competitions, for example); (3) in the event of failure to comply with the instructions provided by Technical Support; (4) to software, said software being subject to a specific warranty; (5) to consumables (elements to be replaced over the product's lifespan: disposable batteries, audio headset or headphone ear pads, for example); (6) to accessories (cables, cases, pouches, bags, wrist-straps, for example); (7) if the product was sold at public auction.

This warranty is nontransferable.

The consumer's legal rights with respect to laws applicable to the sale of consumer goods in his or her country are not affected by this warranty.

Additional warranty provisions

During the warranty period, Guillemot shall not provide, in principle, any spare parts, as Technical Support is the only party authorized to open and/or recondition any Thrustmaster product (with the exception of any reconditioning procedures which Technical Support may request that the consumer carry out, by way of written instructions – for example, due to the simplicity and the lack of confidentiality of the reconditioning process – and by providing the consumer with the required spare part(s), where applicable).

Given its innovation cycles and in order to protect its know-how and trade secrets, Guillemot shall not provide, in principle, any reconditioning notification or spare parts for any Thrustmaster product whose warranty period has expired.

In the United States of America and in Canada, this warranty is limited to the product's internal mechanism and external housing. In no event shall Guillemot or its affiliates be held liable to any third party for any consequential or incidental damages resulting from the breach of any express or implied warranties. Some States/Provinces do not allow limitation on how long an implied warranty lasts or exclusion or limitation of liability for consequential or incidental damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from State to State or Province to Province.

Liability

If permitted under applicable law, Guillemot Corporation S.A. (hereinafter "Guillemot") and its subsidiaries declare all liability for any damages caused by one or more of the following: (1) the product has been modified, opened or altered; (2) failure to comply with assembly instructions; (3) inappropriate or abusive use, negligence, an accident (an impact, for example); (4) normal wear; (5) the use of the product for any use other than home use, including for professional or commercial purposes (game rooms, training, competitions, for example). If permitted under applicable law, Guillemot and its subsidiaries declare all liability for any damages unrelated to a material or manufacturing defect with respect to the product (including, but not limited to, any damages caused directly or indirectly by any software, or by combining the Thrustmaster product with any unsuitable element, including in particular power supplies, rechargeable batteries, chargers, or any other elements not supplied by Guillemot for this product).

FCC STATEMENT

1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

1. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

COPYRIGHT

© 2017 Guillemot Corporation S.A. All rights reserved. Thrustmaster® is a registered trademark of Guillemot Corporation S.A. All other trademarks are the property of their respective owners. Illustrations not binding. Contents, designs and specifications are subject to change without notice and may vary from one country to another. Made in China.

ENVIRONMENTAL PROTECTION RECOMMENDATION

In the European Union: At the end of its working life, this product should not be disposed of with standard household waste, but rather dropped off at a collection point for the disposal of Waste Electrical and Electronic Equipment (WEEE) for recycling.

This is confirmed by the symbol found on the product, user manual or packaging. Depending on their characteristics, the materials may be recycled. Through recycling and other forms of processing Waste Electrical and Electronic Equipment,

you can make a significant contribution towards helping to protect the environment.

Please contact your local authorities for information on the collection point nearest you.

For all other countries: Please adhere to local recycling laws for electrical and electronic equipment.

Retain this information. Colours and decorations may vary.

Plastic fasteners and adhesives should be removed from the product before it is used.

www.thrustmaster.com

*Applicable to EU and Turkey only

TMX

FORCE FEEDBACK

POUR XBOX ONE ET PC

INFORMATIONS RELATIVES A LA GARANTIE AUX CONSOMMATEURS

www.thrustmaster.com

www.thrustmaster.com

www.thrustmaster.com

www.thrustmaster.com

www.thrustmaster.com

www.thrustmaster.com

• pa3MeIaIte 6a3y pyIЯ ha pacCTOarHn He MeHee 10 cm ot CTeH;
• He pa3meuTe 6a3y B CTeCHHOM pOcTpaHCTBe;
• HUcEM He HauKpbIbAaTe 6a3y;
• He donyckaTc CKONJIeHn IbIIN Ha BEHTNJIAIOHHbIX OTBepCTnIX.

I3 coo6paXeHn 6e3OnaNCHOgTa He HaxmMaTe Ha neJaIn 6ocOHoroi HNI HOROI B HOKe (6e3 06yBu).

KOMIIAHNRA THRUSTMASTER OTKA3bIBAETCROTJIIOBOI OTBETCTBEHHOCTN B CJIyAE NOLYUHINr TPABMbIB PE3yJBtATE HAXIMAHNHA IENAJIN HEOBYtbIMHOTAMN.

DeIcTBnCnIOBOnO6paTHoCBA3N

IcnoB3OBAHne pyneBO CNCTeMbICnIOBOO o6paTHo CB3bMOKET Bbl3BaTb 60JIb MblUax INm cycTabax. CoBeTbI no npedOTbpaueHIO npo6nEM CO 3dOpOBbem:

• He npobodte 3a ngpo npdojnteJbHoe Bpem;
• nocne kaxdofo yaca nrpbl Deaane 10-15-MnHyThb nepepbIB;
  *ecnB KnCTaX, 3aAeTbax, PpePnIeYbax, CTonax HIN HORAX NOBINACb yCTAnOCTb HIN 60nb, npeKpatnte INpy I OTdoxHInTe B TeueHne HeCKoJIbKnx YacOB, PpeJde Yem ChOBA npncTyNtB K nIprpe.
• ecn Bblweyka3aHHbIe npn3HaKn npoBnTcchOBa npn BO3BpaueHm K nRpe, npekpatnte irpy N o6paNTecb K BpaCy;
• Dépçnte Cnctémy Bhe Doctyna DeTei;
• BO Bpemn Irpbl npabnIbHO paonanaTe obe pykn Ha pyneBOM KOlece n He N03BOJrTe emy Bpaatbcn 6eckoHTpoJIbHO;
  * BO BpMa INrpbH N B KOe CM cyuae He 3acOBbIbaIte pyKn IIN IaNbCuI NOI neDaII H He IepKHTe IN PraDM C NeDaIbHbIM 6JLOKOM;
• BO BpEma KaIbPoBKn Hn Hn B Koem Cnyae He 3acOBbBaIte pyKn B pyJneBOe KOJIeCO;
  * o6ecneyte HndexKHyIO 0nKcauio 6a3bl pyneBoro KOJecA B COOTBeTCTBm C yka3aHnmaM INHCTpykui N O KcnnyaTaun.

He donyckaetcncnoB30BaHne n3dennn JIuamM MoJoxe 14 let

TAXENOI3DENNE

He poHnIte n3dennie Ha ce6n nn Ha dpynx nuc!

PpeynpeKdHne - Bo3MOxHO cKaTne neJaIbHorO 6JOKa BO Bpemn rnpbl

• Dépçknte peñánbHbI bNoK BHe DoctyNa deTei.
  *Bo Bpemn Hn B KOem Cnyae He KnaDnte nAaBcI Ha neaun Hne 3acOBbBaTe nx C 60KOBbx CTOPOH neaHbHoro 6noka.
  * BoBpemr Hn B Koem cnyae He 3acobbBaIe nx C3aIN B 6a3y neaIbHoro 6Joka.
  *Bo Bpemn Hn B KOem cnlyae He 3acobbBaIte nx Cnpedn B 6a3y neJaIbHoro 6noka.

HEJIb3J

HEnb3

HEnb3a

PpeynpexdHne - BO3MOxHO CxKaTne neaIbHoro 6Joka BO BpeM npocToA

• XpaHnte neJaIbHbI 6JOK B 6e3onachOM MecTe BHe 3OhBi DOCTyNa DeTei.

OBHOBJEHNE IPOUINBKN PYJEBOTO KOJEA

IpoWbky B 6a3e pyneBoro KOleca MoXHo O6HOBnTb Do 60nee nO3dHe BepCu, coOpKauSeYcoBepseHCTBOBaHn.

ToHouHbIe pyn / TMX Force Feedback n BbIbePte NcHcTpkyuTn no 3KcNpyatau nn NaCTo 3aDaBaEmble BOpocbl.

HACTPOIKA PYJIeBOI CnCTEMbl IJXBOX ONE

1. PnKnHHTe neaIbHbI 6NOK pa3bemy (17) Ha 3aHHe cToPOHe 6a3bl pyneBoro KOneca.
   2.Поdkночи Кабелпитань Кразьему (14) Ha 3aДнeн CTopoHe 6a3bIpyJIeBOrO KОJeca.
2. Noknoute Ka6eB nHTaHnK 3JeKtpop03eTke COOTBeTCTByUeero HAnpJKeHnA.
   4.Поdkнчnte USB-ka6eIb pyneBoi cnCTembl (15) K OndHomy n3 USB-nopTOB irpoBOi cnCTembl.
3. Nocne BKJIOHHeHn IrgoBOn CnCTeMbI aBTOMaTNeCKn BblONHReTc KaJIb6POBkpa pyJeBOrO KOleca.

Tenepece zomoo dau uapbl!

• IpeuehB uap dny Xbox One, coeMecmumbix c pynbeou cucmemou TMX Force Feedback Moxno haumu hcaume: http://support.thrustmaster.com (bibepume TOnohbIe pynu / TMX). 3mom cnucok peaynnpHo o6HOBnemcra.

COOTHECEHNE ΦункциДЯ XBOX ONE

HACTPOIKA PYJIeBOI CnCTEMbl IJIЯ ПК

www.thrustmaster.com

TMX

FORCE FEEDBACK

TIA XBOX ONE HPC

Eeyεipidio xρησης

ПОНДОПОIHSH:

Tia va a i i e oTI n TIOVIEpa TX Racing Wheel IeIoupyei Owotá ta TnaiXviδia yia tv Kovoλa Xbox One yia PC, iωCs xpeiaOTei va EYkataoTnoTe
TIC autOμATEc EvnepwoεiC tou Kaθε TAIyviδiou

Koupi MODE ia to oet twv tvetau

To eT wv Tevra Tou Tepiauβavetai Otny Tioviépa TMX Force Feedback δiaθετει 2 nevtαλ.

O'Atv xnpoiotioite auto to oet twv TveTal, 8eBaiWteIe otI n lauxvia evdeiEgnt npapaevei avamqvne Kokkivo xpwa, diaopetikto TVEtA tou ykaiou dev th aeioupyei Owotá.

H tiuoviiepa TMX Force Feedback eivai etiog oumuatn me to oet twv tveita Thrustmaster Tou diathe 3 nevtal (Twauovai exomega). Auta aac npexouv tn duvarotnta va paypatotioite nAektpovikn evaalayn oTo nevtal tou ykaoiou kai tou uptlAektn.

Ia va To kavete auto, aTawc patnoTe to koupti MODE (8) yia 2 deutepoleTTta.

TnV eWTEPIK n Vnun TnC TIPoviepa c aTOhkeuEaI eav exI PPaypatoToine i oXi evaalayn Twv TVEtA.

AaEs ouuoueysia to koupiI MODE

Ia va mahe TE pioootepa oxetiká ME TO KOUPTI MODE kai Tn luxvia evdeigns, EITIOKEeTE TOV IOTOTTO http://support.thrustmaster.com. KaVE KAIK OTIG ETIIAOYcRacing Wheels / TMX Force Feedback, kai mTa eTIAEte Manual n FAQ.

www.thrustmaster.com

PEDAL EGMIN IN AYARLANMASI

www.thrustmaster.com

ZESTAWU PEDALOW BEZ OBUWIA.

www.thrustmaster.com

$$ T M X \text {i d e l} 1 $$

$$ 2 \text {以} x _ {2 0} $$

$$ \left(\text {U p} \& \text {D o w n}\right) \quad j _ {i} ^ {\prime} = \frac {1}{2} \sum_ {j = 1} ^ {n} \sum_ {k = 1} ^ {m} \sum_ {l = 1} ^ {n} \sum_ {w = 1} ^ {m} \sum_ {z = 1} ^ {n} \sum_ {t = 1} ^ {m} \sum_ {u = 1} ^ {n} \sum_ {v = 1} ^ {m} \sum_ {w = 1} ^ {n} \sum_ {z = 1} ^ {m} \sum_ {t = 1} ^ {n} \sum_ {w = 1} ^ {m} \sum_ {z = 1} ^ {n} \sum_ {t = 1} ^ {n} \sum_ {w = 1} ^ {m} \sum_ {z = 1} ^ {n} \sum_ {t = 1} ^ {n} \sum_ {w = 1} ^ {m} \sum_ {z = 1} ^ {n} \sum_ {t = 1} ^ {n} \sum_ {w = 0} ^ {m} \sum_ {z = 1} ^ {n} \sum_ {t = 1} ^ {n} \sum_ {w = 0} ^ {m} \sum_ {z = 1} ^ {n} \sum_ {t = 1} ^ {n} \sum_ {w = 0} ^ {m} \sum_ {z = 1} ^ {n} \sum_ {\mathrm {的}} ^ {m} $$

$$ \text {c l a s s i l y o d d e d D} \quad 4 $$

$$ \text {C l} _ {1} \text {C l} _ {2} \text {C l} _ {3} \text {C l} _ {4} \text {C l} _ {5} $$

$$ 6 $$

$$ j _ {i} \text {L L} \text {L L} \text {L L} \text {L L} \text {L L} \text {L L} \text {L L} \text {L L} \text {L L} \text {L L} \text {L L} \text {L L} \text {L L} \text {L L} \text {L L} \text {L L} \text {L L} \text {\Delta} 1 5 $$

$$ \text {s i g m a} \quad \text {s i g m a} \quad \text {s i g m a} \quad \text {s i g m a} \quad \text {s i g m a} \quad \text {s i g m a} \quad \text {s i g m a} \quad \text {s i g m a} \quad \text {s i g m a} \quad \text {s i g m a} \quad \tag {16} $$

$$ (\delta_ {a} \dots) _ {a} \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots \dots $$

$$ \text {a w g a l l} \text {a g a s} \text {J a g a} 1 7 $$

$$ \Delta \omega_ {j} ^ {\prime} \sim 1 2 $$

$$ + \text {X b o x G u i d e} j 1 3 $$

$$ \text {a l b} \leq 1 4 $$

$$ \left. \right.\left. \right.\left. \right.\left. \right.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right. $$

$$ (j \neq j) $$

y

1

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

aiee aegnagaae gaoaee 2.aaeae

b

HTRUSTMASTER

12 10

8 8

i 1

a1yabcljai jlli

15 10 a

(2) a4 = a1 + 3d a_4 = 13

（）

JbS y

1bBjI 10000000000000000000000000000000000000000000000000

a

12 + 6M6 10000000000000000000000000000000000000000000000000

a 1

10 + 6M6 10 10

TMX Force Feedback < Racing Wheels http://support.thrustmaster.com .FAQ Manual

XBOX ONE

1
1
.2
3
4
5

1

:TMX Force Feedback Xbox One http://support.thrustmaster.com (Racing Wheels / TMX Force Feedback

Racing Wheels / TMX Force (TMX Force Feedback / Feedback

i 2

3

（/）Start/AllPrograms/Thrustmaster/FFB Racing Wheel/ControlPanel 4
G) GameControllers FFBRacingWheel/Thrustmaster/

Thrustmaster TMX Racing (w) Game Controllers . OK Wheel

: 5
Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg

1JU JI 5

aale clllal
(1) Game Controllers (g) OK g j 2000
(2) Game Controllers (g) (Xbox One 2000)

aagaae aae

Jusogagaaa aalalalalalalalalalalalalalalalalalalalalalalalalalal

Xbc

1a

（）

aagaae aee

） 1

(1)

ailll llll aee eaae ae aae

y 1

m = 311

iLglal

1a 1

（）

a 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

MODE

TMX Force Feedback

（）Thrustmaster TMX Force Feedback

J 1

MODE (8) 1e bina 1y 1le lo y plally

L 1

(8) MODE lslss mssss	dssss
dss	dss
dss	dss

MODEJg

J 1

TMX Force Feedback < Racing Wheels <http://support.thrustmaster.com

.FAQ Manual

（）

TMX < Racing Wheels http://support.thrustmaster.com

.FAQ Manual Force Feedback

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

ggo y (Jldll lgsiaiaaall) 111111111111111111111111111111111111111111111111111111111111

("Guillemot" p. 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100

Thrustmeier 2 J L 1000000000000000000000000000000000000000000000000000000000000000000000000000000000000

（）

山

y

S OBC = S COD + S_ BOC

s

Gullemot 100000000000000000000000000000000000000000000000000000000000000000000000000000000000

A

y

Gullemot 1500000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

auii iuiuui ciug

Aolusul Jg 1000000000000000000000000000000

www.thrustmaster.com

b# (s yy y)

TMX

FORCE FEEDBACK

XBOX ONE® 及 PC 页

家装装修师

#

15 ReIiHnIe USB KJIit JfK

13XboxhaIeDb+

16 员

14 1

17 用

#

IJ

长和-

*本页诸音是简正的，若要详者，可于日
*KeknTJfJiHJIeIeBtBvItJHJLJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJH
*本新言InN言的KnTHeHektJi
请输入该函数（参数）：
接音将像大部于他去，叶。
*ReiSrhIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeIeI e Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae Iae IAE
* 1
* 1
*ReiHgHnIeHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJHJH
* 1
* 僅也行，但当有事时，就先去。
* RaiHn h t s n an aag h j e g u e i
*RaiiHnIeHdIeHaeJHcHJIeJHcHJIeJHcHJIeJHcHJIeJHcHJIeJHcHJIeJHcHJIeJHcHJIeJHcHJIeJHcHJIeJHcHJIeJHcHJIeJHcHJIeJHcHJIeJHcHJIeJHcHJIeJHcHJIeJHc

韓

ReiHn H 1

<|im_start|>assistant <|im_start|>assistant <|im_start|>assistant <|im_start|>assistant <|im_start|>assistant <|im_start|>assistant http://support.thrustmaster.com.

StIeRfngHrTmXForceFeedbackKgRcHh,MaNelSx

ReiHnIeHb

TeiIeIitnAichgEeTReIeHJtB

1. ReIiSgHbIeTeIbTtNnTnTnTnTnTnTnTnTnTnTnTnTnTnTnTnTnTnTnTnTnTnTnTnTnTnTnTnTnTnTnTnTnTnTnTnTnTnTnTnTnTnTnTnTnTnTnTnTnTnTn
2. 祖呂卜(11) 般，卜(10) 事日，卜(9) 义。

长：早

(不)

Kunsh 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC

MODE 胶丶呂丶旦丶人（8)

序列模式 MODE(多式) 表示

TMX 互连网 互连网 互连网 互连网

i 1

www.thrustmaster.com

THRUSTMASTER

기ESCOIN

http://support.thrustmaster.com

TMX

FORCE FEEDBACK

FOR XBOX ONE® AND PC

User Manual

WARNING:

To ensure that your TMX racing wheel functions correctly with Xbox One and PC games, you may be required to install the game's automatic updates (available when your console or PC is connected to the Internet).

TECHNICAL FEATURES

1 TMX base
2 Wheel
3 2 sequential paddle shifters (up & down)
4 Directional buttons
5 Action buttons
6 Action buttons

7 Xbox Guide button + White indicator light
8 MODE button + Red/Green indicator light
9 Large threaded hole (for attachment system and fastening screw)
10 Attachment system
11 Metal fastening screw

12 Steering axis
13 Xbox Guide button + White indicator light
14 Power cable or Power supply connector (varies from one country to and

15 Racing wheel USB cable and connector
16 Gearbox connector (gearbox sold separately)
17 Pedal set connector

WARNING

Before using this product, please read this manual carefully and save it for later reference.

Warning - Electrical shock

• Keep the product in a dry location and do not expose it to dust or sunlight.
• Do not twist or pull on the connectors and cables.
• Do not spill any liquid on the product or its connectors.
• Do not short-circuit the product.
• Never dismantle the product; do not throw it onto a fire and do not expose it to high temperatures.
• Do not use a power supply cable other than the one provided with your racing wheel.
• Do not use the power supply cable if the cable or its connectors are damaged, split or broken.
• Make sure that the power supply cable is properly plugged into an electrical outlet, and properly connected to the connector at the rear of the racing wheel's base.
• Do not open up the racing wheel: there are no user-serviceable parts inside. Any repairs must be carried out by the manufacturer, its authorized representative or a qualified technician.
• Only use attachment systems/accessories specified by the manufacturer.
• If the racing wheel is operating abnormally (if it is emitting any abnormal sounds, heat or odors), stop using it immediately, unplug the power supply cable from the electrical outlet and disconnect the other cables.
• If you will not be using the racing wheel for an extended period of time, unplug its power supply cable from the electrical outlet.
• Only use the power supply provided with your racing wheel (in the event of an external power supply).

Air vents

Make sure not to block any of the air vents on the racing wheel's base. For optimal ventilation, make sure to do the following:

• Position the wheel's base at least 10cm away from any wall surfaces.
• Do not place the base in any tight spaces.
• Do not cover the base.
• Do not let any dust build up on the air vents.

For safety reasons, never use the pedal set with bare feet or while wearing only socks on your feet.

THRUSTMASTER® DISCLAIMS ALL RESPONSIBILITY IN THE EVENT OF INJURY RESULTING FROM USE OF THE PEDAL SET WITHOUT SHOES.

Warning - Injuries due to force feedback and repeated movements

Playing with a force feedback racing wheel may cause muscle or joint pain. To avoid any problems:

• Avoid lengthy gaming periods.
• Take 10 to 15 minute breaks after each hour of play.

• If you feel any fatigue or pain in your hands, wrists, arms, feet or legs, stop playing and rest for a few hours before you start playing again.

• If the symptoms or pain indicated persist when you start playing again, stop playing and consult your doctor.

• Keep out of children's reach.
• During gameplay, always leave both hands correctly positioned on the wheel without completely letting go.
• During gameplay, never place your hands or your fingers under the pedals or anywhere near the pedal set.
• During calibration and gameplay, never place your hand or your arm through the openings in the racing wheel.
• Make sure that the racing wheel's base is properly secured, as per this manual's instructions.

HEAVY PRODUCT

Product to be handled only by users 14 years of age or older

Be careful not to drop the product on yourself or on anyone else!

ALWAYS

NEVER

NEVER

Warning - Pedal set pinch hazard when playing

• Keep the pedal set out of children's reach.
• During gameplay, never place your fingers on or anywhere near the sides of the pedals.
• During gameplay, never place your fingers on or anywhere near the pedal's rear base.
• During gameplay, never place your fingers on or anywhere near the pedal's front base.

NEVER

NEVER

NEVER

Warning - Pedal set pinch hazard when not playing

• Store the pedal set in a safe place, and keep it out of children's reach.

UPDATING YOUR RACING WHEEL'S FIRMWARE

The firmware included in your racing wheel's base can be updated to a more recent version featuring product enhancements.

To display the firmware version that your racing wheel is currently using and update it if required: on PC, visit http://support.thrustmaster.com. Click Racing Wheels / TMX Force Feedback, then select Firmware and follow the instructions describing the download and installation procedure.

ADJUSTING THE PEDAL INCLINATION

The pedal inclination is adjustable.

The adjustment instructions for each pedal are available at http://support.thrustmaster.com: click Racing Wheels / TMX Force Feedback, then select Manual.

ATTACHING THE RACING WHEEL

Attaching the racing wheel to a table or a desktop

1. Place the racing wheel on a table or any other horizontal, flat and stable surface.
2. Insert the fastening screw (11) in the attachment system (10), then tighten the device by turning the screw counterclockwise, so that it feeds into the large threaded hole (9) located beneath the racing wheel, until the wheel is perfectly stable.

ALWAYS NEVER

WARNING: Never tighten the screw alone, without the attachment system in place! (This could damage the racing wheel.)

ATTACHMENT / REMOVAL	DIRECTION
To tighten: Turn the screw anticlockwise
To release: Turn the screw clockwise

Attaching the pedal set to a cockpit

1. Attach the pedal set using the small screw threads located on its underside.
2. Drive two M6 screws (not included) through the cockpit shelf, then feed them into the two small screw threads located on the underside of the pedal set.

Important: The length of the two M6 screws must not exceed the thickness of the shelf + 10 mm; longer screws could cause damage to internal components located in the pedal set.

Layout diagrams for cockpits are available at http://support.thrustmaster.com: click Racing Wheels / TMX Force Feedback, then select Manual or FAQ.

SETTING UP THE RACING WHEEL FOR XBOX ONE

1. Connect the pedal set to the connector (17) located at the back of the racing wheel's base.
2. Connect the power supply cable to the connector (14) located at the back of the racing wheel's base.
3. Plug the power supply cable into an electrical outlet with the same voltage specifications.
4. Connect the racing wheel's USB connector (15) to one of the console's USB ports.
5. Once your console is powered on, your racing wheel will calibrate itself automatically.

You are now ready to play!

• The list of Xbox One games compatible with the TMX Force Feedback is available at: http://support.thrustmaster.com (in the Racing Wheels/TMX section). This list is updated regularly.

SETTING UP THE RACING WHEEL FOR PC

1. Go to http://support.thrustmaster.com to download the drivers and the force feedback software for PC. Click Racing Wheels / TMX Force Feedback, then select Drivers.
2. Once the download is complete, launch the installation, and follow the on-screen instructions to connect the wheel's USB plug to your computer and complete the installation.
3. Once the installation is complete, click Finish and restart your computer.
4. Select Start / All Programs / Thrustmaster / FFB Racing Wheel / Control Panel to open the Game Controllers window.

The Game Controllers window displays the racing wheel's name Thrustmaster TMX Racing Wheel with the status OK.

1. Click Properties to configure your wheel in the TMX control panel:

2. Test Input tab: allows to test and view the action buttons, directional buttons, wheel and pedals axes, and to adjust the wheel's rotation angle in your PC games.

3. Test Forces tab: allows to test 12 force feedback effects.
4. Gain Settings tab: allows to adjust the power of the force feedback effects in your PC games.

You are now ready to play!

General notes:

• On PC, click OK to close the Game Controllers window before launching the game.
• On PC, the adjustments made in the Game Controllers window will only be saved on your computer (hence they will have no effect on Xbox One).
• Your wheel's firmware version is displayed in the upper right-hand corner of the TMX Force Feedback control panel tabs.

AUTOMATIC RACING WHEEL AND PEDAL SET CALIBRATION

The wheel automatically self-calibrates when you plug the racing wheel into an electrical outlet and connect the racing wheel's USB connector to the Xbox One.

During this phase, the racing wheel will rotate quickly towards the left and the right, covering a 900 degree angle, before stopping at the center.

WARNING:

Never touch the racing wheel during the self-calibration phase! (This could result in improper calibration and/or personal injuries.)

AUTOMATIC CALIBRATION OF THE PEDAL SET

Never connect the pedal set to the racing wheel's base (or disconnect it from the base) when it is connected to the console or during gameplay (this could result in improper calibration).

Always connect the pedal set before connecting the racing wheel to the console.

Once the racing wheel's calibration is complete and the game has been started, the pedals are automatically calibrated after a few presses.

WARNING:

Never press the pedals during the racing wheel's self-calibration phase or while a game is loading!

(This could result in improper calibration.)

If your racing wheel and/or pedal set do not function correctly, or if they seem to be improperly calibrated:

Power off your console or PC and completely disconnect the racing wheel. Then reconnect all cables (including the power supply cable and the pedal set), and restart your console or PC and your game.

MODE BUTTON AND INDICATOR LIGHT (8)

MODE button for the pedal set

The pedal set included with the TMX Force Feedback features 2 pedals.

When using this pedal set, make sure that the indicator light remains red, or else the gas pedal will not function properly.

The TMX Force Feedback is also compatible with Thrustmaster pedal sets featuring 3 pedals (sold separately); these allow you to electronically swap the accelerator and clutch pedals.

To do so, simply press the MODE button (8) for 2 seconds.

The racing wheel's internal memory stores whether the pedals have been swapped around or not.

GAS AND CLUTCH PEDALS	Color of the MODE indicator light (8)
NORMAL	RED
SWAPPED AROUND GREEN

Other information regarding the MODE button

To learn more about the MODE button and indicator light, please visit http://support.thrustmaster.com. Click Racing Wheels / TMX Force Feedback, then select Manual or FAQ.

HELP FILES AND FAQs (NOT INCLUDED IN THIS MANUAL)

Please visit http://support.thrustmaster.com, click Racing Wheels / TMX Force Feedback, then select Manual or FAQ.

COPYRIGHT

© 2017 Guillemot Corporation S.A. All rights reserved. Thrustmaster® is a registered trademark of Guillemot Corporation S.A. All other trademarks are the property of their respective owners. Illustrations not binding. Contents, designs and specifications are subject to change without notice and may vary from one country to another. Made in China.

Retain this information. Colors and decorations may vary.

This product conforms to all standards regarding children 14 years of age and older. This product is not suitable for use by children less than 14 years of age.

www.thrustmaster.com

JOIN THE

THRUSTMASTER

RACING TEAM

FOR RACERS

JOIN THE

THRUSTMASTER

XTEAM

FOR RACERS

THRUSTMASTER

TECHNICAL SUPPORT

http://support.thrustmaster.com
