USER MANUAL F430 FFB THRUSTMASTER

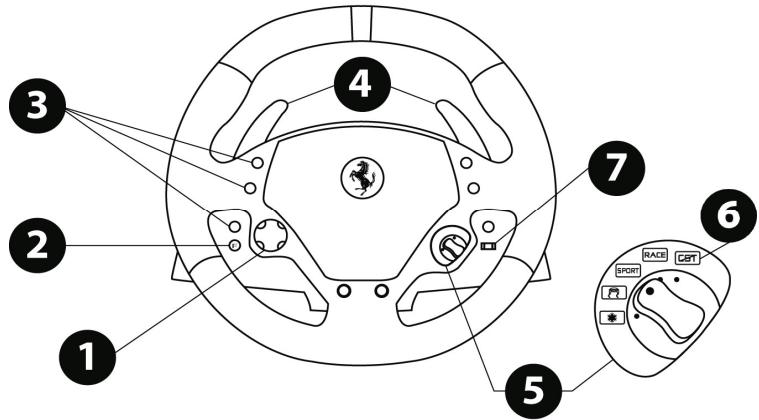

• One 5-position rotary switch
• One pushbutton

6 indicator

7 Mode selection slider:

• Manual Manettino (MM)
  or
  Automatic Manettino (AM)

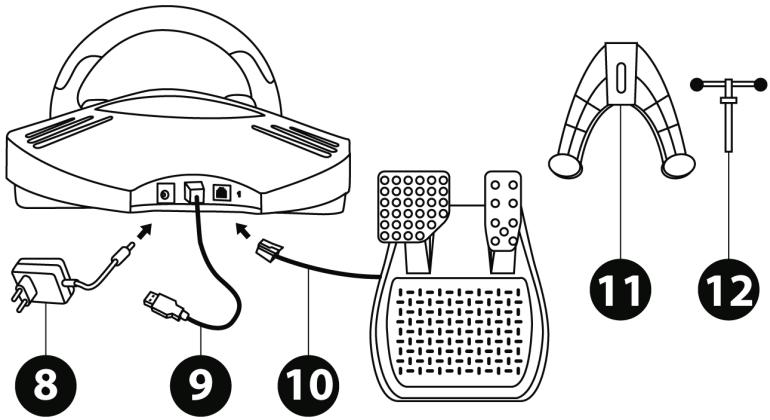

8 Power adapter
9 USB cable and connector
10 Pedal set cable and connector

11 Attachment system
12 Metal fastening screw

SETTING UP YOUR RACING WHEEL

Place the racing wheel on a table or a desktop

1. Place the racing wheel on a table or any other horizontal, flat and stable surface.
2. Insert the fastening screw (12) in the attachment system (11), then tighten the fastening screw (by turning it counter-clockwise) so that it feeds into the large threaded hole located beneath the racing wheel, until the device is perfectly stable.

WARNING: Never tighten the screw alone, without the attachment system!

(You risk damaging your racing wheel!)

ATTACHMENT / REMOVAL	DIRECTION
To tighten: Screw counter-clockwise
To release: Unscrew clockwise

Attaching the racing wheel to a cockpit

1. Place the racing wheel on the cockpit shelf.
2. Place two M6 screws (not included with the racing wheel) through the cockpit shelf and insert them in the two small threaded holes located beneath the racing wheel.

Connect the pedal set and the power adapter to the racing wheel

1. Connect the pedal set to the racing wheel using the relevant connector (10) located at the back of the racing wheel.
2. Connect the power adapter (8) using the relevant connector located at the back of the racing wheel.
3. Connect the power adapter to a standard power outlet.

PC INSTALLATION

System requirements: PC (Windows® XP or Vista) featuring a USB port.

The CD-ROM included with this product allows users to install the Force Feedback drivers.

1. Insert the installation CD-ROM in your CD-ROM drive. Follow the instructions provided onscreen to install the Force Feedback drivers. Once the installation is finished, click Finish and restart your computer.
2. Once your computer has restarted, connect the USB connector (9) to one of the USB ports on your CPU. Windows® XP or Vista will automatically detect the new device.
3. Installing the drivers:

Driver installation occurs automatically. Follow the instructions displayed onscreen to finalise the installation.

1. Select Start/Settings/Control Panel, then double-click Game Controllers (or Gaming Options, according to your operating system).

The Game Controllers dialog displays; the racing wheel appears onscreen, with the status indication "OK".

1. In the Control Panel, click Properties to configure your racing wheel:

2. Test Device: Enables you to test and view the 5-position Manettino controller, the buttons, the D-Pad and the racing wheel and pedal set axes.

3. Test Forces: Enables you to test 8 force effects and to configure the Force Feedback and Automatic centering effects.

You are now ready to race!

AUTOMATIC RACING WHEEL AND PEDAL SET CALIBRATION

The racing wheel calibration occurs automatically when you connect the racing wheel's power adapter and USB connector. (This operation causes the racing wheel to move.) The pedal set calibration also occurs automatically; simply depress the pedals a few times.

CONFIGURING THE PEDAL SET

By default, your racing wheel's accelerator and brake controls operate in "Separate" mode; this setting means that the pedals operate on independent axes.

This mode considerably improves precision when racing.

If your game is not compatible with the "Separate" mode, the pedal set connected to your racing wheel will not operate correctly. You will then need to exit the game and select the "Combined" mode (in which both pedals operate on the same axis).

PEDAL SET MODE	CST
SEPARATE (this mode is recommended for most games)	RED
COMBINED	GREEN

- SETTING THE PEDAL BASE MODE USING THE SOFTWARE

(This setting is stored in the device's memory, even after you restart your computer or disconnect and reconnect your racing wheel.)

• On Page 1 of the Control Panel interface: select the required mode, then click OK.

- SETTING THE PEDAL BASE MODE USING THE HARDWARE

(This setting is not stored in the device's memory: it must be performed every time you start your computer up or disconnect the racing wheel.)

• Simultaneously press and release: both pedals (accelerator and brake) and the Force button (2)

Note:

If your game is not compatible with the pedal base's "Separate" mode, we recommend you switch your racing wheel to the "Combined" mode.

SETTING THE AUTOMATIC CENTERING FEATURE

By default, the racing wheel's automatic centering feature is deactivated.

Most recent games feature their own automatic centering mode.

It is therefore strongly recommended (in most cases) to deactivate the racing wheel's automatic centering feature and let your game manage this feature. The Force Feedback quality will be improved.

The automatic centering mode should essentially be used with games that do not feature a Force Feedback option, or feature only a "weak" automatic centering feature.

- SETTING THE AUTOMATIC CENTERING FEATURE USING THE SOFTWARE

• Access Page 2 of the Control Panel interface.
• To deactivate the automatic centering feature, select "By the game".
• To activate the automatic centering feature, select "By the wheel".

In this mode, you can adjust the automatic centering feature's intensity, from 0 to 100% .

- SETTING THE AUTOMATIC CENTERING FEATURE USING THE HARDWARE

To activate or deactivate the automatic centering featuring directly within your game, simply press the Force button (2) on your racing wheel. When activated, the automatic centering feature's intensity matches the value previously defined for the "By the wheel" setting in the "Control Panel" interface.

AUTOMATIC CENTERING	CST
INACTIVE (This mode is recommended for all Force Feedback games)	NOT FLASHING
ACTIVE	FLASHING

ADJUSTING FORCE FEEDBACK EFFECTS (on Page 2 of the Control Panel interface)

4 settings are available, from 0 to 150%

• Main forces
• Static forces
• Dynamic forces
• Aggressiveness

Note:

Always remember to close the Control Panel interface entirely before launching your game!

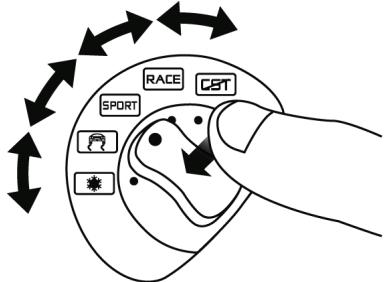

USING THE 5-POSITION MANETTINO CONTROLLER

The 5-position Manettino controller enables you to adjust your car's settings during a race. The 5 positions match action buttons 13, 14, 15, 16 & 17 on your racing wheel.

The Manettino system comprises the following:

• A rotary switch that you can move from one position to another
• A pushbutton located beneath the switch

2 operating modes are available:

• Manual mode
• Automatic mode

TO FULY UNDERSTAND THE OPERATION OF THE MANETTINO CONTROLLER, TEST IT (IN BOTH MANUAL & AUTOMATIC MODES)

VIA THE RACING WHEEL'S CONTROL PANEL INTERFACE

(i.e. the Game Controllers interface in Windows®)

MANETTINO IN MANUAL MODE

(This mode is recommended and compatible with most simulation games)

1) Move the slider (7) to MM (Manual Manettino)

This mode allows you to allocate any required features to the Manettino controller's 5 icons.

In this mode, the required feature is performed when you press the pushbutton (and not when you turn the switch) after placing the switch on the relevant icon.

2) To program the required feature, access your game's options or controller management interface, then configure the Manettino controller with the required settings.

5 icons	Programming examples and available settings
CST	Anti-lock braking: Deactivated / Low / High
RACE	Stability Control: Deactivated / Low / High
SPORT	Driving assist: Deactivated / Low / Medium / High
	Traction and control system: Deactivated / Low / Medium / High
	Braking assist: Deactivated / Low / High

When racing, to activate and adjust the required feature:

• Place the switch on the relevant icon

• Then, press the pushbutton once or several times

Many other configurations can be defined according to the features available in your game's options or controller management interface (e.g. braking force distribution, tire pressure, selecting cockpit view or other more basic features).

MANETTINO IN AUTOMATIC MODE

(This setting is recommended for games preconfigured for your racing wheel's Manettino controller)

Move the slider (7) to AM (Automatic Manettino)

This mode is mainly intended for game developers, who can define preset features for each of the controller's 5 positions.

In this mode, the programmed feature is activated as soon as you place the switch on the relevant icon.

You can then use the pushbutton (while leaving the Manettino controller on the same icon) to repeat or adjust the feature.

TROUBLESHOOTING

• The racing wheel and pedal set do not operate correctly, or calibration seems incorrect:

Turn off your computer, disconnect your racing wheel entirely, reconnect all cables (using the power adapter and the pedal set), then restart your computer and launch your game again.

If this fails to solve the problem, download the manual calibration software Thrustmaster Calibration Tool v 1.03, available here: http://ts.thrustmaster.com.

• The racing wheel moves on its own during gameplay:

This is normal; it is caused by the automatic centering feature that is available in some games. To stop these movements, simply place your hands on the racing wheel or reduce the Force Feedback feature's intensity.

• The racing wheel remains locked to one side (left or right) after I launch the game:

This is normal in some games. The racing wheel will center automatically as soon as you have declared it as your racing wheel in your game's options management interface.

• The racing wheel is detected by my computer but does not work with my game:

Open your game's options management interface to configure your racing wheel. Please refer to your game's user manual or online help for more information.

• The Force Feedback feature does not react correctly:

In the racing wheel's Control Panel interface (i.e. the Game Controllers interface in Windows®), restore all

forces to their default value (100%) and deactivate the automatic centering feature (the CST indicator should not flash).

In some games, it is also necessary to invert the forces (in this case, select "negative forces" or move the cursor to "100%" in your game's options management interface). In other games, the forces should not be inverted (in this case, select "positive forces" or move the cursor to "÷ 100%" in your game's options management interface).

• The pedal set does not operate correctly in "Separate" mode

(e.g. in the game, the selection cursor moves around on its' own)

Quit the game and switch your pedal set to "Combined" mode. Launch your game again, then configure your racing wheel once more via your game's options management interface.

SAFETY RECOMMENDATIONS AND INFORMATION

• When connecting your racing wheel and during the automatic calibration phase: to avoid calibration errors, do not turn the racing wheel, and do not press any of the pedals or buttons during the calibration phase.
• If you do not plan to use your racing wheel for a long time, to avoid pointless electricity consumption and to prevent any damage to your racing wheel, disconnect the power adapter from the racing wheel. Remember to reconnect the power adapter before you start playing again!
• Your racing wheel includes a Force Feedback feature: Keep young children away from your racing wheel, particularly during the automatic calibration phases.

TECHNICAL SUPPORT

If you encounter a problem with your product, please go to http://fs.thrustmaster.com and click Technical Support. From there you will be able to access various utilities (Frequently Asked Questions (FAQ), the latest versions of drivers and software) that may help to resolve your problem. If the problem persists, you can contact the Thrustmaster products technical support service ("Technical Support"):

By email:

In order to take advantage of technical support by email, you must first register online. The information you provide will help the agents to resolve your problem more quickly. Click Registration on the left-hand side of the Technical Support page and follow the on-screen instructions. If you have already registered, fill in theUsername and Password fields and then click Login.

By telephone:

United Kingdom	08450800942Chargesat local rate	Monday to Friday from Noon to 4pm and 5pm to 10pmSaturday from 9am to Noon and 1pm to 7pmSunday from 9am to Noon and 1pm to 4pm
United States	1-866-889-5036Free	Monday to Friday from 7am to 11am and from Noon to 5pm Saturday and Sunday from 7am to Noon (Eastern Standard Time)
Canada	1-866-889-2181Free	Monday to Friday from 7am to 11am and from Noon to 5pm Saturday and Sunday from 7am to Noon (Eastern Standard Time)
Denmark	80887690Free	Monday to Friday from 1pm to 5pm and 6pm to 11pm (English)Saturday from 9am to 1pm and 2pm to 8pm Sunday from 10am to 1pm and 2pm to 5pm
Sweden	0200884567Free	Monday to Friday from 1pm to 5pm and 6pm to 11pm (English)Saturday from 9am to 1pm and 2pm to 8pm Sunday from 10am to 1pm and 2pm to 5pm
Finland	0800 913060Free	Monday to Friday from 2pm to 6pm and 7pm to Midnight (English)Saturday from 10am to 2pm and 3pm to 9pm Sunday from 11am to 2pm and 3pm to 6pm

WARRANTY INFORMATION

Worldwide, Guillemot Corporation S.A. ("Guillemot") warrants to the consumer that this Thrustmaster product will be free from material defects and manufacturing flaws for a period of two (2) years from the original date of purchase. Should the product appear to be defective during the warranty period, immediately contact Technical Support, who will indicate the procedure to follow. If the defect is confirmed, the product must be returned to its place of purchase (or any other location indicated by Technical Support).

Within the context of this warranty, the consumer's defective product will, at Technical Support's option, be either repaired or replaced. Where authorized by applicable law, the full liability of Guillemot and its subsidiaries (including for indirect damages) is limited to the repair or replacement of the Thrustmaster product. The consumer's legal rights with respect to legislation applicable to the sale of consumer goods are not affected by this warranty.

This warranty shall not apply: (1) if the product has been modified, opened, altered, or has suffered damage as a result of inappropriate or abusive use, negligence, an accident, normal wear, or any other cause not related to a material defect or manufacturing flaw; (2) in the event of failure to comply with the instructions provided by Technical Support; (3) to software not published by Guillemot, said software being subject to a specific warranty provided by its publisher.

Additional warranty provisions

In the United States of America and in Canada, this warranty is limited to the product's internal mechanism and external housing. Any applicable implied warranties, including warranties of merchantability and fitness for a particular purpose, are hereby limited to two (2) years from the date of purchase and are subject to the conditions set forth in this limited warranty. In no event shall Guillemot Corporation S.A. or its affiliates be liable for consequential or incidental damage resulting from the breach of any express or implied warranties. Some States/Provinces do not allow limitation on how long an implied warranty lasts or exclusion or limitation of incidental/consequential damages, so the above limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other legal rights which vary from State to State or Province to Province.

COPYRIGHT

© 2008 Guillemot Corporation S.A. All rights reserved. Thrustmaster® is a registered trademark of Guillemot Corporation S.A. Windows® and Windows® XP are registered trademarks of Microsoft Corporation in the United States and/or other countries. Pentium® is a registered trademark of Intel Corporation. All other trademarks and brand names are hereby acknowledged and are property of their respective owners. Illustrations not binding. Contents, designs and specifications are subject to change without notice and may vary from one country to another. Made in China.

ENVIRONMENTAL PROTECTION RECOMMENDATION

At the end of its working life, this product should not be disposed of with standard household waste, but rather dropped off at a collection point for the disposal of Waste Electrical and Electronic Equipment (WEEE) for recycling.

This is confirmed by the symbol found on the product, user manual or packaging.

Depending on their characteristics, the materials may be recycled. Through recycling and other forms of processing Waste Electrical and Electronic Equipment, you can make a significant contribution towards helping to protect the environment.

Please contact your local authorities for information on the collection point nearest you.

FAQs, tips and drivers available at www.thrustmaster.com
