JDF602E9 - Basket JUNO - Free user manual and instructions

Product type	Range hood
Brand	JUNO
Model	JDF602E9
Installation mode	Extractor (external evacuation) or recirculation (internal recycling)
Minimum distance between hob and hood	65 cm (unless otherwise specified by the hob)
Number of motor speeds	3 (1, 2, 3) + stop (0)
Lighting	Bulbs type E14, 4 W, ø35 mm
Grease filter	Washable by hand or in dishwasher with neutral detergent, clean every 2 months
Charcoal filter	Non-washable, replace every 4 months (or more often with heavy use)
Power supply	See rating plate inside the appliance
Insulation class	II (if symbol on plate) or I (otherwise, requires earthing)
Exterior materials	Steel, copper, brass (depending on model) – use specific products
Control	Telescopic slider (open/close triggers lights)
Use	Domestic, above cookers
Child safety	Do not use by children under 8 without supervision
Interior cleaning	Cloth or brush soaked in denatured alcohol
Fire prevention maintenance	Clean grease filters regularly and remove grease deposits
Power cable replacement	By manufacturer, after-sales service or qualified person
Recycling	Do not dispose with household waste, take to recycling centre

Frequently Asked Questions - JDF602E9 JUNO

What is the minimum distance between the hood and the hob?

The minimum distance between the support surface of the pots and the lower part of the hood is 65 cm, unless the hob instructions specify a greater distance.

Can the hood be installed in extractor or recirculation mode?

Yes, the hood can be installed in extractor mode (external evacuation) or recirculation mode (internal recycling). It is recommended to choose extractor mode for better efficiency.

How to clean the grease filters?

Grease filters should be cleaned at least every 2 months by hand or in the dishwasher with a neutral detergent. Any discoloration does not affect their efficiency.

When should the charcoal filter be replaced?

The charcoal filter is non-washable and must be replaced every 4 months (or more often with heavy use). It is not renewable.

How to change the hood bulbs?

Unplug the hood and make sure the bulbs have cooled down. Replace them with bulbs of the same type: E14, 4 W, ø35 mm.

What to do if the power cable is damaged?

The damaged cable must be replaced by the manufacturer, its after-sales service or a qualified person to avoid any danger.

Does the hood need to be earthed?

Check the rating plate: if the symbol ☐ is present, the hood is class II and does not require earthing. Otherwise, it must be earthed.

Can I use the hood with a gas hob?

Yes, but adequate ventilation of the room must be ensured. The negative pressure must not exceed 0.04 mbar to avoid gas backflow.

How to clean the exterior of the hood?

For painted surfaces: damp cloth with warm water and mild detergent. For steel, copper or brass: use specific products and follow their instructions.

Is the hood suitable for professional use?

No, this hood is designed for domestic use, above cookers and similar cooking appliances.

USER MANUAL JDF602E9 JUNO

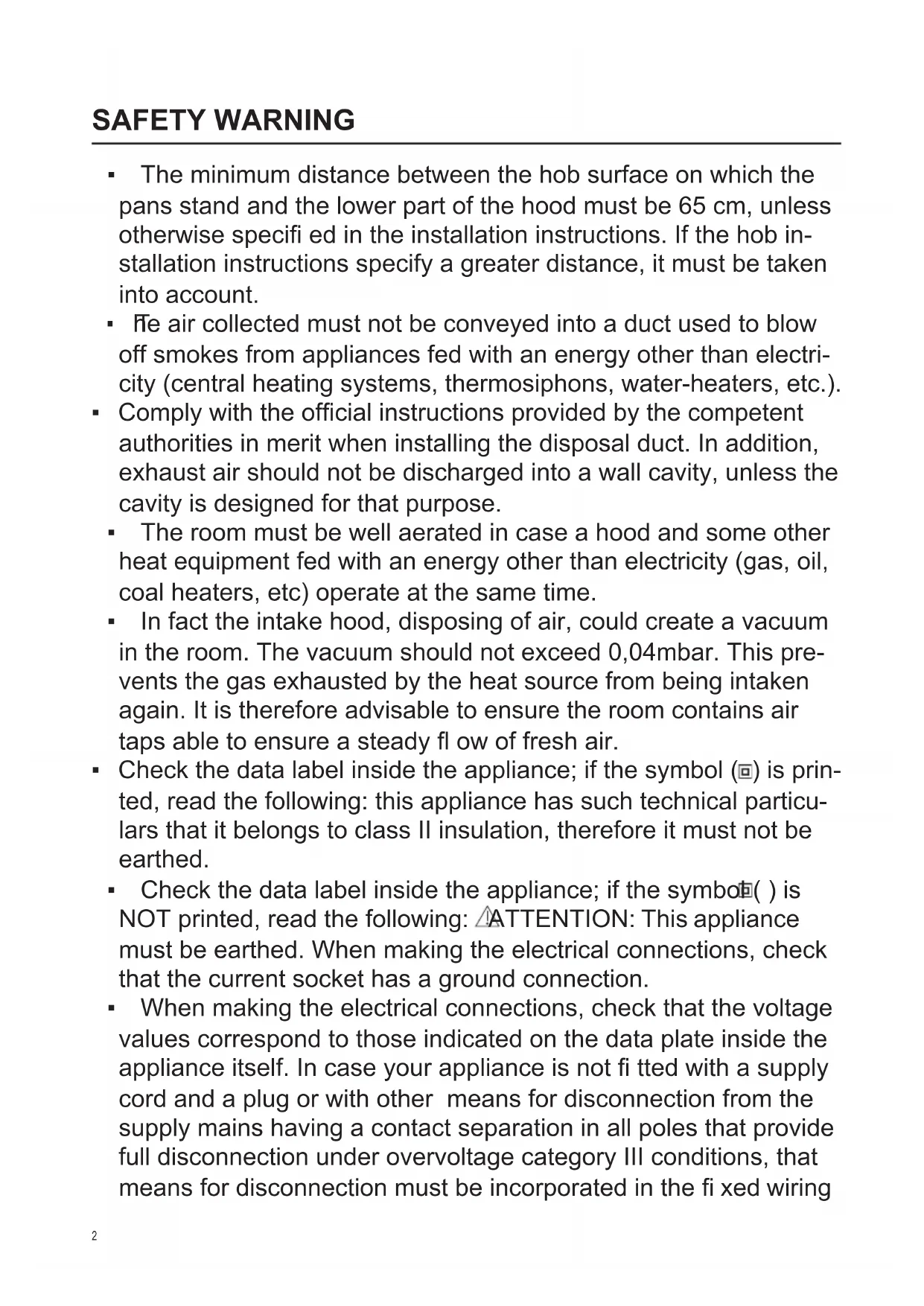

• The minimum distance between the hob surface on which the pans stand and the lower part of the hood must be 65 cm, unless otherwise specified in the installation instructions. If the hob installation instructions specify a greater distance, it must be taken into account.
• He air collected must not be conveyed into a duct used to blow off smokes from appliances fed with an energy other than electricity (central heating systems, thermosiphons, water-heaters, etc.).

- Comply with the official instructions provided by the competent authorities in merit when installing the disposal duct. In addition, exhaust air should not be discharged into a wall cavity, unless the cavity is designed for that purpose.

- The room must be well aerated in case a hood and some other heat equipment fed with an energy other than electricity (gas, oil, coal heaters, etc) operate at the same time.

- In fact the intake hood, disposing of air, could create a vacuum in the room. The vacuum should not exceed 0,04mbar. This prevents the gas exhausted by the heat source from being intaken again. It is therefore advisable to ensure the room contains air taps able to ensure a steady flow of fresh air.

- Check the data label inside the appliance; if the symbol (☐) is printed, read the following: this appliance has such technical particulars that it belongs to class II insulation, therefore it must not be earthed.

- Check the data label inside the appliance; if the symbol( ) is NOT printed, read the following: ATTENTION: This appliance must be earthed. When making the electrical connections, check that the current socket has a ground connection.

- When making the electrical connections, check that the voltage values correspond to those indicated on the data plate inside the appliance itself. In case your appliance is not fitted with a supply cord and a plug or with other means for disconnection from the supply mains having a contact separation in all poles that provide full disconnection under overvoltage category III conditions, that means for disconnection must be incorporated in the fixed wiring

in accordance with the wiring rules. If your unit features a power lead and plug, position this so the plug is accessible.

• Always switch off the electricity supply before carrying out any cleaning or servicing operations on the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
• The appliance must be installed by a qualified person in compliance with the instructions provided.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

- Avoid using materials which could cause spurts of flame (fl ambées) near the appliance.

- Do not flambé under the range hood.

- When frying, take particular care to prevent oil and grease from catching fi re. Already used oil is especially dangerous in this respect. Do not use uncovered electric grates.

- To avoid possible risks of fire always comply with the indicated instructions when cleaning grease filters and when removing grease deposits from the appliance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way by a person responsible for their safety and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Caution: accessible parts may become hot when used with cooking appliances.

- This kitchen hood is intended for installation in domestic kitchens above cooktops, cooking devices and similar kitchen equipment.

USE

Filtering or ducting version?

• The hood may be in filtering or in ducting version. Decide from the outset which type is to be installed.
• For better efficiency, we recommend installing the hood in the ducting version (if possible).

Ducting version.

The hood purifi es the air and evacuates it to the outside through an exhaust duct.

Filtering version

The hood purifi es the air and recycles the clean air back into the room.

MAINTENANCE

• Thorough servicing guarantees correct and long-lasting operation.
• Any fat deposits should be removed from the appliance periodically depending on amount of use (at least every 2 months). Avoid using abra-

sive or corrosive products. To clean painted appliances on the outside, use a cloth dipped in lukewarm water and neutral detergent. To clean steel, copper or brass appliances on the outside, it is always best to use specific products, following the instructions on the products themselves. To clean the inside of the appliance, use a cloth (or brush) dipped in denatured ethyl alcohol.

• Clean grease filters in relation to use, at least every 2 months to prevent the risk of fire.
• Hand wash or clean in a dishwasher using a neutral detergent. If washing in the dishwasher, possible discoloration of the fi Iters does not in any way compromise their functioning.

Hand holding a small electronic device with a downward arrow indicating compression or disassembly (no text or symbols present)

- The activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.

Illustration of hands operating a mechanical device with rotating components (no text or symbols)

CONTROLS

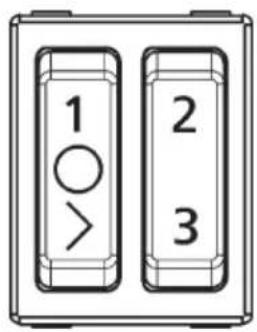

1 : fi rst speed motor.

0: OFF motor.

• 2 : second speed motor.

• 3 : third speed motor.

The opening/closing of the telescopic slide regulates the Lights On/OFF.

1 2 3

LIGHTING

Disconnect the hood from the electricity.

⚠ Warning! Prior to touching the light bulbs

ensure they are cooled down.

Replace it with lamps of the same type ( 35 , E14, 4W).

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

Hand holding a card with a downward arrow indicating compression or dislocation (no text or symbols)

Illustration of hands operating a mechanical device with rotating wheels (no text or symbols)

BEDIENELEMENTE

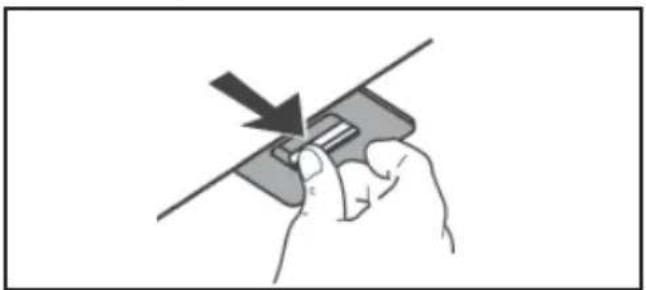

Hand holding a small electronic component with an arrow indicating direction (no text or symbols)

Illustration of hands operating a mechanical device with rotating wheels (no text or symbols)

COMMANDES

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

- AFVOER OF RECIRCULATIE?

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of hands operating a mechanical device with rotating components (no text or symbols)

BEDIENINGEN

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of hands operating a mechanical device with rotating blades (no text or symbols)

MANDOS

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

Hand holding a card with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of hands operating a mechanical device with rotating wheels (no text or symbols)

COMANDOS

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

Hand holding a small electronic component with a black arrow indicating direction (no text or symbols)

Illustration of hands operating a mechanical device with rotating blades (no text or symbols)

COMANDI

Hand holding a card with a downward arrow indicating compression or dislocation (no text or symbols)

Illustration of hands operating a mechanical device with rotating components (no text or symbols)

KOMMANDON

Hand holding a small electronic device with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of hands operating a mechanical device with rotating wheels (no text or symbols)

KONTROLLER

1 : første motorhastighet.

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of hands operating a mechanical device with rotating wheels (no text or symbols)

OHJAIMET

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

Hand holding a small object with an arrow indicating direction, no text or symbols present

Illustration of hands operating a mechanical device with rotating wheels (no text or symbols)

BETJENING

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of hands operating a mechanical device with rotating components (no text or symbols)

ОРГАНЫ УПРАВЛЕНИЯ

Close-up of a single white incandescent light bulb with screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

Hand holding a small electronic component with a downward arrow indicating compression (no text or symbols)

Illustration of hands operating a mechanical device with rotating wheels (no text or symbols)

JUHIKUD

Hand holding a small electronic device with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of hands operating a mechanical device with rotating blades (no text or symbols)

VADĪBAS ELEMENTI

1 : pirmā ātruma motors.
0 : IZSLĚGŠANAS motors.

Hand holding a device with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of hands operating a mechanical device with rotating wheels (no text or symbols)

VALDYMAS

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols present)

Illustration of hands operating a mechanical device with rotating buttons (no text or symbols)

ЕЛЕМЕНТИ КЕРУВАННЯ

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of hands operating a mechanical device with rotating blades (no text or symbols)

KEZELŐSZERVEK

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols present)

Hand holding a card with a downward arrow indicating compression or dislocation (no text or symbols)

Illustration of hands operating a mechanical device with rotating fans (no text or symbols)

PŘÍKAZY

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of hands operating a mechanical device with rotating blades (no text or symbols)

OVLÁDAČE

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols present)

Illustration of hands operating a mechanical device with rotating buttons (no text or symbols)

COMENZI

Hand holding a small electronic device with a black arrow indicating compression or disassembly (no text or symbols present)

Illustration of hands operating a mechanical device with rotating components (no text or symbols)

STEROWANIE

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

Hand holding a smartphone with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of hands operating a mechanical device with rotating wheels (no text or symbols)

NAREDBI

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

Hand holding a small electronic component with a downward arrow indicating compression (no text or symbols)

Illustration of hands operating a mechanical device with rotating wheels (no text or symbols)

UPRAVLJALNI GUMBI

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of hands operating a mechanical device with rotating buttons (no text or symbols)

ΧΕΙΡΙΣΤΗΡΙΑ

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of hands operating a mechanical device with rotating buttons (no text or symbols)

KONTROLLER

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

Hand holding a small electronic device with a downward arrow indicating compression or disassembly (no text or symbols present)

Illustration of hands operating a mechanical device with rotating components (no text or symbols)

УПРАВЛЕНИЯ

Close-up of a white LED light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of hands operating a mechanical device with rotating wheels (no text or symbols)

БАСКАРУ ЭЛЕМЕНТТЕРИ

Close-up of a white incandescent light bulb with screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

Hand holding a small electronic device with a black arrow indicating compression or disassembly (no text or symbols)

Illustration of hands operating a mechanical device with rotating buttons (no text or symbols)

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols present)

Illustration of hands operating a mechanical device with rotating wheels (no text or symbols)

KOMANDIMET

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

• Minimalna udaljenost između površine ploče za kuhanje i najnižeg dela aspiratora treba da iznosi najmanje 65 cm, osim ako se u uputama za montažu navodi drugačije. Ako proizvođač ploče za kuhanje u uputama za ugradnju ploče preporučuje veći razmak, treba uvažiti preporuku proizvođača.
• Sakupljeni vazduh ne sme da se odvodi u kanal koji se već koristi za odvod dima iz uređaja koje ne pogoni električna energija (sistemi centralnog grejanja, termosifoni, zagrevači vode i sl.).
• Tokom ugradnje odvodnog kanala treba se pridržavati zvaničnih preporuka izdatih od strane nadležnih tela. Osim toga, vazduh koji se izvlači ne sme da se odvodi u zidno udubljenje, osim ako je ovo udubljenje za to namenjeno.

- Prostorija treba da bude dobro provetrena ako u isto vreme radi kuhinjski aspirator i drugi uređaj za grejanje, kojeg ne pogoni električna energija (plinski grejači, grejači na lož ulje, peći na ugljen i sl.).

Hand holding a small electronic component with a downward arrow indicating compression (no text or symbols)

Illustration of hands operating a mechanical device with rotating buttons (no text or symbols)

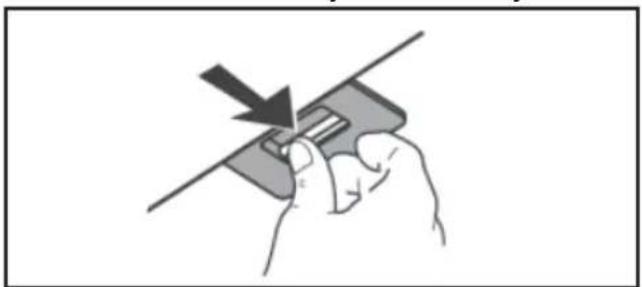

КОМАНДЕ

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

Hand holding a small electronic component with a black arrow indicating direction (no text or symbols)

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of hands operating a mechanical device with rotating wheels (no text or symbols)

التحكم

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105
