USER MANUAL Mia Springlane

How to use milk frother Mia 21

Cleaning and care 26

Trouble shooting 27

Customer service 28

Disposal/Environmental

protection 29

Please read this manual before using the device for the first time and keep the manual.

Do not touch the hot

surfaces during or after

use. Milk container and heating plate are very hot - there is a risk of burns.

Caution! Do not open the lid while the milk is being heated. If the container is overfilled, hot milk may spurt out.

After heating, hold the milk container solely by the designated handle.

Intended use

The milk frother Mia is suitable for stirring, heating, and frothing of different types of cold and warm milk as well as the preparation of hot chocolate with and without froth.

Symbols

This symbol warns of hazards that can damage

the appliance or cause injury.

This symbol warns of an electric shock that may be

caused by a defective appliance or by improper handling. This product may only be opened for necessary service work by an authorised technician.

Safety information

• After unpacking, check that the appliance is in perfect condition and check for any damage that could impair the functional safety of the appliance. If there are any defects or if the appliance has been dropped, do not operate it and contact our customer service.

• Improper repairs can endanger the user and can void the warranty. If any parts are damaged, they must be replaced by the manufacturer, an authorised specialist, or a similarly qualified person.

• The appliance is suitable solely for stirring, heating, and frothing milk and cocoa. Do not use with other liquids or solid foods.

• The appliance is intended for household use only, and in addition to similar application examples:

• tea kitchens in shops, offices, or other workplaces;
  on farms;

• for use by guests in tourist accommodation (hotels and motels), private guest houses, or holiday homes.

• No liability can be accepted for any damage that may be the result of improper use, incorrect operation, or misuse.

• If the power cord or appliance is damaged, it must be replaced/ repaired by the manufacturer, after-sales service, or a similarly qualified person to avoid danger.
• Keep the appliance and its connection cable away from children. Children are not allowed to play with the appliance.
• Store the appliance away from children.
• This appliance is not intended to be used by persons (including children) with limited physical, sensory, or mental capabilities, or lack of experience and/or knowledge, unless supervised by or under the instruction of a person responsible for their safety.
• Keep the appliance, accessories, and packaging out of reach of

children, in particular during operation and the subsequent cooling phase - the hot plate and milk get very hot.

• Connect the appliance only to sockets that comply with the specified voltage as stated in the operating manual.
• Never immerse the base station, appliance plug, or power cord in water or any other liquid and protect from moisture.
• For safety reasons, the appliance may only be installed on a free and level surface and not operated on or near hot surfaces.
• This appliance must not be operated with an external timer or a remote-control system.
• Unwind the cable completely before use. The cable must not hang over the edge of the work surface.
• Note the markings on the milk container for the minimum and maximum capacity. Non-compliance can lead to overheating or overflowing.
• To prevent overheating, the appliance switches off automatically if no milk has been added.
  The device may only be operated with original accessories and with

the lid in place.

• Keep the heating plate free and clean. After the device is cooled down, clean the container bottom and heating plate to remove any soiling and food residue.
• Do not touch the heating element or the container surface during operation - they are hot.
• Always disconnect the power plug after use, before cleaning, or in case of malfunction during operation.
• Never open the casing of the milk frother. There is a risk of

electric shock.

Before using the appliance for the first time

• Remove all transport safety and packaging items and keep them away from children - danger of suffocation!
• The milk container, lid, and stirrers should be cleaned with warm water before first use and after a long period of non-use. Please take note of our cleaning and care instructions.

Technical data

Power: 600-650 W, 230-240 V 50 Hz

Dimensions (W/D/H):

16,2× 13,6× 21,5cm

Capacity: min. 100 ml, max. 250 ml

Weight: 984 g

Cable length: approx. 75 cm

Features: stainless steel milk container with spout and wooden handle, base station with magnetic heating plate, over-heating protection, transparent lid, 4 functions (froth hot and cold milk, heat milk, hot chocolate with froth)

Accessories: 2 stirrer inserts - ribbed stirring attachment for milk froth, smooth stirring attachment for heating

Changes and errors in features, technology, colours, and design are reserved and subject to change without notice.

How to use milk frother Mia

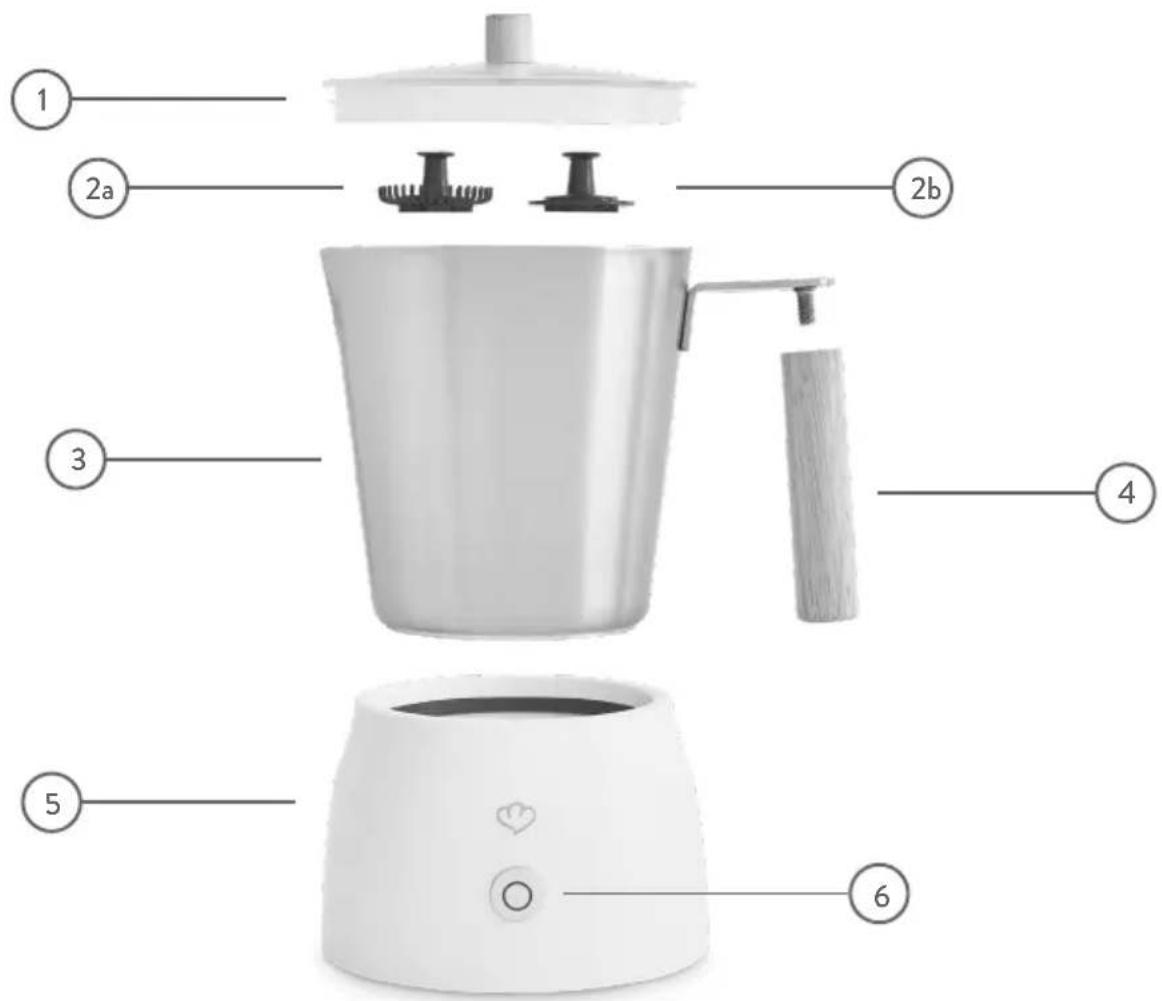

Product description

1. Lid
2. a. Ribbed stirrer insert b. Smooth stirrer insert
3. Pot
4. Removable wooden handle
5. Base station
6. Operating button

Selection of stirrer insert and programme

With or without froth? First select the suitable stirrer insert:

• Choose the smooth stirrer insert to heat milk.
• Choose the ribbed stirrer insert to froth hot or cold milk.
• Choose the ribbed stirrer insert to heat and froth cocoa.
  In general, always use one of the two inserts to prevent the milk from burning.
• Clamp the insert that is not used into the designated device in the bottom of the base station for storage.

Select the appropriate stirring programme for milk or cocoa as well as hot or cold mediums:

• Stirring programme for frothing and/or heating (to approx. 60^ ): press the operating button once briefly - the signal light lights up red, the stirring process starts automatically, and the milk is heated. The selected stirrer insert determines whether with or without frothing.
• Stirring programme for cold frothing, without heating: press the operating

button three times in quick succession - the signal light lights up blue, the stirring process starts automatically, and the milk is frothed cold (with the ribbed insert).

• Stirring programme for drinking chocolate, with heating (to approx. 70^ ): press the operating button twice in quick succession - the signal light lights up white, the stirring process starts automatically, and the cocoa is heated and frothed (with the ribbed insert).
• You can switch between the three programmes by pressing the operating button.
  Note: Always choose the appropriate insert for stirring or frothing.

Heat milk and make milk froth

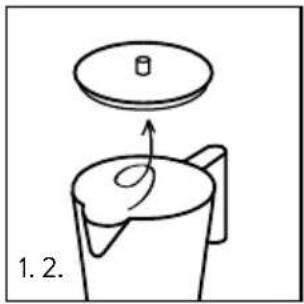

1. Lift the lid off the milk container.

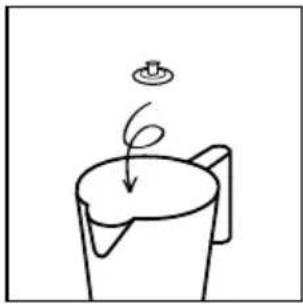

2. Place the desired stirrer insert into the milk container. Use the smooth insert for simple heating of the milk and the ribbed one for hot or cold milk froth.

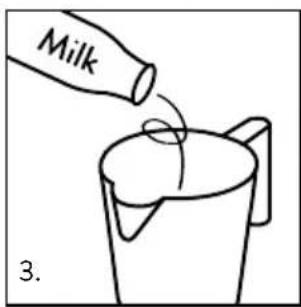

3. Pour in the desired amount of milk. Always make sure that the minimum capacity (100ml) is reached and that the maximum capacity (250ml) is not exceeded to prevent overheating and overflowing.

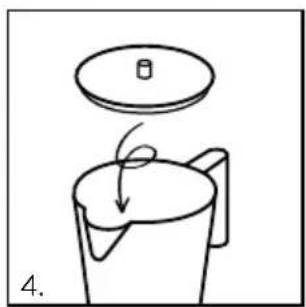

4. Close the milk container with the lid.

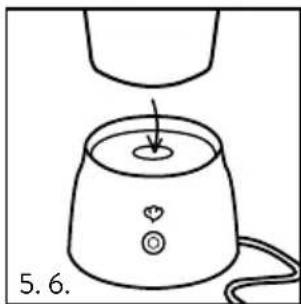

5. Centre the filled milk container on the magnetic heating plate of the base station and insert the power plug into the socket.

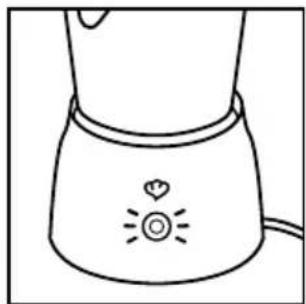

6. Activate the desired programme by pressing the operating button (see section on programme selection). The stirring and frothing process begins after activation. After 1-4 minutes (depending on the filling quantity and the milk's initial temperature), the device stops automatically, and the signal light turns off. The milk is now ready.

Press the operating button again once to prematurely terminate the programme - the device will stop immediately.

Prepare hot drinking chocolate

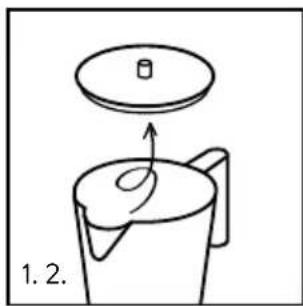

1. Lift the lid off the milk container.

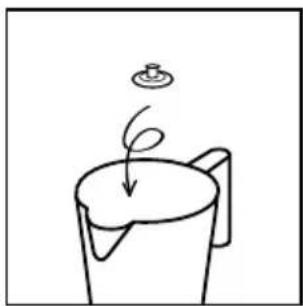

2. Place the ribbed stirrer insert into the milk container.

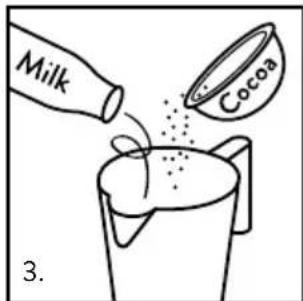

3. Pour in the desired amount of milk. Always make sure that the minimum capacity (100 ml) is reached and that the maximum capacity (250 ml) is not exceeded to prevent overheating and overflowing. Add cocoa or instant drinking chocolate to the milk in the container. You should not use more than 50 g at maximum capacity.

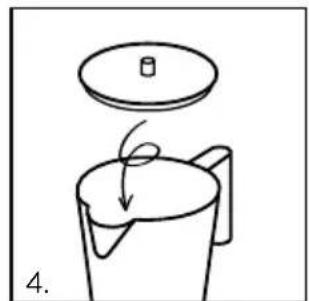

4. Use the lid to close the milk container.

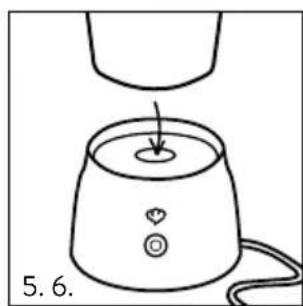

5. Centre the filled milk container on the magnetic heating plate of the base station and insert the power plug into the socket

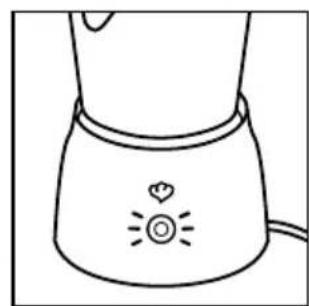

6. Activate the programme for drinking chocolate by pressing the operating button (see section on programme selection). The stirring and frothing process begins after activation. After 3-7 minutes (depending on the filling quantity and the milk's initial temperature), the device stops automatically, and the signal light turns off. The drinking chocolate is now ready.

Press the operating button again once to prematurely terminate the programme - the device will stop immediately.

Attention, the container is very hot after heating milk - danger

of burns!

NOTE: Overheating protection

The built-in overheating protection monitors the motor and appliance temperature. If milk has just been heated, it is not possible to restart the stirring and heating process immediately. The appliance must first cool down somewhat before it can be used again.

If the filling quantity is too low, the overheating protection can automatically switch the motor off. Therefore, always pay attention to the minimum and maximum filling capacities (100-250 ml).

Tips for perfect milk froth

1. Fat content of milk: For milk froth that is as firm as possible, use low-fat milk with 1.5% fat. For rather creamy milk froth, use full cream milk with 3.5% fat.
2. Freshness of the milk: Fresh milk is more difficult to froth than long-life milk. For consistent froth quality, long life milk is best.
3. Temperature of the milk: The best froth results are achieved using refrigerated milk.
4. Other types of milk: You can use

classic cow's milk for frothing as well as other milk varieties such as soy milk. The froth quality varies from type to type.

1. For cold coffee specialties such as iced coffee, you can froth cold milk.
2. Milk that is warmed and frothed between 60^ and 70^ is ideal for a variety of coffee specialities and hot chocolate.
3. For particularly firm milk froth, you can first froth the cold milk and then again when hot.

Recipe ideas

Cappuccino

The classic Italian coffee consists of 1/3 espressoro and 2/3 hot milk with creamy froth. First prepare the espresso. Heat and froth the milk (preferably full cream for creamy froth) and then pour the hot milk along with the frothy milk into the cup with the espresso. If you like, you can garnish the froth hood with some cocoa powder.

Latte Macchiato

Latte macchiato is traditionally served in a tall glass to reveal its three layers. Heat the milk and froth it heavily (best is low-fat milk for stable froth). First, pour the hot milk into the glass and carefully put the milk froth on top. Then add the

espresso and pour it hot, in a thin stream through the milk froth into the glass. The espresso sinks to the bottom and the three typical layers of espresso, milk, and froth appear.

Café latte

Café latte or café au lait is, as the name implies, made up of one half milk and one half coffee. Heat the milk without frothing it and mix it in a cup in equal parts with classically brewed coffee.

iced coffee

iced coffee is served cold and can consist of cold coffee, espresso, or cold brewed coffee. Pour the cold coffee into a large glass and add two scoops of vanilla ice cream. Froth a little milk and fill the glass up with cold milk froth. If you like, you can garnish the froth hood with some cocoa powder or grated chocolate.

Cleaning and care

After each use, the appliance should be cleaned and dried as follows. Insufficient or improper care of the appliance may affect the performance of the milk frother.

Allow the milk container and heating plate to cool down

completely after use and before each cleaning to avoid burns.

For reasons of electrical safety, the base station, mains power cord, and appliance plug must not come into contact with water, and by no means be immersed in liquid.

• Use a sponge or soft brush and rinse with warm water and a small quantity of mild detergent to clean the inside of the milk container.
• Do not use scratching or abrasive cleaners, hard brushes, and steel wool sponges to protect the material and the heating element from scratching.
• Turn off the appliance before cleaning the base station and unplug the power cord from the wall socket. Wipe the housing with a damp cloth and mild detergent.
  Try to carefully but completely remove

any hot plate contamination before each use.

• Ensure that the power cable, appliance plug, and motor do not come into contact with water during cleaning.
• In case of heavy soiling and after removing the wooden handles, only the milk container, lids, and stirring inserts may be washed in the dishwasher. It is recommended to gently clean the wooden elements by hand.
  If necessary, the handles on the lid and container can be unscrewed without additional tools.
• Carefully dry all items after cleaning.

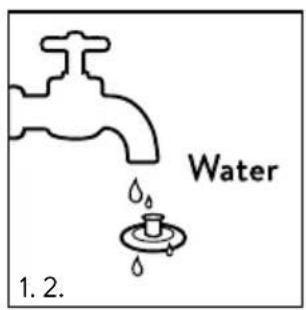

1. Remove the used stirring insert and rinse carefully under warm water.

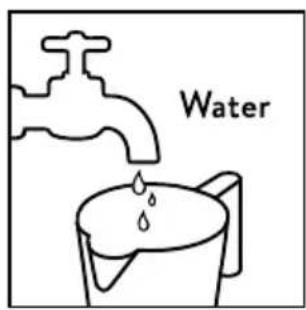

2. Fill the milk container with hot water and some detergent after use. For heavy soiling and burnt milk residue, soak the filled container for 5-10 minutes, then wipe with a sponge.

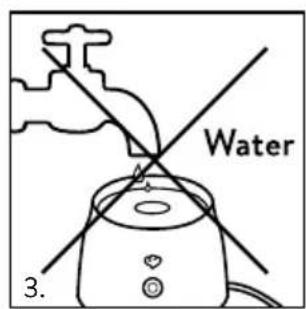

3. The base station must not be cleaned under running water. Use only a damp cloth to remove dirt.

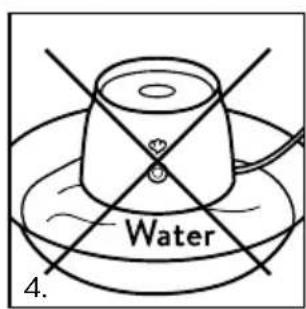

4. Do not submerge the base station.

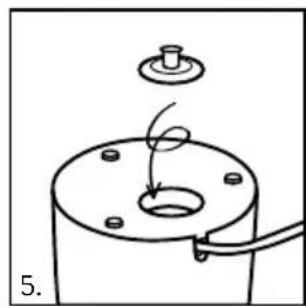

5. The stirrer insert can be safely stowed and protected in the storage device in the bottom of the base station after cleaning.

Trouble shooting

If the device does not work properly, please check the following steps:

1. Check if the manual was followed precisely and correctly.
2. Check the following table for possible reasons.
3. Check if all fuses are working.

problem solution
The operating button has been pressed, but the signal light stays off and the appliance does not start.	Check power cable and appliance plug. Are they correctly connected to the socket or are they damaged?
	Check the general power supply to the socket.
	The overheating protection is possibly blocking the start. Did you allow the appliance to cool down sufficiently after the previous use and did you observe the prescribed capacities?
The appliance is switched on and runs, but no milk froth is produced.	Check if a stirring insert is inserted into the milk container.
	Make sure you are using the correct stirring insert. To produce froth, the ribbed insert must be placed into the container.
	Make sure that the stirring insert is centred and fits snugly on the magnet holder at the bottom of the milk container.
The appliance takes an unusually long time to complete the programme and warm and froth milk.	Check that the maximum filling capacity is not exceeded.
	Check the colour of the signal light at the start of the programme – if it lights up white, you are using the programme for drinking chocolate, with hotter milk and longer running time.
Mia gets loud, squeaks, or makes a rattling sound when frothing.	Make sure that the milk container is placed in the middle of the heating plate.
	Switch Mia off, remove the stirrer, and reinsert it. Restart the process.

If you have any other issues with Mia, please contact our customer service or a professional repair service. Do not try to repair the machine yourself..

Customer service

In principle, our products have a legal warranty duty of 2 years. Further claims can only be processed in conjunction with a proof of purchase. Wearing parts exclude any warranty claims, when usual abrasion has occurred. The durability is determined by the respective handling and use of the products and is thus variable.

Free hotline for Germany/Austria only: 0800 270 70 27

From other EU countries: [phone] (Different costs may apply.)

For questions concerning handling and functionality of our products, please contact our customer-service:

Disposal/Environmental protection

Our products are manufactured to high quality standards and are designed for a long service life.

Regular maintenance and care will help to extend service life. If the appliance is defective and can no longer be repaired, it must not be disposed of in the normal household waste.

Springlane GmbH herewith declares that the product complies with the essential CE requirements on the issuing date. The complete declaration of conformity can be accessed at www.springlane.de/ bedienungsanleitungen.

Take the appliance to a designated disposal point for recycling electrical or electronic equipment. Through professional disposal and recycling you make an important contribution to protecting our environment.

This device complies with WEEE Directive 2002/96/EG on the disposal of waste electrical and electronic equipment.
