Product type	Food dehydrator
Brand	Springlane
Model	Dora
Power supply	220-240 V, 50-60 Hz, 370-450 W
Dimensions (L x W x H)	32 x 25 x 21 cm
Weight	2.72 kg
Materials	Plastic and stainless steel
Number of trays	5 adjustable drying trays (BPA-free)
Temperature range	35 to 70 °C
Timer	60 min to 24 h (adjustable in 30 min increments)
Display	LCD screen
Included accessories	Fruit roll sheet, small ingredient grid, non-stick sheets, tongs, recipe book
Cable length	106 cm
Usage	Food dehydration only
Cleaning of trays	Dishwasher safe (preferably upright)
Cleaning of base and lid	Damp cloth with dish soap, do not immerse
Safety	Automatic shut-off? Not specified; do not use with external timer
Warranty	2-year legal warranty
Height adjustment of trays	180° rotation to adjust height
Country of origin	Not specified

Frequently Asked Questions - Dora Springlane

How to use the Springlane Dora dehydrator?

Place prepared food on the trays, stack them on the base, close the lid. Plug in the appliance, press the Power button, set the time and temperature with the Set button and rotary knob, then start with the Start/Stop button.

How to adjust the height of the trays?

Rotate each tray 180° horizontally. If the connectors are side by side, the height is minimal; if they are stacked, the height is increased.

What temperature to choose for herbs?

For herbs, use a low temperature (35-40°C) to preserve essential oils. Use parchment paper to prevent sticking.

Can the trays be washed in the dishwasher?

Yes, the drying trays, fruit roll sheet, and tongs are dishwasher safe. Place the trays preferably upright.

How to clean the base and lid?

Clean the base and lid with a damp cloth and a little dish soap. Never immerse them in water.

What if the food does not dry evenly?

Make sure the food does not overlap and that air circulation is not blocked. Alternate the position of the trays from top to bottom during drying.

How to prevent fruits from browning?

Soak the fruits in lemon, orange, or pineapple juice for about 5 minutes before dehydrating to prevent oxidation.

What is the power and electrical consumption?

The appliance has a power rating of 370 to 450 W, for a voltage of 220-240 V, 50-60 Hz.

Can I use the appliance with an external timer?

No, that is not allowed. The appliance must not be used with an external timer or remote control system.

How to store dehydrated foods?

Store the food in a dry place, preferably vacuum-sealed, to prevent moisture absorption and keep them crisp.

USER MANUAL Dora Springlane

Line drawing of a multi-tiered electric heater with a yellow base and control panel (no text or symbols)

Dora

Dörrautomat

Cleaning and care 18

Trouble shooting 19

Customer service 20

Disposal/Environmental

protection 20

Two 3D-rendered square objects with circular holes, one gray and one white, labeled with numbers 9 and 10 (no text or symbols on the shapes themselves)

1. Dörrfolie
2. Gittermatte
3. Müsliriegelform
4. Zange

3D renderings of a gray plastic tray with internal compartments and two separate cutlages labeled 11 and 12 (no text or symbols on the objects themselves)

Zutaten dörren

Aerial view of a highway interchange with visible tracks and buildings (no signage or text)

Close-up of a transparent plastic grid structure with a vertical black line and 'I' marking, no text or symbols present.

Important safety information

Please read this manual carefully before using the device for the first time and keep the manual.

WARNING – Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING – When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING – Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Intended use

This appliance is solely intended for dehydrating food.

Symbol explanation

This symbol warns of hazards that can damage the appliance or cause injury.

This symbol warns of an electric shock that may be caused by a defective appliance or by improper handling. This product may

only be opened for necessary service work by an authorised technician.

This symbol indicates a potential risk of burns.

Always be particularly careful with this appliance and allow it to cool completely before putting it away.

Safety information

Never insert body parts or metallic objects into the ventilation slots, as this may cause injury.

Never dunk the device, device connector, or cable into water or another liquid and protect from humidity.

The appliance becomes very hot during operation, especially when it is set to a high temperature and only a couple of trays are in use. Failure to adhere to safety instructions may result in burns.

• After unpacking the appliance, check that it is in perfect condition and has not sustained

any damage that could impair its functional safety. Should you notice any defects or if the appliance has fallen on the floor, do not attempt to use it, but call our customer service.

• Improper repairs can lead to hazards for the user and the warranty may be deemed void. If individual parts are damaged, they must be replaced by the manufacturer, an authorized specialist company, or a similarly qualified person.
• This appliance is solely intended for dehydrating food. Do not put any other objects into the device.
• Store the appliance out of the reach of children.
  • Children under the age of 8 should stay away from the device.
• Children from 8 years or older should only switch the appliance on and off if it is in its intended normal place for operation, they are being supervised or if they have been instructed in its safe use and have understood the dangers involved. Children between the ages of 3 and 8 should neither connect, operate, clean nor service the appliance. Children should be supervised to

ensure that they do not play with the appliance.

• Position the appliance on a free and level surface.

• The appliance is only intended for use in the household or other similar uses such as

• in kitchenettes in shops, offices, or other workplaces,

• on farms,
  • for use by guests in accommodation establishments (hotels, motels) private guest houses, or holiday homes.

• Use the appliance only after proper assembly.

• The appliance may only be used with original accessories.
• Never use less than 1, but no more than 10 trays.
• Connect the appliance only to alternating current as indicated on the type plate. Connect the mains plug only to an earthed socket.
• Uncoil the power cable completely before use.

• Disconnect the mains plug as soon as you have finished using the appliance. Do not pull the power cable itself, as it could cause damage.

• Switch off the machine before plugging in or unplugging it.

• The appliance must not be operated with an external timer or a separate remote control system.
  • Always disconnect the mains plug after use, before cleaning, or in the event of possible malfunctions during operation.
• The base unit and lid are not dishwasher safe. Removable parts can be cleaned in the dishwasher.
• Never place or use the appliance and power cable on or near a hot surface.
• The cable must not hang over the edge of the work surface.
• Do not use the appliance outdoors.
• Do not put objects or your hand in the appliance while it is in operation
• Never insert body parts or metallic objects into ventilation slots, there is a risk of injury.

Before using the appliance for the first time

- Remove all parts related to packaging and transport safety. Make sure that these parts are also kept away from children -

they pose a risk of suffocation!

• The appliance may emit an unusual odour when it is first used. This is entirely normal and not harmful to health. The smell will disappear after a short time.
• The trays should be cleaned before being used for the first time and after lying unused for a prolonged period of time. When doing so, please make sure to consult our instructions on cleaning and maintenance.
• Place the appliance on a level and dry surface.

Technical data

Power: 370-450 W, 220-240 V, 50-60 Hz

Dimensions (W/H/D): 32 x 25 x 21 cm

Weight: 2,72 kg

Material: plastic, stainless steel

Cable length: 106 cm

Features: base unit with LCD display, lid, 5 height-adjustable trays (BPA-free), temperature setting from 35 - 70 °C

Accessories: cereal bar mould, mesh sheets for small ingredients, dehydration foil for moist ingredients, tongs, recipe booklet with cooking table

Specifications, technology, colours, and design are subject to change without notice.

How to use Dora

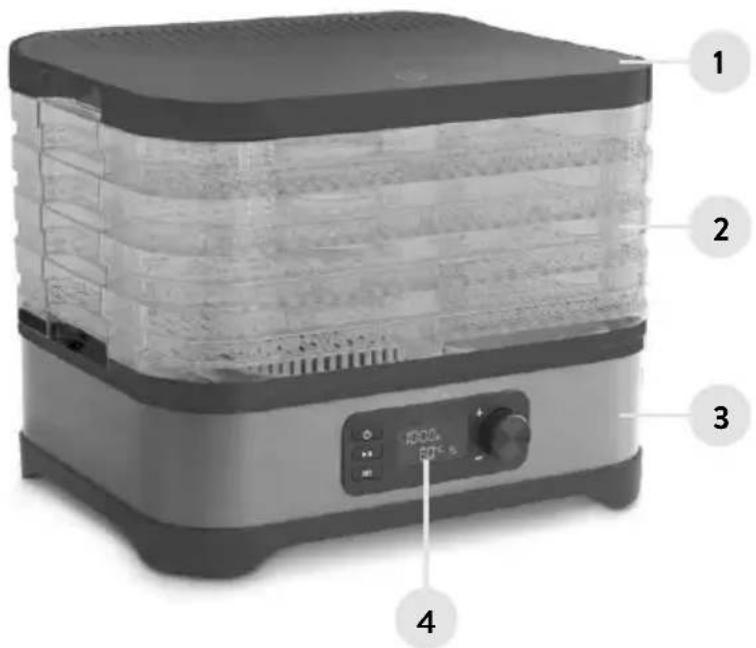

Product description

Appliance

1 2 3 4

1. Device cover
2. Tray
3. Device base
4. LCD display

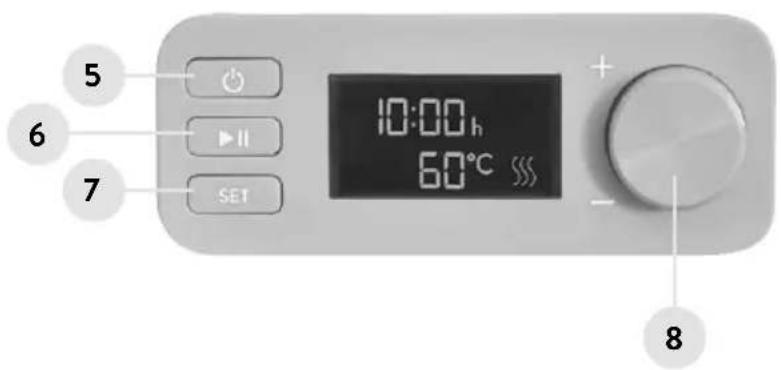

Display

5 6 7 10:00h 60°C + - 8

1. On/Off button (power)
2. Start/Stop
3. Time/Temperature (Set key)
4. Rotary knob

Asseccories

Two 3D-rendered square objects with circular holes, one gray and one white, labeled with numbers 9 and 10 (no text or symbols on the shapes themselves)

1. Dehydration foil
2. Mesh sheet

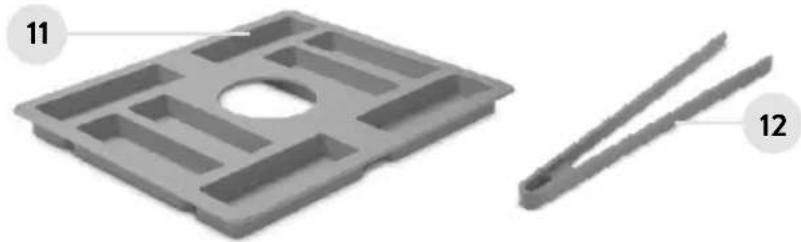

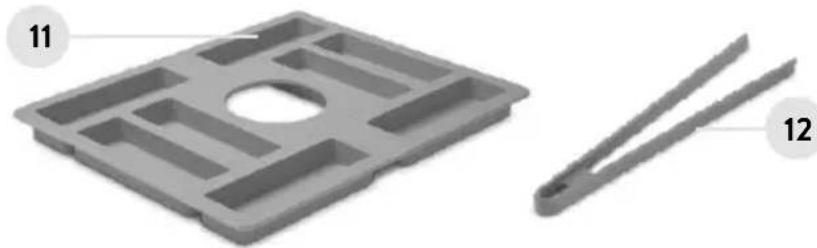

3. Cereal bar mould
4. Tongs

3D model of a gray plastic tray with internal compartments and two separate cutouts labeled 11 and 12 (no text or symbols on the tray itself)

Dehydrating ingredients

1. Insert the main plug into the power socket.

2. Prepare the ingredients and spread them across the top of the trays. For small ingredients or ingredients that are expected to shrink significantly, use one of the mesh sheets provided as well. For liquid ingredients like fruit leather or meringue, use dehydration foil. Use the cereal bar mould to make cereal bars or fruit bars.

3. Place the trays in the machine. Make sure that there is enough air between both, the ingredients and the trays. Turn the trays horizontally by 180^ to adjust their height if necessary.

4. Secure the lid into place.
5. Press the "on/off" button to turn on the appliance.

6. Press the "set" button to adjust the timer. You can set the time from 60 minutes to 24 hours. Use the rotary switch to change the time in 30 minute increments.

7. Press the "set" button again to select the temperature. You can set the temperature in 5^ C increments, from 35 to 70^ C , via the rotary switch.

8. Press the "start/stop" button to confirm your selection and start the drying process. The flashing heating symbol indicates that Dora is heating up. You will know the operating temperature has been reached when the heating symbol stops flashing.

9. Depending on the type of ingredient and the duration of preparation, rotate the trays regularly from top to bottom during preparation in order to obtain a consistent result across all ingredients.

Find many tips for different ingredients and recipes in the recipe booklet.

Adjusting the height of the drying trays

The trays are height-adjustable, so

that you can easily dry flat and higher ingredients in your Dora. The trays have a special plug-in system: Turn them horizontally by 180° to change the height setting while they are mounted on another tray.

Aerial view of a highway network with multiple lanes and a central bridge (no visible text or symbols)

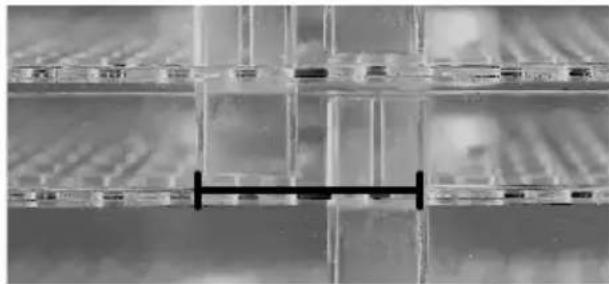

You will know the lower setting has been reached when you hear the connectors snap together.

Close-up of a metallic grid structure with a vertical black line and grid pattern, no visible text or symbols.

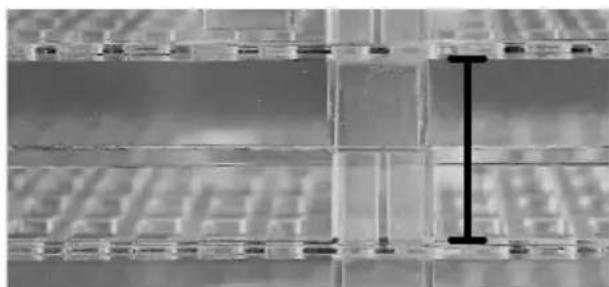

When the connectors are perpendicular to each other, you will know that the spacing has increased.

Cleaning and care

Dora and the trays should be cleaned and dried after each use as follows. Lack of or improper care of the appliance can impair the functionality of the appliance.

- The drying trays, the cereal bar moulds and the tongs can be cleaned in the

dishwasher. Place the shelves as upright as possible. If the shelves have warped slightly, don't worry, you can still stack and use them as normal.

- Clean Dora (and the lid) with a damp cloth and a small amount of detergent. Once clean, dry both parts carefully.

• Wipe the dehydration foil with a damp cloth and detergent.
  • Make sure Dora and the accessories are completely dry before you store them away.

Trouble shooting

If the device does not work properly, please check the following steps:

1. Check if the manual was followed precisely and correctly.
2. Check the following table for possible reasons.
3. Check if all fuses are working.

problem solution
The tray cannot be positioned properly.	Rotate the tray horizontally by 180°. The shelves have a designated top and bottom.
The ingredients are not drying evenly.	Make sure that the ingredients placed on each shelf are not overlapping.
	Check that the ingredients are not obstructing air circulation.
	Occasionally rotate the trays from top to bottom during the drying process. This will ensure that you achieve the best possible results.
My dried food turns brown after it has been prepared.	You can counteract discoloration with lemon juice, which should be drizzled on the ingredients before they dry.
The dried food is sticking to the trays.	Flip your ingredients from the tray 2-3 hours after the start of the programme, depending on the type of food and turn them over.
	For fine ingredients such as herbs, use dehydration foil.

If you have any other issues with Dora, please contact our customer service or a professional repair service. Do not try to repair the machine yourself.

Customer service

In principle, our products have a legal warranty duty of 2 years. Further claims can only be processed in conjunction with a proof of purchase. Wearing parts exclude any warranty claims, when usual abrasion has occurred. The durability is determined by the respective handling and use of the products and is thus variable.

For questions concerning handling and functionality of our products, please contact our customer-service:

Free hotline for Germany/Austria only: 0800 270 70 27

From other EU countries: [phone] (Different costs may apply.)

Disposal/Environmental protection

Our products are manufactured to high quality standards and are designed for a long service life.

Regular maintenance and care will help to extend service life. If the appliance is defective and can no longer be repaired, it must not be disposed of in the normal household waste.

Springlane GmbH herewith declares that the product complies with the essential CE requirements on the issuing date. The complete declaration of conformity can be accessed at https://www.springlane.de/bedienungsanleitungen.

Take the appliance to a designated disposal point for recycling electrical or electronic equipment. Through professional disposal and recycling you make an important contribution to protecting our environment.

Labeled diagram of a portable food heater with numbered components and digital display showing temperature reading.

Two 3D-printed square objects with circular holes, one gray and one white, labeled with numbers 9 and 10 (no text or symbols on the shapes themselves)

1. Droogfolie

2. Rastermat

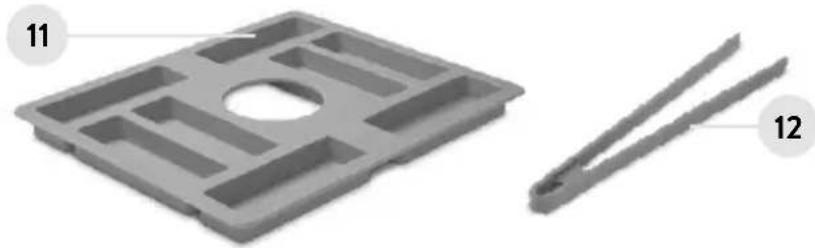

3. Mueslirepen-bakvorm

4. Tang

3D model of a gray plastic tray with internal compartments and two separate cutouts labeled 11 and 12 (no text or symbols on the tray itself)

Ingrediënten drogen

Aerial view of a grid-like structure with rectangular elements and a central horizontal bar (no visible text or symbols)

Close-up of a transparent plastic grid structure with a black vertical line and a black bar at the center (no text or symbols)

Labeled diagram of a food preservation or heating device with numbered components and control panel

Illustration of 3D-printed plastic components with numbered labels (9, 10, 11, 12), no text or symbols present.

Aerial view of a highway interchange with visible lane markings and surrounding infrastructure (no text or symbols)

Close-up of a metallic grid structure with a vertical black line and grid pattern in the background (no text or symbols)

Illustration of 3D-printed plastic components with numbered labels (9, 10, 11, 12), no text or symbols present.

Aerial view of a grid-like structure with a central horizontal bar and no visible text or symbols.

Close-up of a transparent plastic grid structure with a black vertical line and grid pattern in the background (no text or symbols)

Labeled diagram of a multi-tiered food heater with numbered components and control panel

1. Tapa del dispositivo
2. Bandeja
3. Base del dispositivo
4. Pantalla LCD

Pantalla

5 6 7 10:00h 60°C + - 8

Two 3D-rendered square objects with circular holes, one gray and one white, labeled with numbers 9 and 10 (no text or symbols on the shapes themselves)

1. Hoja antiadherente
2. Malla fina
3. Molde para barras de cereales
4. Pinza

3D renderings of a gray plastic tray with internal compartments and two separate cutouts labeled 11 and 12 (no text or symbols on the objects themselves)

Deshidratar alimentos

Aerial view of a grid-like structure with a central horizontal bar and a scale bar, no visible text or symbols.

Close-up of a transparent plastic grid structure with a black vertical line and a black square marker (no text or symbols)

Stand: September 2020
