USER MANUAL Wanda Springlane

Line drawing of a flat-screen electric stove with control panel and buttons (no text or symbols)

Wanda

Waffeleisen

Cleaning and care 20

Trouble shooting 21

Customer service 22

Disposal/Environmental

protection 22

Technical diagram of a portable electric stove with numbered parts labeled 1 through 6

1 2 Power Recipe Restart A little more 3 4 Light Dark Heating Hot 08:08 Belgian Classic Chocolate Buttermilk Custom 5 Light Dark 6

Display Light Dark Heating Hot Belgian Classic Chocolate Buttermilk Custom 1 2 3 4

Important safety information

Please read this manual carefully before using the appliance for the first time and keep it for future reference.

WARNING – Ensure that the ventilation slots of the appliance are not blocked at any time.

WARNING – Ensure that the power cable is intact and not pinched when setting up the appliance.

WARNING – Please do not place any power strips or portable energy sources behind the appliance.

Intended use

This appliance is solely intended for making sweet and savoury dough. Do not fill it with any other types of food.

Symbols

This symbol warns of hazards that can damage

the appliance or cause injury.

This symbol warns of an electric shock that may be

caused by a defective appliance or by improper handling. This product may only be opened for necessary service work by an authorised technician.

This symbol indicates a potential risk of burns.

Always be particularly careful with this appliance and allow it to cool completely before putting it away.

Safety information

Do not immerse the a appliance in water or any

other liquid. Protect the mains cable and mains plug from moisture.

Warning: The surfaces of the waffle maker can get

hot when the appliance is in operation. During operation, only touch the appliance at the handle to close and open it.

Never insert body parts or metallic objects into the

ventilation slots as this may lead to injury.

• After unpacking the appliance,

check that it is in perfect condition and has not sustained any damage that could impair its functional safety. Should you notice any defects or if the appliance has fallen on the floor, do not attempt to use it, but call our customer service.

- Improper repairs can lead to hazards for the user and the warranty may be deemed void. If individual parts are damaged, they must be replaced by the manufacturer, an authorised specialist company, or a similarly qualified person.

- This appliance is solely intended for making sweet and savoury dough. Do not fill it with any other types of food.

- Store the appliance out of the reach of children.

- Keep the appliance and its cords out of reach of children younger than 8 years.

• These appliance can be used by children from the age of 8 as well as persons with reduced physical, sensory, or mental capabilities, or a lack of experience and/or know ledge, if they are supervised or have been given instructions concerning the safe use of the

appliance and understand the potential resulting hazards. Children must not play with the appliance. Cleaning and user maintenance is not to be carried out by children, unless by supervised children 8 and up.

- Place the appliance on a free and level surface.

- The appliance is only intended for household use or other similar uses such as

• in kitchenettes in shops, offices, or other workplaces,
• on farms,
  • for use by guests in accommodation establishments (hotels, motels), private guest houses, or holiday homes.

- Pour in liquid dough so that the lower heating plates are just completely covered.

- Only use the appliance after proper assembly.

- Do not use the transport lock to close the waffle maker during the preparation of dough.

- Do not use any metal kitchen tools to remove waffles from the waffle maker, otherwise you might scratch the coating. Do not use the waffle maker if the coating of the heating plate

flakes or starts to form blisters.

• If the mains cable of the device is damaged, it must be replaced by the manufacturer, their customer service, or similarly qualified personnel to prevent any hazards.
• Connect the appliance only to alternating current as indicated on the type plate. Connect the mains plug only to an earthed socket.
• Uncoil the mains cable completely before use.
• Disconnect the mains plug as soon as you have finished using the appliance. Do not pull on the mains cable itself, as this might damage the cable.
• Switch off the machine before plugging it in or unplugging it.
• The appliance may not be operated with an external timer or remote control system.
  • Always disconnect the mains plug after use, before cleaning, or in the event of malfunctions during operation.
• The appliance and its inserts are not dishwasher-safe.
• Never place or use the appliance and mains cable on or near a hot surface. Only use the appliance on heat-resistant surfaces.
  • The cable must not hang over the

edge of the work surface.

• Do not use the appliance outdoors.
• Do not use the appliance on or near flammable materials such as curtains or tablecloths. Do not cover the appliance with flammable objects. Never store flammable materials in the immediate vicinity.
• Allow the appliance to cool completely before cleaning.
• Never place baking parchment, aluminium foil, or similar between the heating plates.

Before using the appliance for the first time

• Remove all transport safety and packaging parts and keep them away from children – danger of suffocation!
• The waffle maker should be cleaned before the first use and after prolonged periods of non-use. When doing so, follow our instructions on cleaning and maintenance.
• Place the appliance on a level, dry, and heat-resistant surface.
• Uncoil the cable completely and connect the appliance to the power supply.

Technical data

Output: 1,600 W, 220-240 V AC, 50-60 Hz

Dimensions: 32.6 x 28.3 x 13.5 cm

Weight: approx. 4 kg

Features: non-stick-sealed heating plates, 4 automatic programmes, 1 manual programme, individual adjustment of the degree of browning

Accessories: recipe booklet, ladle

Specifications, technology, colours, and design are subject to change without notice.

Intended use

Wanda waffle iron is suitable for baking waffle batter and other foods.

Using waffle maker Wanda

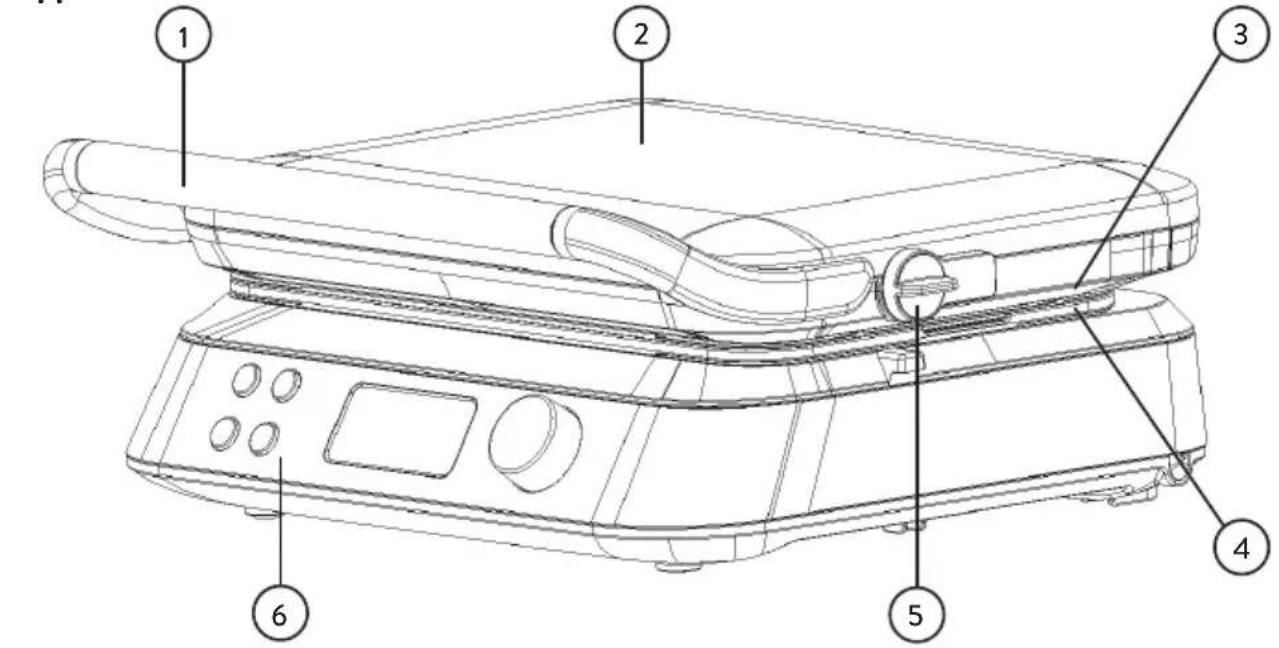

Product description

Appliance

Technical diagram of a portable electric stove with numbered parts labeled 1 through 6

1. Handle
2. Lid

3. Upper heating plate

4. Bottom heating plate

5. Transport lock
6. Control panel

Control panel

1 2 Power Recipe Restart A little more 3456 Light Dark Heating Hot 0:0:0:0 Belgian Classic Chocolate Buttermilk Custom Light Dark

1. On/off
2. Programme
3. Restart
4. "A little more" function

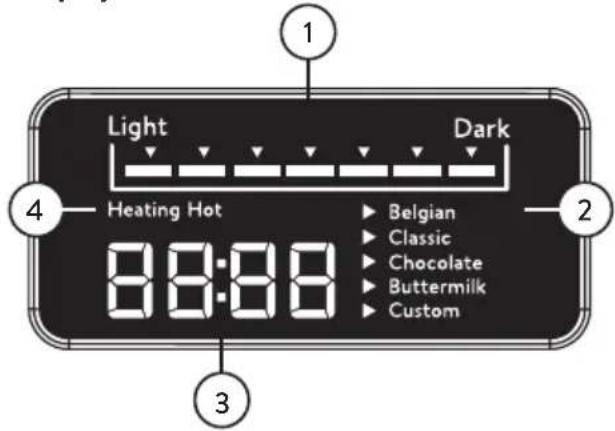

Display

Light Dark Heating Hot 8:8:8 Belgian Classic Chocolate Buttermilk Custom 1 2 3

1. Display

2. Rotary knob to set the time and degree of browning

3. Degree of browning

4. Programme selection
5. Preparation time
6. Heating display

Baking waffles

1. Press "Power" to turn on Wanda.

2. Choose the programme using the "Recipe" button and set the desired degree of browning using the rotary knob. If you're not sure what to set, start with a medium degree of browning and make adjustments in the next rounds of baking.

3. "Heating" will blink on the display for as long as Wanda is heating up. "Hot" will appear as soon as the temperature has been reached. Open the lid after the waffle maker has heated up.

4. You do not need to grease the heating plates. Never use a grease spray or baking release spray. Fill the heating plates with dough until all holes are sealed up and a mass of dough

completely covers each heating plate surface. Wanda recognises when dough has been poured on the right half and automatically starts the countdown. If you are only baking one waffle, bake it on the right half. Close the lid. The programme cannot be changed while the timer is running.

1. Wanda will beep to indicate that the waffles are ready. Open the lid and carefully remove the waffles if they are browned to your liking.

2. To start a new round of baking, you can directly fill in dough or change the programme and then fill in dough. If something goes wrong, you can also carry out a manual restart of the programme using the "Restart" button.

Please note:

- Wanda beeps regularly until you press the "Recipe" button. Then it switches to the last selected program and waits for the next filling of the dough.

- The waffle maker will heat continuously. Never lock the transport lock while preparing dough.

- The programmes will only start after the waffle maker has heated up and the display shows "Hot".

Wanda will shut down for safety reasons if no dough is filled in for 20 minutes.

The waffle programmes

Wanda comes with four automatic and one manual programme. The programmes are tailored to various types of waffle dough. The heating plates have a non-stick-coating, which you do not need to grease before making waffles.

Look in the recipe booklet to find our basic recipes.

Belgian

This mode is perfect for Belgian waffles made from leavened dough. You can also add some coarse sugar to the mix and the waffles will caramelise while baking.

Classic

You can prepare more liquid dough in the Classic mode, such as dough you would use in a heart-shaped waffle maker.

Chocolate

It's best to prepare waffles with liquid chocolate in the dough in this mode, because the chocolate will not burn as quickly.

Buttermilk

American buttermilk waffles are popular at breakfast or as a side dish with savoury meals. This dough is more crispy than traditional German waffle dough when baked.

Custom

Get creative with this mode. To give you some inspiration, how about preparing savoury potato or spinach waffles?

1. First set the time. The time is pre-set to two minutes in Custom mode. You can set the time to a max. of 20 minutes using the rotary knob.
2. Wait a few seconds to confirm the selected time. The baking process starts when new dough is added or when the "restart" button is pressed. Wanda will save the set time under custom mode for the next time you use the machine.

"A little more" function

If you want to bake the waffles for a bit longer, you can use the "A little more" button to bake for an extra 20 seconds. Press the button again to extend the baking time by 40 seconds.

Tips for perfect waffles

- You'll get fluffier waffles if you sift the flour before mixing.

• Add eggs to the dough for fluffier waffles by separating the eggs, beating the egg white, and folding it into the dough at the end.
• If you use vegetable oil instead of butter, the waffles will be crispier, because the vegetable oil has a higher fat content.
• Waffles will get extra fluffy when using buttermilk together with baking powder and baking soda.
• Add the dough to the heating plates from the centre of the waffle maker.
• You can wrap waffles into tinfoil after you're finished baking and keep them warm at 100 °C of top or bottom heat. Some types of waffles will only get really crispy in the oven.
• You can also freeze finished waffles and toast them later on or heat them in the oven. Allow the waffles to cool and separate them with sandwich paper before freezing them. This way, it will be easier to remove them separately later on.

Cleaning and care

The waffle maker should be cleaned and dried after each use as follows. Lack of or improper care can impair the functionality of the appliance.

• Allow Wanda to cool.
• Remove any dirt as quickly as possible. It's easiest to remove excess oil with a paper towel. Afterwards, you can

wipe off the heating plates with a damp cloth and some detergent. Some soiling is easier to remove with a paper towel soaked in oil.

• Clean the surfaces of the appliance with a damp cloth.

• Do not use scouring pads, steel wool, knives, or corrosive cleaning agents to avoid scratching the appliance.

• Completely fold down the transport lock to fix the lid onto the waffle maker. You can now safely store Wanda and better transport it.

• The mains cable can be coiled over the bottom of the waffle maker. Please note that the cable must be uncoiled completely again before using Wanda again.

Trouble shooting

If the device does not work properly, please check the following steps:

1. Check if the manual was followed precisely and correctly.
2. Check the following table for possible reasons.
3. Check if all fuses are working.

problem solution
The waffles tear apart when opening the lid.	Allow the waffles to bake for a bit longer.
Dark smoke starts to billow from the waffle maker and I can smell a biting odour.	Please make sure that you've cleaned the waffle maker thoroughly and that there are no scraps of food in the waffle maker.
Condensate forms.	This is entirely normal. It forms liquid from the dough evaporates. The condensate might drip onto your table or worktop. Keep a cloth at hand.
Wanda doesn't stop beeping.	Wanda beeps regularly until you press the "Recipe" button. Then it switches to the last selected program and waits for the next filling of the dough.

If waffle maker Wanda should have any other issues, please contact a professional repair service. Do not try to repair the appliance yourself.

Customer service

In principle, our products have a legal warranty duty of 2 years. Further claims can only be processed in conjunction with a proof of purchase. Wearing parts exclude any warranty claims, when usual abrasion has occurred. The durability is determined by the respective handling and use of the products and is thus variable.

For questions concerning handling and functionality of our products, please contact our customer-service:

Tel. [phone] - 80944-0

Email: [e-mail]

Disposal/Environmental protection

Our products are manufactured to high quality standards and are designed for a long service life.

Regular maintenance and care will help to extend service life. If the appliance is defective and can no longer be repaired, it must not be disposed of in the normal household waste.

the essential CE requirements on the issuing date. The complete declaration of conformity can be accessed at www.springlane.de/pages/ce.

Take the appliance to a designated disposal point for recycling electrical or electronic equipment. Through professional disposal and recycling you make an important contribution to protecting our environment.

Kronenburg Handel GmbH herewith declares that the product complies with
