Planetarium CKPT7824 - Watch Christiaan van der Klaauw - Free user manual and instructions

Brand	Christiaan van der Klaauw
Model	Planetarium CKPT7824
Product type	Mechanical astronomical watch
Movement	Automatic (perpetual) with manual winding possible
Day display	At 12 o'clock, perpetual calendar
Month display	At 12 o'clock, perpetual calendar
Planet display	Mercury, Venus, Earth, Mars, Jupiter, Saturn at 6 o'clock position (miniature planetarium)
Orbital period of Mercury	87.97 days
Orbital period of Venus	224.70 days
Orbital period of Earth	365.24 days
Orbital period of Mars	686.98 days
Orbital period of Jupiter	11.86 years
Orbital period of Saturn	29.46 years
Time setting	Pull the crown to position 1
Day and month setting	Using the push button at 9 o'clock (accessory included)
Strap	Alligator leather, replaceable
Water resistance	Not waterproof: avoid any contact with water
Recommended maintenance	Mechanical watch winder (clockwise) when not worn
Manufacturing	Handcrafted, handmade in the Netherlands
Warranty	See provided document (subject to changes)

Frequently Asked Questions - Planetarium CKPT7824 Christiaan van der Klaauw

How to wind the Planetarium CKPT7824 watch?

The watch winds automatically with the movements of your wrist. You can also wind it manually by turning the crown clockwise in the winding position (position 0).

How to set the date and month?

Use the included accessory to press the button at 9 o'clock on the side of the case. Each press advances the day and month. Make sure the displayed time is between 04:00-08:00 or 16:00-20:00 before proceeding.

How to set the time?

Pull the crown fully to position 1, then turn it to adjust the hands. Push it back fully against the case once set.

Is the watch waterproof?

No, the Planetarium CKPT7824 watch is not waterproof. Avoid any contact with water, especially when bathing or showering, as it could damage it.

How does the planetarium work?

The miniature planetarium is located at 6 o'clock. The sun is in the center and the planets (Mercury, Venus, Earth, Mars, Jupiter, Saturn) revolve around it at their respective speeds, linked to the day and month setting.

Can I change the strap?

Yes, the alligator leather strap is replaceable. For a replacement, contact an authorized dealer of Christiaan van der Klaauw astronomical watches.

What to do if I don't wear the watch?

It is recommended to place it on a mechanical watch winder rotating clockwise to keep its movement and avoid having to reset everything.

What are the risks if the watch is exposed to water?

Water can penetrate inside and irreversibly damage the mechanical movement and astronomical components. It is imperative to keep it dry.

Where can I find an authorized dealer?

Consult the official Christiaan van der Klaauw website or contact customer service for a list of authorized dealers near you.

How to clean the watch?

Use a soft, dry cloth to wipe the case and strap. Avoid any chemical or abrasive products. Never immerse the watch.

USER MANUAL Planetarium CKPT7824 Christiaan van der Klaauw

ASTRONOMICAL WATCHES

PLANETARIUM
INSTRUCTION MANUAL PLANETARIUM

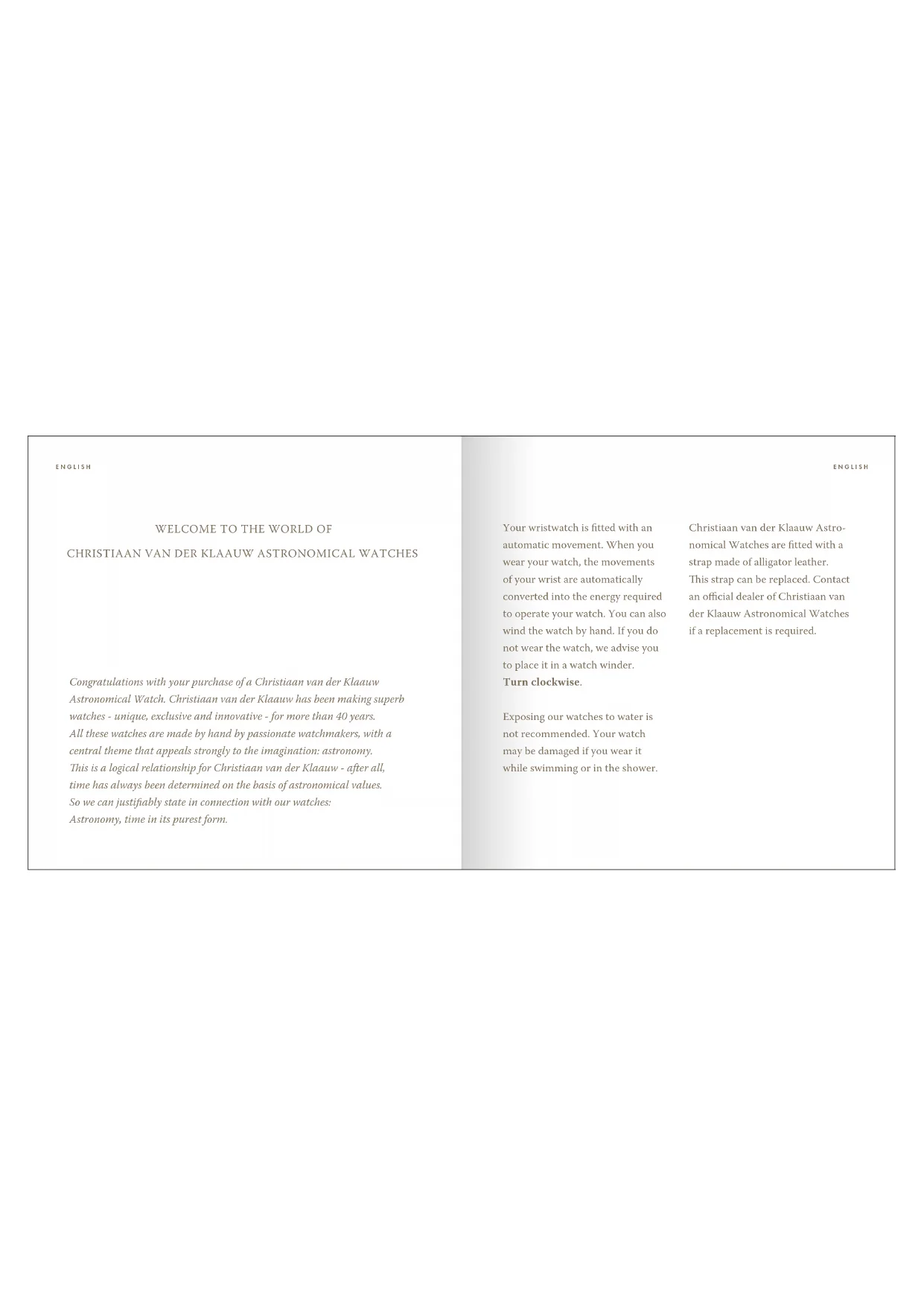

WELCOME TO THE WORLD OF CHRISTIAAN VAN DER KLAAUW ASTRONOMICAL WATCHES

Congratulations with your purchase of a Christiaan van der Klaauw Astronomical Watch. Christiaan van der Klaauw has been making superb watches - unique, exclusive and innovative - for more than 40 years. All these watches are made by hand by passionate watchmakers, with a central theme that appeals strongly to the imagination: astronomy. This is a logical relationship for Christiaan van der Klaauw - after all, time has always been determined on the basis of astronomical values. So we can justifiably state in connection with our watches: Astronomy, time in its purest form.

Your wristwatch is fitted with an automatic movement. When you wear your watch, the movements of your wrist are automatically converted into the energy required to operate your watch. You can also wind the watch by hand. If you do not wear the watch, we advise you to place it in a watch winder.

Turn clockwise.

Exposing our watches to water is not recommended. Your watch may be damaged if you wear it while swimming or in the shower.

Christiaan van der Klaauw Astronomical Watches are fitted with a strap made of alligator leather. This strap can be replaced. Contact an official dealer of Christiaan van der Klaauw Astronomical Watches if a replacement is required.

Specifications

The following information is displayed on the Planetarium:
A hours;
⑥ minutes;
calendar day;
month;
position in relation to the Sun of: Mercury, Venus, Earth, Mars, Jupiter and Saturn.

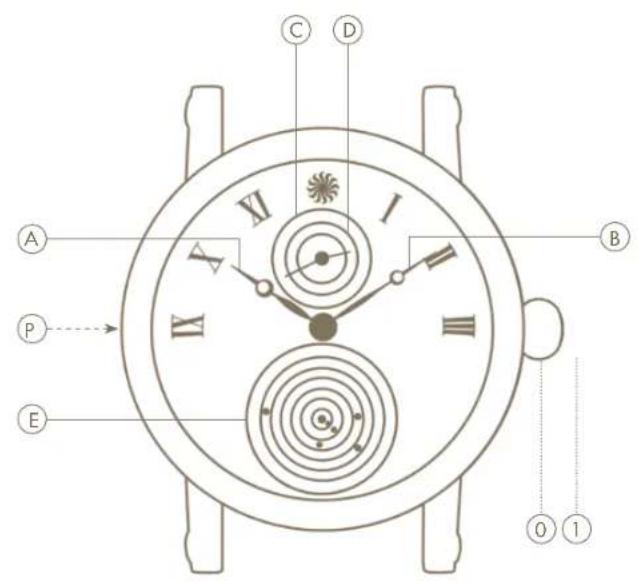

Adjustment

The settings of your watch can be adjusted by using the different positions of the crown and the push button

The crown has two positions:

this is the position of the crown when you are wearing the watch. In this position, you can wind the watch by hand.
① setting the time.

Before adjusting the settings of the Planetarium, the time displayed on the watch must be between 04:00 and 08:00 or 16:00 and 20:00.

Once this is the case, use the enclosed accessory to push in the

push button ① located at the 9 o'clock position on the left-hand side of the watchcase. Repeat this until the correct day and month are shown. The planets are moved automatically as you do this. Then pull out the crown as far as possible (position ①). Now move the hands forward until the correct time is reached. When the hands show the right time, then push the crown in again completely.

Important

If you do not wear the watch, we advise you to place it in a watch.
winder. Turn clockwise.

ENGLISH ENGLISH

Functionalities

The day of the month is shown at the 12 o'clock position.
The month is shown at the 12 o'clock position.

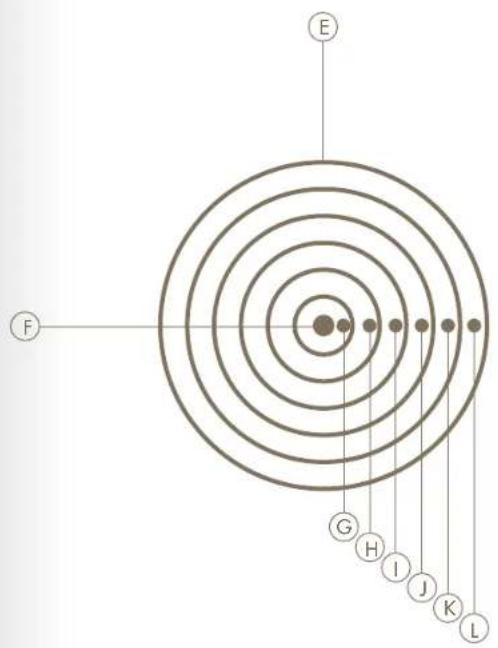

The smallest planetarium in the world is located at the 6 o'clock position. The Sun is positioned exactly in the middle of the planetarium. The planet closest to the Sun is Mercury. Mercury is followed by Venus, Earth, Mars, Jupiter and Saturn. The planets rotate around the Sun as follows:
Mercury 87.97 days
Venus 224.70 days
Earth 365.24 days
① Mars 686.98 days
Jupiter 11.86 years
① Saturn 29.46 years

ENGLISHENGLI

WELKOM IN DE WERELD VAN

CHRISTIAAN VAN DER KLAAUW ASTRONOMICAL WATCHES

WILLKOMMEN IN DER WELT VON CHRISTIAAN VAN DER KLAAUW ASTRONOMICAL WATCHES

CHRISTIAAN VAN DER KLAAUW ASTRONOMICAL WATCHES

ASTRONOMICAL WATCHES

CHRISTIAAN VAN DER KLAAUW HORLOGE ATELIER B.V.
BUSINESSPARK FRIESLAND-WEST 47, 8447 SL HEERENVEEN, THE NETHERLANDS T: [phone], [e-mail], WWW.KLAAUW.COM
