Product type	Astronomical watch
Brand	Christiaan van der Klaauw
Model	Planetarium CKPT2225
Movement	Automatic with manual winding
Functions	Hours, minutes, day of month, month, planetarium (positions of Mercury, Venus, Earth, Mars, Jupiter, Saturn)
Case	Stainless steel
Case diameter	43 mm
Case thickness	14 mm
Crystal	Sapphire
Strap	Alligator leather
Water resistance	30 meters
Power reserve	42 hours
Weight	110 g
Care	Clean with a soft cloth; avoid contact with water and magnetic fields
Repairability	Contact an authorized dealer
Warranty	2 years

Frequently Asked Questions - Planetarium CKPT2225 Christiaan van der Klaauw

How to set the day and month on the Planetarium CKPT2225?

Use the provided tool to press the pusher at 9 o'clock. This advances the days and months. The planet settings adjust automatically based on the day and month.

How to manually wind the watch?

Turn the crown clockwise when it is in the neutral position (position ⑨). This manually winds the watch. The automatic movement also winds through wrist movements.

How to set the time?

Pull the crown fully to position ①. Turn it to set the hour and minute hands. Ensure the displayed time is between 04:00 and 08:00 or between 16:00 and 20:00 before setting the day and month.

What does the planetarium display represent?

The planetarium shows the positions of Mercury, Venus, Earth, Mars, Jupiter, and Saturn relative to the Sun, which is at the center of the dial at 6 o'clock. Each planet rotates at its own speed, ranging from 87.97 days for Mercury to 29.46 years for Saturn.

Can I wear the watch in the shower or while swimming?

No, it is not recommended to expose the watch to water. Bathing or showering with the watch may damage it. The water resistance is limited to 30 meters, but it is best to avoid prolonged contact.

What is the power reserve of the watch?

The power reserve is approximately 42 hours. When not wearing the watch, it is advisable to use a mechanical winder to keep the movement running.

How to maintain my Planetarium watch?

Clean the case and crystal with a soft, dry cloth. Avoid chemicals. Have the watch serviced every 3 to 5 years by an authorized watchmaker. Protect it from magnetic fields and shocks.

What type of strap does the watch come with?

The watch is fitted with an alligator leather strap. It can be replaced by an authorized Christiaan van der Klaauw dealer.

Why do the planets move at different speeds?

Each planet has a different orbital period around the Sun: Mercury 87.97 days, Venus 224.70 days, Earth 365.24 days, Mars 686.98 days, Jupiter 11.86 years, and Saturn 29.46 years. The movement reproduces these periods to scale.

What to do if the watch seems to stop or lose time?

Manually wind the watch by turning the crown in the neutral position. If it does not maintain power reserve or the problem persists, contact an authorized dealer for diagnosis. Avoid leaving the watch discharged for too long.

USER MANUAL Planetarium CKPT2225 Christiaan van der Klaauw

ASTRONOMICAL WATCHES

A P E I II III IV B C D O 1

PLANETARIUM

INSTRUCTION MANUAL PLANETARIUM

ENGLISH

ENGLISH

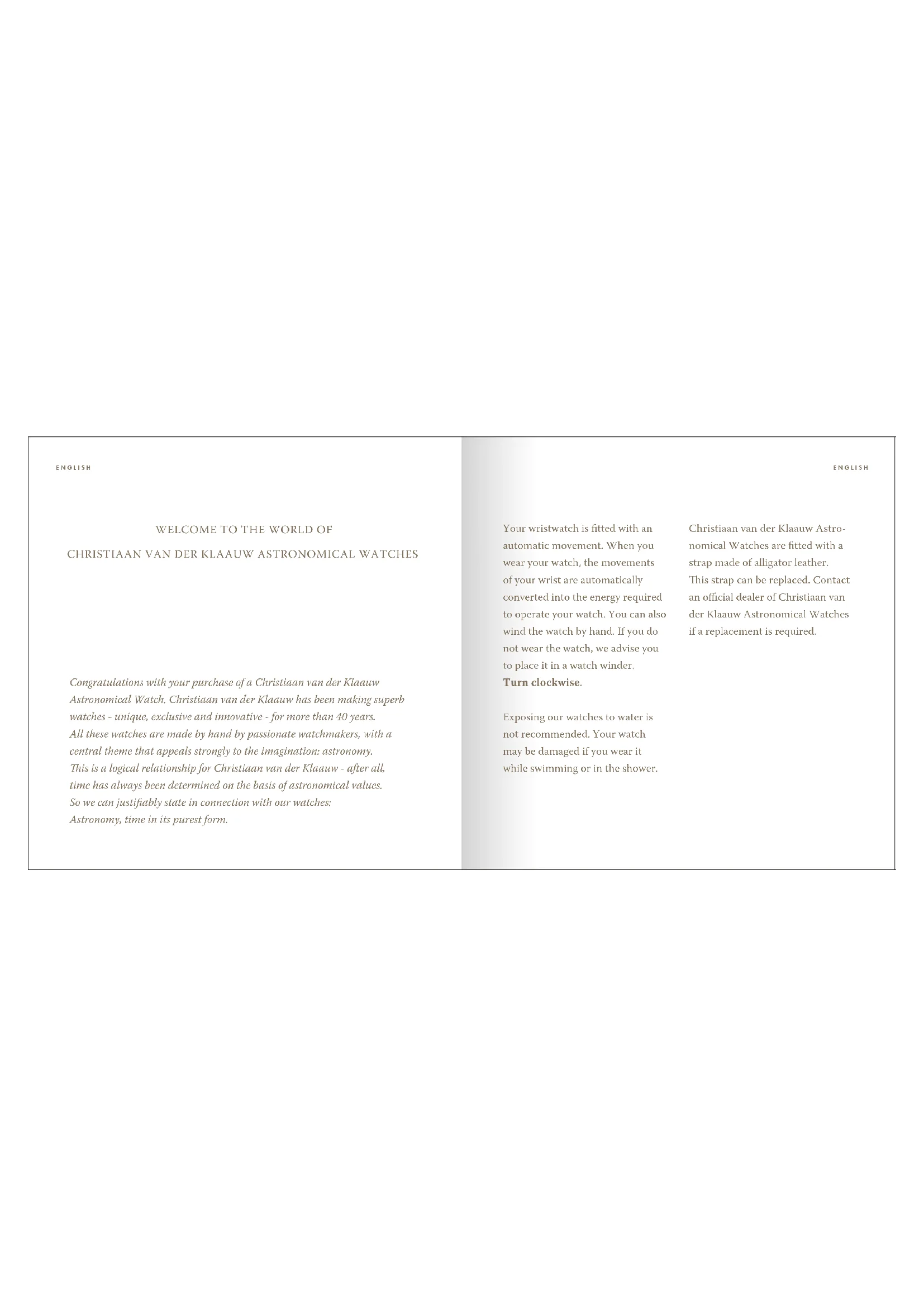

WELCOME TO THE WORLD OF

CHRISTIAAN VAN DER KLAAUW ASTRONOMICAL WATCHES

Congratulations with your purchase of a Christiaan van der Klaauw Astronomical Watch. Christiaan van der Klaauw has been making superb watches - unique, exclusive and innovative - for more than 40 years. All these watches are made by hand by passionate watchmakers, with a central theme that appeals strongly to the imagination: astronomy. This is a logical relationship for Christiaan van der Klaauw - after all, time has always been determined on the basis of astronomical values. So we can justifiably state in connection with our watches: Astronomy, time in its purest form.

Your wristwatch is fitted with an automatic movement. When you wear your watch, the movements of your wrist are automatically converted into the energy required to operate your watch. You can also wind the watch by hand. If you do not wear the watch, we advise you to place it in a watch winder.

Turn clockwise.

Exposing our watches to water is not recommended. Your watch may be damaged if you wear it while swimming or in the shower.

Christiaan van der Klaauw Astronomical Watches are fitted with a strap made of alligator leather. This strap can be replaced. Contact an official dealer of Christiaan van der Klaauw Astronomical Watches if a replacement is required.

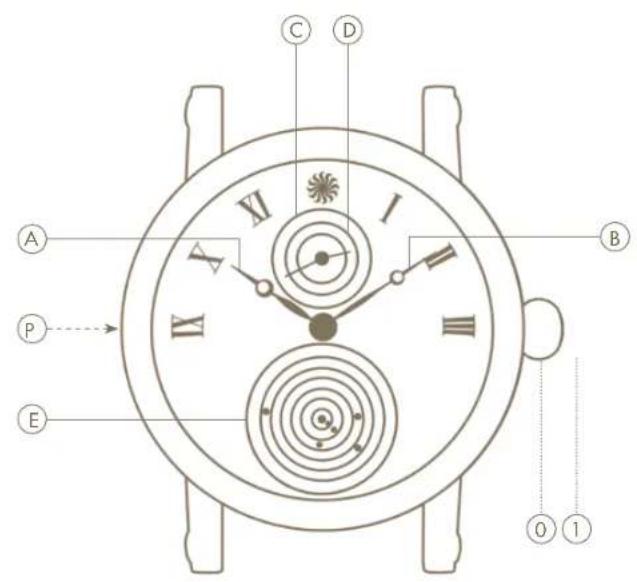

Specifications

The following information is displayed on the Planetarium:

Ⓐ hours;
B minutes;
© calendar day;
(D) month;
© position in relation to the Sun of: Mercury, Venus, Earth, Mars, Jupiter and Saturn.

Adjustment

The settings of your watch can be adjusted by using the different positions of the crown and the push button Ⓓ.

The crown has two positions:

① this is the position of the crown when you are wearing the watch. In this position, you can wind the watch by hand.
① setting the time.

Before adjusting the settings of the Planetarium, the time displayed on the watch must be between 04:00 and 08:00 or 16:00 and 20:00.

Once this is the case, use the enclosed accessory to push in the

ENGLISHENGLI

push button ⑤ located at the 9 o'clock position on the left-hand side of the watchcase. Repeat this until the correct day and month are shown. The planets are moved automatically as you do this. Then pull out the crown as far as possible (position ①). Now move the hands forward until the correct time is reached. When the hands show the right time, then push the crown in again completely.

Important

If you do not wear the watch, we advise you to place it in a watch winder. Turn clockwise.

Functionalities

© The day of the month is shown at the 12 o'clock position.
⑭ The month is shown at the 12 o'clock position.

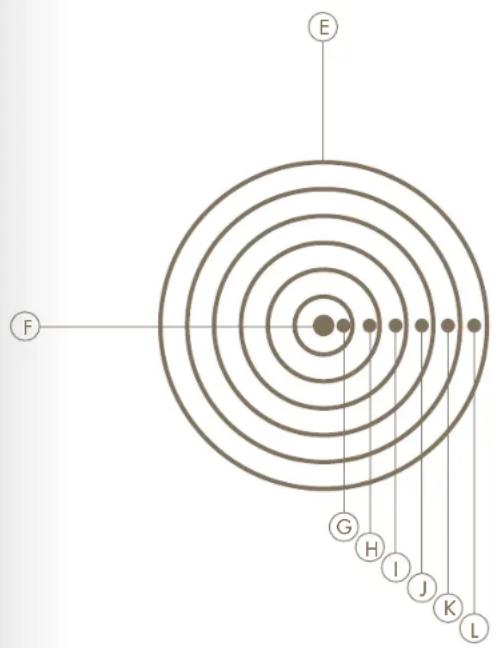

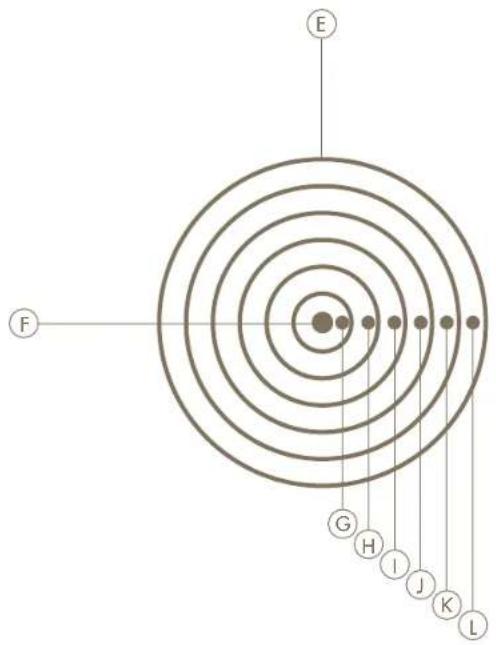

The smallest planetarium in the world is located at the 6 o'clock position. The Sun is positioned exactly in the middle of the planetarium. The planet closest to the Sun is Mercury. Mercury is followed by Venus, Earth, Mars, Jupiter and Saturn. The planets rotate around the Sun as follows:

© Mercury 87.97 days
⑧ Venus 224.70 days
① Earth 365.24 days
J Mars 686.98 days
© Jupiter 11.86 years
Saturn 29.46 years

E F G H I J K L

ENGLISHENGLI

NEDERLANDS

NEDERLANDS

WELKOM IN DE WERELD VAN

CHRISTIAAN VAN DER KLAAUW ASTRONOMICAL WATCHES

E F G H I J K L

NEDERLANDS NEDER

FRANÇAIS

FRANÇAIS

BIENVENUE DANS LE MONDE DES MONTRES ASTRONOMIQUES CHRISTIAAN VAN DER KLAAUW

E F G H I J K L

FRANÇAIS

DEUTSCH

WILLKOMMEN IN DER WELT VON CHRISTIAAN VAN DER KLAAUW ASTRONOMICAL WATCHES

E F G H I J K L

DEUTSCHDEUTS

ESPAÑOL

ESPAÑOL

CHRISTIAAN VAN DER KLAAUW ASTRONOMICAL WATCHES

E F G H I J K L

ESPAÑOL

香港中文

香港中文

歡迎來到

E F G H I J K L

香港中文

简体中文

E F G H I J K L

简体中文

РУССКИЙ

РУССКИЙ

E F G H I J K L

РУССКИЙ

عربي

E F G H I J K L

عربي

ASTRONOMICAL WATCHES

CHRISTIAAN VAN DER KLAAUW HORLOGE ATELIER B.V.

BUSINESSPARK FRIESLAND-WEST 47, 8447 SL HEERENVEEN, THE NETHERLANDS

T: [phone], [e-mail], WWW.KLAAUW.COM
