Product Type	Astronomical wristwatch
Brand	Christiaan van der Klaauw
Model	Real Moon Tides CKRS1124
Movement	Mechanical self-winding (perpetual)
Power reserve	Approximately 42 hours
Main functions	Hours, minutes, real moon phase (3D), rising and falling tides (ebb and flow)
Tides adjustment	By crown in position ① (pull to first notch)
Time setting	By crown in position ② (pull fully out)
Lunar phase adjustment	By pusher at 9 o'clock on the left side of the case
Strap	Alligator leather, replaceable
Water resistance	Not water-resistant (do not expose to water)
Maintenance	Manual winding possible; use of a mechanical winder recommended
Cleaning	Wipe with a soft, dry cloth; avoid any contact with water
Spare parts and repairability	Contact an authorized Christiaan van der Klaauw dealer
General information	Handcrafted astronomical watch, limited edition

Frequently Asked Questions - Real Moon Tides CKRS1124 Christiaan van der Klaauw

How do I wind my Real Moon Tides watch?

The perpetual movement winds automatically with the movements of your wrist. You can also wind it manually by turning the crown clockwise in position ⑨.

How do I set the time?

Pull the crown to position ② (fully out) and turn it until the hands indicate the desired time, then push the crown back in completely.

How do I adjust the tides?

Pull the crown to the first notch in position ①. Turn it until the red water in the aperture reaches the desired tide level (high or low), then push the crown back in.

How do I adjust the moon phase?

Press the pusher located at 9 o'clock on the left side of the case using the provided tool until the moon displays the correct phase. Consult a reliable source to know the actual phase.

Is the watch water-resistant?

No, it is not water-resistant. Avoid any contact with water, including showering or bathing, as this would damage it.

What type of movement powers this watch?

This is a mechanical self-winding movement, called 'perpetual', because it uses the kinetic energy of the wrist.

What material is the strap made of?

The strap is made of alligator leather. It can be replaced by an authorized dealer.

Can I replace the strap myself?

It is recommended to contact an authorized Christiaan van der Klaauw dealer for replacement, to avoid any damage.

What should I do if my watch stops?

Wind the watch manually by turning the crown in position ⑨. If it does not restart, contact an authorized watchmaker.

How do I know the correct moon phase?

Use reliable online resources or astronomical apps to determine the moon phase of the day. Then set the watch using the pusher.

USER MANUAL Real Moon Tides CKRS1124 Christiaan van der Klaauw

INSTRUCTION MANUAL REAL MOON TIDES

Handleiding

Mode d'emploi

Bedienungshinweise

ASTRONOMICAL WATCHES

REAL MOON TIDES
INSTRUCTION MANUAL REAL MOON TIDES

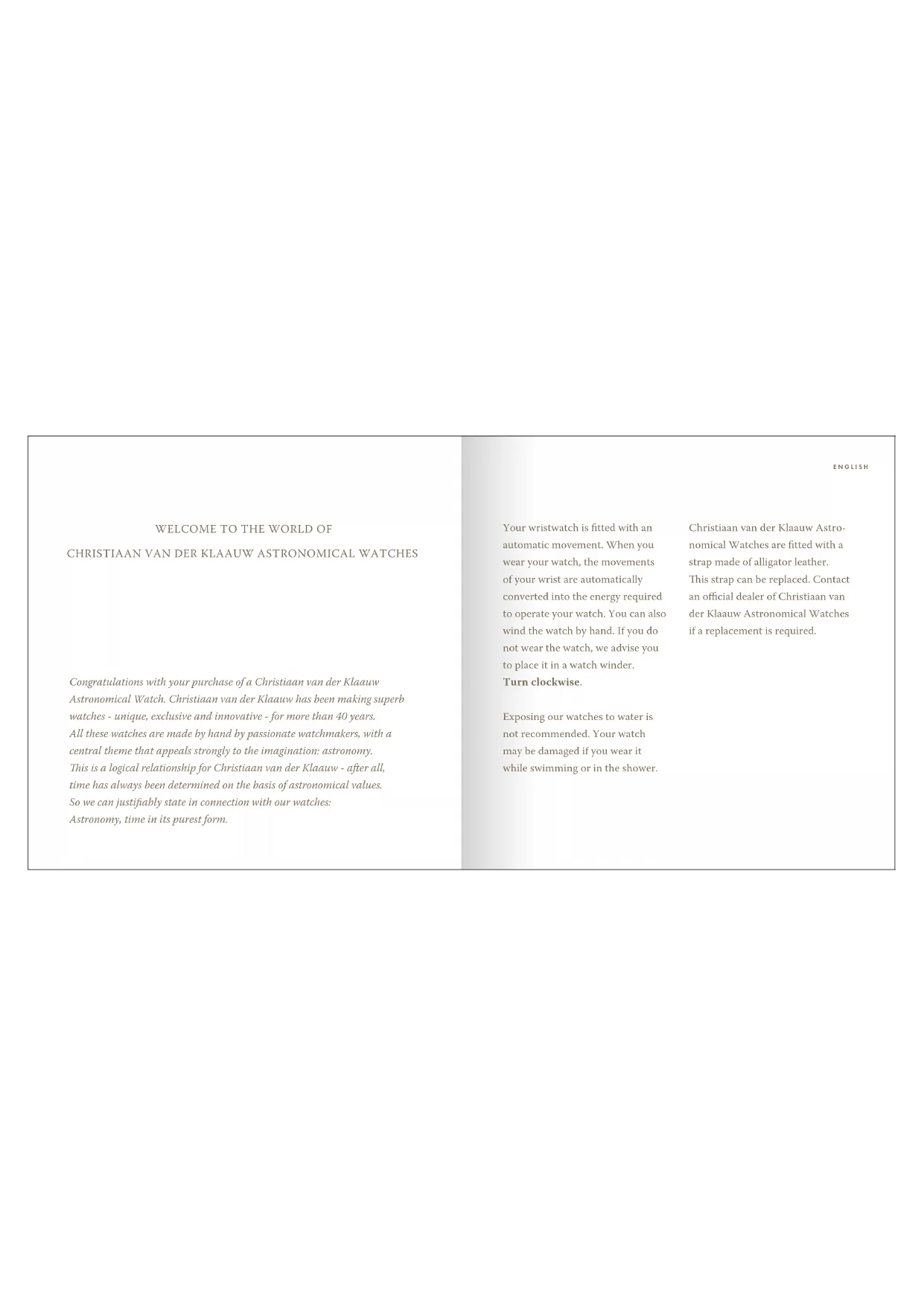

WELCOME TO THE WORLD OF CHRISTIAAN VAN DER KLAAUW ASTRONOMICAL WATCHES

Congratulations with your purchase of a Christiaan van der Klaauw Astronomical Watch. Christiaan van der Klaauw has been making superb watches - unique, exclusive and innovative - for more than 40 years. All these watches are made by hand by passionate watchmakers, with a central theme that appeals strongly to the imagination: astronomy. This is a logical relationship for Christiaan van der Klaauw - after all, time has always been determined on the basis of astronomical values. So we can justifiably state in connection with our watches: Astronomy, time in its purest form.

Your wristwatch is fitted with an automatic movement. When you wear your watch, the movements of your wrist are automatically converted into the energy required to operate your watch. You can also wind the watch by hand. If you do not wear the watch, we advise you to place it in a watch winder.

Turn clockwise.

Exposing our watches to water is not recommended. Your watch may be damaged if you wear it while swimming or in the shower.

ENGLISH

Christiaan van der Klaauw Astronomical Watches are fitted with a strap made of alligator leather. This strap can be replaced. Contact an official dealer of Christiaan van der Klaauw Astronomical Watches if a replacement is required.

Specifications

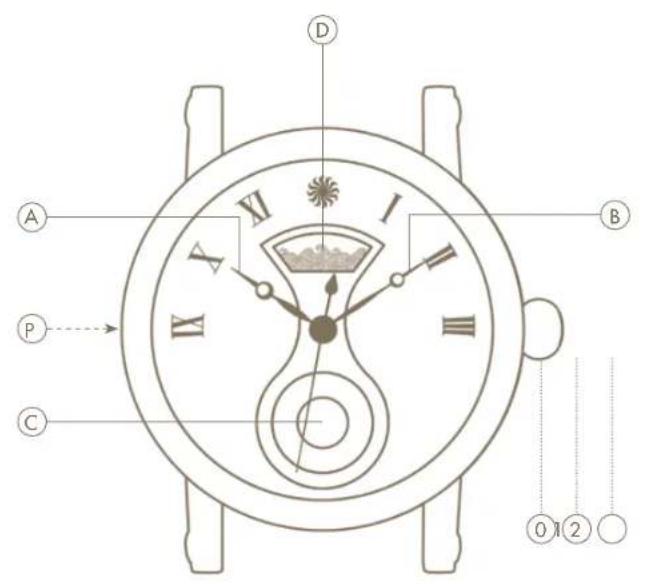

The following information is displayed on the Real Moon Joure:
A hours;
⑥ minutes;
the real moon phase.
⑥ high tide and low tide (ebb and flow).

Adjustment

The settings of your watch can be adjusted by using the different positions of the crown and the push button (P).

The crown has three positions:

this is the position of the crown when you are wearing the watch. In this position, you can wind the watch by hand.
① setting the tides.
② setting the time.

The Tides

Tides are the rise and fall of sea levels caused by the combined effects of gravitational forces exerted by the Moon, Sun, and rotation of the Earth. There are multiple types of sea tides. In most locations you will find the 'principal lunar semi-diurnal' sea tide. The period for one rise and fall of the sea level is about 12 hours, 25 minutes and 14 seconds.

Setting the tides

You can set the tides according to the location you wish to record on your watch. Of course the selected

coast has to have a twice-daily tide (the internet is a useful tool to find this information).

The best thing to do is to synchronise the tide indicator with the highest or the lowest level of the water. For example: if you have selected a coastal high tide at 14:15 hours, turn your tide indicator to the highest water level at that time. (the internet is a useful tool to find the times for high and low tides for the coast chosen).

In order to set the correct tide carefully pull the crown out by one click ① .Turn the crown so that

ENGLISHENGLI

the water in the window moves until it has reached the correct tide (high or low). Then push the crown in completely.

Setting the time

Pull out the crown as far as possible, position ②. Now move the hands forward until the correct time is reached. Once the hands show the right time, push the crown in completely.

Setting the moon phase

To set the watch to the correct moon phase, use the enclosed accessory to push in the push button located at the 9 o'clock position on the left-hand side of the watch case.

Press so that the moon ball begins to turn until it has reached the correct moon phase. (The internet is a useful tool to find the right moon phase).

Functionalities

The moon phases are shown three dimensionally at the 6 o'clock position. If the moon is completely black, it is a new moon. This is followed by the waxing moon up to the first quarter, with the right-hand side of the moon visible. After that, the full moon is displayed, followed by the waning moon up to the last quarter, with the left-hand side of the moon visible. The lunar cycle ends with the new moon, and then starts again at the beginning.

Tides are the rise and fall of sea levels caused by the combined effects of gravitational forces exerted by the Moon, Sun, and rotation of the Earth.

There are multiple types of sea tides. In most locations you will find the 'principal lunar semi-diurnal' sea tide. The period for one rise and fall of the sea level is about 12 hours, 25 minutes and 14 seconds.

ENGLISHENGLI
