Planetarium CKPT3304 - Watch Christiaan van der Klaauw - Free user manual and instructions

Product type	Astronomical automatic movement watch
Brand	Christiaan van der Klaauw
Model	Planetarium CKPT3304
Mechanism	Automatic perpetual movement (manual winding possible)
Main functions	Hours, minutes, day of month, month, position of planets (Mercury, Venus, Earth, Mars, Jupiter, Saturn) relative to the Sun
Planetarium display	Small planetarium at 6 o'clock position, Sun at center
Winding	Automatic by wrist movements or manual; recommendation to use a mechanical winder
Time setting	Winding crown in position ①
Day and month setting	Push button at 9 o'clock with attached tool
Orbital periods	Mercury 87.97 days, Venus 224.70 days, Earth 365.24 days, Mars 686.98 days, Jupiter 11.86 years, Saturn 29.46 years
Water resistance	Not water resistant (avoid any contact with water)
Strap	Alligator leather, replaceable by an authorized dealer
Maintenance	Clean with a soft dry cloth; avoid water; storage on mechanical winder
Safety	Do not immerse in water (bath, shower)
Spare parts	Alligator leather strap available at authorized dealers
General information	Handcrafted by passionate watchmakers; astronomical theme

Frequently Asked Questions - Planetarium CKPT3304 Christiaan van der Klaauw

How do I wind my Planetarium CKPT3304 watch?

The watch winds automatically with your wrist movements. You can also wind it manually by turning the crown clockwise. It is recommended to use a mechanical winder when you are not wearing it.

How do I set the time on my watch?

Pull the winding crown to position ① to set the time. Before proceeding, ensure the displayed time is between 04:00 and 08:00 or between 16:00 and 20:00. After setting, push the crown back.

How do I set the day and month?

Use the attached tool to press the push button located at 9 o'clock on the left side of the case. This scrolls through the days and months. The planet setting is linked to this operation.

Can I wear my watch in the shower or while swimming?

No, the Planetarium CKPT3304 is not water resistant. Avoid any contact with water, including bath and shower, as this could damage it.

What should I do if my watch stops?

If you do not wear the watch for an extended period, it may stop. Wind it manually by turning the crown clockwise, or place it on a mechanical winder to keep the movement going.

How do I change the strap?

The alligator leather strap is replaceable. Contact an authorized dealer of Christiaan van der Klaauw astronomical watches for assistance.

Which planets are displayed on the planetarium?

The planetarium displays the positions relative to the Sun of the planets Mercury, Venus, Earth, Mars, Jupiter, and Saturn.

What is the accuracy of the planetary movements?

The orbital periods are accurate: Mercury 87.97 days, Venus 224.70 days, Earth 365.24 days, Mars 686.98 days, Jupiter 11.86 years, Saturn 29.46 years.

What to do in case of malfunction?

Consult an authorized dealer or a professional watchmaker. The watch is handcrafted with complex parts; do not attempt to repair it yourself.

How do I clean my watch?

Clean with a soft dry cloth. Avoid chemicals. For the strap, refer to specific care instructions.

USER MANUAL Planetarium CKPT3304 Christiaan van der Klaauw

ASTRONOMICAL WATCHES

A P E I II III IV B C D O 1

PLANETARIUM

INSTRUCTION MANUAL PLANETARIUM

ENGLISH

ENGLISH

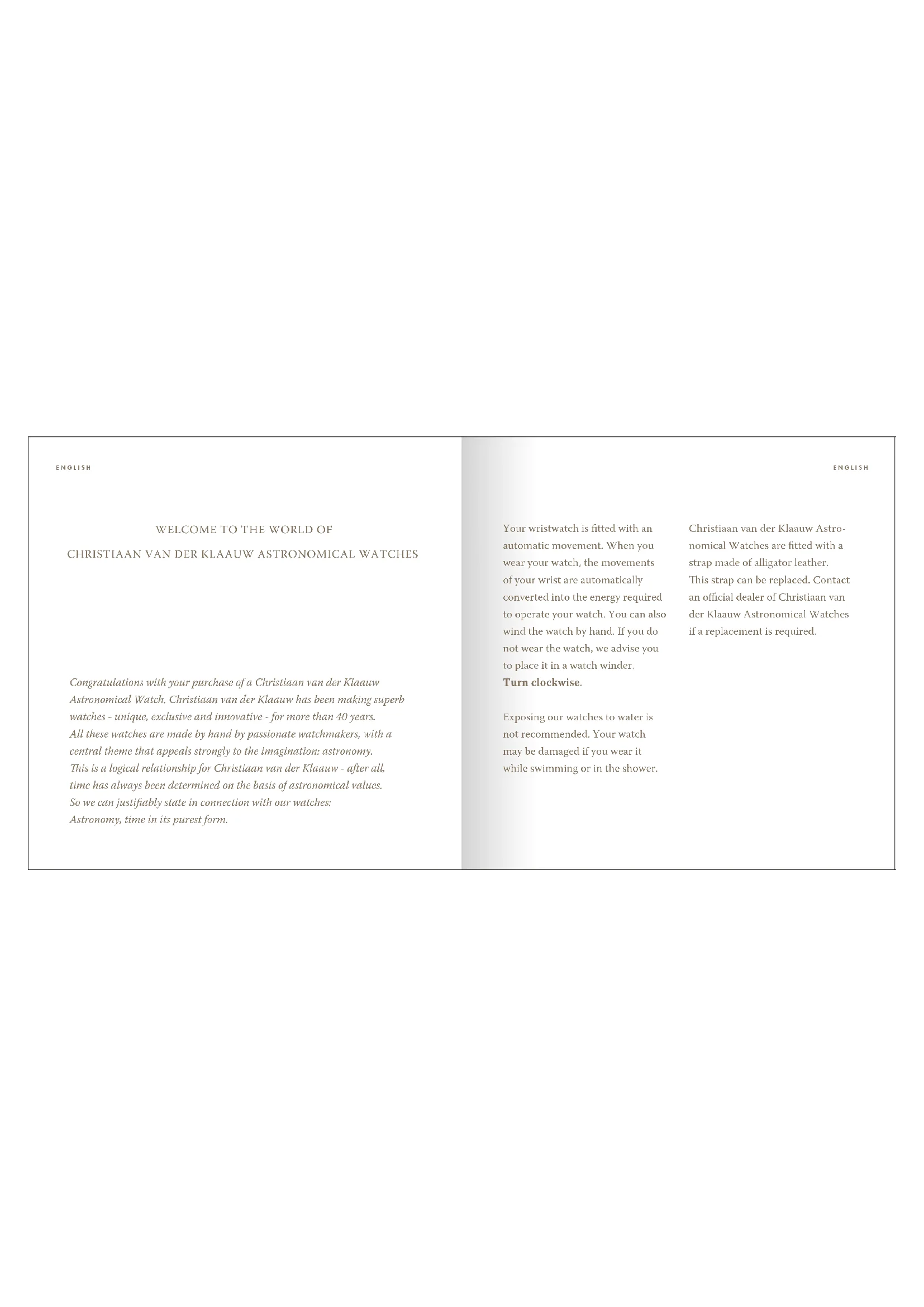

WELCOME TO THE WORLD OF

CHRISTIAAN VAN DER KLAAUW ASTRONOMICAL WATCHES

Congratulations with your purchase of a Christiaan van der Klaauw Astronomical Watch. Christiaan van der Klaauw has been making superb watches - unique, exclusive and innovative - for more than 40 years. All these watches are made by hand by passionate watchmakers, with a central theme that appeals strongly to the imagination: astronomy. This is a logical relationship for Christiaan van der Klaauw - after all, time has always been determined on the basis of astronomical values. So we can justifiably state in connection with our watches: Astronomy, time in its purest form.

Your wristwatch is fitted with an automatic movement. When you wear your watch, the movements of your wrist are automatically converted into the energy required to operate your watch. You can also wind the watch by hand. If you do not wear the watch, we advise you to place it in a watch winder.

Turn clockwise.

Exposing our watches to water is not recommended. Your watch may be damaged if you wear it while swimming or in the shower.

Christiaan van der Klaauw Astronomical Watches are fitted with a strap made of alligator leather. This strap can be replaced. Contact an official dealer of Christiaan van der Klaauw Astronomical Watches if a replacement is required.

Specifications

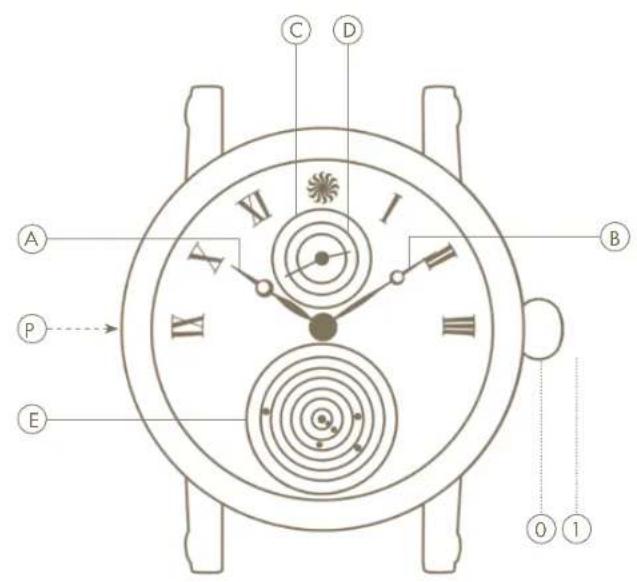

The following information is displayed on the Planetarium:

Ⓐ hours;
B minutes;
© calendar day;
(D) month;
© position in relation to the Sun of: Mercury, Venus, Earth, Mars, Jupiter and Saturn.

Adjustment

The settings of your watch can be adjusted by using the different positions of the crown and the push button Ⓓ.

The crown has two positions:

① this is the position of the crown when you are wearing the watch. In this position, you can wind the watch by hand.
① setting the time.

Before adjusting the settings of the Planetarium, the time displayed on the watch must be between 04:00 and 08:00 or 16:00 and 20:00.

Once this is the case, use the enclosed accessory to push in the

ENGLISHENGLI

push button ⑤ located at the 9 o'clock position on the left-hand side of the watchcase. Repeat this until the correct day and month are shown. The planets are moved automatically as you do this. Then pull out the crown as far as possible (position ①). Now move the hands forward until the correct time is reached. When the hands show the right time, then push the crown in again completely.

Important

If you do not wear the watch, we advise you to place it in a watch winder. Turn clockwise.

Functionalities

© The day of the month is shown at the 12 o'clock position.
⑭ The month is shown at the 12 o'clock position.

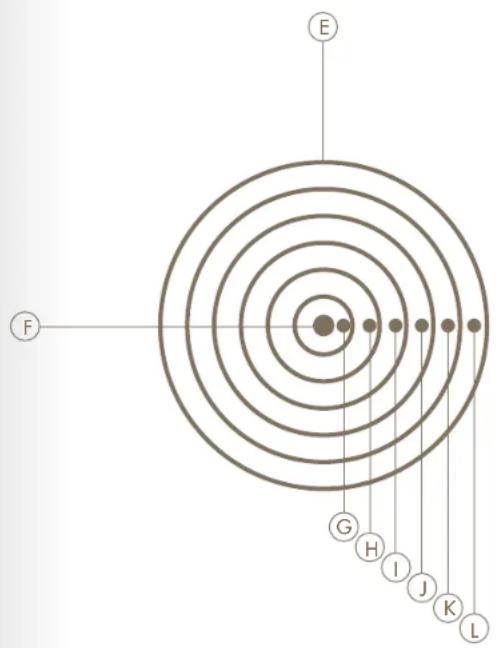

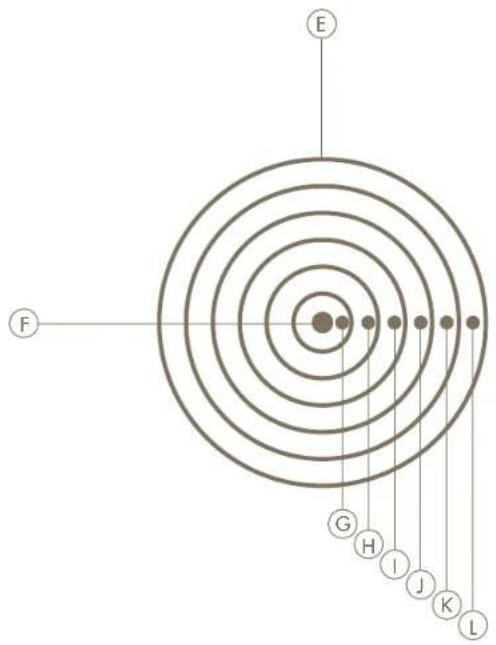

The smallest planetarium in the world is located at the 6 o'clock position. The Sun is positioned exactly in the middle of the planetarium. The planet closest to the Sun is Mercury. Mercury is followed by Venus, Earth, Mars, Jupiter and Saturn. The planets rotate around the Sun as follows:

© Mercury 87.97 days
⑧ Venus 224.70 days
① Earth 365.24 days
J Mars 686.98 days
© Jupiter 11.86 years
Saturn 29.46 years

E F G H I J K L

ENGLISHENGLI
