Real Moon Tides CKRS3324 - Watch Christiaan van der Klaauw - Free user manual and instructions

Product type	Astronomical quartz or automatic watch
Brand	Christiaan van der Klaauw
Model	Real Moon Tides CKRS3324
Movement	Mechanical automatic
Power reserve	Approximately 38 hours
Case	Stainless steel
Case diameter	43 mm
Water resistance	30 meters (splashes)
Strap	Genuine alligator leather
Functions	Hours, minutes, 3D moon phase, tides (high/low)
Tide setting	Via crown in position 1, align with high/low tide
Moon setting	Via pusher at 9 o'clock, using the provided tool
Power	Automatic via wrist movements or manual winding
Maintenance	Avoid water, use a winder if not worn
Cleaning	Soft dry cloth
Approximate weight	100 grams
Warranty	2 years (parts and labor)

Frequently Asked Questions - Real Moon Tides CKRS3324 Christiaan van der Klaauw

How to set the moon phase on the Real Moon Tides watch?

Use the pusher located at 9 o'clock on the left side of the case. Press with the provided tool until the moon rotates and displays the desired phase. Check a website for the current phase.

How to set the tides on the watch?

Pull the crown to position 1. Turn it to align the tide indicator with the high or low tide time for your coast. Then push the crown back.

What type of movement does this watch have?

The watch is equipped with a mechanical automatic movement. It winds through wrist movements or manually.

Is the watch water-resistant?

Yes, it is splash-resistant up to 30 meters. It is not recommended to wear it while showering or swimming.

How to manually wind the watch?

In crown position 0, turn it clockwise to wind the movement. About 20 to 30 turns are sufficient.

What to do if I don't wear the watch for several days?

Place it on a mechanical watch winder to keep the movement running and avoid having to reset everything.

How to replace the strap?

Contact an authorized Christiaan van der Klaauw dealer. The alligator leather strap can be replaced with a suitable model.

How to read the tide indicator?

The red hand indicates the current tide level. The scale shows high and low tide phases, with a cycle of approximately 12 hours 25 minutes.

What is the accuracy of the movement?

The automatic movement offers standard accuracy of about -20/+40 seconds per day, varying with use.

How to clean the watch?

Use a soft dry cloth to wipe the case and strap. Avoid chemicals and immersion in water.

USER MANUAL Real Moon Tides CKRS3324 Christiaan van der Klaauw

INSTRUCTION MANUAL REAL MOON TIDES

Handleiding

Mode d'emploi

Bedienungshinweise

ASTRONOMICAL WATCHES

REAL MOON TIDES
INSTRUCTION MANUAL REAL MOON TIDES

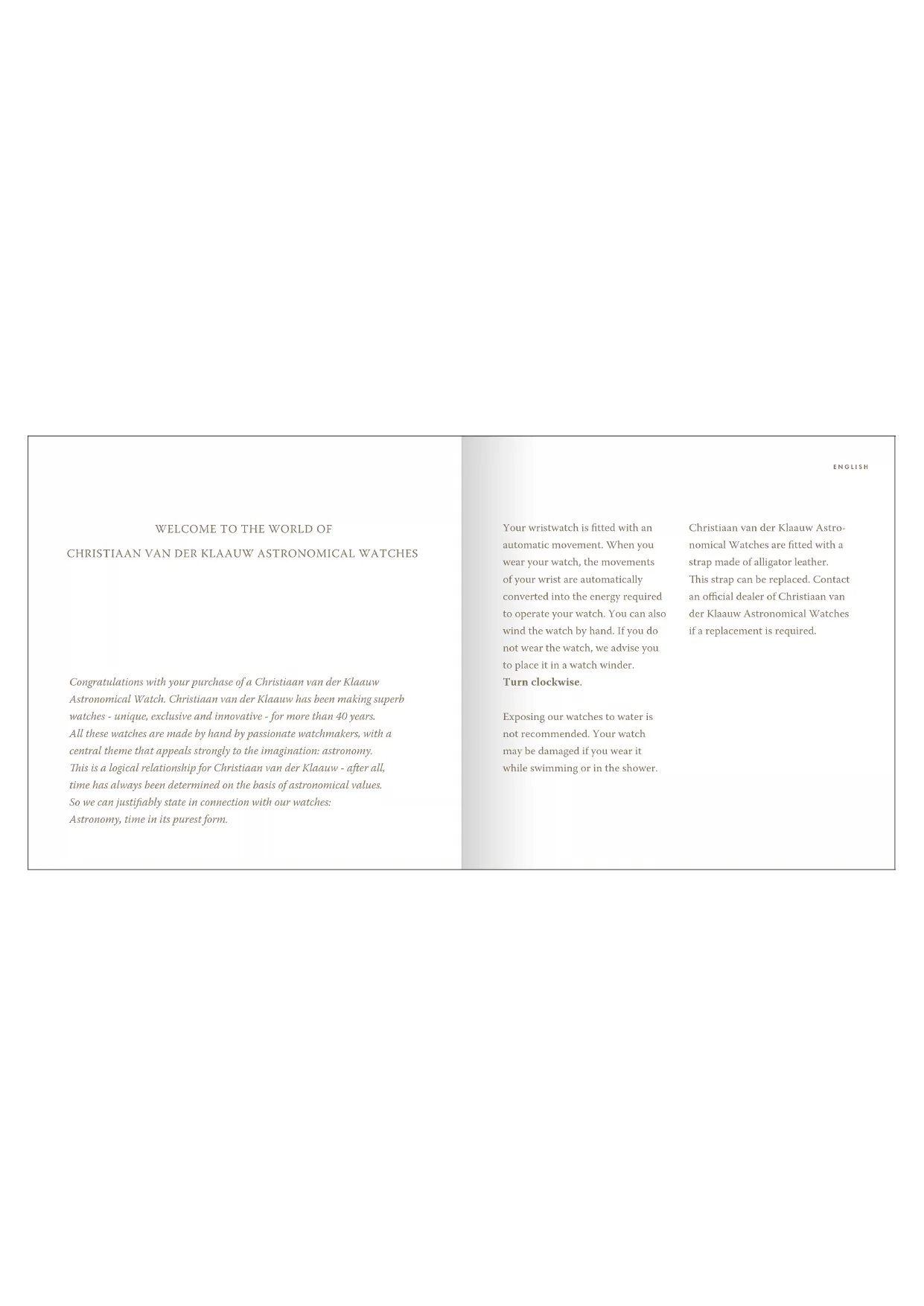

WELCOME TO THE WORLD OF CHRISTIAAN VAN DER KLAAUW ASTRONOMICAL WATCHES

Congratulations with your purchase of a Christiaan van der Klaauw Astronomical Watch. Christiaan van der Klaauw has been making superb watches - unique, exclusive and innovative - for more than 40 years. All these watches are made by hand by passionate watchmakers, with a central theme that appeals strongly to the imagination: astronomy. This is a logical relationship for Christiaan van der Klaauw - after all, time has always been determined on the basis of astronomical values. So we can justifiably state in connection with our watches: Astronomy, time in its purest form.

Your wristwatch is fitted with an automatic movement. When you wear your watch, the movements of your wrist are automatically converted into the energy required to operate your watch. You can also wind the watch by hand. If you do not wear the watch, we advise you to place it in a watch winder.

Turn clockwise.

Exposing our watches to water is not recommended. Your watch may be damaged if you wear it while swimming or in the shower.

Christiaan van der Klaauw Astronomical Watches are fitted with a strap made of alligator leather. This strap can be replaced. Contact an official dealer of Christiaan van der Klaauw Astronomical Watches if a replacement is required.

ENGLISH

Specifications

The following information is displayed on the Real Moon Joure:
hours;
⑥ minutes;
the real moon phase.
high tide and low tide (ebb and flow).

Adjustment

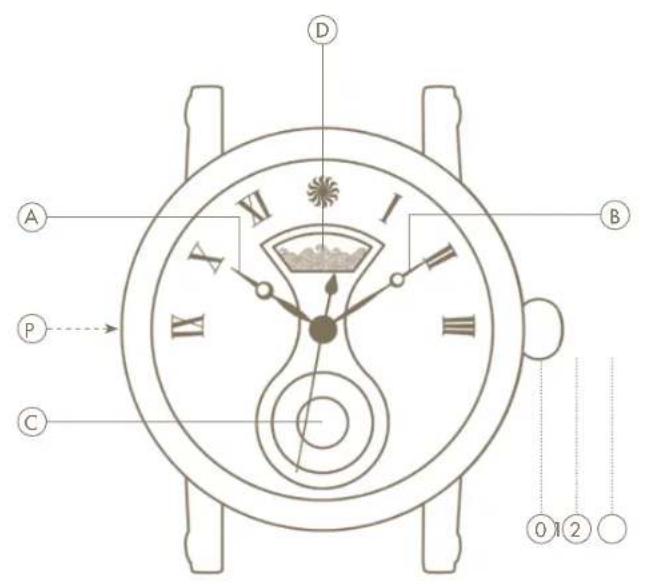

The settings of your watch can be adjusted by using the different positions of the crown and the push button (P).

The crown has three positions:

this is the position of the crown when you are wearing the watch. In this position, you can wind the watch by hand.
① setting the tides.
② setting the time.

The Tides

Tides are the rise and fall of sea levels caused by the combined effects of gravitational forces exerted by the Moon, Sun, and rotation of the Earth. There are multiple types of sea tides. In most locations you will find the 'principal lunar semi-diurnal' sea tide. The period for one rise and fall of the sea level is about 12 hours, 25 minutes and 14 seconds.

Setting the tides

You can set the tides according to the location you wish to record on your watch. Of course the selected

coast has to have a twice-daily tide (the internet is a useful tool to find this information).

The best thing to do is to synchronise the tide indicator with the highest or the lowest level of the water. For example: if you have selected a coastal high tide at 14:15 hours, turn your tide indicator to the highest water level at that time. (the internet is a useful tool to find the times for high and low tides for the coast chosen).

In order to set the correct tide carefully pull the crown out by one click ① .Turn the crown so that

ENGLISHENGLI

the water in the window moves until it has reached the correct tide (high or low). Then push the crown in completely.

Setting the time

Pull out the crown as far as possible, position ②. Now move the hands forward until the correct time is reached. Once the hands show the right time, push the crown in completely.

Setting the moon phase

To set the watch to the correct moon phase, use the enclosed accessory to push in the push button located at the 9 o'clock position on the left-hand side of the watch case.

Press so that the moon ball begins to turn until it has reached the correct moon phase. (The internet is a useful tool to find the right moon phase).

Functionalities

The moon phases are shown three dimensionally at the 6 o'clock position. If the moon is completely black, it is a new moon. This is followed by the waxing moon up to the first quarter, with the right-hand side of the moon visible. After that, the full moon is displayed, followed by the waning moon up to the last quarter, with the left-hand side of the moon visible. The lunar cycle ends with the new moon, and then starts again at the beginning.

Tides are the rise and fall of sea levels caused by the combined effects of gravitational forces exerted by the Moon, Sun, and rotation of the Earth.

There are multiple types of sea tides. In most locations you will find the 'principal lunar semi-diurnal' sea tide. The period for one rise and fall of the sea level is about 12 hours, 25 minutes and 14 seconds.

ENGLISHENGLI

WELKOM IN DE WERELD VAN

CHRISTIAAN VAN DER KLAAUW ASTRONOMICAL WATCHES

WILLKOMMEN IN DER WELT VON CHRISTIAAN VAN DER KLAAUW ASTRONOMICAL WATCHES

ASTRONOMICAL WATCHES

CHRISTIAAN VAN DER KLAAUW HORLOGE ATELIER B.V. BUSINESSPARK FRIESLAND-WEST 47,8447 SL HEERENVEEN, THE NETHERLANDS T: [phone], [e-mail], WWW.KLAAUW.COM
