Type of vacuum cleaner	Canister vacuum cleaner
Power	1600 W
Tank capacity	2.5 L
Filtration	HEPA filter
Weight	5 kg
Dimensions	40 x 28 x 25 cm
Noise level	78 dB
Included accessories	Main brush, furniture brush, narrow nozzle
Usage	Suitable for all floor types, including carpets and hard surfaces
Maintenance	Empty the tank after each use, clean the filter regularly
Safety	Overheat protection
Warranty	2 years
Additional information	Ergonomic design for easy transport

Frequently Asked Questions - Country Plus PALSON

How can I clean the filter of the PALSON Country Plus vacuum cleaner?

To clean the filter, remove it from the vacuum cleaner, then rinse it with lukewarm water to remove dust. Let it dry completely before putting it back in place.

The vacuum cleaner won't start, what should I do?

Check that the vacuum cleaner is properly plugged in and that the outlet is working. If the problem persists, check the power cord for any damage.

How can I replace the vacuum cleaner bag?

Open the bag compartment, remove the used bag, and insert a new bag making sure it is properly in place before closing the compartment.

Why is my PALSON Country Plus vacuum cleaner making noise?

Excessive noise may be due to a dirty filter, a full bag, or an object blocking the hose. Check these items and clean or replace as necessary.

The vacuum cleaner is losing suction, what should I do?

Check the bag to see if it is full, clean the filter, and make sure there are no obstructions in the hose or brush.

Is the PALSON Country Plus vacuum cleaner suitable for pet hair?

Yes, this vacuum cleaner is designed to capture pet hair thanks to its suction power and suitable accessories.

What is the power of the PALSON Country Plus vacuum cleaner?

The PALSON Country Plus vacuum cleaner has a power of 1200 watts, providing effective suction for cleaning.

How can I avoid the electric cord from tangling?

Use the automatic cord retraction system if available, or carefully wrap it up when you have finished cleaning.

Are there any accessories specifically recommended for this vacuum cleaner?

Yes, it is recommended to use special brushes for carpets and delicate surfaces, as well as tools for corners and crevices.

Can I use the vacuum cleaner on wet surfaces?

No, the PALSON Country Plus vacuum cleaner is not designed to vacuum wet surfaces or liquids. Use it only on dry surfaces.

How can I store the vacuum cleaner properly?

Store the vacuum cleaner in a dry and cool place, with the cord wrapped and the accessories well stored to avoid damaging the device.

USER MANUAL Country Plus PALSON

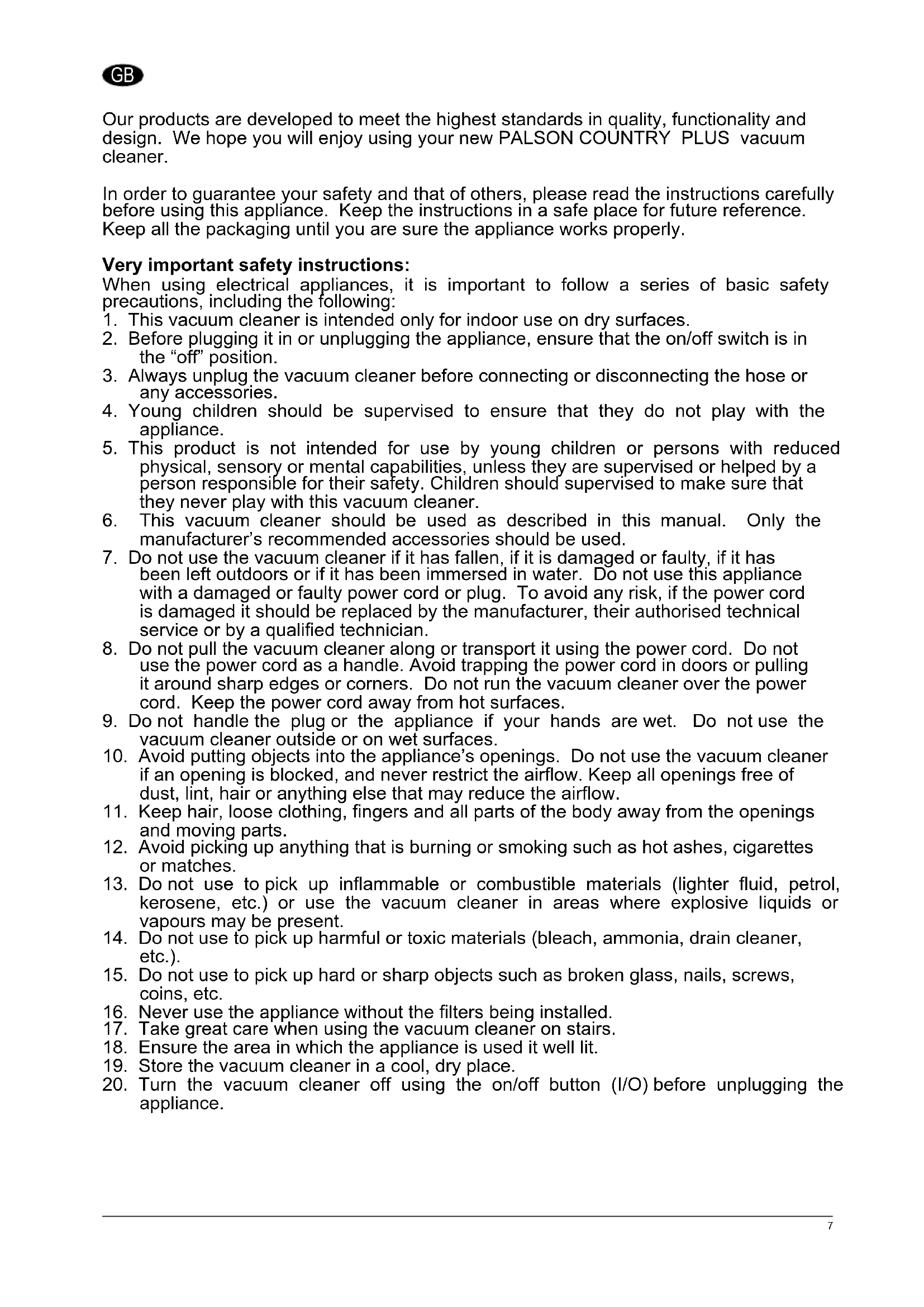

Our products are developed to meet the highest standards in quality, functionality and design. We hope you will enjoy using your new PALSON COUNTRY PLUS vacuum cleaner.

In order to guarantee your safety and that of others, please read the instructions carefully before using this appliance. Keep the instructions in a safe place for future reference. Keep all the packaging until you are sure the appliance works properly.

Very important safety instructions:

When using electrical appliances, it is important to follow a series of basic safety precautions, including the following:

1. This vacuum cleaner is intended only for indoor use on dry surfaces.
2. Before plugging it in or unplugging the appliance, ensure that the on/off switch is in the "off" position.
3. Always unplug the vacuum cleaner before connecting or disconnecting the hose or any accessories.
4. Young children should be supervised to ensure that they do not play with the appliance.
5. This product is not intended for use by young children or persons with reduced physical, sensory or mental capabilities, unless they are supervised or helped by a person responsible for their safety. Children should supervised to make sure that they never play with this vacuum cleaner.
6. This vacuum cleaner should be used as described in this manual. Only the manufacturer's recommended accessories should be used.
7. Do not use the vacuum cleaner if it has fallen, if it is damaged or faulty, if it has been left outdoors or if it has been immersed in water. Do not use this appliance with a damaged or faulty power cord or plug. To avoid any risk, if the power cord is damaged it should be replaced by the manufacturer, their authorised technical service or by a qualified technician.
8. Do not pull the vacuum cleaner along or transport it using the power cord. Do not use the power cord as a handle. Avoid trapping the power cord in doors or pulling it around sharp edges or corners. Do not run the vacuum cleaner over the power cord. Keep the power cord away from hot surfaces.
9. Do not handle the plug or the appliance if your hands are wet. Do not use the vacuum cleaner outside or on wet surfaces.
10. Avoid putting objects into the appliance's openings. Do not use the vacuum cleaner if an opening is blocked, and never restrict the airflow. Keep all openings free of dust, lint, hair or anything else that may reduce the airflow.
11. Keep hair, loose clothing, fingers and all parts of the body away from the openings and moving parts.
12. Avoid picking up anything that is burning or smoking such as hot ashes, cigarettes or matches.
13. Do not use to pick up inflammable or combustible materials (lighter fluid, petrol, kerosene, etc.) or use the vacuum cleaner in areas where explosive liquids or vapours may be present.
14. Do not use to pick up harmful or toxic materials (bleach, ammonia, drain cleaner, etc.).
15. Do not use to pick up hard or sharp objects such as broken glass, nails, screws, coins, etc.
16. Never use the appliance without the filters being installed.
17. Take great care when using the vacuum cleaner on stairs.
18. Ensure the area in which the appliance is used it well lit.
19. Store the vacuum cleaner in a cool, dry place.
20. Turn the vacuum cleaner off using the on/off button (I/O) before unplugging the appliance.

WARNING

Before assembling, opening or emptying the canister, or before connecting/disconnecting any accessories, always switch the vacuum cleaner off and disconnect it from the mains supply.

IMPORTANT

The vacuum cleaner's performance is improved by washing the filter. Ensure the filter is completely dry before refitting it to the vacuum cleaner.

This vacuum cleaner is intended for domestic use only and not designed for commercial or industrial purposes.

MOTOR THERMOSTAT

The motor is equipped with a protective thermostat. If, for whatever reason, the vacuum cleaner should overheat, the thermostat will automatically cut the power to the motor and turn the unit off. Should this occur, switch the vacuum cleaner off and unplug it from the mains supply. Remove the dust canister and empty it. Clean the filters. Allow the vacuum cleaner to cool down.

USING THE VACUUM CLEANER

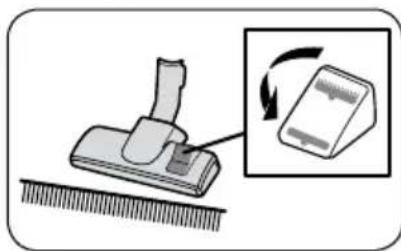

How to use the floor brush:

In order to clean the floor, please use the floor brush in the following manner:
1. Insert the telescopic tube (2) into the wand (3).
2. Insert the floor brush (1) into the telescopic tube (2).
3. Insert the flexible hose (4) into the unit's hose connector (6).
4. To disconnect the flexible hose from the unit, press the wand release button (5) and pull the hose (4) out.

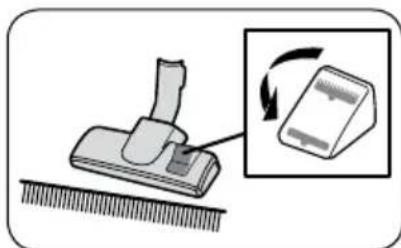

Use on carpets and rugs

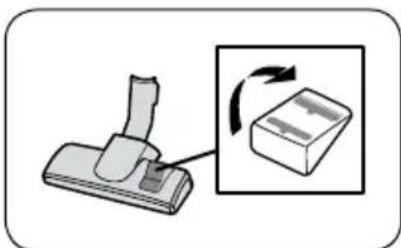

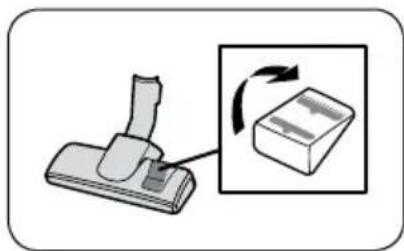

Use on hard flooring

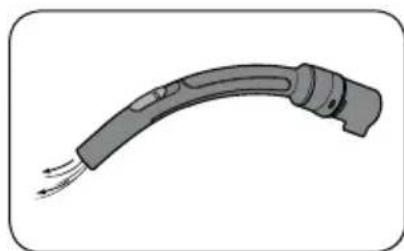

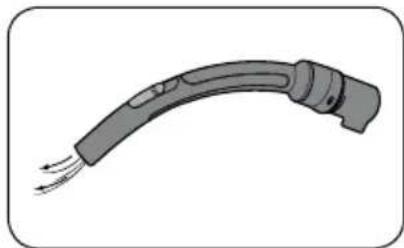

Blowing function

You can use the vacuum cleaner to blow out clean air to clean places that cannot be reached using the flexible hose.

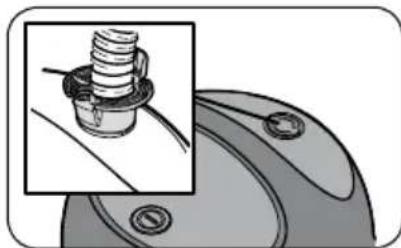

1. Insert the flexible hose (4) into the blowing function outlet (7) until it is firmly in position.
2. To disconnect the flexible hose, pull it (4) out.

Canister dust indicator

When the dust indicator shows red continuously, the dust canister is full. You should empty the dust canister.

Warning: When the dust indicator shows red continuously, stop using the vacuum cleaner to avoid burning out the motor.

Upholstery brush and crevice nozzle

1. Upholstery brush (8): Insert into the wand (3) and use for cleaning small areas such as seats, sofas, curtains, etc.
2. Crevice nozzle (9): Insert into the wand (3) and use for cleaning narrow gaps, etc.

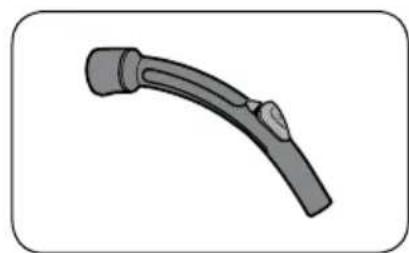

Adjusting the suction power

To select the level of suction, adjust the power set button (10).

The larger the gap, the higher the level of suction.

For optimum performance, we suggest you select the lowest suction setting for use with clean curtains, blinds or fabrics.

Filter maintenance

When a large quantity of dust has accumulated, it should be removed it in the following manner.

1. Remove the flexible hose from the connector.

2. Open the clips on either side of the vacuum cleaner housing and lift the upper part of the appliance to remove the canister.

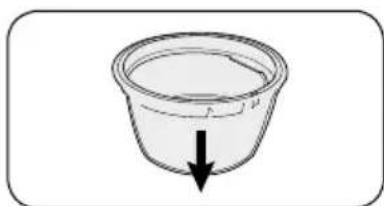

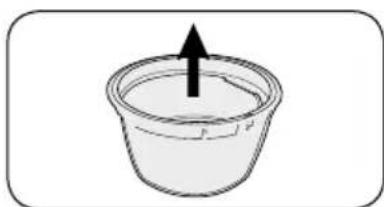

3. Remove the lid from the canister in order to take out the filter. Be careful not to let the filter dust fall into the canister.

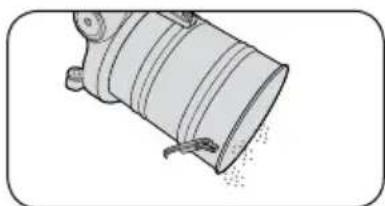

4. Dispose of the dust.

5. Place the filter back inside the canister in the correct position.

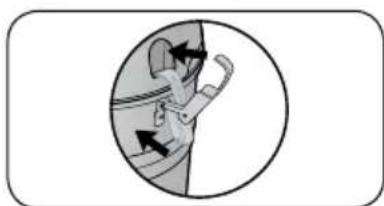

6. Replace the upper part of the vacuum cleaner and close the clips on either side of the canister.

Accessory storage space

The upholstery brush and crevice nozzle can be stored on the back of the unit. Slot these two attachments into their corresponding storage spaces to ensure they are always on hand.

Power cord storage hooks

Wind the power cord around the storage hooks.

Storage

The flexible hose, the telescopic tube and the crevice nozzle can be stored on the vacuum cleaner. This allows you to store everything in a clean and tidy manner.

Keeping the vacuum cleaner in optimum condition

To ensure good suction power, after the unit has been used, clean the filter following these steps:

• Switch the appliance off and unplug the cord from the mains supply before replacing the filter.
  Take the filter.
• Wash the filter with warm water. A neutral detergent may also be used. If detergent is used, rinse the filter thoroughly.
• Let the filter dry naturally.

WARNING:

• Do not wash the filter with boiling water or in a dishwasher.
• Never dry the filter above a fire or a hot surface.
• Using the vacuum cleaner when the filter is wet may result in damage to the motor.

IMPORTANT

• Never rinse the vacuum cleaner with water, since this may result in damage to the unit.
• Never use the vacuum cleaner to clean liquids or wet surfaces, since this may damage the unit.
• Never use the unit to pick up the following materials: water or other liquids, desiccants, large quantities of sand, broken glass or needles, since this may damage the unit.
• Never cover the ventilation slots, since this increase the risk of fire due to the build up of excess heat.

TROUBLESHOOTING GUIDE

Use this table to find solutions to minor problems with the vacuum cleaner's performance.

PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
The vacuum cleaner does not switch on	1. No power. 2. Turn the power switch to the “ON” position. 3. Motor overheating.	1. Ensure the vacuum cleaner is correctly connected to the mains supply, and press the “ON” button. 2. Check the off/on switch. 3. Check the dust filter for any blockage and let the motor cool down for 2 hours before switching the vacuum cleaner on again.
The vacuum cleaner is operating with less suction power than usual	1. The dust canister may be full or blocked or the airflow otherwise obstructed. 2. The mouth of the flexible hose may be blocked. 3. The nozzle may be blocked. 4. The flexible hose may not be connected properly.	1. Empty and clean the dust canister or check the airflow is not blocked. 2. Replace the hose. 3. Clean the nozzle's airflow outlet. 4. Ensure that the flexible hose is connected properly.

The floor brush is not working properly

1. Very strong suction. 1. Put the accessory onto the nozzle of the flexible hose properly.

WARNING: Disconnect the vacuum cleaner from the mains supply before cleaning the unit. If it is not disconnected, it could cause an electric shock.

PROTECTING THE ENVIRONMENT

Unwanted electrical goods should not be put out with the normal household rubbish. This appliance should be disposed of safely by taking it to a local household waste recycling centre.

Thank you for choosing one of our products.

F

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1

j 1

aill jil jll jll jll jll iib

Lalalally slllall Jw yg lglu cnsil n! Jn nn yy jlde el g slalll

yubc

：

ilallllne g jnlleclalnall

aiisllchwslj jllglslinaaill

50

jia jia jia jia jia jia

J 1

J 1

12 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

jie 11 liyi jie

J 1

Jg

a

KAK NcNoJIb3OBATb UETKY IJIY NOJA:

Дя ounctkn NOBepxHocTe nona, nCNoIb3yIte ueTky cJeDyUOuM o6pa3OM:

1. NopdcoeHnTe Teeneckonneeckyu Tpy6ky (2) B uHaHr (3).
2. BCTaBbTe 5eTky dny nona (1) B TeLeckoNueeCKyIO Tpy6Ky (2).
3. YcTaHOBnte r6Km 7nlaHr (4) B coeDHHTeIb (6) np6opa.
4. Дя OTcoeHHeHЯ ГбКоТуБКИОТпибopa,нжмITEHa KhoNky (5)ИNotHHTe G6KmIшlaHr (4)НаруЖу.

IcnoB3OBAHnE nbIeCocHa KOBPOBbIX NOBepXHOCTx.

IcnoJb3OBAHnE nbIeCocHa nOBepXHOCTn NOJa.

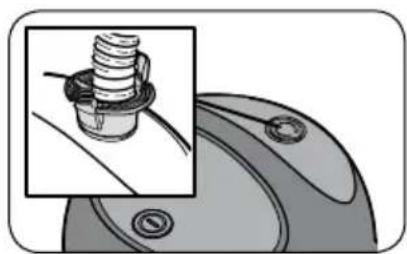

Функць ВьдуВань.

Bo3MOxHIO nCnOJIb3OBaHHe nbIInecOcA B KauEcTBA BblyBaTeJRA Bo3DyXa Ira Tex cnUyaeB, Korda rN6Km ⅢNaHr He DoCTaET DO 3OHbI, KOtOpYIO Heo6XoDIMO nbJIeCoCnTb.
1. BcTaBbTe r6Km 7nHaHr (4) B OTBepCTne BbIXOa (7) Do noJHoNΦHKcaUH.
2. Pn Heo6xOaHMoCTn OTCoeHNHTb rN6kN IJNaHr, NotaHnte erO (4) HapyKy.

INHdkatop ypOBn 3aONHeHH nblbIO

B cnyuae ecnn KpacbHn HndnKaTOp NOCToHHO BbICBeuNBAeTCB OKoUKe, 3TO O3HaayeT, YTO nbInec6bpHnK nONHOCTbIO 3aONHeH. YcTaPAnTe BCE cOdepXmOe n3 EMKocTN.

PpeoctepekeHne: cnyae ecn KpaCHbI INDkaTOp NOCTOARHO BbICBeuNBAeTCB OKoUke,ecTb BePOrTHoCtB,yTO MOTOP CROPNT,TaK KaN PbJIeOCn PpODoJXaET pa60Ty.

3AUHTA OKPYXAIOUI CPEIbI

He BbIbpaBaiTe 3neKtpnueckn np6op BmecTe C 6bITOBbIM MycOpom. DaHbI np6op Heo6xOdmo OTHeCTN B NyHKT npnema 6bITOBbIX OTXODOB Ira erO nepepa60Kn.

Disposal of old Electrical & Electronic Equipment (Applicable throughout the European Union and other European countries with separate collection programs)

This symbol, found on your product or on its packaging, indicates that this product should not be treated as household waste when you wish to dispose of it. Instead, it should be handed over to an applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent negative consequences to the environment and human health, which could otherwise be caused by inappropriate disposal of this product. The recycling of materials will help to conserve natural resources. For more detailed information about the recycling of this product, please contact your local city office, household waste disposal service or the retail store where you purchased this product.
