USER MANUAL GDK 5386 BS GRUNDIG

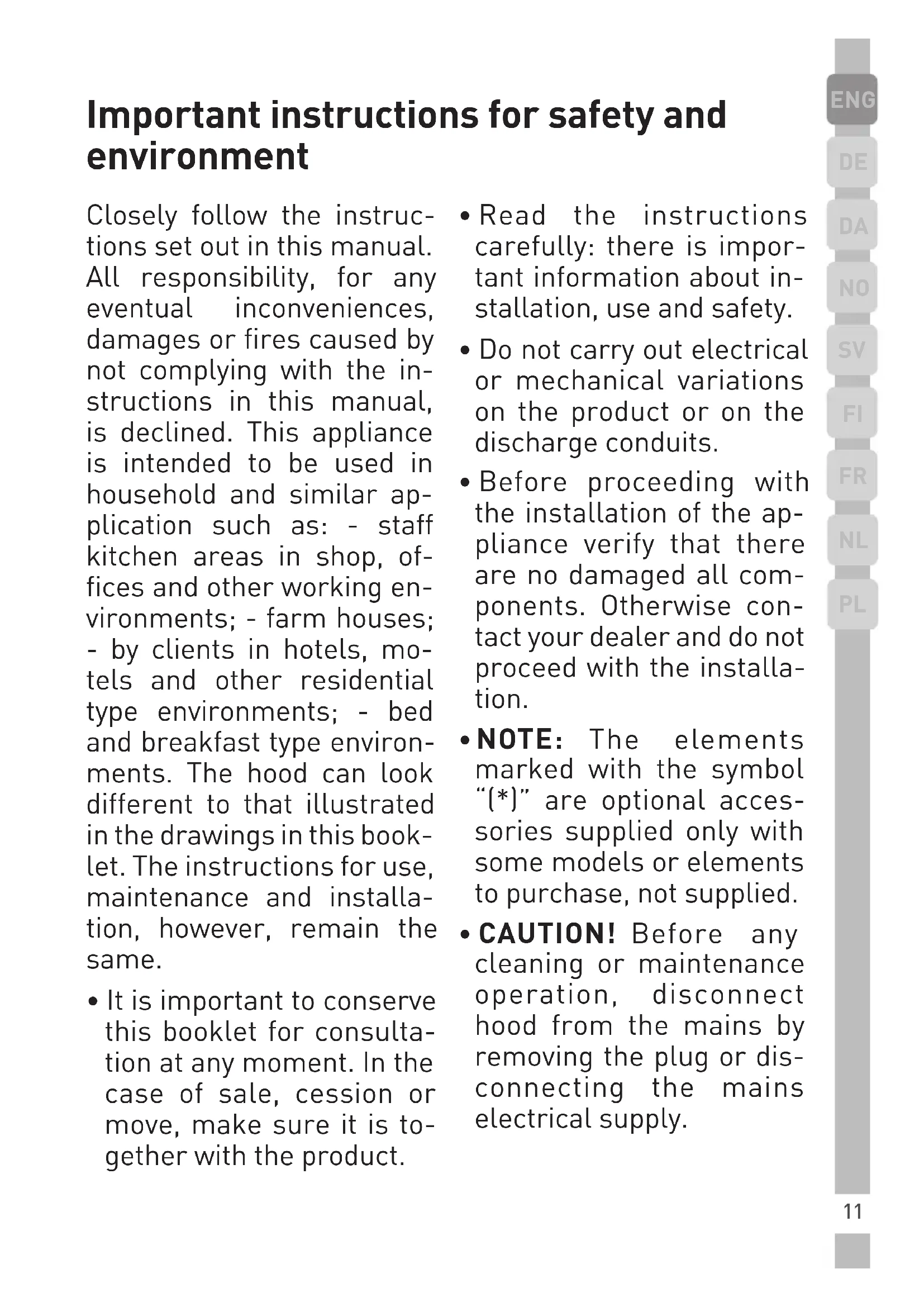

Important instructions for safety and environment

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconvenience, damages or fires caused by not complying with the instructions in this manual, is declined. This appliance is intended to be used in household and similar application such as: - staff kitchen areas in shop, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments. The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation, however, remain the same.

• It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.

• Read the instructions carefully: there is important information about installation, use and safety.

• Do not carry out electrical or mechanical variations on the product or on the discharge conduits.
• Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation.
• NOTE: The elements marked with the symbol “ (*) ” are optional accessories supplied only with some models or elements to purchase, not supplied.
• CAUTION! Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

Important instructions for safety and environment

• Always wear work gloves for all installation and maintenance operations.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not be allowed to tamper with the controls or play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.

• The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

• The hood must be regularly cleaned on both the inside and outside (at least once a month).

• This must be completed in accordance with the maintenance instructions provided. Failure to follow the instructions provided regarding the cleaning of the hood and filters will lead to the risk of fires.
• Do not flambé under the range hood.
• The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.
• Any frying must be done with care in order to make sure that the oil does not overheat and ignite.
• CAUTION! Accessible parts of the hood may become hot when used with cooking appliances.

Important instructions for safety and environment

• For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.
• WARNING! Do not connect the appliance to the mains until the installation is fully complete.
• With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.
• The air must not be discharged into a flue that is used for exhausting fumes from appliance burning gas or other fuels.
• Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

• Never use the hood without effectively mounted grids.

• The hood must NEVER be used as a support surface unless specifically indicated.

• Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.
• Use the correct length for the screws which are identified in the Installation Guide.
• In case of doubt, consult an authorised service assistance centre or similar qualified person.
• WARNING! ailure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
• Do not use with a programmer, timer, separate remote control system or any other device that switches on automatically.

Important instructions for safety and environment

• This appliance is marked according to the European directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

• The symbol the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

• For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

• Appliance designed, tested and manufactured according to: Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233. Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301.EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3.

Important instructions for safety and environment

Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapour and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odour reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling.

Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our Na

tional Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Use

The hood is designed to be used either for exhausting or filter version.

Ducting version

In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood.

Attention! The exhausting pipe is not supplied and must be

purchased apart.

Diameter of the exhausting pipe must be equal to that of the

connection ring.

Warning!

If the hood is supplied with active charcoal filter, then it must be removed.

Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange). Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

• Use a duct of the minimum indispensable length.
• Use a duct with as few elbows as possible (maximum elbow angle: 90^ ).
• Avoid drastic changes in the duct cross-section.

Filter version

The aspirated air will be degreased and deodorised before being fed back into the room. In order to use the hood in this version, you have to install a system of additional filtering based on activated charcoal.

Installing your appliance

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 65~cm from electric cookers and 65~cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

Electrical connection

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided witha plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to overcurrent category III, in accordance with installation instructions.

Warning!

Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

The hood is provided with a special power cable; if the cable is damaged, request a new one from Technical Service.

Mounting

Before beginning installation:

• Check that the product purchased is of a suitable size for the chosen installation area.
• Remove the charcoal [] filter/s if supplied (see also relative paragraph). This/these is/are to be mounted only if you want to use the hood in the filtering version.
• Check (for transport reasons) that there is no other supplied material inside the hood (e.g. packets with screws (^) , guarantees (^) , etc.), eventually removing them and keeping them.

Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood. Do not tile, grout or silicone this appliance to the wall. Surface mounting only.

Operation

Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking. For certain models, a remote control is available as accessory kit, by which you can control the main functions of the hood. Check with your authorised dealer or technical assistance centre the compatibility/suitability of your model.

Control panel with 7 buttons

To select the functions of the hood you simply touch the controls.

Automatic operation (sen

sor].

Button ON/OFF lighting-

Press briefly to switch on or off the lighting of the hob.

Press and hold to switch on or off the room lighting (only on certain models).

Button for intensive speed (suction power) selection - it

lasts 5 minutes then it re-

turns to medium speed (suction power).

Button for high speed (suction power) selection - The

button flashes if the delayed

shutdown of the hood is activated (only with remote control).

2 Button for medium speed (suction power) selection -

The button flashes if the delayed shutdown of the hood is activated (only with remote control).

1 Button for low speed (suction power) selection - The

button flashes if the delayed shutdown of the hood is activated (only with remote control).

Button OFF motor (stand by)

Indicators of filter saturation

At regular time intervals, the hood signals the need to perform filter maintenance.

Button on with steady light: perform grease filter maintenance.

Button 4 flashing: perform activated charcoal filter maintenance.

Note:

• Filter saturation signal is visible within the first minute after switching off the hood; within this time, the reset of saturation indicators must be performed.

Operation

Reset of filter saturation indicators:

Press and hold the button

Activation of saturation indicator activated charcoal filter

Note:

This operation must be performed with the hood off.

This indicator is normally deactivated; press and

hold the button to activate the function: the button lights up with steady light.

To deactivate the function, press and hold the

button : the button lights up flashing.

Automatic operation (sensor)

Attention!

The proper operation of the hood will depend on the 'Setting of parameters for Automatic Operation' (see dedicated section)

Press the button lights up in white).

The hood will switch on at the most suitable speed based on the cooking fumes detected by the sensor on the hood.

Setting of parameters for Automatic Operation

Note:

• All calibration, selection, setting and logical connection operations described below can be performed with the hood off (OFF).

The adjustment of parameters is regularly done automatically every time the hood is reconnected to the mains (e.g. with the first installation or after a blackout) or manually.

Manual setting

To be performed when you notice unsatisfactory functioning of the Automatic operation, and is done when normal environmental conditions persist in the kitchen.

Manual setting includes:

• Hood calibration
• Selection of hob (gas, induction, or electric)

Hood calibration

Press and hold the button, all button LEDs flash to indicate initiation of calibration; the process will last for approximately 5 minutes. Selection of the hob (gas, induction, or electric)

Press and hold simultaneously the

1 2 buttons and buttons 1 2 3, and start flashing for 5 seconds.

Operation

Within this timeframe, press:

1 in case of gas hob
2 in case of electric hob
3 in case of induction hob

The preselected button remains lit to indicate the selection was performed, after 10 seconds the button flashes briefly to indicate that the performed selection was recorded.

Cleaning mode

Exclude electronic components:

press and for 5 seconds, buttons start flashing to indicate that you are in "Cleaning mode" and it is therefore possible to perform filters' maintenance or access the motor compartment.

Press the button for 5 seconds to exit the "Cleaning mode" function.

Cleaning and maintenance

Cleaning

Clean using ONLY the cloth dampened with neutral liquid detergent. DO NOT CLEAN WITH TOOLS OR INSTRUMENTS. Do not use abrasive products. DO NOT USE ALCOHOL!

Grease filter

Fig. 9-14

Traps cooking grease particles.

This must be cleaned once a month (or when the filter saturation indication system - if envisaged on the model in possession - indicates this necessity) using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle.

When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

To remove the grease filter, pull the spring release handle.

Charcoal filter (filter version only)

Fig.13

It absorbs unpleasant odours caused by cooking.

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least every four months (or when the filter saturation indication system - if envisaged on the model in possession - indicates this necessity). The charcoal filter may NOT be washed or regenerated.

Circular carbon filter

Apply one on each side as cover to both the shield grids of the motor impeller, then turn clockwise. For the disassembly, turn counterclockwise.

Replacing lamps

The hood is equipped with a lighting system based on LED technology. The LEDs guarantee an optimum lighting, a duration up to 10 times as long as the traditional lamps and allow to save 90% electrical energy.

For replacement, contact the technical service.
