USER MANUAL KA 4822 SEVERIN

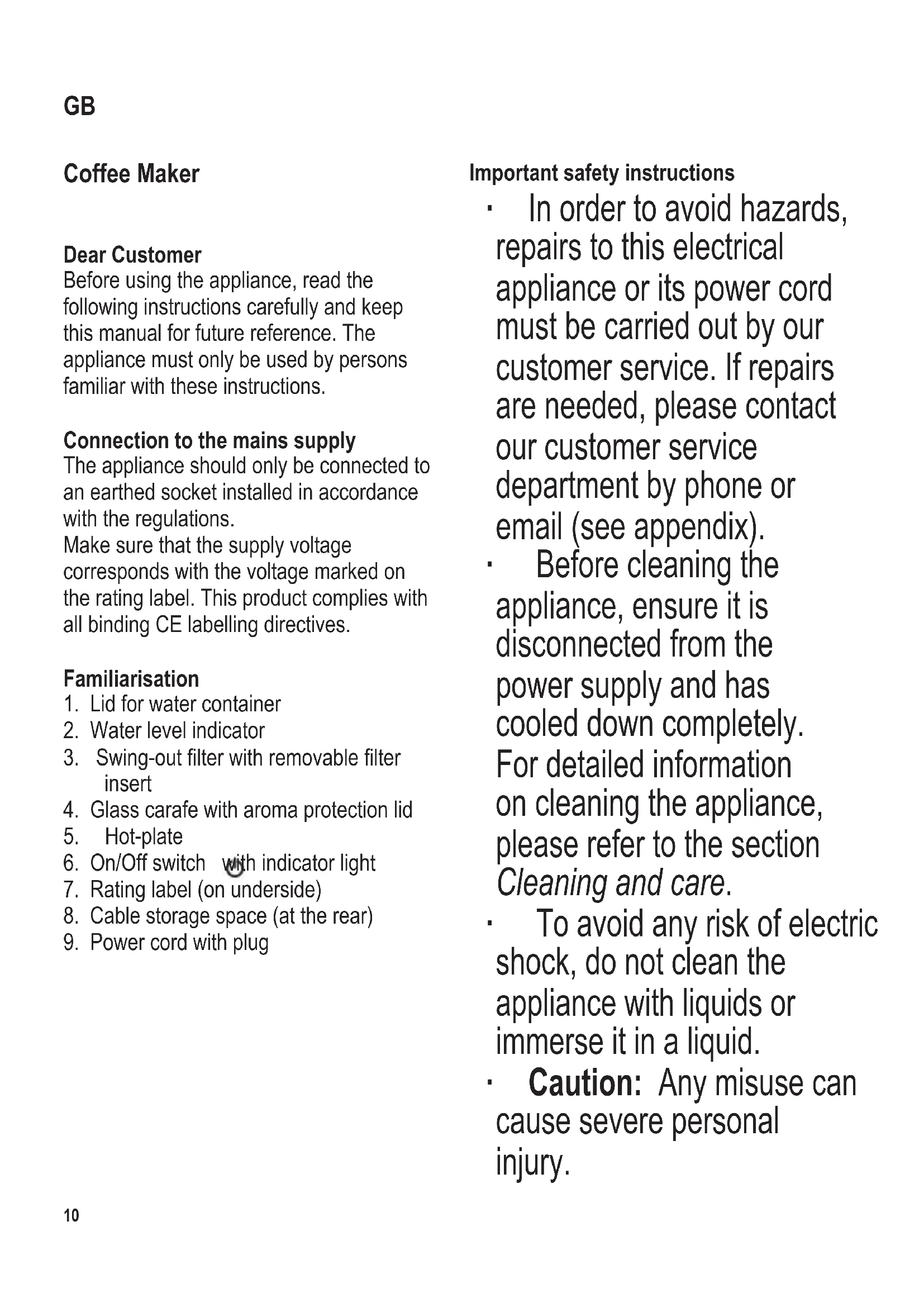

1. Lid for water container

6. On/Off switch with indicator light

7. Rating label (on underside)

8. Cable storage space (at the rear)

9. Power cord with plug

Important safety instructions ∙ In order to avoid hazards, repairs to this electrical appliance or its power cord must be carried out by our customer service. If repairs are needed, please contact our customer service department by phone or email (see appendix). ∙ Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely. For detailed information on cleaning the appliance, please refer to the section Cleaning and care. ∙ To avoid any risk of electric shock, do not clean the appliance with liquids or immerse it in a liquid. ∙ Caution: Any misuse can cause severe personal injury. GB104 x 142 mm

∙ Caution: The hot-plate heats up during use and will remain hot for some time afterwards. ∙ This appliance is intended for domestic or similar applications, such as - in staff kitchens in shops, ofcesandothersimilar working environments, - in agricultural working environments, - by customers in hotels, motels etc. and similar accommodation, - in bed-and breakfast type environments. ∙ This appliance may be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, provided they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved. ∙ Children must not be permitted to play with the appliance. ∙ Children must not be permitted to carry out any cleaning or maintenance work on the appliance unless they are supervised and at least 8 years of age. ∙ The appliance and its power cord must be kept well away from children under 8 at all times. ∙ Caution: Keep any packaging materials well away from children – these are a potential source of danger, e.g. of suffocation. ∙ Every time the appliance is used, the main body including the power cord as wellasanyattachmentttedshould be checked thoroughly for any defects. Should the appliance, for instance, have been dropped onto a hard surface, or if excessive force has been used to pull the power cord, it must no longer be12 104 x 142 mm used: even invisible damage may have adverse effects on the operational safety of the appliance. ∙ During operation, the coffee maker must be placed on a level, non-slip surface, impervious to splashes and stains. ∙ Do not allow the appliance or its power cord to touch hot surfaces or to come into contact with any heat sources. ∙ To prevent the danger of hot water or steam being emitted, always switch off thecoffeemakerandallowsufcient time for the appliance to cool down before it is opened or any accessories or attachments are removed. ∙ Do not leave the appliance without supervision while it is connected to the mains. ∙ Always remove the plug from the wall socket - in case of any malfunction, - after use, and also - before cleaning the appliance. ∙ When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself. ∙ Do not allow the power cord to hang free; the cord must be kept well away from hot parts of the appliance. ∙ No responsibility will be accepted if damage results from improper use, or if these instructions are not complied with. Automatic switch-off To save energy, the appliance (including the hot-plate) will switch itself off automatically about 35 minutes after the brewing cycle is complete. Before using for the rst time Beforemakingcoffeeforthersttime, let the appliance go through two or threeltrationcyclesusingtheindicated maximum amount of cold water, but without using ground coffee. This should also be done if the appliance has not been used for an extended period of time, and after descaling. General information ∙ A measuring scale on the water container and on the glass carafe facilitatesllingthecontainerwiththe correct amount of clean water. The left scale is used for regular-sized cups of approx.125 ml, while the right scale is used for smaller cups. Make sure that the indicated maximum amount of water is not exceeded. ∙ If several consecutive brewing cycles are required, switch off the coffee maker after each cycle and let the appliance cool down for approx. 5 minutes. ∙ Important note:Whenllingthe appliance with fresh water shortly after a brewing cycle is completed, there is a danger of scalding from hot water or steam escaping through the water outlet. Making coffee ∙ Filling with water: Openthewatercontainerlid,llthe container with the desired quantity of water and replace the lid. ∙ Inserting the paper lter: Opentheswing-outltersidewaysand insert a size-4paperlterintothelter104 x 142 mm

holder,rstfoldingdowntheperforated sidesofthelter. ∙ Filling with ground coffee: For each regular-sized cup (125 ml), a measure of about 6 g (= 1½ - 2 teaspoons) ofmediumornelygroundcoffeewill berequired.Closetheswing-outlter afterwards. ∙ Preparing the glass carafe: Fit the aroma protection lid onto the carafe, and then place the carafe into the appliance. If correctly inserted, the lid will disablethedrip-stopmechanisminthelter holder during the brewing cycle. ∙ Starting the brewing cycle: Insert the plug into a suitable wall socket and use the On/Off switch to turn the coffeemakeron.Theltrationcyclestarts andthewaterpassesthroughthelter. ∙ Removing the glass carafe: Wait until all the water has passed through thelterbeforethecarafeisremovedfrom the appliance. ∙ Switching off the coffee maker: The coffee may be kept warm inside the carafe by leaving it standing on the hot- plate. Once the last cup has been poured, press to switch the coffee maker off. Unless the appliance is switched off manually, the hot-plate remains hot for around 35 minutes after the brewing cycle, when the appliance will switch itself off automatically. Always switch off the appliance after use and remove the plug from the wall socket. Cleaning and care ∙ Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely. ∙ To avoid any risk of electric shock, do not clean the coffee maker with liquids or immerse it in a liquid. The appliance may be cleaned with a slightly damp cloth, using a mild detergent. Wipe dry afterwards. ∙ Do not use abrasives or harsh cleaning solutions. ∙ To remove the coffee grounds, open theswing-outlterandliftoutthelter insert. Dispose of the coffee grounds (as a natural substance, they may be composted). ∙ Rinseoutthelterinsert,wipeitdryand replace it. ∙ Closetheswing-outlter. ∙ Thecarafewithlidandthelterinsert may be cleaned with warm water or in a dishwasher after use. ∙ For easy cleaning, open the carafe lid and remove it by pulling it up. Replace it after cleaning, applying light pressure. Descaling ∙ Depending on the water quality (lime content) in your area as well as the frequency of use, all thermal household appliances using hot water need descaling (i.e. removal of lime deposits) on a regular basis to warrant proper functioning. ∙ Any warranty claim will be null and void if the appliance malfunctions because of insufcient descaling. ∙ A lengthening of the brewing time,14 104 x 142 mm increased noise during brewing or residual water remaining in the container indicate that descaling has become necessary. ∙ An excessive build-up of lime deposits isverydifculttoremove,evenwhen strong descaling agents are used. It may also cause the brewing system to leak. We therefore strongly recommend descaling the appliance after each thirty to forty brewing cycles. For descaling, a vinegar solution may be used as follows: ∙ Mix 80 ml of vinegar essence with the indicated maximum amount of cold water. ∙ Pour the descaling solution into the watercontainer,insertapaperlter intothelterholderwithout adding any ground coffee as described in section Making coffee, and let the appliancerunthroughoneltration cycle. Repeat the procedure if necessary. During descaling, ensure sufcientventilationanddonotinhale any vinegar vapours. ∙ To clean the appliance after descaling, letitrunthrough2-3ltrationcycles using clean water only. ∙ Do not pour descalers down enamel sinks. Disposal Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials which can be recycled. Proper disposal protects the environment and human health. Your local authority or retailer can provide information on the matter. Guarantee This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that ithasnotbeenmodied,repairedor interfered with by any unauthorised person, or damaged through misuse. This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.104 x 142 mm

5. Plaque chauffante
