USER MANUAL KV 1120 SM ECG

Digital ECG kitchen scale with digital display showing temperature reading (no text or symbols on main body)

KV 1120 SM

CZ

DIGITÁLNÍ KUCHYŇSKÁ VÁHA NÁVOD K OBSLUZE

SK

DIGITÁLNA KUCHYNSKÁ VÁHA NÁVOD NA OBSLUHU

PL

CYFROWA WAGA KUCHENNA INSTRUKCJA OBSŁUGI

HU

DIGITÁLIS KONYHAI MÉRLEG HASZNÁLATI ÚTMUTATÓ

DE

DIGITAL KITCHEN SCALE INSTRUCTION MANUAL

HR/BIH

DIGITALNA KUHINJSKA VAGA UPUTE ZA UPORABU

SI

DIGITALNA KUHINJSKA TEHTNICA NAVODILA

SR/MNE

DIGITALNA KUHINJSKA VAGA UPUTSTVO ZA UPOTREBU

FR

BALANCE DE CUISINE NUMERIQUE MODE D'EMPLOI

IT

BILANCIA DA CUCINA DIGITALE MANUALE DI ISTRUZIONI

ES

BALANZA DIGITAL DE COCINA MANUAL DE INSTRUCCIONES

ET

DIGITAALNE KÖÖGIKAAL KASUTUSJUHEND

LT

SKAITMENINĖS VIRTUVĖS SVARSTYKLĖS INSTRUKCIJŲ VADOVAS

LV

DIGITĀLI VIRTUVES SVARI ROKASGRĀMATA

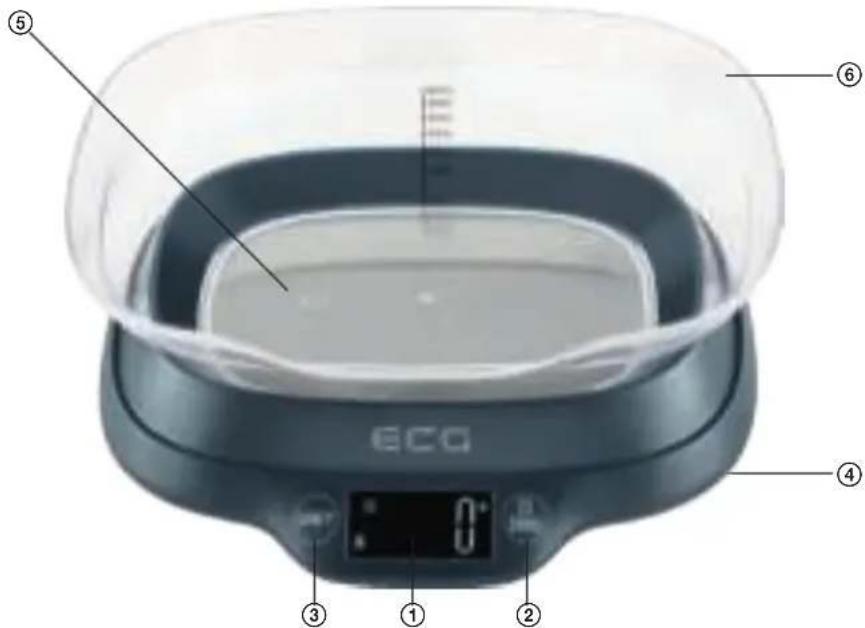

POPIS / POPIS / OPIS / A KÉSZÜLÉK RÉSZEI / BESCHREIBUNG / DESCRIPTION / OPIS / OPIS / OPIS / DESCRIPTION / DESCRIZIONE / DESCRIPCIÓN / KIRJELDUS / APRAŠYMAS / APRAKSTS

ECO ① ② ③ ④ ⑤ ⑥

CZ

1. LCD display
2. ZERO button
3. UNIT button
4. Battery compartment cover
5. Weighing surface
6. Weighing bowl

HR/BIH

1. LCD zaslon
2. Tipka ⏻/ZERO
3. Tipka UNIT
4. Poklopac pretinca za baterije
5. Ploha za vaganje
6. Posuda za mjerenje

SI

1. LCD zaslon
2. Tipka ⏻/ZERO
3. Tipka UNIT
4. Pokrov predala za baterije
5. Tehtalna površina
6. Posodica za tehtanje

SR/MNE

1. LCD ekran
2. Taster ⏻/ZERO
3. Taster UNIT
4. Poklopac odeljka za baterije
5. Površina vage
6. Posuda za merenje

FR

Do not immerse in water! – Neponořovat do vody!

Výměna baterie

Read carefully and save for future use!

Warning: The safety instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. Therefore, these factors shall be ensured by the user/s using and operating this product. We are not liable for damages caused during shipping, by incorrect use, or the modification or adjustment of any part of the appliance.

Fundamental precautions shall be observed when using the product, including the following:

GB

1. The digital kitchen scale is intended for domestic use only.
2. All servicing should be done by qualified service center!
3. Do not use the scale near devices with electromagnetic fields. Place the scale far enough from this type of device to prevent mutual interference.
4. The scale is designed to weigh food or liquids.
5. The scale should be placed on an even, hard and stable surface (not on a carpet, the weighing would be inaccurate).
6. Do not expose the scale to impacts, shocks and do not allow the scale to fall to the ground.
7. The scale is an accurate device which must be carefully handled.
8. Household pets should not be weighed on the scale.
9. Use the scale only in accordance with the instructions given in this manual.
10. The manufacturer is not liable for damages caused by the improper use of this device.
11. This appliance can be used by children aged eight and older and by the physically, sensory or mentally impaired or by individuals with insufficient experience and knowledge, if supervised or trained to use the appliance in a safe manner and understand potential dangers. Children shall not play with the appliance. Cleaning and maintenance operations performed by the user shall not be

carried out by children, if they are not older than 8 years and under supervision.

Do not immerse in water!

Battery replacement

1. First, remove the packaging foil from the new batteries.
2. Open the battery compartment cover on the bottom of the scale.
3. Remove the discharged batteries, use a suitable object if necessary.
4. Insert new batteries, always first with one end, then push down the other end. Close the cover of the battery compartment. Make sure the polarity is correct.

Note: If an error appears on the display or you fail to switch off the scale for a longer period of time, please remove the batteries for about 3 seconds and insert again. If this does not resolve the problem, please ask your vendor for advice on how to fix your issue.

AA/AAA AA/AAA

Fig. 1

GB

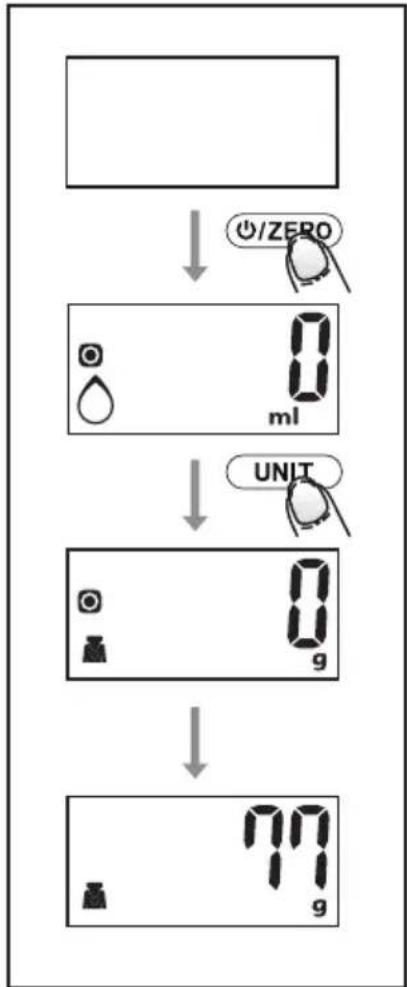

WEIGHING MODE

1. The scale should be placed on a flat, hard and stable surface.
2. Before turning the scale on, place a kitchen bowl on the weighing platform (if you want to use it).
3. Touch the button ⏻/ZERO to turn on the weighing mode.
4. Wait until "0" appears on the LCD display and start weighing. Press the UNIT button to select the weight and unit measure mode.
5. Place the weighed item on the scale (in the bowl), and the LCD display shows the measured weight of the item.
6. If the weighed item is liquid water/milk, use the UNIT button to select the water/milk volume measuring mode and the detected volume of the weighed item is displayed.


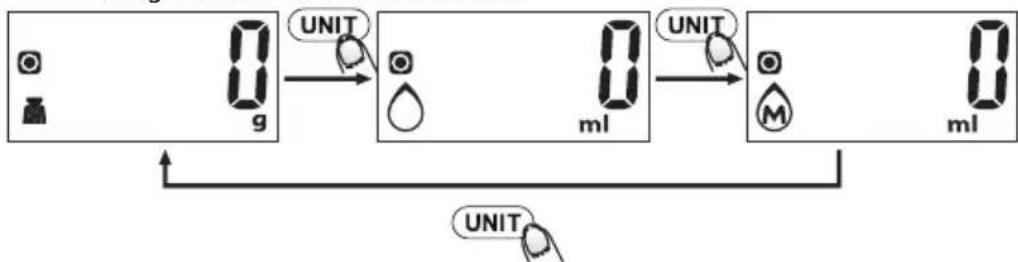

Unit conversion

This digital kitchen scale allows you to weigh using the metric system (g, ml) or in the Anglo-American system (lb:oz, fl'oz). Use the UNIT button (weight, volume of milk, volume of water) to get the desired unit - see figure 2.

Weight Water volume Milk volume

Fig. 2

Long press the UNIT button to select the weighing system - metric (g, ml) or Anglo-American (lb: oz, fl'oz).

Display of liquid volume (milk, water)

1. Place the container on the weighing platform.

2. Touch the button ⏻/ZERO to reset the weight of the container, the display shows "0". Use the UNIT button to select the water/milk volume measuring mode. Place the liquid container on the scale. Press the button ⏻/ZERO and reset; LCD display "0".

3. Pour the liquid into the container, the display shows the volume of the liquid (water/milk).

4. To display the weight of the liquid press the button UNIT and select the weight measuring mode. The LCD display shows the weight of the liquid.

Weight addition and tare function

These functions are used for measuring the weight of batches, gradually added to the previous amounts that remain on the scale. Place the first batch on the scale and its weight will be shown on the display. Before placing another batch on the scale, touch the button ⏻/ZERO to reset the value on the display ("0"). This action can be performed repeatedly.

Each time you press the button ⏻/ZERO and the LCD display shows “ ---- ” or “0g”. “ ---- ” it means unstable status, please wait a few moments. During the “0g” display, the “O” or “T” (depending on weight) icon in the upper left corner of the display lights up to indicate that the additional batch or tare function is active. In case of additional batch the max. capacity does not change. In the case of tare, the maximum capacity is reduced by the total weight of all batches on the scale.

If the total weight of all batches is less than 200 g, the additional weight function is automatically used. If the total weight for all batches on the scale is higher than 200 g, the TARE function will be used automatically. Press the button ⏻/ZERO to display the total weight of all the batches on the scale. If you want to weigh another batch, press ⏻/ZERO and again reset the LCD display to "0".

Note: You can turn off the scale using either the button/ZERO or it turns itself off automatically in 2 minutes.

Warning Alerts

1. The batteries are empty, replace them.

2. Scale overload – max. load 5 kg is stated on the scale. Please remove the weighed batch from the scale to avoid damage.

MAINTENANCE AND CLEANING

1. Use a damp towel to clean the scale and make sure no water gets inside the scale. DO NOT USE chemical cleaning agents/agents with abrasive effect. Do not immerse the device into water!

2. All plastic parts that come into contact with greasy substances, such as spices, vinegar or seasoning, shall be cleaned immediately. Avoid getting citrus acid stains on the scale!

3. Keep the scale in a level position.

TECHNICAL DATA

Maximum weight up to 5 kg

Measures in increments of 1 g

Power supply 2×1,5 V AAA batteries (not included)

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

08/05

The instruction manual is available at website www.ecg-electro.eu.

Changes in text and technical parameters reserved.
