Nikkor AFS VR ZoomNikkor 70300mm f4.55.6G IFED - Camera lens NIKON - Free user manual and instructions

Product type	Photo lens
Brand	Nikon
Model	Nikkor AF-S VR Zoom-Nikkor 70-300mm f/4.5-5.6G IF-ED
Focal length	70 mm - 300 mm
Maximum aperture	f/4.5 (at 70 mm) - f/5.6 (at 300 mm)
Optical construction	17 lenses in 12 groups (2 ED elements)
Angular field	34°20' - 8°10' (FX), 22°50' - 5°20' (DX)
Minimum focusing distance	1.5 m (at all zoom settings)
Number of diaphragm blades	9 (circular)
Aperture range	f/4.5 to f/32 (70 mm), f/5.6 to f/40 (300 mm)
Accessory attachment diameter	67 mm (P = 0.75 mm)
Dimensions (diameter x length)	Approx. 80 mm x 143.5 mm
Weight	Approx. 745 g
Focus type	Autofocus (Silent Wave Motor) with manual override (M/A) and manual (M)
Vibration reduction	Yes, NORMAL and ACTIVE modes, gain of 2.5 shutter speed stops
Supplied accessories	LC-67 front cap, rear cap, HB-36 lens hood, CL-1022 case
Mount compatibility	Nikon bayonet mount (FX/DX and film SLRs)

Frequently Asked Questions - Nikkor AFS VR ZoomNikkor 70300mm f4.55.6G IFED NIKON

How to activate vibration reduction on this lens?

Set the vibration reduction ON/OFF switch (16) to ON, then select NORMAL or ACTIVE mode using the switch (15). Vibration reduction activates as soon as you lightly press the shutter button.

What focus modes are available?

The lens offers two modes: M/A (autofocus with manual override) and M (manual focus). Select via the switch (17).

Can I use this lens with a Nikon DX digital SLR?

Yes, it is compatible. The equivalent focal length in 35mm format becomes approximately 105-450 mm and the angular field 22°50' - 5°20'.

How to attach and remove the HB-36 lens hood?

Align the lens hood attachment index with the mounting index on the lens, then rotate clockwise until it clicks. To remove, rotate counterclockwise while holding the base.

What is the minimum focusing distance?

The minimum distance is 1.5 m from the focal plane, regardless of the zoom setting.

Can I use a teleconverter with this lens?

No, teleconverters (all models) are incompatible. The use of other accessories such as PK extension rings may not work.

How to clean the lens elements?

Use a blower brush to remove dust, then a soft cloth slightly dampened with ethyl alcohol, wiping from the center outward. Avoid solvents and benzene.

What to do if the lens makes a clicking sound after removal?

This is normal if the camera was turned off while vibration reduction was enabled. Turn the camera on again to eliminate the noise.

Is the lens suitable for infrared photography?

Yes, in manual mode. Focus, then rotate the ring to align the distance with the infrared correction index (13) according to the focal length. Use a red R60 filter.

What is the compatible filter diameter?

The attachment diameter is 67 mm (thread pitch 0.75 mm). All 67 mm screw-in filters are compatible.

USER MANUAL Nikkor AFS VR ZoomNikkor 70300mm f4.55.6G IFED NIKON

User's Manual (PP. 14 – 27)

Technical diagram of a mechanical component with numbered parts labeled 1 to 4

① Nikon ① ②

① D5 Nikon ②

⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ Nikon VR M/A M ON VR OFF NORMAL ACTIVE ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑪ M/A

A ft 151210 8 m 5 4 3 70 ⑬ ⑭ ⑮

M/A M ON VR OFF NORMAL ACTIVE 17 16 15 B

安全上のご注意

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or assembly.

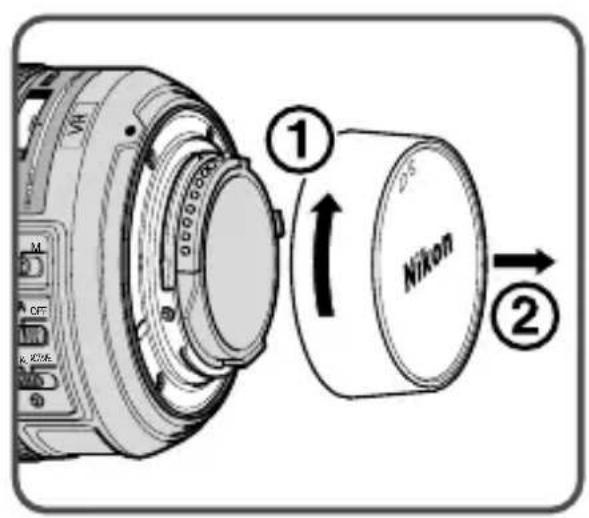

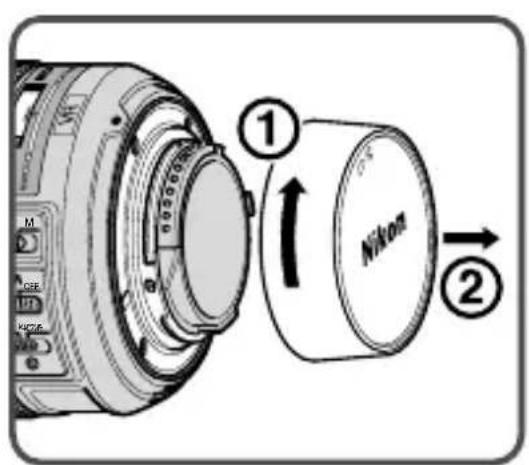

■取り外し方

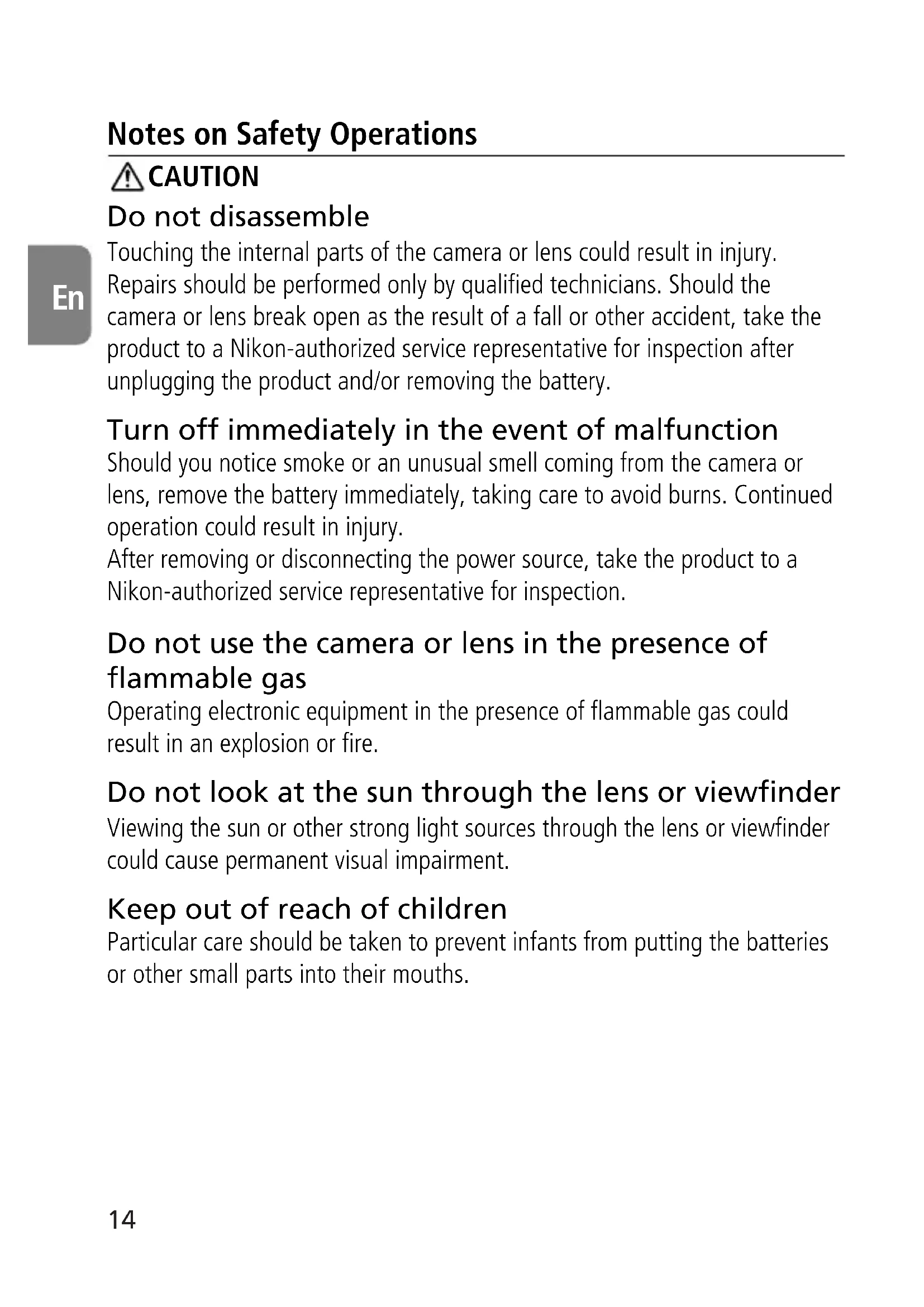

Touching the internal parts of the camera or lens could result in injury. Repairs should be performed only by qualified technicians. Should the camera or lens break open as the result of a fall or other accident, take the product to a Nikon-authorized service representative for inspection after unplugging the product and/or removing the battery.

Turn off immediately in the event of malfunction

Should you notice smoke or an unusual smell coming from the camera or lens, remove the battery immediately, taking care to avoid burns. Continued operation could result in injury.

After removing or disconnecting the power source, take the product to a Nikon-authorized service representative for inspection.

Do not use the camera or lens in the presence of flammable gas

Operating electronic equipment in the presence of flammable gas could result in an explosion or fire.

Do not look at the sun through the lens or viewfinder

Viewing the sun or other strong light sources through the lens or viewfinder could cause permanent visual impairment.

Keep out of reach of children

Particular care should be taken to prevent infants from putting the batteries or other small parts into their mouths.

Observe the following precautions when handling the camera and lens

• Keep the camera and lens unit dry. Failure to do so could result in fire or electric shock.
• Do not handle or touch the camera or lens unit with wet hands. Failure to do so could result in electric shock.
• When shooting with back-lighting, do not point the lens at the sun or allow sunlight to pass directly down the lens as this may cause the camera to overheat and possibly cause a fire.
• When the lens will not be used for an extended period of time, attach both front and rear lens caps and store the lens away from direct sunlight. Failure to do so could result in a fire, as the lens may focus sunlight onto a flammable object.

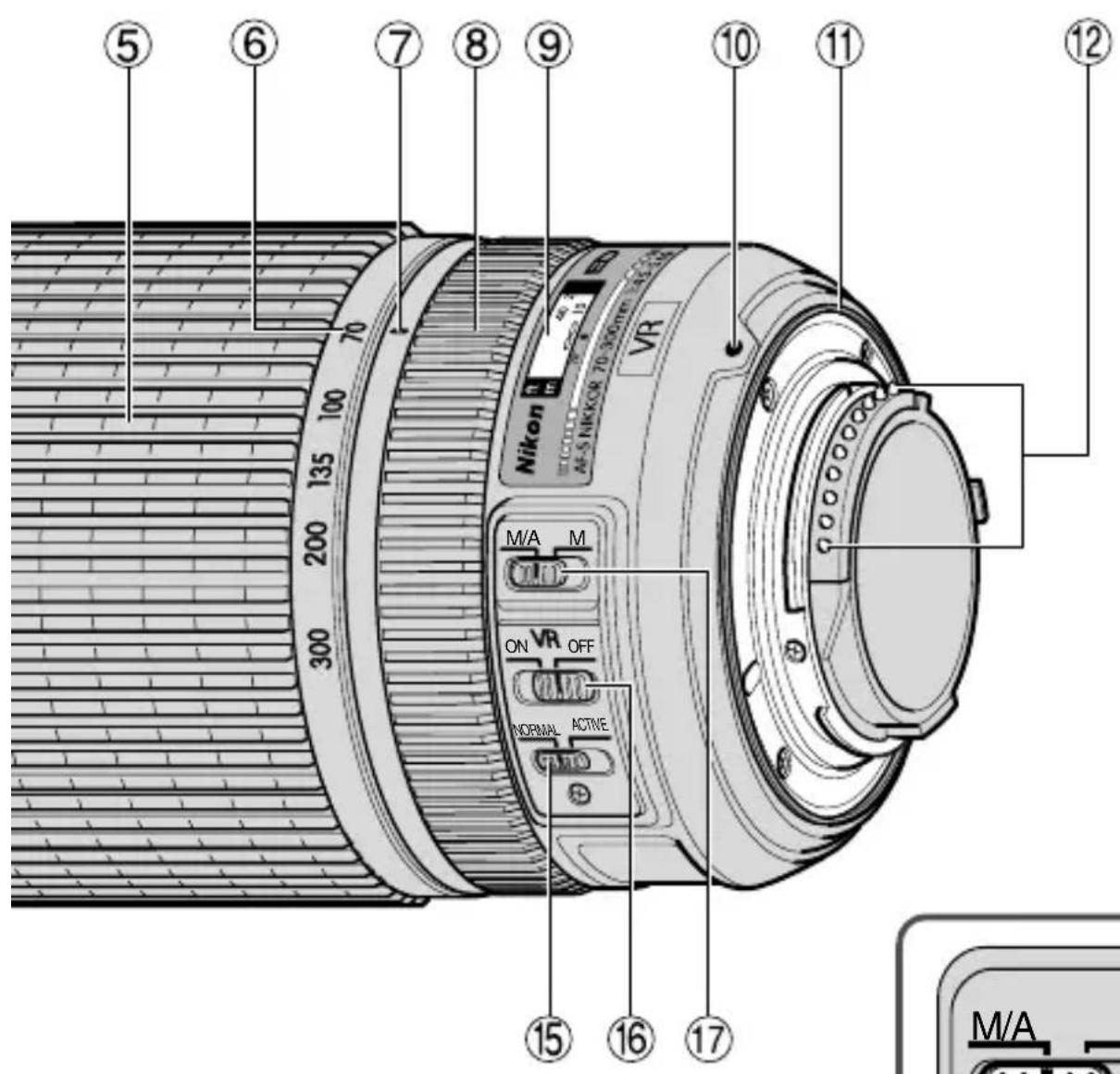

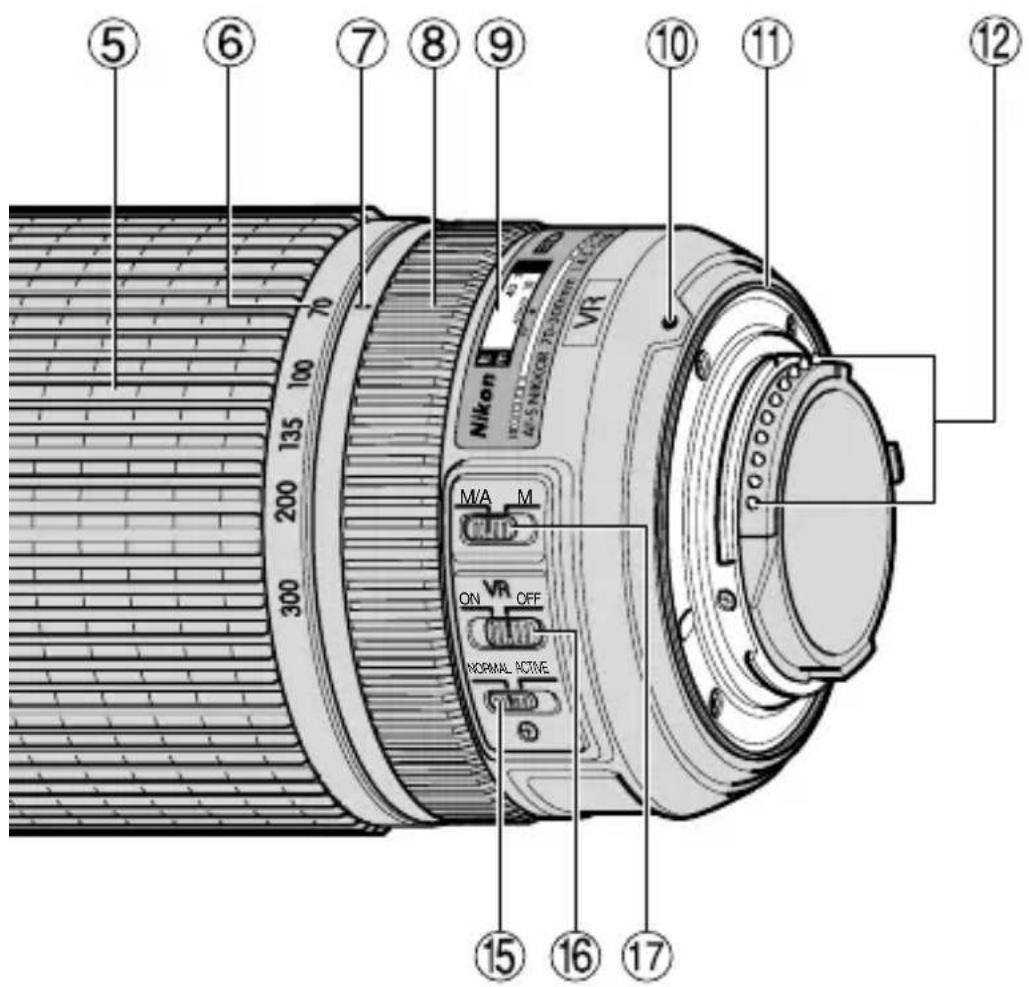

Nomenclature ( ): Reference page

① Lens hood (p.23)
② Lens hood attachment index (p.23)
③Lens hood setting index (p.23)
④ Lens hood mounting index (p.23)
⑤Zoom ring (p.22)
⑥Focal length scale
⑦Focal length index line
⑧ Focus ring (p.19)
⑨ Distance scale
⑩Mounting index

⑪ Lens mount rubber gasket (p.18)
⑫CPU contacts (p.18)
⑬ Infrared compensation index (at 70mm) (p.19)
⑭ Distance index line
⑮Vibration reduction mode switch (p.21)
⑯Vibration reduction ON/OFF switch (p.21)
⑰ Focus mode switch (p.19)

Usable cameras and available functions

There may be some restrictions or limitation for available functions. Refer to your camera user's manual for details.

Cameras	Function		Exposure mode
	Vibration reduction	Autofocus	P*1	S	A	M
Nikon digital SLR (Nikon FX/DX format) cameras	○	○		○		○
F6, F5, F100, F80-Series/N80-Series*, F75-Series/N75-Series*, F65-Series/N65-Series*	○	○		○		○
Pronea 600i/6i*, Pronea S*2	×○	○	○		○	○
F4-Series, F90X/ N90s*, F90-Series/N90*, F70-Series/N70*	×○	○	○		×	×
F60-Series/ N60*, F55-Series/N55-Series*, F50-Series/N50*, F-401x/N5005*, F-401s/ N4004s*, F-401/N4004*	×	×	○	○	○	○
F-801s/N8008s*, F-801/N8008*, F-601M/N6000*	×	×		○	○	×
F3AF, F-601/N6006*, F-501/N2020**, Nikon MF cameras (except F-601M/N6000*)	×	×		×		×

○: Possible ×: Impossible

*Sold exclusively in the USA. **Sold exclusively in the USA and Canada.

*1 P includes AUTO (General-Purpose Program) and Vari-Program System.

*2 Manual (M) is not available.

- If this lens is used with cameras not compatible with vibration reduction, set the vibration reduction ON/OFF switch ⑯ to [OFF]. With a Pronea 600i/6i camera, in particular, battery power may become quickly depleted if this switch is left [ON].

1. Introduction

Thank you for purchasing the AF-S VR Zoom-Nikkor 70-300mm f/4.5-5.6G IF-ED lens. This is a high-performance zoom lens featuring special Vibration Reduction and high-speed Internal Focusing (IF) mechanisms. It also employs a Silent (S) Wave Motor to drive the focusing mechanism.

■ Major features

• Pictures can be taken at shutter speeds 2.5 stops* slower than is possible without using a VR lens, thus expanding the range of usable shutter speed options and making shooting without a tripod at various zoom settings much easier. (*The effects of VR on shutter speed are measured according to Camera and Imaging Products Association (CIPA) standards; FX-format lenses are measured using FX-format digital cameras, DX-format lenses using DX-format cameras. Zoom lenses are measured at maximum zoom.)
• Two vibration reduction modes are available: (1) the [NORMAL] mode for reducing camera shake, and (2) the [ACTIVE] mode for reducing camera shake when taking pictures from a moving vehicle.
• Panning is also possible, as the lens automatically distinguishes panning from camera shake (in [NORMAL] mode) and vibration reduction works effectively.
• Autofocus (A) or manual (M) mode can easily be selected with the Focus mode switch.
• Autofocusing with manual override is provided, allowing instant change from autofocusing to manual focusing.
• More accurate exposure control is possible when this is mounted on a Nikon camera having 3D Matrix Metering capability, because subject distance information is transferred from the lens to the camera body.
• The use of two ED (extra-low dispersion) lens elements ensures sharp pictures virtually free of color fringing. Also, by utilizing a 9-blade diaphragm that produces a nearly circular aperture, out-of-focus images in front of or behind the subject are rendered as pleasing blurs.

■ Important

• Be careful not to soil or damage the CPU contacts ⑫.
• When mounted on Nikon DX format digital SLR cameras, such as the D300-Series and D7000, the lens' picture angle becomes 22^50' - 5^20' and its 35mm equivalent focal length range is approx. 105mm -450mm.
• If the lens mount rubber gasket ⑪ is damaged, be sure to visit the nearest Nikon authorized dealer or service center for repair.

2. Focusing

Set your camera's focus mode selector according to this chart.

Cameras	Camera's focus mode	Lens' focus mode
		M/A	M
Nikon digital SLR (Nikon FX/DX format) cameras, F6, F5, F4-Series, F100, F90X/N90s*, F90-Series/N90*, F80-Series/N80-Series*, F75-Series/N75-Series*, F70-Series/N70*, F65-Series/N65-Series*, Pronea 600i/6i*, Pronea S	AF	Autofocus with manual priority	Manual focus (Focus assist is available.)
	MF	Manual focus (Focus assist is available.)
F55-Series/N55-Series*, F60-Series/N60*, F50-Series/N50*, F-801s/N8008s*, F-801/N8008*, F-601M/N6000*, F-401x/N5005*, F-401s/ N4004s*, F-401/N4004*	AF MF	Manual focus (Focus assist is available, except with the F-601M/N6000*.)

* Sold exclusively in the USA.

■ Autofocus with manual override (M/A mode)

1 Set the Focus mode switch ⑰ to [M/A].

Note: Be sure to set the switch so that the indicator aligns with [M/A] precisely.

2Autofocus is provided, but you can manually override the focus by operating the separate Focus ring ⑧while

lightly depressing the shutter release button or the AF start (AF-ON) button on the camera.

3To cancel manual override, again lightly depress the shutter release button or the AF start button on the camera. This will return the camera to autofocus mode.

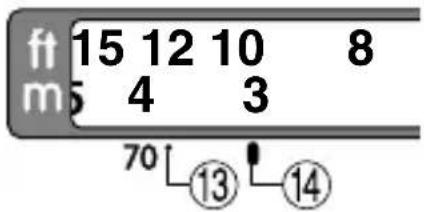

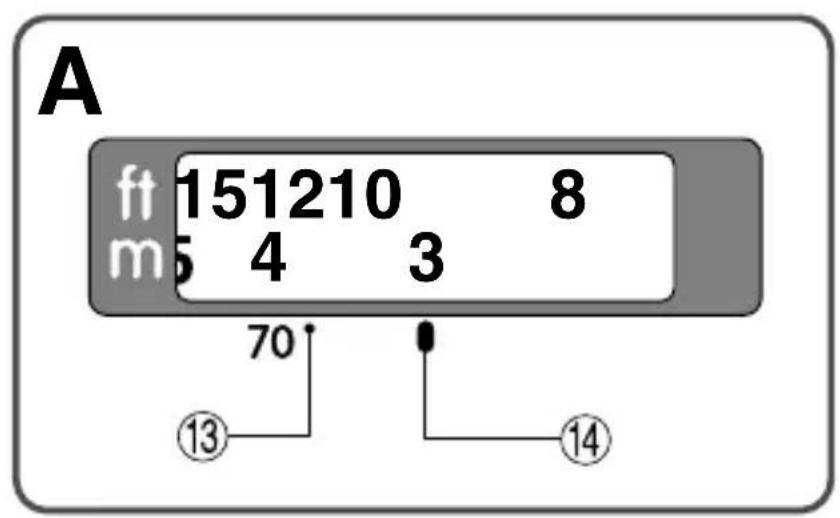

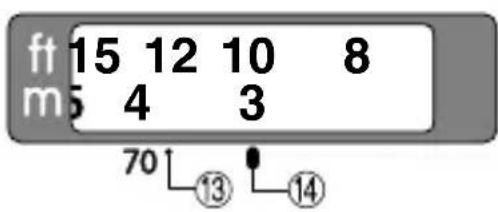

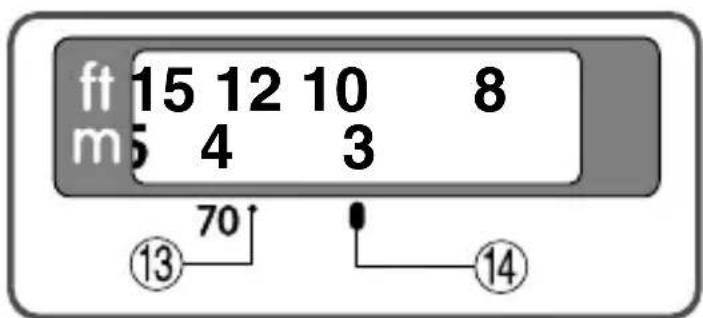

■ Infrared compensation

With infrared film, manual compensation must be made to the focused distance. First, focus manually on the subject. Rotate the focus ring ⑧ to realign the distance scale referring to the table below. Attach a red (R60) filter for infrared photography, and then shoot.

Focal length		Compensation from distance index line 14
70 mm	Shift the distance scale to the infrared compensation index 13. (3.9 mm)
100 mm	1.6 mm
135 mm	0.7 mm
200 mm	0.2 mm
300 mm	0 mm(No compensation is necessary)

Indicator M/A M 17

ft 15 12 10 8 m 5 4 3 70 ⑬ ⑭

3. Vibration reduction mode

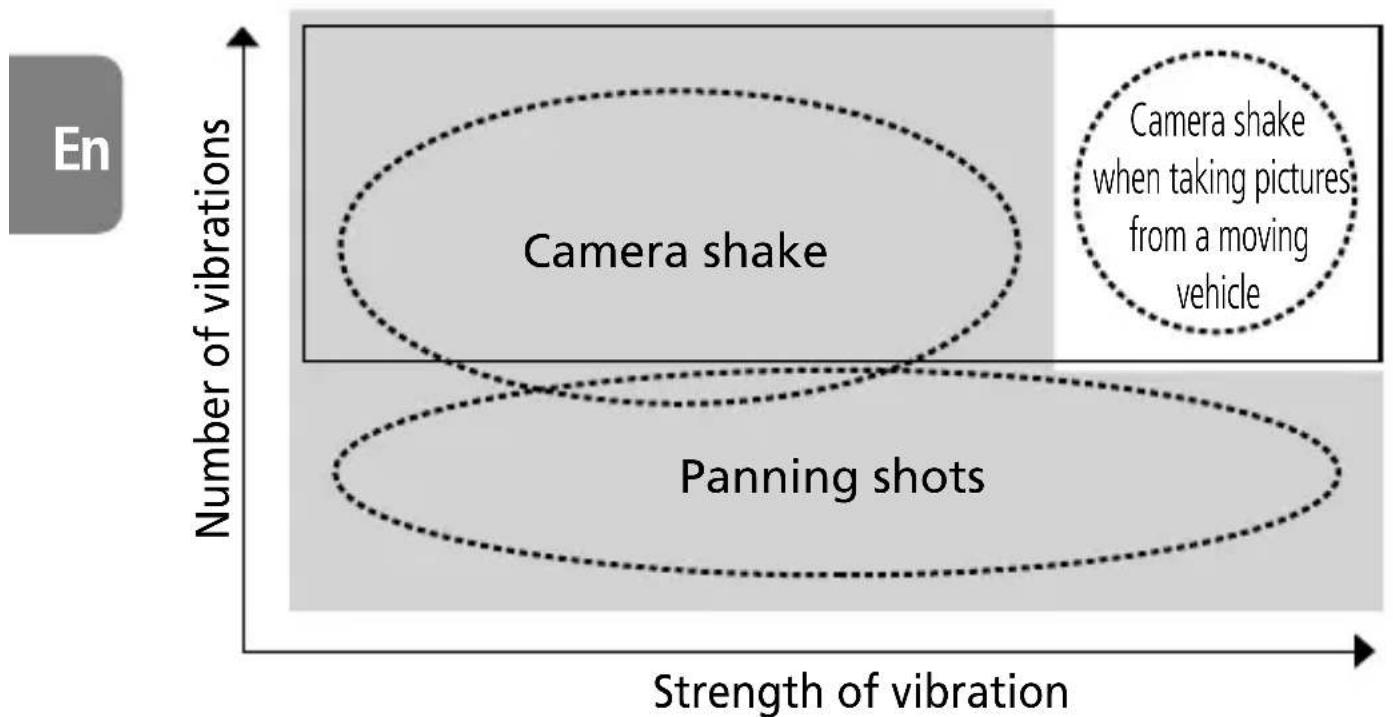

■ Basic concept of vibration reduction

Set the vibration reduction mode switch to [NORMAL].

☐ Set the vibration reduction mode switch to [ACTIVE].

When taking pictures

Set the vibration reduction mode switch to either [NORMAL] or [ACTIVE]

When taking panning shots

Set the vibration reduction mode switch to [NORMAL].

When taking pictures from a moving vehicle

Set the vibration reduction mode switch to [ACTIVE].

■ The effects of vibration reduction

Pictures can be taken at shutter speeds 2.5 stops* slower than is possible without using a VR lens.(*The effects of VR on shutter speed are measured according to Camera and Imaging Products Association (CIPA) standards; FX-format lenses are measured using FX-format digital cameras, DX-format lenses using DX-format cameras. Zoom lenses are measured at maximum zoom.)

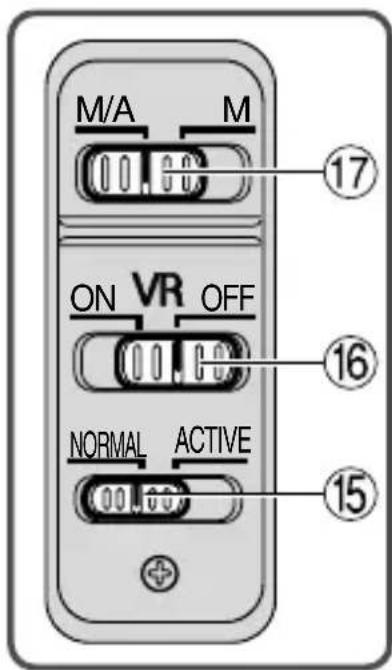

■ Setting the vibration reduction ON/OFF switch

1 Set the Vibration reduction ON/OFF switch ⑯ to [ON]. Note: Be sure to set the switch so that the indicator aligns with [ON] precisely.

2Vibration is reduced when the shutter release button is lightly pressed. Because vibration is reduced in the viewfinder, auto/manual focusing and exact framing of the subject are made easier.

3To cancel the vibration reduction mode, set the Vibration reduction ON/OFF switch ⑯to [OFF].

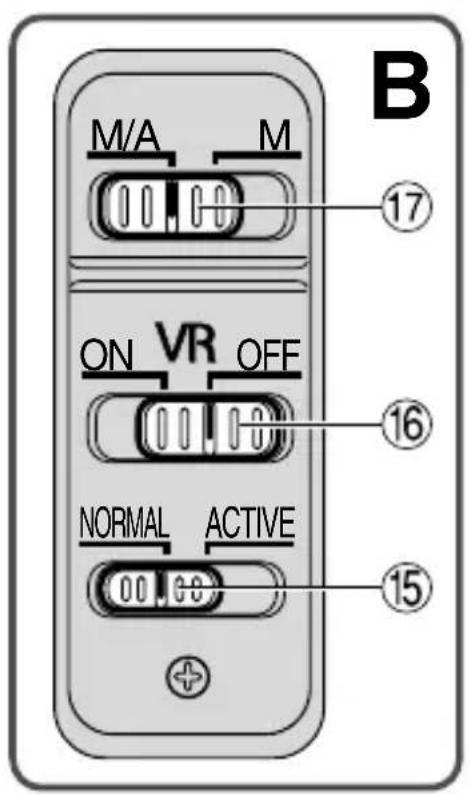

■Setting the vibration reduction mode switch ⑮

NORMAL: The vibration reduction mechanism primarily reduces camera shake, making smooth panning shots possible.

ACTIVE: The vibration reduction mechanism reduces camera shake when taking pictures and those from a moving vehicle. In this mode, the lens does not automatically distinguish panning from camera shake. Note: Be sure to set the switch so that the indicator aligns with [NORMAL] or [ACTIVE] precisely.

Indicator ON VR OFF 16

Indicator NORMAL ACTIVE 15

■Notes on using vibration reduction

• Wait until the image in the viewfinder stops vibrating before fully depressing the shutter release button after you have lightly pressed the shutter release button.
• When taking panning shots, be sure to set the vibration reduction mode switch to [NORMAL]. If you move the camera in a wide arc when panning, vibration in the direction of that movement is not affected. For example, if you pan the camera horizontally, only vibration in the vertical direction is reduced, making smooth pans much easier.

• Due to the characteristics of the vibration reduction mechanism, the image in the viewfinder may become blurred after releasing the shutter. This is not a malfunction.

• Do not turn the camera power OFF or remove the lens from the camera while the vibration reduction mode is in operation. (Otherwise, the lens may emit a chattering noise if the camera is shaken. This is not a malfunction. Turn the camera power ON again to correct this.)

• With cameras featuring a built-in flash, vibration reduction does not function while the built-in flash is charging.
• When the lens is mounted on a tripod, set the vibration reduction ON/OFF switch ⑯ to [OFF]. However, set the switch to [ON] when using a tripod without securing the tripod head, or when using a monopod.

4. Focusing, zooming, and depth of field (p.108)

First turn the zoom ring ⑤ until the desired composition is framed in the viewfinder before focusing. If your camera has a depth of field preview (stop-down) button or lever, depth of field can be observed while looking through the camera viewfinder.

- The distance scale does not indicate the precise distance between the subject and the camera. Values are approximate and should be used only as a general guide.

5. Variable maximum apertures

Zooming the lens from 70mm to 300mm decreases the maximum aperture approx. 2/3 of an f/stop. For cameras with TTL metering, there is no need to adjust the aperture. Likewise, for TTL auto flash photography with Nikon Speedlights, no adjustment is required. When using a separate exposure meter or taking photographs in the non-TTL flash mode, select the appropriate aperture value according to the focal length setting as displayed on the camera.

6. Setting the aperture

Set the aperture on the camera body.

7. Using bayonet hood HB-36 ①

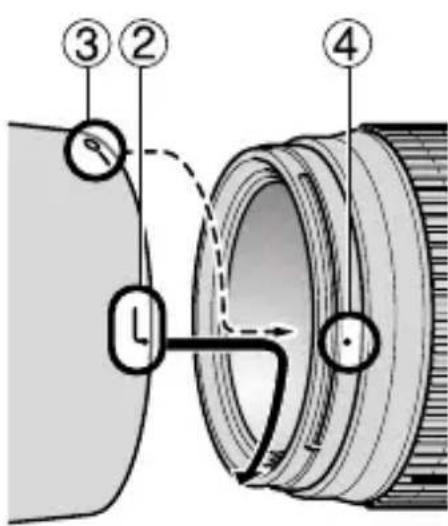

■ Attaching the hood

Align the lens hood attachment index ( )②on the hood (either one of the two indexes) with the lens hood mounting index ④on the lens, and turn the hood ①clockwise until it click stops to secure.

• Make sure that the lens hood mounting index ④ aligns with the lens hood setting index () ③.
• If the lens hood is not correctly attached, vignetting can occur.
• To facilitate attachment or removal of the hood, hold it by its base (around the lens hood attachment index) rather than its outer edge.
• To store the lens hood, attach it in the reverse position.

■ Detaching the hood

While holding the base of the hood (near the lens hood attachment index) rather than its outer edge, turn it counterclockwise to detach.

8. Flash pictures using cameras with a built-in flash

To prevent vignetting, do not use a lens hood ①.

Technical diagram of a camera lens assembly with numbered parts and directional arrows indicating components.

9. Recommended focusing screens

Various interchangeable focusing screens are available for certain Nikon SLR cameras to suit any picture-taking situation. The ones recommended for use with this lens are:

Blank box means not applicable. Since type M screen can be used for both macrophotography at a 1:1 magnification ratio and for photomicrography, it has different applications than other screens.

- When using the B and E focusing screens in cameras other than those listed above, refer to the columns for the B and E screens.

10. Lens care

• Clean the lens surfaces with a blower brush. To remove dirt and smudges, use a soft, clean cotton cloth or lens tissue moistened with ethanol (alcohol) or lens cleaner. Wipe in a circular motion from center to outer edge, taking care not to leave traces or touch other parts of the lens.
• Never use thinner or benzene to clean the lens as this might damage it, result in a fire, or cause health problems.
• To protect the front lens element, an NC filter is available. A lens hood ① also helps protect the front of the lens.

• When storing the lens in its lens case, attach both front and rear caps.

• When the lens will not be used for a long time, store it in a cool, dry place to prevent mold. Also store the lens away from direct sunlight or chemicals such as camphor or naphthalene.

• Do not get water on the lens or drop it in water as this will cause it to rust and malfunction.
• Reinforced plastic is used for certain parts of the lens. To avoid damage, never leave the lens in an excessively hot place.

11. Standard accessories

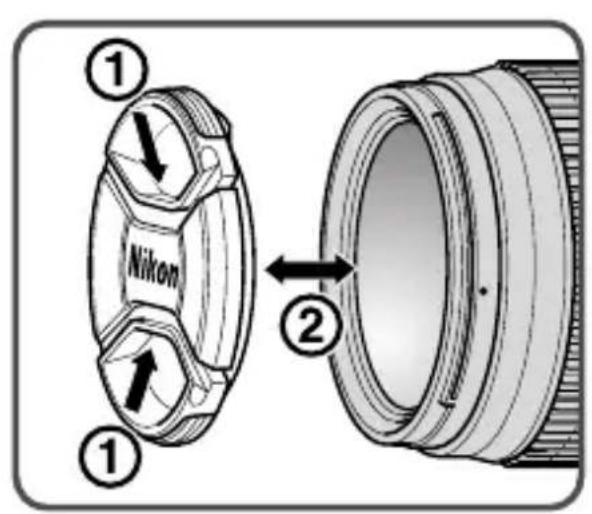

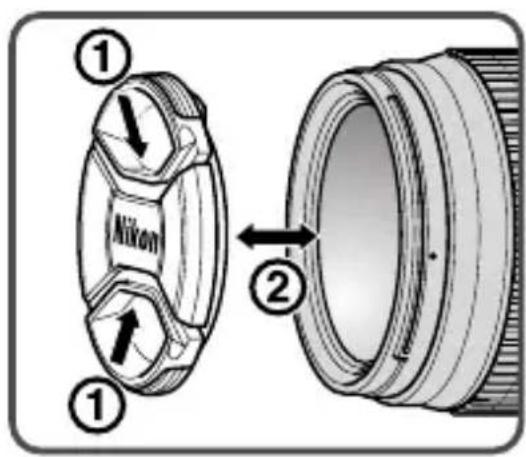

• 67mm snap-on front lens cap LC-67 • Rear lens cap
• Bayonet hood HB-36
• Flexible lens pouch CL-1022

12. Optional accessories

- 67mm screw-in filters

13. Incompatible accessories

- Teleconverters (all models) - Auto Ring BR-4 and all models of Auto Extension Ring PK, K Ring and Bellows focusing attachment.

Other accessories may not be suitable for use with this lens. For details, carefully read your accessories user's manual.

14. Specifications

Type of lens: G-type AF-S Zoom-Nikkor lens with built-in CPU and Nikon bayonet mount

Focal length: 70mm–300mm

Maximum aperture: f/4.5–5.6

Lens construction: 17 elements in 12 groups (2 ED lens elements)

Picture angle: 34°20'–8°10' with 35 mm (135) format Nikon film-SLR cameras and Nikon FX format digital SLR cameras 22°50'–5°20' with Nikon DX format digital SLR cameras 27°40'–6°40' with IX240 system cameras

Focal length scale: 70, 100, 135, 200, 300mm

Distance information: Output to camera body

Zoom control: Manually via separate zoom ring

Focusing: Nikon Internal Focusing (IF) system (utilizing an internal Silent Wave Motor); manually via separate focus ring

Vibration reduction: Lens-shift method using voice coil motors (VCMs)

Shooting distance scale: Graduated in meters and feet from 1.5m (5 ft) to infinity ( )

Closest focus distance: 1.5 m (4.9 ft) from focal plane at all zoom positions

No. of diaphragm blades: 9 pcs. (rounded)

Diaphragm: Fully automatic

Aperture range: f/4.5 to f/32 (at 70mm), f/5.6 to f/40 (at 300mm)

Exposure measurement: Via full-aperture method

Attachment size: 67mm (P = 0.75mm)

Dimensions: Approx. 80mm dia. x 143.5mm (extension from the camera's lens mount flange)

Weight: Approx. 745g (26.3 oz)

Specifications and designs are subject to change without any notice or obligation on the part of the manufacturer.

En

⚠️ ACHTUNG

Keinesfalls zerlegen.

Technical diagram of a camera lens assembly with numbered parts and directional arrows indicating components

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow.

VerreAppareil

A

B

C

E

EC-BEC-E

F

G1/G2G3/G4

J

K

F6

◎

◎

—

◎

—

—

—

◎

—

◎

—

F5+DP-30

◎

◎

◎

◎

—

◎

—

◎

—

F5+DA-30

◎

◎

◎

◎

—

◎

—

◎

—

F4+DP-20

—

◎

◎

—

◎

◎

—

◎

F4+DA-20

—

◎

◎

—

◎

◎

—

◎

Indicator M/A M ⑰

ft 15 12 10 8 m5 4 3 70 ⑬ ⑭

Indicator NORMAL ACTIVE 15

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or assembly.

SchermoFotocamera

A

B

C

E

EC-BEC-E

F

G1/G2G3/G4

J

K

F6

◎

◎

—

◎

—

—

—

◎

—

◎

—

F5+DP-30

◎

◎

◎

◎

—

◎

—

◎

—

F5+DA-30

◎

◎

◎

◎

—

◎

—

◎

—

F4+DP-20

—

◎

◎

—

◎

◎

—

◎

F4+DA-20

—

◎

◎

—

◎

◎

—

◎

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or force.

Technical diagram of a mechanical component with numbered parts labeled 1 to 4

① Alikon ②

ft 15 12 10 8 m5 4 3 ⑬ 70 ⑭ 14

M CER LIFE HOTG ① Nikon ②

M/A M ON VR OFF NORMAL ACTIVE 17 16 15

Sc

⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ Nikon VR M/A M ON VR OFF NORMAL ACTIVE ⑮ ⑯ ⑰ ⑱

名称（）：參考頁

Technical diagram of a camera lens assembly with numbered parts and directional arrows indicating motion or movement.

- Due to the optical characteristics of this lens, as the lens is focused closer, the focal length slightly decreases.

■ Depth of field (ft)

Focused distance Depth of field Reproduction ratio
	f/4.5 f/5.6 f/8 f/11 f/16 f/22 f/32
[f = 70mm]
5	4 ft 10-1/16 in.5 ft 2-1/16 in.	4 ft 9-12/16 in.5 ft 2-8/16 in.	4 ft 8-12/16 in.5 ft 3-12/16 in.	4 ft 7-11/16 in.5 ft 5-4/16 in.	4 ft 5-14/16 in.5 ft 7-15/16 in.	4 ft 3-15/16 in.5 ft 11-10/16 in.	4 ft 1-1/16 in.6 ft 6-12/16 in.	1/17.7
6	5 ft 9-2/16 in.6 ft 3-4/16 in.	5 ft 8-8/16 in.6 ft 3-15/16 in.	5 ft 7-1/16 in.6 ft 5-12/16 in.	5 ft 5-8/16 in.6 ft 8-3/16 in.	5 ft 2-14/16 in.7 ft10/16 in.	5 ft 2/16 in.7 ft 6-12/16 in.	4 ft 8-1/16 in.8 ft 7-5/16 in.	1/22.0
7	6 ft 7-15/16 in.7 ft 4-9/16 in.	6 ft 7-1/16 in.7 ft 5-10/16 in.	6 ft 5-3/16 in.7 ft 8-4/16 in.	6 ft 2-14/16 in.7 ft 11-14/16 in.	5 ft 11-8/16 in.8 ft 6-10/16 in.	5 ft 7-13/16 in.9 ft 4-3/16 in.	5 ft 2-6/16 in.11 ft 1-1/16 in.	1/26.2
8	7 ft 6-8/16 in.8 ft 6-4/16 in.	7 ft 5-8/16 in.8 ft 7-11/16 in.	7 ft 3 in.8 ft 11-6/16 in.	7 ft9 ft 4-7/16 in.	6 ft 7-9/16 in.10 ft 2-1/16 in.	6 ft 2-14/16 in.11 ft 4-5/16 in.	5 ft 8-4/16 in.14 ft 1-13/16 in.	1/30.5
10	9 ft 3-4/16 in.10 ft 10-7/16 in.	9 ft 1-9/16 in.11 ft 13/16 in.	8 ft 9-12/16 in.11 ft 7-3/16 in.	8 ft 5-3/16 in.12 ft 4-3/16 in.	7 ft 10-9/16 in.13 ft 10-5/16 in.	7 ft 3-12/16 in.16 ft 3-4/16 in.	6 ft 6-8/16 in.23 ft 15/16 in.	1/39.0
12	10 ft 11-4/16 in.13 ft 3-12/16 in.	10 ft 8-14/16 in.13 ft 7-7/16 in.	10 ft 3-6/16 in.14 ft 5-8/16 in.	9 ft 9-2/16 in.15 ft 8-3/16 in.	9 ft 2/16 in.18 ft 3-4/16 in.	8 ft 3-2/16 in.22 ft 10-5/16 in.	7 ft 3-4/16 in.39 ft 10-1/16 in.	1/47.6
15	13 ft 4-1/16 in.17 ft 1-15/16 in.	13 ft 8/16 in.17 ft 8-6/16 in.	12 ft 4-3/16 in.19 ft 2-4/16 in.	11 ft 7-1/16 in.21 ft 5-8/16 in.	10 ft 6-6/16 in.26 ft 9-12/16 in.	9 ft 5-14/16 in.38 ft 5-4/16 in.	8 ft 2-1/16 in.145 ft 11-1/16 in.	1/60.4
20	17 ft 15/16 in.24 ft 2-1/16 in.	16 ft 7-1/16 in.25 ft 3-4/16 in.	15 ft 5-10/16 in.28 ft 6-2/16 in.	14 ft 3-4/16 in.34 ft 2/16 in.	12 ft 7-13/16 in.50 ft 4-1/16 in.	11 ft 1-13/16 in.120 ft 10-1/16 in.	9 ft 4-1/16 in.∞	1/81.8
40	29 ft 6-6/16 in.62 ft 3-13/16 in.	28 ft 4/16 in.70 ft 6-8/16 in.	24 ft 10-5/16 in.105 ft 3-15/16 in.	21 ft 9-12/16 in.∞	18 ft 1-9/16 in.∞	15 ft 1-5/16 in.∞	11 ft 10-7/16 in.∞	1/167.1
∞	108 ft 9-13/16 in.∞	90 ft 2-12/16 in.∞	63 ft 4-1/16 in.∞	46 ft 2-12/16 in.∞	31 ft 11-10/16 in.∞	23 ft 4-15/16 in.∞	16 ft 3-6/16 in.∞	1/∞

f/4.5 f/5.6 f/8 f/11 f/16 f/22 f/32

[f = 100mm]
5	—	4 ft 10-13/16 in.5 ft 1-5/16 in.	4 ft 10-5/16 in.5 ft 1-13/16 in.	4 ft 9-12/16 in.5 ft 2-8/16 in.	4 ft 8-12/16 in.5 ft 3-12/16 in.	4 ft 7-9/16 in.5 ft 5-4/16 in.	4 ft 5-12/16 in.5 ft 8-3/16 in.	1/12.5
6	—	5 ft 10-3/16 in.6 ft 1-15/16 in.	5 ft 9-6/16 in.6 ft 2-12/16 in.	5 ft 8-8/16 in.6 ft 3-15/16 in.	5 ft 7-1/16 in.6 ft 5-14/16 in.	5 ft 5-6/16 in.6 ft 8-6/16 in.	5 ft 2-12/16 in.7 ft 15/16 in.	1/15.5
7	—	6 ft 9-6/16 in.7 ft 2-12/16 in.	6 ft 8-6/16 in.7 ft 3-15/16 in.	6 ft 7-1/16 in.7 ft 5-10/16 in.	6 ft 5-1/16 in.7 ft 8-8/16 in.	6 ft 2-12/16 in.8 ft 2/16 in.	5 ft 11-4/16 in.8 ft 7-1/16 in.	1/18.6
8	—	7 ft 8-8/16 in.8 ft 3-12/16 in.	7 ft 7-3/16 in.8 ft 5-6/16 in.	7 ft 5-6/16 in.8 ft 7-11/16 in.	7 ft 2-12/16 in.8 ft 11-10/16 in.	6 ft 11-14/16 in.9 ft 4-13/16 in.	6 ft 7-5/16 in.10 ft 2-12/16 in.	1/21.6
10	—	9 ft 6-8/16 in.10 ft 6-2/16 in.	9 ft 4-3/16 in.10 ft 9 in.	9 ft 1-9/16 in.11 ft 13/16 in.	8 ft 9-8/16 in.11 ft 7-11/16 in.	8 ft 4-15/16 in.12 ft 4-15/16 in.	7 ft 10-3/16 in.13 ft 11-12/16 in.	1/27.7
12	—	11 ft 3-13/16 in.12 ft 9-4/16 in.	11 ft 10/16 in.13 ft 1-9/16 in.	10 ft 8-14/16 in.13 ft 7-7/16 in.	10 ft 3-2/16 in.14 ft 6-4/16 in.	9 ft 8-12/16 in.15 ft 9-6/16 in.	8 ft 11-12/16 in.18 ft 5-12/16 in.	1/33.8
15	—	13 ft 11-3/16 in.16 ft 3-2/16 in.	13 ft 6-4/16 in.16 ft 10-7/16 in.	13 ft 8/16 in.17 ft 8-6/16 in.	12 ft 3-12/16 in.19 ft 3-10/16 in.	11 ft 6-10/16 in.21 ft 7-15/16 in.	10 ft 5-10/16 in.27 ft 3-8/16 in.	1/43.0
20	—	18 ft 1-3/16 in.22 ft 4-7/16 in.	17 ft 4-11/16 in.23 ft 6-13/16 in.	16 ft 6-15/16 in.25 ft 3-6/16 in.	15 ft 4-13/16 in.28 ft 9-4/16 in.	14 ft 2-4/16 in.34 ft 6-6/16 in.	12 ft 6-13/16 in.52 ft 1-5/16 in.	1/58.2
40	—	32 ft 9-15/16 in.51 ft 3-8/16 in.	30 ft 5-14/16 in.58 ft 4-11/16 in.	28 ft 4/16 in.70 ft 8-1/16 in.	24 ft 8-4/16 in.109 ft 1-3/16 in.	21 ft 7-9/16 in.∞	17 ft 11-8/16 in.∞	1/119.2
∞	—	176 ft 5-4/16 in.∞	123 ft 8-8/16 in.∞	90 ft 1-13/16 in.∞	62 ft 2-4/16 in.∞	45 ft 4-15/16 in.∞	31 ft 5-1/16 in.∞	1/∞

f/4.5 f/5.6 f/8 f/11 f/16 f/22 f/32

[f = 135mm]
5	—	4 ft 11-4/16 in.5 ft 12 1 /16 in.	4 ft 11-1/16 in.5 ft 15/16 in.	4 ft 10-11/16 in.5 ft 1-7/16 in.	4 ft 10-1/16 in.5 ft 2-1/16 in.	4 ft 9-8/16 in.5 ft 2-14/16 in.	4 ft 8-6/16 in.5 ft 4-3/16 in.	1/9.2
6	—	5 ft 10-15/16 in.6 ft 1-1/16 in.	5 ft 10-9/16 in.6 ft 1-9/16 in.	5 ft 9-15/16 in.6 ft 2-3/16 in.	5 ft 9-2/16 in.6 ft 3-2/16 in.	5 ft 8-3/16 in.6 ft 4-7/16 in.	5 ft 6-10/16 in.6 ft 6-10/16 in.	1/11.4
7	—	6 ft 10-9/16 in.7 ft 1-9/16 in.	6 ft 9-15/16 in.7 ft 2-3/16 in.	6 ft 9-4/16 in.7 ft 3 in.	6 ft 8-1/16 in.7 ft 4-7/16 in.	6 ft 6-10/16 in.7 ft 6-6/16 in.	6 ft 4-7/16 in.7 ft 9-10/16 in.	1/13.7
8	—	7 ft 10-1/16 in.8 ft 2-1/16 in.	7 ft 9-4/16 in.8 ft 2-14/16 in.	7 ft 8-4/16 in.8 ft 4-1/16 in.	7 ft 6-12/16 in.8 ft 6-2/16 in.	7 ft 4-13/16 in.8 ft 8-10/16 in.	7 ft 1-15/16 in.9 ft 1-1/16 in.	1/16.0
10	—	9 ft 8-14/16 in.10 ft 3-6/16 in.	9 ft 7-9/16 in.10 ft 4-13/16in.	9 ft 6 in.10 ft 6-12/16 in.	9 ft 3-8/16 in.10 ft 10-1/16 in.	9 ft 10/16 in.11 ft 2-6/16 in.	8 ft 8-3/16 in.11 ft 10-3/16 in.	1/20.5
12	—	11 ft 7-7/16 in.12 ft 4-15/16 in.	11 ft 5-8/16 in.12 ft 7-3/16 in.	11 ft 3-4/16 in.12 ft 10-1/16 in.	10 ft 11-10/16 in.13 ft 3-4/16 in.	10 ft 7-9/16 in.13 ft 9-13/16 in.	10 ft 1-5/16 in.14 ft 10-5/16 in.	1/25.0
15	—	14 ft 4-11/16 in.15 ft 8-1/16 in.	14 ft 1-11/16 in.15 ft 11-10/16 in.	13 ft 10-3/16 in.16 ft 4-7/16 in.	13 ft 4-11/16 in.17 ft 1-1/16 in.	12 ft 10-7/16 in.18 ft 10/16 in.	12 ft 1-3/16 in.19 ft 10-10/16 in.	1/31.8
20	—	18 ft 10-13/16 in.21 ft 2-14/16 in.	18 ft 5-10/16 in.21 ft 9-13/16 in.	17 ft 11-8/16 in.22 ft 7-1/16 in.	17 ft 2-1/16 in.24 ft 4/16 in.	16 ft 3-12/16 in.26 ft	15 ft 13/16 in.30 ft 2-1/16 in.	1/43.1
40	—	35 ft 8-8/16 in.45 ft 6 in.	34 ft 1-11/16 in.48 ft 4-5/16 in.	32 ft 4-7/16 in.52 ft 5-14/16 in.	29 ft 9-12/16 in.61 ft 3 in.	27 ft 2-12/16 in.76 ft 8-4/16 in.	23 ft 9-15/16 in.132 ft 11-8/16 in.	1/88.2
∞	—	321 ft 2-8/16 in.∞	225 ft 1-3/16 in.∞	163 ft 11-4/16 in.∞	112 ft 11-10/16 in.∞	82 ft 4-11/16 in.∞	56 ft 10-15/16 in.∞	1/∞

f/4.5 f/5.6 f/8 f/11 f/16 f/22 f/32

[f = 200mm]
5	—	4 ft 11-10/16 in.5 ft 6/16 in.	4 ft 11-8/16 in.5 ft 8/16 in.	4 ft 11-6/16 in.5 ft 10/16 in.	4 ft 11-3/16 in.5 ft 15/16 in.	4 ft 10-13/16 in.5 ft 1-5/16 in.	4 ft 10-3/16 in.5 ft 1-15/16 in.	1/6.1
6	—	5 ft 11-8/16 in.6 ft 8/16 in.	5 ft 11-4/16 in.6 ft 12/16 in.	5 ft 11-1/16 in.6 ft 15/16 in.	5 ft 10-11/16 in.6 ft 1-7/16 in.	5 ft 10-3/16 in.6 ft 2-1/16 in.	5 ft 9-6/16 in.6 ft 2-14/16 in.	1/7.7
7	—	6 ft 11-4/16 in.7 ft 12/16 in.	6 ft 11-1/16 in.7 ft 15/16 in.	6 ft 10-11/16 in.7 ft 1-5/16 in.	6 ft 10-1/16 in.7 ft 2-1/16 in.	6 ft 9-6/16 in.7 ft 2-12/16 in.	6 ft 8-4/16 in.7 ft 4-3/16 in.	1/9.2
8	—	7 ft 11-1/16 in.8 ft 15/16 in.	7 ft 10-11/16 in.8 ft 1-5/16 in.	7 ft 10-3/16 in.8 ft 1-13/16 in.	7 ft 9-8/16 in.8 ft 2-12/16 in.	7 ft 8-8/16 in.8 ft 3-13/16 in.	7 ft 7-1/16 in.8 ft 5-10/16 in.	1/10.7
10	—	9 ft 10-9/16 in.10 ft 1-9/16 in.	9 ft 9-15/16 in.10 ft 2-3/16 in.	9 ft 9-2/16 in.10 ft 3 in.	9 ft 7-15/16 in.10 ft 4-7/16 in.	9 ft 6-8/16 in.10 ft 6-4/16 in.	9 ft 4-1/16 in.10 ft 9-6/16 in.	1/13.8
12	—	11 ft 9-13/16 in.12 ft 2-4/16 in.	11 ft 8-14/16 in.12 ft 3-4/16 in.	11 ft 7-13/16 in.12 ft 4-7/16 in.	11 ft 6 in.12 ft 6-10/16 in.	11 ft 3-13/16 in.12 ft 9-4/16 in.	11 ft 10/16 in.13 ft 1-15/16 in.	1/16.8
15	—	14 ft 8-8/16 in.15 ft 3-10/16 in.	14 ft 7-1/16 in.15 ft 5-3/16 in.	14 ft 5-6/16 in.15 ft 7-3/16 in.	14 ft 2-8/16 in.15 ft 10-11/16 in.	13 ft 11-4/16 in.16 ft 3-2/16 in.	13 ft 6-2/16 in.16 ft 10-15/16 in.	1/21.4
20	—	19 ft 5-12/16 in.20 ft 6-10/16 in.	19 ft 3-4/16 in.20 ft 9-8/16 in.	19 ft 2/16 in.21 ft 1-5/16 in.	18 ft 7-1/16 in.21 ft 7-15/16 in.	18 ft 1-7/16 in.22 ft 4-5/16 in.	17 ft 4-9/16 in.23 ft 7-13/16 in.	1/29.0
40	—	37 ft 10-15/16 in.42 ft 4-1/16 in.	37 ft 1-1/16 in.43 ft 5-3/16 in.	36 ft 1-5/16 in.44 ft 10-9/16 in.	34 ft 6-15/16 in.47 ft 6-6/16 in.	32 ft 11-3/16 in.51 ft 2-1/16 in.	30 ft 6 in.58 ft 8-6/16 in.	1/59.5
∞	—	704 ft 6-6/16 in.∞	493 ft 7-1/16 in.∞	359 ft 4-5/16 in.∞	247 ft 6 in.∞	180 ft 4-9/16 in.∞	124 ft 5-6/16 in.∞	1/∞

f/4.5 f/5.6 f/8 f/11 f/16 f/22 f/32

[f = 300mm]
5	—	4 ft 11-14/16 in.5 ft 2/16 in.	4 ft 11-12/16 in.5 ft 4/16 in.	4 ft 11-10/16 in.5 ft 6/16 in.	4 ft 11-8/16 in.5 ft 8/16 in.	4 ft 11-6/16 in.5 ft 10/16 in.	4 ft 11-3/16 in.5 ft 15/16 in.	1/4.1
6	—	5 ft 11-12/16 in.6 ft 4/16 in.	5 ft 11-10/16 in.6 ft 6/16 in.	5 ft 11-8/16 in.6 ft 8/16 in.	5 ft 11-6/16 in.6 ft 12/16 in.	5 ft 11-1/16 in.6 ft 15/16 in.	5 ft 10-11/16 in.6 ft 1-5/16 in.	1/5.2
7	—	6 ft 11-10/16 in.7 ft 6/16 in.	6 ft 11-8/16 in.7 ft 8/16 in.	6 ft 11-6/16 in.7 ft 10/16 in.	6 ft 11-1/16 in.7 ft 15/16 in.	6 ft 10-11/16 in.7 ft 1-5/16 in.	6 ft 10-3/16 in.7 ft 1-15/16 in.	1/6.2
8	—	7 ft 11-8/16 in.8 ft 8/16 in.	7 ft 11-6/16 in.8 ft 10/16 in.	7 ft 11-3/16 in.8 ft- 13/16 in.	7 ft 10-13/16 in.8 ft 1-5/16 in.	7 ft 10-5/16 in.8 ft 1-13/16 in.	7 ft 9-10/16 in.8 ft 2-10/16 in.	1/7.2
10	—	9 ft 11-4/16 in.10 ft 12/16 in.	9 ft 11-1/16 in.10 ft 1-1/16 in.	9 ft 10-11/16 in.10 ft 1-7/16 in.	9 ft 10-1/16 in.10 ft 2-1/16 in.	9 ft 9-6/16 in.10 ft 2-14/16 in.	9 ft 8-3/16 in.10 ft 4-3/16 in.	1/9.3
12	—	11 ft 10-15/16 in.12 ft 1-1/16 in.	11 ft 10-9/16 in.12 ft 1-9/16 in.	11 ft 9-15/16 in.12 ft 2-1/16 in.	11 ft 9-2/16 in.12 ft 3 in.	11 ft 8-1/16 in.12 ft 4-3/16 in.	11 ft 6-6/16 in.12 ft 6-4/16 in.	1/11.4
15	—	14 ft 10-5/16 in.15 ft 1-13/16 in.	14 ft 9-12/16 in.15 ft 2-6/16 in.	14 ft 8-12/16 in.15 ft 3-6/16 in.	14 ft 7-7/16 in.15 ft 4-15/16 in.	14 ft 5-12/16 in.15 ft 6-13/16 in.	14 ft 3-2/16 in.15 ft 10-1/16 in.	1/14.5
20	—	19 ft 8-14/16 in.20 ft 3-4/16 in.	19 ft 7-13/16 in.20 ft 4-5/16 in.	19 ft 6-4/16 in.20 ft 6 in.	19 ft 3-12/16 in.20 ft 8-14/16 in.	19 ft 13/16 in.21 ft 8/16 in.	18 ft 8-3/16 in.21 ft 6-10/16 in.	1/19.7
40	—	38 ft 11-6/16 in.41 ft 1-5/16 in.	38 ft 7-1/16 in.41 ft 6-6/16 in.	38 ft 1-1/16 in.42 ft 1-9/16 in.	37 ft 3-6/16 in.43 ft 2-3/16 in.	36 ft 4-5/16 in.44 ft 6-2/16 in.	34 ft 11-3/16 in.46 ft 11-6/16 in.	1/40.4
∞	—	1448 ft 6-8/16 in.∞	1065 ft 7-9/16 in.∞	775 ft 8-3/16 in.∞	534 ft 12/16 in.∞	389 ft 1-1/16 in.∞	268 ft 3-4/16 in.∞	1/∞

• Due to the optical characteristics of this lens, as the lens is focused closer, the focal length slightly decreases.

Nikon

No reproduction in any form of this manual, in whole or in part (except for brief quotation in critical articles or reviews), may be made without written authorization from NIKON CORPORATION.

PENSEZ AU TRI! ETUI CARTON A RECYCLER

CONSIGNE POUVANT VARIER LOCALEMENT > WWW.CONSIGNESDETRIFR
