USER MANUAL Allura 120 Joie

Accessories (May not be included) Accessories may be sold separately or may not be available depending on region. Bassinet Assembly Cover Travel Cot5

Accessories (May not be included) 1 Bassinet 2 Bassinet Clip 3 Toy Bar 4 ToysAccessories may be sold separately or may not be available depending on region.

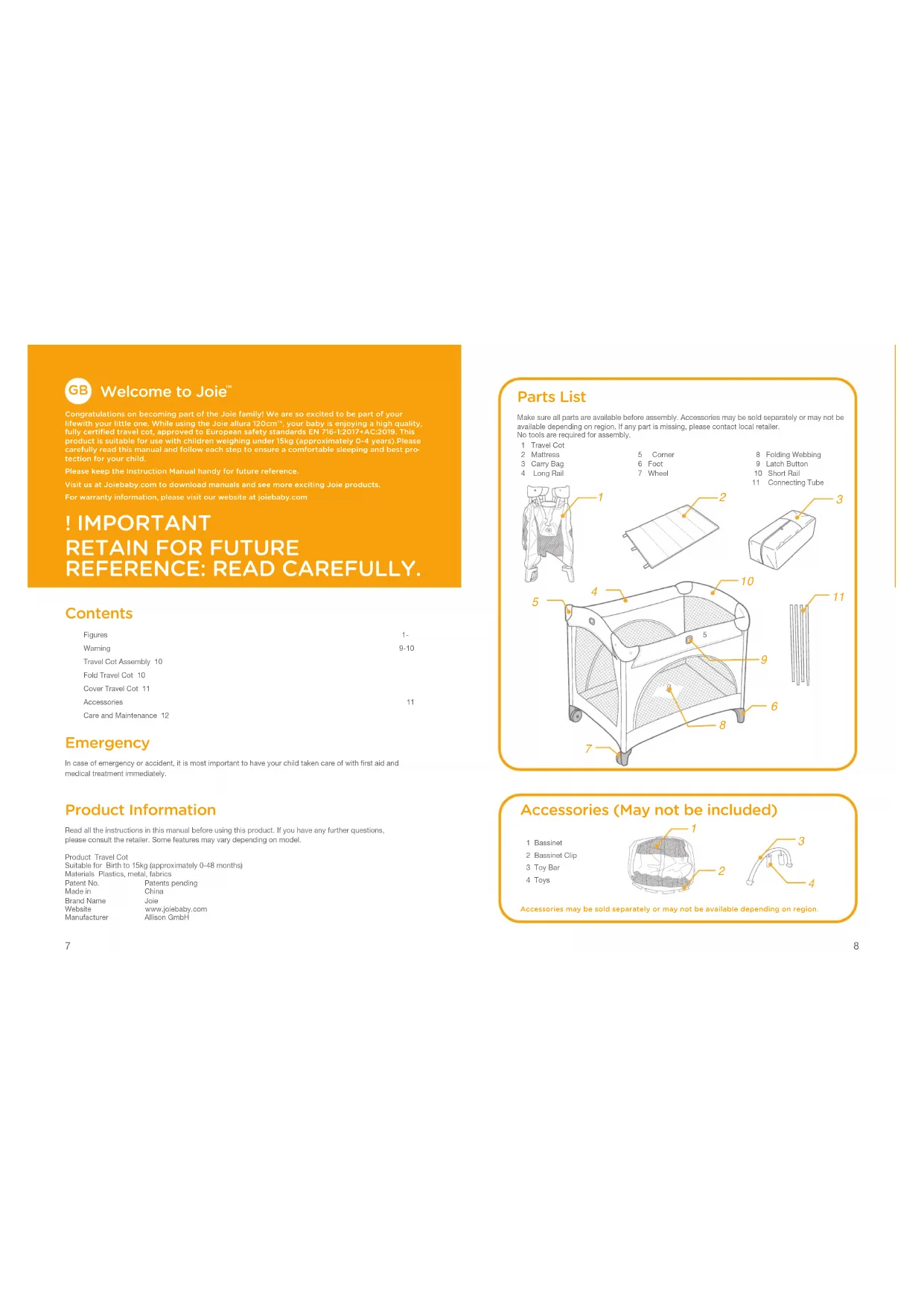

Congratulations on becoming part of the Joie family! We are so excited to be part of your lifewith your little one. While using the Joie allura 120cm™, your baby is enjoying a high quality, fully certified travel cot, approved to European safety standards EN 716-1:2017+AC:2019. This product is suitable for use with children weighing under 15kg (approximately 0-4 years).Please carefully read this manual and follow each step to ensure a comfortable sleeping and best pro tection for your child.Please keep the Instruction Manual handy for future reference. Visit us at Joiebaby.com to download manuals and see more exciting Joie products. For warranty information, please visit our website at joiebaby.com ! IMPORTANT

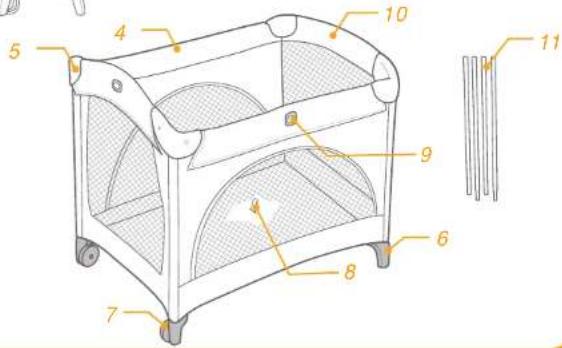

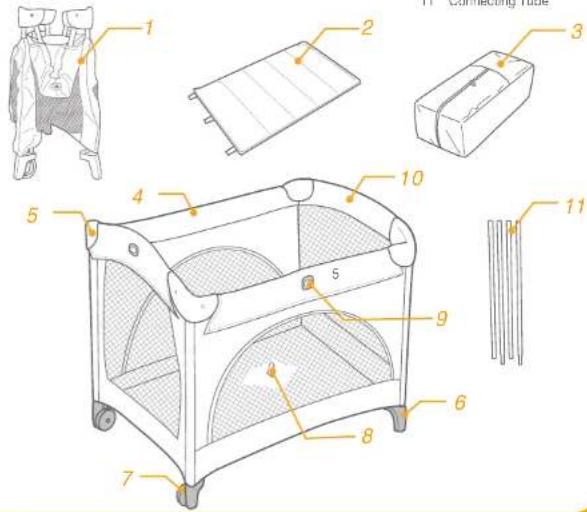

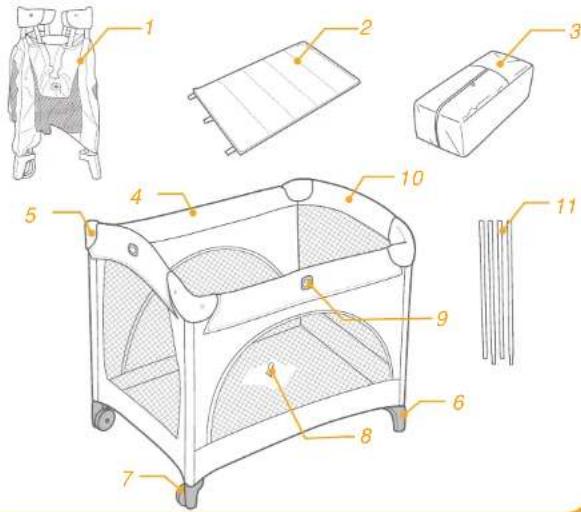

REFERENCE: READ CAREFULLY. Contents Figures 1- 5Warning 9-10Travel Cot Assembly 10 Fold Travel Cot 10Cover Travel Cot 11 Accessories 11Care and Maintenance 12 Emergency In case of emergency or accident, it is most important to have your child taken care of with first aid and medical treatment immediately. Product Information Read all the instructions in this manual before using this product. If you have any further questions, please consult the retailer. Some features may vary depending on model.Product Travel CotSuitable for Birth to 15kg (approximately 0-48 months)Materials Plastics, metal, fabricsPatent No. Patents pendingMade in ChinaBrand Name JoieWebsite www.joiebaby.com Manufacturer Allison GmbH 1 Travel Cot 2 Mattress 3 Carry Bag 4 Long Rail 5 Corner 6 Foot 7 Wheel 8 Folding Webbing 9 Latch Button 10 Short Rail11 Connecting Tube Parts List Make sure all parts are available before assembly. Accessories may be sold separately or may not beavailable depending on region. If any part is missing, please contact local retailer.No tools are required for assembly.9

WARNING ! Adult assembly required. ! Please save instruction manual for future reference. ! Read all the instructions in this manual before using product. ! Discontinue using travel cot when child reaches 15 kg (approximately 86 cm in height) or is able to climb out. ! Discontinue using bassinet when child can sit, kneel or roll over or pull itself up. ! The lowest position of the mattress is the safest and the base shall always be used in that position as soon as the baby is old enough to sit up. ! Failure to follow these warnings and instructions could result in danger. ! Warning: Do not use the cot if any part is broken, torn or missing and use only spare parts approved by the manufacturer. ! NEVER leave your child unattended. Always keep your child in view. ! Use the travel cot with only one child at a time. ! Do not use more than one mattress in the travel cot. ! Once the bassinet is installed, DO NOT place child under the bassinet. ! DO NOT leave anything in the travel cot or place the travel cot close to another product, which could provide a foothold or present a danger of suffocation or strangulation, e.g. strings, blind curtain cords etc. ! Always use travel cot on a flat, level floor. ! Be aware of the risk of open fire and other sources of strong heat such as electric bar fires, gas fires, etc in the near vicinity of the travel cot. ! To avoid strangulation, DO NOT place items with a string around your child’s neck, suspend strings from this product, or attach strings to toys. ! All assembly fittings should always be tightened properly and that fittings should be checked regularly and retightened as necessary. ! Regularly inspect the product for damaged hardware, loose joints, missing parts or sharp edges. ! DO NOT move the travel cot with your child in it. ! Make sure the product has been folded or unfolded completely before letting your child approach the travel cot. ! You must attend to your child while it is in the bassinet. Do not place the bassinet in a dangerous place. ! Do not replace Joie mattress with other mattress or soft pad. ! Should the padded rim be split or bitten through to expose the padding, do not use the travel cot. ! The cot is ready for use only when the locking mechanisms are engaged and to check carefully that they are fully engaged before using the folding cot. ! Always keep accessories out of child’s reach. Remove the accessories when child is able to pull itself up in the travel cot. ! DO NOT use the bassinet as a napper before assembling with mattress. ! DO NOT store the bassinet in the travel cot while not in use. ! You must follow the instructions in this manual when using the travel cot and the bassinet. ! To avoid suffocation, remove plastic bag and packaging materials before using this product. The plastic bag and packaging materials should then be kept away from babies and children. ! Do not install or hang the playard to fixed or unfixed frame. ! Always make sure to close the opening by the zipper before placing the child into the travel cot. ! WARNING: Only use the mattress sold with this cot, do not add a second mattress on this one, suffocation hazards. Travel Cot Assembly see images

Please read all the instructions in this manual before setting up and using this product.

1. Undo the three hook and loop fasteners.

2. Pull the top rails up until both become rigid. If not rigid, pull up again until they are rigid.

! If top rails do not latch, raise the center of floor halfway up, and then pull up again to latch the rails.

3. Latch the low rails.

4. Push the center of floor down.

! Be sure all rails have locked before lowering center.

5. Install mattress.

! Install mattress, soft side up. ! Use wheels, see images

1. Remove the mattress.

2. Pull the folding webbing upward.

! Do not unlock rails yet. Center of floor must be halfway up before rails will unlock.

3. Unlock all four rails by following these steps.

1) Slightly lift the center of the rails.

2) Squeeze the latch button on the rail to release the two tubes.

! Do not force fold. ! Both tubes must be released for the rail to fold, if rail does not fold completely, please lift the center of floor higher, and then try again from step 3.

4. Fold the unit, but do not force.

! If unit will not fold, look for a partially latched rail. Squeeze the latch button to release the rail.

5. Wrap the travel cot with the mattress. Guide the hook and loop fasteners through the rings

Cover Travel Cot see images

Cover the travel cot by following these steps.

1. Place the mattress, with handle facing the zipper on the carry bag.

2. Cover unit with carry bag

, and then zip together.

3. Pull the handle out from carry bag. The carry bag and the travel cot will be lifted together.

Accessories (May not be included) Bassinet Assembly see images

Tip Before setting up bassinet, make sure all rails have become rigid. The bassinet must be fully assembled and installed before using, including 12 bassinet clips and mattress.

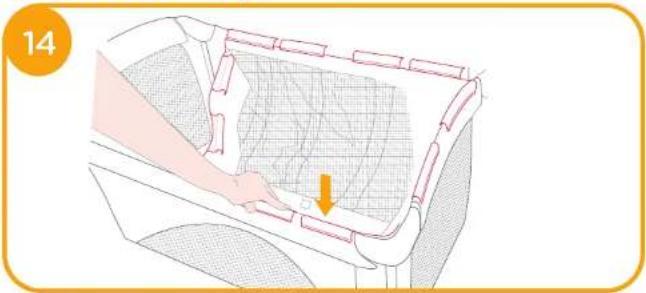

1. Position the bassinet clips over and down into the edges of the travel cot.

! Be sure all bassinet clips are secured in place by pushing down firmly on each bassinet clip until all are snapped into place.

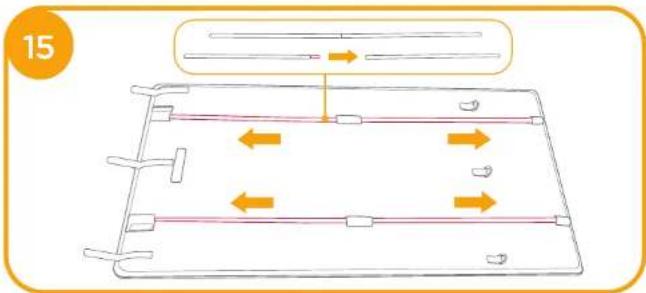

2. Assemble the connecting tubes.

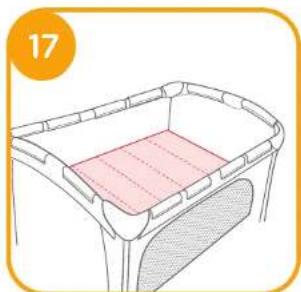

3. Place the mattress into the bassinet.

! Place mattress, soft side up. The installed bassinet is shown as

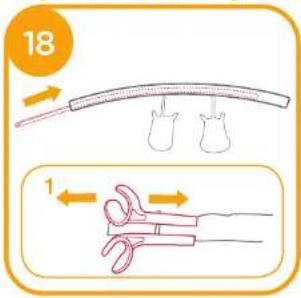

Toy Bar Assembly see images

Care and Maintenance

1. The covering material is not removable.

2. Your travel cot can be spot cleaned with a sponge and soapy water.

3. Do not use undiluted neutral detergent, gasoline or other organic solvent to wash the travel cot.

It may cause damage to the travel cot.

4. To wash carry bag, machine wash in lukewarm water and drip-dry. Do not use bleach.

5. At the beach or in the garden, clean sand and grit off your travel cot. Sand in the long rail locks

6. From time to time, check your travel cot for worn parts, torn material or stitching. Replace or repair

the parts as needed.

7. If the travel cot is not in use for a long period of time, please put it in the shade where your child
