Product type	Combined microwave with grill and convection
Brand	Beko
Model	MCF28310X
Capacity	28 liters
External dimensions (W x D x H)	608 x 558 x 366 mm
Net weight	19.8 kg
Supply voltage	230-240 V
Frequency	50 Hz
Microwave input power	1500 W
Microwave output power	1000 W
Grill power	1250 W
Convection input power	2300 W
Microwave frequency	2450 MHz
Turntable diameter	315 mm
Cavity dimensions (W x D x H)	353 x 345 x 245 mm
Number of microwave power levels	11
Maximum cooking time	95 minutes
Cooking functions	Microwave, Grill, Convection, Combination, Defrost (weight/time), Auto cooking (9 menus)
Safety functions	Door lock, child safety, overheating and low temperature protection
Interior cleaning	Damp cloth, mild detergent
Turntable	Dishwasher safe
Maintenance	Do not use steam cleaner
Spare parts	Original parts recommended, lamp to be replaced by a professional
General information	Household use only, do not build into a cabinet

Frequently Asked Questions - MCF28310X BEKO

How to set the oven clock?

Press and hold the 'Clock/Kitchen Timer' button for 3 seconds to select 12 or 24 hour format. Turn the 'Level/Time/Weight/Menu' knob to set the hour, press the button again to confirm, then set the minutes and confirm.

How to use weight-based auto defrost?

In standby mode, press the defrost button twice. Turn the knob to select the weight (100 g to 1800 g) and press 'Start'. The oven will stop midway to allow you to turn the food.

Which utensils are suitable for microwave?

Use only suitable utensils: heat-resistant glass, ceramic, microwave-safe plastic, paper towels. Avoid metal, recycled paper, and non-heat-resistant glass.

How to clean the oven interior?

Unplug the appliance before cleaning. Wipe the interior with a damp cloth and mild detergent. Do not use abrasive cleaners or steam cleaner. The glass tray and roller ring are dishwasher safe.

What to do if the oven does not start?

Check that the oven is plugged in, the door is closed properly, and the timer is set. If the problem persists, check the fuse or circuit breaker, or contact a qualified technician.

How to activate child lock?

The child lock activates automatically after one minute of inactivity in standby mode, making all buttons inactive. To cancel, open and close the door.

What is the maximum microwave power?

The maximum output power is 1000 W. You can choose from 11 power levels, from P100 to P00.

How to set convection cooking?

Press 'Conv/Micro+Conv.' once, then turn the knob to select the temperature (110°C to 200°C). Press 'Start', set the cooking time (max 95 min) and press 'Start' again.

How to use the grill function?

Press 'Grill/Micro+Grill' once, then press 'Start'. Turn the knob to set the cooking time (max 95 min) and press 'Start'. For micro+grill combination, press twice.

How to remove odors from the oven?

Mix a cup of water with the juice and zest of a lemon in a suitable bowl. Place it in the oven for 5 minutes at full power. Then clean with a soft cloth.

USER MANUAL MCF28310X BEKO

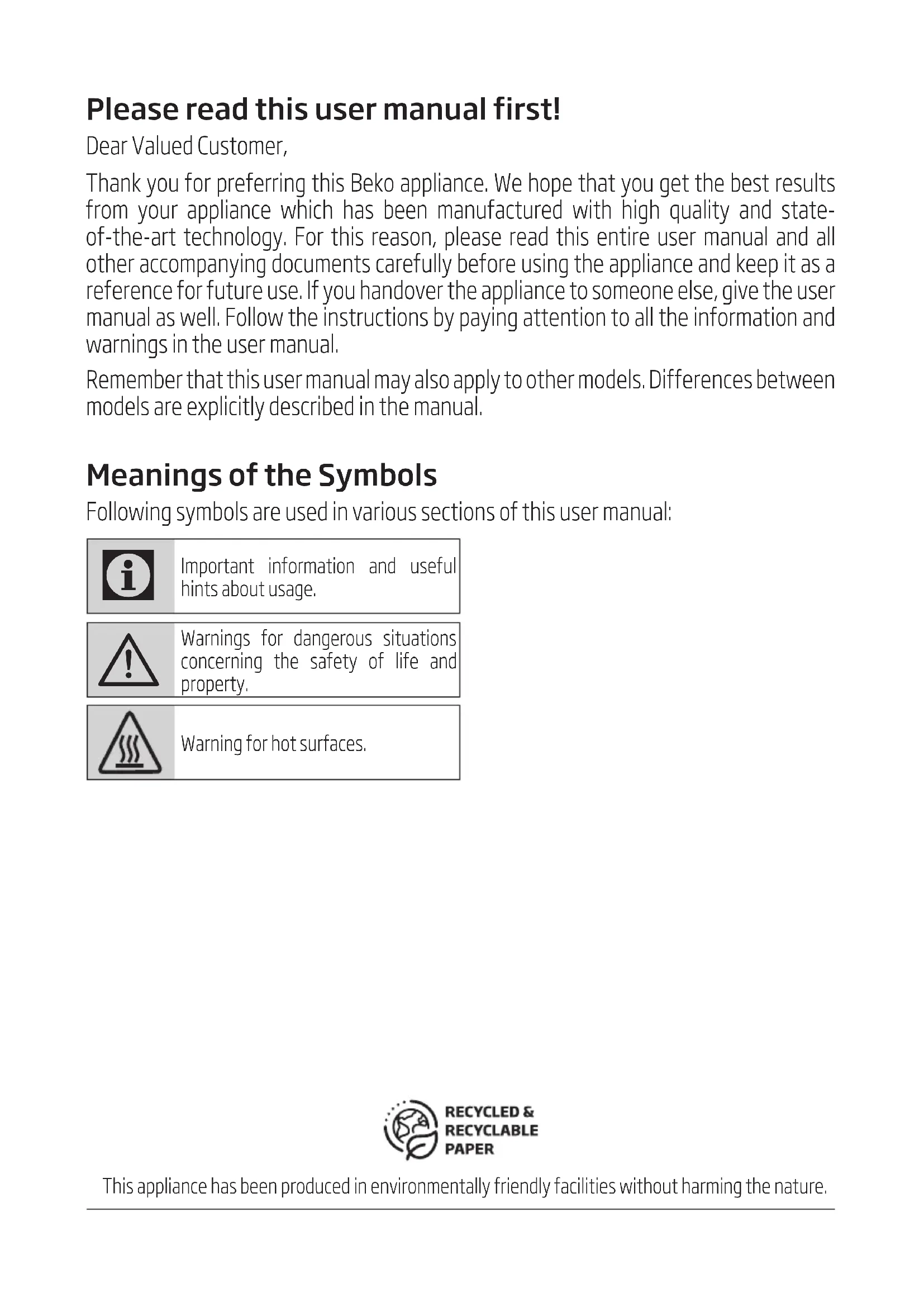

Please read this user manual first!

Dear Valued Customer,

Thank you for choosing this Beko appliance. We hope that you get the best results from your appliance, which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this entire user manual and all other accompanying documents carefully before using the appliance, and keep it as a reference for future use. If you hand over the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual.

Remember that this user manual may also apply to other models. Differences between models are explicitly described in the manual.

Meanings of the Symbols

The following symbols are used in various sections of this user manual:

Important information and useful hints about usage.

Warnings for dangerous situations concerning the safety of life and property.

Warning for hot surfaces.

1

Important safety and environmental instructions

Important Safety Instructions - Read Carefully And Keep For Future Reference

1.1 Safety warnings

This section contains safety instructions that will help protect you from the risk of fire, electric shock, exposure to leak microwave energy, personal injury, or property damage. Failure to follow these instructions shall void any warranty.

• Beko Microwave Ovens comply with the applicable safety standards; therefore, in case of any damage to the appliance or power cable, it should be repaired or replaced by the dealer, service center, or a specialist and authorized service alike to avoid any danger. Faulty or unqualified repair work may be dangerous and cause risk to the user.
• This appliance is intended to be used in household and similar applications such as:

- Staff kitchen areas in shops, offices and other working environments;

- Farm houses

- By clients in hotels, and other residential type environments; - Bed and Breakfast type environments.

It is not intended for industrial or laboratory use. - Do not attempt to start the oven when its door is open; otherwise you may be exposed to harmful microwave energy. Safety locks should not be disabled or tampered with. - The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire. - Do not place any object between the front side and the door of the oven. Do not allow dirt or cleaning agent remnants to build up on the closure surfaces. Any service works involving removal of the cover that provides protection against exposure to microwave energy must be performed by authorized persons/service. Any other approach is dangerous.

Important safety and environmental instructions

• Your product is intended for cooking, heating and defrost food at home. It must not be used for commercial purposes.
• Your oven is not designed to dry any living being.
• Do not use your appliance to dry clothes or kitchen towels.
• Do not use this appliance outdoors, bathrooms, humid environments or in places where the it can get wet.
• No responsibility or warranty claim shall be assumed for damages arising from misuse or improper handling of the appliance.
• Never attempt to dismantle the appliance. No warranty claims are accepted for damage caused by improper handling.
• Only use the original parts or parts recommended by the manufacturer.
• Do not leave this appliance unattended while it is in use. Always use the appliance on a stable, flat, clean dry, and non-slip surface.
• The appliance should not be operated with an external clock timer or separate remote control system.
• Before using the appliance for the first time, clean all parts. Please see the details given in the "Cleaning and Maintenance" section.
• Operate the appliance for its intended purpose only as described in this manual.
• Appliance becomes very hot while it is in use. Pay attention not to touch the hot parts inside the oven.
• Do not operate the oven empty.
• Cooking utensil may get hot due to the heat transferred from the heated food to the utensil. You may need oven gloves to hold the utensil.
• Utensils shall be checked to ensure that they are suitable for use in microwave ovens.
• Do not place the oven on stoves or other heat generating appliances. Otherwise, it may be damaged and the warranty becomes void.
• Steam may come out while opening the covers or the foil after cooking the food.
• The appliance and its accessible surfaces may be very hot when the appliance is in use.
• Door and outer glass may be very hot when the appliance is in use.

• Make sure that your mains power supply complies with the information supplied on the rating plate of the appliance.
• The only way to disconnect the appliance from the power supply is to remove the power plug from the power outlet.
• Use the appliance with a grounded outlet only.
• Never use the appliance if the power cable or the appliance itself is damaged.
• Do not use this appliance with an extension cord.
• Never touch the appliance or its plug with damp or wet hands.
• Place the appliance in a way so that the plug is always accessible.
• Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges. Keep the power cable away from hot surfaces and naked flame.
• Make sure that there is no danger that the power cable could be accidentally pulled or that someone could trip over it when the appliance is in use.
• Unplug the appliance before each cleaning and when the appliance is not in use.
• Do not pull the power cable of the appliance to disconnect it from its power supply and never wrap its power cable around the appliance.
• Do not immerse the appliance, power cable, or power plug in water or any other liquids. Do not hold it under running water.
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
• Remove the wire strings and/or metal handles of paper or plastic bags before placing bags in the oven.
• If smoke is observed, switch off or unplug the appliance if safe to do so and keep the door closed in order to stifle any flames.
• Do not use the microwave oven for storage. Do not leave paper items, cooking utensils, or food inside the oven when it is not in use.
• The contents of feeding bottles and baby food jars should be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

Important safety and environmental instructions

• This appliance is a Group 2 Class B ISM equipment. Group 2 contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. Class B equipment is suitable for use in domestic establishments and establishments directly connected to a low voltage power supply network.
• Do not use cooking oil in the oven. Hot oil may damage the components and materials of the oven, and it may even cause skin burns.
• Pierce food with thick crust such as potatoes, courgettes, apples and chestnuts.
• The appliance must be placed so that the rear side is facing the wall.
• Before moving the appliance, please secure the turntable to prevent damage.
• Eggs in their shell and whole hard-boiled eggs must not be heated in microwave ovens since they may explode, even after microwave heating has ended.

WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation which involves the removal of a cover which gives protection against exposure to microwave energy.

WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

• The oven should be cleaned regularly and any food deposits removed.
• There should be min 20 cm free space above the top surface of the oven.
• Do not over-cook foods; otherwise, you may cause a fire.
• Do not use chemicals and steam assisted cleaners to clean the appliance.
• Extreme caution is advised when being used near children and persons who are restricted in their physical, sensory or mental abilities.

Important safety and environmental instructions

• This appliance can be used by children who are at the age of 8 or over and by people who have limited physical, sensory or mental capacity or who do not have knowledge and experience, as long as they are supervised with regard to safe use of the product or they are instructed accordingly or understand the risks of using the product. Children should not play with the appliance. Cleaning and user maintenance procedures should not be performed by children unless they are controlled by their elders.
• Danger of choking! Keep all the packaging materials away from children.
• Due to excessive heat that arises in grill and combination modes, children should only be allowed to use these modes under supervision of an adult.
• Keep the product and its power cable so that they are inaccessible by children under 8 years old.
• Do not cook food directly on the glass tray. Put the food in / on appropriate kitchen utensils before placing them in the oven.

Metallic containers for food and beverages are not allowed during microwave cooking. Otherwise, sparking may occur. - This product is not designed to be built-in. Do not place the product in a cabinet or box while it is in use.

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for

recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1

Important safety and environmental instructions

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dis

pose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Your microwave oven

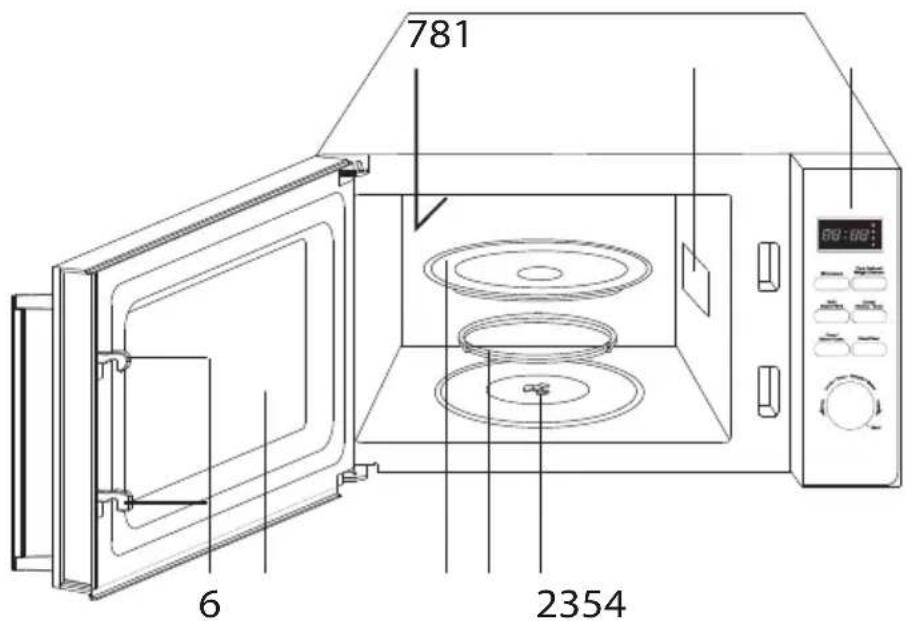

2.1 Overview

1. Control panel
2. Turntable shaft
3. Turntable support
4. Glass tray
5. Oven window
6. Door safety interlock system
7. Grill heater
8. Wave guide (Please do not remove the mica plate covering the wave guide)
9. Bake tray

Markings on the product or the values stated in other documents supplied with the product are values obtained under laboratory conditions as per relevant standards. These values may vary according to the usage of the appliance and ambient conditions. Power values are tested at 230V.

2 Your microwave oven

2.2 Technical data

	MCF 25210 X MCF	28310 X MCF 32410 X
Voltage / Frequency	230-240V/50Hz
Power Input - Microwave	1400W 1500W
Power Output - Microwave	900W 1000W
Power - Grill	1200W 1250W 1300W
Input Power (Convection)	2250W 2300W
Microwave Frequency	2450MHz
Turntable diameter	270 mm 315 mm
External dimensions	562*560*362 mm 608*558*366 mm 608*604*366 mm
Oven cavity dimensions	340(L)*333(D)*240(H) mm 353(L)*345(D)*245(H) mm 368(L)*384(D)*238(H) mm
Oven Capacity	25 L 28 L 32 L
Net weight	16.8 kg 19.8 kg	21.2 kg

3 Installation and connection

3.1 Installation

1. Make sure that all the packing materials are removed from the inside of the door.

WARNING: Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact qualified service personnel.

1. This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven.
2. Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials.
3. For correct operation, the oven must have sufficient airflow. Allow minimum 20cm of free space necessary above the top surface of the oven and 5cm at both sides. The microwave oven rear plate must be placed close to the wall. Do not cover or block any openings on the appliance. Do not remove feet.
4. Do not operate the oven without glass tray, roller support, and shaft in their proper positions.
5. Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp surface.
6. The socket must be readily accessible so that it can be easily unplugged in an emergency.
7. Do not use the oven outdoors.

3.2 Radio interference

Operation of the microwave oven can cause interference to your radio, TV, or similar equipment. When there is interference, it may be reduced or eliminated by taking the following measures:

1. Clean door and sealing surface of the oven.
2. Reorient the receiving antenna of radio or television.
3. Relocate the microwave oven with respect to the receiver.
4. Move the microwave oven away from the receiver.
5. Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

3.3 Grounding instructions

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage.

WARNING: Improper use of the grounding plug can result in a risk of electric shock.

If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.

Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the electrical connection procedures.

The wires in this cable main are colored in accordance with the following code:

Green and Yellow = EARTH

Blue = NEUTRAL

Brown = LIVE

3 Installation and connection

3.4 Microwave cooking principles

1. Arrange food carefully. Place thickest areas towards outside of dish.
2. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.
3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.
4. Turn foods over once during microwaving to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.
5. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.

3.5 Before you call for service

If the oven fails to operate:

1. Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely.
2. Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.
3. Check to ensure that the control panel is programmed correctly and the timer is set.
4. Check to ensure that the door is securely closed engaging the door safety lock system. Otherwise, the microwave energy will not flow into the oven.

IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.

3.6 Utensils guide

1. Microwave cannot penetrate metal. Only use utensils that are suitable for use in microwave ovens. Metallic containers for food and beverages are not allowed during microwave cooking. This requirement is not applicable if the manufacturer specifies size and shape of metallic containers suitable for microwave cooking.
2. Microwave cannot penetrate metal, so metal utensils or dishes with metallic trim should not be used.
3. Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause sparks and/or fires.
4. Round /oval dishes rather than square/oblong ones are recommend, as food in corners tends to overcook.
5. Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be careful don't use too much and keep a distance of 1 inch (2.54cm) between foil and cavity.

3 Installation and connection

The list below is a general guide to help you select the correct utensils.

Cookware Microwave Grill Convection Combination*
Heat-Resistant Glass Yes Yes Yes	Yes
Non Heat-Resistant Glass No No	No No
Heat-Resistant Ceramics Yes Yes	Yes Yes
Microwave-Safe Plastic Dish Yes	No No No
Kitchen Paper	Yes No No No
Metal Tray	No Yes Yes No
Baking plate	No Yes Yes No
Aluminum Foil & Foil Container	No	Yes	Yes	No

• Combination: applicable for both "micro+grill", and "micro+convection" cooking.

4 Operation

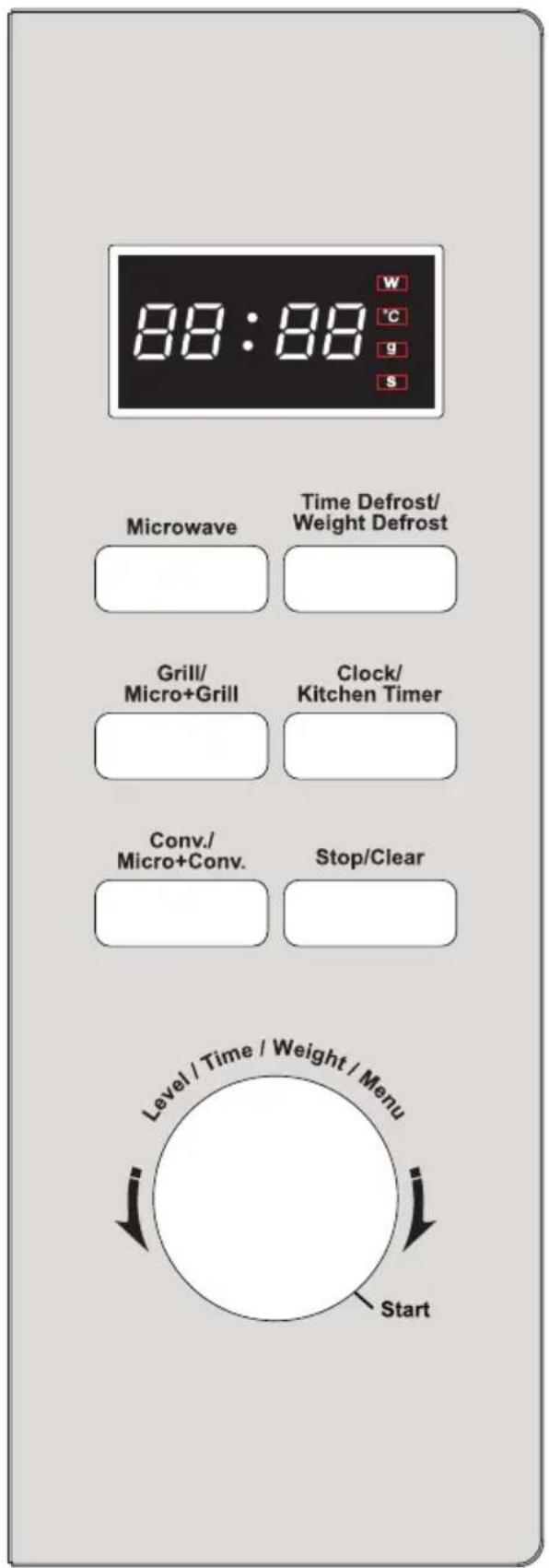

4.1 Control panel 4.2 Menu Action Screen

• Cooking time, power, action indicators, and clock time are displayed.

"Microwave"

• Press this button to set microwave cooking program.

"Clock/Kitchen Timer"

• Press to set clock time.
• Press set kitchen timer function.

Conv/Micro + Conv.

• Press to program convection cooking.
• Press to select one of four combination cooking settings.

"Grill/Micro+Grill"

• Press to set grill program.
• Press to select one of two combination cooking settings.

"Stop/Clear"

• Press to cancel setting or reset the oven before setting a cooking program.
• Press once to temporarily stop cooking, or twice to cancel cooking altogether.

"Level/Time/Weight/Menu" (Knob)

• Turn the knob to enter cooking time.
• Turn the knob to select an auto-cooking menu.
• Turn the knob to select microwave cooking power level. Turn the knob to set convection cooking temperature.

"Start" (The knob)

• Press once to start a cooking program.
• Simply press it a number of times to set cooking time and cook immediately at full power level

Time Defrost/Weight Defrost

• Press once to set defrost program based on time entered.
• Press twice to set defrost program based on weight entered.

4 Operation

4.3 How to set the oven controls

• When the oven is first plugged in, a beep will sound and the display will show "1:01".
• During cooking, if you press the "Stop/Clear" pad once, the program will be paused. Then press the "Start" pad to resume, but if you press the "Stop/Clear" pad twice, the program will be canceled.
• After cooking ends, the system will sound beeps to remind the user every two minutes until the user presses the "Stop/Clear" pad or opens the door.
• The electronic control system of the microwave oven has a cooling feature. For any cooking mode with a cooking time above 2 minutes, if the oven door is opened or the cooking program is paused, the oven fan will work for about 3 minutes automatically to cool the oven, prolonging its life.

4.4 Setting clock time

This is a 12 or 24 hour clock. You can choose it by touching the Clock/Kitchen pad.

FOR EXAMPLE: Suppose you want to set the oven clock time to 8:30.

1. Press and hold the "Clock/Kitchen Timer" button for 3 seconds to select the 12 hour clock cycle (if you want to choose the 24 hour clock, press the pad again).
2. Turn the Level/Time/Weight/Menu knob to set the hour digit to 8.
3. Press the "Clock/Kitchen Timer" button once to confirm the hour setting.
4. Turn the "Level/Time/Weight/Menu" knob to set the minute digit to 30.
5. Press the "Clock/Kitchen Timer" button once to confirm the setting.

To check the time while the oven is operating, press the "Clock/Kitchen Timer" button, and the current time will be displayed for a while on the display screen.

4.5 Quick start

The oven will cook food quickly at HIGH power (100% power output) for quick start cooking program.

Just press the "Start" knob a number of times to set cooking time, the oven starts working automatically at full power. The maximum cooking time you can enter is 10 minutes.

4.6 Microwave cooking

For "Microwave" cooking, cooking power level and cooking time can be set. The longest cooking time is 95 minutes.

For example, suppose you want to cook for 10 minutes at 450W of "Microwave" power.

1. Press the "Microwave" button once and then turn the "Level/Time/Weight/Menu" dial to choose the cooking power level.
2. Press "Start" to confirm.
3. Turn the "Level/Time/Weight/Menu" knob to set the cooking time.
4. Press "Start".

There are 11 kinds of cooking power levels (P100, P-90, P-80, P-70, P-60, P-50, P-40, P-30, P-20, P-10, P-00) you can choose by turning the "Level/Time/Weight/Menu" dial. During cooking, you can check the power level by touching the "Microwave" pad.

4.7 Weight defrost

The oven allows you to defrost food based on the weight entered by the user. The defrosting time and power level are automatically set once the food category and the weight are programmed. The frozen food weight ranges from 100g to 1800g.

1. In waiting mode, press the Time Defrost/Weight Defrost pad twice.
2. Turn the "Level/Time/Weight/Menu" dial to select the weight of food to be defrosted.

4 Operation

1. Press "Start" to confirm.

The oven stops during defrosting to let the user turn food over for uniform defrosting and then press "Start" to defrost for the remaining time.

The oven will not cook well if you happen to enter weight in excess of the maximum recommended.

4.8 Time defrost

The oven allows you to defrost food based on the time entered by user.

1. In waiting mode, press "Defrost/Weight Defrost" pad once.
2. Turn the "Level/Time/Weight/Menu" dial to enter defrost time.
3. Press "Start" to confirm.

The oven stops during defrosting to let the user turn food over for uniform defrosting and then press "Start" to defrost for the remaining time.

4.9 Grill

The oven allows you to grill food based on the time entered by user. The longest cooking time is 95 minutes.

1. Press "Grill/Micro+Grill button" once.
2. Press "Start" to confirm
3. Turn "Level/Time/Weight/Menu" dial to enter cook time.
4. Press "Start".

4.10 Micro + Grill

The longest cooking time is 95 minutes. This feature allows you to combine grill and "Microwave" cooking on two different settings.

4.10.1 Combination 1

30% of time for "Microwave" cooking, 70% for grill cooking. Use for fish, potatoes or au gratin.

Suppose you want to set combination 1 cooking for 25 minutes.

1. Press "Grill/Micro+Grill" button twice and then turn the "Level/Time/Weight/Menu" dial until the display shows "Gr2".
2. Press "Start" to confirm.
3. Turn the "Level/Time/Weight/Menu" dial to enter cook time.
4. Press "Start" button.

4.10.2 Combination 2

55% of time for "Microwave" cooking, 45% for grill cooking. Use for pudding, omelets, baked potatoes and poultry.

Suppose you want to set combination 2 cooking for 12 minutes.

1. Press "Grill/Micro+Grill" button twice and then turn the "Level/Time/Weight/Menu" dial until the display shows "Gr3".
2. Press "Start" to confirm.
3. Turn the "Level/Time/Weight/Menu" dial to enter cook time.
4. Press "Start" button.

4.11 Convection

During convection cooking, hot air is circulated throughout the oven cavity to brown and make crisp foods quickly and evenly. This oven can be programmed for ten different cooking temperatures. Max cooking time user can set is 95 minutes.

To Cook with Convection

To cook with convection, press the "Conv/Micro+Conv." pad once and then turn the "Level/Time/Weight/Menu" dial clockwise to enter the desired convection temperature (110°C, 120°C, 130°C, 140°C, 150°C, 160°C, 170°C, 180°C, 190°C, 200°C).

4 Operation

Suppose you want to cook at 180°C for 40 minutes.

1. In waiting mode, place food into oven, and close it.
2. Press the "Conv/Micro+Conv." pad once and then turn the "Level/Time/Weight/Menu" dial clockwise to enter the convection temperature 180°C.
3. Press "Start" to confirm.
4. Turn "Level/Time/Weight/Menu" knob to enter cooking time (the longest time is 95 min).
5. Press "Start" button.

You can check the convection temperature while cooking is in progress by touching the "Conv/Micro+Conv." pad.

To Preheat and Cook with Convection

Your oven can be programmed to combine preheating and convection cooking operations.

Suppose you want to preheat to 170°C and then cook for 35 minutes.

1. In waiting mode, place food into the oven and close it.
2. Press the "Conv/Micro+Conv." pad once, then turn the "Level/Time/Weight/Menu" dial clockwise to set the convection temperature to 170°C.
3. Press "Start" to confirm, then press "Start" again.
4. When the oven reaches the designated temperature, it will beep every 5 seconds to remind the user.
5. Open the door and place the container of food at the center of the turntable.
6. Turn the "Level/Time/Weight/Menu" knob to set the cooking time.
7. Press the "Start" button.

The longest preheat time is 30 minutes, and the preheat time cannot be set. When the preheat temperature is reached, the oven will beep every 5 seconds. If there is no operation within 30 minutes, the program will automatically end.

4.12 Micro + Convection

This oven has four pre-programmed settings that make it easy to cook with both convection heat and microwave automatically. The maximum cooking time the user can set is 95 minutes.

Press the "Conv/Micro+Conv." button twice, then turn the "Level/Time/Weight/Menu" dial to program the convection temperature (200°C → 170°C → 140°C → 110°C).

1. In waiting mode, place food into the oven and close it.
2. Press the "Conv/Micro+Conv." button twice.
3. Turn the "Level/Time/Weight/Menu" dial to indicate the convection temperature.
4. Press "Start" to confirm.
5. Turn the "Level/Time/Weight/Menu" knob to set the cooking time.
6. Press the "Start" button.

During cooking, you can check the convection temperature by pressing the "Conv/Micro+Conv." button.

4.13 Setting the kitchen timer

You can set the oven timer to remind you of the cooking time. The maximum time you can set is 95 minutes.

Suppose you want to set the kitchen timer for 30 minutes:

1. Press the "Clock/Kitchen Timer" button once.
2. Rotate the digital knob "Level/Time/Weight/Menu" to set 30:00.
3. Press "Start" to confirm.

4 Operation

When the timer is counting down, you can press "Clock/Kitchen Timer" to display the remaining time for 5 seconds, and press "Stop/Clear" within those 5 seconds to cancel it.

4.14 Child lock

This feature prevents unsupervised operation of the oven by small children. The CHILD LOCK indicator will appear on the display screen, and the oven cannot be operated while the CHILD LOCK is set.

To set the CHILD LOCK: In standby mode, if no operation is performed within one minute, the oven will automatically enter child lock mode and all buttons will be disabled.

To cancel the CHILD LOCK: In child lock mode, opening or closing the oven door can cancel the program.

4.15 Protection

4.15.1 Overheating protection

When the system enters into super high temperature protection status, the digital display shows "E01" and continues to beep until troubleshooting, then press "Stop/Clear" pad, the system comes back to normal standby mode.

4.15.2 Low temperature protection

When the system enters into super low temperature protection status, the digital display shows "E02" and continues to beep until press "Stop/ Clear", the system comes back to normal standby mode.

4.15.3 Sensor malfunction protection

The system enters into protection mode when the system sensor is Short Circuited. The display shows "E03" and continues to beep until press "Stop/Clear", the system comes back to normal standby mode.

4.16 Auto cooking

For the following foods or cooking operations, you do not need to input cooking power and time. Try to focus on telling the oven what you want to cook and how much the food weighs. The oven starts to work after you press the "Start" button.

For example:

1. In waiting mode, turn the "Level/Time/Weight/Menu" dial anti-clockwise to select food code.
2. Press "Start" once.
3. Turn the "Level/Time/Weight/Menu" dial to select the desired weight.
4. Press "Start" button.

4 Operation

Auto cooking menu

Code Food		NOTES: 1. For milk/coffee and potato, the screen will show the number of serving instead of food weight. 2. For item A-7 the oven stops during defrosting to let the user to turn food over for uniform defrosting and then press "Start" to finish the remaining time 3. The result of auto cooking depends on factors such as voltage fluctuation, the shape and size of food, your personal preference as to the doneness of certain foods and even how well you happen to place food in the oven. If you find the result at any rate not quite satisfactory, please adjust the cooking time a little bit accordingly.
A-1 Milk/Coffee (200ml/cup)
A-2 Popcorn (99g)
A-3 Spaghetti (g)
A-4 Potato (230g/unit)
A-5 Auto Reheat (g)
A-6 Fish (g)
A-7 Chicken (g)
A-8 Pizza (g)
A-9 Cake (475g)

5 Cleaning and maintenance

5.1 Cleaning and care

1. Turn off the oven and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.
3. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Wipe both sides of the door and window, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.
5. A steam cleaner is not to be used.
6. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave the oven door open to prevent the oven from accidentally turning on.
7. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions. And it is normal.
8. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
9. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or in a dishwasher. When removing the roller ring from the cavity floor for cleaning, be sure to replace it in the proper position.
10. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
11. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.
12. The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
13. Please do not dispose this appliance into the domestic rubbish bin; it should be disposed to the particular disposal center provided by the municipalities.
14. When the microwave oven with grill function is first used, it may produce slight smoke and smell. This is a normal phenomenon because the oven is made of a steel plate coated with lubricating oil, and the new oven will produce fumes and odor generated by burning the lubricating oil. This phenomenon will disappear after a period of using.

5.2 Storage

If you do not intend to use the appliance for a long time, please store it carefully. - Please make sure that the appliance is unplugged, cooled down and totally dry. - Store the appliance in a cool and dry place. - Keep the appliance out of the reach of children

5.3 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or the packaging. The appliance may be damaged.
• Dropping the appliance will render it non-operational or cause permanent damage.

6 Troubleshooting

Normal
Microwave oven interferes with TV reception Radio and TV reception may be interfered when microwave oven is operating. It is similar to the interference caused by small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.
Oven light is dimmed In low power microwave cooking, oven light may be dimmed. It is normal.
Steam accumulating on door, hot air coming out of vents	During cooking, steam may arise from the food. Most of this steam will get out from vents. But some may accumulate on a cool place like oven door. It is normal.
Oven started accidentally with no food in it. It is not allowed to run the appliance without any food inside. It is very dangerous.

Problem Possible Reason Solution
Oven cannot be started. 1) Power cable is not plugged in properly.	Unplug. Then plug again after 10 seconds.
2) Fuse is blown or circuit breaker is activated.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company).
3) Trouble with outlet. Test the outlet with other electrical appliances.
Oven does not heat. 4) Door is not closed properly. Close the door properly.
Glass turntable makes noise when microwave oven operates	5) Turntable and bottom of the oven is dirty.	Refer to "Cleaning and Maintenance" section to clean dirty parts.

Dear customer,

4.12 Micro + convection

Marron = BROWN

Brazowy = BROWN

Mavi = BLUE

Kahverengi = BROWN

*Our postal address:

Do not place the appliance near the edge of the door. Do not allow dirt or detergent residue to accumulate on the closing surfaces.

• Any maintenance work related to the door locking system, which ensures protection against microwave energy, must be carried out by qualified personnel/service center. Any other intervention is dangerous.
• Your appliance is intended for preparing, defrosting, and thawing food in domestic conditions. It must not be used for commercial purposes.
• The appliance is not intended for drying living beings. Do not use the appliance to dry animals or animal bedding. Do not use this appliance outdoors, in bathrooms, in humid environments, or in places where it may get wet.

No liability or warranty claims are accepted for damage resulting from incorrect use or incorrect handling of the appliance. Do not attempt to repair the appliance yourself. Warranty claims are not accepted in case of damage caused by improper handling. - Use only original spare parts recommended by the manufacturer. Do not leave the appliance unattended during operation. Always use the appliance on a stable, level, clean, dry, and non-slip surface. It is forbidden to use the appliance with an external timer or remote control system. - Before first use, clean all parts. See details in the 'Cleaning and Maintenance' section.

1 Important safety instructions and environmental protection

The appliance gets very hot during operation. Be careful not to touch the hot parts inside the oven. Do not operate the oven when it is empty. - Cookware may heat up due to the heat transferred from the hot oven to the cookware. You may need oven gloves to hold the cookware. It is necessary to check that the cookware is suitable for use in the microwave oven. Do not place the oven on stovetop burners or other appliances that generate heat. Otherwise, it may be damaged, and the warranty will become void. - When opening the lid or the door after cooking, steam may escape. During use, the appliance and its accessible surfaces may be very hot. - The door and the outer glass may be very hot during use of the appliance. - Make sure that your power supply unit meets the requirements listed on the appliance's rating plate.

• The only way to disconnect the appliance from the power supply is to unplug it from the wall outlet.
• For household use only.
• Never use the equipment if the power cord or the appliance itself is damaged. Do not use the appliance with an extension cord. Never touch the appliance or its plug with wet or damp hands. Position the appliance so that access to the plug is always ensured. Do not allow damage to the power cord: do not squeeze, bend, or allow it to rub against sharp objects. Keep the power cord away from hot surfaces and open flames.
• Make sure there is no danger that the power cord can be accidentally pulled out or that someone can trip over it during use of the appliance.
• Disconnect the appliance from the power supply before each cleaning and during non-operating periods.

1 Important safety instructions for environmental protection

Do not pull the power cord of the device to disconnect it from the power source, and never wind the power cord around the device. Do not immerse the appliance, power cord, or plug in water or other liquids. Do not hold it under running water. In case of heating products in plastic or paper containers, watch the oven closely due to the possibility of ignition. - Before placing bags in the oven, remove wire twist ties and metal handles from paper or plastic bags. - If smoke is observed, turn off or unplug the appliance from the power supply, if it is safe to do so, and keep the door closed to extinguish the flames. Do not use the microwave oven for storage. Do not leave paper items, cooking utensils, or food inside the oven when it is not in use. - The contents of feeding bottles and baby food jars

must be stirred or shaken, and the temperature must be checked before consumption to avoid burns.

This equipment belongs to Group 2 Class B. Group 2 includes all equipment in the ISM (Industrial, Scientific and Medical) band, in which radio frequency energy is generated / used in the form of electromagnetic radiation for the processing of materials, as well as electro-erosion equipment. - Class B equipment is suitable for use in domestic conditions and in establishments, for example, connected to a low-voltage electrical network. Do not use spray oil in the oven. Hot oil can damage the components and materials of the oven and even cause a fire. - Pierce foods with a thick skin, for example potatoes, squash, apples and chestnuts.

1 Important safety instructions and environmental protection

4.12 Micro + convection

J 12 J 12 J 12 J 12 J 12 J 12 J 12 J 12 J 12 J 12 J 12 J 12 J 12 J 12 J 12 J 12 J 12 J 12 J 12 J 12 J 12 J 12 J 12 J 12 J 12 J 12

1

3.

aiai i 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

4.

5.

6.

jill jil 1sill aol il iic lacli .nir n no jill lizgai

j 7

1 - 1

1. 1

8.

9.

Jai 5.3

3 1 a 111111111111111111111111111111 . j 1 j 1

J 4.15.3

g j 1000000000000000000000000000000000000000000000000000000000000000000000000000000

4.16

i 111111111111111111111111111111111111111

:

1.Level/

(aill/1jgl/（gll/s）"Weight/Menu

2. "Level"

palell jg yj (aiell/ jggl/ gll/s gall)

A

4..（）

y1 y

:الإستعمال 1.	/Ja 200) EFFECTIVE/ الإستعمال	A-1
	(الله 99) EFFECTIVE	A-2
	(الله) EFFECTIVE	A-3
	(الله 230) EFFECTIVE	A-4
	(الله) EFFECTIVE	A-5
	(الله) EFFECTIVE	A-6
	(الله) EFFECTIVE	A-7
	(الله) EFFECTIVE	A-8
	(الله 475) EFFECTIVE	A-9

"Level/Time/Weight/Menu" 5.5 .gill (ailll/ jgl/l/ gll/siell) .(ill) "Start" 6

Level/Time/Weight/' 2 abun (aiaai/ajj/ajg/ajg) "Menu .30:00

aIj aLac lJz jn Jai all g y jy plal 1y jy piai wll jy jy jil lc biai piie yajill all j! yj Cg jy dy jy (cill) "Start"

1. 1/2 ① 1 + u/1 - 1/1 = u/1 "Start" steps

"Level/Time/Weight/Menu" (aiaia /jzjgl/1gll/s)

(“Microwave”

1. 《a+》
2. "Level/Time/Weight/Menu" 1800 100

1.

.

1. "Level"

11 11

.（）"Start" 4

4.10

J 95 88 88

palee jzj (aai/ajj/ajg/ajg)

aic jj sill

3.

1 4.10.1

"Microwave" 30% 70% (1/2).

25 1 blll l j 1 /y) "Grill/Micro+Grill" 1 Level/ 一 _ 一 m (y+ y/0/0) "Time/Weight/Menu .

.（0）“Start”Jc14

aIjAlae aIJI JaoJn jll 1y j pleal bJy jiaiWALL 1y j le biwai pae yj! 1y j "qgl j (dill) "Start

1 1

4.8

2.. 1 (5) "Start" 10 3. "Level/Time/Weight/Menu" 1

1. "Level"

aIoc g Jy (ai/1j j/1g/og)

3..（“Start"24.10.2

"Level/Time/Weight/Menu" 4.4 (95

"Microwave" 55% Joue du juy. 45% g. (g w y) Joue du juy. 45% g. (g w y) Joue du juy. 45% g. (g w y) Joue du juy. 45% g. (g w y) Joue du juy. 45% g. (g w y) Joue du juy. 45% g. (g w y) Joue deli. 45% g. (g w y) Joue deli. 45% g. (g w y) Joue deli. 45% g. (g w y) Joue deli. 45% g. (g w y) Joue deli. 45% g. (g w y) Joue deli. 45% g. (g w y) Joue deli. 45% g. (g

Jall jrrn no gaoill sllk joc gall lac jraai clil jral /rlall Jall> aagll ssg 1 .<<jrral Ja+

1.

Level/” 1000000000000000000000000000000000000000000000000000000000000000000000000000000000

2.. 3. "Level"

g 1 (aai/ jjgl/ gss)

4..（e）

y jlll 1

aannnnn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

35 170

1

"Conv/Micro+Conv" 2 (1) (Jall +gll/lll) Level/Time/Weight/ " (1) (A/ll/1n/ll/ll/ll) "Menu

1c baiol yill (e) "Start" 3 1.3

5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5

30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 28

4.11

J 95 a

y

a 150 C, 140C, 150C, 160C, 170C,

7..() "Start" 180°C, 190°C, 200°C 180

.1 .2 Level/Time/Weight/ ... 10 "Menu"

"Level/Time/Weight/Menu" 4 120 (a/1/1/1/1/1) .30

"Clock/Kitchen Timer" 5

Clock/Kitchen Timer 1

4.5

100%) aI aI bI ic Ie yIyIaIbI IyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIyIy

4.6

"Microwave" 95 95 95 95 95 95 95 95 95 95 95 95 95 95 95 95 95 95 95 95 95 95 95 95 95 95 95 95 95 95 95 95 95 95

Mo (c) "Microwave" 1 Level/Time/Weight/ ... JJJg J (aill/0j/1/1/1/1) "Menu"

.() "Start" 2

"Level/Time/Weight/Menu" 3

.() "Start" 4

"Time Defrost/Weight Defrost" (j)

1 1

4.3

4.4

Level/Time/Weight/Menu" (Knob)

J1

###
###
###
###
###
###
###
###
###
###
###
###
###
###
###
###
###
###
###
###
###

12

1 1234567890 1234567890 1234567890 1234567890 1234567890 1234567890 1234567890 1234567890 1234567890 1234567890 1234567890

1 1

J 12 aL s JALI L 13 14 15 16 17 18 19 20

1y 1 y

3-21

MCF 25210 X - MCF 28310 X - MCF 32410 X
