KUC 2221 - Ultrasonic Cleaner Koenic - Free user manual and instructions

Product Type	Ultrasonic Cleaner
Brand	Koenic
Model	KUC 2221
Power Supply	220-240 V ~, 50/60 Hz
Rated Power	50 W
Protection Class	II
Tank Capacity	Approximately 600 ml (estimation)
Tank Material	Stainless Steel
Preset Timers	1:30, 3:00, 4:30, 6:00, 7:30 minutes
Main Functions	Ultrasonic cleaning with timer, duration selection, automatic shut-off
Included Accessories	Basket, CD holder with spacer ring, watch holder, cover with window
Washable Items	Jewelry, coins, pens, glasses (except polycarbonate lenses), hygiene items, CD/DVD
Non-Washable Items	Wood, pearls, leather, watch mechanisms, fragile surfaces
Recommended Use	Indoor household use only
Maintenance	Clean exterior with a damp cloth, empty and wipe the tank after each use, do not immerse
Safety	Do not leave unattended, unplug before cleaning, keep out of reach of children under 8 years without supervision
Repairability	Have repairs carried out by an approved service center, do not disassemble yourself

Frequently Asked Questions - KUC 2221 Koenic

What items can I clean with the KUC 2221?

You can clean jewelry (gold, silver, metal), coins, pens, glasses (except polycarbonate lenses), toothbrushes, dentures, razor heads, CD/DVD. Avoid wood, pearls, leather, and watch mechanisms.

How to use the Koenic KUC 2221 ultrasonic cleaner?

Place the items in the tank, fill with water up to the MAX mark, close the lid, plug in, press POWER, select the time with TIMER, then press ON. The cleaning stops automatically.

Can I use detergent?

Yes, you can add a few drops of detergent for deeper cleaning. Read the detergent instructions and follow safety guidelines.

What is the recommended cleaning time?

The preset times are: 1:30 min (lightly soiled), 3:00 min (normal), 4:30 min (first wash), 6:00 min (multiple items), 7:30 min (deep cleaning). Adjust according to dirtiness.

How to clean the KUC 2221?

Unplug the device. Clean the exterior with a damp cloth. Empty the tank after each use and wipe it dry. Never immerse electrical parts.

What to do if the device does not work?

Check the power supply. If the tank is empty or the water level too low, fill up to MAX. If the problem persists, contact the manufacturer.

Can I clean watches with the KUC 2221?

Yes, use the watch holder. Ensure only the strap is immersed; the case must not be submerged to avoid damaging the mechanism.

Is the vibration noise normal?

Yes, a slight vibration sound during operation is normal and indicates that the ultrasonic waves are active.

What is the tank capacity?

The approximate capacity is 600 ml. Do not exceed the MAX mark inside the tank.

Can I wash CDs or DVDs?

Yes, place the CD/DVD on the included holder. Use the spacer ring to wash two discs at a time. Follow the normal procedure.

USER MANUAL KUC 2221 Koenic

White ceramic washing machine with digital display showing 'NOSEMIC 100-00' and control buttons (no readable text beyond branding)

(6)1-11-1

Eng 59 14

10-645-73

(1)

B: 0.027 32

Hagi-1-11

la p30 44

Nedelants 45-50

P=0.56-56

Portugues 57-02

S###03 08

(2) (1)

Intron 2014

S###

E.C. Incented

1.0% 开放日

9.47A 01:18-14

[Non-Text]

P.3122117104905

CE

Labeled diagram of a rice cooker with internal components and parts marked A through L

B_01679_17_Cy_578_47e-1 AN137_M6=

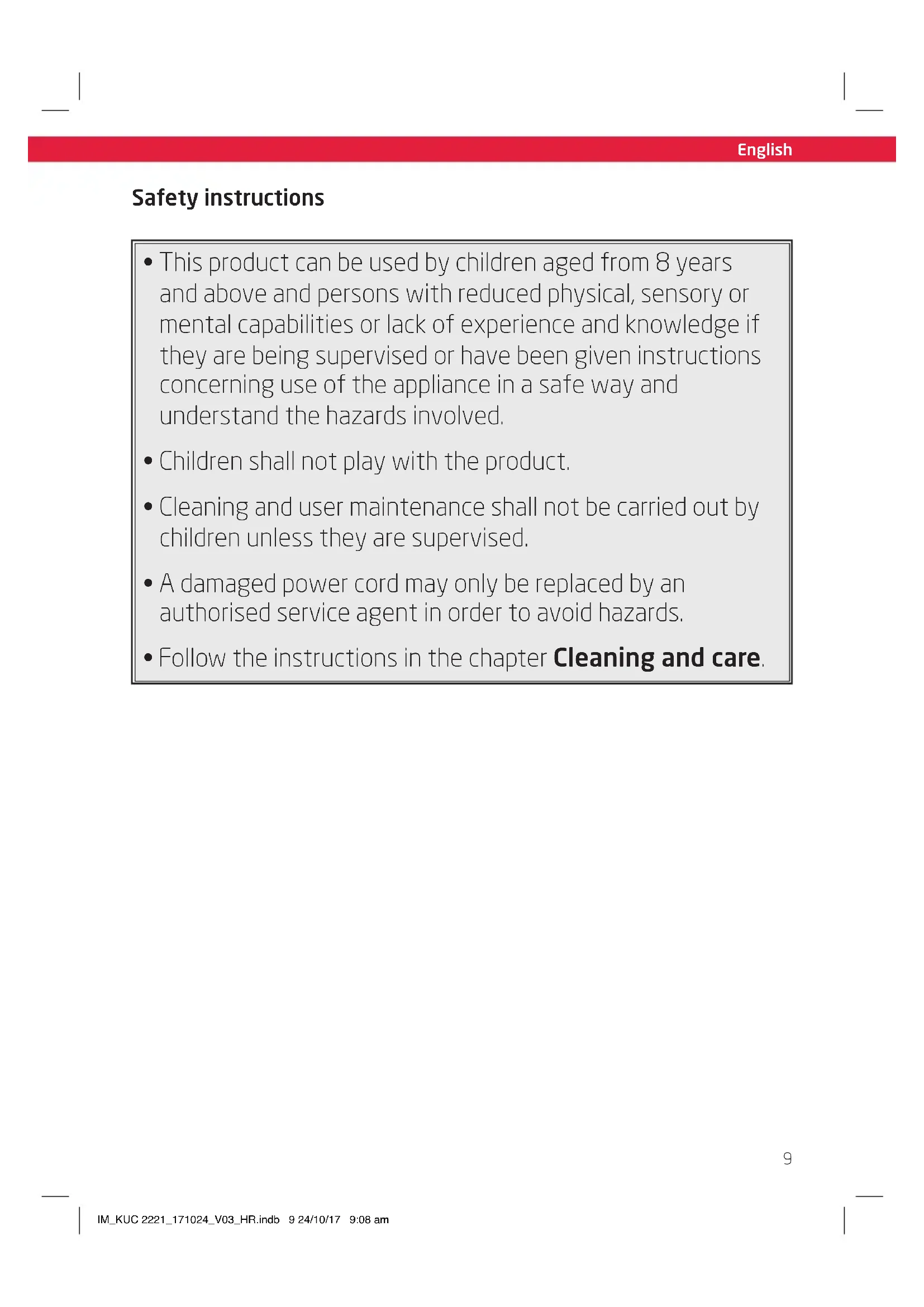

Sicherheitshinweise

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are being supervised or have been given instructions concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the product.
• Cleaning and user maintenance shall not be carried out by children unless they are supervised.
• A damaged power cord may only be replaced by an authorised service agent in order to avoid hazards.
• Follow the instructions in the chapter Cleaning and care.

English

Safety instructions

Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.

• Never leave the product unsupervised while it is switched on.
• Do not place any objects on top of the product.
• Never immerse electrical parts of the product in or any other fluid during cleaning or operation. Never hold the product under running water.
• Do not under any circumstances attempt to repair the product yourself (e.g. damaged power cord, product has been dropped, etc.). For servicing and repairs, please consult an authorised service agent.
• The mains voltage must match the information on the rating label of the product.
• Only unplugging from the power socket can separate the product completely from the mains. Please be sure that the power plug is in operable condition.
• Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
• Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing products/objects.

• Only unplug from the power socket by the plug itself. Do not pull on the cord.

• Unplug the product ...

• when the product is not being used,
• in case of malfunctions,
• before attaching / detaching accessories and
• before cleaning the product.
• Use this product in dry indoor areas only and never outdoors.
• This product is not intended for commercial use. It is designed for household use only.
• Do not allow the product to operate unsupervised.
• Use accessories supplied with the device or recommended by the manufacturer only!
• This product is suitable only for private use.
  • Always switch the product off before disconnecting it from mains supply.

Congratulations!

Thank you for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

This product is designed to be used as an ultrasonic cleaner. It removes dirt efficiently from many kinds of objects in a gentle way with ultrasonic waves. Using it for anything else can damage the device or cause injury. The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer's specified purpose.

Before first time use

Carefully remove the product and accessories from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.

Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

After unpacking, please refer to chapter

Cleaning and care.

Disposal

Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE.

By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Content

1 x Ultrasonic cleaner

1 x Basket

1 x CD holder with distance ring

1 x User manual

1 x Warranty card

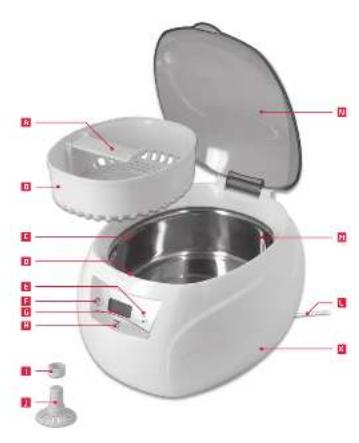

Part list

A Watch holder

B Basket insert

C MAX marking

D Blue indicator lamp

€ ON button (starts the timer)

F TIMER button

G Display

H POWER button

Distance ring

CD holder

K Housing

Power cord with power plug

M Stainless steel container

N Lid with viewing window

Technical data

Rated Voltage : 220 - 240 V\~, 50/60 Hz

Rated input power : 50 W

Protection class : II

English

Objects suitable or not suitable to be cleaned with ultrasonic waves

Suitable to be cleaned with ultrasonic waves
Jewellery Gold,	silver, metal jewellery such as necklaces, rings, earrings, bracelets, watch chains
Metal Parts Coins	ns, medals, badges, valves, small parts, waterproof watch components
Stationery Nibs	of fountain pens, ballpoint pen casings, printer nozzles, signature stamps
Optical Objects	Spectacles, sunglasses, magnifying glassesWarning: Do not clean poly-carbonate lenses (plastic) with the ultrasonic cleaner
Hygiene Articles	Toothbrushes, dentures, braces and shaving heads of razors, razor blades

Tips:

• Dry spectacle lenses after cleaning with a soft cloth. Streaks occur if the lenses are allowed to dry in the air.
• Shiny surfaces should be polished afterwards.

Not suitable for ultrasonic cleaning

• Wood
• Genuine pearls
• Leather goods
  • Clock and watch mechanisms
  • Materials with sensitive or scratched / damaged surfaces

Time Intervals

There are 5 default time intervals preset:

Time Recommended for:
1:30 min	Very light levels of dirt or if a short period of re-cleaning is required
3:00 min	Normal level of dirt
4:30 min	First cleaning of objects that have not been cleaned for a long time
6:00 min	First cleaning when several objects are cleaned together
7:30 min	To increase the effectiveness of the cleaning.

Cleaning Methods

- General Cleaning

Use normal tap water for general cleaning (the water should completely cover the item to be cleaned, although the maximum filling height should not be exceeded).

- Basic Cleaning

Cleaning concentrates can be used to intensify the cleaning effect of the product. Fill the stainless steel container with water, which is, depending on how soiled the to be cleaned objects are, dosed with multiple drops of detergent.

Note

Please note the information provided by the washing-up manufacturer on the pack.

- Partial Cleaning

For the partial cleaning of large objects please use the product with the lid open.

Note

During operation avoid contact with the liquid! Ultrasound is harmful to skin and bones.

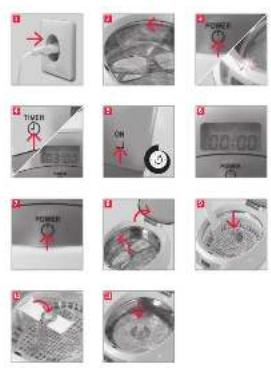

Operation

Ultrasonic cleaning without inserts

Fig. 1 Place the product on an even and stable surface and plug in the power plug.
Fig. 2 Put the to be cleaned object into the stainless steel container. Fill the container with water. The object must be covered by water, but ensure that it does not exceed the Max. marking of the container. Consider one of the methods mentioned in Cleaning Methods.
Fig. 3 Close the lid and press the POWER button to switch on the product. The blue indicator lights on and 00:00 appears on the display.
Fig. 4 Set a time interval with the TIMER button.
Fig. 5 Press the ON button to start and the time in the display counts down to 0.

Note

During the cleaning process a quiet vibration noise can be heard; this is caused by the cleaning process.

Fig. 6 After the set time has elapsed the cleaning process is automatically stopped and the display shows 00:00.
Fig. 7 Press the POWER button to stop the cleaning process manually if necessary.

Fig. 8 After the cleaning process has ended, turn off the product, open the lid and take out the cleaned object.

Note

• You can repeat the cleaning process in order to intensify the cleaning effect.
• In order to avoid lime residues, always empty the stainless steel container and wipe dry with a cloth. We recommend that the liquid should be renewed after every cleaning process.

Fig. 9 Ultrasonic Cleaning with basket

• Use the basket, if you clean sensitive and small objects. Put the item to be cleaned in the basket. You can clean several items together in one cleaning procedure. But ensure that the items do not touch each another in order to avoid scratches.
• Place the filled basket in the product and fill in water. The water must cover the items but not exceed the Max marking.
• Start the cleaning process as described in chapter Cleaning without inserts.

Note

The basket insert absorbs some of the ultrasonic waves and therefore reduces the cleaning performance. It may therefore be necessary to carry out several cleaning procedures.

English

Fig.10 Ultrasonic cleaning with watch holder

• Hang the watch on the watch holder and ensure the watch mechanism housing sits above the surface of the liquid. If the watch mechanism is in the liquid, it may be damaged during the cleaning process by the ultrasonic waves.
• Start the cleaning process as described in the chapter Cleaning without inserts.

Fig.11 Ultrasonic cleaning of CDs and DVDs

• Insert a CD or DVD into the supplied CD holder. Fill the product with water. 2 CDs or DVDs can be cleaned at the same time by using the ring as a spacer.
• Start the cleaning process as described in the chapter Cleaning without inserts.

Cleaning and care

Warning!

• When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).

• Never immerse any electrical parts of the product in water or in other liquids during cleaning. Never place it under running water.

• Clean the product's exterior surfaces with a slightly damp cloth and then dry them thoroughly.
  • Make sure that no water enters the product interior (for example, through the switch).

• Keep the product in a dry, cool location which is protected against moisture and direct sunlight. Keep this product out of the reach of children.

Troubleshooting

If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your manufacturer.

Problem Possible causes Solution
Product does not work	Interrupted power supply	Check the power supply
The object to be cleaned remains dirty	There is no or too little water in the stainless steel containerNo detergent was added.Cleaning with the basket insert	Fill the container with water up to MAX-markingAdd cleaning concentrate according to the type of soilingThe basket insert absorbs one third of the ultrasonic waves and therefore reduces the cleaning performance. It may therefore be necessary to carry out several cleaning procedures.
