USER MANUAL KIP 1332 Koenic

Induction cooking plate /

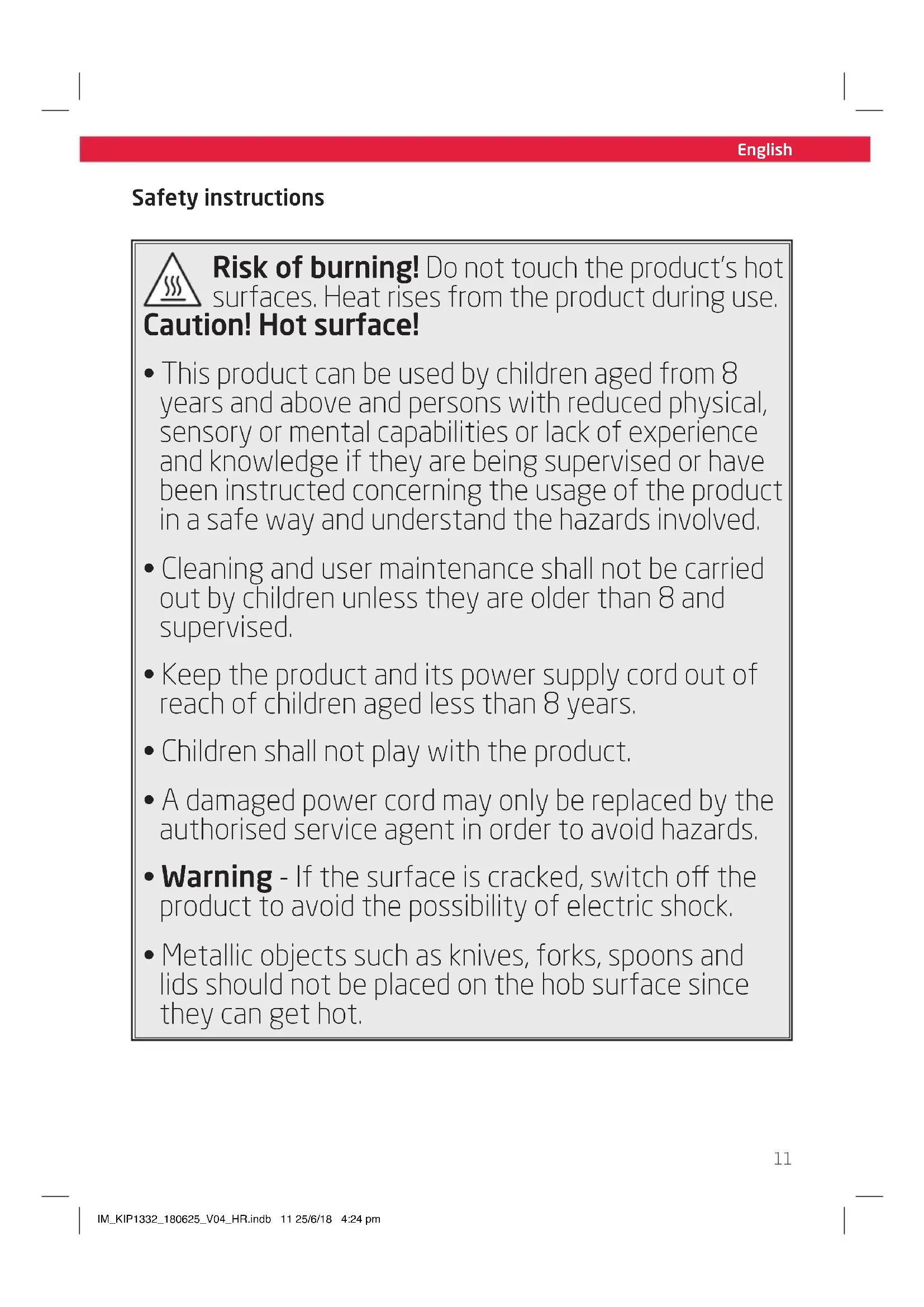

Risk of burning! Do not touch the product's hot surfaces. Heat rises from the product during use.

Caution! Hot surface!

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are being supervised or have been instructed concerning the usage of the product in a safe way and understand the hazards involved.
• Cleaning and user maintenance shall not be carried out by children unless they are older than 8 and supervised.
• Keep the product and its power supply cord out of reach of children aged less than 8 years.
• Children shall not play with the product.
• A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.
• Warning - If the surface is cracked, switch off the product to avoid the possibility of electric shock.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.

English

Safety instructions

• The product is not intended to be operated by means of an external timer or separate remote-control system.
• Follow the instructions in the chapter Cleaning and care.

Safety instructions

• Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.
• Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards.
• Never leave the product unsupervised while it is switched on.
• Do not place any objects on top of the product.
• Never immerse electrical parts of the product in water or other fluids during cleaning or operation. Never hold the product under running water.
• Do not under any circumstances attempt (e.g. damaged power cord, product has been dropped, etc.) to repair the product yourself. For servicing and repairs, please consult an authorised service agent.
• The mains voltage must match the information on the rating label of the product.
  Only unplugging from the power socket can separate the product completely from the mains. Please be sure that the power plug is in operable condition.
• Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
• Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing products/objects.
• Only unplug from the power socket by the plug itself. Do not pull on the cord.
• Unplug the product ...
• when the product is not being used,
• in case of malfunctions,
• before attaching / detaching accessories and
• before cleaning the product.

Use this product in dry indoor areas only and never outdoors.
- Never use, expose or put the product near to: direct sunlight and dust; fire (fireplace, grill, candles), water (water splashes, vases, bath tub) or heavy moisture.
This product is not intended for commercial use. It is designed for household use only.
- Keep electrical products out of reach of children. Do not let them use the product without supervision.
- Warning: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover the flames e.g. with a lid or a fire blanket.
- Warning - Danger of fire: Do not store items on the cooking surfaces.
- Do not use a steam cleaner for cleaning!
After usage, switch off the product by its control and do not rely on the pan detector.
- Caution: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

English

Congratulations!

Thank you for your purchase of KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

This product is designed for heating and cooking foods with pots/saucepans. Any other use may result in damage to product or injuries. The product is only intended to be used in private households and shall not be used for commercial purposes.

The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer's specified purpose.

Before first time use

Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.

Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

After unpacking, please refer to chapter

Cleaning and care

Do not dispose of this product as

unsorted municipal waste. Return it to a designated collection point for the

recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Content

1 x Induction cooking plate
1 x User manual

Controls and components

A Power cord with plug
B Induction cooking hob
C Control panel with display
D Feet
Function selection button
F Timer button
G - button
H Display
+ button
1 Keep-warm button
K ON/Standby button with indicator

Cookware

Fig.1 Suitable cookware:

Only use pans and pots which are declared as suitable for induction cooking with a bottom diameter of 12 to 26~cm

Not suitable cookware:

• Heat-resistant glass, ceramic, copper or aluminium cookware
  Cookware with curved bottoms or with feet
  Cookware with a diameter less than 12 cm.

Operation

Fig. 2 Place the Induction cooker on an even, stable and heat resistant surface. Keep a distance of at least 10cm to surrounding walls and other objects.
Fig.3 Connect the power plug to a suitable power outlet. An acoustic signal sounds and the display shows shortly "88:88". The induction cooker is on standby mode now and "L" appears on the display.

Note: Afterwards "L" (cooking surface temperature < 50^ ) or "H" (cooking surface temperature >50^ ) will be displayed flashing.

Fig. 4 Place a suitable pot/saucepan on the center of the cooking zone.

Note: Ensure that the pot/saucepan is clean and dry on the outside.

Attention

The pot on the hob must not weigh more than 5kg in total.

Fig.5 Press the ON/Standby button to turn on the product which is indicated by an acoustic signal and a red indicator LED.
Fig. 6 Choose power mode (Power) or temperature mode (Temp.) by pressing the Function button. The preset mode is indicated by a red LED.
Fig. 7 Choose the desired power (200 - 2000 W in 200 W steps) or temperature (60 - 240 °C in 20 °C steps) by pressing +/- buttons.
Fig. 8 In turned on product will switch to standby mode, when

• after approx. 10 seconds there is no setting
• approx. 60 seconds after setting no suitable cookware is placed on the cooking plate.

Fig. 9 After use press the ON/Standby button to turn the product to standby.

Warning

Always unplug the product to ensure it is completely turned off.

English

Timer

Note: Using the timer function the induction cooking hob will automatically turn to standby after a preset time has elapsed. The min./max, adjustable times are 0:01 minute/3:00 hours.

Fig.10 Set the timer

To activate the timer press during cooking. The display shows 00:00 flashing.
The residual time can be set using the +/- buttons. With a single tap of the +/- button the value changes by 1 minute. Keep the +/- button pressed, the value changes quickly with 10 minutes increments.
Press timer button again to confirm the set value.

Note: If the timer is activated the display alternatingly shows the residual time and the preset temperature or power level. After the preset time has elapsed the induction cooking hob will be switched to standby and the display shows a blinking H.

Note: The residual time can be changed when the timer is activated. Press the timer button and change the time with +/- buttons. Press the timer button again to confirm.

Keep warm function

Fig.11 Press the Keep-warm button to keep the food warm at 60^ . After use press the ON/Standby button to turn the product to standby.

Note: The keep warm function can be used together with the timer.

Key Lock

The cooktop can be locked against unintentional use (e.g. as child protection). If the lock is activated all control buttons except the on/off switch are locked.

Fig. 12 Press + and - buttons at once to lock the control panel the display shows "Loc". Press + and - buttons at once for approx. 3 second to unlock the control panel.

Residual heat indicator

Fig.13 The induction cooking plate has a residual heat indicator. If the cooking plate is off but still hot, H is shown in each power level display. The display shows L when the cooking plate cooled down to a safe temperature.

Cleaning and care

Warning

When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).

Fig. 14 Unplug the induction cooker and let it cool down completely before cleaning.

Fig. 15 Clean the product's exterior surfaces with a slightly damp cloth and then dry them thoroughly. Make sure that no water enters the product interior (e.g. through the fan openings).

Troubleshooting

If there are any problems during operation, please refer to the following table. If the problems cannot be solved as indicated under Solution, please contact your manufacturer.

Problem / error code Possible causes Solution
The LED does not come on when unit is plugged in.	No power supplied • Check to see if plug is secured tightly in outlet and that outlet is working.
Heating stops suddenly during operation and hear a beep every second.	Pan type is wrong. • Use a proper pot (refer to the instruction manual.)
	Pot diameter is too small.
E2/E4/E5/EB Failure of the temperature sensor		• Switch off the product and contact the authorized service.

Noise during operation

Because of the induction technology, following noises can occur during operation:

Noise Meaning

Humming Caused by induction and increases when the power is set on higher level.

Crackle Caused by vibration of the cookware bottom during heating

Fan noise The fan protects the product from overheating. The noise increases with the power level. After turning off the product, the fan will still operate for some minutes to cool down the product.

English

Energy saving

In order to reduce total environmental impact (e.g. energy use) of the cooking process, please consider the following hints:

• Place the cookware in the middle of the cooking zone before switch on the product.
• When cooking always cover the cookware with a lid.
• When boiling water, only boil the required quantity of water.
  Always use the lowest possible temperature for cooking.
• Turn off the product in time and make use of residual heat.

Technical Data

Model KIP 1332
Type of hob Free standing induction cooking plate
No. of cooking zones 1
Heating technologies Induction / Electricity
Diameter of the cooking plate (Ø) 21 cm
Energy consumption/ plates (ECeletric cooking)	--
Energy consumption hob (ECeletric hob) 199.5 Wh/kg
Rated voltage 220 - 240 V~ 50 Hz
Rated Power 2000 W
Protection class II
Dimensions 350 x 280 x 68 mm

This is a free standing induction cooking plate.
- ERP-testing was done according to EN 60350-2:2013+A11:2014 & EN 50564:2011.
- See website below for detailed technical information or ask your vendor for specification sheet. www.koenic-online.com.
