KS 9959 - Fridge SEVERIN - Free user manual and instructions
Find the device manual for free KS 9959 SEVERIN in PDF.
| Product type | Compressor refrigerator |
| Brand | SEVERIN |
| Model | KS 9959 |
| Energy class | A++ |
| Annual consumption | 84 kWh/year |
| Refrigerator capacity | 42 liters |
| Dimensions (H x W x D) | 510 x 439 x 470 mm |
| Weight | 14 kg |
| Power supply | 220-240 V ~ 50 Hz |
| Climate class | N, ST, T (16°C to 43°C) |
| Noise level | 43 dB(A) |
| Refrigerant | Isobutane (R600a) |
| Defrost | Manual |
| Temperature control | Rotating mechanical thermostat |
| Reversible door | Yes (right or left opening) |
| Interior light | Yes (replaceable bulb) |
| Included accessories | Ice cube tray, drip tray, shelves, bottle storage, adjustable feet |
| Care and cleaning | Lukewarm water and mild detergent; do not use abrasive products |
| Safety | Mandatory grounding; flammable gas R600a; do not obstruct ventilation grilles |
| Repairability | Repairs by an authorized agent; spare parts available |
| General information | Domestic use; do not use outdoors; store food according to temperature zones |
Frequently Asked Questions - KS 9959 SEVERIN
User questions about KS 9959 SEVERIN
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Fridge in PDF format for free! Find your manual KS 9959 - SEVERIN and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. KS 9959 by SEVERIN.
USER MANUAL KS 9959 SEVERIN
Before using the appliance, read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.
Connection to the mains supply
The appliance should only be connected to an earthed socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label. This product complies with all binding CE labelling directives.
Do not operate this unit by means of a transformer.
- To prevent noise vibration, ensure that the power cord does not touch any part of the rear of the unit.
General information
This appliance is a compressor refrigerator, designed for short-term storage of food.
- Refrigeration appliances are classified into certain climate classes. Please refer to the product data sheet for information on the classifi cation for this unit; the data sheet can be found at the end of this manual.
- No responsibility is accepted if damage results from improper use, or if these instructions are not complied with.
Important safety instructions
This appliance is intended for domestic or similar applications, such as
- in shops, offices and other similar working environments,
-in agricultural areas, - by customers in hotels, motels etc. and similar establishments,
- in bed-and breakfast type environments.
This appliance is not intended for commercial use, nor for use in the catering business or similar wholesale environments.
The cooling circuit in this appliance contains the refrigerant isobutane (R600a), a natural gas with a high level
of environmental compatibility, which is nevertheless flammable. Ensure, therefore, that none of the components of the refrigerant circuit become damaged during transportation and installation of the appliance. If damage to the cooling circuit does occur, do not switch on or connect the appliance to the mains power. In the case that there is an open fire or any other sources of ignition in the vicinity of the refrigerant gas, make sure it is removed immediately from this area and that the room is then thoroughly ventilated.
- Warning: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Sufficient ventilation must be ensured at all times.
- Warning: Do not damage the cooling circuit. Any escaping refrigerant causes damage to the eyes; there is also a danger of the gas igniting.
- Warning: Do not use any external device (e.g.; heaters or heating fans) to accelerate de-frosting; follow only the methods recommended in this manual.
- Warning: Do not operate any electrical appliances (e.g. ice makers) inside the storage compartment that are not specifically permitted in these
instructions.
Before it is connected to the mains power, the unit must be thoroughly checked for transport damage, including its power cord. In the event of any such damage being found, the appliance must not be connected to the mains.
- This appliance is not designed for the storage of explosive substances such as aerosol cans with a flammable propellant.
If the unit is sold, handed over to a third party or disposed of at a suitable recycling facility, attention must be drawn to the presence of the insulation agent 'cyclopenthane' as well as to the refrigerant R600a. For additional information on correct recycling please refer to the section Disposal.
In order to comply with safety regulations and to avoid hazards, any repairs or modifi cations to this unit must be carried out by our authorised service personnel, including the replacement of the power cord.
- This appliance may be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, provided they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved.
Children must not be permitted to play with the appliance.
Children must not be permitted to carry out any cleaning or maintenance work on the appliance.
- For frequent cleaning we recommend the use of warm water with some mild detergent. For detailed information on cleaning the appliance, please refer to the section De-frosting and cleaning.
- For detailed information on replacing the light bulb, please refer to the section Interior lighting.
- To prevent the risk of personal injury or damage to the unit, it must only be transported while in its original packaging. For unpacking and installation, 2 persons are needed.
- Caution: Keep any packaging materials well away from children: there is a risk of suffocation.
- The ice removed from the unit during de-frosting is not suitable for consumption.
- The power cord should be regularly examined for any signs of damage. In the event of such damage being found, the appliance must no longer be used.
- To avoid the risk of fire, do not place any electric appliances on top of the unit. Do not place liquid containers on top of the unit, to prevent any leaking or escaping liquid damaging the electrical insulation.
This unit is designed for storing food only.
Alcoholic substances may be stored only in properly sealed containers and in upright positions.
- Do not store any glass bottles containing carbonated or other 'freezable' liquids in the unit: such bottles may burst during the freezing process.
- To avoid the risk of food poisoning, do not consume food after its storage time has expired. Thawed foods must not be frozen a second time.
- Do not lean or put undue weight on the shelves, compartments, door etc.
- Protect the inside of the refrigerator at all times from open fl ames and any other sources of ignition.
- Remove the plug from the wall socket
- in case of any malfunction,
- before de-frosting,
- during cleaning,
-
before maintenance or repair work is carried out.
-
When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself.
If the unit is not used for an extended period of time, we recommend keeping the door open.
We reserve the right to introduce technical modifications.

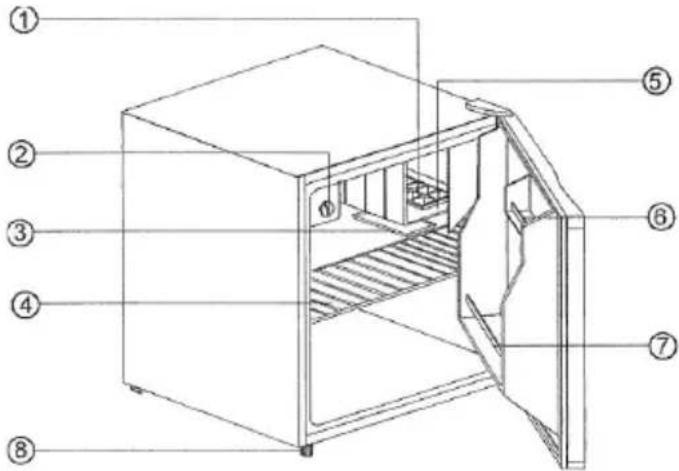

Familiarisation
- Ice cube maker
- Temperature control
- Drip tray
- Removable storage rack
- Cold storage compartment
- General storage
- Bottle storage
- Adjustable foot
The upper section of the unit contains a cold-storage compartment that can be closed by a door.
Before using for the first time
- Remove any exterior and interior packaging materials completely, including the adhesive strips.
- Please ensure proper disposal of all packaging materials.
Before it is connected to the mains, the unit must be thoroughly checked for transport damage, including its power cord. - Clean the unit as described in the section De-frosting and cleaning.
The unit should only be transported in its vertical position; do not tilt any more than 30^ .
Once the unit has been positioned, wait for about 30 minutes before it is connected to the mains.
If the unit has been tilted more than 30^ during transport, allow it to stand upright for at least 4 hours before it is connected to the mains. - When the unit is first switched on, a slight 'new' smell may be noticed. However, this will disappear once the cooling process has begun.
Installation
The appliance should be set up in a well-ventilated, dry room.
It should be operated in conditions where the relative humidity is no more than 70% .
- The product data sheet at the end of this manual contains details of the ambient temperature range suitable for this appliance.
Do not use the appliance outdoors.
- Ensure that the plug is accessible and can be removed from the wall socket at any time.
- Do not expose the appliance to direct sunlight, and do not position it next to any heat sources (radiators, cookers etc). If this cannot be avoided, however, a suitable insulation must be in installed between the heat source and the unit.
The unit must not be installed inside a cabinet, nor directly below a hanging cupboard, shelf or similar object. - Do not place any objects on top of the unit, and do not otherwise cover it.
- If the floor is uneven, the height-adjustable feet at the front of the unit can be used to compensate and ensure optimum stability.
Ventilation
Ensure that there is enough space around the unit so that the air circulation round and behind it is not obstructed. (Rear 7.5 cm, sides 5 cm, top 10 cm.)

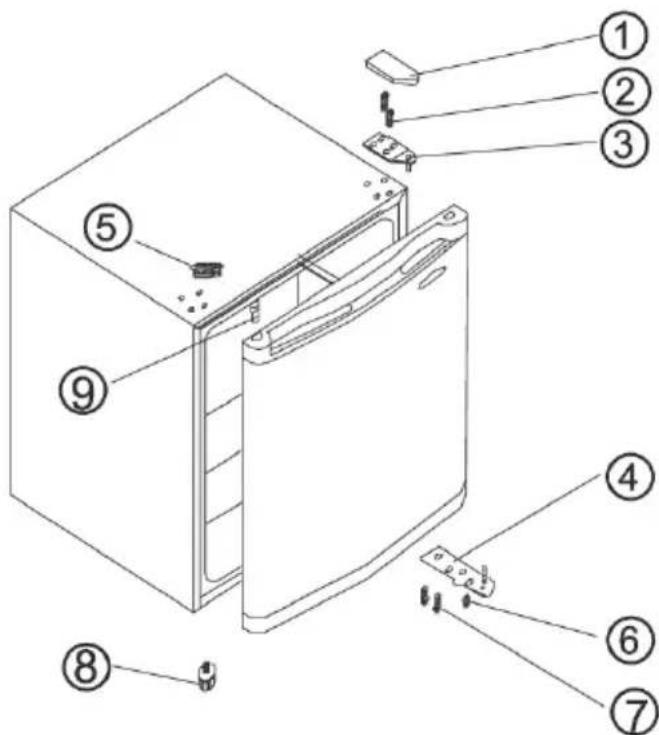

Reversible door
If required, the door may be reversed, i.e. from right-inged (default installation) to left-inged.
Warning: Always disconnect the unit from the mains before any maintenance or repair work is carried out.
- Remove the hinge cover (1).
- Use a suitable pointed tool to remove the cover (5).
- Use a suitable screw-driver to remove the two screws (2) holding the upper hinge (3) to the housing.
- Carefully lift up the door and place it on a soft surface to protect it from scratches.
- Remove the blind covers for the hinge mounting holes (9) and fit it in the corresponding place on the right. Ensure that the cover is firmly pushed down into the
hole.
- Pull out the two screws (7) which hold the lower right hinge plate (4) and the adjustable foot (6) in position. Take off the hinge plate (4) and the adjustable foot (6) and replace and tighten the two screws again.
- Remove the adjustable foot (8) on the left and insert it into the corresponding thread on the right.
- Unscrew the two screws on the left-hand side and install the lower hinge plate (4) with the two screws (7) on this side. Caution: Do not yet tighten the screws.
- Replace the door in its new position. Ensure that the hinge pin is inserted into the guide bushing (hole) on the lower part of the door.
- Install the upper hinge (3) on the left-hand side. Ensure that the hinge pin is inserted into the guide bushing (hole) on the upper part of the door. Caution: Do not yet tighten the screws.
- Adjust the closed door to its proper position and tighten the screws of the upper and lower hinge plates.
- Replace the cover (5) in the corresponding holes on the right.
- Replace the hinge cover (1) on the upper hinge.
- Put the unit back in its intended position and wait for about four hours before connecting it to the mains.
Temperature control
The unit is activated by connecting it to the mains. It is only switched off completely when the plug is removed from the wall socket.
The temperature in the refrigerator cabinet can be adjusted by setting the temperature control.
Turning the control clockwise will decrease the temperature, while turning it anti-clockwise will increase it.
We recommend turning the temperature control initially to a medium setting. After a certain time, the actual temperature should then be checked with a thermometer, and adjustments made if necessary.
Following a power interruption, or if the unit has been switched off on purpose, it may take 3 to 5 minutes before it switches on again.
Note: In position '0', the cooling function is switched off, though the appliance is still connected to the mains.
Storing food
- The temperatures inside the refrigerator cabinet and cold storage compartment depend mainly on the ambient temperature, the temperature control setting and the amount of food stored.
Cold storage compartment:
- The cold storage compartment is specifically designed for short-term storage of fresh meat, fish and poultry.
Main cabinet
-
Different areas of the refrigerator cabinet are affected differently by the cooling effect. The warmest area is around the door in the higher part of the cabinet, the coldest around the rear wall and in the lower part of the cabinet.
The food should therefore be stored as follows: -
On main cabinet shelves (from top to bottom): bakery items, ready meals, dairy products, meat, fish and cold meats/sausages.
In the door (from top to bottom): butter, cheese, eggs, tubes (eg mustard), small bottles, large bottles, milk and fruit-juice tetra-packs.
If you notice frost on the rear wall, the most likely cause is that the door has been left open for too long, or that warm food has been placed inside the refrigerator or that the temperature control has been set too high.
Liquid or strong-smelling food, or food which is likely to absorb strong odours (e.g. cheese, fish, butter), should be stored separately or in hermetically sealed containers.
Warm food should be left to cool down to room temperature before being placed in the refrigerator.
Always ensure that the door is properly closed and that the seal is not obstructed by food stored inside the cabinet or door.
De-frosting and cleaning
Always remove the plug from the wall socket before cleaning.
- When the build-up of ice has reached a thickness of 2 mm, the unit must be de-frosted.
- Turn the temperature control down to '0' and leave the door open. The unit is now defrosting, and the resulting melt-water is collected at the bottom and in the drip tray.
- Warning: Do not use any external device or other means (e.g. heaters or heating fans) to accelerate de-frosting.
- Do not pour water over or inside the unit.
- For frequent cleaning we recommend the use of warm water with some mild detergent. To prevent any unpleasant odour within the refrigerator, it should be cleaned about once a month.
- Any accessories should be cleaned separately with soapy water. Do not put them in a dishwasher.
- Do not use abrasives or harsh cleaning solutions or any cleaning agents that contain alcohol.
After cleaning, thoroughly clean all surfaces with fresh water before wiping them completely dry. When re-inserting the plug into the wall socket ensure that you have dry hands.
Take care not to remove or damage the rating plate inside the cabinet during cleaning.
- To save energy, the compressor (at the rear) should be cleaned carefully at least twice a year with a brush or a vacuum cleaner.
Energy saving tips
- The appliance should be set up in a well-ventilated, dry room.
- Do not expose the appliance to direct sunlight, and do not position it next to any heat sources (radiators, cookers etc). If this cannot be avoided, however, suitable insulation must be installed between the heat source and the unit.
- Do not cover the ventilation openings and grilles, and ensure suffcient air circulation behind the unit.
- The compressor (at the rear) should be cleaned at regular intervals. Accumulated dust causes an increase in energy consumption.
- Warm food should be allowed to cool down before it is stored inside.
- Do not leave the fridge door open for too long when loading or taking out food.
- Do not set a lower-than-necessary temperature. For detailed information on the temperature settings, please refer to the section Temperature control.
Trouble-shooting

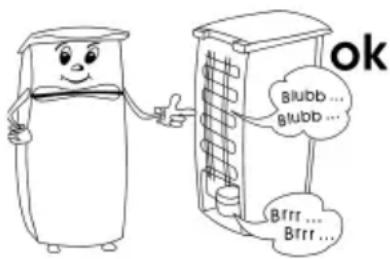

Certain typical sounds can be heard when the appliance is switched on. These sounds are:
caused by the electrical motor within the compressor assembly; during compressor start-up the sound level will be slightly higher for a limited period of time.
- caused by the cooling agent flowing through the circuit.
The following table lists possible malfunctions and their probable causes and solutions. In the event of operational problems, check first whether a solution can be found using this table. If the problem persists, disconnect the appliance from the mains power and contact our Customer Service Department.
| Problem Possible cause and solution | |
| The appliance is not working at all. | There is a power failure. The main fuse has blown. The temperature control is set to '0'. The fuse in the wall socket (if applicable) has blown. This can be checked by connecting another electrical device to the socket and checking for function. |
| The normal operating sound changes or becomes louder. | Check for proper positioning (uneven floor?). Are any adjacent objects affected by the running of the cooling unit (i.e. causing them to vibrate?) Are there any objects on top of the unit which might be vibrating? |
Transporting the appliance
To prevent damage to the unit during transport, ensure that all accessories and components inside and around the appliance are securely fastened.
The unit must only be transported in its vertical position; do not tilt any more than 30^ .
Once the unit has been positioned, wait for about 30 minutes before it is connected to the mains.
If the unit has been tilted more than 30^ during transport, allow it to stand in an upright position for at least 4 hours before it is connected to the mains.
Disposal
Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials which can be recycled. Proper disposal protects the
environment and human health. Your local authority or retailer can provide information on the matter. The refrigerant and the chemical agent in the insulation foam must be disposed of through a competent agency. Take special care not to damage the cooling circuit before the unit is handed over for competent disposal.
Guarantee
This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.
This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.
Information needed by the Customer Service Department
Should repairs to the appliance become necessary, please contact our Customer Service Department, providing a detailed fault description and quoting the model number KS ... on the rating plate of the appliance (see picture). This information will help us to handle your request efficiently.
Product data sheet for refrigerating appliances *
| Art. no. KS 9838, 9958, 9959 | |
| Household refrigerating appliance category 1 -Refrigerator | |
| Energy efficiency classification | A++ |
| Energy consumption** in kWh/year 84 | |
| Usable refrigerator capacity (litres) 42 | |
| Usable capacity *** cold-storage compartment (litres) | --- |
| Frost-free : refrigeration unit no | |
| Frost-free : freezer unit -- | |
| Safe storage time in case of malfunction, hrs --- | |
| Freezing capacity, kg/24h --- | |
| Climate classifi cation N, ST; T | |
| Ambient temperature range, °C 16-43 | |
| Noise emission in dB(a) 43 | |
| Dimensions (H x W x D) in mm 510 x 439 x 470 | |
| Weight (kg) 14 | |
| Electrical specifi cations | See rating plate |
) In accordance with EU directive 1060/2010 Annexe III
*) The actual consumption depends on the pattern of use and the location of the appliance
As per 11.10.2017
Glaciere
Chere cliente, Cher client,
Compartment congestion:
Koud opslag compartment:
Transport of apparatus
Regulator temperature
B4-061/062 NO,181 Exhibition Road
Jiangdong District, Ningbo
Tel.: +86 400 166 0336
Fax.: +86 0574 55331669
Web: www.nbautin.com.cn
Web: www.autin.com.cn
Czech Republic
BVZ Commerce s.r.o.
Parkerova 618
CZ 25067 Klecany
Tel.: +420 233 55 94 74
Fax:+420233558159
Danmark
F&H of Scandinavia A/S
Gl. Skivevej 70
DK-8800 Viborg
Tel.: +45 8928 1300
Fax:+4589281301
26 Oaktree Business Park
Trim Co., Meath
Tel.: 046 94 83100
Fax:0469483663
Web: www.bluestone.ie
Italia
ASSISTENZA POST-VENDITA
NUMERO VERDE 800224155
E-Mail: assistenza@severinitalia.it
Indonesia
PT. Setai Modern Elektronik
Email: info@severin.co.id
Web.: www.severin.co.id
Jakarta
Komp. Glodok Plaza Blok F No. 9, JI. Pinangsia Raya,
Jakarta Barat
02165911888/0216592889
Medan
JI. Apel No. 88 Kom. Cemara Asri
0616620186/0616625836
Surabaya
Pergudangan Mutiara Margo Mulyo Indah,
BloK DC No. 2
Telp:(031)749 1012, (031)749 1016
Banjarmasin
Pergudangan Sumber Baru Jin A. Yani KM 17.9 Gudang B
15,Gambut
05116730101
Tangerang
JI. Industri Raya III Blok AD No. 3, Cikupa
021 5902219-21
Cirebon
501, Megaventuretower 77-9
Moonrae-Dong 3ga, Yongdeungpo-Gu
Seoul, Korea
Tel.: +82-22-637 3245~7
Fax:+82-22-6373244
Service Hotline: 080-001-0190
Kuwait
Mohammed Abdulrahman Al Bahar
Al Bahar Building P.O. Box 148
Safat 13002 Kuwait
Tel.: +965 4810855
Latvia
SIA GTCL BALTIC
Piedrujas iela 7
LV-Riga 1073
Tel.: +371 29119989
Fax:+37167297769
Lebanon
Khoury Home
7th Floor, Cité Dora 3 Building, Dora
P.O.Box 70611
Antelias, Lebanon
Tel.: +961 1244200
Fax:+9661253535
E-Mail: info@khouryhome.com
Internet: www.khouryhome.com
Luxembourg
Ser-Tec
Ruedu Chateaud'Eau
3364 Leudelange
Tel.: +352 37 94 94 402
Fax:+352379494400
Macedonia
Agrotehna
St. Prvomajska BB
1000-Skopje
MACEDONIA
E-Mail: servis@agrotehna.com.mk
Tel.: +389 2/24 45 009 or -019
Fax:+38922463270
Magyarország
TFK Elektronik Kft
Gyar u.2
H-2040 Budaors
Tel.: +36 23 444 266
Fax:+3623444267
A.A.K & Partners L.L.C.
P.O Box:-1650, Muttrah
Postal Code - 114
Sultanate of Oman
Tel.: +968 24834470
Fax.: +968 24835186
E-Mail: aakplc@gmail.com
Philippines
COLOMBO MERCHANT PHILIPPINES, INC.
Mezzanine 1, South Center Tower
2206 Venture Street, Madrigal Business Park
Alabang, Muntinlupa City
Tel.: 8093441
E-Mail: severinconsumercare@colombophils.com.ph
Polska
Severin Polska Sp.z 0.o.
Al.Jerozolimskie 56 C
00-803 Warszawa
Tel.: +48 882 000 370
E-Mail: reklamajce@severin.pl
Russian Federation
Orbita Service
123362 Moskau
ul. Svobody 18,
Tel.: (495) 585 05 73
Opmba CepBc
123362 r. MockBa
yn.Cb60db1,18.
Ten.: (495)585-05-73
Serbia
SMILdoo
Pasiceva 28, Novi Sad
Serbia and Montenegro
Tel.: +381-21-524-638
Tel.: +381-21-553-594
Fax: +381-21-522-096
Singapore
Beste (S) Pte. Ltd.
Tagore Building
6 Tagore Drive, #03-04
Singapore 7
Tel.: +65 6455 0005
Fax:+6564554010
Web: www.beste.com.sg
E-Mail: info@beste.com.sg
Slovenia
SEVTIS d.o.o.
Smartinska 130
1000 Ljublj.
Tel.: +386 1542 1927
Fax:+38615421926
Slowak Republic
PREMT S.R.O.
Skladova 1
91701Trnava
Tel.: +421 33 55 45 007
Fax:+421335545007
E-Mail: premt@premt.sk
South Africa
AL&CD Ashley (PTY) Ltd.
3rd Floor, Grove Exchange
9 Grove Avenue
Claremont
South Africa
7708
Tel: +27 21 674 0294
Fax:+27 216740295
Web: http://www.alcdashley.co.za
Mail: service@alcdashley.co.za
Svenska
Rakspecialisten HS
Mollevängsgatan 34
214 20 Malmö
Tel.: +46 40 12 07 70
Fax:+46406110335
E-Mail: info@rakspecialisten.se
Switzerland
BLUEPOINT Service Sagl
Via Cantonale 14
CH-6917 Barbengo
Tel.: +41 91 980 49 72
Fax:+41916053755
E-Mail: info@bluepoint-service.ch
Thailand
Verasu Ltd. part.
83/7 Wireless Rd., Lumpini,
Patumwan, Bangkok 10330
Tel.: +662 254 81 008
E-Mail: askverasu@verasu.com
United Arab Emirates
Juma al Majid Est
P.O.Box 156
Dubai U.A.E
Tel.:042665210
Fax: 04 262 3431
E-Mail: shahid-saleem@al-majid.com
Web: www.al-majid.com
United Kingdom
Homespares Centres Limited
Firwood Industrial Estate
Thicketford Road
Bolton. BL2 3TR
Tel.: 01204 558160
Fax: 01204 558169
E-Mail: offi ce@hslc.info
Web: www.hscl.info
Vietnam
Brand Partner
W.22, D. Binh Thanh
180/38 Nguyen Huu Canh Street
Ho Chi Minh City, Vietnam
Tel.: +84 862 899 648
Fax:+84862899649
E-Mail: info@brandpartner.vn
Stand: 10.2016
