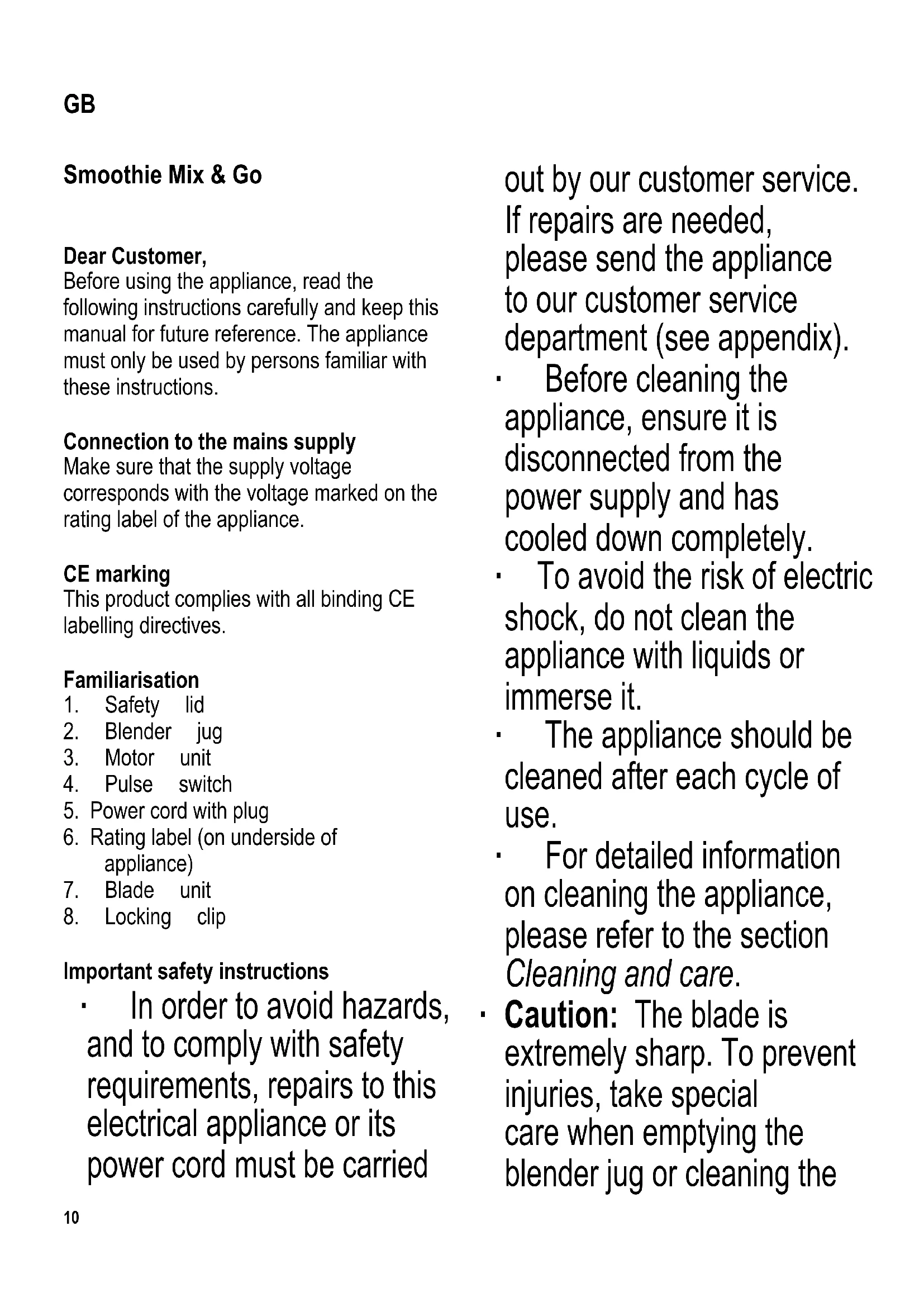

USER MANUAL SM 3741 SEVERIN

5. Power cord with plug

6. Rating label (on underside of

Important safety instructions ∙ In order to avoid hazards, and to comply with safety requirements, repairs to this electrical appliance or its power cord must be carried out by our customer service. If repairs are needed, please send the appliance to our customer service department (see appendix). ∙ Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely. ∙ To avoid the risk of electric shock, do not clean the appliance with liquids or immerse it. ∙ The appliance should be cleaned after each cycle of use. ∙ For detailed information on cleaning the appliance, please refer to the section Cleaning and care. ∙ Caution: The blade is extremely sharp. To prevent injuries, take special care when emptying the blender jug or cleaning the GB11 appliance. ∙ Caution: Do not fi ll the jug with hot ingredients. ∙ Special care is required when pouring hot liquids, in case a jet of vapour should escape from the appliance. ∙ Caution: Any misuse can cause severe personal injury. ∙ Always remove the plug from the wall socket - before assembling or disassembling the appliance, - in case of any malfunction, - when there is no supervision, - before cleaning the appliance, - after use. ∙ This appliance is intended for domestic or similar applications, such as - in staff kitchens in shops, offi ces and other similar working environments, - in agricultural working environments, - by customers in hotels, motels etc. and similar establishments, - in bed-and breakfast type environments. ∙ The appliance may only be used by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, if they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved. ∙ Children must not be permitted to operate the appliance. The appliance and its power cord must be kept well away from children.12 ∙ Children must not be permitted to play with the appliance. ∙ Caution: Keep any packaging materials well away from children – these materials are a potential source of danger, e.g. of suffocation. ∙ Every time the appliance is used, the main body including the power cord as well as any attachment fi tted should be checked thoroughly for any defects. Should the appliance, for instance, have been dropped onto a hard surface, or if excessive force has been used to pull the power cord, it must no longer be used: even invisible damage may have adverse effects on the operational safety of the appliance. ∙ The appliance should only be placed on a level surface. Do not allow the housing or its power cord to come into contact with open fl ames or any hot surfaces such as hot-plates. ∙ Do not let the power cord hang free. ∙ Caution: Do not fi t the blade unit onto the motor unit without a blender jug fi tted. ∙ Do not touch any moving parts during operation - this can be extremely dangerous. ∙ When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself. ∙ No responsibility will be accepted if damage results from improper use, or if these instructions are not complied with. Blender jug ∙ To close the jug after processing, screw the lid on tightly. In that way, the smoothie can be conveniently stored or carried. ∙ Open the locking clip, and the smoothie can be poured out directly from the jug. ∙ For practical storage, the lid can be attached to the base of the blender jug. Before using for the fi rst time Before the appliance is used for the fi rst time, the blender jug and the blade unit must be thoroughly cleaned, as described in the section Cleaning and care. Short-term operation The appliance is designed to process average domestic quantities of food; it can be operated without interruption for a maximum of 1 minute, after which it should be allowed to cool down to room temperature. Safety switch A special safety switch in the motor unit ensures that the appliance cannot be activated unless a blender jug has been properly fi tted. Operation ∙ Cut the ingredients into cubes of about 15 mm and put them into the blender jug. ∙ For best results, the following sequence should be observed when putting the ingredients into the jug:

∙ The jug has a maximum capacity of 600 ml. ∙ Screw the blade unit clockwise onto the blender jug. ∙ Turn the jug upside down and fi t it to the motor unit. ∙ Then turn the jug clockwise to lock it. ∙ Connect the appliance to the mains. ∙ Turn it on by pressing the Pulse switch, holding the switch down until the desired result has been achieved. ∙ Caution: Do not operate the appliance when the blender jug is empty. Do not fi ll it with dry items only, such as nuts, almonds etc. ∙ If some residue sticks to the jug’s sidewalls, remove the jug, shake it and let it run through another brief cycle. ∙ Remove the plug from the wall socket after use. Wait until the motor has come to a complete standstill, then release the blender jug by turning it anti-clockwise, take it off, turn it upside down and unscrew the blade unit. ∙ Close the blender jug with the lid. Cleaning and care ∙ Always remove the plug from the wall socket before cleaning the appliance. ∙ To avoid the risk of electric shock, do not clean the motor unit or power cord with liquids or immerse them. The motor unit may be wiped with a slightly damp, lint-free cloth. ∙ Do not use abrasives, harsh cleaning solutions or hard brushes for cleaning, and do not clean in a dishwasher. ∙ The blender jug, lid and blade unit can be cleaned in warm, soapy water. ∙ The blade assembly may be removed from the blade unit for easy cleaning. To detach it, simply push it out of the blade unit from below. Remove the gasket. ∙ After cleaning, refi t the dry blade assembly and gasket to the blade unit and push it in until it is heard locking into place. ∙ To clean after use, the jug can also be fi lled with approximately 400 ml warm water and a mild detergent. Let the appliance run for a short period as described in the section Operation. Remove the jug and shake if necessary. Then rinse the jug and blade unit with fresh water. All parts must me thoroughly dried afterwards. ∙ The jug and lid may also be put in the dishwasher. Recipes Raspberry smoothie 200 g raspberries 300 g yoghurt ½ tsp vanilla sugar Put all ingredients into the jar and activate the appliance to prepare the smoothie. Strawberry-banana smoothie 175 g strawberries ½ banana 250 ml orange juice ½ tbs honey Cut the banana into small pieces, put it into the jar together with the other ingredients and activate the appliance to prepare the smoothie.14 Banana-kiwi smoothie 1 banana 1 kiwi fruit 400 ml orange juice ½ tbs honey Cut the banana and the kiwi into small pieces, put them into the jar together with the other ingredients and activate the appliance to prepare the smoothie. Tropical garden smoothie 65 g celery 65 g cucumber 25 g ruccola (arugula) 35 g tomato 100 g banana 55 g pineapple 40 g yoghurt 1 tbs olive oil 10 g linseed 1 tbs honey 80 ml water Cut the vegetables and fruit into small pieces, put them into the jar together with the other ingredients and activate the appliance to prepare the smoothie. Additional recipes: or under www.severin.de/Service/Rezepte Disposal Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials which can be recycled. Proper disposal protects the environment and human health. Your local authority or retailer can provide information on the matter.15 Guarantee This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modifi ed, repaired or interfered with by any unauthorised person, or damaged through misuse. This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.16 Smoothie Mix & Go Chère cliente, Cher client, Avant d’utiliser cet appareil, veuillez lire soigneusement les instructions suivantes et conserver ce manuel pour future référence. L’appareil doit être utilisé exclusivement par des personnes familiarisées avec les présentes instructions. Branchement au secteur Assurez-vous que la tension d’alimentation correspond à la tension indiquée sur la plaque signalétique de l’appareil. Marquage CE Ce produit est conforme à toutes les directives relatives au marquage “CE”. Familiarisez-vous avec votre appareil
