Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.
Technical Data
| Item number 10031190 | |
| Power supply 220-240 V ~ 50 Hz | |
| Air flow volume | ≥ 150 m³/h |
| Noise level | ≤40 dB (A) |
| Dimensions 329 mm x 170 mm x 300 mm | |
| Weight 4 kg | |
| Power consumption 36 W | |
| Applicable area 25 m | 2 |
| UV lamp 254 nm | |
Safety Instructions
- No disassembly, repair and reconstruction. It may cause fire or damage. Please send to retailer for repair.
- Do plug the power into the socket over run socket completely. It may cause fire because of heating or electrical shocking. Do not use the damaged plug or loose socket.
- Do not use the over run socket or wiring connector. Do use the rated voltage.
- It there is dust on the plug, it may weaken the insulation, even cause fire. Take out the plug and clean it try. Please remove the plug from the socket if not using for a long period.
- Do not insert any metal objects into the unit. It may cause hurt or electric shocking.
- Do not connect the power with wet hand.
- Do disconnect the power when cleaning. Otherwise the unit may start working in a sudden which may cause electrical shocking or hurt.
- Do not repair it when the cord or plug is damaged. It may cause short circuit, electric shocking or fire. Send it to the retailer for repair.
- Avoid any water on the surface of the unit. It may cause short circuit, electric shocking or fire.
- Do not use in the watery or high temperature room such as the bathroom etc.
- Do not use in the room with lampblack such as kitchen.
- Please ventilate timely when used with fire in the room.
-
Do not power the unit on when using insecticide in the room. Otherwise the insecticide may be stored in the unit and will blow out during the normal working time. It is harmful to the health. Please ventilate completely after having used the insecticide before turn on the unit.
-
Do not blow in any combustible or fired cigarette into the unit.
- Keep away from alcohol, organic impregnant or insecticide.
- Please hold the plug instead of the cord when unplug the power. Otherwise it may cause short circuit, breaking of the cord, electric shocking or fire.
-
Please remove the plug from the socket if any conditions as below:
-
If all switches do not work.
- If the power cord or plug hot singularly.
- If any peculiar smell, exceptional noise or vibration.
- Any other abnormality or failure.
Product Description

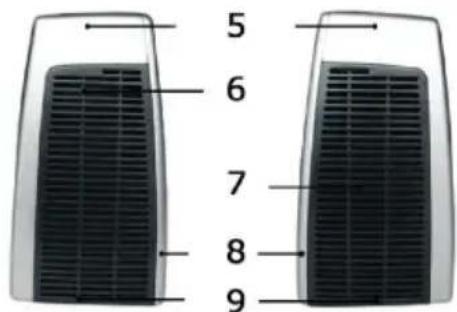

Overview
1 Deck
2 LED display
3 Buttons
4 Front cover
Front view Left view Right view

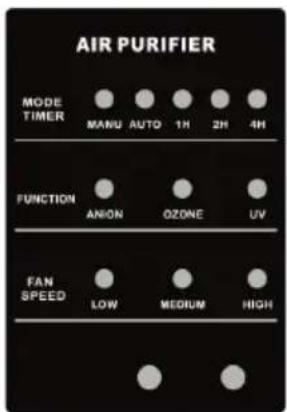

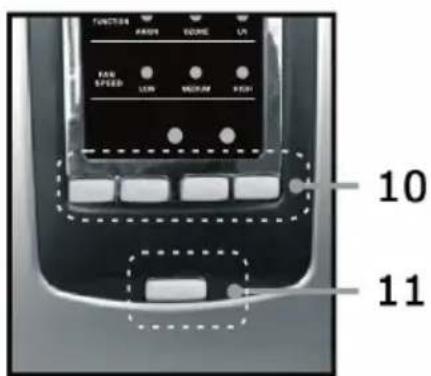

1 Function
2 Power
LED Display Operating Buttons
Parts Description
| 1 Left cover
2 Aroma case
3 Product
4 Activated carbon and photo catalyst
5 UV lamp
6 HEPA
7 Right cover | |
Purification system
| 1 HEPA filter
2 UV lamp
3 Activated carbon and photo catalyst | |
Use and Operation
Parts and Functions
| Part Function | |
| HEPA filter Inhale pollen | ,s smoke and some inhalant particles are easy to cause allergies, respiratory disease and asthma. The HEPA filter could filter out particles at min. 0.3 microns with a efficiency more than 99.9%. |
| Activated carbon Formaldehyde and benzene are colorless gas with strong irritating smell which are widely used in architecture and are carcinogens. Activated carbon could purify formaldehyde and benzene at a rate of 87% and 69.6%. | |
| Photo catalyst It is highly effective to decompose the harmful &toxic gas in air and kill the viruses in air. The sterilization rate and purification rate of TVOC are up to 96.2% and 93.3% respectively. | |
| UV lamp (optional) Air is the main media for the spreading of influenza. Air purification is an effective method to influenza prevention. With UV sterilization technology, the rate of sterilization of natural germs is upto 97.6%. | |
| Ion | Negative ion is praised as „Air vitamin“ in Medical Field. It can improve human metabolism immunity if you live in high negative ion environment 5 million negative ions will be generated per second to form a ion group. |
| Ozone (optional) Ozone could decompose organic odor and biological contamination. Meanwhile, it will isolate oxygen from air and raise the concentration of oxygen in air. This unit will generate 50mg ozone per hour. | |
| Aroma (optional) It is sedative and will fresh your mind. | |
Cautions of the working environment
- Keep the unit more than 30 cm away from the wall or furniture.
- Keep the unit more than 1m away from the TV or computer.

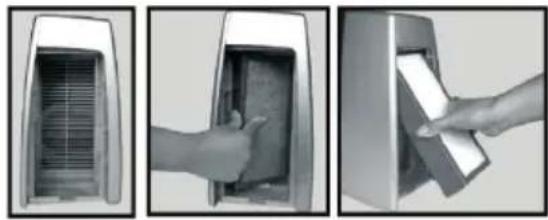

Installation of the filters
Tear off the protective bag of HEPA, Activated carbon filter, then put them back into the unit.
- Take off the right cover.
- Install the activated carbon&photo catalyst.
- Install HEPA filter
Installation of the aroma
- Take off the left cover.
- Take off the cover of the aroma.
Power connecting
- This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded.
- Connect the plug with the socket completely.
Disassembly and installation of the covers
- Disassembly: Lift up the unit with one hand and open the cover with other hand by holding up from the bottom of the cover.
- Installation: Put the top of the cover to the holder of the unit. Push the downside of the cover.
Power setting

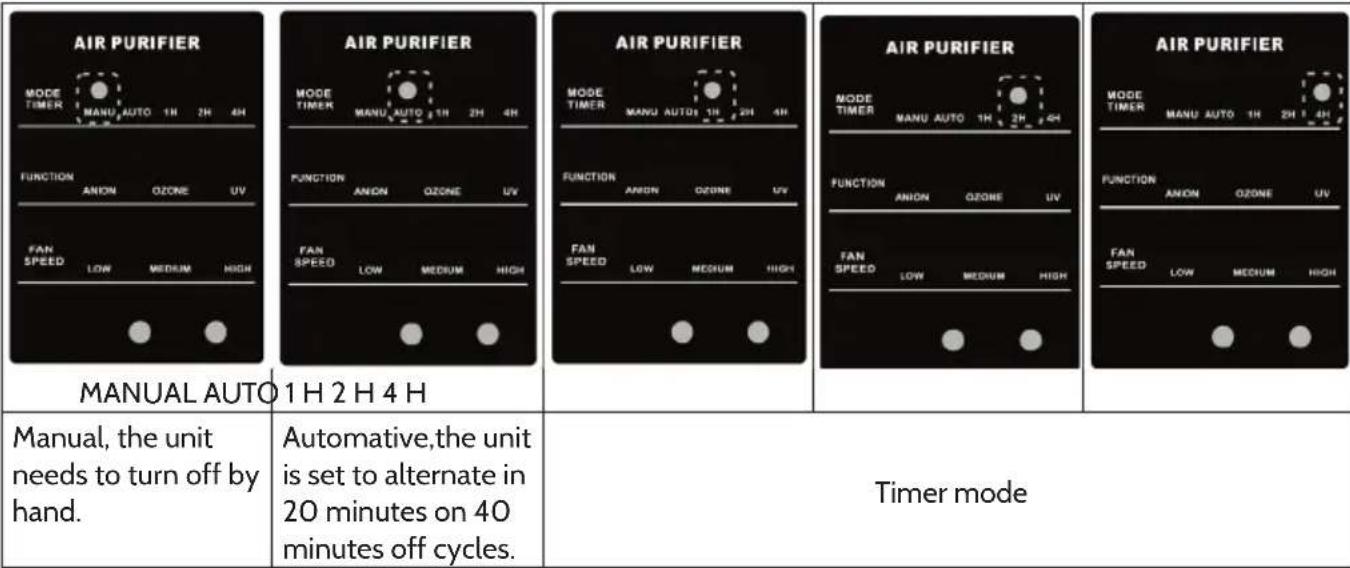

Press the POWER button on the unit or remote control, the unit starts to work and the LED displays as following:
- Manual Mode
2 Anion
3 Fan speed
Mode and timer setting
Press the MODE button successively to select MANUAL > AUTO > 1H > 2H > 4H functions, LED shows:

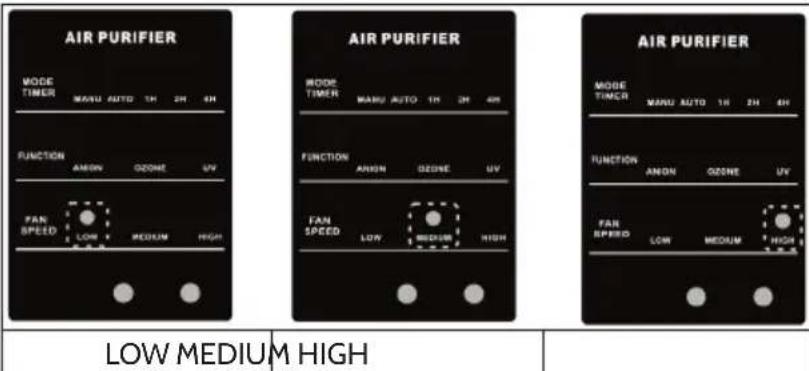

Fan speed setting
Press SPEED button to select LOW > MEDIUM > HIGH fan speed. LED shows:
Function setting
Press FUNCTION button to select ANION, OZONE or both of them. The LED shows as below:
UV ANION ZONE
- Ozone is an optional function.
- People should keep away after turning on ozone. Ozone will stop working and change to Anion function after 1 hour working.
- HEPA, Activated carbon & Photo catalyst are the basic functions, it is working when you turn on the unit.
Cleaning and Care
- Do not clean the unit with water.
- If you are cleaning with scour, please dilute the scour before use.
- Do not clean the unit wtth the solvent listed on the right which may cause distortion or depigmentation.
- If clean with chemical solvent, please read its cautions carefully before use.

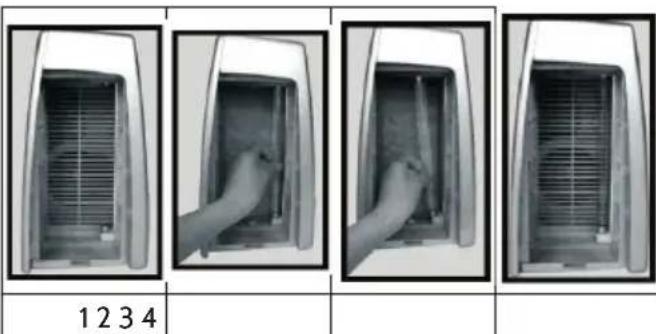

Cautions for replacement of UV lamp
When the symbol of UV is flashing, it reminds you to replace the UV lamp.
1 Take off the right cover and take out HEPA filter.
2 Hold the UV lamp and rotate ii clockwise or anticlockwise for 90^ , then take it out.
3 Hold the UV lamp and install the 2 sides of UV holder, then rotate it clockwise or anticlockwise for 90^ .
4 Put in the HEPA filter and install the right cover.
Troubleshooting
| Problem Possible Cause and Solution |
| Does not work. Check if the plug has | disconnected from the socket. Connect the power again. |
| Check if the covers on the left and right are installed completely. Re-cover the covers on the left and right carefully. |
| Continuously working and can not stop. The LED is in red all the time. | It may be because of interferences. Unplug the power and restart the unit after 15 minutes later. |
| Odor can not be removed. | The activated carbon filter or the unit may be polluted. Clean the activated carbon filter or the unit. Or replace with a new activated carbon filter. |
| The dirt in the air can not be removed and it works in high noise. | The HEPA filter may be polluted. Clean the HEPA filter or replace with a new one. |
| The dirt may not be absorbed to the filters. Move to another room to work continuously under high fan speed. |
| The room size may be too large to the applicable area. |
According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.
Your product (remote control) contains batteries covered by the European Directive. 2006/66/EC, which cannot be disposed of with normal household waste. Please check local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health.
Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.
This product is conform to the following European Directives:
2014/30/EU (EMC)
2014/35/EU (LVD)
2011/65/EU (RoHS)
