IAN 289160 - Watch AURIOL - Free user manual and instructions

Product type	Analog watch
Model	IAN 289160
Brand	Auriol
Power supply	1.5 V button cell (type SR626SW)
Water resistance	5 bar (50 m) according to DIN 8310
Case material	Stainless steel (estimated)
Glass type	Mineral (estimated)
Main functions	Analog display of hours, minutes, seconds; rotating bezel for time marking
Crown	Unlocked position for time setting
Battery replacement	Recommended at a specialist shop
Care and cleaning	Clean with a slightly damp, lint-free cloth; rinse under running water if necessary; dry after rinsing
Package contents	Watch, pre-installed battery, instruction manual
Intended use	Domestic, non-professional
Warranty	3 years from date of purchase
Consumable parts	Battery (not covered by warranty)
Recycling	Product and packaging are recyclable; used batteries should be taken to collection points
Color variants	Fuchsia, Blue, Black, Blue/fuchsia (according to reference HG03032)

Frequently Asked Questions - IAN 289160 AURIOL

How to set the time on the Auriol IAN 289160 watch?

Pull the crown to the unlocked position. Turn the crown to set the hour and minute hands. Press the crown back to the normal position; the second hand then starts.

What type of battery does this watch use and how to replace it?

The watch uses a 1.5 V button cell battery type SR626SW. It is recommended to have the battery replaced at a specialist shop.

Is this watch waterproof?

Yes, it is water resistant up to 5 bar (50 m) according to DIN 8310. This allows use in rain, when washing hands, in the shower, or even when swimming. However, water resistance is not permanent and should be checked annually.

How to use the rotating bezel?

The rotating bezel is used to mark a duration (e.g., a race time). Turn the bezel counterclockwise to align the marker with the minute hand at the start of the measurement. The elapsed time is then read on the bezel.

How to clean the Auriol IAN 289160 watch?

Clean the exterior with a clean, slightly damp, lint-free cloth. You can also rinse the watch under running water, then dry it thoroughly.

What is the warranty period and what does it cover?

The warranty is 3 years from the date of purchase. It covers material and manufacturing defects, but not consumable parts (such as the battery), damage due to improper use, or loss of water resistance. The warranty becomes void if the watch is opened or repaired by an unauthorized person.

How to recycle the watch or its used batteries?

Do not dispose of the watch or batteries in household waste. Take used batteries to a designated collection point. The watch and its packaging are recyclable; follow local sorting instructions.

What to do if my watch stops working?

First check the battery. If the battery is new and the problem persists, contact the seller or an authorized after-sales service. Do not attempt to open the watch yourself, as this will void the warranty.

What accessories are supplied with the watch?

The watch comes with a pre-installed battery and an instruction manual.

Is this watch suitable for scuba diving?

No, the 5 bar water resistance only allows surface swimming, showering, or snorkeling, but not deep scuba diving (windsurfing and scuba diving require higher water resistance).

USER MANUAL IAN 289160 AURIOL

Operation and safety notes

FR BE

MONTRE

B
3 BAR	√	×	×	×
5 BAR	√	√	×	×
10 BAR	√	√	√	×
20 BAR	√	√	√	√

Cd = Cadmium, Hg = Quecksilber,

List of pictograms used 17

Introduction 17

Intended use 18

Description of parts 18

Technical data 18

Scope of delivery 19

Before first use 19

Changing the battery. 19

Setting the time 20

Water resistance. 20

Timing 21

Cleaning and care 21

Disposal 21

Warranty 24

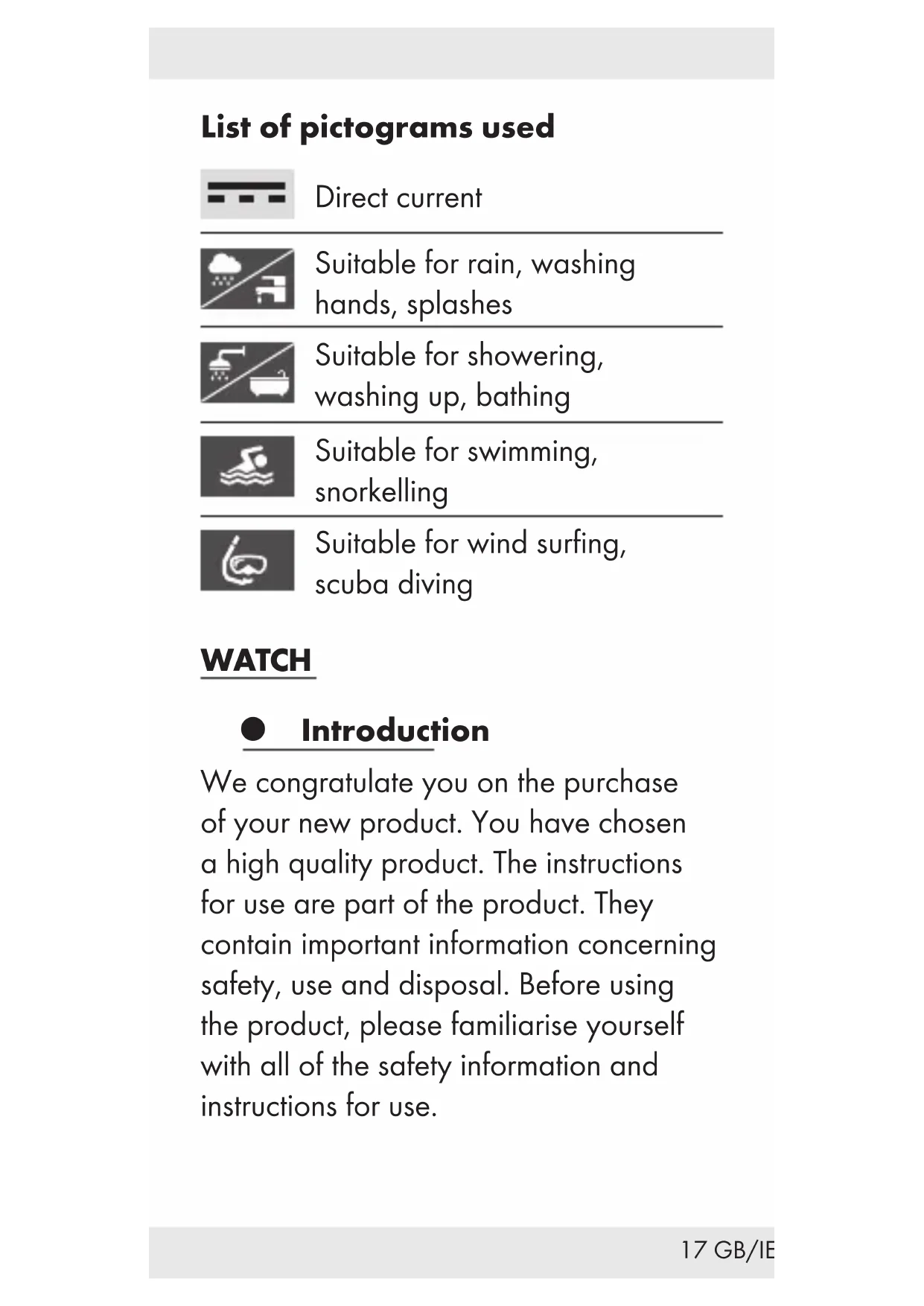

List of pictograms used

Direct current

Suitable for rain, washing hands, splashes

Suitable for showering, washing up, bathing

Suitable for swimming, snorkelling

Suitable for wind surfing, scuba diving

WATCH

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use.

Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

The product is intended for consumer use only and must not be used in commercial areas.

Description of parts

1	Minute hand
2	Crown
3	Second hand
4	Hour hand
5	Unlock position
6	Bezel (rotating outer ring)

Technical data

Battery: 1 × 1.5 ~V = Button cell (type SR626SW)

Model number:

HG03032A: Pink

HG03032B: Blue

HG03032C: Black

HG03032D: Blue / Pink

Scope of delivery

Immediately after unpacking, please check the package contents for completeness and if the product and all parts are in good condition.

1 Watch
1 Battery (pre-installed)
1 Set of instructions for use

Before first use

Remove all packaging materials from the product.
- Changing the battery

Note: Have batteries changed in a specialist shop.

Setting the time

1. To set the time, pull the crown 2 out to the unlock position 5.
2. Turn the crown 2 to set the hour and minute hands 4 1.
3. When the crown 2 is pushed back to the normal position the second hand 3 begins to run.

Water resistance

The product is water-resistant to 5 bar in accordance with the air overpressure test applied during DIN 8310.

Figure B shows the permissible areas of use. Please note that the water resistance is not a permanent feature. It should be checked annually and particularly before subjecting it to special conditions, as the function of the in-built sealing elements diminishes with daily use.

Timing

The bezel 6 is used to indicate a period of time (e.g. jogging time).

The amount of time elapsed can be read easily from the bezel.

Turn the beein anti-clockwise direction to mark the start of timing.

- Cleaning and care

Clean the product on the outside only with a soft, wet and clean cloth.
Rinse the product under the running water if necessary. Dry thoroughly after rinse.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities. The Green Dot is not valid for Germany.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard / 80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries / rechargeable batteries!

Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations.

The chemical symbols for

heavy metals are as follows:

Cd = cadmium, Hg = mercury, Pb = lead.

Batteries / rechargeable batteries

may not be disposed of with the usual

domestic waste. That is why you should

dispose of used batteries / rechargeable

batteries at a local collection point.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this

product show any fault in materials or

manufacture within 3 years from the date

of purchase, we will repair or replace it

• at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

The warranty further excludes a reduction in water tightness. The state of water tightness is not a permanent property and should therefore be regularly maintained. Please note, opening and repairs performed by unauthorized individuals will void any warranty.
