USER MANUAL Furno F750 WAGNER

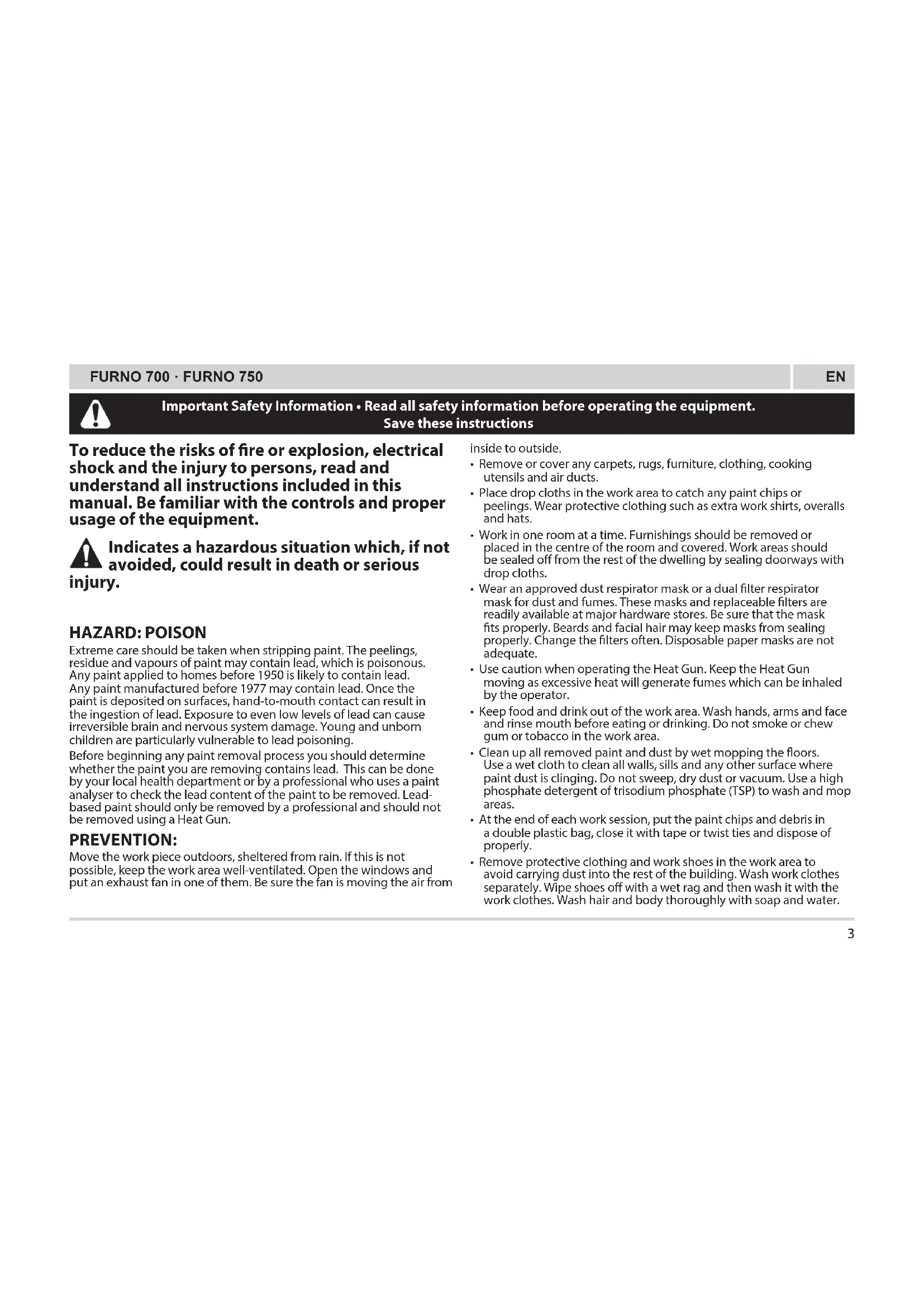

To reduce the risks of re or explosion, electrical shock and the injury to persons, read and understand all instructions included in this manual. Be familiar with the controls and proper usage of the equipment. Indicates a hazardous situation which, if not avoided, could result in death or serious injury. HAZARD: POISON Extreme care should be taken when stripping paint. The peelings, residue and vapours of paint may contain lead, which is poisonous. Any paint applied to homes before 1950 is likely to contain lead. Any paint manufactured before 1977 may contain lead. Once the paint is deposited on surfaces, hand-to-mouth contact can result in the ingestion of lead. Exposure to even low levels of lead can cause irreversible brain and nervous system damage. Young and unborn children are particularly vulnerable to lead poisoning. Before beginning any paint removal process you should determine whether the paint you are removing contains lead. This can be done by your local health department or by a professional who uses a paint analyser to check the lead content of the paint to be removed. Lead- based paint should only be removed by a professional and should not be removed using a Heat Gun. PREVENTION: Move the work piece outdoors, sheltered from rain. If this is not possible, keep the work area well-ventilated. Open the windows and put an exhaust fan in one of them. Be sure the fan is moving the air from inside to outside.

• Remove or cover any carpets, rugs, furniture, clothing, cooking utensils and air ducts.

• Place drop cloths in the work area to catch any paint chips or peelings. Wear protective clothing such as extra work shirts, overalls and hats.

• Work in one room at a time. Furnishings should be removed or placed in the centre of the room and covered. Work areas should be sealed o from the rest of the dwelling by sealing doorways with drop cloths.

• Wear an approved dust respirator mask or a dual lter respirator mask for dust and fumes. These masks and replaceable lters are readily available at major hardware stores. Be sure that the mask ts properly. Beards and facial hair may keep masks from sealing properly. Change the lters often. Disposable paper masks are not adequate.

• Use caution when operating the Heat Gun. Keep the Heat Gun moving as excessive heat will generate fumes which can be inhaled by the operator.

• Keep food and drink out of the work area. Wash hands, arms and face and rinse mouth before eating or drinking. Do not smoke or chew gum or tobacco in the work area.

• Clean up all removed paint and dust by wet mopping the oors. Use a wet cloth to clean all walls, sills and any other surface where paint dust is clinging. Do not sweep, dry dust or vacuum. Use a high phosphate detergent of trisodium phosphate (TSP) to wash and mop areas.

• At the end of each work session, put the paint chips and debris in a double plastic bag, close it with tape or twist ties and dispose of properly.

• Remove protective clothing and work shoes in the work area to avoid carrying dust into the rest of the building. Wash work clothes separately. Wipe shoes o with a wet rag and then wash it with the work clothes. Wash hair and body thoroughly with soap and water. Important Safety Information • Read all safety information before operating the equipment. Save these instructionsFURNO 700 · FURNO 750

This Heat Gun produces extremely high temperatures (as high as 630°C). It must be used with caution to prevent combustible material from igniting. PREVENTION:

• Keep the Heat Gun in constant motion. Do not stop or dwell in one spot.

• Use extreme caution if the other side of the material being scraped is inaccessible, such as house siding. The hidden side could catch on re if it becomes too hot. Some buildings contain highly ammable materials behind siding walls, oors, facia, sot boards and other panels. Check these areas before applying heat and do not use a heat tool if ammable materials are present or if you are unsure of the hidden material.

• Do not use near surfaces with cracks or near metal pipes or ashing. Heat may be conducted behind the work surface and ignite hidden material. The ignition of hidden materials may not be readily apparent and can result in property damage and injury.

• Do not use electric tools in the presence of ammable liquids or gases.

• Do not use near combustible materials such as dry grass, leaves, and paper which can scorch and catch re.

• The nozzle becomes very hot. Do not lay the Heat Gun on ammable surfaces when operating the gun or immediately after switching the gun o. Always set the gun on a at, level surface so that the nozzle tip is directed upwards and away from the supporting surface.

• Do not touch the nozzle until the tool has cooled.

• Do not use the Heat Gun as a hair dryer.

• Tools and paint scrapings become very hot. To avoid burns, use work gloves and eye protection when scraping.

• Always treat the Heat Gun with the same respect as an open ame.

• Do not use in presence of an explosive atmosphere. HAZARD: ELECTRIC May cause property damage, severe injury or loss of life. PREVENTION:

• Do not disassemble the Heat Gun.

• Do not work in wet areas or expose the Heat Gun to rain or moisture.

• Guard against electric shock by preventing body contact with grounded surfaces such as pipes, radiators, ranges, aluminium ladders or other grounded devices.

• Do not abuse the cordset. Never carry the Heat Gun by the cordset or yank on the cordset to disconnect it from the power supply. Keep the cordset away from heat, oil and sharp edges. Inspect the cordset for wear or damage regularly.

• If an extension cord is damaged or otherwise unsuitable for use, replace it with a new extension cord. HAZARD: GENERAL May cause property damage or severe injury. PREVENTION:

• Always disconnect the Heat Gun from the power supply when not in use. Store indoors in a dry place and out of the reach of unsupervised children.

• Keep your work area well lit and clean.

• Do not overreach, especially when working on ladders. Keep proper footing and balance at all times. Be certain any ladders being used are sturdy, stable, on rm ground and erected at safe working angles.

• Keep moveable items secured and steady while scraping.

• Always use protective eyewear when working.

• Stay alert and use common sense when operating any tool.

• Never use to thaw frozen pipes located inside walls or near combustibles. Always use reector nozzle (P/N2366225) to thaw frozen pipes. Facia Soffit Inside Wall SidingFURNO 700 · FURNO 750

• Do not leave the heat gun unattended while it is switched on.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

• Keep the appliance and its cord out of reach of children. MAINS CONNECTION This Heat Gun has been supplied with a cordset. If the cordset is damaged replace with a new cordset to avoid a safety hazard. Please contact Wagner customer services for a replacement cordset. IF IN ANY DOUBT PLEASE CONSULT A QUALIFIED ELECTRICIAN. WARNING - Use an extension cord that will accept the plug on the product. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. A harmonised H05RR-F 3x1.0sq mm rubber type cord is required as a minimum for general use. Using the Heat Gun General Description This Heat Gun is a quality power tool. Like any power tool, it can be dangerous when misused. Read the following instructions carefully and follow all safety precautions. It is the responsibility of the owner to use the Heat Gun properly. Specications Housing Engineered high-impact corrosion and heat- resistant polymers Wattage 2000 Watts on HIGH, 150 Watts on LOW Voltage 220 - 240 V a.c. Frequency 50 - 60Hz Heat Output Approximately 630°C on HIGH, approximately 60°C on LOW Weight 0.9 kgFURNO 700 · FURNO 750

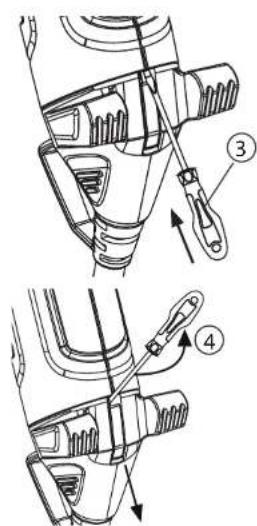

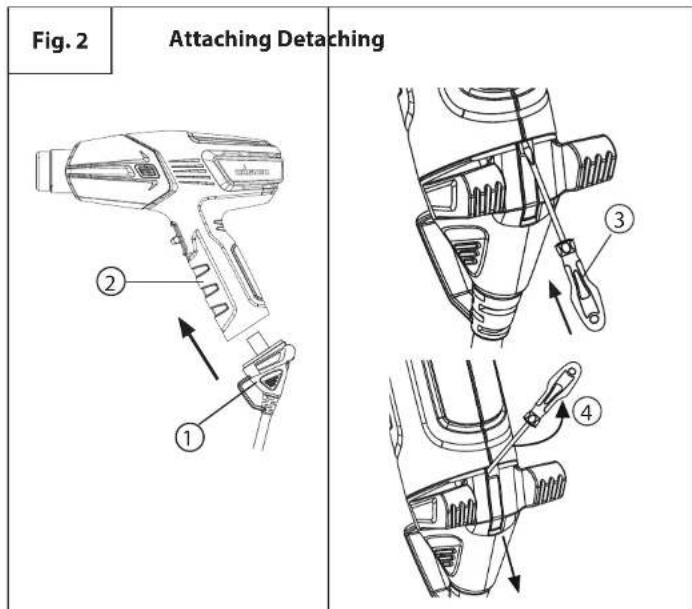

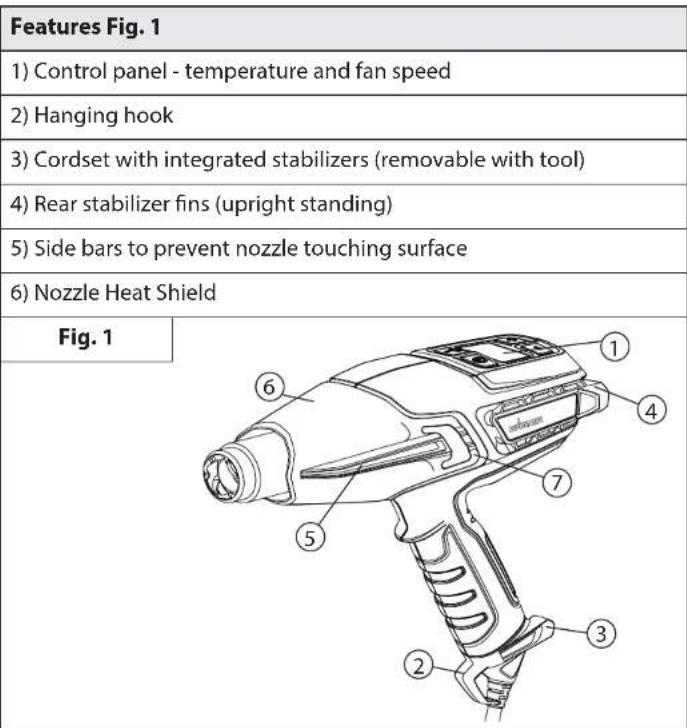

3) Cordset with integrated stabilizers (removable with tool)

Removing the barrel cover The barrel cover can be removed when working in hard to reach locations. BE CAREFUL OF THE NOZZLE. Increased risk of burning exists when working without the barrel cover. To remove the barrel cover, use a small at head scew driver to lift tab (Fig.1, 7) over raised area. Attaching and Detaching the Cordset The cordset (Fig. 2, 1) for the Heat Gun is delivered detached from the gun (Fig. 2, 2). To attach, line up the cord with the socket on the handle of the gun and press rmly together until you hear a click. The cord set does not need to be removed. If required to detach, insert a small at head screwdriver (Fig. 2, 3) or, similar tool into the hole as shown. Firmly push the screwdriver and tilt it upward (4) towards the handle to release the cordset. Firmly pull the cordset away from the gun. Fig. 2 Attaching Detaching

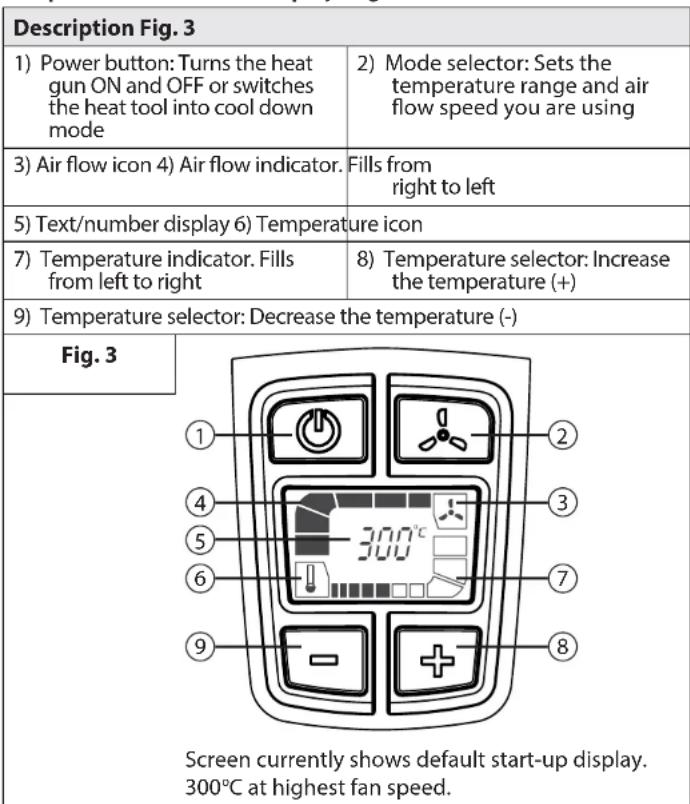

Touch Pad Control Panel The heat gun gives you a wide temperature range to choose from, depending upon the type of project. These can be controlled via the Control Panel. Temperature Guide LCD Display (Fig. 3) Description Fig. 3

1) Power button: Turns the heat

gun ON and OFF or switches the heat tool into cool down mode

2) Mode selector: Sets the

temperature range and air ow speed you are using

8) Temperature selector: Increase

Screen currently shows default start-up display.

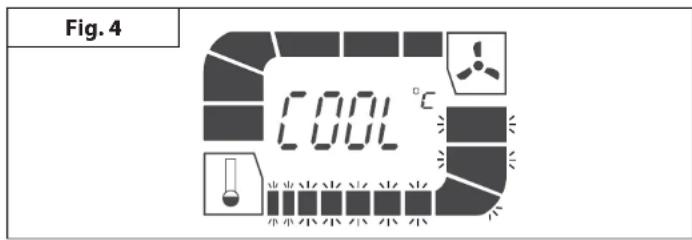

C at highest fan speed. Cool Down Mode (Fig. 4) While the heat gun is operating, press the power button once to enter cool down mode. When cool down mode is entered, the gun will run for 3 minutes with maximum air ow. During this period, the temperature bars will all ash and step down to indicate cooling. To override cool down mode, press and hold the power button for 2-3s. Fig. 4 Following Cool down mode the barrel of the gun will still be hot.FURNO 700 · FURNO 750

Start Up Always read the safety information included in this manual before using the Heat Gun.

1. Plug the Heat Gun into a standard socket-outlet.

2. Turn on the heat gun by pressing the power button on the

Control Panel (Fig. 3, 1). When the gun is turned on, it is automatically set t the default temperature of 300

C as shown in Fig. 3.

3. Use the plus and minus buttons (Fig. 3, #8 & #9) to adjust the

temperature. Single press to increase temperature in ten degree increments.

4. As the temperature is increased, bars will ash to indicate that

the gun is coming up to temperature. As the higher temperature is reached, the bars turn solid.

5. As the temperature is decreased, bars will ash to indicate that

the gun is still at a high temperature. As the lower temperature is reached, the bars turn o. IMPORTANT: If the blower motor in the heat gun does not turn on when the POWER button is activated, turn the switch OFF immediately. The heating element will burn out if it is not cooled by the blower.

6. During rest periods or when you are nished with your project,

press the power button to enter cool down mode.

7. Set the gun down in an upright position. The heat gun will shut

itself o after 3 minutes.

8. To override cool down mode press and hold the power button

for 2 to 3 seconds. The gun will power o immediately. Note: Smoke may appear during the rst start up due to the burning of manufacturing oils. The smoke should disperse shortly after rst start up. Hands-free operation Fig. 5 The Heat Gun has an integrated stand (Fig. 1, 4) for bench top applications and for cooling down. Alternatively the heat gun carry case (Fig. 6) has been specically designed to locate the heat gun in the upright position for work on uneven surfaces. Fig. 5FURNO 700 · FURNO 750

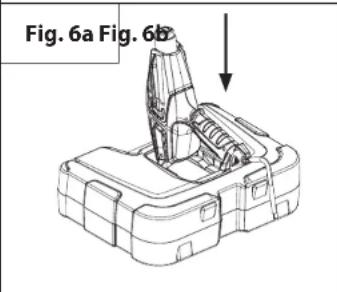

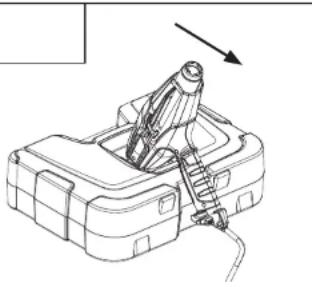

AngleLoc carry case (only F750) The heat gun carry case with AngleLoc has been specically designed to locate the heat gun in the upright position for work on uneven surfaces. AngleLoc mount Fig. 6a & 6b (only F750) a: Insert the back of the heat gun so that the rear stabilizing ns locate themselves below the ridges on the side wall of the cavity in the top of the carry case. b: Then slide the heat gun forward so that it naturally locks into place at a 135 degree angle. The heat gun should now be secure for upright use. Fig. 6a Fig. 6b IMPORTANT: If the motor-driven fan in the Heat Gun does not turn on when the switch is set to either LOW or HIGH, turn the switch OFF immediately. The heating element will burn out if it is not cooled by the motor-driven fan. Note: Always set the Heat Gun upright after it is turned o, either for a short break or for storage. Avoid laying the unit on the side after shutdown. The heat will remain in the unit and cooling will take longer. Store the unit only after the nozzle is cool. Unplug the unit before storing to prevent accidental start-up. IMPORTANT: Always protect glass when working near windows. Do not touch nozzle or any other tool being used when working. These become extremely hot and will cause severe burns. Wear gloves to protect hands from hot scrapings. Many variables aect heating applications, such as the material being heated, ambient temperature, the distance from the gun to the substrate and the heating technique. For this reason Wagner has provided temperature guidelines for certain applications. Always start the heat gun at the lowest temperature in the range then raise the temperature until the optimum temperature is achieved. Always keep the heat gun in motion and at least 5cm from the substrate when applying heat.FURNO 700 · FURNO 750

The Heat Gun is one of the most versatile tools you can own. It can be used for a great variety of projects, from big DIY to small Art & Crafts jobs. For more details on multiple projects and ‘how to’ videos please visit our website www.wagner-group.com. Use Heat Nozzle Tip Options DIY Stripping paint HIGH Concentrator or Wide Wall repair LOW Open (no tip) Drying paint LOW Open (no tip) Soften adhesives to remove oor tiles LOW Wide concentrator Bend plastic, plexiglass, formica LOW/HIGH Reector Nozzle Removing formica and linoleum LOW Wide concentrator Soften paint, caulking and putty for easier removal HIGH Concentrator or Wide concentrator Removing varnish LOW-MED Wide concentrator Shrink plastic lm for wrapping or weatherproong LOW Wide concentrator Small jobs (including repair) Loosen rusted nuts, bolts and ttings HIGH Open/ Concentrator Repairing jeans LOW Wide concentrator Burning weeds HIGH Concentrator Removing adhesives LOW Open (no tip) Waxing skis/snowboard LOW Wide concentrator Glass bre work HIGH Concentrator or Wide Use Heat Nozzle Tip Options Unfreezing pipes and locks LOW Reector Nozzle Lighting a bbq grill HIGH Concentrator / BBQ Nozzle Heat shrink tubing/ connectors LOW-MED Reector Nozzle Heat concrete prior to patching LOW/HIGH Concentrator Defrosting refrigerator / freezer LOW Open (no tip) Art & Crafts Making candles LOW Open (no tip) Making soap LOW Open (no tip) Shrink wrapping presents LOW Open (no tip) Forming foam LOW Open (no tip) Cookie decoration LOW/HIGH Open (no tip) Automotive Removing stickers, emblems and decals LOW Open (no tip) Removing dents HIGH Open (no tip) Removing paint HIGH Concentrator or Wide Applying and removing window tint LOW Open (no tip) Restoring bumpers HIGH Open (no tip) Electronics Smartphone & tablet repair LOW Concentrator PlayStation and Xbox repair LOW ConcentratorFURNO 700 · FURNO 750

Stripping Paint The Heat Gun heats up the surface and causes the paint to soften, at which time it can be scraped o easily without damaging the surface. Some paints may soften even though they do not blister; some may become rubbery, and some may require higher heat. When working with several layers of paint, it speeds up the scraping process to heat the surface thoroughly, all the way to the wood., then all the layers can be scraped at one time. A soft wire brush may be the best tool to use for very intricate surfaces. Mineral paints and nishes, such as cement paint and porcelain, do not soften with heat, so using a heating tool will not work for paint removal. The best method of paint removal Move the Heat Gun slowly and steadily forward at an angle to the surface, pointing the nozzle in the direction of motion. This allows you to scrape safely outside the hot air stream and keeps the scraper and the scraped surface cooler. A. Warm air preheats the surface. B. Paint is softened by hot air. A + B. Deep penetration of heat over total area. C. Paint can be easily scraped o as soon as it is softened and the gun is moved forward. D. Stripped surface allowed to cool. ABCD IMPORTANT: The removal of paint by a Heat Gun is safe if the above guidelines are used, but always keep either a container of water or an ABC re extinguisher (suitable against Class A, B and C type res) within reach. Note: Do not use the Heat Gun on surfaces that can be damaged by heat, such as vinyl-coated panelling, vinyl-coated siding or vinyl-coated window frames. When removing paint from window frames, the Heat Gun will soften the putty. Be careful not to gouge the putty with the scraper. The putty will rm up after it cools. Do not use the Heat Gun on insulating laminated window glass such as Thermopane. The glass edge expansion may break the edge seal. When scraping facia, do not overheat the edges of the asphalt shingles protruding over the edge of the sheathing. Too much heat will melt the asphalt. Cleaning and Maintenance Keep the intake openings on the housing clean and free of obstructions. Use a soft, dry brush to clean the openings periodically. Use only mild soap and a damp cloth to clean the Heat Gun. Many household cleaners contain chemicals which could seriously damage the housing. Do not use petroleum, turpentine, lacquer or paint thinner, dry cleaning uids or similar products when cleaning the Heat Gun. NEVER allow any liquid to get inside the tool or immerse any part of the tool into a liquid. Cleaning and user maintenance shall not be made by children. Storage Allow the Heat Gun nozzle to cool to room temperature before placing in storage. The nozzle will turn dark over time because of the high heat. This is normal and will not aect the performance or life of the unit.FURNO 700 · FURNO 750

Accessories The following accessories may come with the Heat Gun or may be purchased separately by visiting www.wagner-group.com/accessories. Alternatively see back of manual for your nearest Service Centre. Name Description Name Description Concentrator Nozzle P/N2366222 Directs a concentrated heat ow to the work surface. Ideal for removing paint in awkward corners, crevices, mouldings, beading or architraves. Glass Protection Nozzle P/N2366224 Deects the heat away from glass or other fragile areas. Ideal for window sills, ledges, frames and skirting boards. Wide Concentrator Nozzle P/N2366223 Directs a long, narrow heat pattern to the work surface. Ideal for removing paint or varnish from large, at surfaces such as skirting boards, doors, stairs, etc. It should be used in conjunction with a at scraper. Reector Nozzle P/N2366225 Disperses the heat ow evenly around the whole work surface. Ideal for thawing frozen pipes, solder pipe work, bending plastics or heat shrinking electrical insulating tubing. Name Description 5-in-1 Detailed Scraper Tool P/N2366227 1+2

This tool has 5 functions. The blade is used to (1) scrape paint and (2) spread compound. The gouge point (3) is used to remove putty/caulk from open cracks. The curved area (4) is used to clean roller covers. The at side (5) can be used to open paint tins. Carry Case P/N2366226 The heat gun carry case with AngleLoc has been specically designed to locate the heat gun in the upright position for work on uneven surfaces.FURNO 700 · FURNO 750

1. Set the Heat Gun upright on a level surface and wait until the

2. Set the item onto the tip of the Heat Gun and push rmly into

place by hand. To remove an optional item from the Heat Gun:

1. Set the Heat Gun upright on a level surface and wait until the

Product Registration Register your product online at www.wagner-group.com/3plus1 to qualify for your additional 1 year guarantee. 3+1 years guarantee The guarantee runs for three years, counting from the date of sale (sales slip). The guarantee is extended by a further 12 months if the device is registered online within 4 weeks of the purchase at www.wagner-group.com/3plus1. Registration is only possible if the buyer is in agreement with the data being stored that is entered during registration. The guarantee covers and is restricted to free-of-charge rectication of faults which are demonstrably attributable to the use of faulty materials in manufacture, or assembly errors; or free-of-charge replacement of the defective parts. The guarantee does not cover incorrect use or commissioning or tting or repair work which is not stated in our operating instructions. Wearing parts are also excluded from the guarantee. The guarantee excludes commercial use. We expressly reserve the right to full the guarantee. The guarantee expires if the tool is opened up by persons other than wagner service personnel. Transport damage, maintenance work and loss and damage due to faulty maintenance work are not covered by the guarantee. Under any guarantee claim, there must be proof of purchase of the tool through submission of the original receipt. Wherever legally possible, we exclude all liability for injury, damage or consequential loss, especially if the tool has been used for a purpose other than that stated in the operating instructions, commissioned or repaired other than in accordance with our operating instructions or if repairs are performed by someone who is unqualied. We reserve the right to perform any repairs in excess of those stated in our operating instructions. In case of guarantee or repair, please refer to your point of sale. This guarantee does not aect your statutory rights.FURNO 700 · FURNO 750

INFORMATION ON THE DISPOSAL OF WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT KNOWN AS WEEE The device and all accessories and packaging have to be recycled in an environmentally friendly manner. Do not dispose of the appliance with household waste. Support environmental protection by taking the appliance to a local collection point or obtain information from a specialist retailer. EU Declaration of conformity We declare under sole responsibility that this product conforms to the following relevant stipulations: 2014/35/EU, 2014/30/EU, 2011/65/EU, 2012/19/EU Applied harmonised norms: EN 60335-1, EN 60335-2-45, EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3, EN 62233 The EU declaration of conformity is enclosed with the product. If required, it can be re-ordered using order number 2389337.FURNO 700 · FURNO 750
