Brand	Worx
Model	WX166
Product type	Cordless drill/driver
Rated voltage	18V (max 20V)
No-load speed	0-400 / 0-1500 rpm (2 speeds)
Number of clutch positions	15+1 (drilling)
Maximum torque	40 Nm
Chuck capacity	10 mm
Drilling capacity steel	10 mm
Drilling capacity wood	30 mm
Weight	1.26 kg (with battery)
Sound pressure level (LpA)	75 dB(A)
Sound power level (LwA)	86 dB(A)
Battery type	Lithium-ion
Number of batteries included	2
Charger included	30 min charger
Main functions	Drilling, screwdriving, reverse rotation, LED light, adjustable clutch
Care and cleaning	Clean with a dry cloth; do not use water or chemicals
Safety	Wear hearing and eye protection; use auxiliary handles
Spare parts	Recommended accessories: bits, drill bits; consult your dealer
Repairability	No user-serviceable parts
Package contents	Drill, 2 batteries, charger, double-ended bits

Frequently Asked Questions - WX166 WORX

What should I do if the drill does not start when I press the trigger?

Check that the direction switch (above the trigger) is not in the central position. Move it to the left or right, then press the trigger. If the problem persists, check that the battery is charged and properly installed.

How do I adjust the screwdriving torque?

The torque is adjusted by turning the adjustment ring located between the chuck and the tool body. Positions 1 to 4 for small screws, 5 to 9 for screws in soft materials, 10 to 15 for hard materials, and the drilling position (drill symbol) for drilling.

Why does the drill stop before the screw is fully tightened?

The torque ring is probably set too low. Increase the setting (to a higher number) until the screw is fully tightened. Use the drilling position for heavy work.

How do I change the direction of rotation?

Use the switch located above the trigger. Push the lever to the left for forward rotation (▲ symbol) and to the right for reverse rotation (▷ symbol). Never change direction while the chuck is rotating.

What is the battery runtime and how can I improve it?

Runtime depends on use. After prolonged storage, it may be necessary to charge and discharge the battery several times to restore its maximum capacity. Avoid extreme temperatures (<0°C or >45°C) when charging.

Can the drill be used for drilling concrete?

Yes, but use tungsten carbide drill bits for concrete and masonry. The drill is designed for drilling in wood, metal, plastics, and masonry.

How do I maintain the drill?

Clean the tool with a dry cloth only. Never use water or chemicals. Keep the ventilation slots clean. No lubrication or special maintenance is required.

What should I do if the drill emits sparks from the ventilation slots?

This is normal and does not damage the tool. Sparks may be visible in the ventilation slots during operation.

How do I use the switch lock?

To lock the trigger in the off position, set the direction switch to the central position. This prevents accidental start when the tool is not in use.

What should I do if the battery leaks?

Avoid any contact of the liquid with skin and eyes. In case of contact, rinse thoroughly with water and consult a doctor. The battery should be kept out of reach of children.

USER MANUAL WX166 WORX

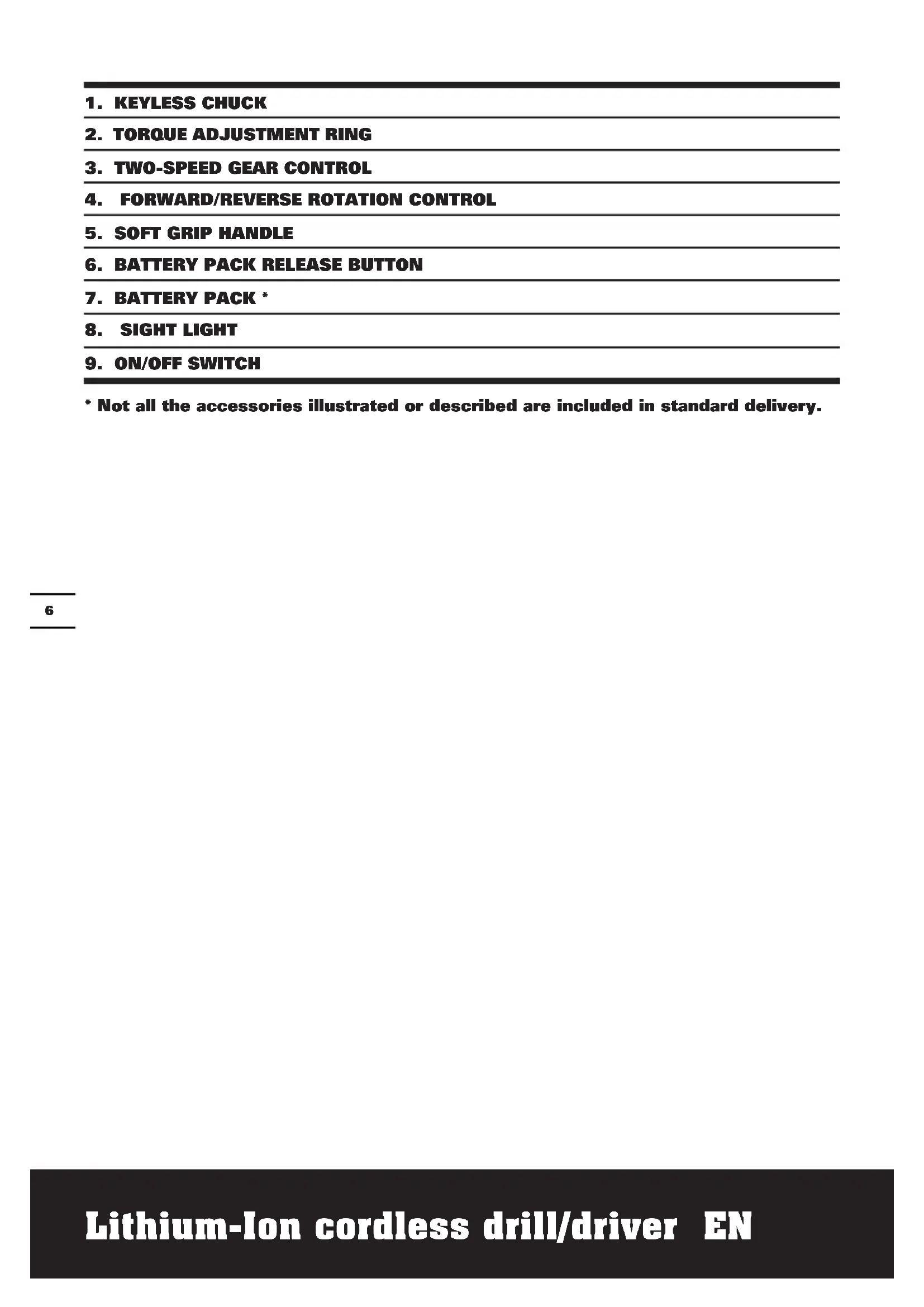

1. KEYLESS CHUCK
2. TORQUE ADJUSTMENT RING
3. TWO-SPEED GEAR CONTROL
4. FORWARD/REVERSE ROTATION CONTROL
5. SOFT GRIP HANDLE
6. BATTERY PACK RELEASE BUTTON
7. BATTERY PACK *
8. SIGHT LIGHT

9. ON/OFF SWITCH

10. Not all the accessories illustrated or described are included in standard delivery.

TECHNICAL DATA

Type WX156 WX156.1 WX156.2 WX166 WX166.1 (1-designation of machinery, representative of Cordless Drill)

		WX156 WX156.1 WX156.2	WX166 WX166.1
Voltage 16V		= Max* 20V	Max** =
No load speed 0-400/0-1500/min
Number of clutch positions 15+1
Max torque 35N.m 40N.m
Chuck capacity 10mm
Max. drilling capacity	Steel 10mm
	Wood 28mm	30mm
Machine weight 1.24kg		1.26kg

Voltage measured without workload. Initial battery voltage reaches Maximum of 16volts. Nominal voltage is 14.4volts.
*Voltage measured without workload. Initial battery voltage reaches Maximum of 20volts. Nominal voltage is 18volts.

NOISE INFORMATION

A weighted sound pressure	LpA: 75dB(A)
A weighted sound power	LwA: 86dB(A)
KpA&KwA	3.0dB(A)
Wear ear protection when sound pressure is over	80dB(A)

VIBRATION INFORMATION

Vibration total values (triax vector sum) determined according to EN 60745:
Drilling into metal	Vibration emission value ah,d< 2.5m/s2
	Uncertainty K = 1.5m/s2
Screw driving without impact	Vibration emission value ah< 2.5m/s2
	Uncertainty K = 1.5m/s2

WARNING: The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used dependant on

the following examples and other variations on how the tool is used:

How the tool is used and the materials being cut or drilled.

The tool being in good condition and well maintained.

The use the correct accessory for the tool and ensuring it is sharp and in good condition.

The tightness of the grip on the handles and if any anti vibration accessories are used.

And the tool is being used as intended by its design and these instructions.

This tool may cause hand-arm vibration syndrome if its use is not adequately managed.

WARNING: To be accurate, an estimation of exposure level in the actual conditions of use should also take account of all parts of the operating cycle such as the times when

the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Helping to minimize your vibration exposure risk.

ALWAYS use sharp chisels, drills and blades.

Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate).

If the tool is to be used regularly then invest in anti vibration accessories.

Avoid using tools in temperatures of 10^ or less.

Plan your work schedule to spread any high vibration tool use across a number of days.

ACCESSIONS

Model No. WX156 WX1	66 WX156.1	WX166.1	WX156.2
Li-Ion battery pack 1 1 2 2
30min Charger 1 1 1 1
Double ended bits 1 1 1	/
158pc Accessories	/	/	/	1

We recommend that you purchase your accessories from the same store that sold you the tool. Use good quality accessories marked with a well-known brand name. Choose the type according to the work you intend to undertake. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

DRILL SAFETY WARNINGS

1. Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
2. Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

SAFETY WARNINGS FOR BATTERY PACK

a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials.
c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
f) Seek medical advice immediately if a cell or battery pack has been swallowed.
g) Keep battery pack clean and dry.
h) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
i) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.
j) Do not maintain battery pack on charge when not in use.
k) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
I) Battery pack gives its best performance when it is operated at normal room

temperature (20^ ± 5^) .
m) When disposing of battery packs, keep battery packs of different electrochemical systems separate from each other.
n) Recharge only with the charger specified by POSITEC. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
o) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
p) Under abusive conditions, liquid may be ejected from the battery pack; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
q) Clean the battery pack contacts and also those of the equipment prior to battery installation.
r) Remove exhausted battery pack promptly.
s) Do not use any charger other than that specifically provided for use with the equipment.
t) Do not use any battery pack which is not designed for use with the equipment.
u) Keep battery pack out of the reach of children.
v) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
w) Retain the original product literature for future reference.
x) Remove the battery from the equipment when not in use.
y) Dispose of properly.

SYMBOLS

To reduce the risk of injury, user must read instruction manual

Warning

Wear ear protection

Wear eye protection

Wear dust mask

Indoor use only

Do not expose to rain or water

Do not burn

Do not dispose of batteries, Return exhausted batteries to your local collection or recycling point.

Li-Ion

OPERATING INSTRUCTIONS

NOTE: Before using the tool, read the instruction book carefully.

INTENDED USE

The machine is intended for driving in and loosening screws as well as for drilling in wood, metal and plastic.

The battery charger supplied is matched to the Li-1on battery installed in the machine. Do not use another battery charger.

The Li-lon battery is protected against deep discharging. When the battery is empty, the machine is switched off by means of a protective circuit: The tool holder no longer rotates.

In a warm environment or after heavy use, the battery pack may become too hot to permit charging. Allow time for the battery to cool down before recharging.

When the battery pack is charged for the first time and after prolonged storage, the battery pack will accept a 100% charge after several charge and discharge cycles.

B) TO REMOVE The BATTERY PAcK (See Fig. A1)

Depress the Battery Pack Release Button(6) firmly first and then slide the Battery Pack out from your tool.

c) TO INSTALL The BATTERY PAcK (See Fig. A2)

Slide the fully charged Battery Pack onto the tool with sufficient force until it clicks into position.

OPERATION

1. ON/OFF SwiTch (See Fig. B)

Depress the On/Off switch to start and release it to stop your drill. The on/off switch is fitted with a brake function which stops your chuck immediately when you quickly release the switch.

It is also a variable speed switch that delivers

higher speed and torque with increased trigger pressure. Speed is controlled by the amount of switch trigger depression.

WARNING: Do not operate for long periods at low speed because excess heat will be produced internally.

2. SWITCH LOCK

The switch trigger can be locked in the OFF position. This helps to reduce the possibility of accidental starting when not in use. To lock the switch trigger, place the rotation control in the center position.

3. REVERSIBLE (See Fig. C1, C2)

For drilling and screw driving use forward rotation marked "A lever is moved to the left). Only use reverse rotation marked "D (lever is moved to the right) to remove screws or release a jammed drill bit.

WARNING: Never change the direction of rotation when the chuck is rotating, wait until it has stopped!

4. TWO-SPEED GEAR CONTROL (See Fig. D)

The drill has a two-speed gear control designed for drilling or driving at LO (mark is 1) or HI (mark is 2) speeds. A slide switch is located on top of the drill to select either LO or HI speed. When using the drill in the LO speed range, the speed will decrease and the drill will have greater power and torque. When using the drill in the HI speed range, the speed will increase and the drill will have less power and torque.

Gear I

Low speed range: For screwdriving or working with large drilling diameter.

Gear II

High speed range: For working with small drilling diameter.

WARNING: To prevent gear damage, always allow the chuck to come to

a complete stop before changing the direction of rotation or the two-speed gear control.

5. CHUCK ADJUSTMENT (See Fig. E)

To open the chuck jaws rotate the front section of the chuck. Insert the drill bit between the chuck jaws and rotate the front section in the opposite direction. Ensure the drill bit is in the center of the chuck jaws. Finally, firmly rotate the front chuck section in the opposite directions. Your drill bit is now clamped in the chuck.

6. TORQUE ADJUSTMENT (See Fig. F)

(Screw driving force of your drill driver) The torque is adjusted by rotating the torque adjustment ring. The torque is greater when the torque adjustment ring is set on a higher setting. The torque is less when the torque adjustment ring is set on a lower setting.

Make the setting as follows:

1 - 4 For	driving small screws
5 - 9 For	driving screws into soft material
10 - 15 For	for driving screws into soft and hard material
For heavy drilling

7. AUTOMATIC SPINDLE LOCK (See Fig. G)

The automatic spindle lock allows you to use it as a regular screwdriver. You can give an extra twist to firmly tighten a screw, loosen a very tight screw or continue working when the battery energy has expired. For manual screwdriver purposes, the chuck is automatically locked when the tool is off.

8. USING THE SIGHT LIGHT

To turn on the light simply press the on/off switch. When you release the on/off switch, the light will be off.

LED lighting increases visibility-great for dark or enclosed area. LED is also a battery capacity indicator. It will flash when power gets low.

9. DRILLING

When drilling into a hard smooth surface, use a center punch to mark the desired hole location. This will prevent the drill bit from

slipping off center as the hole is started. Hold the tool firmly and place the tip of the bit at the point to be drilled. Depress the switch trigger to start the tool. Move the drill bit into the workpiece, applying only enough pressure to keep the bit cutting. Do not force or apply side pressure to elongate a hole.

Tungsten carbide drill bits should always be used for concrete and masonry. When drilling in metal, only use HSS drill bits in good condition. Always use a magnetic bit holder (not included) when using short screwdriver bits. When screw-driving, apply a small quantity of liquid soap or similar to the screw threads to ease insertion.

10. DISPOSAL OF AN EXHAUSTED BATTERY PACK

To preserve natural resources, please recycle or dispose of the battery pack properly. This battery pack contains Lithium batteries. Consult your local waste authority for information regarding available recycling and/or disposal options. Discharge your battery pack by operating your drill, then remove the battery pack from the drill housing and cover the battery pack connections with heavy-duty adhesive tape to prevent short circuit and energy discharge. Do not attempt to open or remove any of the components.

11. OVERLOAD PROTECTION

When overloaded, the motor comes to a stop. Relieve the load on the machine immediately and allow cooling for approx. 30 seconds at the highest no-load speed.

12. TEMPERATURE DEPENDENT OVERLOAD PROTECTION

When using as intended for the power tool cannot be subject to overload. When the load is too high or the allowable battery temperature of 75^ is exceeded, the electronic control switches off the power tool until the temperature is in the optimum temperature range again.

13. PROTECTION AGAINST DEEP DISCHARGING

The Li-Ion battery is protected against deep discharging by the "Discharging Protection System". When the battery is empty, the machine is switched off by means of a protective circuit: The inserted tool no longer rotates.

PROBLEM SOLUTION

1. WHY DOES THE DRILL NOT TURN ON WHEN YOU PRESS THE SWITCH?

The forward/reverse rotation control, which is on top of the trigger, is positioned in the lock function. Unlock the forward/reverse rotation control by putting it into the required rotation position. Push the trigger and the drill will start to rotate.

2. THE DRILL STOPS BEFORE THE SCREW IS COMPLETELY TIGHTENED. WHY?

Verify the torque position of the torque adjusting ring, you can find the torque-adjusting ring between the chuck and the drill body. Position 1 is the lowest torque (screw driving force) and position 15 is the highest torque (screw driving force). Position 是 is for drill operation. Regulate the torque adjusting ring to a higher position to reach the best result.

3. REASONS FOR DIFFERENT BATTERY PACK WORKING TIMES

Charging time problems, as above, and having not used a battery pack for a prolonged time will reduce the battery pack working time. This can be corrected after several charge and discharge operations by charging & working with your drill. Heavy working conditions such as large screws into hard wood will use up the battery pack energy faster than lighter working conditions. Do not re-charge your battery pack below 0^ and above 45^ as this will affect performance.

MAINTENANCE

Your tool requires no additional lubrication or maintenance.

There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust. Occasionally you may see sparks through the ventilation slots. This is normal and will not damage your power tool.

ENVIRONMENTAL PROTECTION

Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist.

Check with your local authorities or retailer for recycling advice.

DECLARATION OF CONFORMITY

We,

POSITEC Germany GmbH

Declare that the product,

Description WORX Lithium-Ion Cordless Drill/Driver

Type WX156 WX156.1 WX156.2 WX166

WX166.1 (1-designation of machinery, representative of Cordless Drill)

Function Drilling

Complies with the following Directives,

Machinery Directive 2006/42/EC

Electromagnetic Compatibility Directive

2004/108/EC

RoHS Directive 2011/65/EU

Standards conform to

EN 55014-1

EN 55014-2

EN 60745-1

EN 60745-2-1

EN 60745-2-2

Name Russell Nicholson

Address Positec Power Tools (Europe)

Ltd, PO Box 152, Leeds, LS10 9DS, UK

2013/02/22

Leo Yue

POSITEC Quality Manager

Ltd, PO Box 152, Leeds, LS10 9DS, UK

2013/02/22

LeoYue

INFORMATIONS RELATIVES AU BRUIT

INFORMATIONS RELATIVES AUX VIBRATIONS

Codice WX156 WX156.1 WX156.2

Ltd, PO Box 152, Leeds, LS10 9DS, UK

2013/02/22

Leo Yue

Tipox156WX156.1WX156.2WX166

Ltd, PO Box 152, Leeds, LS10 9DS, UK

2013/02/22

Leo Yue

Gestor de Qualidade POSITEC

1. SNELSPAN BOORKOP
2. KOPPEINSTELLINGEN
3. KNOP VOOR INSTELLEN MECHANISCHE SNELHEID
4. RECHTS- EN LINKSDRAAIEND
5. ZACHTE HANDGREEP
6. PAL ACCUPACK
7. ACCUPACK *
8. WERKLAMPJE
9. AAN/UIT-SCHAKELAAR

VOORDAT U hET APPARAAT IN BEDRIjF NEEMT

Ltd, PO Box 152, Leeds, LS10 9DS, UK

2013/02/22

Leo Yue

Navn Russell Nicholson
Adresse Positec Power Tools (Europe)
Ltd, PO Box 152, Leeds, LS10 9DS, UK

2013/02/22
Leo Yue
POSITEC Kvalitetschef

Ltd, PO Box 152, Leeds, LS10 9DS, UK

2013/02/22

Leo Yue

Type WX156 WX156.1 WX156.2

WX166 WX166.1 (1- betegner maskin, representative Batteridrill)

Funksjoner Bore

Samsvarer med fologende direktiver,

Maskindirektivet 2006/42/EC

EMC-directivet 2004/108/EC

RoHS Direktiv 2011/65/EU

Ltd, PO Box 152, Leeds, LS10 9DS, UK

2013/02/22

Leo Yue

2013/02/22
Leo Yue
POSITEC Quality Manager

Tipi WX156 WX156.1 WX156.2 WX166 WX166.1 (1- makine tanimi, tipik kablosuz matkap)

		WX156 WX156.1 WX156.2	WX166 WX166.1
Voltaj 16V		= Maks* 20V	Maks** =
Yüksüz洵 0-400/0-1500/min
Kavrama konumu sayişi 15+1
Azami tork 35N.m 40N.m
Mandren kapasitesi 10mm
Azami delme kapasitesi	Çelik 10mm
	Tahta 28mm	30mm
Makine ağırkı 1.24kg 1.26kg

Tipi WX156 WX156.1 WX156.2 WX166

WX166.1 (1- makine tanimi, tipik kablosuz matkap)

Islev Delme

Ltd, PO Box 152, Leeds, LS10 9DS, UK

2013/02/22

Leo Yue

• He BCE npHnHaJnxKHOCTn, nJIIOCTpnpOBAHHbI e NN ONNCAHHbI B KJIIOUeHbI B CTaHdapTHyIO NOCTabKy.

TEXHNUECKNE XAPAKTEPNUCTNUKNI

Mодenv Wx156 Wx156.1 Wx156.2 Wx166 Wx166.1 (1-обозанец Инструмента, Дрел akкymларонь)

CymMaphhe 3NaueHn Bn6paun, onpeJeHHeBie cornacho EN 60745:

ycTpoCtBa. Hnke nepeuNCJIeHbI HeKOToPbIe ycIOBnA, OT KOToPbIX 3aBnCIT INHTeHCNBHOCTb Bn6paun:

Cnoc06 nCnoJb3OBaHnI NHCTpyMeHTa n CBOJCTBa o6pa6aTBiBaEMOro MaTePnAna,

IcnoJb3ObaHne npaBnblHo npHaJnxHocTn, ee octpoTa n XopoOee coCToHne,

Cnna yndePKaHn pykoTOK n HaNuYne npoTNBOBn6paQnoHHbIX cpeDCTB,

IcnoIb3yEmble pa6oue IHCTpyMeHTbl, COOTBeTCTBne npIMeHnIHCTpyMeHTOB IX Ha3HaueHnIO I daHHo INCHTpKuIN.

3apndhoe yctpoicBO, BXOJauee B KOMnneKT NOCTaBKn, COOTBeTCTByeT JNTHeBO-NOHHO aKymyIaTOPHO 6aTaapee, yCTaHOBJIeHHoB INpIbope. He nCnoJb3yIte dpyrme 3apdHbIe yctpoicTba.

JIHTHeBO-NOHHa aKKymyIaTOPHa 6aTape
3aunueHa OT Ily60ko pa3pRAn. Pn noHOn
pa3pRKe 6aTapeu np6Op BbIKNoUaETc
nocpeDCTBOM 3aunTHo CEIN. NaTPOH
HNCTpyMeHTa nepeCTaHET BpaUaTBcA.
ByCIOBnIX NOBbIeHHoN TempePaTypbI N
noCne DInTeJbHOro nCnOJb3OBAHn8 6JOK
6batapeM MoKet nepePepTbcr H He 3apXaTbcra.
DaIte aKKymyIaTOPHo 6batapee ocTbITb nepeD
3apKnOi.

Pn nepBoN 3apRKe aKKymyIaTOpHoi
6atapeu nn nocne dnteBHO xpaHeHH,
Ondako nocne HeckoBkX uKNoB 3apRKn I
pa3pRKn aKKymyIaTOpHa8 6atapea noHocbIO
3apRdntc.

B) N3BJIeUeHne BJOKA BATAPEI (Pnc.A1)

HaxmTe Ha qnkcaTop aKKymyIaTOpHo 6atapen n n3BnKeNTe ee n3 dpenn.

C) YCTAHOBKA BJIOKA BATAPEI (Pnc. A2)

BCTaBbTe 3apJxehHHyO aKKymyIaTOpHyIO 6aTaapeo B DpeJIb.ДЯФNKcauN 6aTaapeN DOCTaTOUHO JERKOrO HaxaTnI.

3KcPnyATAU

1. BbIKJIIOUATEJIb C ΦYHKLIneH TOPMO3A (Pnc. B)

Дляпсаинстуремпа нахмite, a Для OCTановки OTПСТITE ВБИКЛЮЧАТь. ВыкючATEь OСHAцен Функциег ТОМоЗа, КOTOPЯ HemeДпЕНHO OCTaHaBЛNBaEТ NaTPOH, KOrda Bbl 6bICTPO OTNYСKaTe БвIKЛЮЧАТь. Тakxe cyцесТByeТпЕрКЛЮЧАТь perylnpyemOн СКОРOCТи, KOTOpьи obecneчINAeTбОьшУO CkopoCtь N СКPyuNBAIOUm MOMENT C NOBbIWeHHbIM усилпem сnycka. СКОРOCТь PerylnpuyETcR КOLINueCTBOM CNYCKB Kypka PereKJIQUCHaTeJY.

BHIMAHNE: He pa6oTaIteДЛNTeIbHoe BpeMЯ Ha MaJIoCKOPOCTN, 3TO MOKeT npHBecT N KepeRpeBy HnCTpyMeHTa.

2.БЛOKИРОВКABbIKJIQUATEJIЯ

BbIKIOUaTeNb MoKHO 3a6IOKuPoBaTb B
BbIKIOUeHHOM NIOXKeHn. 3TO N03BOJAreT
NCKIOUHTb BepoTHOCTb CnyaHOrO
BKNIOUeHn, KOrDa INHCTpyMeHT He
NcNoJIb3yETc.ДЯ 6IOKuPOBKn BbIKIOUaTeJIy
yCTaHOBIne NepeKIOUaTeNb HappaBHeHn
BpaueHn B cpeHne NIOXKeHne.

3. NEPEKJIIOYATEJIb HANPABJIEHNBAPAUENHRA (Pnc.C1,C2)

Дя CBepHnI IN BBepTbIBaHne BINTOB
NcNoJIb3yIe BpaIeHne BpeI, O6O3HaueHHoe
"（pbIur nobEPHyrBnEBo）.NcNoJIb3yIte
ToIbKO o6paTHOE BpaIeHne, O6O3HaueHHoe
"（pbIur nobEPHyrBnpaBO）dЯ ydaJIeHnI
BINTOB IIN OCBO6OXKeHnI 3aCTPraBWei
rOJIOBKn CBepJa.

BHIMAHNE: Hnkorda He n3MeHnTe HnpaBneHne BpauHn npn BpauaIOuemcnaTpoHe,doXdntecb ero noHno octaHOBKn!

Li-Ion npOBoDntbCRA COOTBcTCTByUOuIM O6pa3OM.

AkkymyIaTOp cOePknT IuTneBbIe 6aTapeN.

PpOKOHcyIbTnpyIteCb B MeCTHOM opraHe no yTnIn3aun OTXoOB NO NOBOy BO3MOxHOI nepepa6OTKn n/nn yTnIn3aun aKKymyJrTopa.

Pa3pIaTe aKKymJrTOp nOJIHOCTbIO, pa6OTaR dpeIbIO, 3aTeM OTcoeINHITe aKKymJrTOp OT KOpnyca dpeJIi N HaJeXHO nOJIpyIe KOHTaKTbl aKKymJrTOpa dIg IpeIoTbpaUeHnKoPOTKOro 3aMbIkaHn. He nbITaItec b pa3o6paTb aKKymJrTOpHyIO 6aTaPeIO nn BBtAunTb OTdJIbHbIe KOMNoHEThbl.

11. 3AUHTA OT IPEPERPY3KN

Pn neperp3Ke DBNrAteIb OCTaHaBnBaETc. HemeDneHNO CHIMITE Harp3Ky C DNBraTeTn I daIte emy octbITb B TeueHne npImepHO 30 c Ha camoB bICOKO CKOPoCTn 6e3 Harp3Kn.

12. TENILOBAR 3AUNTA OT NEPERPY3KN

Pn nCNoB3OBAHn No Ha3HaueHnIO
3JIeKTPoHnCTpyMeHT He MoXeT 6bITb NepeRpyKeH.
Pn BBICOKo Harpy3Ke NIN PneBbIeHnN
DOnyCTUMoTemNepaTpbl aKKymyJrTopa B 75^ 3JIeKTPoHHbYnpaBnOuNn BBIKHouaTeNb
BBIKHouaET 3JIeKTPoHHCTpyMeHT Do Tex NOp, Noka
OH He OCTbIHet DO ONTImaJIbHO rDaNa3OHa
pa6Oueh TemNepaTpbl.

13. 3AùNTA OT ΓЛУБOKОI PA3РЯДКI

CnCTema 3aunTbI OT pa3pIckn 3aunuaeT IINTN-NOHbI aKKymJrTOP OT Iy6OKoI pa3pIckn. 3aunTHa Cxema BblKIOUaET 3NeKTPOINHCTpyMeHT npI pa3pJxEHOM aKKymJrTope, n pa6OuH INHCTpyMeHT OCTaHaBInBaETc.

BO3MOXHbIE ПОНБЛЕмbl

1. NOYEMY DPEJIb HE 3ANYCKAETCnPn HAXATn HA BblIOyATEJIb?

IpeeknOuTeNb HApBaJIeHnB BpaUeHnYcTaHOBJIeN B cpeJHee NpIoXeHne N 6IOKnpyET BbIKIOUaTeJIb .Pa36Iokpyte BbIKIOUaTeJIb, YcTaHOBnB Heo6xOdImoero HaPapBJIeHnE BpaUeHnHaXmITE Ha BkIOUaTeJIb, N dpeJIb NaHHT BpaUaTbcra.

2. WUPYNOBEPT OCTAHABJINBAETCRA ПЕЖDE YEM WUPYN NOJIHOCTbIO 3ABINHUYEN. NOYEM?

Проверъп NOJOXeHne KOJIbuapeулрOBkn KpyTЯшero MOMHTa. NOJOxeHne 1 COOTBETCTByet CamOMy HN3KOMy KpyTЯшem My MOMHTy, a NOJOxeHne 15-camOMy BBICOKOMy KpyTЯшeMy MOMHTy. NOJOxeHne IpeHa3HaueHo ДЯ CBepIeHnY. YcTaHOBNTe KOJIb4O peTuNpOBKn KpyTЯшero MOMHTa Ha BbICJee NOJOXeHne DЯ DOCTNXeHnY HanluyuXx pe3yIbTaTOB.

mra Russell Nicholson

Ampec Positec Power Tools (Europe)

Ltd, PO Box 152, Leeds, LS10 9DS, UK

2013/02/22

Leo Yue

MeHeJxep no KauecTBy POSITEC

Copyright © 2013, Positec. All Rights Reserved.

2CDT45PPK11000A4
