USER MANUAL KHC62650XA ZANKER

SR2 Recommendations and suggestions

• The Instructions for Use apply to several versions of this appliance. Accordingly,youmaynddescrip- tions of individual features that do notapplytoyourspecicappliance.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper instal- lation.

• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the par- agraphs on working dimensions and installation).

• Check that the mains voltage corresponds to that indicated on theratingplatexedtotheinside of the hood.

• ForClassIappliances,checkthat the domestic power supply guar- antees adequate earthing. Connect the extractor to the exhaust ue through a pipe of minimum diam- eter 120 mm. The route of the uemustbeasshortaspossible.

• Do not connect the extractor hood toexhaustductscarryingcombus- tionfumes(boilers,replaces,etc.).

• Iftheextractorisusedinconjunc- tion with non-electrical appliances (e.g. gas burning appliances), a sufcientdegreeofaerationmust be guaranteed in the room in order topreventthebackowofexhaust gas. The kitchen must have an opening communicating directly with the open air in order to guar- anteetheentryofcleanair.When the cooker hood is used in con- junction with appliances supplied withenergyotherthanelectric,the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by thecooker hood.

• In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to preventany risks.

• If the instructions for installation for the gashob specifya greater distancespeciedabove,thishas to be taken into account. Regula- tions concerning the discharge of air have tobe fullled.

• Use only screws and small parts in support of the hood.

Warning: Failure to install the

screwsorxingdeviceinaccord- ance with these instructions may result in electrical hazards.

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm. Use

• The extractor hood has been de- signedexclusivelyfordomesticuse to eliminate kitchen smells.

• Never use the hood for purposes other than for which it has been designed.

• Never leave high naked ames under the hood when it is in op- eration.

• Adjusttheameintensitytodirect itontothebottomofthepanonly, making sure that it does not engulf the sides.

• Deep fat fryers must be continu- EN3 ouslymonitoredduringuse:over- heated oil can burst into ames.

• Do not ambè under the range hood; risk of re.

• Thisappliancecanbeusedbychil- drenagedfrom8yearsandabove andpersonswithreducedphysical, sensory or mental capabilities or lack of experience and knowledge iftheyhavebeengivensupervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• This appliance is not intended for usebypersons(includingchildren) with reduced physical, sensory or mental capabilities, or lack of experienceandknowledge,unless theyhavebeengivensupervision or instruction concerning use of the appliancebyapersonresponsible for their safety.

• “CAUTION:Accessiblepartsmay become hot when used with cook- ing appliances.” Maintenance

• The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equip- ment.Byensuringthisproductis disposedofcorrectly,youwillhelp prevent potential negative conse- quences for the environment and humanhealth,whichcouldother- wise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contactyourlocalcityofce,your household waste disposal service ortheshopwhereyoupurchased the product.

• Switch off or unplug the appliance fromthemainssupplybeforecar- rying out any maintenance work.

• Clean and/or replace the Filters after the specied time period (Fire hazard).

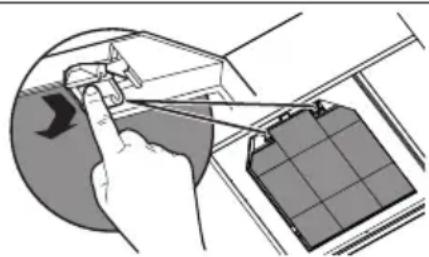

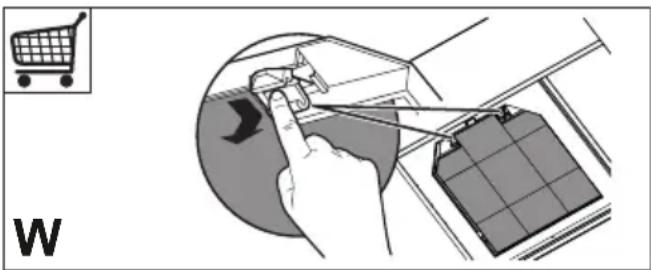

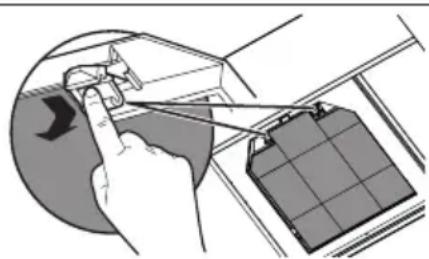

• “Failure to carry out cleaning as indicatedwillresultinarehazard”. - The Activated charcoal lter is not washable and cannot be re- generated,andmustbereplaced approximatelyevery4monthsof operation,ormorefrequentlyfor particularlyheavyusage(W).

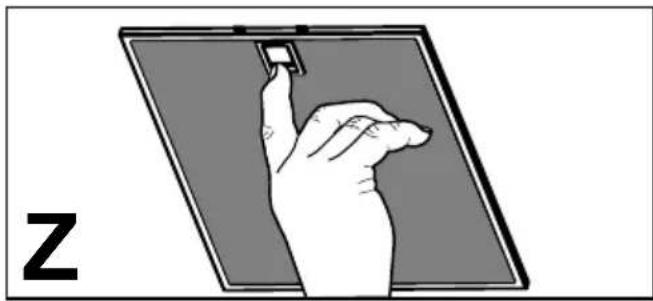

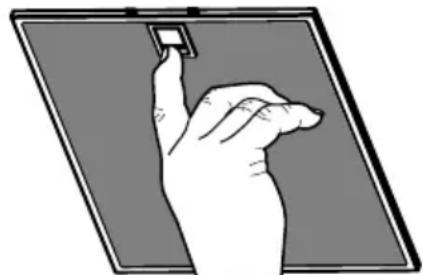

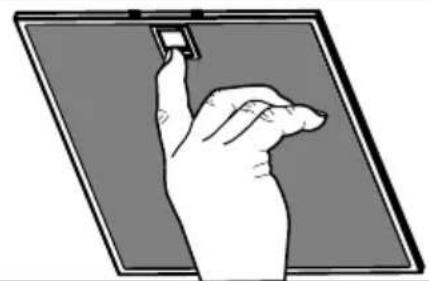

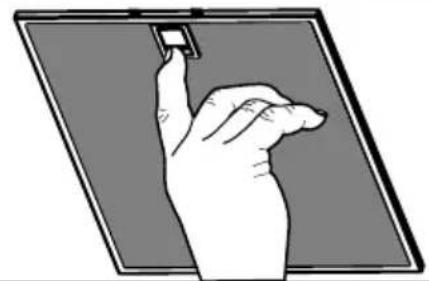

- The Grease filters must be cleaned every 2 months of op- eration, or more frequently for particularlyheavyusage,andcan be washed in a dishwasher (Z).

• Clean the hood using a damp cloth and a neutral liquid detergent.4 Controls

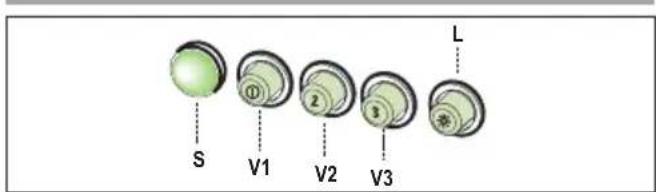

LLight Switchesthelightingsystemonandoff. S Led Motor running led. V1 Motor Switches the extractor motor on and off at low speed. Used to provide a continuous and silent air change in the presence of light cooking vapours. V2Speed Mediumspeed,suitableformostoperating conditions given the optimum treated air ow/noiselevelratio. V3Speed Maximumspeed,usedforeliminatingthe highestcookingvapouremission,including long periods. Lighting
