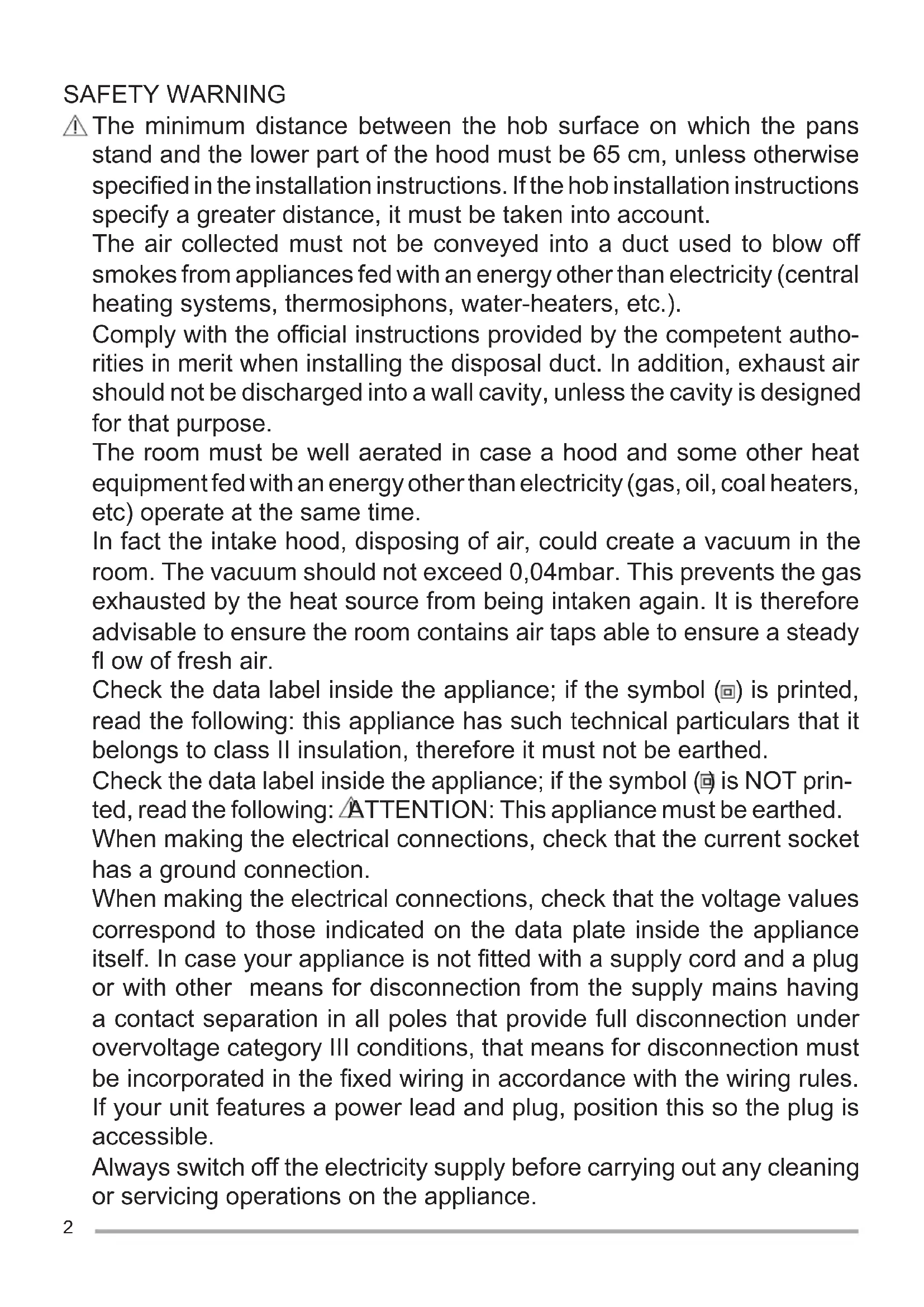

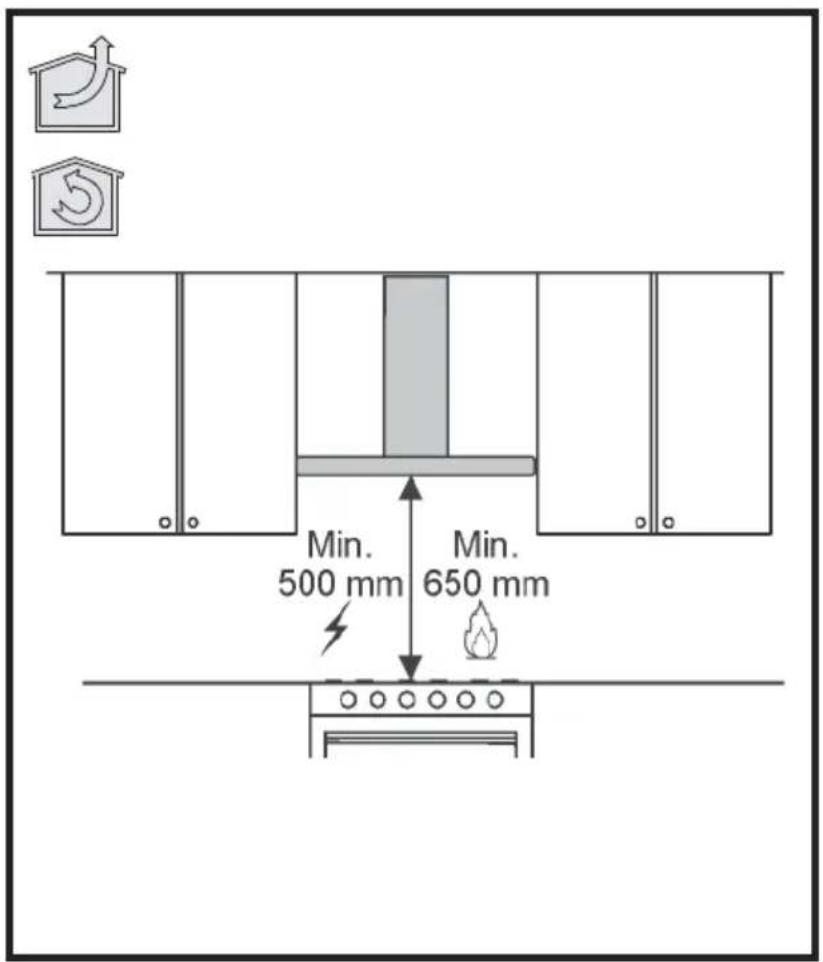

The minimum distance between the hob surface on which the pans stand and the lower part of the hood must be 65 cm, unless otherwise specified in the installation instructions. If the hob installation instructions specify a greater distance, it must be taken into account.

The air collected must not be conveyed into a duct used to blow off smokes from appliances fed with an energy other than electricity (central heating systems, thermosiphons, water-heaters, etc.).

Comply with the official instructions provided by the competent authorities in merit when installing the disposal duct. In addition, exhaust air should not be discharged into a wall cavity, unless the cavity is designed for that purpose.

The room must be well aerated in case a hood and some other heat equipment fed with an energy other than electricity (gas, oil, coal heaters, etc) operate at the same time.

In fact the intake hood, disposing of air, could create a vacuum in the room. The vacuum should not exceed 0,04mbar. This prevents the gas exhausted by the heat source from being intaken again. It is therefore advisable to ensure the room contains air taps able to ensure a steady flow of fresh air.

Check the data label inside the appliance; if the symbol (☐) is printed, read the following: this appliance has such technical particulars that it belongs to class II insulation, therefore it must not be earthed.

Check the data label inside the appliance; if the symbol (☐) is NOT printed, read the following: ATTENTION: This appliance must be earthed.

When making the electrical connections, check that the current socket has a ground connection.

When making the electrical connections, check that the voltage values correspond to those indicated on the data plate inside the appliance itself. In case your appliance is not fitted with a supply cord and a plug or with other means for disconnection from the supply mains having a contact separation in all poles that provide full disconnection under overvoltage category III conditions, that means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules. If your unit features a power lead and plug, position this so the plug is accessible.

Always switch off the electricity supply before carrying out any cleaning or servicing operations on the appliance.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

⚠ Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

The appliance must be installed by a qualified person in compliance with the instructions provided.

Avoid using materials which could cause spurts of flame (flambées) near the appliance.

Do not fl ambé under the range hood.

When frying, take particular care to prevent oil and grease from catching fire. Already used oil is especially dangerous in this respect. Do not use uncovered electric grates.

To avoid possible risks of fire always comply with the indicated instructions when cleaning grease filters and when removing grease deposits from the appliance.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way by a person responsible for their safety and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Caution: accessible parts may become hot when used with cooking appliances.

This kitchen hood is intended for installation in domestic kitchens above cooktops, cooking devices and similar kitchen equipment.

ENVIRONMENT CONCERNS

Recycle the materials with the symbol

. Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose

appliances marked with the symbol with the household waste.

Return the product to your local recycling facility or contact your municipal offi ce department for household waste or the shop where you purchased this product.

USE

Filtering or ducting version?

The hood may be in fi Itering or in ducting version. Decide from the outset which type is to be installed. For better effi ciency, we recommend installing the hood in the ducting version (if possible).

Ducting version.

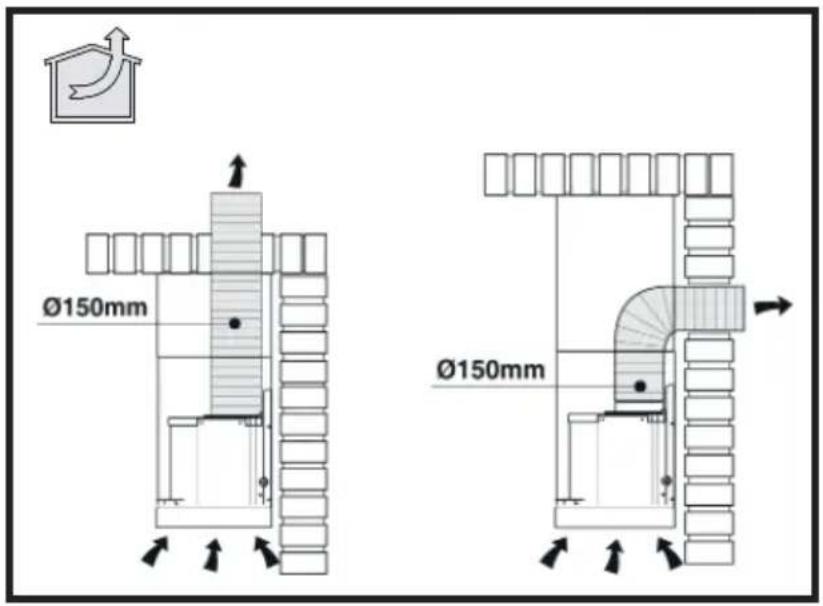

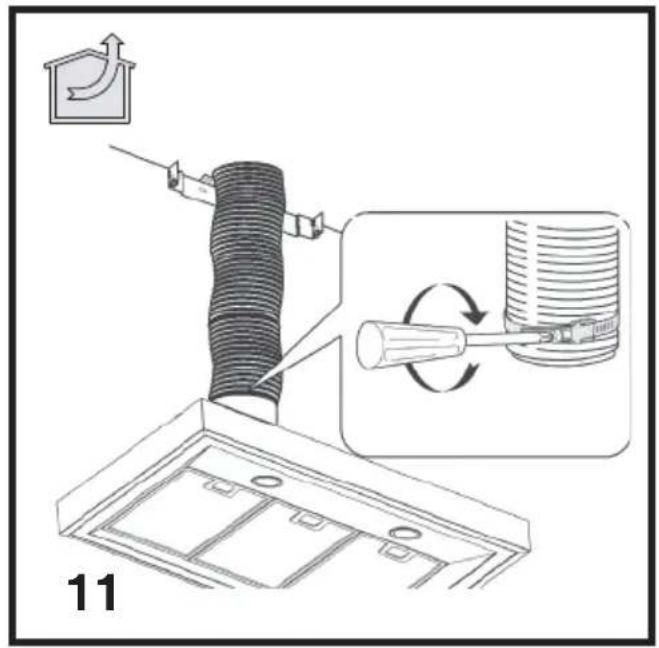

The hood purifi es the air and evacuates it to the outside through an exhaust duct.

Filtering version

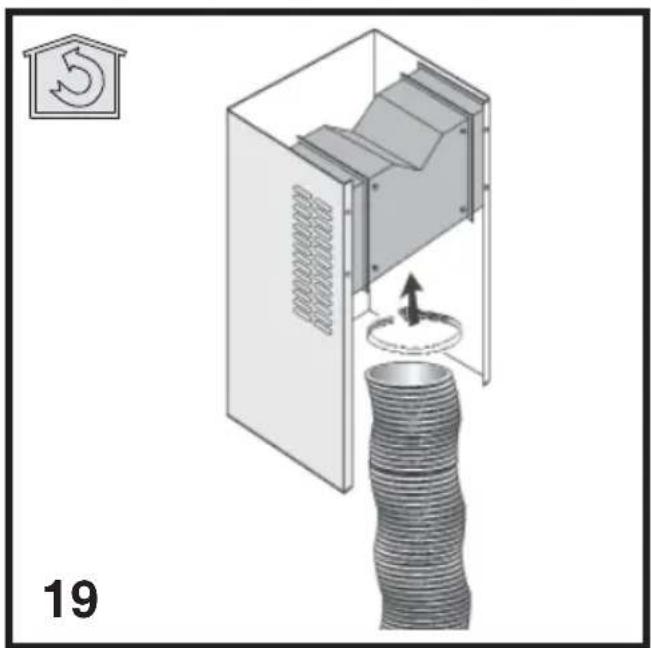

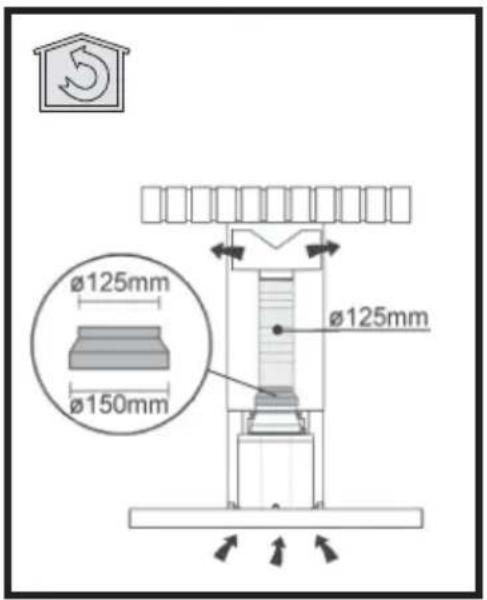

The hood purifi es the air and recycles the clean air back into the room.

MAINTENANCE

Thorough servicing guarantees correct and long-lasting operation.

Any fat deposits should be removed from the appliance periodically depending on amount of use (at least every 2 months). Avoid using abrasive or corrosive products. To clean painted appliances on the outside, use a cloth dipped in lukewarm water and neutral detergent. To clean steel, copper or brass appliances on the outside, it is always best to use specific products, following the instructions on the products themselves. To clean the inside of the appliance, use a cloth (or brush) dipped in denatured ethyl alcohol.

Clean grease filters in relation to use, at least every 2 months to prevent the risk of fi re.

Hand wash or clean in a dishwasher using a neutral detergent. If washing in the dishwasher, possible discoloration of the filters does not in any way compromise their functioning.

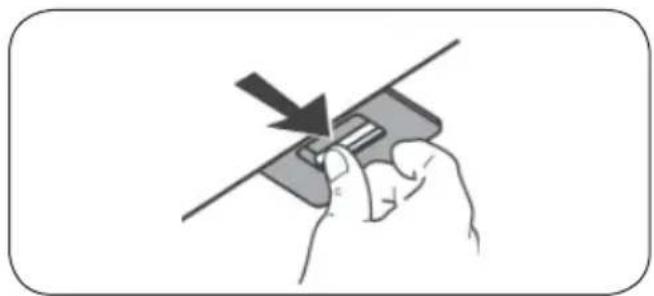

Hand holding a card with a diagonal line and arrow indicating compression (no text or symbols)

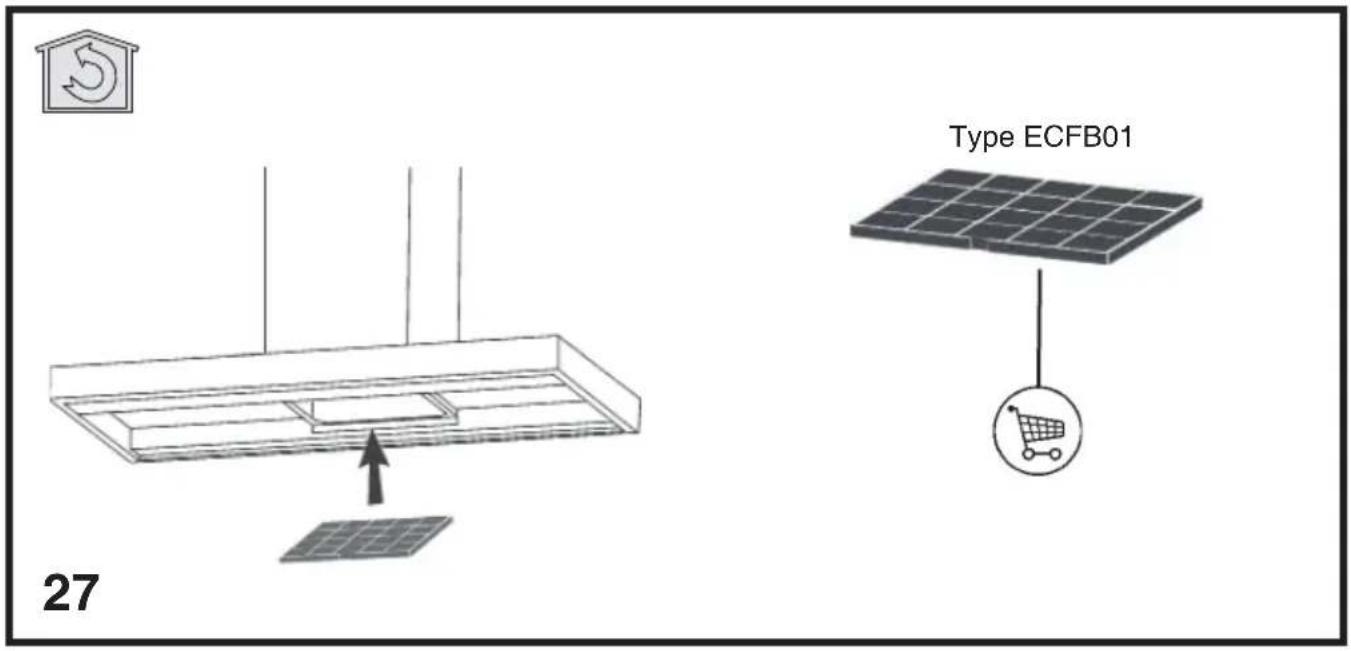

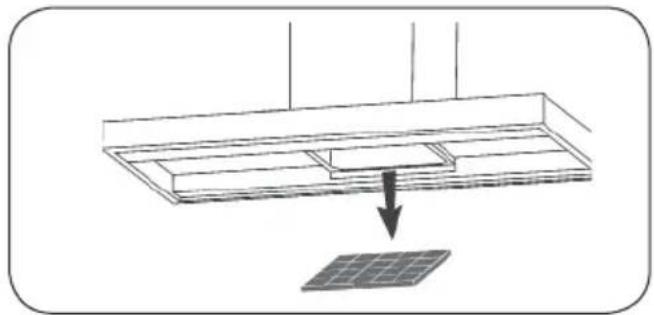

The activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.

Diagram showing a ceiling-mounted panel with a downward arrow pointing to a solar panel (no text or symbols present)

CONTROLS

Models KHB62650ZA, KHB92650XA:

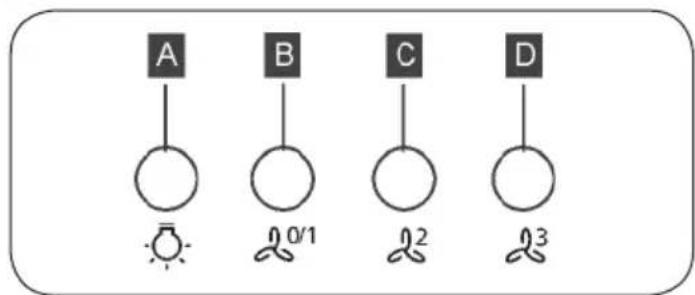

A - Light switch.
B - First speed motor ON/OFF switch.
C - Second speed switch.
D - Third speed switch.

Models KHB60460XA, KHB90460XA:

1 : fi rst speed motor.
0 : motor ON/OFF.
2: second speed switch.

Disconnect the hood from the electricity.

Models KHB60460XA, KHB90460XA:

⚠ Warning! Prior to touching the light bulbs ensure they are cooled down.

Replace it with lamps of the same type ( 35 , E14, 4W).

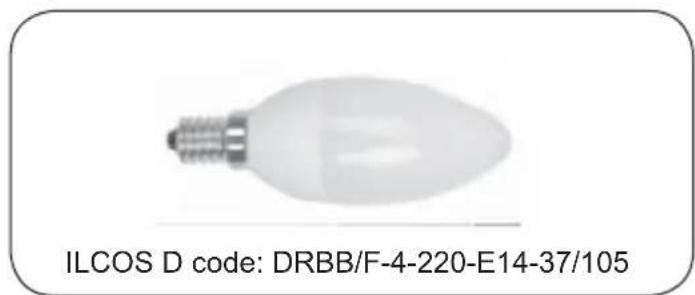

ILCOS D code: DRBB/F-4-220-E14-37/105

Models KHB62650XA, KHB92650XA:

If the light spot is damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

SICHERHEITSWARNUNG

Hand holding a card with a downward arrow indicating compression or dislocation (no text or symbols)

Diagram showing a ceiling-mounted panel with a downward arrow pointing to a grid-patterned surface (no text or symbols)

BEDIENELEMENTE

Modelle KHB62650ZA, KHB92650XA:

- Lichtschalter.

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

Modelle KHB62650XA, KHB92650XA:

Hand holding a small electronic component with a black arrow indicating direction (no text or symbols)

Diagram showing a solar panel installation with an arrow pointing to it, no text or symbols present.

COMMANDES

Modèles KHB62650ZA, KHB92650XA:

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

VEILIGHEIDSWAARSCHUWINGEN

AFVOER OF RECIRCULATIE?

Hand holding a device with a downward arrow indicating compression or disassembly (no text or symbols)

Diagram showing a ceiling-mounted panel with a downward arrow pointing to a grid-patterned surface (no text or symbols)

BEDIENINGEN

Modellen KHB62650ZA, KHB92650XA:

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

Modellen KHB62650XA, KHB92650XA:

Illustration of a hand holding a small electronic component with a downward arrow indicating compression (no text or symbols)

Diagram showing a ceiling-mounted panel with a downward arrow pointing to a solar panel (no text or symbols present)

MANDOS

Modelos KHB62650ZA, KHB92650XA:

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

Models KHB62650XA, KHB92650XA:

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

Diagram showing a ceiling-mounted panel with a downward arrow pointing to a grid-patterned surface (no text or symbols)

COMANDOS

Modelos KHB62650ZA, KHB92650XA:

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

Models KHB62650XA, KHB92650XA:

Illustration of a hand holding a card with a downward arrow indicating compression or dislocation (no text or symbols)

Diagram showing a ceiling-mounted panel with a downward arrow pointing to a solar panel (no text or symbols present)

COMANDI

Modelli KHB62650ZA, KHB92650XA:

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

Modelli KHB62650XA, KHB92650XA:

Hand holding a card with a downward arrow indicating compression or dislocation (no text or symbols)

Diagram showing a ceiling-mounted panel with a downward arrow pointing to a grid array (no text or symbols present)

KOMMANDON

Modeller KHB62650ZA, KHB92650XA:

Hand holding a card with a downward arrow indicating compression or disassembly (no text or symbols)

Diagram showing a ceiling-mounted panel with a downward arrow pointing to a solar panel (no text or symbols present)

KONTROLLER

Modeller KHB62650ZA, KHB92650XA:

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

Modeller KHB62650XA, KHB92650XA:

Hand holding a card with a downward arrow indicating compression or dislocation (no text or symbols)

Diagram showing a ceiling-mounted panel with a downward arrow pointing to a small solar panel (no text or symbols present)

OHJAIMET

Malli KHB62650ZA, KHB92650XA:

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

Malli KHB62650XA, KHB92650XA:

Hand holding a small electronic component with a downward arrow indicating compression (no text or symbols)

Diagram showing a solar panel installation with an arrow pointing to it, no text or symbols present.

BETJENING

Modellieme KHB62650ZA, KHB92650XA:

Hand holding a small electronic component with a downward arrow indicating compression (no text or symbols)

Diagram showing a solar panel installation with a downward arrow indicating direction (no text or symbols present)

CONTROLS

Модели КНВ62650ZA, КНВ92650XA:

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

Модели КНВ62650ХА, КНВ92650ХА:

Hand holding a small electronic component with a downward arrow indicating compression (no text or symbols)

Diagram showing a solar panel installation with an arrow pointing to it, no text or symbols present.

JUHIKUD

Mudelid KHB62650ZA, KHB92650XA:

FILTRĒJOŠAIS VAI UZSŪCOŠAIS VEIDS?

Hand holding a small electronic component with a downward arrow indicating compression (no text or symbols)

Diagram showing a solar panel installation with an arrow pointing to the panel (no text or symbols present)

VADĪBAS ELEMENTI

Modelis KHB62650ZA, KHB92650XA:

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

Modelis KHB62650XA, KHB92650XA:

Hand holding a small electronic component with a downward arrow, no text or symbols visible

Diagram showing a solar panel installation with an arrow pointing to a grid array (no text or symbols present)

VALDYMAS

Modeliai KHB62650ZA, KHB92650XA:

Hand holding a card with a downward arrow indicating compression or dislocation (no text or symbols)

Diagram showing a ceiling-mounted panel with a downward arrow pointing to a solar panel (no text or symbols present)

ЕЛЕМЕНТИ КЕРУВАННЯ

Моделі КНВ62650ZA, КНВ92650XA:

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

Diagram showing a ceiling-mounted panel with a downward arrow pointing to a solar panel (no text or symbols present)

KEZELŐSZERVEK

KHB62650ZA, KHB92650XA modellek:

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

KHB62650XA, KHB92650XA modellek:

Hand holding a card with a downward arrow indicating compression or dislocation (no text or symbols)

Diagram showing a ceiling-mounted panel with a downward arrow pointing to a grid-patterned panel (no text or symbols present)

PŘÍKAZY

Modele KHB62650ZA, KHB92650XA:

Hand holding a card with a downward arrow indicating compression or dislocation (no text or symbols)

Diagram showing a ceiling-mounted panel with a downward arrow pointing to a solar panel (no text or symbols present)

OVLÁDAČE

Modele KHB62650ZA, KHB92650XA:

- Zapnite svetlo.

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

Modele KHB62650XA, KHB92650XA:

Hand holding a card with a downward arrow indicating compression or dislocation (no text or symbols)

Diagram showing a ceiling-mounted panel with a downward arrow pointing to a solar panel (no text or symbols present)

COMENZI

Modele KHB62650ZA, KHB92650XA:

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

Modele KHB62650XA, KHB92650XA:

Hand holding a card with a downward arrow indicating compression or dislocation (no text or symbols)

Diagram showing a solar panel installation with an arrow pointing to it, no text or symbols present.

STEROWANIE

Modele KHB62650ZA, KHB92650XA:

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

Modele KHB62650XA, KHB92650XA:

Illustration of a hand holding a device with a downward arrow indicating compression or disassembly (no text or symbols present)

Diagram showing a structural component with an arrow pointing to a grid-like pattern below (no text or symbols)

NAREDBI

Modeli KHB62650ZA, KHB92650XA:

• Upali svjetlo.
• Sklopka Uključi/lsključi, prva brzina motora.
• Druga brzina motora.
• Treća brzina motora.
    note1["0/1"] below B
    note2["2"] below C
    note3["3"] below D

Modeli KHB60460XA, KHB90460XA:

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

Modeli KHB62650XA, KHB92650XA:

Hand holding a small electronic component with a downward arrow, no text or symbols visible

Diagram showing a solar panel installation with an arrow indicating the process (no text or symbols present)

UPRAVLJALNI GUMBI

Modeli KHB62650ZA, KHB92650XA:

Hand holding a small electronic component with a downward arrow indicating compression (no text or symbols)

Diagram showing a ceiling-mounted panel with a downward arrow pointing to a grid-patterned panel (no text or symbols present)

ΧΕΙΡΙΣΤΗΡΙΑ

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

Diagram showing a ceiling-mounted panel with a downward arrow pointing to a small solar panel (no text or symbols present)

KONTROLLER

KHB62650ZA, KHB92650XA Modelleri:

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

KHB62650XA, KHB92650XA Modelleri:

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

Diagram showing a solar panel installation with a downward arrow indicating direction (no text or symbols present)

УПРАВЛЕНИЯ

Модели КНВ62650ZA, КНВ92650XA:

Модели КНВ60460ХА, КНВ90460ХА:

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

Модели КНВ62650ХА, КНВ92650ХА:

Hand holding a card with a downward arrow indicating compression or dislocation (no text or symbols)

Diagram showing a solar panel installation with an arrow indicating the process (no text or symbols present)

БАСКАРУ ЭЛЕМЕНТТЕРИ

Моделі КНВ62650ZA, КНВ92650XA:

- жарығын косыңыз.

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

Hand holding a small electronic component with a downward arrow indicating compression (no text or symbols)

Diagram showing a solar panel installation with a downward arrow indicating the component (no text or symbols present)

КОНТРОЛИ

Модели КНВ62650ZA, КНВ92650XA:

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

Модели КНВ62650ХА, КНВ92650ХА:

Hand holding a card with a downward arrow indicating compression or dislocation (no text or symbols)

Diagram showing a ceiling-mounted panel with a downward arrow pointing to a solar panel (no text or symbols present)

KOMANDIMET

Modelet KHB62650ZA, KHB92650XA:

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

Modelet KHB62650XA, KHB92650XA:

Hand holding a card with a downward arrow indicating compression or dislocation (no text or symbols)

Diagram showing a ceiling-mounted panel with a downward arrow pointing to a grid array (no text or symbols present)

КОМАНДЕ

Modeli KHB62650ZA, KHB92650XA:

A - Upali svetlo.
B - Sklopka Uključi/lsključi, prva brzina motora.
C - Druga brzina motora.
D - Treća brzina motora.

Modeli KHB60460XA, KHB90460XA:

Close-up of a white LED light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

Modeli KHB62650XA, KHB92650XA:

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-E14-37/105

KHB62650XA, KHB92650XA

موديل

Hand holding a small electronic component with a black arrow indicating force or direction (no text or symbols)

Diagram showing a ceiling-mounted panel with a downward arrow pointing to a grid-patterned surface (no text or symbols)

تجنب }); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ; ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ); ; )

Warning sign with exclamation mark and pictograms of male and female human figures crossed out, indicating no personal risk.

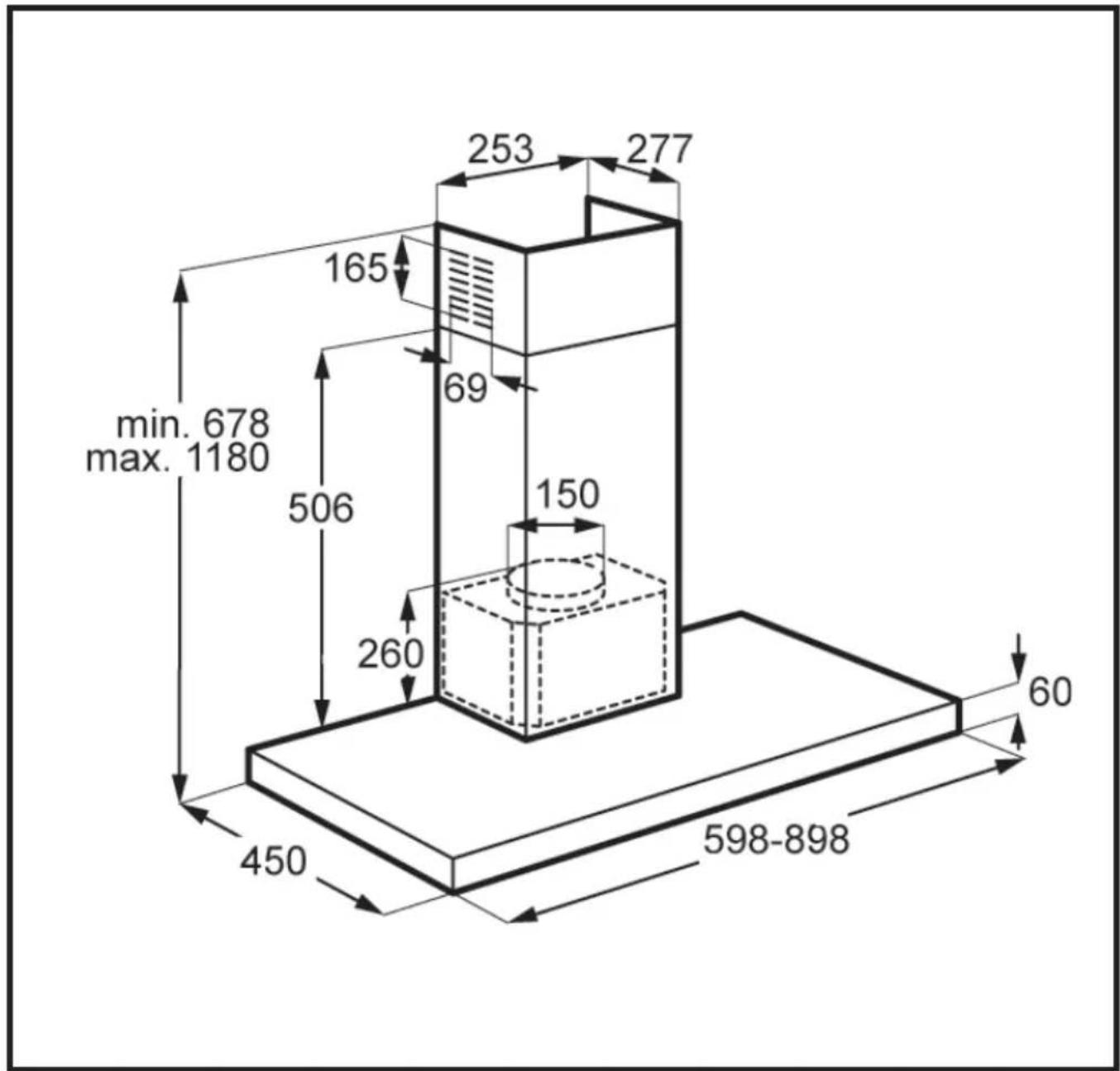

Ø150mm Ø150mm

Ø125mm Ø150mm Ø125mm

Min. 500 mm Min. 650 mm

Warning sign with exclamation mark and a stylized glove illustration

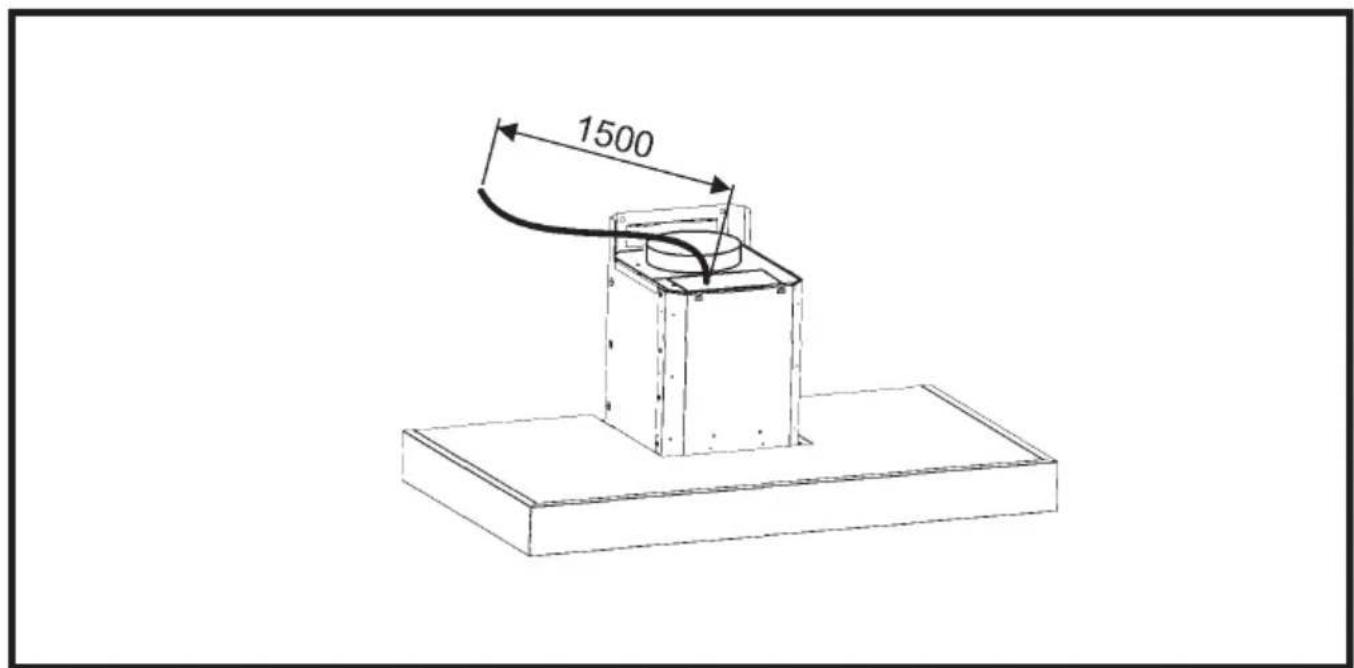

1500

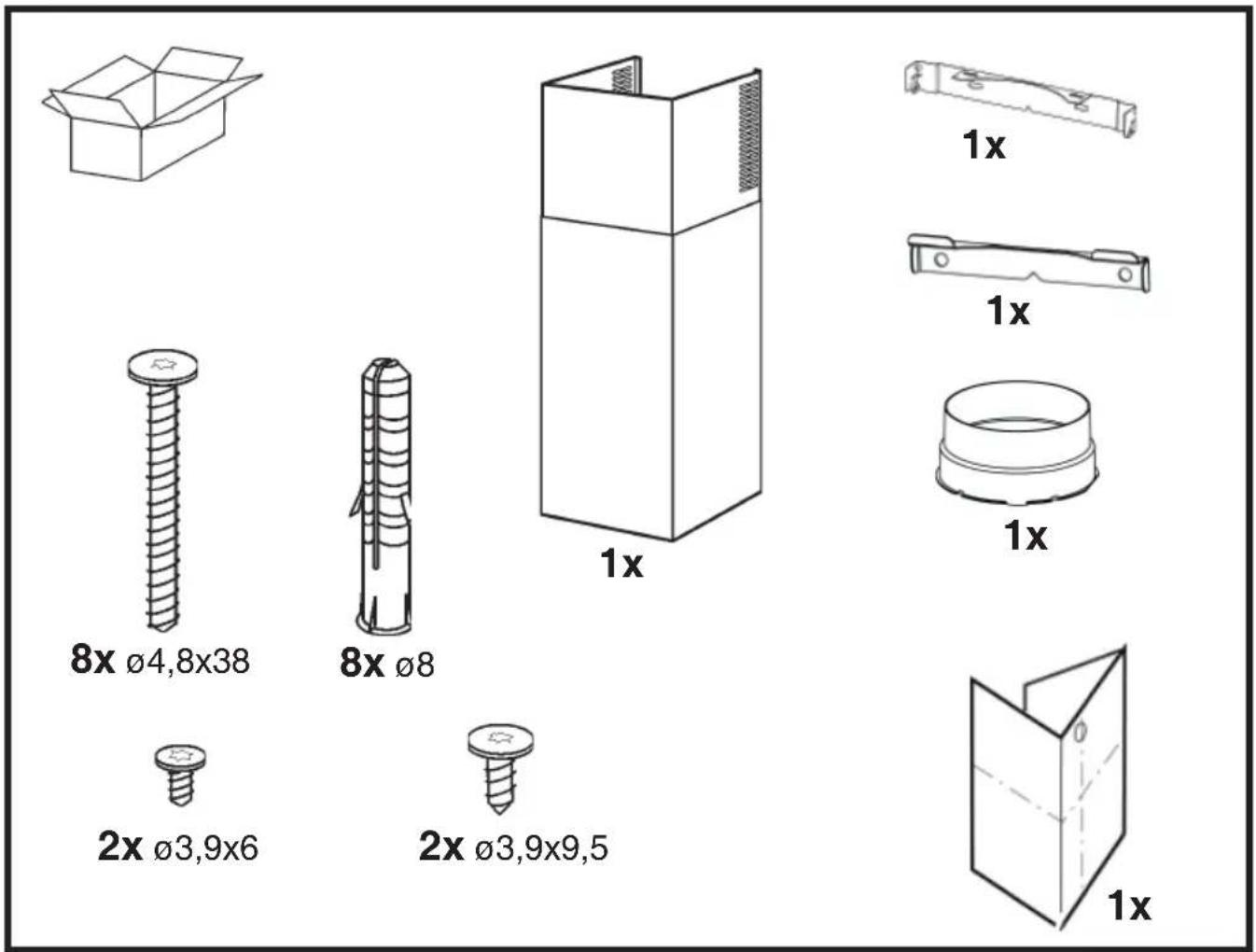

8x Ø4,8x38 8x Ø8 2x Ø3,9x6 2x Ø3,9x9,5 1x 1x 1x 1x

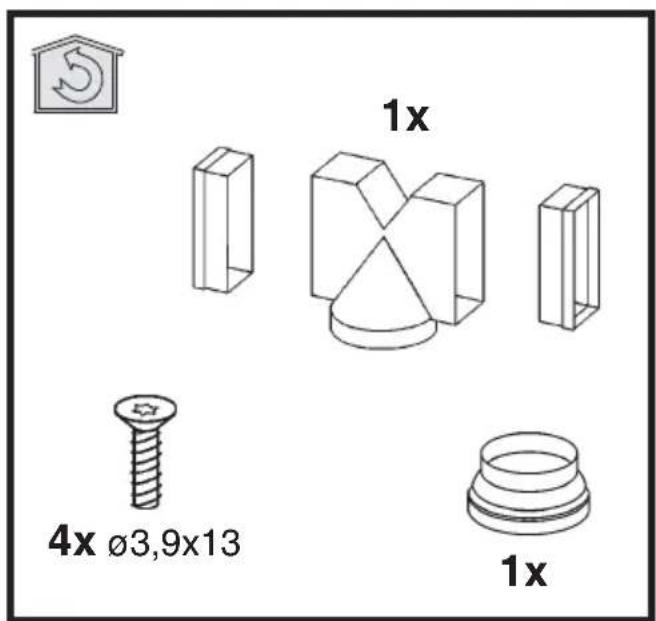

1x 4x Ø3,9x13 1x

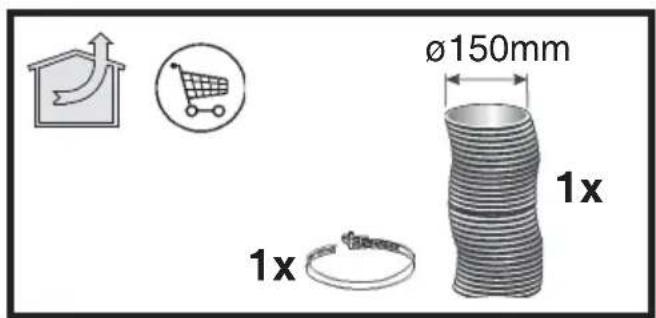

ø150mm 1x 1x 1x

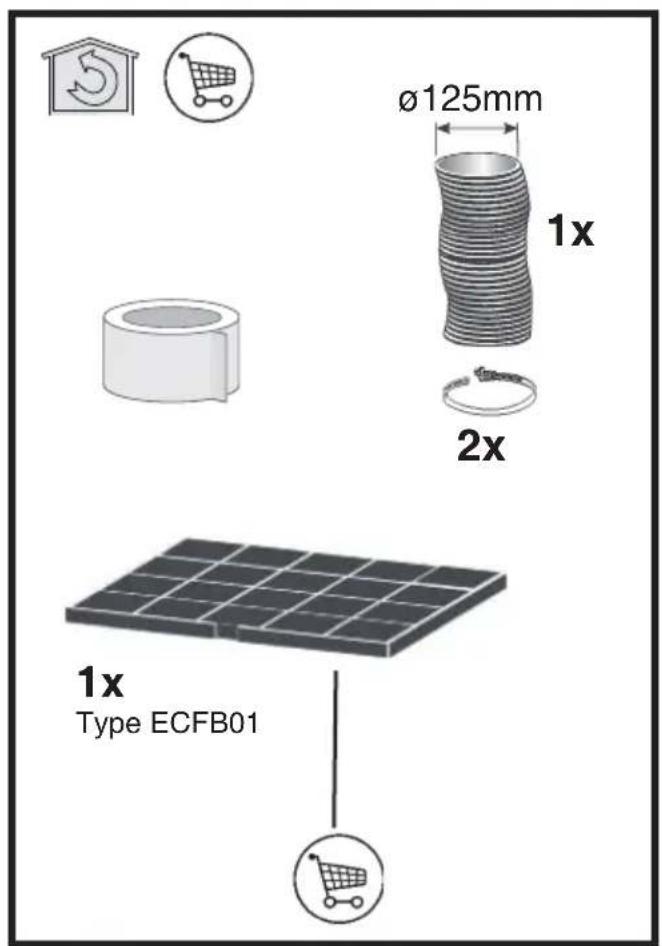

ø125mm 1x 2x 1x Type ECFB01

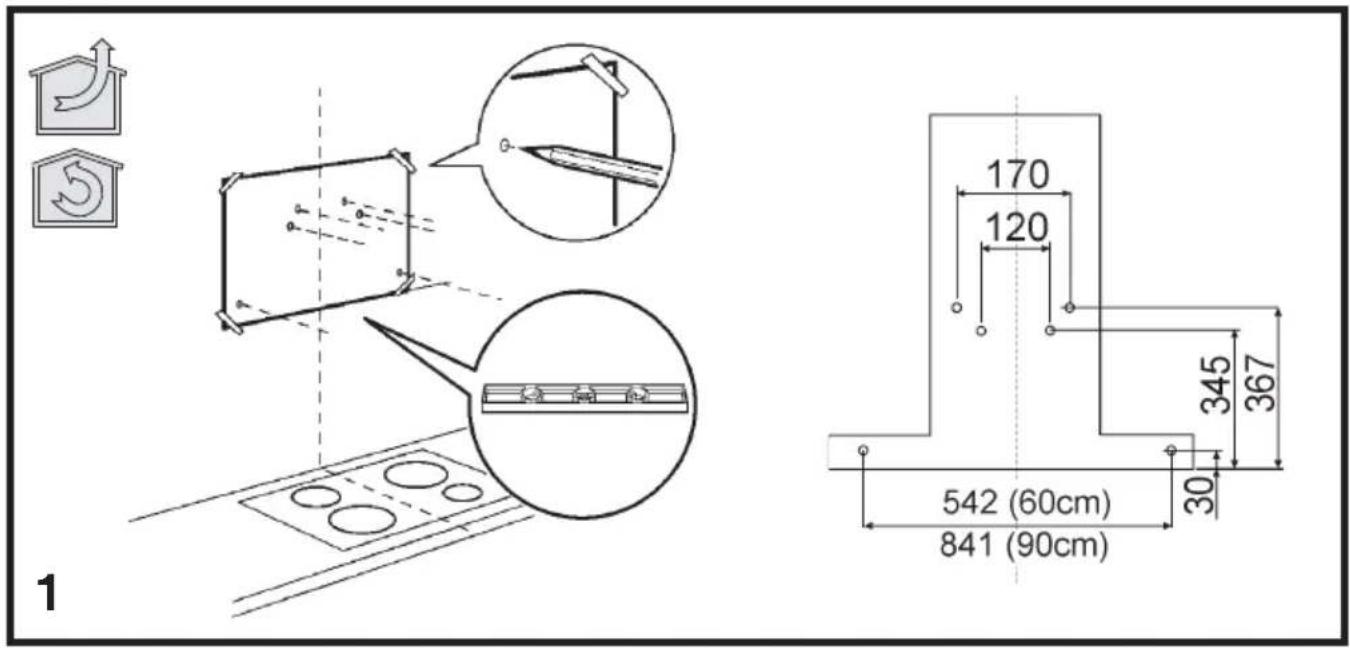

1 170 120 345 367 542 (60cm) 841 (90cm)

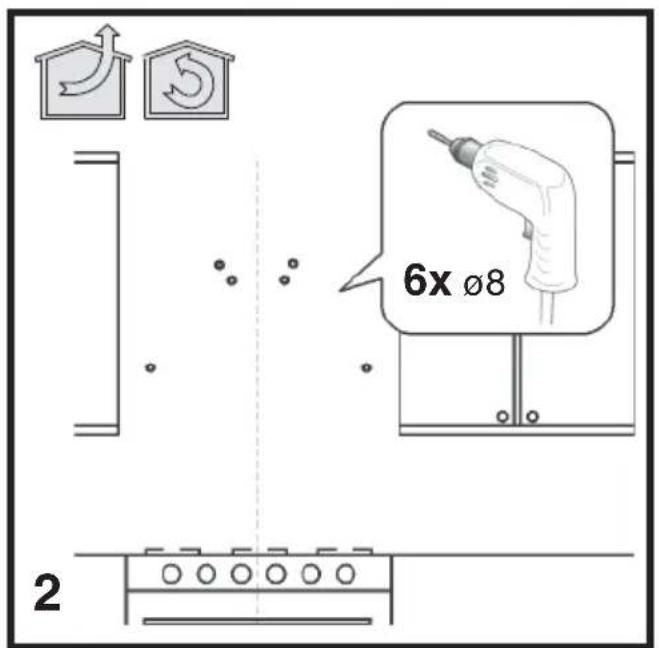

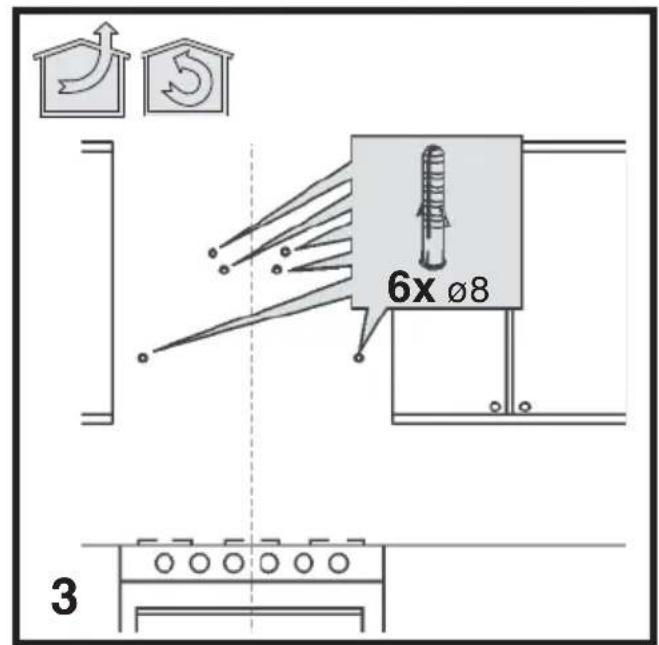

6x Ø8 2

6x Ø8 3

2x Ø4,8x38 4

5

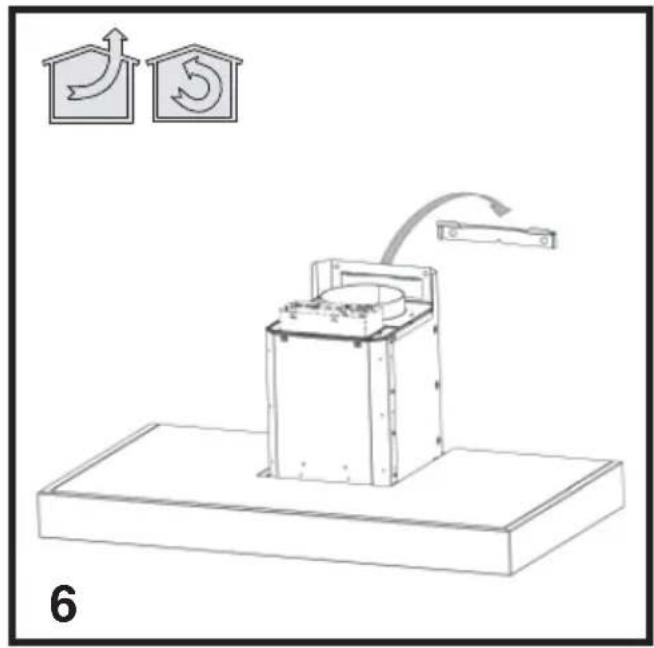

Diagram of a mechanical device with two circular components and directional arrows, labeled '6' (no text or symbols on the diagram itself)

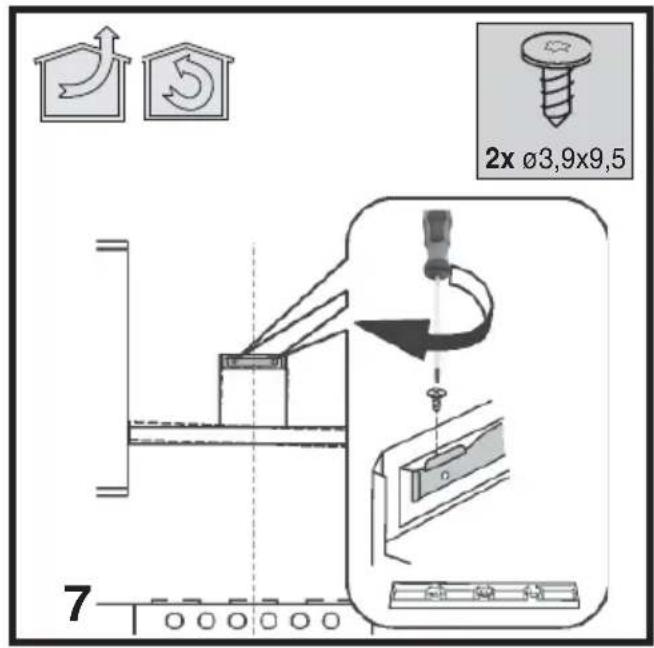

2x ø3,9x9,5 7

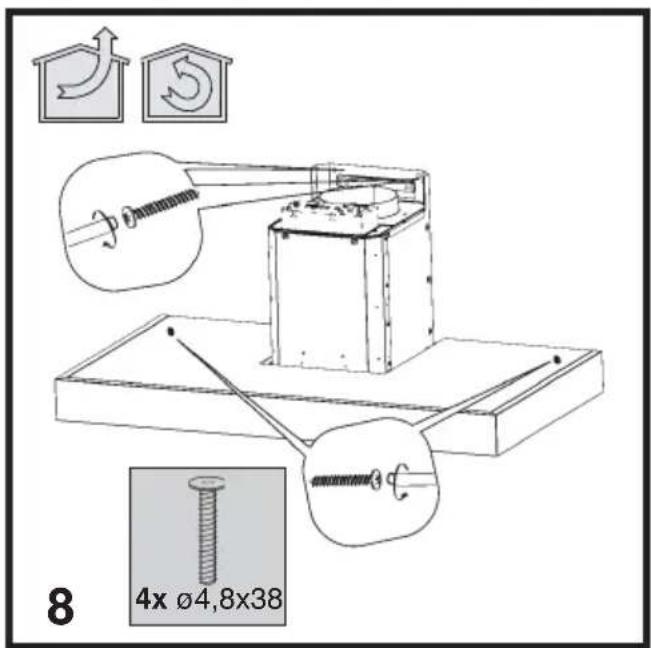

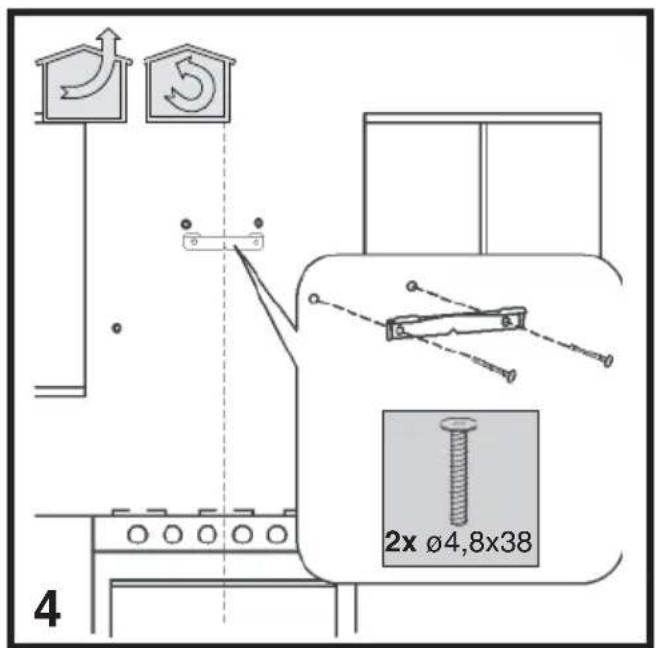

8 4x Ø4,8x38

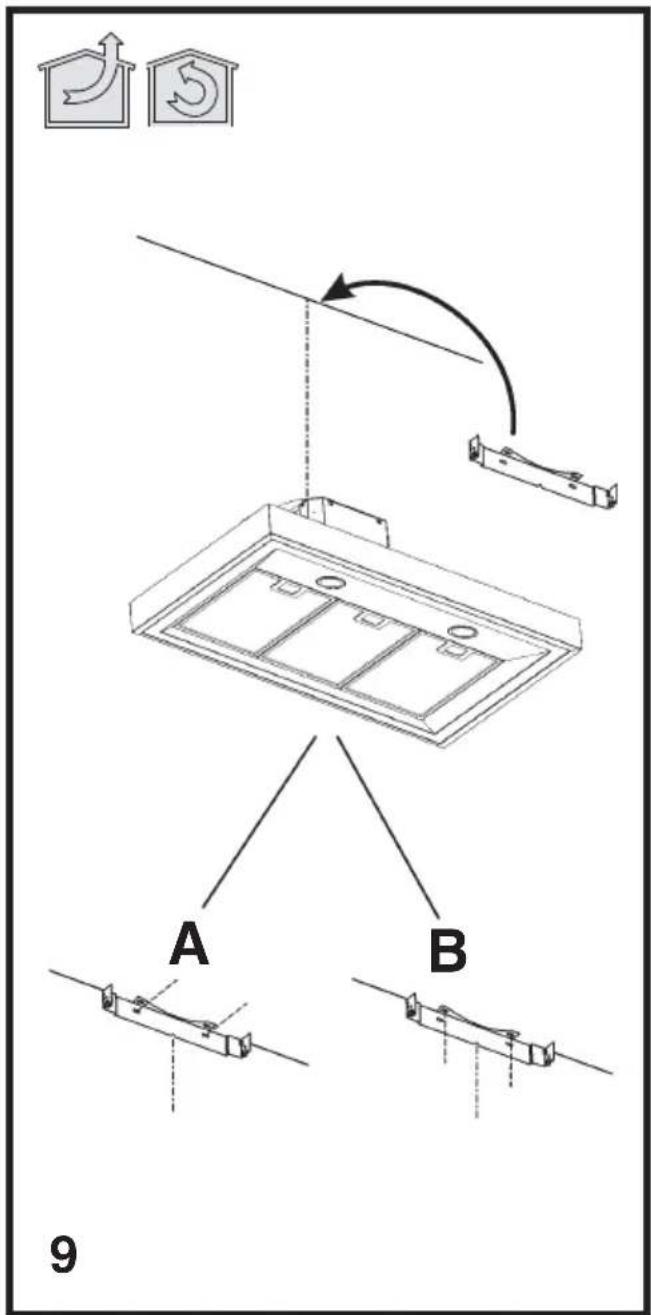

A B 9

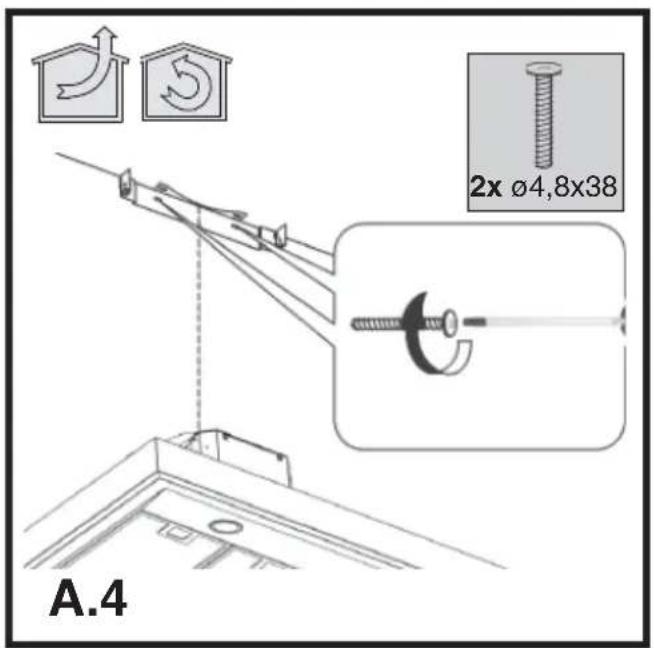

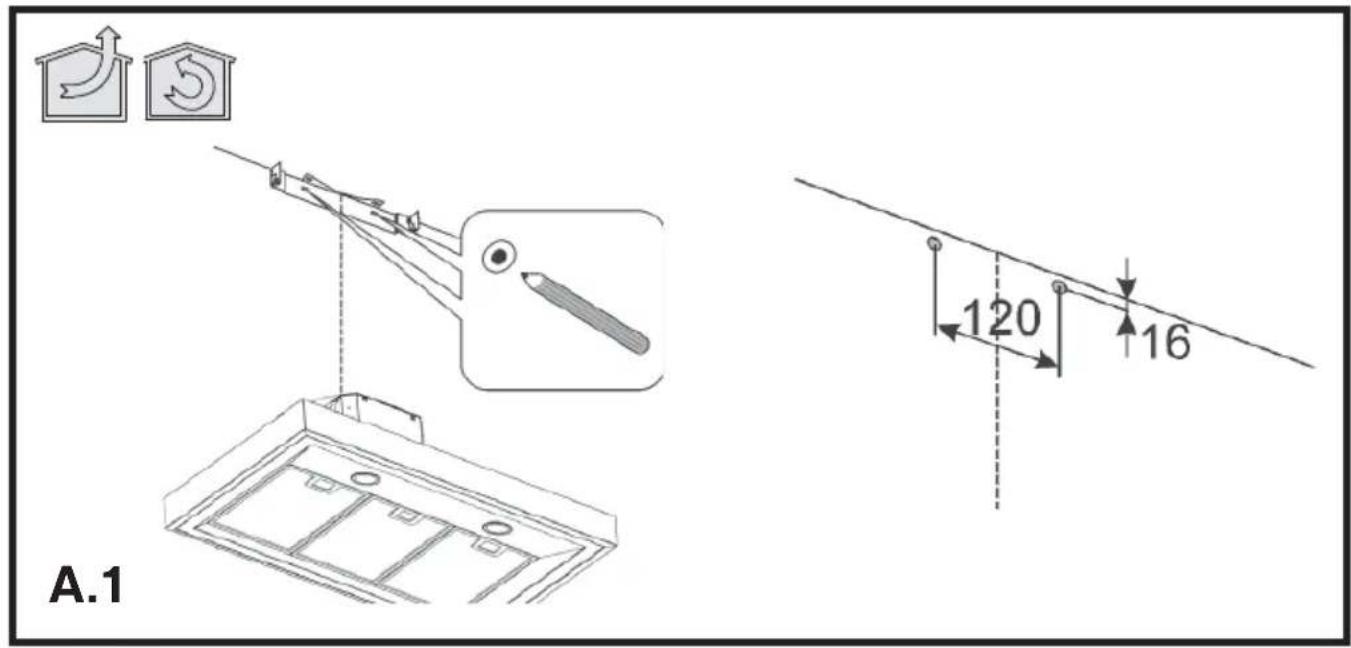

A.1 120 16

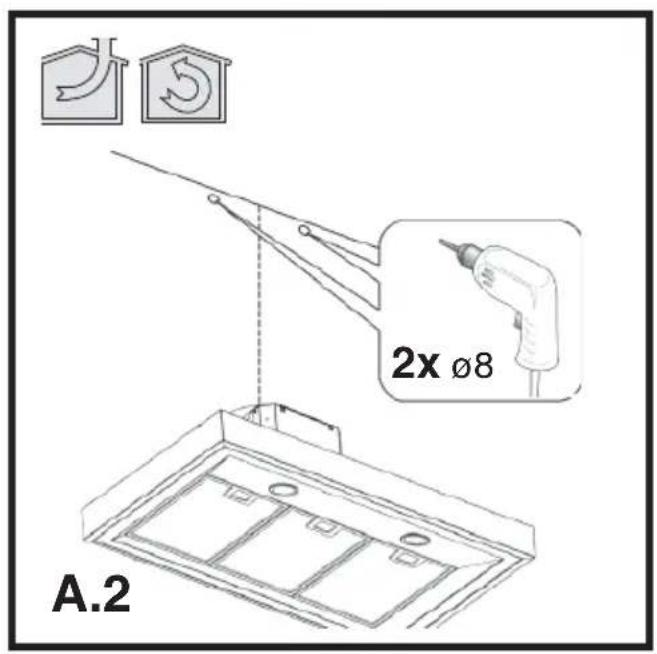

2x Ø8 A.2

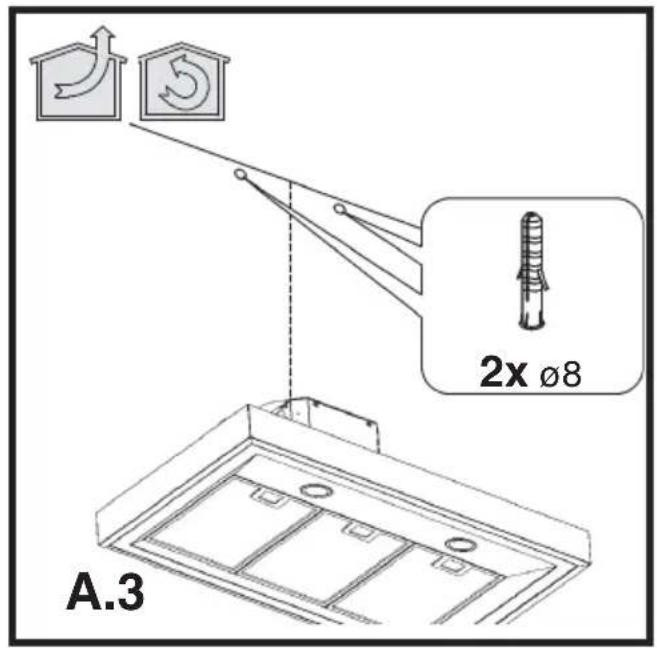

A.3 2x Ø8

2x Ø4,8x38 A.4

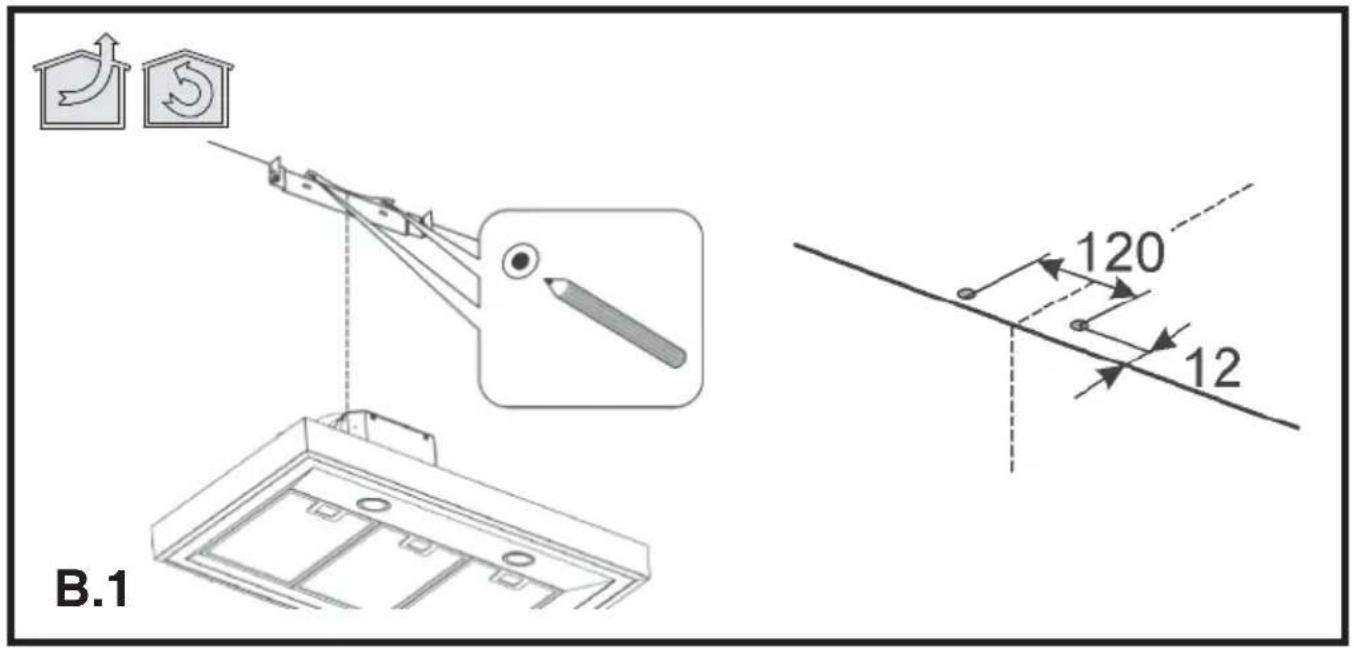

B.1 120 12

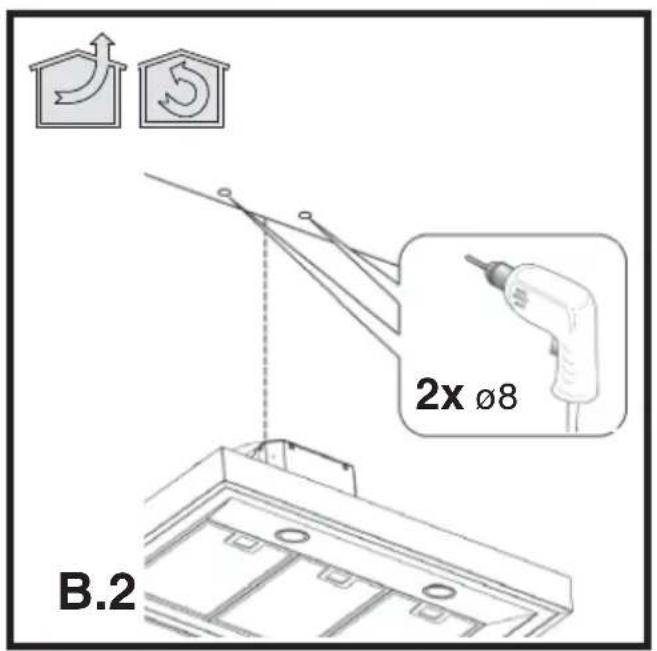

2x Ø8 B.2

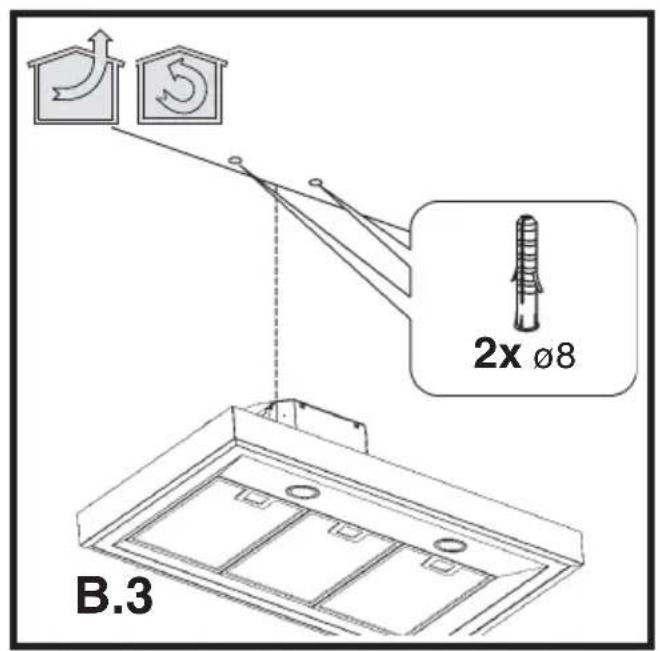

2x Ø8 B.3

2x Ø4,8x38 B.4

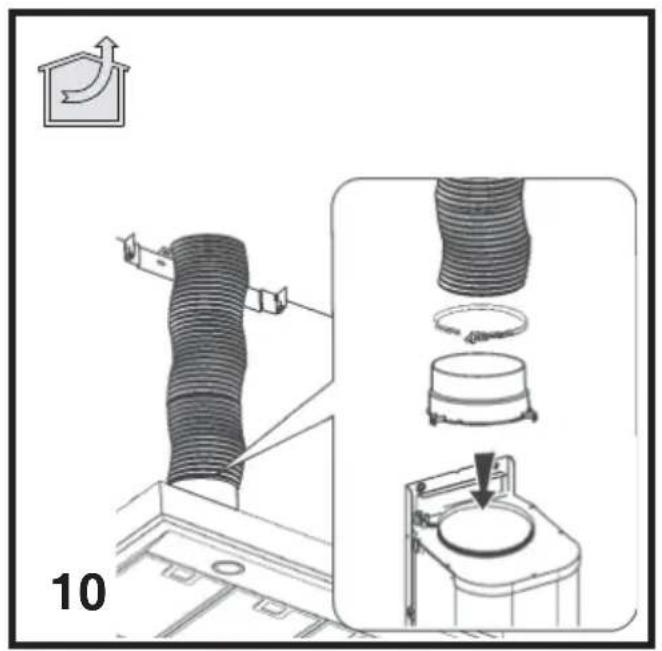

10

Diagram illustrating a mechanical device with labeled components and a magnified view showing the assembly process.

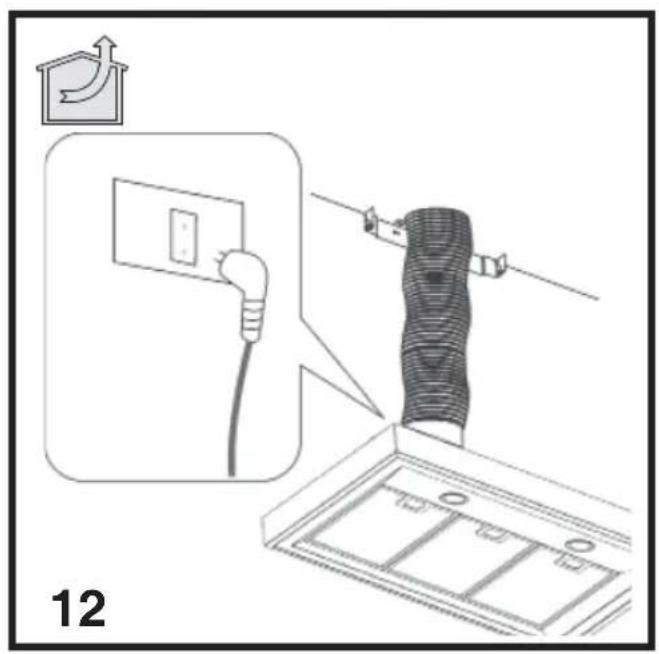

12

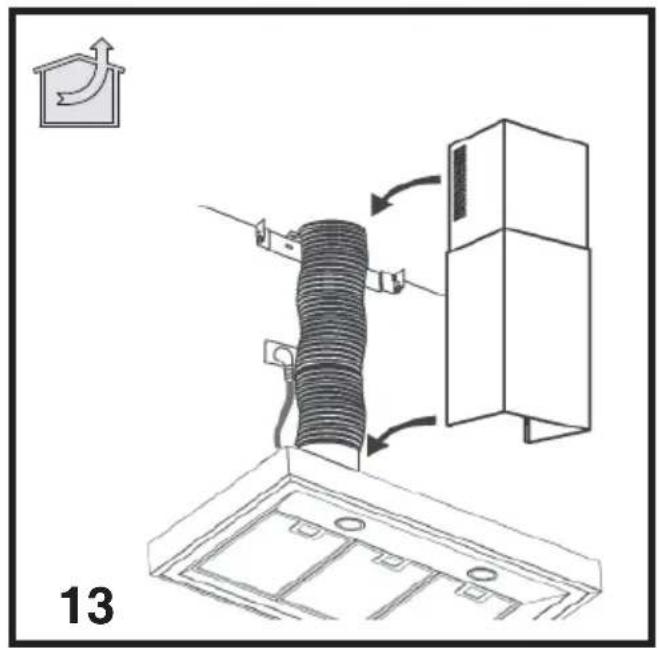

13

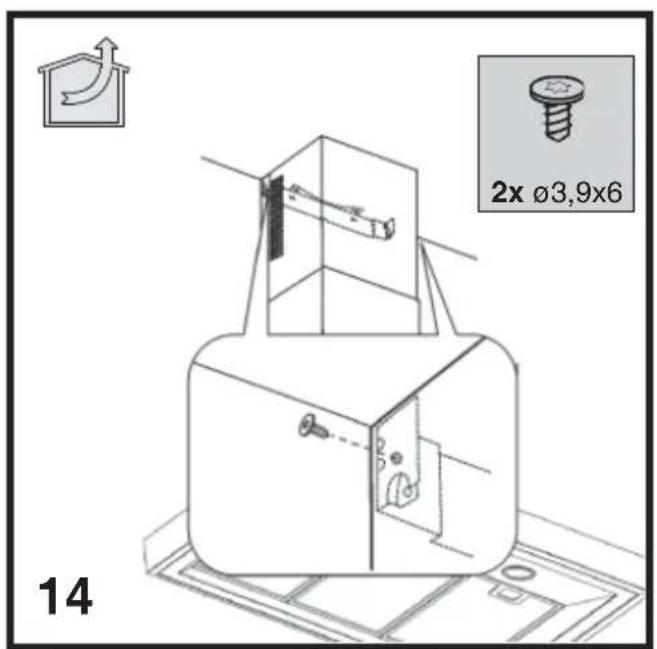

2x ø3,9x6 14

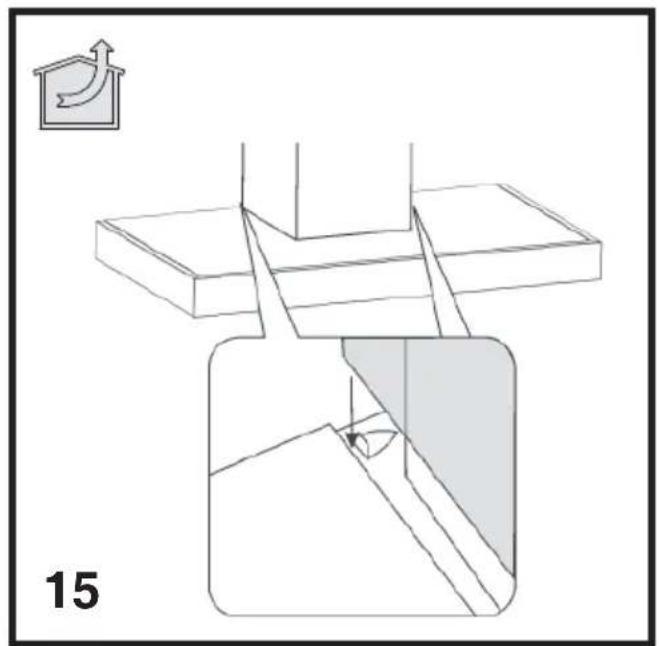

Diagram showing a mechanical assembly with a bracket and a folded section, labeled '15' (no text or symbols on the diagram itself)

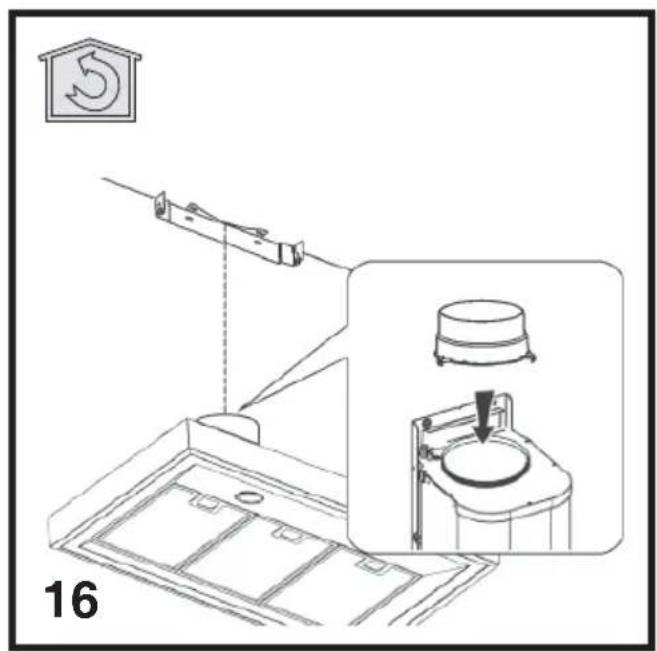

Technical line drawing of a mechanical assembly with an inset showing a component being inserted (no text or symbols present)


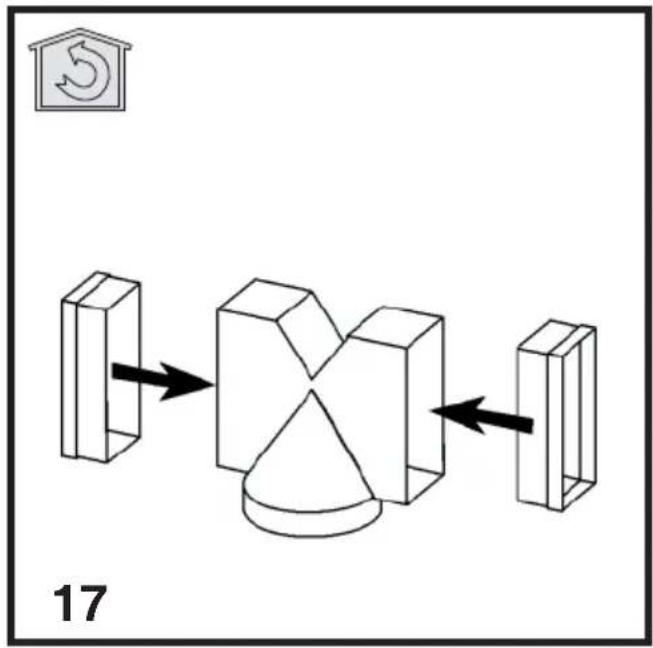

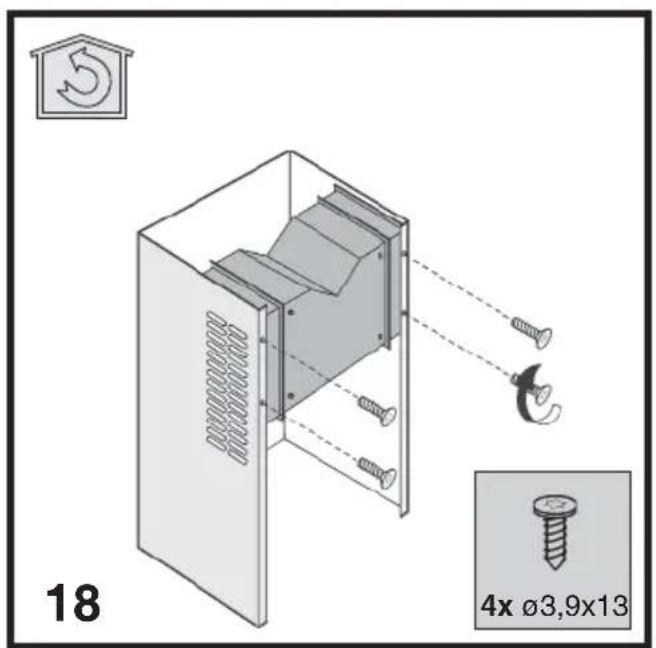

18 4x Ø3,9x13

Diagram of a mechanical device with a cylindrical component inserted into a housing, showing internal components and airflow direction (no text or symbols)

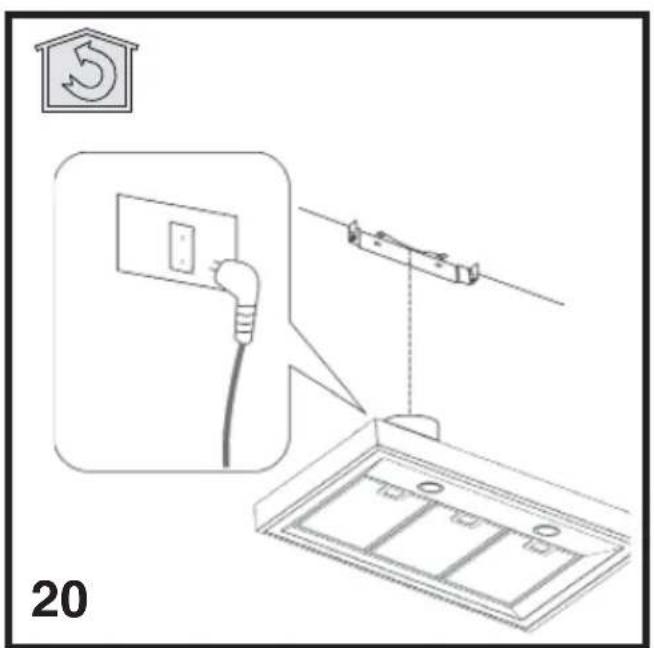

20

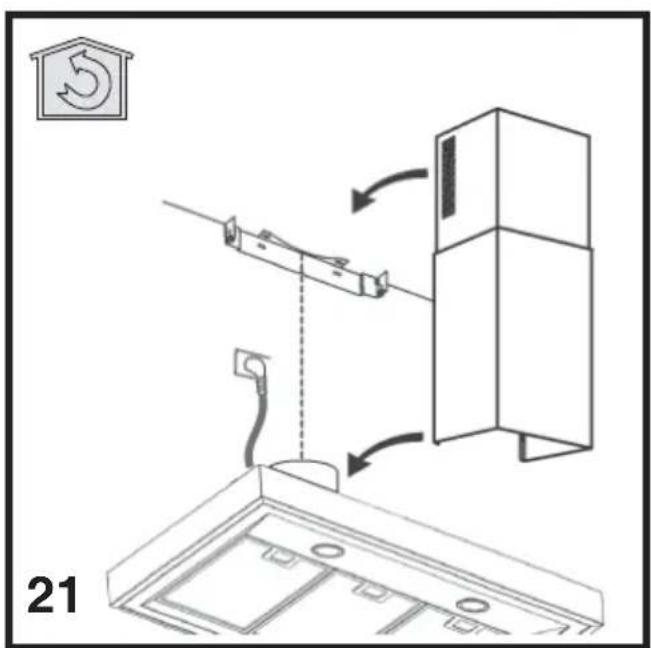

21

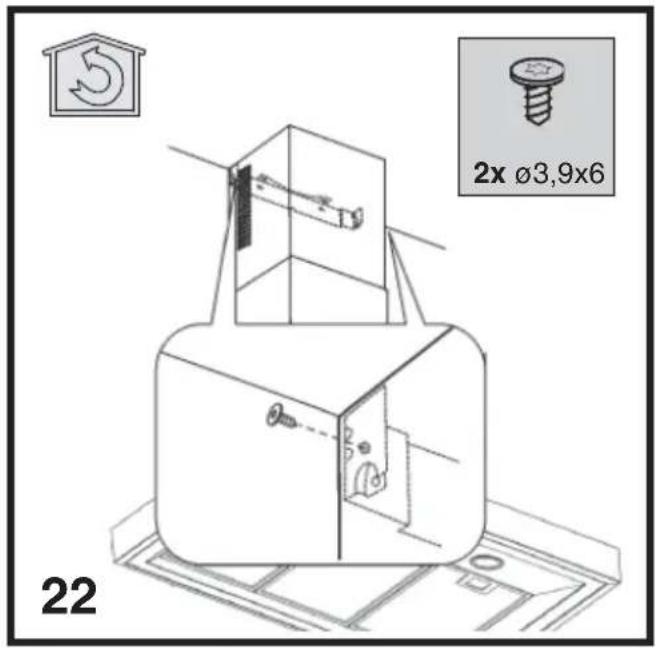

2x ø3,9x6 22

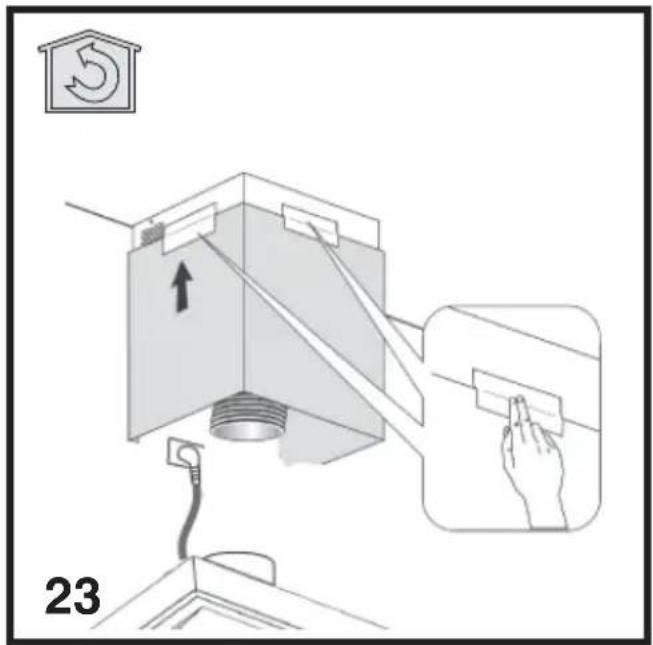

23

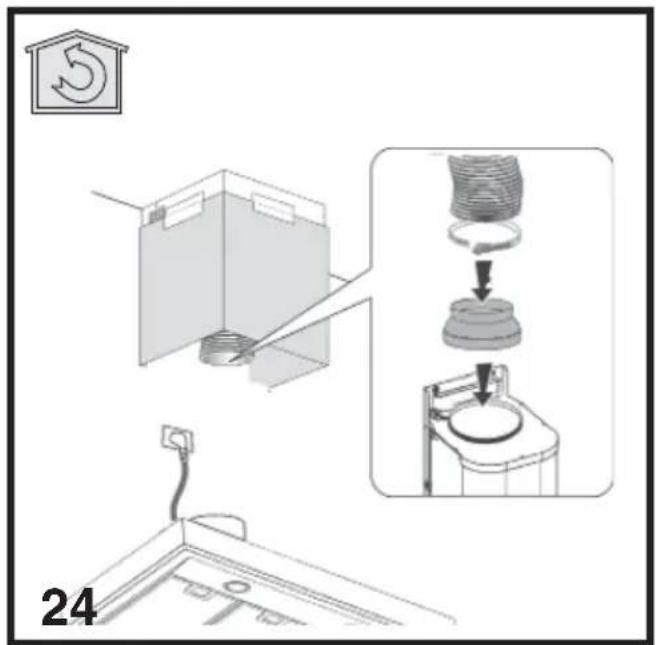

Diagram showing a mechanical assembly with labeled components and a magnified view of the component being inserted into a tank.

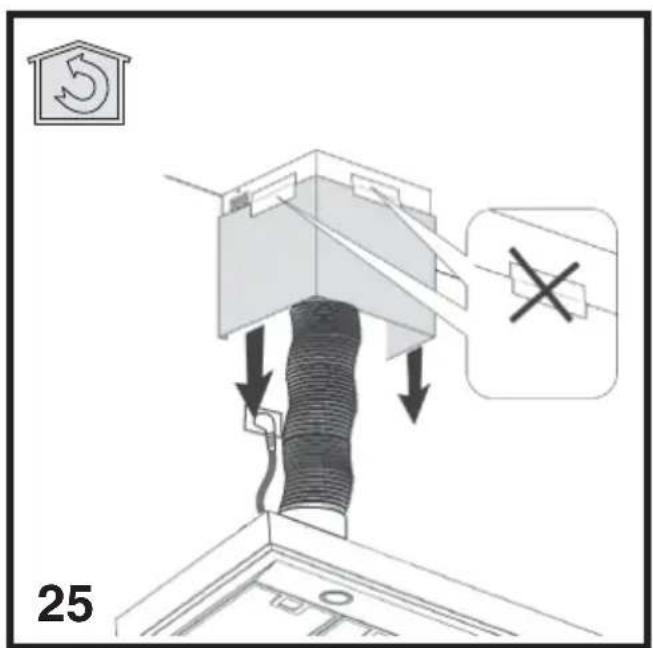

25

Technical line drawing of a mechanical assembly with no visible text or symbols

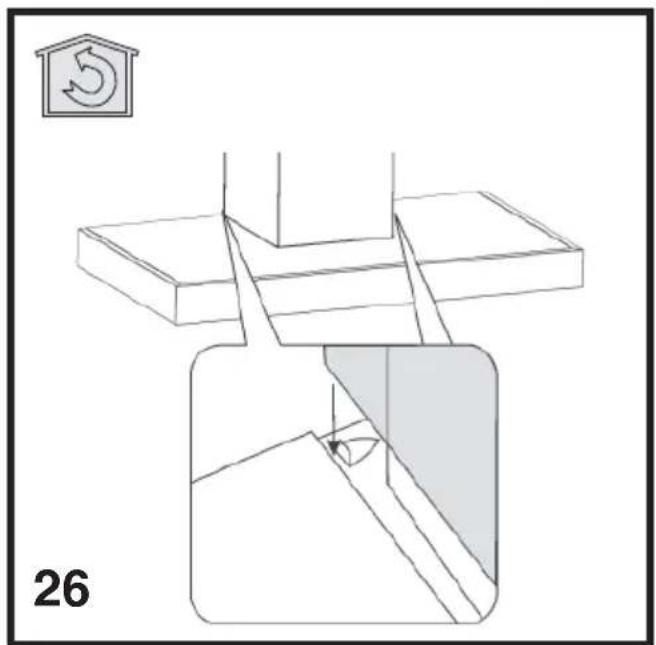

Type ECFB01 27

www.electrolux.com/shop

Four icon buttons showing different consumer goods: washing machine, gear, shopping cart, and shopping bag (no text or symbols)
