MESSA FUORI SERVIZIO DELL'APPARECCHIO

Thank you for purchasing this product.

Before using your refrigerator, please carefully read this instruction manual in order to maximize its performance.

Store all documentation for subsequent use or for other owners.

This product is intended solely for household use or similar applications such as:

- the kitchen area for personnel in shops, offices and other working environments

- on farms, by clientele of hotels, motels and other environments of a residential type

- at bed and breakfasts (B & B)

- for catering services and similar applications not for retail sale.

This appliance must be used only for purposes of storage of food, any other use is considered dangerous and the manufacturer will not be responsible for any omissions.

Also, it is recommended that you take note of the warranty conditions.

SAFETY INFORMATION

• Before performing any operation, unplug the power cord from the power socket.
• The refrigeration system positioned behind and inside the refrigerator contains refrigerant. Therefore, avoid damaging the tubes.
• If in the refrigeration system a leak is noted, do not touch the wall outlet and do not use open flames.

pen the window and let air into the room. Then call a service centre to ask for repair.

- Do not scrape with a knife or sharp object to remove frost or ice that occurs. With these, the refrigerant

circuit can be damaged, the spill from which can cause a fire or damage your eyes.

- Do not install the appliance in humid, oily or dusty places, nor expose it to direct sunlight and to water.

- Do not install the appliance near heaters or inflammable materials.

- Do not use extension cords or adapters.

- Do not excessively pull or fold the power cord or touch the plug with wet hands.

- Do not damage the plug and/or the power cord; this could cause electrical shocks or fires.

- It is recommended to keep the plug clean, any excessive dust residues on the plug can be the cause fire.

- Do not use mechanical devices or other e'quipment to hasten the defrosting process.

- (bsolutely avoid the use of open flame or electrical e'upment, such as heaters, steam cleaners, candles, oil lamps and the like in order to speed up the defrosting phase.

- Do not use or store inflammable sprays, such as spray paint, near the refrigerator. It could cause an explosion or fire.

- Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer.

- Do not place or store inflammable and highly volatile materials such as ether, petrol, )P+, propane gas, aerosol spray cans, adhesives, pure alcohol, etc.

These materials may cause an explosion.

• Do not store medicine or research materials in the refrigerator. When the material that re'uires a strict
  control of storage temperatures is to be stored, it is possible that it will deteriorate or an uncontrolled reaction may occur that can cause risks.
• Oaintain the ventilation openings in the appliance enclosure or in the built-in structure, free of obstruction.
• Do not place objects and/or containers filled with water on the top of the appliance.
• Do not perform repairs on this refrigerator. (II interventions must be performed solely by qualified personnel.

This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or with a lack of experience and knowledge; provided that they have been given adequate supervision or instruction concerning how to use the appliance in a safe way and understand the ha1ards involved.

Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision.

Turning the knob fully counterclockwise, you will hear a click which corresponds to the switch-off of the product.

When the appliance is installed, the electrical cord and the current socket must be easily reached.

The socket is compatible with the plug of the appliance. If not, request replacement of the plug by an authorized technician; do not use extension cords and/or multiple connectors.

Do not touch the internal parts or fro1en food with moist or wet hands as it can cause burns.

(bsolutely avoid the use of open flames or electrical appliances, such as heaters, steam cleaners, candles, oil lamps and the like to accelerate the defrosting phase.

Do not scrape with a knife or sharp ob"ect to remove frost or ice present. These can damage the refrigerant circuit, the leakage of which can cause a fire or damage your eyes.

This appliance contains a UV emitter. Do not stare directly at the light source.

Scrapping old appliance

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose

properly all pollutants, and recover and recycle all materials.

Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

- WEEE should not be treated as household waste;

- WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

Conformity

By placing the mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

INSTALLATION

WARNINGS:

• Do not install the appliance in a damp or wet location as this could compromise the insulation and result in leakage. Furthermore, condensation could accumulate on the exterior of the appliance.
• Do not place the appliance in locations outside or near sources of heat or exposed to direct sunlight. The appliance operates properly within the range of environmental temperatures indicated:

+10 +32'C for the climatic class SN

+16 +32'C for the climatic class N

+16 +38'C for the climatic class ST

+16 +43'C for the climatic class T

(See the nameplate of the product)

• Do not place containers with liquids on top of the appliance.
• Wait at least 3 hours after final placement before placing the appliance in operation.

1 Make sure that the space around the refrigerator is adequate for ventilation. The illustration (fig. 1) shows the minimum space required for the installation of the refrigerator.

Maintaining a wider space from the wall, results in reduced electrical energy consumption.

The use of the refrigerator in a space the size less than those indicated in the illustration below (fig. 1) could result in improper operation, loud noises and breakdowns.

5 cm. 5 cm. 5 cm. Fig.1

2 If present, install the wall spacer in a central position at the rear of the appliance.(Fig.2)

Diagram of a mechanical device with pulleys and a rotating shaft, showing rotational motion (no text or symbols)

Fig.2

3 Adjust the feet to ensure the stability of the appliance and prevent vibrations and noise (fig. 3). If the front part is higher than the rear, the door can be closed more easily.

Simple line drawing of a refrigerator with a hanging box and arrow pointing to the door (no text or symbols)

Fig.3

NOTE:

If your refrigerator is in stainless steel or other special finish, it might come with a peel-off coating that protects the surface.

Do not use sharp objects to remove this protection as it could damage it.

Electrical connection

After shipping, place the appliance vertical and wait at least 2 - 3 hours before connecting it to the electrical system. Before inserting the plug into the electrical socket, make sure that:

• The socket is earthed and in compliance with the law.
• The socket can withstand the maximum power load of the appliance, as indicated on the nameplate of the refrigerator.
- The power supply voltage is within the amounts indicated on the nameplate of the refrigerator.
• The cord must not be folded or compressed.
• The cord must be checked regularly and replaced solely by authorised technicians.
• The manufacturer declines any liability whenever these safety measures are not respected.

Electrical connection (for U.K. only)

Plug your appliance into the power socket. If the plug we supply does not fit :

■ CUT IT OFF AND DESTROY IT!

You can't use it on other appliances, and

the exposed wires could be dangerous if anyone plugged it in.

■ Fit a suitable plug, as follows:

Connect to the terminal in the plug
Green and yellow wire	Marked with the letter E,OR marked with the Earth symbol, OR coloured green, OR coloured green and yellow.
Blue wire	Marked N, OR coloured black.
Brown wire	Marked L, OR coloured red.

Appliance start-up

Remove all wrapping/packaging present inside the appliance and clean with water and baking soda or neutral soap.

After the installation, wait 2 - 3 hours to allow time for the refrigerator/freezer to stabilize at normal working temperature, before placing fresh or frozen foods inside.

If the power cord becomes disconnected, wait at least five minutes before restarting the refrigerator/freezer. At this point, the appliance is ready for use.

OPERATION

Turning On/Off (no display)

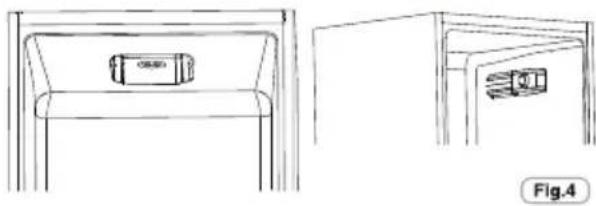

• The thermostat unit for control of the appliance is located inside of the refrigerator compartment (Fig.4).

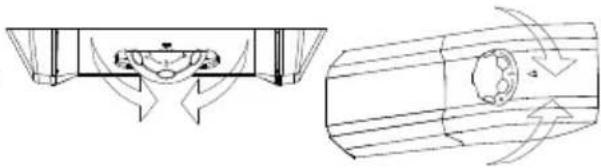

Rotate the thermostat knob of the thermostat beyond the "0" position. The light is on when the refrigerator door is open. Turning the knob to "0" completely turns off the product.

Turning the knob to "0" completely turns off the product

Line drawing of a cabinet with a bag on top, shown from front and side views (no text or symbols)

Temperature adjustment (no display)

Technical line drawing showing a mechanical component with rotational arrows and a cross-sectional view of a cylindrical component (no text or symbols)

Fig.5

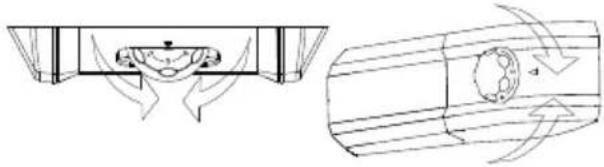

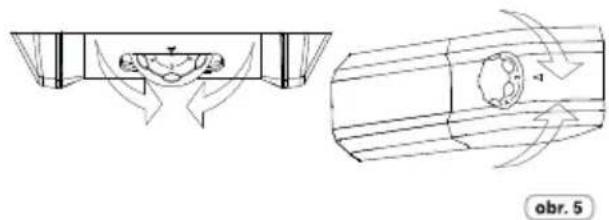

•The temperature adjustment of both compartments is effected by rotating the thermostat knob (fig. 5).
Select the desired position:
- For colder temperature in the refrigerator and in the freezer, by turning towards MAX—:
- For temperature less cold in the refrigerator and in the freezer, by rotating in the direction of 0.

Refrigerator Compartment Fan (if present)

The fan is preset to OFF.

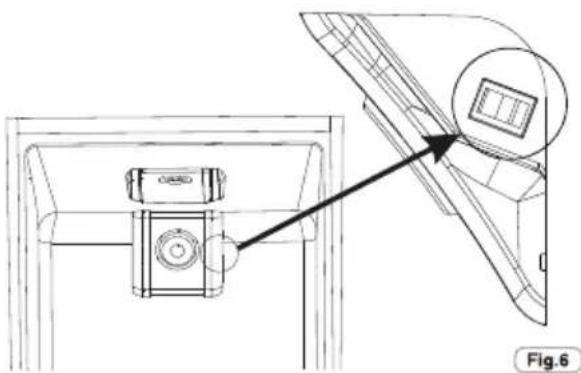

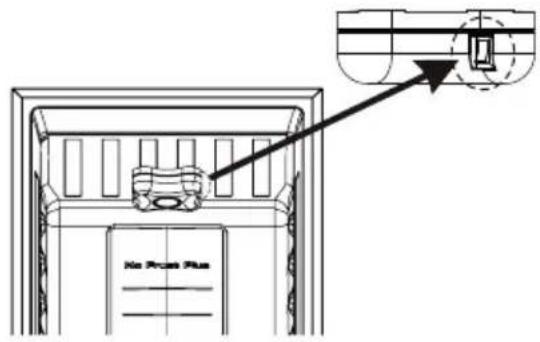

To activate, press the switch (fig. 6)

To optimize energy consumption, it is recommended that you turn the fan on only when the ambient air temperature exceeds 28/30 °C.

Technical line drawing of a device component with an arrow pointing to a magnified view (no text or symbols present)

LED UVA Lights (if present)

LED UVA Lights activate a Titanium filter producing a «photocalysis» reaction which will destroy bacteria within the refrigerator air.

This reaction works fwhen fthe refrigerator fdoor fis f fclosed to favoid purified air leakage.

In ventilated products(Static fand Frost fFree) it is integrated in the sky fan and it works every time the compressor works.

In Total No Frost products, it is inserted in sky box and it works every time the compressor works

Filter is permanent and therefore does not need changing.

The antibacterial system has to be turned off during the energy consumption test.

No. Presse Pass

Turning ON / Off (with display)

PRODUCT IN STANDBY: For shutting off the TOTAL NO FROST products, select the freezer function by the MODE button and utilise the arrows 7-8 to visualize the symbol -. For all other products, select the refrigerator function by the MODE button and use the arrows 7-8 to visualize the symbol -.

NOTICE:

The product remains powered up until the removal of the power cord.

① ② ③ ⑤ ⑦ ⑨ ⑩ ⑫ ⑫ ② ③ ⑤ ⑦ ⑧ ⑨ ⑩ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫ ⑫

Temperature adjustment (with display)

The preset values are: +5 (range +1 ++7) for the refrigerator, and -18 (range -16 ÷ -22) for the freezer.

After switching off or an extended off period, the product restarts with the previously set temperature.

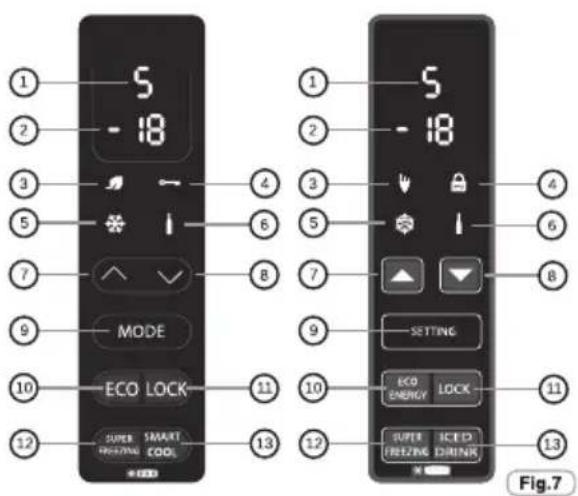

• FUNCTION MODE ⑨

Pressing the Mode button, it is possible to adjust the temperatures of the refrigerator and freezer.

Refrigerator

Pressing the Mode button once, you adjust the refrigerator temperature. It is possible to set the desired position using the arrows 7, 8.

Position 1: the coldest setting; position 7 least cold setting.

If the appliance is a Total No Frost type, after the reading 1, H (Holiday) will be displayed.

Freezer

Pressing the Mode button 2 times, the desired position for the freezer can be adjusted; -16, less cold, -22, colder; select the desired reading and wait 3 seconds and the temperature will be set.

For all products, with the exception of Total No Frost, the temperature between the refrigerator and freezer is set simultaneously, if you increase/decrease the refrigerator temperature by 2 or more degrees, then the freezer temperature will automatically increase/decrease by the same value. If the temperature change is less than 2 degrees, then the automatic temperature adjustment will not occur.

• FUNCTION ECO

By activating this function, the appliance optimizes energy efficiency by automatically setting the ideal temperature for ensuring food preservation with lowest energy consumption.

To turn off the Eco function, press the button again.

Pressing the Lock button, lock of the buttons is activated (any other command will be ignored). To deactivate, press the Lock button again.

• SUPER FREEZING FUNCTION

To freeze a large amount of food, activating the Super Freezing function is recommended. To activate the function, press the Super Freezing button. This function will be activated for 26 to 34 hours (depending on model). The function automatically deactivates or by again pressing the Super Freezing button.

• SMART COOL/ICED DRINK FUNCTION ⑬ / ⑤

To rapidly cool drinks, put the bottle in the freezer compartment and activate the function by pressing smart cool/iced drink button.

A countdown of 30 minutes starts, after which a 15" acoustic signal indicates that the bottle has reached ideal cooling. The function can be turned off by again pressing the button.

• HOLIDAY FUNCTION (only on TOTAL NO FROST PRODUCTS)

In the case of prolonged absences, it is possible to use the Holiday function.

This function allows you to turn off the refrigerator compartment, but the freezer compartment will remain on. Be sure to remove food from the refrigerator compartment before using this function. To activate see the refrigerator function Mode. To deactivate this function, reset the temperature of the refrigerator.

• REFRIGERATOR DOOR ALARM

If the door remains open for more than a minute, the appliance emits an acoustic signal. Press the MODE button if you want to muffle it.

CONSERVATION

• To maintain the best flavour, nourishment and freshness of foods, it is advisable to store them in the refrigerator compartment as shown in fig. 8 below, making sure to wrap them in aluminium or plastic sheets or in appropriate covered containers to avoid cross-contamination.

Refrigerator zone

Fruit / Vegetables

• To decrease fruit and vegetable moisture losses they must be wrapped in plastic materials such as, for example, films or bags and then inserted in the fruit/vegetable zone. In this way rapid deterioration is avoided.

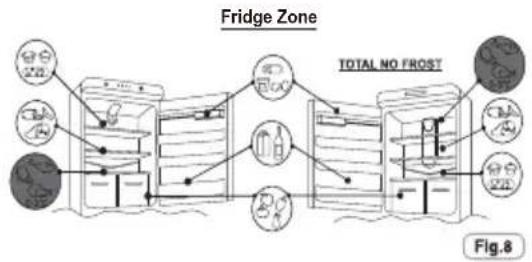

Fridge Zone TOTAL NO FROST Fig.8

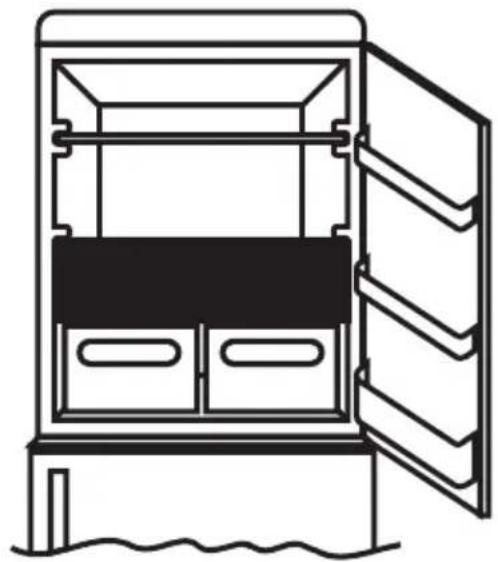

Refrigerated section – Chill

(not all models)

The zone shown below is recommended for meat, fish, poultry, etc.; do not store fruit and vegetables because they can freeze;

Line drawing of a refrigerator with open door and water outlet (no text or symbols)

Indicator of the temperature in the coldest zone (not all models)

Some models are equipped with an indicator of the temperature in the refrigerator compartment in the coldest zone, for you to be able to control the average temperature.

This symbol indicates the coldest zone of the refrigerator. (fig. 9)

Pure technical diagram of a mechanical component without any text, numbers, or symbols

Fig.9

Check that on the indicator of the temperature, the word OK is clearly shown. (fig. 10)

If the word does not appear, this means that the temperature is too high:

adjust the temperature to a cooler setting and wait for about 10 hours. Recheck the indicator: if necessary, proceed with a new adjustment.

OK

OK

Fig.10

NOTE: If large quantities of food are inserted or the refrigerator door frequently opened, it is normal for the indicator fails to show OK. Wait at least 10 h before adjusting the knob to a higher setting.

Freezer zone

The storage of frozen food is for about a month in the compartments.

Use the table below for the compartments.

Freezing process can only occur in the compartments.

Practical recommendations

Place food on the shelves in a homogeneous manner to allow air to circulate properly and to cool it.

- Avoid contact between the food and the far end walls of the refrigerator compartment.

- Do not introduce hot foods as they can cause deterioration of existing ones and increase energy consumption.

- Remove the wrappings of foods before inserting them.

- Do not put in dishes or other containers unless previously washed.

•Do not obstruct the cold air ventilator openings with food.

- Do not cover the glass shelf of the vegetable bin to allow for proper air circulation.

- Do not store bottles in the freezer compartment as they can burst when frozen.

- in the case of prolonged power outage, keep the doors closed so that foods remain cold as long as possible.

• The installation of the appliance in a hot and humid location, with frequent door openings and storing large amounts of vegetables can cause the formation of condensation and affect the performance of the unit itself.

• To prevent excessive energy consumption, the frequent or prolonged opening of the doors is not recommended.

FREEZING

• Foods must be fresh.
- Freeze small amounts of food at a time in order to freeze quickly. Never exceed the maximum amount indicated on the nameplate.
• During freezing, do not open the freezer door.
• Food must be sealed, airtight.
- Separate food to be frozen by those already frozen.
- Label bags or containers to keep an inventory of frozen foods.
- Once defrosted, consume food promptly. Do not ever refreeze foods.

NOTE: •PRODUCTS WITHOUT DISPLAY

Normally it is not necessary to intervene with the thermostat knob. If you find excessive cooling of the products contained in the refrigerator compartment, gently turn the thermostat knob toward 0. (fig. 11)

On completion of freezing, return the knob to the usual position.

Pure mechanical diagram showing a cylindrical component with internal features and directional arrows (no text or symbols)

Fig.11

Products with display

See Turn ON / OFF Display

For products with a NO FROST freezer compartment, activate the SUPER FREEZING function 8 hours before introducing the foods.

For the other products, activate the SUPER FREEZING function at the time of introduction of the foods.

DEFROSTING

Defrosting the refrigerator compartment

During normal functioning, the refrigerator is automatically defrosted. There is no need to dry the drops of water present on the rear wall or to eliminate the frost (depending on functioning).

The water is conveyed to the rear part through the drain hole found there and the heat of the compressor causes it to evaporate.

- Keep the drainage pipe (fig.12) clean in the refrigerator compartment to keep it free of water.

Simple line drawing of three stacked shelves with a triangular frame (no text or symbols)

Fig.12

Defrosting the freezer compartment

(static products without NO-FROST technology)

When the layer of frost present in the freezer compartment exceeds 3mm, it is recommended to proceed with the defrosting as it increases energy consumption.

1) Rotate the knob to the "0" position (fig.13)

Fig.13

2) Disconnect the power cord.
3) Remove the frozen food and temporarily place them in a cool place.
4) Leave the freezer door open to speed defrosting.
5) Collect the water on the bottom of the product.
6) Dry the freezer.
7) Reconnect the power cord and set the thermostat knob to the desired position.
8) Wait a moment and reintroduce the frozen foods.

WARNING:

Absolutely avoid the use of open flames or electrical appliances, such as heaters, steam cleaners, candles, oil lamps and the like to accelerate the defrosting phase.

Do not scrape with a knife or sharp object to remove frost or ice present.

These can damage the refrigerant circuit, the leakage of which can cause a fire or damage your eyes.

Defrosting the freezer compartment

(NO-FROST products)

Defrosting is automatic.

MAINTENANCE AND CLEANING

Lighting (according to model)

Bulb Replacement

To replace the lamp bulb, place the thermostat knob on 0 and disconnect the power cord. Remove the protective cover (fig. 14), replace the bulb with a power rating analogous with that indicated on the protective cover.(Fig.14)

Technical line drawing of a mechanical component with a tool and circular feature, labeled Fig.14 (no text or symbols on the diagram itself)

WARNING:

• The light bulb supplied with this appliance is a "special use lamp bulb" usable only with the appliance supplied. This "special use lamp" is not usable for domestic lighting.
• Do not touch the light bulb if it has been on for a long period of time because it could be very hot.

LED lighting (Where present)

If the product is equipped with LED lights, please contact the Technical Assistance Service in case of replacement.

Compared to traditional light bulbs, the LEDs last longer and are environmentally friendly.

Cleaning

NOTICE:

• Before each operation, remove the refrigerator plug from the power socket to prevent electric shocks.
- Do not pour water directly on the outside or inside of the refrigerator itself. This could lead to oxidation and damaging of the electrical insulation.

IMPORTANT:

To prevent cracking of the inside surfaces and plastic parts, follow these suggestions:

• Wipe away any food oils adhered to plastic components.
• The internal parts, gaskets and external parts can be cleaned with a cloth with warm water and baking soda or a neutral soap. Do not use solvents, ammonia, bleach or abrasives.
- Remove the accessories, for example, the shelves, from the refrigerator and from the door. Wash in hot soapy water. Rinse and thoroughly dry.
• The back of the appliance tends to accumulate dust which can be eliminated with the use of a vacuum cleaner, after having switched off and disconnected the appliance from the electrical outlet. This provides greater energy efficiency.

ENERGY SAVINGS

For better energy savings, we suggest:

• Installing the appliance away from heat sources and not exposed to direct sunlight and in a well ventilated room.
- Avoid putting hot food into the refrigerator to avoid increasing the internal temperature and therefore causing continuous functioning of the compressor.
- Do not excessively stuff foods so as to ensure proper air circulation.
- Defrost the appliance in case there is ice (see DEFROSTING) to facilitate the transfer of cold.
• In case of absence of electrical energy, it is advisable to keep the refrigerator door closed.
- Open or keep the doors of the appliance open as little as possible
- Avoid adjusting the thermostat to temperatures too cold.
- Remove dust present on the rear of the appliance (see CLEANING).
- For static products tests must be done without freezer drawers, for the others the drawers must be left in the freezer.

AVOIDING NOISES

During its operation, the refrigerator emits some normal noises, such as:

• HUMMING, the compressor is running.
- RUMBLINGS, RUSTLINGS and HISSING, the refrigerant is flowing through the tubes.
• TICKS and CLICKS, the operation shutdown of the compressor.

Small measures to reduce the vibration noises:
- THE APPLIANCE IS NOT LEVEL: Adjust the feet so the appliance is level.
- Containers touch each other: Avoid contact between containers and glass receptacles.
• Appliance in contact: Install the appliance away from other furniture or electrical appliances.
- Drawers, shelves, bins vibrate: Check the proper installation of internal accessories.

NOTE:

The refrigerant gas produces noise even when the compressor is off; it is not a defect, it is normal.

If you hear a clicking sound inside the appliance, it is normal as due to expansion of the various materials.

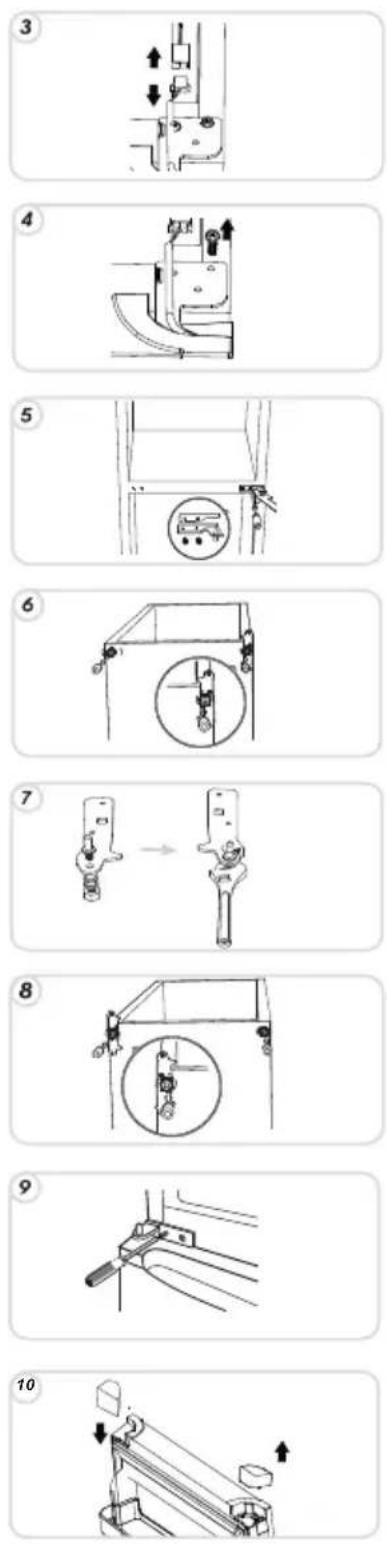

REVERSIBILITY OF THE DOOR (MECHANICAL)

The doors of the appliance can be reversed so as to allow the opening to the right or left according to exigency.

NOTICE:

• Inversion of the doors must be performed by qualified technical personnel.
• Inversion of the doors is not covered by the warranty.

Simple line drawing of a device with a handle and a separate close-up view showing a wire or cable attachment (no text or symbols)

2 180° →

③

4

5

Simple line drawing of a mechanical structure with an inset showing a circular component (no text or symbols)

Technical illustration showing two mechanical assembly steps: one with a tool inserted into a bracket, the other with a screwdriver inserted into a bracket (no text or symbols present)

8 → 3 → 2 → 1

9 1 hour

Simple line drawing of a door with an arrow indicating left motion (no text or symbols)

REVERSIBILITY OF THE DOOR (ELECTRONIC)

Simple line drawing of a mechanical frame with a central rod and base, no text or symbols present

Simple line drawing of a mechanical component or tool with no visible text, numbers, or symbols.

Pure mechanical diagram showing a valve or actuator without any text, numbers, or symbols

11

Technical line drawing of a mechanical component with no visible text or symbols

Pure electrical circuit lines without any symbols

5

Simple line drawing of a U-shaped structure with base and corner markers (no text or symbols)

Simple line drawing of a mechanical structure with a magnified inset showing internal components (no text or symbols)

Simple line drawing of a mechanical device with a lever and base (no text or symbols)

7

15 3 2 1

Simple line drawing of a person climbing a vehicle with a magnified inset showing the wheel (no text or symbols)

Simple line drawing of a door and a clock with an arrow indicating rotation (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Simple line drawing of a door with an arrow indicating left motion (no text or symbols)

Technical line drawing of a mechanical assembly with arrows indicating motion (no text or symbols)

SUSPENDING USE OF THE APPLIANCE

If the appliance is not to be used for a long time:

1) Turn the appliance OFF (see Operation).
2) Extract the plug or remove the safety device.
3) Clean the appliance
4) Leave the doors of the appliance open.

TROUBLESHOOTING

PROBLEM	CAUSE	REMEDY
The inside illumination light bulb does not turn on.	The light bulb is burned out.Electricity absence.Door switch is blocked.	Replace the lamp bulb (see lighting).The power cord is not properly plugged in.Check whether the appliance is switched off. (see Temperature Adjustment).Ensure that there is a current in the house.Check that it is active.
The refrigerator and freezer do not sufficiently cool.	The doors are not closed.The doors are frequently openedErroneous setting of the temperature.The refrigerator and freezer have been excessively filled.Surrounding temperature is too low.No electrical power.The rear of the appliance is too close to the wall.	Check that the door and gaskets close properly.Avoid unnecessary opening of the doors for a period of time.Check the position of the knob or temperature setting and, if it is possible, cool even more (see Temperature adjustment)Wait for the stabilization of the temperature of the refrigerator or freezer.Check that the ambient temperature is in accordance with what is indicated on the nameplate (see Installation).The power cord is not properly plugged in.Check whether the appliance is switched off (see Temperature adjustment)Ensure that in the home there is current.Move the appliance away from the wall (see installation).
The food in the refrigerator freezes.	Erroneous setting of the temperature.Food in contact with the back wall.The freezing of too much fresh food causes a lowering of the temperature of the refrigerator	Check the position of the knob or temperature setting (see Temperature Adjustment) and, if possible, decrease temperature setting.Separate the food from the back wall of the refrigerator.Do not exceed the maximum amount to be frozen (see Freezing).
The bottom of the refrigerator compartment is wet or droplets are present.	Products that are not NoFrost: the drain tube could be clogged.	Clean the drain tube with a cotton-bud or the like to allow the discharge of water.
Presence of drops or water on the back wall of the refrigerator.	Normal operation of the refrigerator.	It is not a defect (see Defrosting).
Presence of water in the vegetable drawer.	Lack of air circulation.Vegetables and fruits with too much moisture.	Check that there is no obstruction on the glass shelf which will prevent air circulation.Place fruit and vegetables in plastic, such as films, bags or containers.
The motor runs continuously.	The doors are not closed.The doors are opened frequently.Ambient temperature is very high.Thickness of frost than 3mm.	Make sure the doors are closed and if the seals close properly.Avoid unnecessary open ports for a certain period.Verify that the ambient temperature is in accordance with the specifications on the nameplate (see Installation).Set the thermostat knob on low numbers / Set the display a warmer temperature.Defrost the unit (see Defrosting).
The temperature of some external parts is high.	Presence of the condensate drain pipe.	It is normal: temperatures are high to prevent the formation of condensation on certain parts.
The frozen food is thawing.	The ambient temperature range below climate class of the product.The compressor starts rarelyThe freezer door is not closed.	Move the unit to a warmer or heat the room.Make sure the door is closed and that the gasket is sealing properly.
Condensation on the outside.	Environment too moist.	Move the unit in a less humid.

IF YOU ARE NOT SOLVED THE PROBLEM, CONTACT THE SERVICE CENTER, PLEASE GIVE THE TYPE OF FAULT AND THE INFORMATION ON THE PLATE OF THIS APPARATUS TO INSIDE THE REFRIGERATOR COMPARTMENT:

• The model of equipment.
• The number of series.

Diagram of a mechanical device with a rotating shaft and wheels, showing rotational motion (no text or symbols)

Simple line drawing of a refrigerator with a hanging container and a label 'Fig.3' (no text or symbols on the diagram itself)

NOTA:

Line drawing of a cabinet with a labeled box and side panel, shown from two different angles (no text or symbols present)

Technical line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

Technical line drawing of a device with an inset showing a magnified view of a component (no text or symbols present)

Fig.6

La lampadina LED UVA (si está presente)

Line drawing of a refrigerator with open door and water outlet (no text or symbols)

Pure technical diagram of a mechanical component without any text, numbers, or symbols

Fig.9

Technical diagram showing a warning symbol with an exclamation mark inside a shield, and the word 'OK' below it.

Simple line drawing of a warning sign with an exclamation mark inside, above a gray 'OK' button (no text or symbols on the diagram itself)

Fig.10

NOTA:

2-3 MESES 4-6 MESES 6-8 MESES 10-12 MESES

Consejos prácticos

Technical line drawing of a mechanical component with internal flow arrows (no text or symbols)

Fig.11

Simple line drawing of three stacked shelves with a triangular cushion on the lower shelf (no text or symbols)

Fig.12

Technical line drawing of a mechanical component with a tool and cross-section view (no text or symbols)

ADVERTENCIA:

Simple line drawing of a device with a small inset showing a hand holding a tool (no text or symbols)

2 180° →

Simple line drawing of a ladder with a circular component, no text or symbols present

Simple line drawing of a crane lifting a weight with a magnified inset showing the lifting mechanism (no text or symbols)

⑤

Simple line drawing of a person climbing a rope with a magnified inset showing a person standing near a vertical pole (no text or symbols)

Technical line drawing showing two mechanical assembly steps: one with a tool inserted into a bracket, the other with a screwdriver inserted into a housing (no text or symbols present)

9 1 hora

Simple line drawing of a door with an arrow indicating left motion (no text or symbols)

Simple line drawing of a mechanical frame with labeled parts (no text or symbols)

Simple line drawing of a mechanical device with no visible text or symbols

Pure mechanical diagram showing a valve or actuator without any text, numbers, or symbols

Pure mechanical diagram showing a pipe connection with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Technical line drawing of a mechanical assembly with a circular component and mounting bracket (no text or symbols)

Simple line drawing of a U-shaped structure with a horizontal base and a curved arrow, no text or symbols present.

Simple line drawing of a mechanical structure with a magnified inset showing a circular detail (no text or symbols)

Simple line drawing of a rectangular frame with a central rod and base, no text or symbols present.

Diagram showing two mechanical components with a transformation arrow (no text or symbols)

15 ③ ② ①

Simple line drawing of a vehicle with a circular inset showing a vertical structure (no text or symbols)

Simple line drawing of a door and an analog clock with an arrow indicating rotation (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Simple line drawing of a door with an arrow indicating left motion (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with arrows indicating motion (no text or symbols)

Diagram of a mechanical system with pulleys and a rotating shaft, labeled Fig.2 (no text or symbols on the diagram itself)

Diagram showing a refrigerator with a circled electrical component and an arrow pointing to the refrigerator's side panel.

NOTE :

Line drawing of a cabinet with a box and a side panel, shown from two different angles (no text or symbols)

Technical line drawing showing two mechanical components with directional arrows indicating motion or flow (no text or symbols)

Technical line drawing of a device component with an arrow pointing to a magnified view (no text or symbols present)

Les lampes àUVA

(le cas échéant)

TOTAL NO FROST Fig.8

Line drawing of a refrigerator with open door and internal compartments (no text or symbols)

Pure technical diagram of a mechanical component without any text, numbers, or symbols

Fig.9

Pure electrical circuit lines without any symbols

Fig.10

NOTE :

Pure technical diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Fig.11

Simple line drawing of a three-tiered shelf or rack structure with no text or symbols

Fig.12

Technical line drawing of a mechanical component with a tool and circular feature, labeled Fig.14 (no text or symbols on the diagram itself)

MISE EN GARDE :

Simple line drawing of a device with a handle and a separate outline showing a cable or wire attachment (no text or symbols)

2 180°

Simple line drawing of a mechanical assembly with a circular component and a numbered label (no text or symbols)

Simple line drawing of a mechanical lifting device with a magnified inset showing internal components (no text or symbols)

5

Simple line drawing of a mechanical structure with an inset circle highlighting a vertical component (no text or symbols)

Technical line drawing showing two mechanical assembly steps: one with a tool inserted into a bracket, the other with a screwdriver inserted into a housing (no text or symbols present)

8 3 2 1

Simple line drawing of a door with an arrow indicating left motion (no text or symbols)

Simple line drawing of a mechanical setup with a lever and base, no text or symbols present

Simple line drawing of a mechanical component or valve assembly (no text or symbols)

Pure mechanical diagram showing a valve or actuator without any text, numbers, or symbols

11

Technical line drawing of a mechanical component with no visible text or symbols

Pure electrical circuit lines without any symbols

5

Simple line drawing of a laptop with a stand and curved handle (no text or symbols)

Simple line drawing of a mechanical structure with a magnified inset showing internal components (no text or symbols)

Simple line drawing of a mechanical device with a lever and base plate (no text or symbols)

7

15 3 2 1

Simple line drawing of a vehicle with a circular inset showing a person climbing a ladder (no text or symbols)

Simple line drawing of a door and a clock with an arrow indicating rotation (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Simple line drawing of a door with an arrow indicating left motion (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

MISE HORS SERVICE DE L'APPAREIL

- in Bed and Breakfasts

Diagram of a mechanical device with pulleys and a rotating shaft, showing motion direction (no text or symbols)

Line drawing of a refrigerator with an open lid and front panel (no text or symbols)

Abb.4

Technical line drawing showing two mechanical components with rotational arrows indicating motion (no text or symbols)

Abb.5

Technical line drawing of a mechanical component with an inset close-up view (no text or symbols)

Abb.6

Die LED-UVALeuchten

(wenn vorhanden)

Line drawing of a refrigerator with open door and water outlet (no text or symbols)

Pure technical diagram of a mechanical component without any text, numbers, or symbols

Abb.9

Technical diagram showing a mechanical component with a circular hole and a 'OK' label below it.

Pure electrical circuit lines without any symbols

Abb.10

HINWEIS:

Pure mechanical diagram showing a cylindrical component with internal gear and directional arrows, no text or symbols present.

Abb.11

Geräte mit Display

Simple line drawing of a three-tiered shelf or rack structure (no text or symbols)

Abb.12

GEFRIERSCHRANKBEREICHS

Technical line drawing of a mechanical component with a tool and circular dial (no text or symbols)

HINWEIS:

Simple line drawing of a device with a small component and a close-up of its cable (no text or symbols)

2 180°

Simple line drawing of a ladder with a circular inset showing a vehicle (no text or symbols)

Simple line drawing of a mechanical structure with a circular inset showing a vertical component (no text or symbols)

5

Simple line drawing of a car with a circular inset showing a vertical structure (no text or symbols)

Technical line drawing showing two mechanical assembly steps: one with a tool inserted into a bracket, the other with a screwdriver inserted into a bracket (no text or symbols present)

8 → 3 → 2 → 1

9 1 stunde

Simple line drawing of a door with an arrow indicating leftward motion (no text or symbols)

Simple line drawing of a mechanical setup with a lever and base, no text or symbols present

Simple line drawing of a mechanical component or tool with no visible text, numbers, or symbols.

Pure mechanical diagram showing a valve or actuator without any text, numbers, or symbols

11

Technical line drawing of a mechanical device with no visible text or symbols

Pure electrical circuit lines without any symbols

5

Simple line drawing of a rectangular frame with a curved base and corner markers (no text or symbols)

Simple line drawing of a mechanical structure with a magnified inset showing a circular detail (no text or symbols)

Simple line drawing of a mechanical device with a lever and base plate (no text or symbols)

7

15 3 2 1

Simple line drawing of a vehicle with a circular inset showing a person climbing a ladder (no text or symbols)

Simple line drawing of a door and a clock with an arrow indicating rotation (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Simple line drawing of a door with an arrow indicating left motion (no text or symbols)

Technical line drawing of a mechanical assembly with arrows indicating motion (no text or symbols)

Diagram of a mechanical device with a rotating shaft and wheels, showing rotational motion (no text or symbols)

Simple line drawing of a refrigerator with a hanging spring and a circular icon above it (no text or symbols)

NOTA:

Line drawing of two furniture compartments with one labeled 'C#50' and the other showing a close-up view (no text or symbols)

Fig.4

Ajuste da temperatura (sem display)

Technical line drawing showing a mechanical component with rotational arrows and a circular feature, no text or symbols present.

Fig.5

Technical line drawing of a device with a magnified inset showing a component detail (no text or symbols)

Fig.6

Ventilador do compartimento do frigorífico (se existir)

Line drawing of an open refrigerator with water level indicator (no text or symbols)

Pure technical diagram of a mechanical component without any text, numbers, or symbols

Fig.9

Pure electrical circuit lines without any symbols

Fig.10

NOTA:

2-3 MESES 4-6 MESES 6-8 MESES 10-12 MESES

Pure mechanical diagram showing a rotating shaft with a circular hole and directional arrows (no text or symbols)

Fig.11

Aparelhos com visor display

Consulte o display Ligar/Desligar (ON/OFF)

Simple line drawing of three stacked shelves with a triangular base (no text or symbols)

Fig.12

Descongelar o congelador

Technical line drawing of a mechanical component with a tool and bracket, no text or symbols present

AVISO:

Diagram showing a device with labeled components and a close-up of its internal structure, possibly illustrating a technical or mechanical concept.

2 180° →

3

4

5

Simple line drawing of a vehicle with a circular inset showing a mechanical component (no text or symbols)

Technical line drawing showing two mechanical assembly steps: one with a tool inserted into a bracket, the other with a screwdriver inserted into a clamp (no text or symbols present)

Simple line drawing of a door with an arrow indicating left motion (no text or symbols)

Simple line drawing of a mechanical device with labeled parts (no text or symbols)

Technical line drawing of a mechanical component or tool (no text or symbols visible)

Pure mechanical diagram showing a valve and pump assembly without any text, numbers, or symbols

11

Technical line drawing of a mechanical component with no visible text or symbols

Pure electrical circuit lines without any symbols

Simple line drawing of a ladder with a pulley and a circular diagram showing a vehicle (no text or symbols)

Simple line drawing of a U-shaped structure with a horizontal base and a curved arrow, no text or symbols present.

Simple line drawing of a mechanical structure with a magnified inset showing internal components (no text or symbols)

Simple line drawing of a mechanical device with a lever and base (no text or symbols)

7

15 3 2 1

Simple line drawing of a person climbing a vehicle, with an inset showing a circular object (no text or symbols)

Simple line drawing of a door and a clock with an arrow indicating rotation (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Simple line drawing of a door with an arrow indicating left motion (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

SUSPENDER O USO DO APARELHO

PROBLEEMOPLOSSING 78

Diagram of a mechanical device with pulleys and a rotating shaft, labeled Fig.2 (no text or symbols on the diagram itself)

Diagram showing a refrigerator with a hanging device and a directional arrow indicating movement or force.

Fig.3

OPMERKING:

Line drawings of two furniture compartments with one cabinet and one cabinet door (no text or symbols)

Fig.4

Technical line drawing showing two mechanical components with rotational arrows indicating motion (no text or symbols)

Fig.5

Technical line drawing of a mechanical device with an inset close-up view showing a component (no text or symbols)

Fig.6

LED UVA Lichten

(indien aanwezig)

No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. Yes No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. Yes No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No. No.

Line drawing of an open refrigerator with doors open and water-filled (no text or symbols)

Pure technical diagram of a mechanical component without any text, numbers, or symbols

Fig.9

Technical diagram showing a valve symbol and the OK button, likely representing a control or status indicator.

Technical diagram showing a mechanical component with a circular feature and a 'OK' label below it.

Fig.10

OPMERKING:

Pure technical diagram of a cylindrical mechanical component with directional arrows indicating flow or movement (no text or symbols)

Fig.11

Simple line drawing of three stacked shelves with a triangular base (no text or symbols)

Fig.12

Technical line drawing of a mechanical component with a tool and circular feature, labeled Fig.14 (no text or symbols on the diagram itself)

WAARSCHUWING:

Simple line drawing of a device with a small component and a close-up of its cable (no text or symbols)

2 180°

Simple line drawing of a mechanical assembly with a circular component and a handle (no text or symbols)

Simple line drawing of a mechanical structure with a magnified inset showing a vertical component (no text or symbols)

5

Simple line drawing of a vehicle frame with an inset circular detail showing a person standing near a vehicle (no text or symbols)

Technical line drawing showing two mechanical assembly steps: one with a tool inserted into a bracket, the other with a screwdriver inserted into a handle (no text or symbols present)

Simple line drawing of a door with an arrow indicating left motion (no text or symbols)

Simple line drawing of a mechanical setup with a square frame and a lever, no text or symbols present.

Simple line drawing of a sewing machine needle and handle (no text or symbols)

Pure mechanical diagram showing a valve or actuator without any text, numbers, or symbols

11

Technical line drawing of a mechanical component with no visible text or symbols

Pure electrical circuit lines without any symbols

5

Simple line drawing of a rectangular frame with a curved base and corner markers (no text or symbols)

Simple line drawing of a mechanical structure with a magnified inset showing internal components (no text or symbols)

Simple line drawing of a mechanical device with a lever and base (no text or symbols)

7

15 →③ →② →①

Simple line drawing of a vehicle with a circular inset showing a person climbing a ladder (no text or symbols)

Simple line drawing of a door and a clock with an arrow indicating rotation (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Simple line drawing of a door with an arrow indicating left motion (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

HET APPARAAT NIET IN GEBRUIK

Diagram of a mechanical device with pulleys and a rotating shaft, showing motion direction (no text or symbols)

Simple line drawing of a refrigerator with a spring icon and base, no text or symbols present

ΣΗΜΕΙΩΣΗ :

Line drawings of a cabinet with a labeled box, shown from front and side views (no text or symbols)

Technical line drawing of a mechanical component with internal flow arrows (no text or symbols)

Technical line drawing of a mechanical device with an inset view showing a component (no text or symbols)

Line drawing of a refrigerator with open door and water outlet (no text or symbols)

Pure technical diagram of a mechanical component without any text, numbers, or symbols

(πικ.9)

Technical diagram showing a mechanical component with a circular hole and an 'OK' symbol below it.

OK

(εικ.10)

ΣΗΜΕΙΩΣΗ:

Diagram of a cylindrical object with internal circular feature and curved arrows indicating motion (no text or symbols)

(64.11)

ΣΥΣΚΕΥΕΣ ΜΕ ΟΘΟΝΗ

Simple line drawing of a three-tiered shelf or rack structure (no text or symbols)

(εικ.12)

Technical line drawing of a mechanical tool or bracket with a handle and base, showing an upward arrow and circular component (no text or symbols)

ΕΠΙΣΗΜΑΝΣΗ:

Diagram showing a device with labeled components and a close-up of its component being inserted into a clip.

2 780° →

Simple line drawing of a ladder with a circular diagram and a switch, no text or symbols present.

Simple line drawing of a mechanical structure with a circular inset showing a vertical component (no text or symbols)

Diagram showing a mechanical assembly transformation, showing a spring-loaded component transforming into a cylindrical device (no text or symbols present)

Simple line drawing of a vehicle suspension system with an inset showing a vertical structure (no text or symbols)

Technical line drawing showing two mechanical assembly steps: one with a tool inserted into a bracket, the other with a screwdriver inserted into a workpiece (no text or symbols present)

Simple line drawing of a door with an arrow indicating left motion (no text or symbols)

Simple line drawing of a mechanical setup with a square frame and a screw, no text or symbols present.

Simple line drawing of a sewing machine needle (no text or symbols)

Pure mechanical diagram showing a valve or actuator without any text, numbers, or symbols

11

Technical line drawing of a mechanical assembly or valve mechanism (no text or symbols)

Pure technical diagram of a mechanical or electrical component without any text, numbers, or symbols

5

Simple line drawing of a rectangular frame with a curved base and corner markers (no text or symbols)

Simple line drawing of a mechanical structure with a magnified inset showing internal components (no text or symbols)

Simple line drawing of a mechanical device with a lever and base (no text or symbols)

7

15 →③ →② →①

Simple line drawing of a person climbing a vehicle with a magnified inset showing the wheel (no text or symbols)

Simple line drawing of a door and a clock with an arrow indicating rotation (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Simple line drawing of a door with an arrow indicating left motion (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with arrows indicating motion (no text or symbols)

Diagram of a mechanical system with pulleys and a rotating shaft, no text or symbols present

Line drawings of two furniture compartments with internal compartments and a labeled section (yrs. 4), no text or symbols present.

Technical line drawing showing a mechanical component with rotational arrows and a circular feature, no text or symbols present.

rys.5

Technical line drawing of a mechanical component with an inset view showing a magnified detail (no text or symbols)

Technical diagram showing a vehicle inside a vehicle cabin with an inset view highlighting the component.

Line drawing of a refrigerator with open door and water outlet (no text or symbols)

Pure technical diagram of a mechanical component without any text, numbers, or symbols

rys.9

Technical drawing of a mechanical component with 'OK' and a triangular housing outline above it

Technical diagram showing a mechanical component with a circular hole and a triangular housing, above a 'OK' button.

rys.10

UWAGA:

Pure mechanical diagram showing a cylindrical component with internal gear and directional arrows (no text or symbols)

rys.11

Simple line drawing of three stacked shelves with no text or symbols

rys.12

Technical line drawing of a mechanical component with a tool and circular feature, no text or symbols present

OSTRZEŻENIE:

Simple line drawing of a device with a small object and a separate close-up showing a hand holding a clip (no text or symbols)

2 180°

Simple line drawing of a ladder with a circular component and a handle, no text or symbols present

Simple line drawing of a basketball hoop with an inset showing the ball trajectory (no text or symbols)

Diagram showing a mechanical assembly process with two views of a component (no text or symbols present)

Simple line drawing of a person climbing a vehicle, with an inset showing a circular detail (no text or symbols)

Technical line drawing showing two mechanical assembly steps: one with a tool inserted into a bracket, the other with a screwdriver inserted into a bracket (no text or symbols present)

Simple line drawing of a door with an arrow indicating left motion (no text or symbols)

Simple line drawing of a mechanical setup with labeled components (no text or symbols)

Simple line drawing of a mechanical component or tool with no visible text, numbers, or symbols.

11

12

13

Simple line drawing of a laptop with a blank screen and a curved base (no text or symbols)

14

15

3 2 1

16

17

ZAWIESZENIE UŻYTKOWANIA URZĄDZENIA

Diagram of a mechanical system with pulleys and a rotating shaft, showing no text or symbols

obr. 2

Diagram showing a refrigerator with a hanging device and directional arrow, likely illustrating a cooling or heating process.

obr. 3

POZNÁMKA:

Line drawing of a cabinet with an open lid and a side panel, shown from two different angles (no text or symbols)

Technical line drawing showing two mechanical components with directional arrows indicating motion (no text or symbols)

obr. 5

Technical line drawing of a mechanical device with an inset showing a component (no text or symbols)

Line drawing of an open refrigerator with water level indicator (no text or symbols)

Pure technical diagram of a mechanical component without any text, numbers, or symbols

obr. 9

OK obr. 10

Poznámka:

Diagram of a cylindrical object with internal circular feature and directional arrows indicating flow or movement (no text or symbols)

obr.11

Simple line drawing of three stacked shelves with a triangular base (no text or symbols)

obr.12

Technical line drawing of a mechanical component with a tool and circular feature, no text or symbols present

Upozornění:

BĚŽNÉ PROVOZNÍ HLUKY

Simple line drawing of a device with a small component and a close-up view of its cable (no text or symbols)

2 180°

Simple line drawing of a mechanical assembly with a circular component and a handle (no text or symbols)

Simple line drawing of a mechanical setup with a bracket and circular component (no text or symbols)

5

Simple line drawing of a mechanical structure with an inset circle highlighting a vertical component (no text or symbols)

Technical line drawing showing two mechanical assembly steps: one with a clamp and the other with a screwdriver (no text or symbols)

Simple line drawing of a door with an arrow indicating left motion (no text or symbols)

OTOČENÍ OTEVÍRÁNÍ DVERÍ (electronic)

Simple line drawing of a mechanical setup with a rectangular frame and a rod, no text or symbols present.

Simple line drawing of a mechanical component or tool with no visible text, numbers, or symbols.

Pure mechanical diagram showing a valve or actuator assembly without any text, numbers, or symbols

Pure mechanical diagram showing a lever and guide mechanism without any text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Pure electrical circuit lines without any symbols

5

Simple line drawing of a rectangular frame with a curved base and corner markers (no text or symbols)

6

Simple line drawing of a mechanical device with a central rod and base, no text or symbols present.

Diagram showing a mechanical assembly or tool with two views of a component, one being rotated and the other tilted (no text or symbols present)

15 ③ ② ①

Simple line drawing of a vehicle with a circular inset showing a person climbing a ladder (no text or symbols)

Simple line drawing of a door and an analog clock with an arrow indicating rotation (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Simple line drawing of a door with an arrow indicating left motion (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with arrows indicating motion (no text or symbols)

ODSTAVENÍ SPOTŘEBIČE

Diagram of a mechanical device with two wheels and a rotating shaft, showing rotational motion (no text or symbols)

Simple line drawing of a refrigerator with a circled diagram showing a scroll and a label 'obr. 3' (no text or symbols on the main diagram)

POZNÁMKA:

Line drawings of two compartments with a labeled inset showing a device (no text or symbols present)

Nastavenie teploty (bez displeja)

Technical diagram showing airflow patterns around a mechanical component, with no visible text or symbols.

Technical line drawing of a mechanical component with an inset view showing a magnified view (no text or symbols)

Pure technical diagram of a mechanical component with no text or symbols

obr. 9

Skontrolujte, či je na indikátore jasne vidieť nápis OK. (obr. 10)

OK OK obr. 10

Poznámka:

Technical line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

obr.11

Simple line drawing of three stacked shelves with a triangular frame and a horizontal bar, no text or symbols present.

Odmrazovanie mraziaceho priestoru

(staticé spotrebiče bez technolóAie NO-SROST)

Technical line drawing of a mechanical component with cross-sectional and top views (no text or symbols)

Technical line drawing of a mechanical component with a tool and directional arrow (no text or symbols)

Upozornenie:

Diagram showing a device with a handle and a wire being inserted, labeled 'untangle' in English.

2 180° →

3 a b

Simple line drawing of a pulley system with a magnified inset showing a hanging weight (no text or symbols)

5

6 7

Technical line drawing showing two mechanical assembly steps: one with a tool inserted into a bracket, the other with a screwdriver inserted into a housing (no text or symbols present)

8 ③ ② ①

9 1 hodina

Simple line drawing of a rectangular object with an arrow pointing to it, no text or symbols present.

ODSTAVENIE SPOTREBIČA

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)
