USER MANUAL 162249 PRINCESS

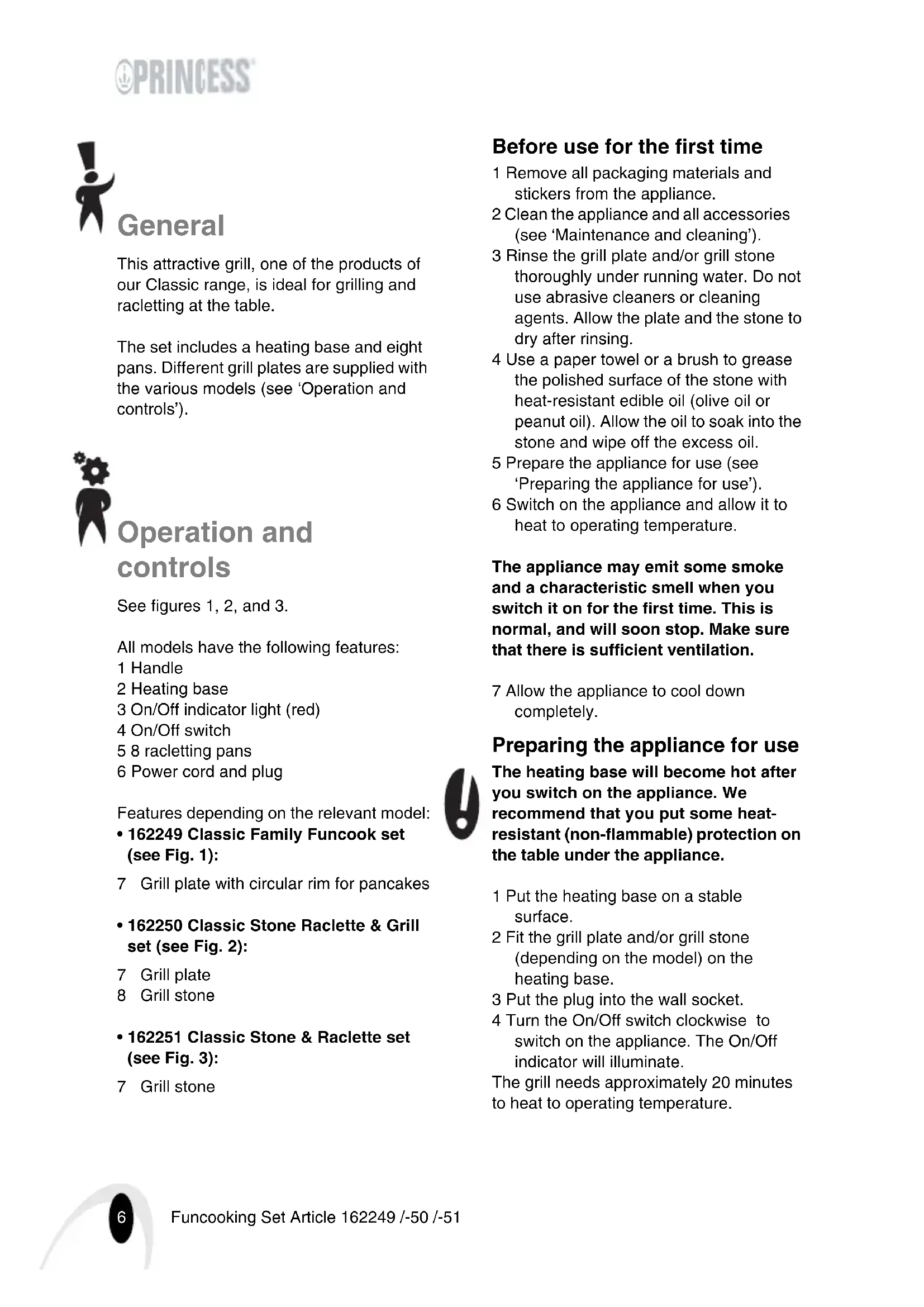

• 162249 Classic Family Funcook set (see Fig. 1): 7 Grill plate with circular rim for pancakes

• 162250 Classic Stone Raclette & Grill set (see Fig. 2): 7 Grill plate 8 Grill stone

• 162251 Classic Stone & Raclette set (see Fig. 3): 7 Grill stone Before use for the first time 1 Remove all packaging materials and stickers from the appliance. 2 Clean the appliance and all accessories (see ‘Maintenance and cleaning’). 3 Rinse the grill plate and/or grill stone thoroughly under running water. Do not use abrasive cleaners or cleaning agents. Allow the plate and the stone to dry after rinsing. 4 Use a paper towel or a brush to grease the polished surface of the stone with heat-resistant edible oil (olive oil or peanut oil). Allow the oil to soak into the stone and wipe off the excess oil. 5 Prepare the appliance for use (see ‘Preparing the appliance for use’). 6 Switch on the appliance and allow it to heat to operating temperature. The appliance may emit some smoke and a characteristic smell when you switch it on for the first time. This is normal, and will soon stop. Make sure that there is sufficient ventilation. 7 Allow the appliance to cool down completely. Preparing the appliance for use The heating base will become hot after you switch on the appliance. We recommend that you put some heat- resistant (non-flammable) protection on the table under the appliance. 1 Put the heating base on a stable surface. 2 Fit the grill plate and/or grill stone (depending on the model) on the heating base. 3 Put the plug into the wall socket. 4 Turn the On/Off switch clockwise to switch on the appliance. The On/Off indicator will illuminate. The grill needs approximately 20 minutes to heat to operating temperature.7 Funcooking Set Article 162249 /-50 /-51

• The appliance (heating base and plate) is hot when switched on. Allow the appliance to cool down before moving it.

• Pans placed on the grill plate or stone will not become hot enough for use in frying. Grilling Grilling is cooking meat, fish, and other foods on a grill plate. The circular rim on the grill plate of the Family Funcook set even allows you to make pancakes or fry eggs. Grilling can readily be combined with racletting.

• Make sure that the surface of the grill plate or grill stone is hot before you use it to prepare food.

• Always use a wooden or heat- resistant plastic spatula to handle food on the grill plate to avoid damaging the surface. Racletting This traditional Swiss cooking method is based on dishes prepared with molten cheese and potatoes. The grill plates are used to keep the potatoes warm, and to grill meat, fish and other food. The pans are placed under the heating element - everyone can prepare individual portions with molten cheese and the ingredients of their choice. Switching off and storing the appliance 1 Turn the On/Off switch anticlockwise to switch off the appliance. The On/Off indicator light will extinguish. 2 Remove the plug from the wall socket. 3 Allow the appliance to cool down completely. This will take approximately one hour. 4 Clean the appliance and all accessories (see ‘Maintenance and cleaning’). 5 Store the appliance in a dry place and protect it form frost. Maintenance and cleaning

• Never move the appliance when it is switched on or still hot. Switch off the appliance and wait until it has cooled down before you move it.

• Never use corrosive or scouring cleaning agents.

• Make sure that the plug has been removed from the wall socket before cleaning the appliance.

• Never immerse the appliance in water.

• Make sure no moisture can contact the appliance’s electrical components.

• The accessories, in particular the stone plate, CANNOT be cleaned in a dishwasher. 1 Clean the exterior of the heating base with a damp cloth. 2 Clean the grill plate and the stone plate with a paper towel. Food residues which are difficult to remove should be loosened by soaking them in a little oil (leave to stand for 5 minutes). 3 The grill plate and the pans can be cleaned in hot water and washing-up liquid. 4 Make sure that the appliance and all accessories are completely dry before storing them.8 Funcooking Set Article 162249 /-50 /-51 Some remarks on the stone plate The stone is a natural product. Small cracks can appear during use; this is normal, and is not covered by the guarantee. If the stone becomes moist then allow it to dry before you use it. If the stone has become very moist then allow it to dry at room temperature for two days. Avoid bumping the stone when moving it, and avoid thermal shocks (for example do not put frozen food on the hot stone). Safety General

• Please read these instructions carefully and retain them for future reference.

• Use this appliance only in accordance with the instructions.

• This appliance is intended solely for domestic use.

• The use of this appliance by children or persons with a physical, sensory, mental or motorial disability, or lack of experience and knowledge can give cause to hazards. Persons responsible for their safety should give explicit instructions or supervise the use of the appliance.

• Children should be supervised to ensure that they do not play with the appliance.

• Have the appliance repaired only by a qualified electrician. Never try to repair the appliance yourself.

• Only use accessories recommended by the supplier. The use of other accessories may result in damage to the appliance, thereby creating hazards for the user. Electricity and heat

• Verify that the mains voltage is the same as that indicated on the type plate on the appliance before use.

• Connect the appliance to an earthed wall socket.

• Always remove the plug from the wall socket when the appliance is not in use.

• Always remove the plug from the wall socket by pulling on the plug, not the power cord.

• Never pull on the power cord to move the appliance.

• Do not use the appliance any longer if the power cord or the appliance has been damaged. To avoid risks, send the appliance to our service department. A damaged power cord can be replaced solely by our service department, who have the special tools required for the repair.

• Make sure that the appliance and the power cord do not come in contact with sources of heat, such as a hot hob or naked flame.

• Make sure that the cord and the plug do not come in contact with water.

• Take care when touching the appliance and its parts. Allow the appliance to cool down before touching it. The appliance and its various parts will become hot during use.

• The appliance needs space to allow heat to escape, thereby preventing the risk of fire. Make sure that the appliance has sufficient space around it, and does not come in contact with flammable material. The appliance must not be covered. During use

• Never use the appliance outdoors.9 Funcooking Set Article 162249 /-50 /-51

• Never use the appliance in humid rooms.

• Place the appliance on a stable and flat surface where it cannot fall over.

• Do not let the cord hang over the edge of the draining board, worktop or table.

• Make sure that your hands are dry when you touch the appliance, the power cord or the plug.

• Switch off the appliance and remove the plug from the wall socket in the event of a malfunction during use, and before cleaning the appliance, fitting or removing an accessory, or storing the appliance after use.

• Never leave the appliance unattended when in use.

• Never move the appliance when it is switched on or is still hot. Switch off the appliance and wait until it has cooled down before you move it.

• Do not use any sharp implements with the pans and the grill plate, such as metal spatulas, knives, and forks; these will damage the non-stick coating.

• Make sure that small children cannot reach the appliance. The appliance and its various parts will become hot during use.

• Only hold the pans by the handles.

• Clean the appliance thoroughly after use (see ‘Maintenance and cleaning’).

• The pans and the grill plate supplied with this appliance are finished with a non-stick coating based on PTFE. On heating this coating it may release small amounts of gasses which are totally harmless for people. However, the nervous system of birds have been found to be extremely sensitive to these gasses, and for this reason this appliance should not be used near birds (for example tropical birds such as parrots).

U.K. WIRING INSTRUCTIONS

The wires in the mains lead are coloured in accordance with the following code:

• GREEN/YELLOW EARTH As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

• The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.

• The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.

• The wire which is coloured GREEN/ YELLOW must be connected to the terminal which is marked with the letter E or (earth symbol) and is coloured GREEN or GREEN/YELLOW

WARNING: THIS APPLIANCE MUST BE

EARTHED10 Funcooking Set Article 162249 /-50 /-51 The Environment Dispose of packaging material, such as plastic and boxes, in the appropriate waste containers. You should ensure for the reuse of the appliance if you wish to dispose of it whilst it is still in good working order or needs only a minor repair. When the appliance reaches the end of its useful life it must be disposed of in a responsible manner, thereby ensuring for the reuse of (parts of) the appliance. Do not dispose of the appliance with unsorted refuse; hand it in at the store, or take it to a recognized collection point. Contact your municipality for information about the reception and collection systems in your area. Applicable European directive:

• Sprinkle the grill stone with salt before you start grilling.
