Product type	3-in-1 fondue, raclette and wok appliance
Brand	Princess
Model	Family Wonder Gourmette 162305
Dimensions (L x W x H)	45 x 25 x 15 cm (estimated)
Weight	Approximately 3.5 kg
Power supply	220-240 V ~ 50/60 Hz
Power	1500 W (estimated)
Main functions	Cheese or chocolate fondue, raclette cooking, wok cooking
Included accessories	6 raclette pans, 6 spatulas, 1 fondue pot, 1 wok, 1 stand
Material	Stainless steel, non-stick aluminum, heat-resistant plastic
Care and cleaning	Clean after cooling with a non-abrasive sponge. Pans and wok are dishwasher safe.
Safety	Automatic shut-off in case of overheating, insulated handles, non-slip base
Spare parts and repairability	Pans and spatulas available as accessories. Repair by Princess authorized service.
General information	User-friendly, ideal for family meals

Frequently Asked Questions - Family Wonder Gourmette 162305 PRINCESS

What types of dishes can I prepare with this appliance?

You can make fondues (cheese, chocolate), raclettes and wok dishes (stir-fried vegetables, meats, etc.). The appliance is versatile for social meals.

How to clean the raclette pans and the wok?

Let them cool completely. The pans and wok are dishwasher safe. For hand washing, use a soft sponge and non-abrasive detergent.

Can I leave the appliance unattended?

No, never leave the appliance unattended while it is operating. It is equipped with overheating protection, but supervision is necessary.

How many people can eat with this appliance?

The set includes 6 pans and spatulas, suitable for 6 people. The wok and fondue pot can serve additional portions.

How to adjust the temperature?

The temperature is adjusted via a rotary thermostat on the base. Turn to reach the desired power. An indicator light shows heating.

Can I use extra pans?

Yes, replacement pans and spatulas are available as an option from Princess customer service.

What to do if the appliance no longer heats?

Check the plug and fuse. If the problem persists, contact Princess after-sales service. Do not attempt to disassemble the appliance yourself.

Is the appliance suitable for all types of wok cooking?

Yes, the integrated wok allows searing, stir-frying and simmering. Use wooden or silicone utensils to preserve the non-stick coating.

How to store the accessories?

After cleaning and drying, store the pans, spatulas, wok and fondue pot in a dry place. The base can remain unplugged.

What type of oil to use for fondue?

For cheese fondue, use fondue cheese. For Chinese or chocolate fondue, use neutral oils or butter.

USER MANUAL Family Wonder Gourmette 162305 PRINCESS

A

Gefeliciteerd!

You have purchased a Princess product. Our aim is to provide quality products with a tasteful design and at an affordable price. We hope that you will enjoy this appliance for many years.

The appliance can be used by children from 8 years and above and by persons with a physical, sensory, mental or motorial disability, or lack of experience and knowledge if they are supervised or instructed on how to use the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by children unless they are older than 8 years and supervised. Keep the appliance and the mains cable out of the reach of children younger than 8 years.

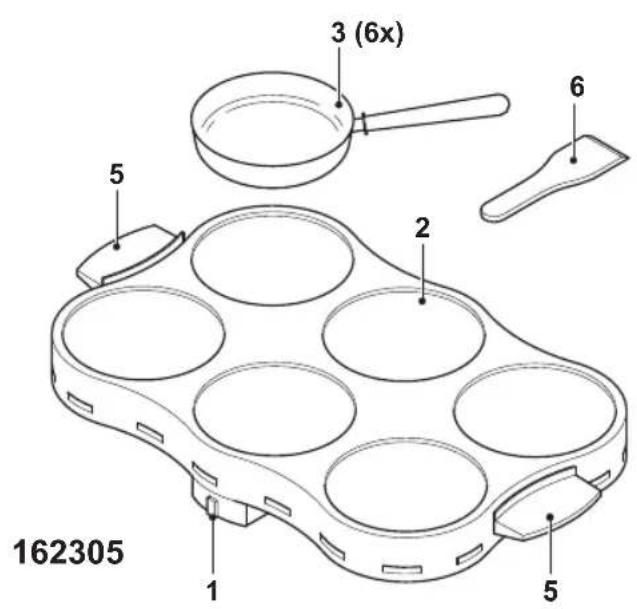

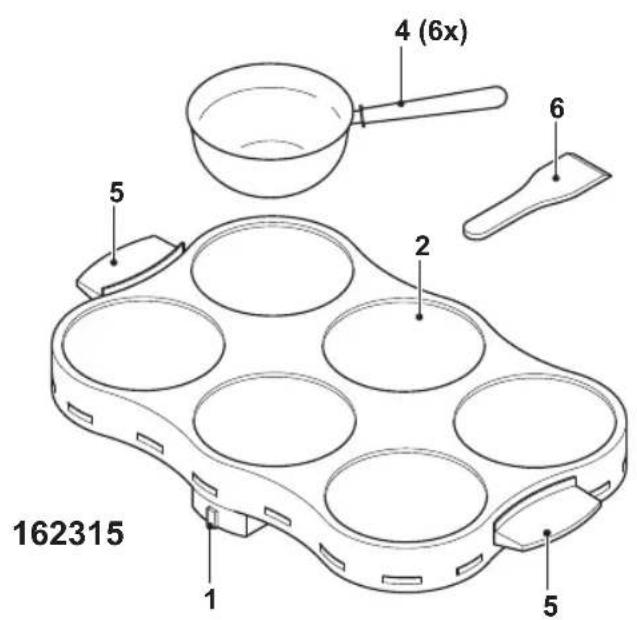

Description (fig. A)

Your 162305 Princess gourmet set has been designed for preparing food using gourmet pans. A gourmet pan is used to prepare meat, fish, vegetables and other ingredients. It is also possible to bake pancakes or other food in a gourmet pan.

Your 162315 Princess wok set has been designed for preparing food using wok pans. A wok pan is used to prepare meat, fish, vegetables and other ingredients in oil or sauce. If the ingredients are regularly stirred during the heating process, vitamins in the food will not be lost and the structure and taste of the food are better preserved.

The appliance is suitable for indoor use only. The appliance is suitable for domestic use only.

1. Power indicator
2. Heating plate
3. Gourmet pan
4. Wok pan
5. Handgrip
6. Spatula

Initial use

Before you proceed, we need you to pay attention to the following notes:

- Make sure that there is sufficient space around the appliance to allow heat to escape and provide sufficient ventilation.

Clean the appliance. Refer to the section • "Cleaning and maintenance". Clean the accessories. Refer to the section • "Cleaning and maintenance".

Place the appliance on a stable and flat surface.

Insert the mains plug into the wall socket. Switch on the appliance.

Allow the appliance to cool down • completely.

Note: If you switch on the appliance for the first time, the appliance may emit a little smoke and a characteristic smell for a short period. This is normal operation.

Use

Switching on and off (fig. A)

To switch on the appliance, insert the mains · plug into the wall socket. The power indicator (1) comes on. The appliance starts heating.

The power indicator (1) goes off when the heating plate (2) has reached the required temperature.

To switch off the appliance, remove the • mains plug from the wall socket.

Hints for use

Prepare the ingredients.

Place the appliance on a stable and flat surface.

Insert the mains plug into the wall socket. • The power indicator comes on. The appliance starts heating. The power indicator goes off when the heating plate has reached the required temperature.

Take one of the following actions: •

- If you use gourmet pans (162305), put the ingredients in the pans. If required, add a little oil or butter.

- If you use wok pans (162315), put a small amount of oil or sauce into the pans and add the ingredients.

Add salt, pepper or other spices according to taste.

Place the pans onto the heating plate.

Regularly stir the food in the pans during the frying process.

Note: Small pieces will fry better and more quickly than large pieces.

Experiment with the required cooking time · to achieve the best results.

If the food is ready, take it out of the pans • and put it on a plate.

After use, switch off the appliance, remove the mains plug from the wall socket and wait until the appliance has cooled down.

Cleaning and maintenance

Before you proceed, we need you to pay attention to the following notes:

• Before cleaning or maintenance, remove the mains plug from the wall socket and wait until the appliance has cooled down.
• Do not immerse the appliance in water or any other liquids.

Before you proceed, we would like you to focus your attention on the following notes:

• Do not use aggressive or abrasive cleaning agents to clean the appliance.
• Do not use sharp objects to clean the appliance.
• Do not use sharp objects to clean the accessories.
• It is not recommended to wash the removable parts of the appliance or the accessories in a dishwasher.

Regularly check the appliance for possible damage.

Clean the pans after each use:

• Remove any residues with a paper towel.
• Clean the pans in soapy water.
• Thoroughly dry the pans.

Clean the heating plate with a soft, damp cloth and a few drops of washing-up liquid.

Clean the outside of the appliance with a • damp cloth.

Clean the spatulas in soapy water. • Thoroughly dry the spatulas.

• After cleaning, put the appliance in the original packaging.
- Store the appliance in a dry place, out of the reach of children.

Safety instructions

General safety

• Read the manual carefully before use. Keep the manual for future reference.
• Only use the appliance and the accessories for their intended purposes. Do not use the appliance and the accessories for other purposes than described in the manual.
• Do not use the appliance if any part or any accessory is damaged or defective. If a part or an accessory is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent.
• Do not use the appliance near bathtubs, showers, basins or other vessels containing water.
• Do not immerse the appliance in water or other liquids. If the appliance is immersed in water or other liquids, do not remove the appliance with your hands. Immediately remove the mains plug from the wall socket. If the appliance is immersed in water or other liquids, do not use the appliance again.
• This appliance is intended to be used in domestic and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed-and-breakfast type environments.

Electrical safety

• Before use, always check that the mains voltage is the same as the voltage on the rating plate of the appliance.
• Connect the appliance to an earthed wall socket. If necessary, use an earthed extension cable of a suitable diameter (at least 3 × 1.5 mm² ).

For additional protection, install a residual current device (RCD) with a rated residual operating current that does not exceed 30 mA.

The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Make sure that water cannot enter the contact plugs of the mains cable and the extension cable.

Always fully unwind the mains cable and the extension cable.

Make sure that the mains cable does not • hang over the edge of a worktop and cannot be caught accidentally or tripped over.

Keep the mains cable away from heat, oil and sharp edges.

Regularly check the mains cable and the • mains plug for signs of damage. Do not use the appliance if the mains cable or the mains plug is damaged or defective. If the mains cable or the mains plug is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent.

Do not pull the mains cable to disconnect • the mains plug from the mains.

Disconnect the mains plug from the mains · when the appliance is not in use, before assembly or disassembly and before cleaning and maintenance.

Safety instructions for gourmet sets and wok sets

Do not use the appliance outdoors.

Place the appliance on a stable and flat surface.

Place the appliance on a heat-resistant and splash-proof surface.

Do not place the appliance on a hob. Make sure that there is sufficient space around the appliance to allow heat to escape and provide sufficient ventilation.

Do not cover the appliance.

• Keep the appliance away from heat sources.
• Make sure that the appliance does not come into contact with flammable material.
• Do not use charcoal or similar combustible fuels.
• Do not operate the appliance if your hands are wet. Do not operate the appliance if you are barefoot.

• Caution: Hot grease can splash from the pans.
- Beware of steam and splashes when putting food in the hot pans.

Do not pour cold water into the hot pans • or onto the hot heating plate. The water will splash and damage the pans and the heating plate.

• Beware of hot parts. The surfaces marked with a caution symbol for hot surfaces are liable to become hot during use. The accessible surfaces can become hot when the appliance is operating. The outer surface can become hot when the appliance is operating.
• The pans and the heating plate become very hot during use. Do not touch the hot pans and the hot heating plate.
• Use oven gloves if you need to touch the appliance during or shortly after use.

Do not let metal cutlery touch the pans • and the heating plate to prevent damage to the non-stick coating.

Do not move the appliance while it is switched on or is still hot. Remove the mains plug from the wall socket and wait until the appliance has cooled down.

• Do not use the appliance near birds (e.g. tropical birds such as parrots). The pans and the heating plate are finished with a non-stick coating based on PTFE. Upon heating, the coating may release small amounts of gases which are fully harmless for people. However, the nervous systems of birds are extremely sensitive to these gases.
• Store the appliance in a dry place when not in use. Make sure that children do not have access to stored appliances.

U.K. Wiring instructions

The wires in the mains lead are coloured in accordance with the following code:

BLUE

NEUTRAL

BROWN

LIVE

GREEN/YELLOW

EARTH

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.

The wire which is coloured GREEN/YELLOW must be connected to the terminal which is marked with the letter E or ( ) and is coloured GREEN or GREEN/YELLOW.

If a 13Amp (BS1363) plug is used, a 13Amp (BS1362) fuse must be fitted, or if any other type of plug is used, a 13Amp fuse must be fitted, either in the plug or adaptor, or on the distribution board.

Warning! This appliance must be earthed.

Disclaimer

Subject to change; specifications can be changed without further notice.
