USER MANUAL NV6200 H.KOENIG

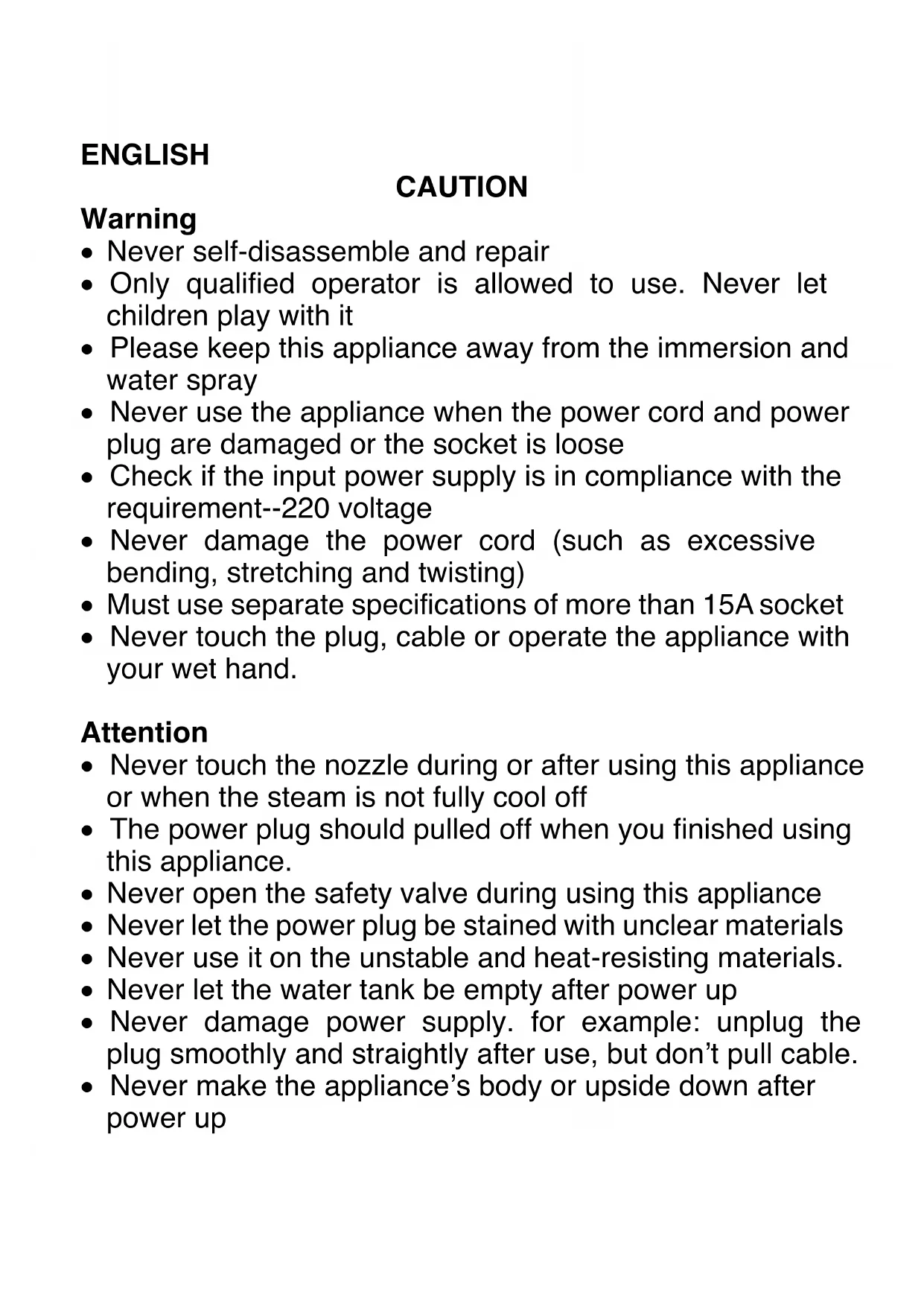

• Never self-disassemble and repair

• Only qualified operator is allowed to use. Never let children play with it

• Please keep this appliance away from the immersion and water spray

• Never use the appliance when the power cord and power plug are damaged or the socket is loose

• Check if the input power supply is in compliance with the requirement--220 voltage

• Never damage the power cord (such as excessive bending, stretching and twisting)

• Must use separate specifications of more than 15A socket

• Never touch the plug, cable or operate the appliance with your wet hand. Attention

• Never touch the nozzle during or after using this appliance or when the steam is not fully cool off

• The power plug should pulled off when you finished using this appliance.

• Never open the safety valve during using this appliance

• Never let the power plug be stained with unclear materials

• Never use it on the unstable and heat-resisting materials.

• Never let the water tank be empty after power up

• Never damage power supply. for example: unplug the plug smoothly and straightly after use, but don’t pull cable.

• Never make the appliance’s body or upside down after power upPLEASE READ INSTRUCTION CAREFULLY

1. The supply cord is damaged, it must be replaced by the

manufacturer or its service agent or a similarly qualified person in order to avoid any hazard.

2. This appliance is not intended for use by persons with r

educed physical, sensory or mental capabilities, or lack o f experience and knowledge, unless they have been gi ven supervision or instruction concerning use of the appliance by a person responsible for their safety.

3. Children should be supervised to ensure that they do

not play with the appliance.

4. The appliance has to be unplugged after use and before

cleaning or user maintenance of the appliance.

5. Do not use in swimming pools containing water.

6. WARNING – Danger of scalding

7. Liquid or steam must not be directed towards

equipment containing electrical components, such as the interior of ovens.

8. The filling aperture must not be opened during use

9. Only fill water into water tank, never attempt to fill in any

detergent or other liquid (If the stain is serious, you can use the detergent directly on the stain or attached to the brush to clean it

10. Please do not prolonged continuous use in the same

location because the steam cause high temperature

11. The device must not be used if it has been dropped, it

obvious signs of damage are visible or if it has leaks.

12. Never attempt to use steam to clean following surfaces :

• Wax furniture and bed, link (remove wax)

• Wooden products surface with decoration

• Synthetic fiber, silk, hemp or deep color cloth products· Glass products under environmental temperature below 0 ℃, using high temperature steam may burst. (in winter please try not to use) in glass

• Plastic products (happen deformation or discoloration, etc.)

• Not suitable for water vapor and high temperature of goods or products (heat-resisting items)

• Mattess, cushion, no coating and wallpaper absorb water easily etc

13. This appliance may be used by children of at least

8 years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved.

14. Cleaning and maintenance should not be carried

out by children unless they are at least 8 years of age and are supervised by an adult.

15. Keep the appliance and its power cord out of reach of

children under 8 years of age.

16. When using electrical equipment, safety precautions

must always be taken to prevent the risk of fire, electric shock and/or injury in the event of misuse.

17. Make sure that the voltage rating on the typeplate

corresponds to your main voltage of your installation. If this is not the case, contact the dealer and do not connect the unit

18. Never leave the unit unattended while in operation.

19. Please keep this document at hand and give it to the

future owner in case of transfer of your device

20. The device must not be used if it has been dropped, it

obvious signs of damage are visible or if it has leaks.

21. Never open the appliance from the front, always

position yourself slightly to the side to avoid burning yourself with steam.22. Disconnect the steam cleaner before cleaning, repairs or maintenance.

23. The steam must not be aimed directly at electrical

equipment, mains cables or parts containing electrical components (for example inside ovens, fridges, switches and lights, microwave ovens, screens).

• Never jet steam against people or any animal, and never attempt to touch steam and the steam nozzle

• Please store this appliance in which children cannot get it

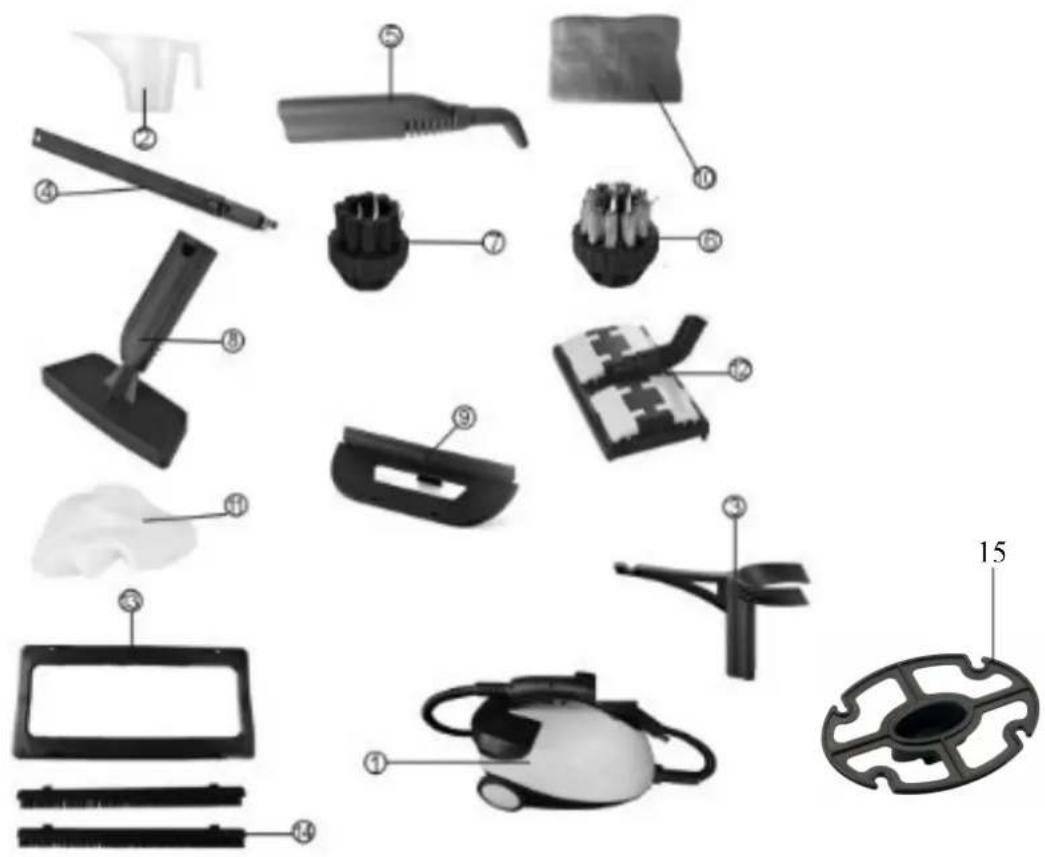

• Please open safety valve until coolingCOMPONENT A: The figure of multifunctional steam cleaner and the accessories

1. Steam Cleaner 2. Measuring Cup

3. Hanger 4. Extension Tube 15. Bobbin winder

5. Big Nozzle 6. Stainless Round Brush

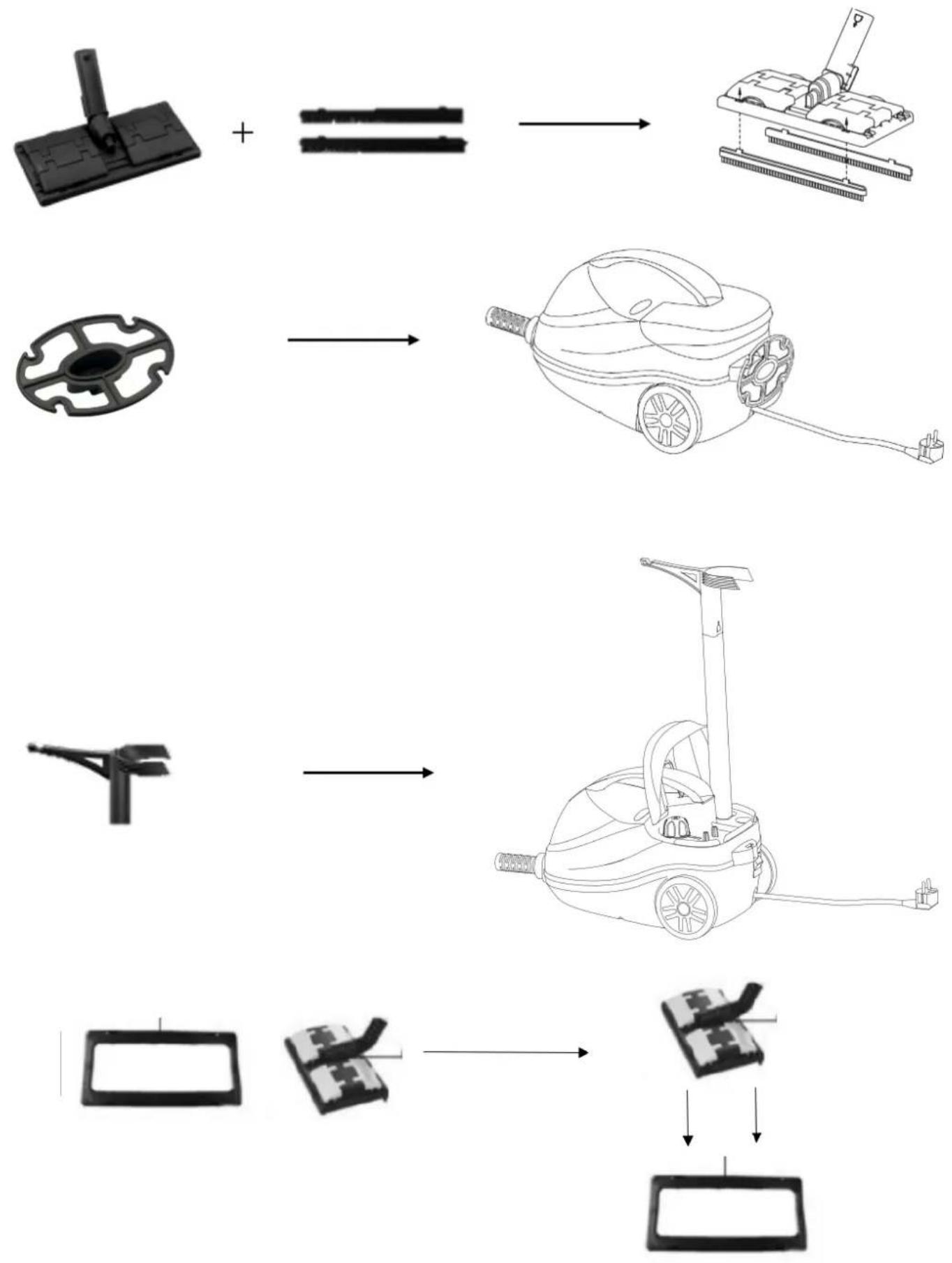

15Carpet and rug accessoriesB: Accessory compartment The steam hose with steam gun must be connected to the appliance, and the desired accessory must be attached before the steam can be used. The steam cleaner has an accessory compartment that houses the big nozzle, round brush.

Steam cleaner must always fill water before using. Please use the measuring cup to fill water in the boiler. Do not exceed the maximum filling capacity. Refer the water capacity line in the measuring cup. Remark:

• Revolve the safety valve tight once the water is full .Do not overfill. Max is 1.5L.

• If the red light show on, it means there is short of water, please turn off the power and wait cooling before opening the safety valve.

Assemble the extension tube if the steam cleaner is to be used to clean floor or high place windows or difficult to reach areas. To do this, push the open end of the tube into the steam gun until the release button of the steam gun clicks into place. And one or two extension tube if required. Press in the appropriate the release button and pull the tubes apart with a download movement to take the extension tube off.

This nozzle makes it possible to clean hard to reach places such as corners, joints and toilets with ease. Simple push the bent nozzle firmly into the gun directly.4) Metal round brush and nylon round brush The metal and nylon round brush are pushed firmly into the bent nozzle in same way. Even the most stubborn dirt can be removed. e.g. blinds, central heating radiators, valves, etc. Please use small mental brush. The nylon brush is suitable for heating staining on less sensitive materials such as stainless steel or stone. Simply pulling off with a downward movement can remove it directly.

To clean window, mirrors, or tiles those which with smooth surface objects, please use the window brush which is with rubber blade combined with brush sprayer to clean.

To iron the cloth, please use the brush to push firmly in the gun. Besides, you can put the extension tube in the machine and hanger the clothes hanger to the extension tube directly.

Attach floor brush nozzle to the end of extension tube. Ensure that nozzle clicks into place on assembly. The floor brush is ideal for cleaning washable wall and floor coverings. It may be used with or without the towel. Pressure on the inner side of the holder, open the clips to add the towel in place.OPERATION 1: Assembling the related accessories. 2: Using the measuring cup to filling water. Max is 1.5L. Revolve the safety valve tight before power on. Special attention *please try best to select the clean water. *please do not using any alcohol, detergent to fill in it. 3: Preparation to use *Using the power plug in the socket (please check if the voltage is 220-240V). (1) Turn on the ON/OFF switch. Light will show red. (2) Indicator light show Green means the pressure is get to the setting data (4Bar.). The steam is ready to use. 4: Using your thumb to press down the steam switch. *You can check there is a children’s ON/OFF lock. If it is on OFF side, there is no steam. You need to push down directly. *If you need to use continuous, you need to press down the steam switch continuous. 5: Power off the machine After use, close the power switch. Pull out the plug from the socket. Please wait cooling before open the safety valve. And do pull the water away before storing.

STORAGE AND CLEANING

• Do not store in a warm place

• Store it in a dry place and without light

• Remember to remove the water each time you have finished using it to avoid chemical reactions. Always disconnect and allow the unit to cool before cleaning. CAUTION: Never immerse the device in water or any liquid.

• Clean the outside of the elements with a damp cloth and a little dishwashing liquid if necessary. Wipe well with a dry cloth. Do not use aggressive cleaning agents or abrasive sponges.* It is recommended to descale the device regularly (once a month) for better performance. For this purpose, use vinegar or another suitable descaling product. TROUBLE SHOOTING Do not use under unusually situation. Please contact with the company's sales or after-sale service center. Do not repair at home, otherwise it may cause danger. Situation Please check according to the following points solution No spray steam Plug not insert to the power socket tightly Insert again or exchange power socket Switch indication light is not turn on Turn on the switch No water Fill water to water tank water pump blocked Ask professional person to repair Water is flowing from nozzle water dropped from nozzle for the first using It is normal phenomenon. You can spray to the cup first Hydrops in the soft pipe Straighten the soft pipe and spray the water complete Accessory install Install right or not Reinstall

ACCESSORY Accessory Extension tube Floor brush Ironing brush Glass brush Big nozzle Measuring cup Hanger Quantity

Accessory Nylon brush Stainless brush Ironing brush towel Floor brush towel Manual instruction O-ring

2WARRANTY The warranty period for our products is 2 years, unless otherwise stated, starting from the date of initial purchase or the date of delivery. If you have any problems or questions, you can easily access our help pages, troubleshooting tips, FAQ, and user manuals on our service site: https://sav.hkoenig.com. By typing the reference name of your device in the search bar, you can access all available online support, designed to best meet your needs. If you still cannot find an answer to your question or problem, then click on “Did the answer solve your problem?”. This will direct you to the Customer Support Request Form, which you can fill out to validate your request and get help. WARRANTY CONDITIONS The warranty covers all failures occurring under normal use, in accordance with the usage and specifications in the user's manual. This warranty does not apply to packaging or transportation problems during shipment of the product by the owner. It also does not include normal wear and tear of the product, nor maintenance or replacement of consumable parts.

EXCLUSION OF WARRANTY

- Accessories and wearing parts (*). - Normal maintenance of the device. - All breakdowns resulting from improper use (shocks, failure to comply with power supply recommendations, poor conditions of use, etc.), insufficient maintenance or misuse of the device, as well as the use of unsuitable accessories. - Damage of external origin: fire, water damage, electrical surge, etc. - Any equipment that has been disassembled, even partially, by persons other than those authorized to do so (notably the user). - The products whose serial number would be missing, deteriorated or illegible that would not allow its identification. - The products subjected to leasing, demonstration, or exhibition. (*) Some parts of your device, called wear parts or consumables, deteriorate with time and frequency of use of your device. This wear and tear are normal but can be accentuated by poor conditions of use or maintenance of your device. These parts are therefore not covered by the warranty. The accessories supplied with the device are also excluded from the warranty. They cannot be exchanged or refunded. However, some accessories can be purchased directly through our website: https://sav.hkoenig.com/.ENVIRONMENT CAUTION: Do not dispose of this product as it has with other household products. There is a separation of this waste product into communities, you will need to inform your local authorities about the places where you can return this product. In fact, electrical and electronic products contain hazardous substances that have harmful effects on the environment or human health and should be recycled. The symbol here indicates that electrical and electronic equipment should be chosen carefully, a wheeled waste container is marked with a cross. Adeva SAS / H.Koenig Europe - 8 rue Marc Seguin - 77290 Mitry Mory - France www.hkoenig.com - sav@hkoenig.com - contact@hkoenig.com - Tél: +33 1 64 67 00 05FRANCAIS
