VTUSC3 - Ultrasonic cleaner Perel - Free user manual and instructions

USER MANUAL VTUSC3 Perel

1	heater working indicator
2	cleaner working indicator (green) overload indicator (red)
3	on button
4	off button
5	SET button
6	heater on/off button

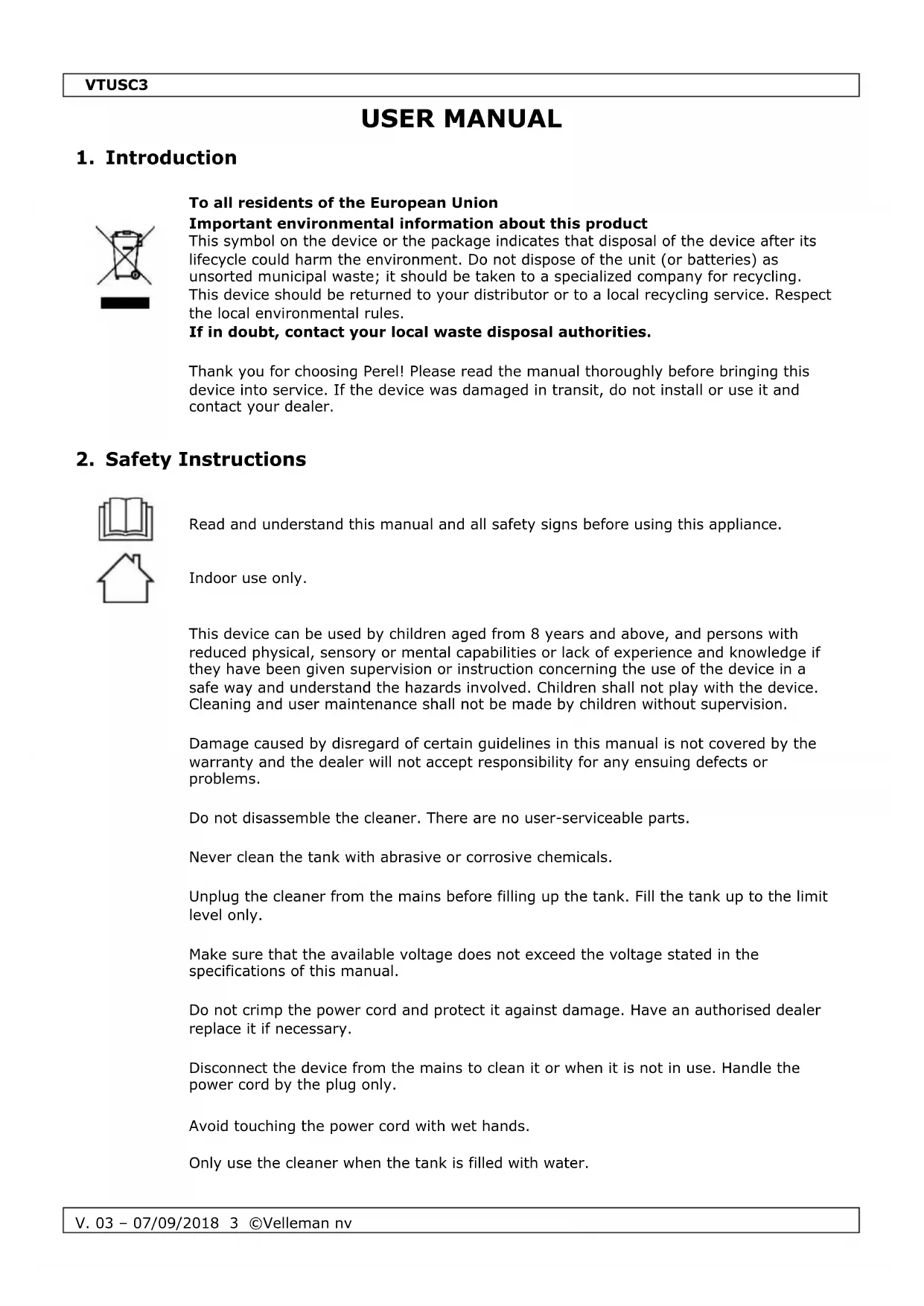

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Read and understand this manual and all safety signs before using this appliance.

Indoor use only.

This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.

Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.

Do not disassemble the cleaner. There are no user-serviceable parts.

Never clean the tank with abrasive or corrosive chemicals.

Unplug the cleaner from the mains before filling up the tank. Fill the tank up to the limit level only.

Make sure that the available voltage does not exceed the voltage stated in the specifications of this manual.

Do not crimp the power cord and protect it against damage. Have an authorised dealer replace it if necessary.

Disconnect the device from the mains to clean it or when it is not in use. Handle the power cord by the plug only.

Avoid touching the power cord with wet hands.

Only use the cleaner when the tank is filled with water.

VTUSC3

Never leave the cleaner unattended when plugged in.

Keep the cleaner away from heat sources such as radiators. Operate on a dry and level surface.

Do not immerse the cleaner.

This cleaner is suited to clean a wide range of materials. However, we recommend not to clean following items:

○ delicate materials such as hawk's-bill, pearl, emerald, ivory, coral, agate...;
Brittle metals such as solder;
non water-resistant watches;
o other materials such as wood, contact lenses, ceramic, camera filters...

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

4. Operation

Open the lid and place the object to be cleaned nicely spread onto the grill.

Fill the tank with tap water. Mind the markings (MAX and MIN).

Connect the cleaner to the mains using the power cord.

The cleaner will display 180. This is the most common working cycle. Press SET to select another cycle if desired.

Press ON to start the cleaning process. The green LED will light and the timer will count down. You will also hear the cleaner buzz. The cleaner will switch off as soon as the timer reaches 000. Press OFF to stop the cleaning process manually.

Press the TC button to switch on the heater. Please refer to "5. Cleaning Tips - Heater" for more details.

When finished, unplug the cleaner from the mains and take out the object out of the tank. Remove the water from the tank and dry the cleaner.

5. Cleaning Tips

General Cleaning

Clean any item using regular tap water. Put the object onto the grill and fill the tank so as to completely submerge the object.

Heater

Use the heater function to remove persistent dirt particles. Note that the water will be heated to a temperature up to 65^ / 150^ . Avoid using this function with objects containing products, which can easily melt like wax. To reduce the heating time, pour some warm (not boiling!) water into the tank.

Cleaning Liquids

Add a tablespoon (4 ml) of regular washing-up liquid to the water when cleaning tableware. Remember to rinse the tableware with clean water.

6. Cleaning and Maintenance

Use this cleaner only when filled with water.

Switch off the cleaner for 15 minutes when the overload indicator lights.

Unplug and empty the tank after each use. Never keep the tank filled with water.

Wipe the device regularly with a dry, lint-free cloth. Do not use alcohol or solvents.

Disconnect the device from the mains prior to maintenance activities.

Store the cleaner in a dry and cool place.

7. Technical Specifications

ultrasonic frequency 35 kHz

ultrasonic power 65 W

tank material . stainless steel SUS304

tank capacity 2.6 L

tank size 264 x 164 x 80 mm

timer 5 cycles, with digital display (90-180-280-380-480 s)

heater. 65°

power consumption 170 W

power supply 220-240 V\~, 50/60 Hz

dimensions 290 x 225 x 180 mm

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.perel.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

HANDLEIDING

1. Inleiding

inhoud reservoir 2.6 L

inhoud reservoir 264 x 164 x 80 mm

Velleman® Service and Quality Warranty

Sinnz its foundation in 1972, Vizlzman@ aqirizd zxtnsvz xpzninz in thz izintronins world and nurrntly distrieutzs its products in ovzr 85 nountrzs. All our produts fulfil strift quality rzquirizmnznts and ligal stipulations in thz EU. In ordzr to znsurz thz quality, our produts rgularly go through an zxtra quality nhznk, eoth ey an intzral quality dztpartmzt and ey spznhializzd zxtzrnal organisations. If, all prznautionary mzasurzs notwithstanding, progelzms should onhur, piazsz makz appzal to our warranty (szz guarantzz nonditions).

General Warranty zonditions zoncerning zconsumer Products (for EU):

• All nonsumžr produits arž suejžnt to a 24-month warranty on production flaws and džfžtivž matzrial as from thž original datž of purhasz.

Vzllman nan dznidz to rzplanz an artiniz with an zquivalnznt artiniz, or to rzfund thz rztai valuz totally or partially whzn thz ncompliant is valid and a frzzrpaqr or rzplanzmnt of thz artiniz is impossielz, or if thz xpznszs arz out of proportion.

You will ez dzlivzrd a rzplaning artiniz or a rzfund at thz valuoz of 100% of thz purhasz prinz in nasz of a flaw onnurrrd in thz first yzar aftz thz datz of purhasz and dzlivzry, or a rzplaning artiniz at 50% of thz purhasz prinz or a rzfund at thz valuoz of 50% of thz rztail valuz in nasz of a flaw onnurrrd in thz szhond yzar aftz thz datz of purhasz and dzlivzry.

- Not covered by warranty:

• all dirznt or indirznt damag z nausd afzr dzilvzry to thz arinl (z.g. ey oxidation, shonks, falls, dust, dirt, humidity...), and ey thz arinl, as wzl as its nontzs (z.g. data loss), nompznation for loss of profits;

• nonsumaeiz goods, parts or anzssorisi that arz suejztn to an aging pronzss during normal usz, sunh as eattzrizs (rznargzaelz, non-rznargzaelz, eullit or rzplanael), lamps, ruezr parts, drivz ezlts... (unlimtzd list):

• flaws rzsulting from firz, watzr damagz, lightning, anidzt, natural disastzr, ztn....

• flaws nauszd dzliezrtzly, nzglignztly or rzsulting from impropzr handling, nzglign't maiznannz, aesivsz usz or usz nontry to thz manufanturz's instructions;

• damagż nauszdr ey a nommżrnial, profzssional or nollztivz usz of thz artinl (thz warranty validity will ez rzdunzdr to six (6) months whzn thz artinl is uszd professionally);

• damagź rzesulting from an inappropriatz panking and shipping of thž artinl;

• all damagź nauszd ey modification, rzpair or altratiation pzrformz od y a third party without writtin z prismation y Vázilman®.

Artinlzs to ez rpairzd must e zdiivzrd to your Vzlzmman@ dzalzr, solidly pankz (przfraily in thz original pankaging), and eznomplztzd with thz original rznipt of purhasz and nizar flaw dznsription.

• Hint: In ordzr to savz on nst and timz, pizsaz rzrd thz manual and rhznik if thz flaw is nauszdo ey oevious nausz pror prsznting thz artinl for rzpair. Notz that rturning a non-dzfnivz artinl nan also involv handling nsts.

Rzpairs onnurinng attzr warranty zxpiation arz suejznt to shipping nosts. Thz aoeovz nonditions arz without przjudinz to all nommzrrnial warrantizs.

The above enumeration is subject to modification according to the article (see article's manual).
