Product type	Passive infrared (PIR) motion detector
Brand	Perel
Model	PIR1200W
Power supply	230 V AC, 50 Hz
Maximum load power	1200 W (incandescent), 600 W (LED/CFL)
Dimensions (W x H x D)	Approx. 10 x 10 x 8 cm
Weight	Approx. 150 g
Detection type	Passive infrared (PIR)
Detection range	Up to 12 m (depending on conditions)
Detection angle	180°
Time delay adjustment	From 5 seconds to 8 minutes
Day/night threshold (twilight)	Adjustable from 3 to 2000 lux
Protection rating	IP44 (splash-proof)
Operating temperature	-20°C to +40°C
Maintenance and cleaning	Clean with a soft dry cloth. Do not use solvents or abrasive products.
Safety	Disconnect power before any intervention. Installation must comply with applicable electrical standards.
Spare parts and repairability	No spare parts available; device not user-repairable.
General information	Complies with European (CE) directives. Indoor or outdoor use.

Frequently Asked Questions - PIR1200W Perel

How to adjust the sensitivity of the detector?

Sensitivity is adjusted via the SENS potentiometer on the housing. Turn it clockwise to increase the detection range, counterclockwise to reduce it.

Why does the detector turn on in broad daylight?

The twilight threshold (LUX setting) is probably too high. Turn the LUX potentiometer towards the moon symbol so that the detector only activates at nightfall.

How to adjust the on-time duration?

Use the TIME potentiometer to set the time delay from 5 seconds to 8 minutes. Turn clockwise to increase the duration.

The detector does not turn on at all. What to do?

Check that the power switch is on and the fuse is good. Make sure the LUX threshold is not set to day mode (sun) and that the lamp is not burnt out.

Can this detector be installed outdoors?

Yes, the IP44 rating protects it against splashes. However, avoid direct exposure to heavy rain.

What is the recommended installation height?

Install the detector at about 2 to 2.5 meters above ground for optimal coverage.

The detector turns on for no apparent reason. Why?

This may be due to heat sources (animals, vehicles, temperature variations) or a poor detection angle. Reduce sensitivity or reorient the detector.

Can I use LED bulbs with this detector?

Yes, but the maximum load for LEDs is 600 W. Make sure the total power of the LEDs does not exceed this limit.

How to clean the detector?

Use a soft dry cloth. Never use chemicals or abrasives that could damage the lens.

Does the detector flash when detecting?

Normally not. Flashing may indicate an overload or wiring fault. Check the lamp power and connections.

USER MANUAL PIR1200W Perel

PIR1200B

PIR1200W

USER MANUAL 4

GEBRUIKERSHANDLEIDING 7

MODE D'EMPLOI 10

MANUAL DEL USUARIO 13

Fig. 2

Fig. 3

Fig. 4

Fig. 5

USER MANUAL

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service.

Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

3. Operation

Refer to the illustrations on page 2 of this manual.

• You can adjust the detection area according to your needs: turn the device to the left or right and aim it up or down. Note that the detector is much more sensitive to objects moving across the detection area (fig. 1) than it is to objects coming straight at it (fig. 2). This is a very important consideration when selecting the mounting location.
• The device can distinguish between day and night thanks to the adjustable ambient light setting. The device can work in the daytime when the "sun" (max.) position is selected with the selector at the back of the device. The device will only work with an ambient light level < 3 lux when the "moon" (min.) position is selected.
• TIME adjustment: enables the user to set the activation duration (min. 8 s +/- 3 s, max. 7 min +/- 2 min).

4. Installation

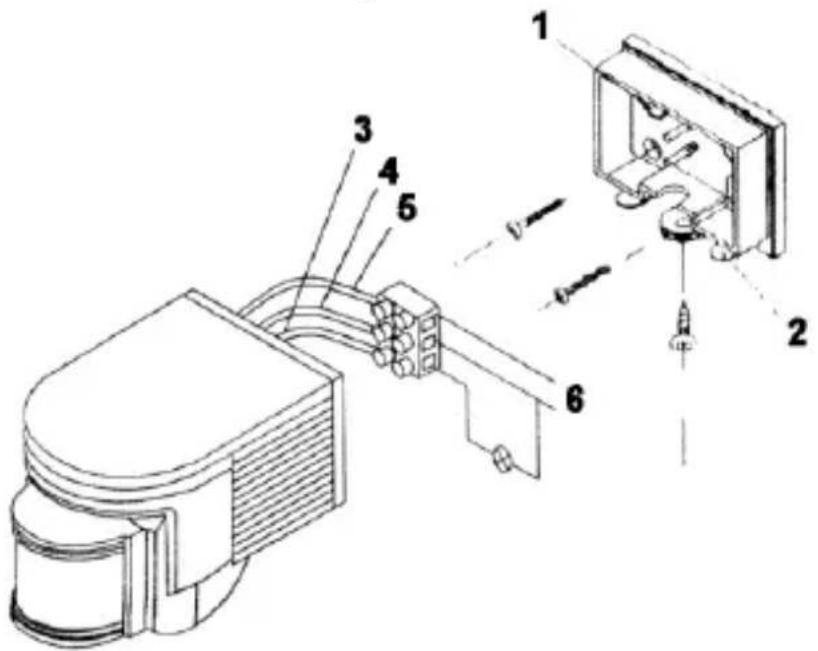

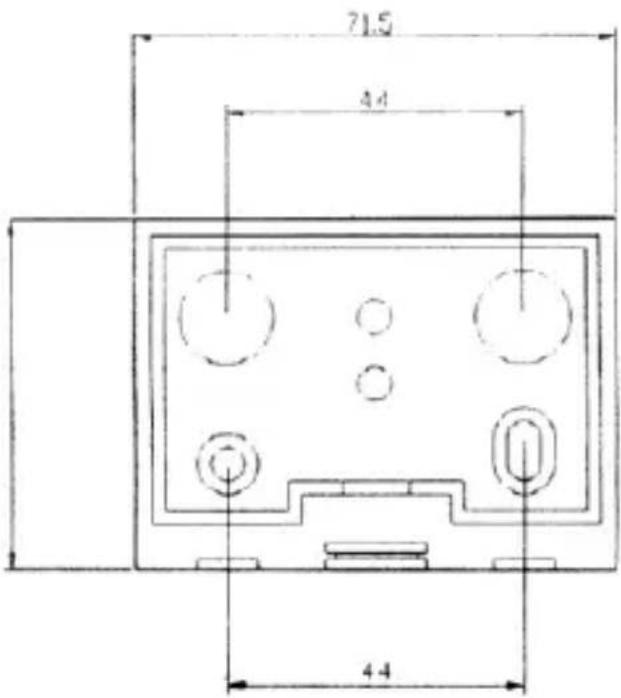

Refer to the illustrations on page 2-3 of this manual.

1. Deactivate and remove the fuse.
2. Remove the screw at the bottom. Remove the two recesses and insert the wires through the holes.

3. The bottom part of the housing is mounted with the included screw.

4. Connect the wires according to the illustration 3 on page 2.

1	recess
2	recess

3	red
4	blue

5	brown
6	input

1. Attach the sensor to the bottom part of the housing. Screw the housing shut and connect the device with the mains.

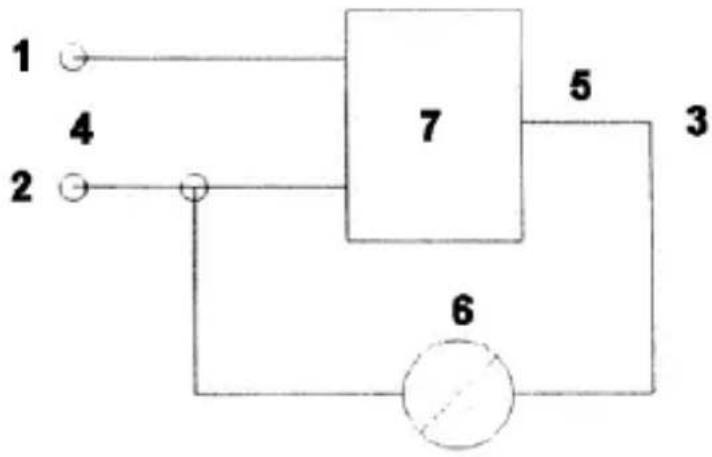

5. Wiring Diagram

Refer to illustration 4 on page 3 of this manual.

1	brown
2	blue
3	red
4	input

5	output
6	lamp
7	sensor

6. Test

• Turn the LUX adjustment anticlockwise until the max. position is reached and turn the TIME adjustment anticlockwise until the min. position is reached.
• It takes the device some 5 to 10 s to react when movement is detected. The lamp will light for 5 to 15 s.

7. Notes

• A qualified electrician should install this device.
• Do not block the front of the detection window and make sure the detection area holds no moving objects.
• Do not install the device close to air conditioning vents, radiators, etc.
• Do not open the housing and attempt to repair the device yourself in case of malfunction. Only skilled technicians should repair this device.

8. Troubleshooting

The lamp does not work.

- Check the power supply and the lamp.

Sensitivity is poor.

• An object may be blocking the detection window.
• Check the ambient temperature.
• Please check if the signal source is located within the boundaries of the detection range.
• Check the installation height.
• Check if the moving orientation is right.

The lamp does not extinguish.

○ Movement is continually detected.
- The activation duration is too long.
- Dramatic temperature change in close vicinity to the sensor. These may be caused by e.g. air conditioning vents or central heating elements, etc.

9. Technical Specifications

power supply..... 220-240 V\~, 50 Hz
detection range .... 12 m max. detection angle.... 180°
light control .... < 3-2000 lux (adjustable) activation duration .. min. 8 s (+/- 3 s) to max. 7 min (+/- 2 min) rated load.... 1200 W (230 V\~)
installation height 0.5-3.5 m power consumption 0.45 W (0.1 W standby) motion speed detection range 0.6-1.5 m/s working temperature -20 °C to +40 °C working humidity < 93 % RH IP value IP44 switch type relay relay output normally open (N.O.)

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

GEBRUIKERSHANDLEIDING

1. Inleiding

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

• All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.
• Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.
  You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

- Not covered by warranty:

• all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;
• consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);
• flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;
• flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;
• damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);
• damage resulting from an inappropriate packing and shipping of the article;
• all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.
• Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.
• Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.
• Repairs occurring after warranty expiration are subject to shipping costs.
• The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).
