Product type	Electric insect killer lamp
Brand	Perel
Model	GIK20
Main function	Attracts and electrocutes flying insects
Light source	UV lamp (fluorescent tube)
Rated power	6 W
Supply voltage	220-240 V ~ 50 Hz
Dimensions (L × W × H)	25 × 15 × 10 cm
Weight	0.5 kg
Coverage area	Approximately 30 m²
Protection grid	Yes, to prevent accidental contact
On/off switch	Yes, integrated
Color	White / Black (depending on version)
Housing material	ABS plastic
Installation type	Placed on a flat surface or suspended
Cleaning	Unplug, remove the collection tray, and clean with a dry cloth
UV lamp replacement	Yes, possible (reference: GIK20-LAMP)
Protection rating	IP20
Safety standards	CE, RoHS

Frequently Asked Questions - GIK20 Perel

How to turn on the Perel GIK20 insect killer lamp?

Plug the device into a power outlet and then press the switch on the side to turn on the UV lamp. The light attracts insects and the electric grid neutralizes them.

What is the coverage area of the GIK20?

The Perel GIK20 is designed to protect an area of approximately 30 m² in an enclosed room. For best results, place it in an open area away from drafts.

How to clean the device?

Before cleaning, unplug the device. Open the collection tray at the bottom, empty the dead insects, and clean the residue with a dry cloth. Never use water or liquid products.

Can the UV lamp be replaced?

Yes, the UV lamp is replaceable. Use only the replacement model GIK20-LAMP available from your dealer. Unplug the device before handling.

Is the device safe for children and pets?

The outer grid is protected to prevent accidental contact. However, it is recommended to keep the device out of reach of children and pets to avoid any risk.

Can the GIK20 be used outdoors?

The device is designed for indoor use only (IP20). Do not expose it to moisture or rain. Outdoor use under cover is possible provided it is sheltered from the weather.

Why are insects not attracted to the light?

Check that the UV lamp is working (it should emit a bluish light). If defective, replace it. Also ensure there are no other stronger light sources nearby.

What to do if a burning smell comes out?

A slight odor may occur during first use or after a massive electrocution of insects. If the smell persists or becomes strong, unplug the device and check that no debris is in contact with the grid. Contact customer service if necessary.

Does the device consume a lot of electricity?

With a power of only 6 W, the GIK20 is very economical. Used 8 hours a day, it consumes about 0.048 kWh per day, which is less than €2 per year at the regulated tariff.

How to ask an additional question about the device?

Visit the product page on notice-facile.com and use the 'Ask a question' form in the FAQ section. You can also view the full manual in PDF format available for free.

USER MANUAL GIK20 Perel

Black and white photo of a nightlight lamp with grid pattern and lid (no visible text or symbols)

USER MANUAL 3

HANDLEIDING 7

MODE D'EMPLOI 11

MANUAL DEL USUARIO 15

Close-up of a black plastic mechanical component with a circular hole and a labeled arrow pointing to it (no text or symbols on the object itself)

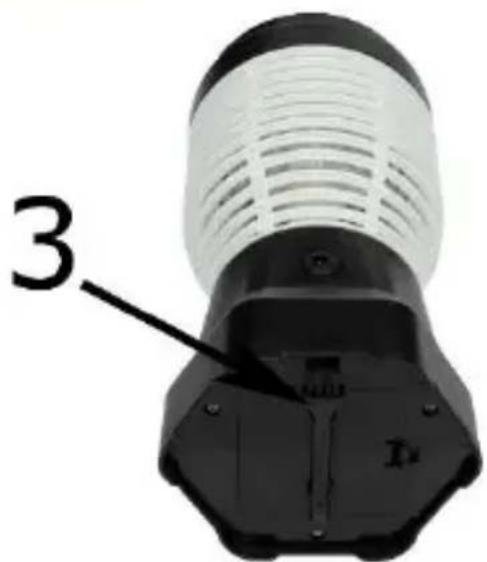

Close-up of a black and white electronic device with a labeled component (3), no visible text or symbols on the body itself.

USER MANUAL

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

	Do not touch the metal grid and never insert metal objects in the device: risk of electroshock.
		Indoor use only. Keep this device away from rain, moisture, splashing and dripping liquids. Never put objects filled with liquids on top of or close to the device.
	Never submerge the device into water or any other liquid.
	This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children shall be supervised to ensure that they do not play with the appliance.
	Do not cover the device while it is in use.
	Do not use near inflammable products or in explosive atmospheres.

GIK20

Do not crimp the power cord and protect it against damage.

Warning! If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid any hazard.

Always disconnect mains power when the device is not in use or when servicing or maintenance activities are performed. Handle the power cord by the plug only.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

Keep this device away from dust and extreme temperatures.

Protect this device from shocks and abuse. Avoid brute force when operating the device.

• Familiarise yourself with the functions of the device before actually using it.
- All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
- Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
- Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
- Keep this manual for future reference.

4. Features

• 2-in-1 electric insect killer and camping/emergency light
- high-efficiency UV-A LED fluorescent lamp for luring insects
• high-voltage inner grid for high killing rate
- portable, ideal for camping

5. Overview

Refer to the illustrations on page 2 of this manual.

1	on-off switch
2	power input

3	cleaning brush

6. Operation

6.1 Insect Killer

1. Fully charge the unit (5 hours) before using it. Connect the power adapter to the insect killer, and connect to the mains.
2. Install the device in the darkest place in the room, at a height of 50 to 100 cm above the ground.
3. Close all windows and doors in the room. Switch on the insect killer function (UV LEDs).
4. Switch off after use.

6.2 Emergency Light

1. Make sure the device is sufficiently charged.
2. Switch on the emergency light function (white LEDs). Press the on-off switch twice.
3. Switch off after use.

7. Cleaning and Maintenance

Warning! Never touch the metal grid with your bare hands. If you need to clean the tray, follow the safety instructions carefully.

The cleaning frequency depends on the intensity of use. Check the tray of the device at least once a week. Clean more often if necessary.

8. Technical Specifications

effective area....80 m² LED working life....up to 50 000 hours power adapter input....100-240 V\~, 50/60 Hz, 100 mA output....5 VDC, 500 mA UV-A LED number....5 (not replaceable) total power consumption....1.3 W white LEDs number....10 (not replaceable) total power consumption....1.5 W

GIK20

battery life

UV-A light 20 h (fully charged)

white light 24 h (fully charged)

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.perel.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

HANDLEIDING

1. Inleiding

Weather and protection symbols including rain, moon, umbrella, and house (no text or labels)

Weather and environmental symbols including no rain, cloud, umbrella, and house (no text or labels)

Weather and protection symbols including no rain, raindrops, umbrella, and house (no text or labels)

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

- All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.

- Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.

You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

• Not covered by warranty:

- all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;

- consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);

- flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;

- flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;

- damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);

- damage resulting from an inappropriate packing and shipping of the article;

- all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.

- Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.

- Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.

- Repairs occurring after warranty expiration are subject to shipping costs.

- The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).
